Gleich 1" thickPrecision CAST Aluminum PLATE 3" x 9.25" Long QTY 2 sku136950

Brand: Gleich

1" thickPrecision CAST Aluminum PLATE 3" x 9.25" Long QTY 2 sku136950

CATEGORIES
Shop Categories
PLATE 6061 - Aluminum1/4 inch thick5/16 inch thick3/8 inch thick1/2 inch thick5/8 inch thick3/4 inch thick7/8 inch thick1 inch thick1 1/8 inch thick1 1/4 inch thick1 3/8 inch thick1 1/2 inch thick1 3/4 inch thick2 inch thick2 1/4 inch thick2 1/2 inch thick2 3/4 inch thick3 Inch thick and OverRandom Size LotSHEET - AluminumCAST PLATE - Aluminum1/4 inch thick5/16 inch thick3/8 inch thick1/2 inch thick5/8 inch thick3/4 inch thick1 inch thick1 1/4 inch thick1 1/2 inch thick1 3/4 inch thick2 inch and OverRandom Lot SizesDIAMOND PLATE - AluminumROUND BAR- AluminumUnder 3 inch Diameter3 inch to 4 inch DiameterOver 4 inch to 5 inch DiaOver 5 inch to 7 inch DiaOver 7 inch to 10 inch DiaOver 10 inch to 12 inch DiaOver 12 inch to 15 inch DiaOver 15 inch DiameterAll ROUNDS < 2 inch in LengthFLAT BAR - Aluminum.5" thick and under.625" thick Bar.75" thick Bar1" thick Bar1.25" thick Bar1.5" thick Bar1.625" thick Bar1.75" thick Bar2" thick Bar2.25" thick Bar2.5" thick Bar2.75" thick Bar3" to under 4" Bar4" thick and Over BarTUBE - AluminumANGLE - AluminumCHANNEL - AluminumOTHER
Helpful Links
Item Description

CAST PLATE Aluminum

Precision Cast Tool and Jig Plate

Produced in Germany


Number of Pieces included in listing: 2

Dimensions

Thickness

1

inches
Width 3 inches
Length 9.25 inches



Item measurements are at or on the plus side of the dimensions provided.

This plate is new and meets all mill tolerances and specifications, minor surface scratches, edge and corner nicks may be present. Unless otherwise noted the plate contains the manufactures protective film which covers the face of the plate.

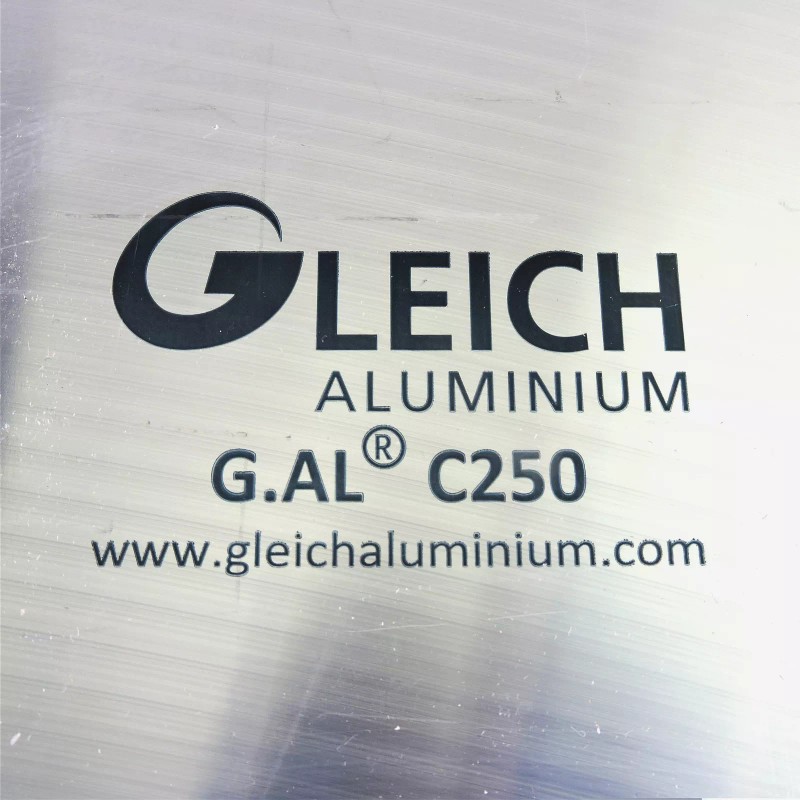

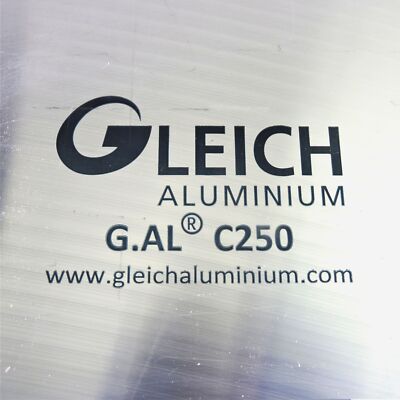

This Cast Plate is manufactured in Germany by Gleich Aluminium. Gleich is the European market leader in the production of high quality precision Cast Aluminum Plate.

See Technical specifications below.

Please visit our eBay store to see all ALUMINUM products and sizes available.

Click on the blue door BELOW to be redirected to our eBay store where you can filter by product and thickness.

We strive to provide an outstanding product and exceptional customer service. We will earn your positive feedback. If for some reason the product or service does not meet your expectations, we would appreciate the ability to make it right, please contact us.


Thanks you for shopping at USA Metal Online


Technical Data Sheet

G.AL® C250 - precision milled plate

Plate's Characteristics

Alloy

EN /AA 5083

Type of Alloy

non heat treatable

Temper

homogenised and stress relieved

Surface

precision milled, roughness Ra 0,4 µm, foiled on both sides

Mechanical Properties 1)

Typical values

Yield strength Rp0,2

[ksi]

16 - 19

Ultimate tensile strength Rm

[ksi]

33 - 42

Elongation A 5

[%]

10 - 15

Hardness HBW

[2.5/62.5]

68 - 75

Physical Properties 1)

Typical values

Density

[lbs/cu in.]

0.096

Module of elasticity

[ksi·103]

10.2

Electrical conductivity

[% IACS]

29 - 32

Coefficient of thermal expansion

[10-6 /°F]

13.1

Thermal conductivity

[BTU in/ft2hr°F]

760 - 900

Specific heat capacity

[BTU/lb°F]

0.214

Processing Characteristics 2)

Dimensional stability

1

Machinability

2

Erodability

1

Weldability (Gas / TIG / MIG / Resistance / EB)

4 / 2 / 2 / 2 / 1

Corrosion resistance (seawater / weather/ stress cracking)

1 / 1 / 3

Use at temperatures (max°F / long / short / terms) 3)

356 / 536

Anodising (technical / decorative / hard-) 4)

2 / 4 / 2

Polishability

2 - 3

Etching

4 - 5

Contact with food (according to EN 602)

yes

Tolerances

Thickness in [in]

Flatness [in] 5)

Thickness [in]

Width & Length [in]

0.250

0.030

+/- 0.004

-0 / + 0.79

< 0.500

0.015

+/- 0.004

-0 / + 0.79

> 0.500

0.005

+/- 0.004

-0 / + 0.79

cuts

DIN ISO 2768-1(m)

Date: 15.07.2015

  1. Typical values at room temperature.

  2. Ratings evaluation rating from 1 (very good) to 6 (inapplicable).

  3. Without loss of strength after cooling down.

  4. Technical anodising only - no warranty towards optical demands.

  5. Surface flatness for whole plates is measured with a special, 1 meter long, digital flatness ruler.

G.AL® is a registered trademark of GLEICH-Group
