Foxwell's T1000 is an affordable universal TPMS service tool. It accurately activates and decodes TPMS sensors and program Foxwell self-developed T10 sensor. It is so easy that training is nearly not necessary as the whole process is displayed on-screen. Even the newest recruited technician can use the T1000 to complete his task.

What is FOXWELL T1000?

FOXWELL T1000 is 2021 new generation TPMS scanner to activate OEM/Universal TPMS sensors, retrieve TPMS sensor data (sensor ID,tire pressure, temperature, battery condition and OE part number), relearn 98% sensor IDs, program FOXWELL T10-sensor to replace bad sensors and testing RF Remote Keyless Entry Key Fob.

Foxwell T1000 Features

●Able to Copy sensor ID and receive 315mhz 433mhz Sensor Activation Programming . (ONLY FOXWEL T10)
●Triggers all currently known TPMS sensors, including 2021 models.
●Make-model-year selection ensures correct activation and avoids crosstalk .
●Decodes sensor information and helps troubleshoting faulty sensors.
●Warn of a wrong sensor installed,miss a faulty sensor,duplicate ID, and incorrect sensor mode .
●Check RF remote keyless entry (key fob) .
●Clearly arranged kaypad and menu-driven operation .
●Built-in rechargeable Li-polymer battery-no battery to purchase.
●Easily Charged the tool with either wall plug or connecting to the computer.
●Multilingual Menu options, English,French,Spanish,Germany,Italian,Portuguese.
●Lifetime free update via usb.
●Strong housing and protective rubber boot for tough workshop tests.

Read TPMS Sensor Data

Why is the TPMS light on? Weather if the tire air pressure are too low? Or is the sensor battery too weak? FOXWELL T1000 TPMS diagnostic tool can read the sensor ID, tire pressure, tire temperature, sensor battery, and frequency in seconds, help you figure out all TPMS problems fast.

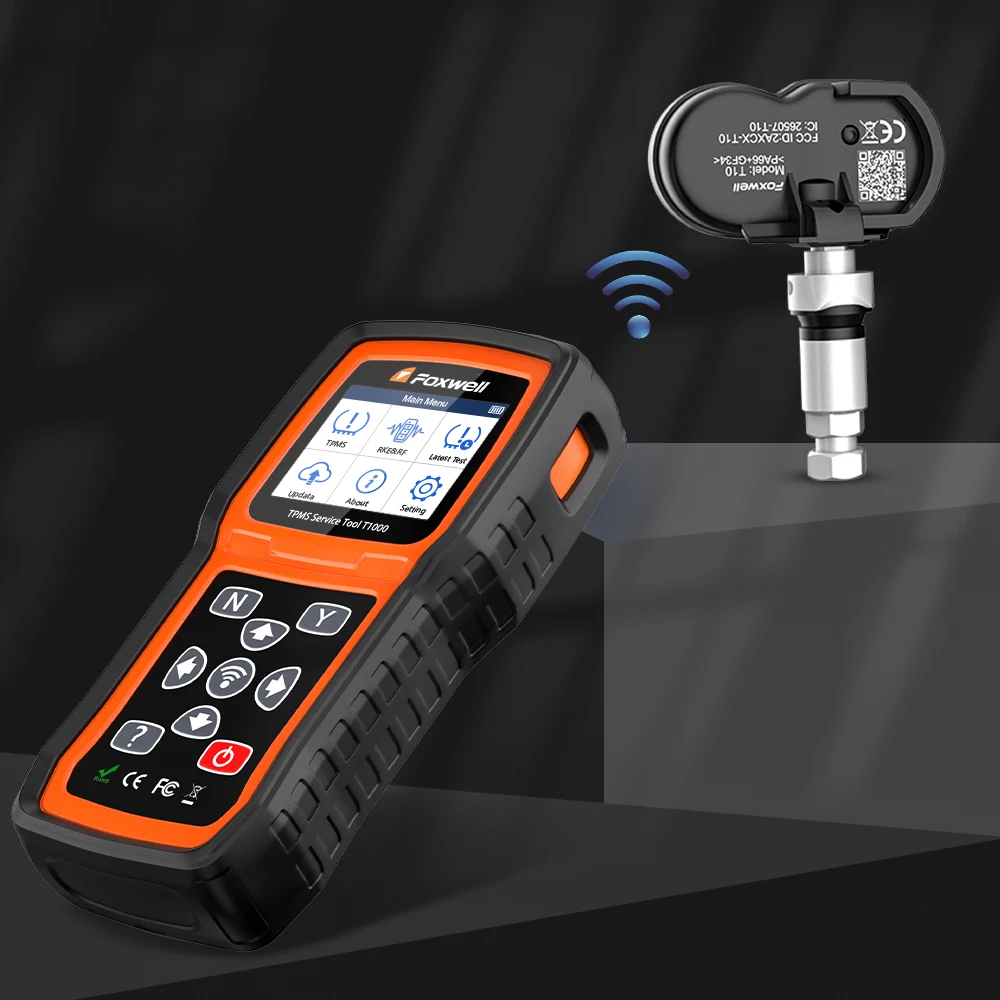

Programming FOXWELL TPMS Sensors

Note: This TPMS programming function can only work with FOXWELL T10 sensor.

With this TPMS programming tool, you can program FOXWELL exclusive T10-sensor to meet the specifications of a particular vehicle before new sensor installation and relearn. Therefore, the healthy T10 Sensors can measure tire pressure and temperature accurately, allowing you to know tire health conditions, which can replace more than 95% of the original or OEM sensors. 3 different sensor programming methods are supported by This FOXWELL TPMS programming tool T1000: Copy by Activation; Manual Create; Automatic Create.

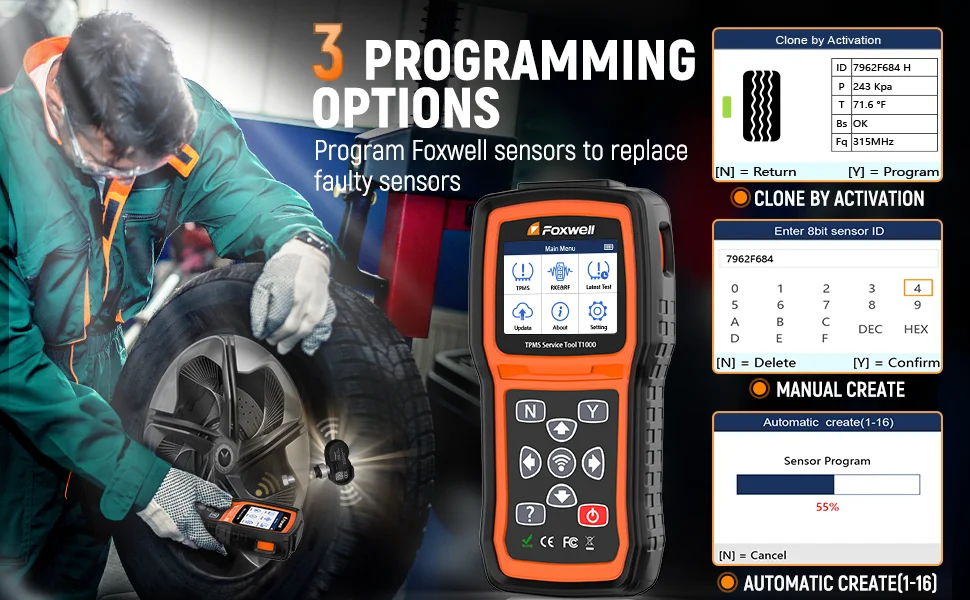

3 Methods for Quick TPMS Programming

Copy by Activation

The Clone By Activation function lets users automatically write in the retrieved original sensor data to the Foxwell Sensor which is used after the original sensor is triggered.

Place the tool near the sensor to be copied. 1)Highlight TPMS from the Main Menu and select the vehicle model as need. 2)Select Programming--Clone by Activation from the available menu. 3)Place the t1000 tool near the original sensor to be copied and press Activate to continue. 3)Place a new Foxwell Sensor in the sensor slot to program(around 0-20 cm). 3)T1000 automatically begins programming. 4) Programming is completed when you view the sensor and tire data.

Copy by Manual Input

The Manual Create function lets users to input the sensor ID manually. Input sensor ID. 1)Highlight TPMS from the Main Menu and select the vehicle model as need. 2)Select Programming--Manual Create from the available menu.3)Input the sensor ID in the dialog box and press Y to continue.

Auto Create 1-16 Sensors

Place 1-16 Sensor(s) close to the top of the tool. 1)FOXWELL T1000 automatically detects the sensor near the tool(around 0-20 cm). 2)Programming is completed when you view the sensor IDs and the PSNs.

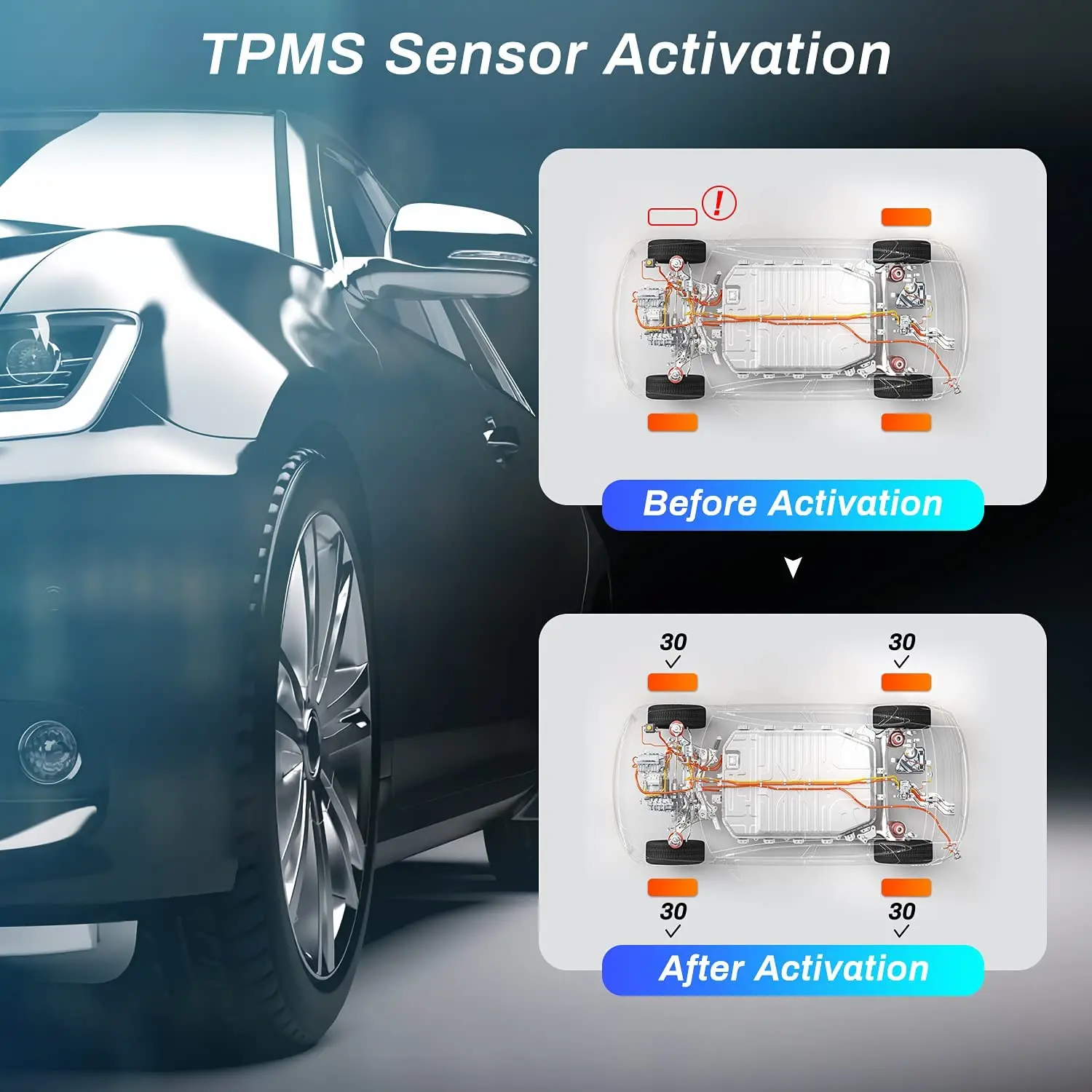

Activate TPMS Sensors

This FOXWELL TPMS scan tool T1000 enables you to activate 98% known OEM/Universal TPMS sensors in the market. You can rapidly and accurately trigger and decode sensors to read their ID, pressure, temperature, battery, frequency and OE Part number before servicing the tires/wheels or when you are performing programming or relearn. No need to purchase a separate activation tool. The sensor activation will be finished in seconds through two methods: in All wheel mode and in Single wheel mode.

TPMS Sensor Activation

1. Highlight TPMS from the main menu and select the vehicle model as need
2. Select trigger from the available menu.
3. Place the tool to the correct position to ensure sensor activation and decode.
4. Press activate to test the TPMS, if test passed, TPMS data will be briefly displayed for 3 seconds.

FOXWELL T 1000 three types of TPMS sensor relearn

self learning

T1000 provides the easy relearn procedure instruction to simplify the auto-relearn process if your vehicle is able to learn single or multiple TPMS sensor IDs. For some vehicles, the “Relearn” function can be completed automatically by driving, which makes it quite easy to do a complete set of sensor replacement operations on your own.

indirect learning

This method can only be operated in the car. When you don't have a tire pressure sensore, our T1000 TPMS relearn tool will provides a learning method for customers to operate in the car to reset the tire pressure light. The learning method will vary from each vehicle.

static learning

T1000 allows the new TPMS sensor IDs to be transferred without driving a vehicle. You can trigger the sensors when the vehicle is in learn mode by our TPMS Tool T1000.

Key FOB Testing (315/433MHz)

FOXWELL T1000 provides the key fob testing, which can precisely test the 315MHz or 433MHz key fobs to ensure whether it is perfectly running, being super easy for users to identify the key fob condition with the loud and clear audio and visual indication.

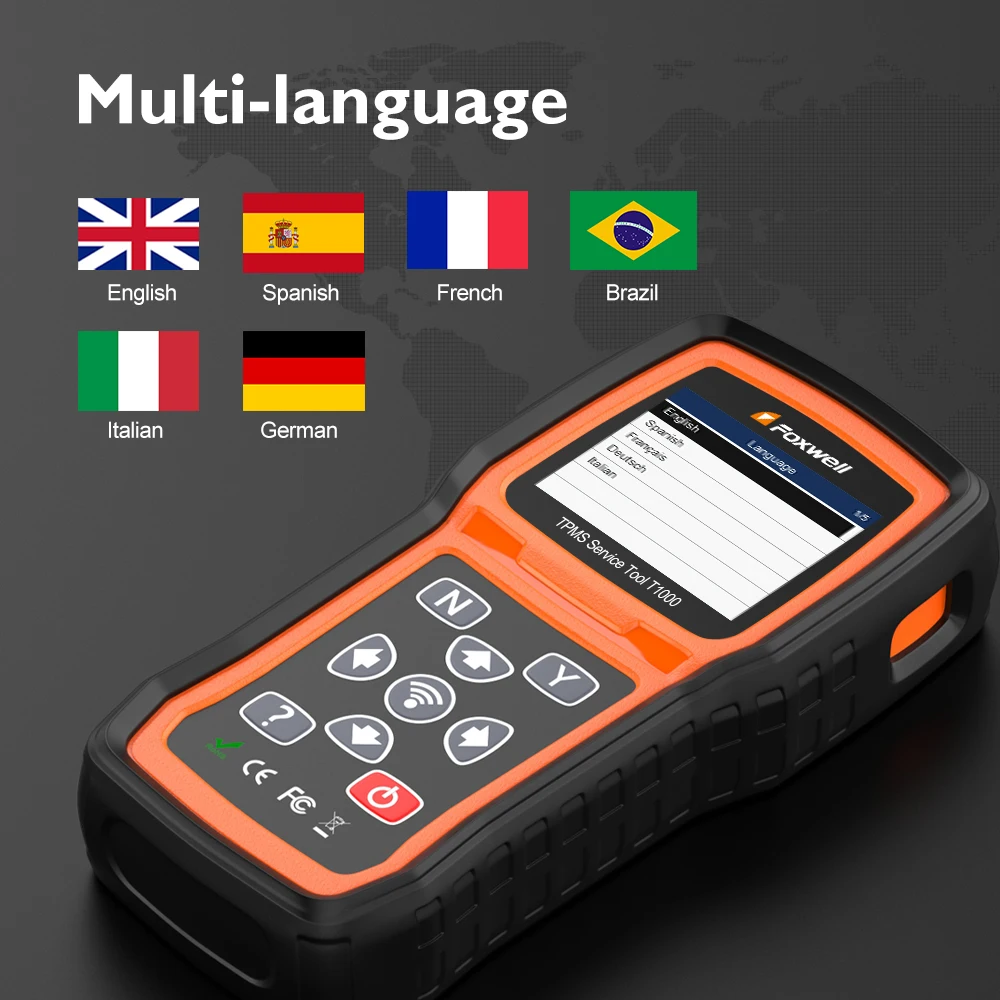

Foxwell T1000 Support Language

English,French,Spanish,Germany,Italian,Portuguese(NEW)

if no NEW language, please update it.

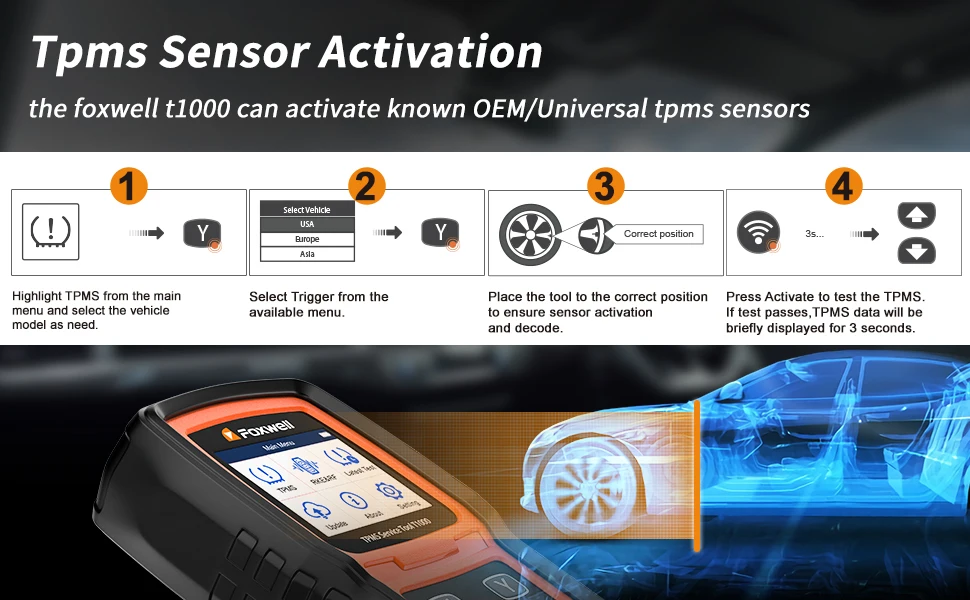

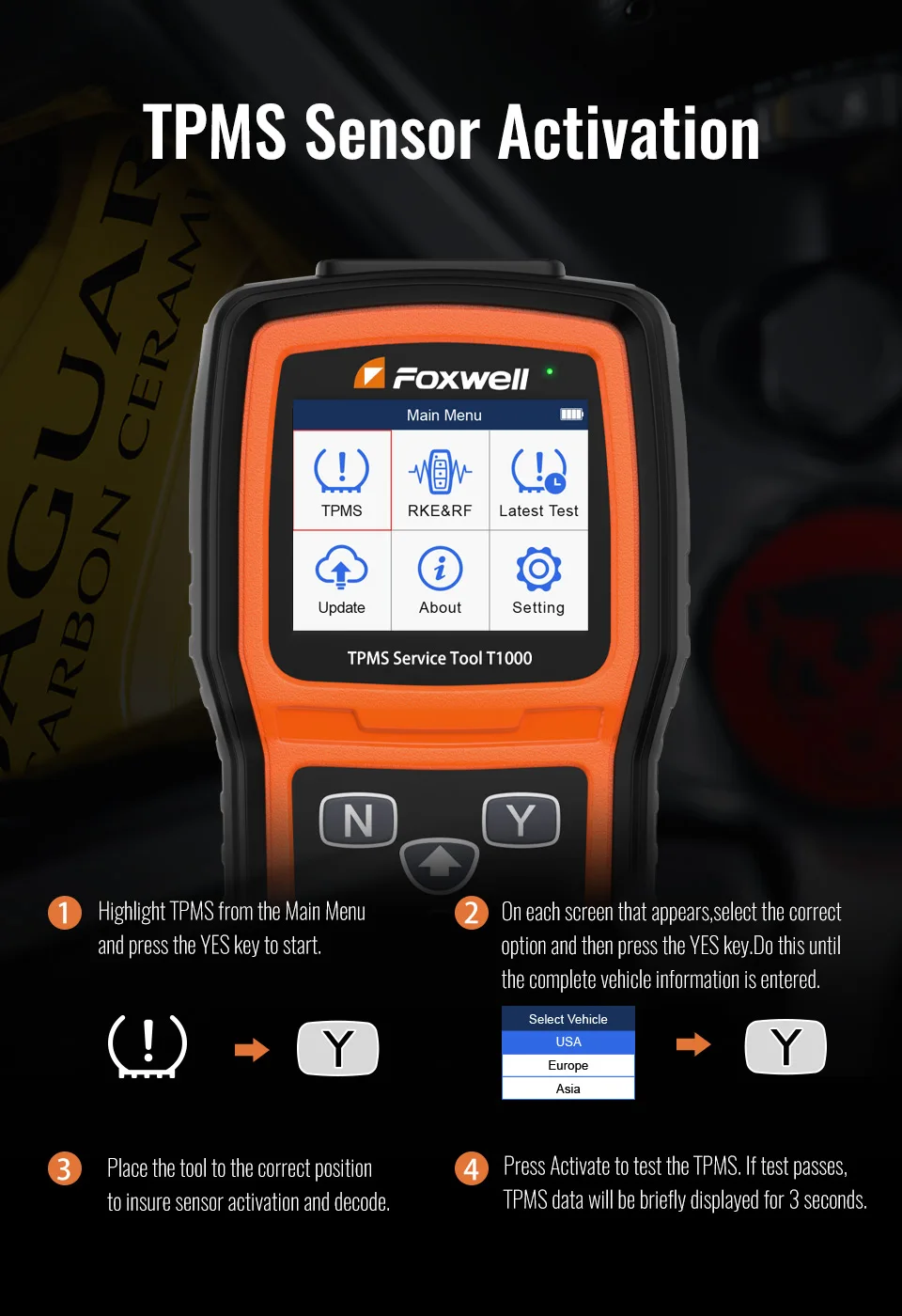

TPMS Sensor Activation Instruction

1.Highlight TPMS from the Main Menu and Y press the YES key to start.
2.On each screen that appears,select the
correct option and then press the YES
key. Do this until the complete vehicle
information is entered.
3.Place the tool to the correct position to
insure sensor activation and decode.
4.Press Activate to test the TPMS. If test
passes,TPMS data will be briefly
displayed for 3 seconds.

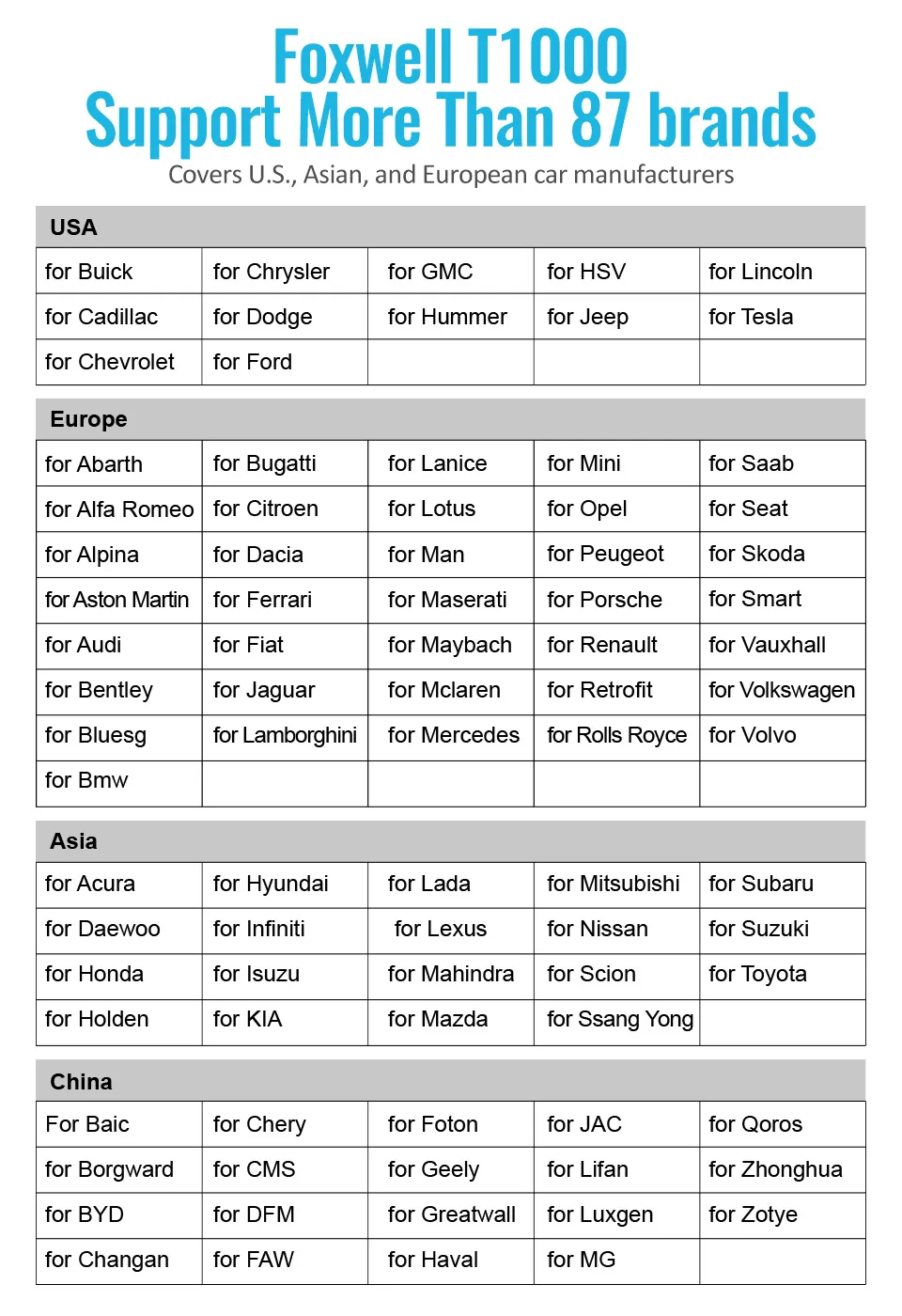

Foxwell T1000 Support More Than 87 brands

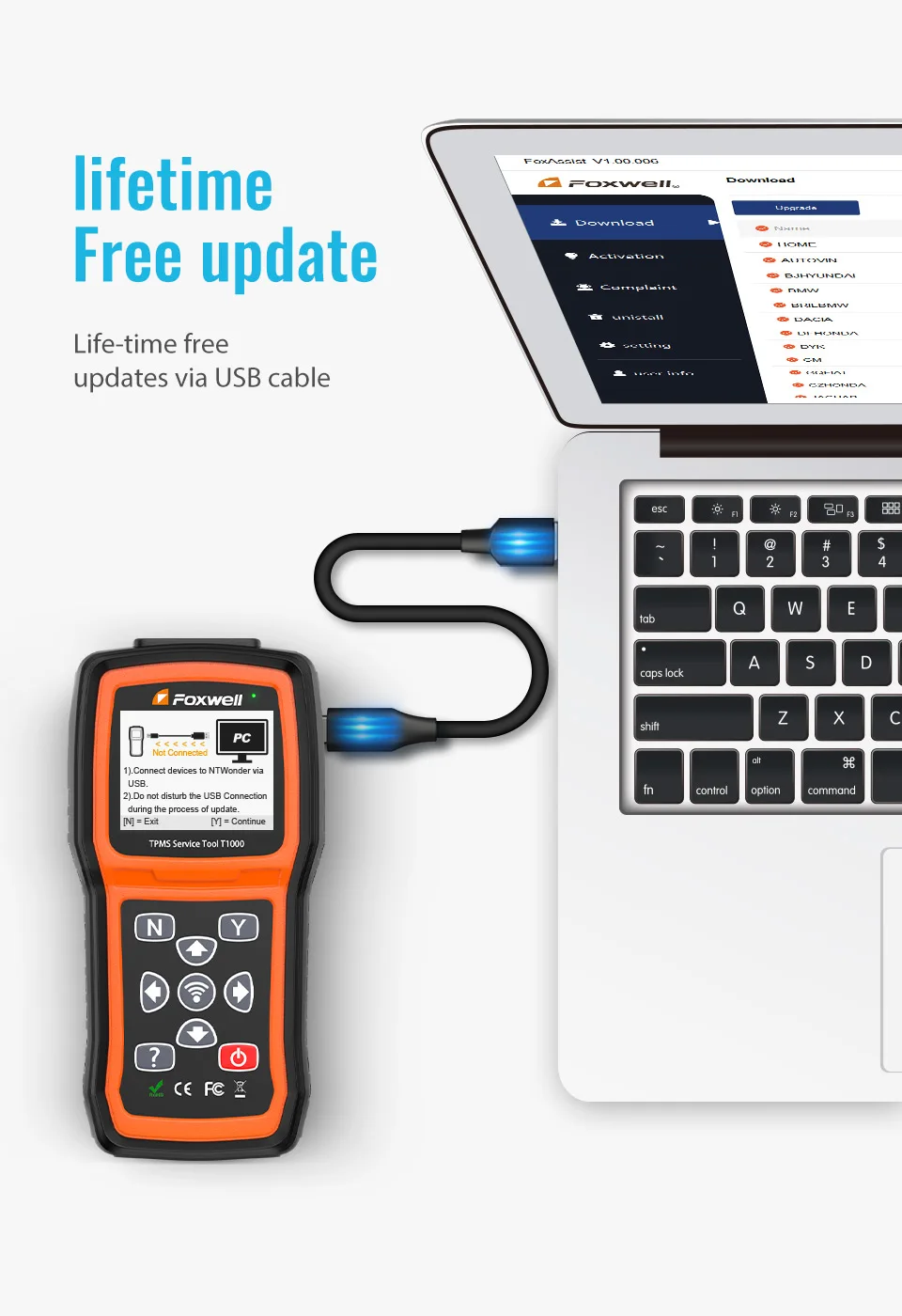

Lifetime Free Update via USB Cable

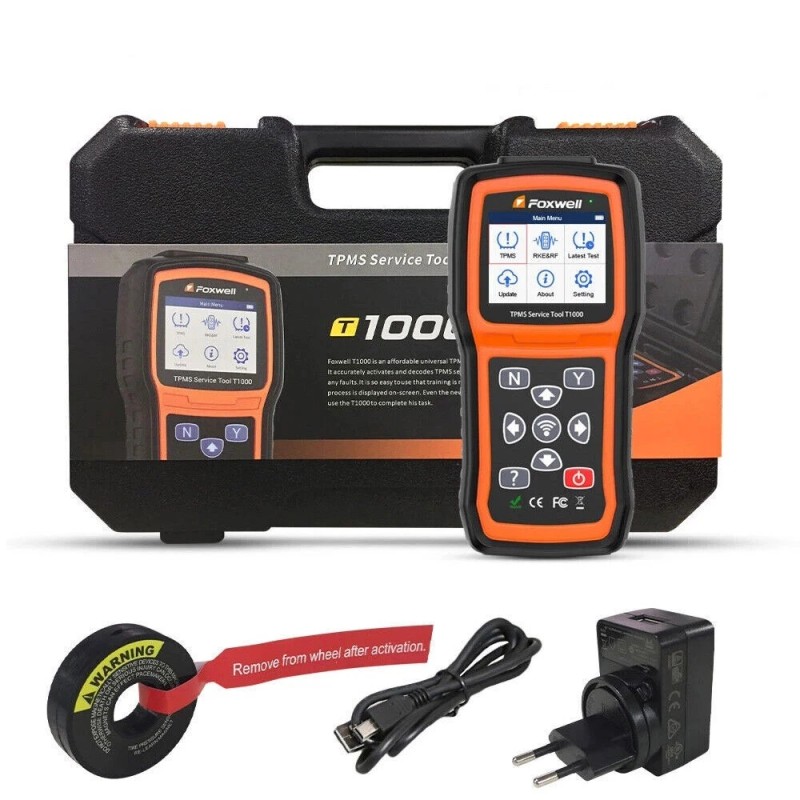

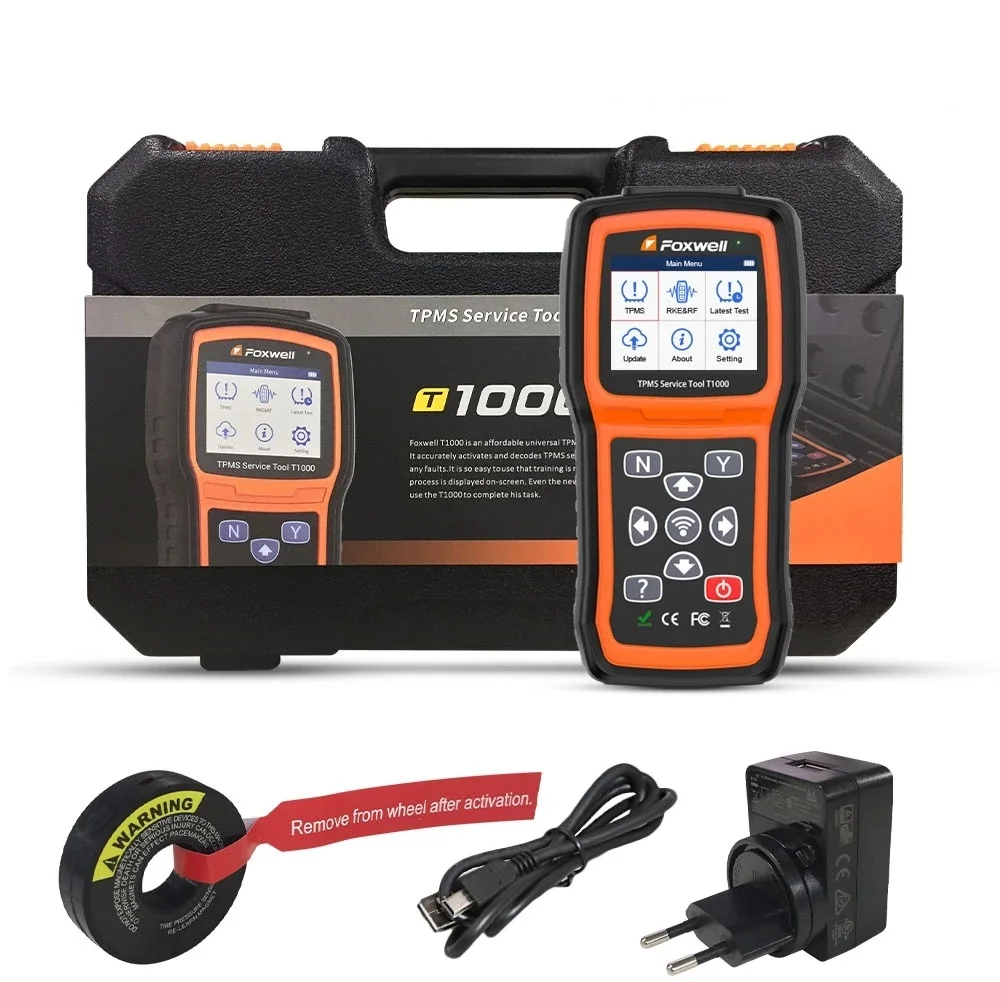

Package List

1*T1000 Main Unit
1*USB Mini Cable
1*Magent (send random)
1*Battery Charger
1*User Quicker Guide
1*Warranty Card
1*Blow Molding Case

NOTE:The scanner has a built-in lithium-ion polymer rechargeable battery.
