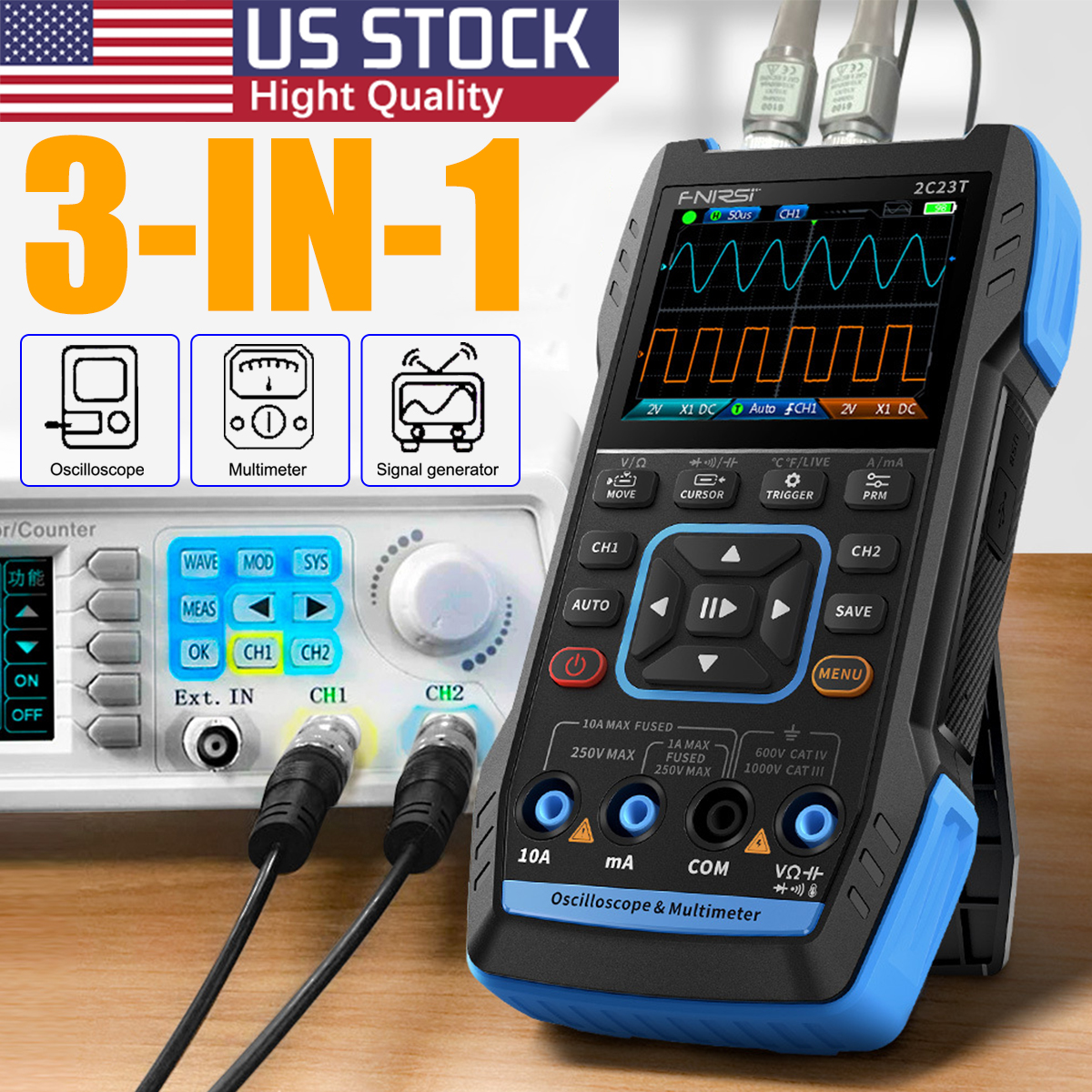

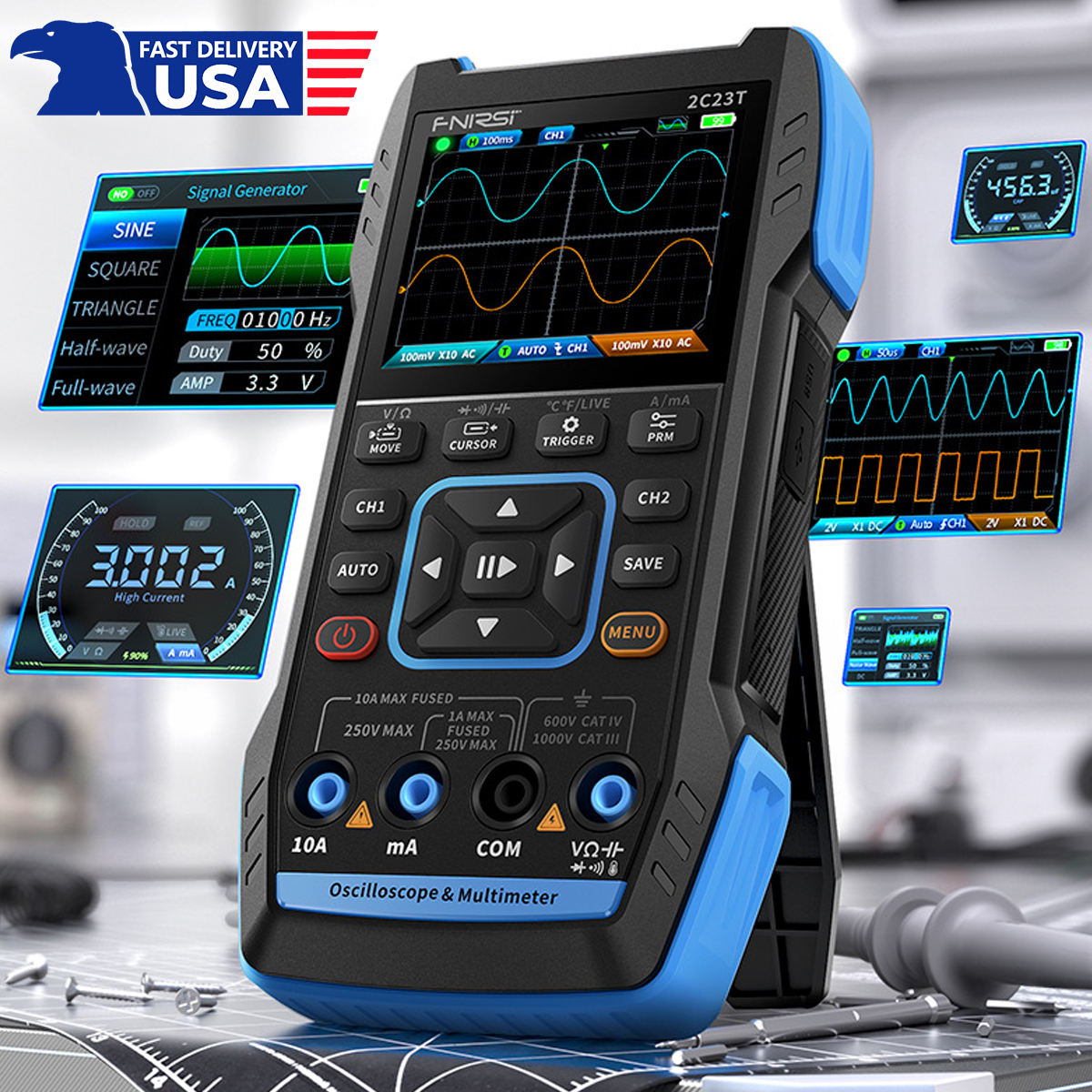

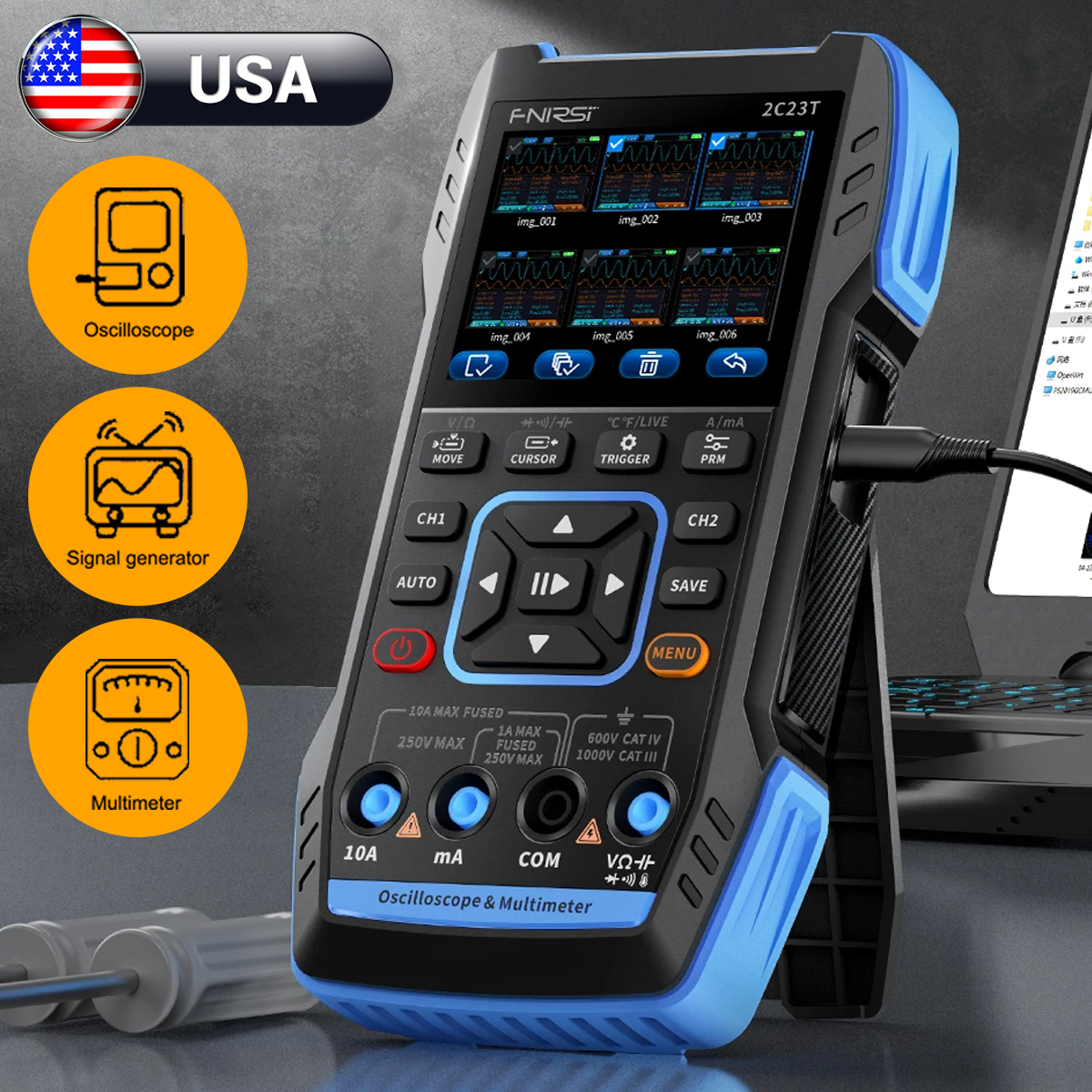

FNIRSI 2C23T Oscilloscope Multimeter Signal Generator 3-in-1 2.8" Display Screen

Brand: FNIRSI
Product Description



Features:

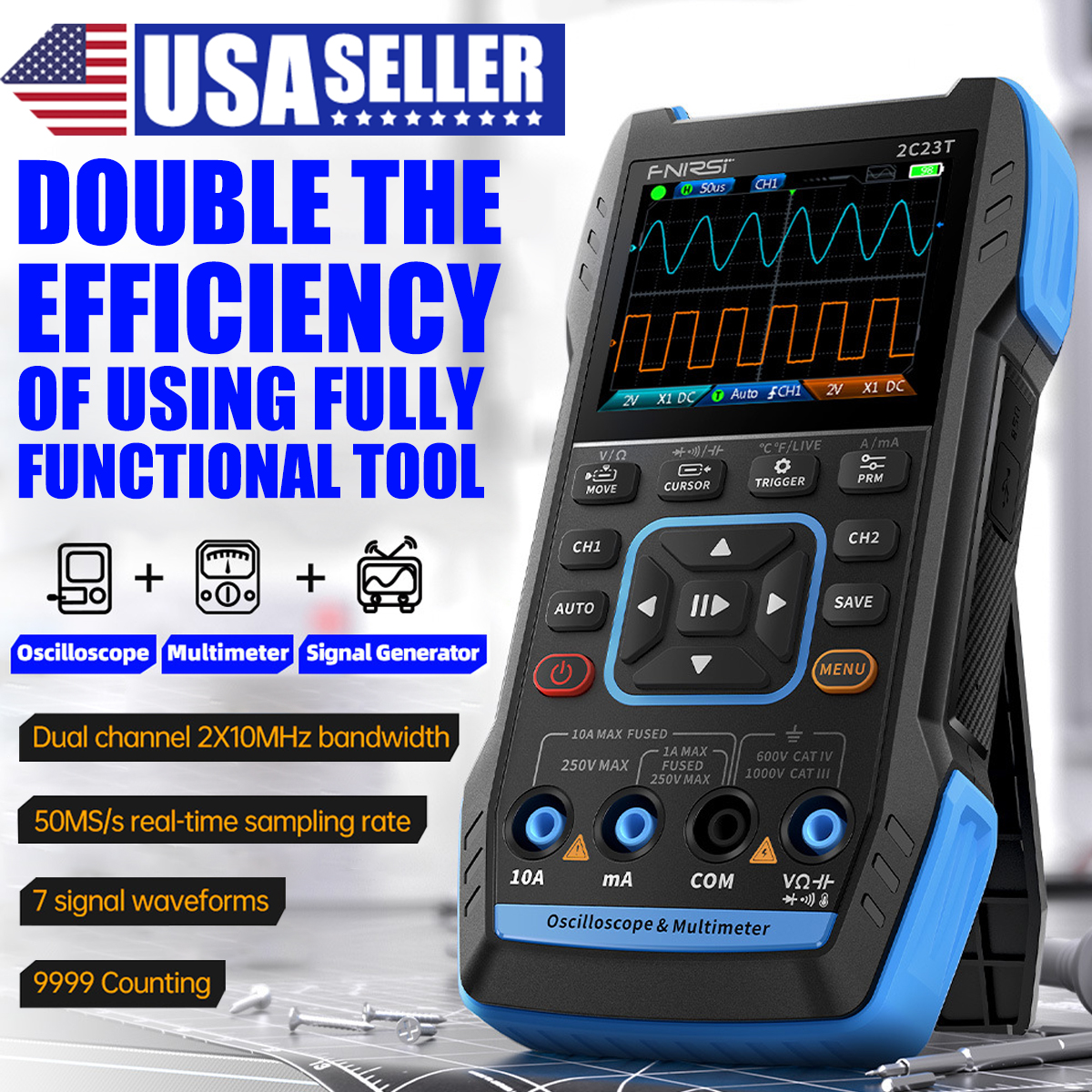

【Oscilloscope Mode】2 channel handheld oscilloscope, 10MHz bandwidth, real-time sampling rate 50MSa/s, record depth 32kb, maximum measurement voltage ±400V, automatic measurement function, trigger function auto/normal/single, 200mv/div-10v/div vertical sensitivity, support waveform image storage and export.

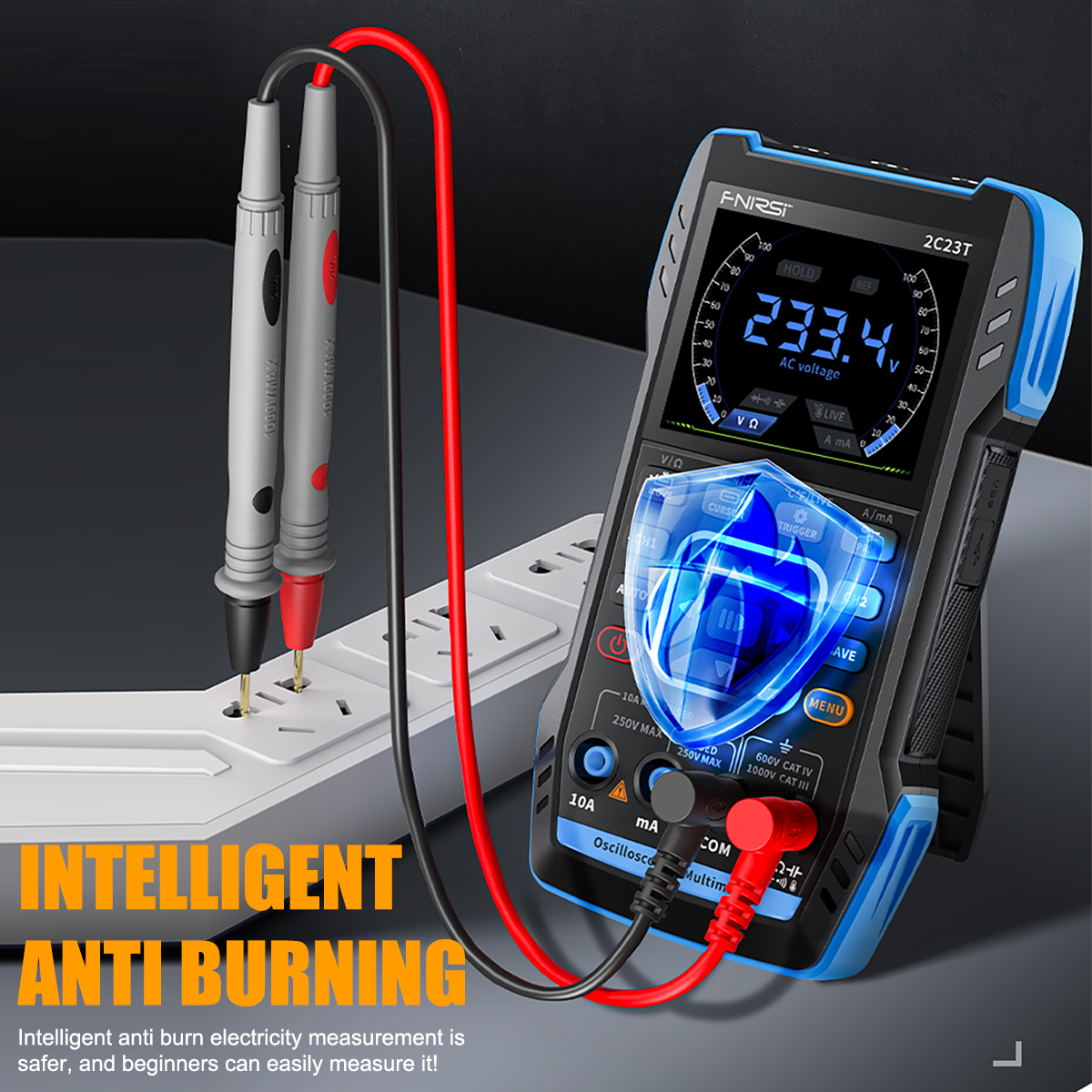

【Multimeter Mode】4-digit 10000 Counts. AC Voltage: 0-750V, DC Voltage: 0-999.9V, DC/AC Current: 0-9.999A, Resistance: 0-99.99MΩ, Capacitance: 0-99.99mF, Temperature: -55°C-1300°C/-67~2372℉, Diode, Continuity Measurement. An ideal multi-function meter for professionals, factories, schools, hobbyists or home use.

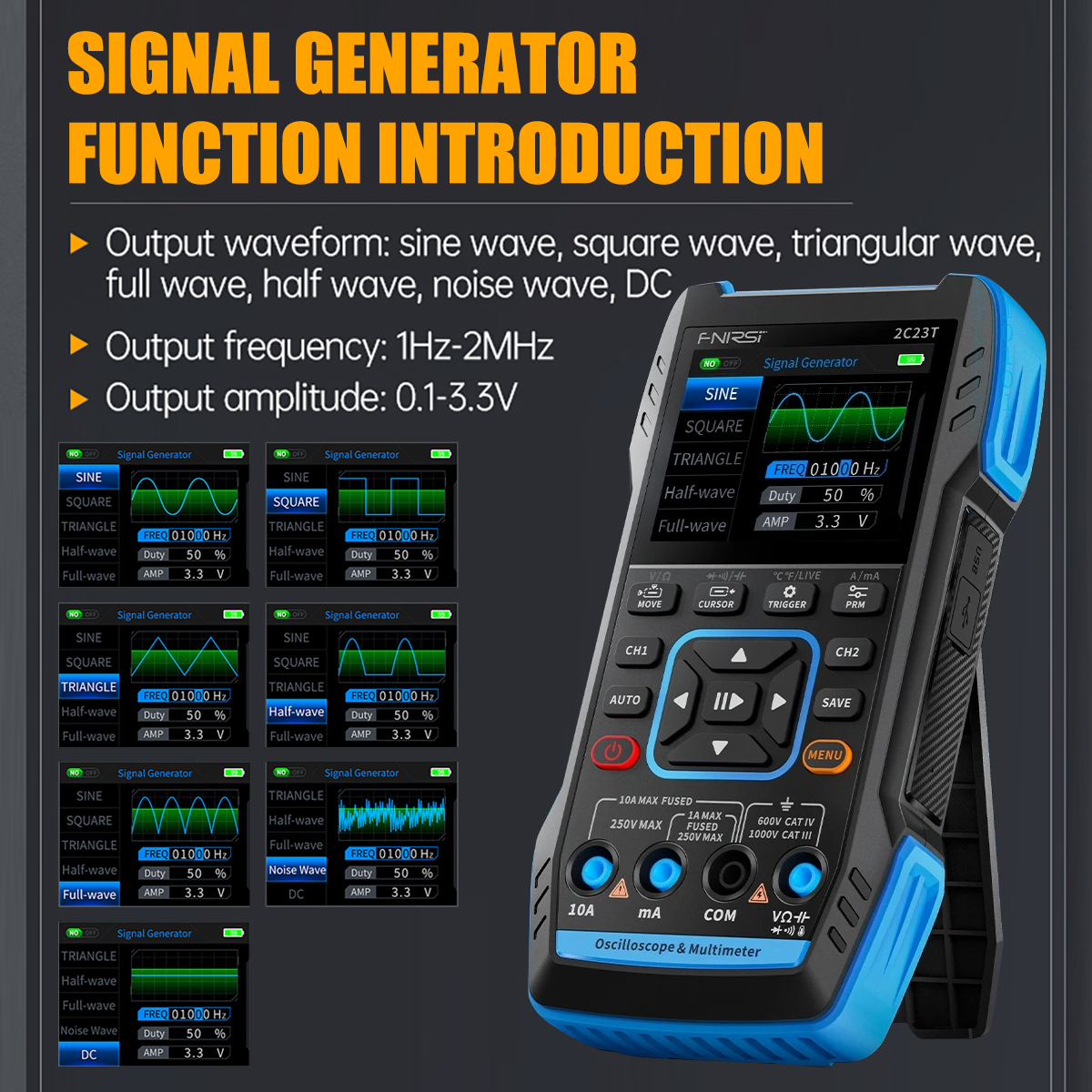

【Signal Generator】The maximum waveform output frequency can reach 2MHz and a step of 1Hz, and can output seven waveforms including sine, square, triangle, full, half, noise, and DC.

【Excellent Design】The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8-inch 320*240 resolution HD LCD display, built-in 3000mAh rechargeable Li-ion battery, standby time up to 6H, Type-C interface supports 5V/1A power adapter charging.

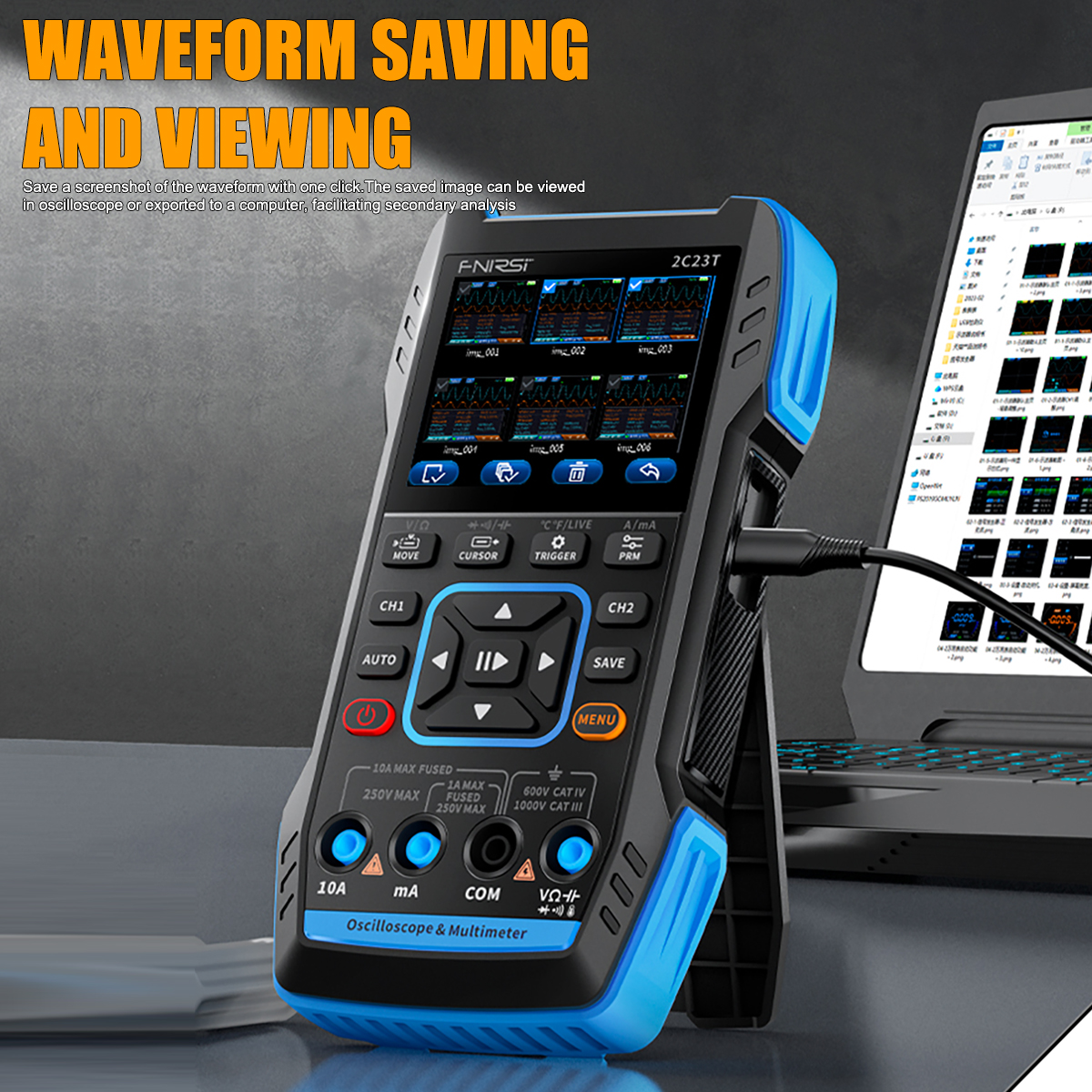

【Save function】one-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen.

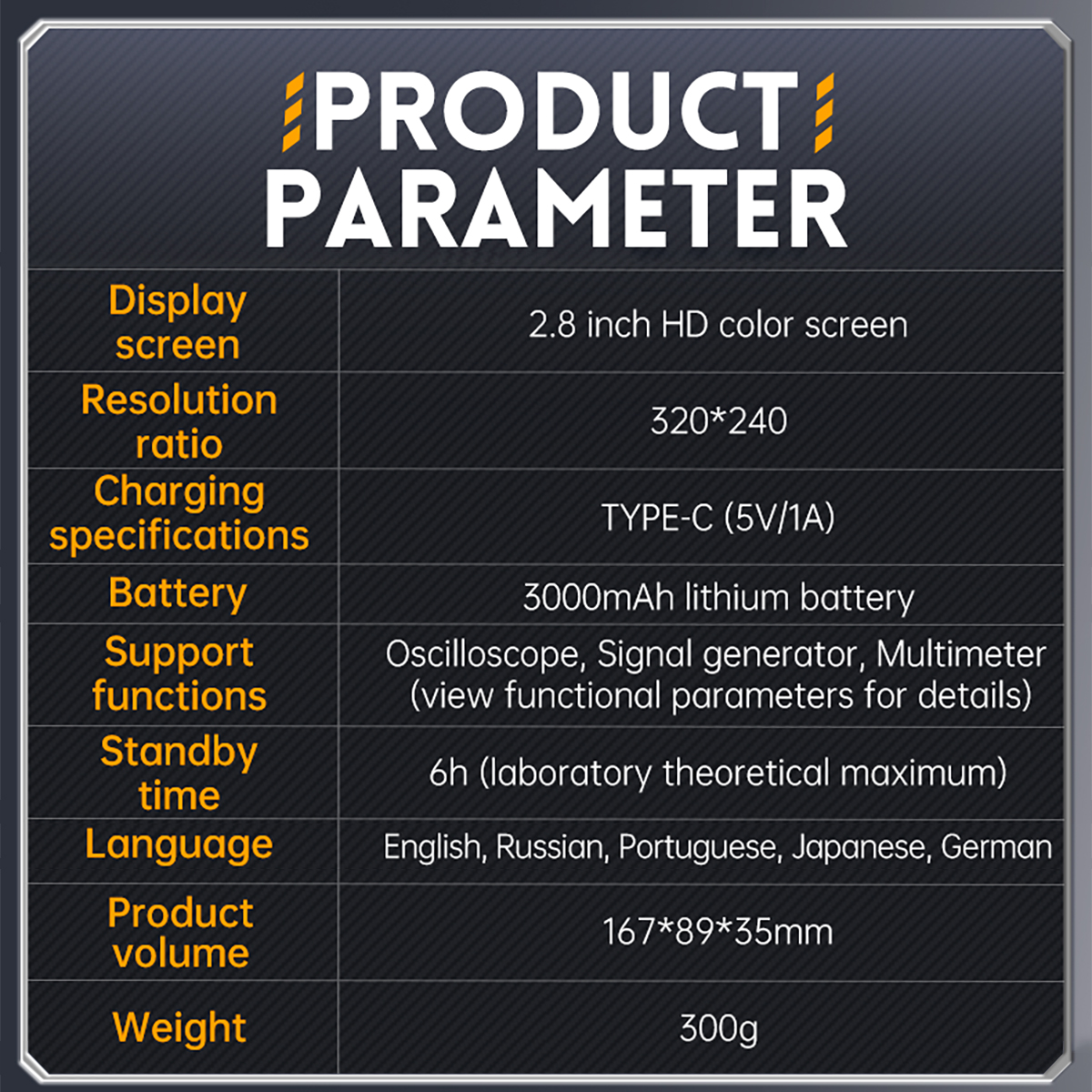

Specification:

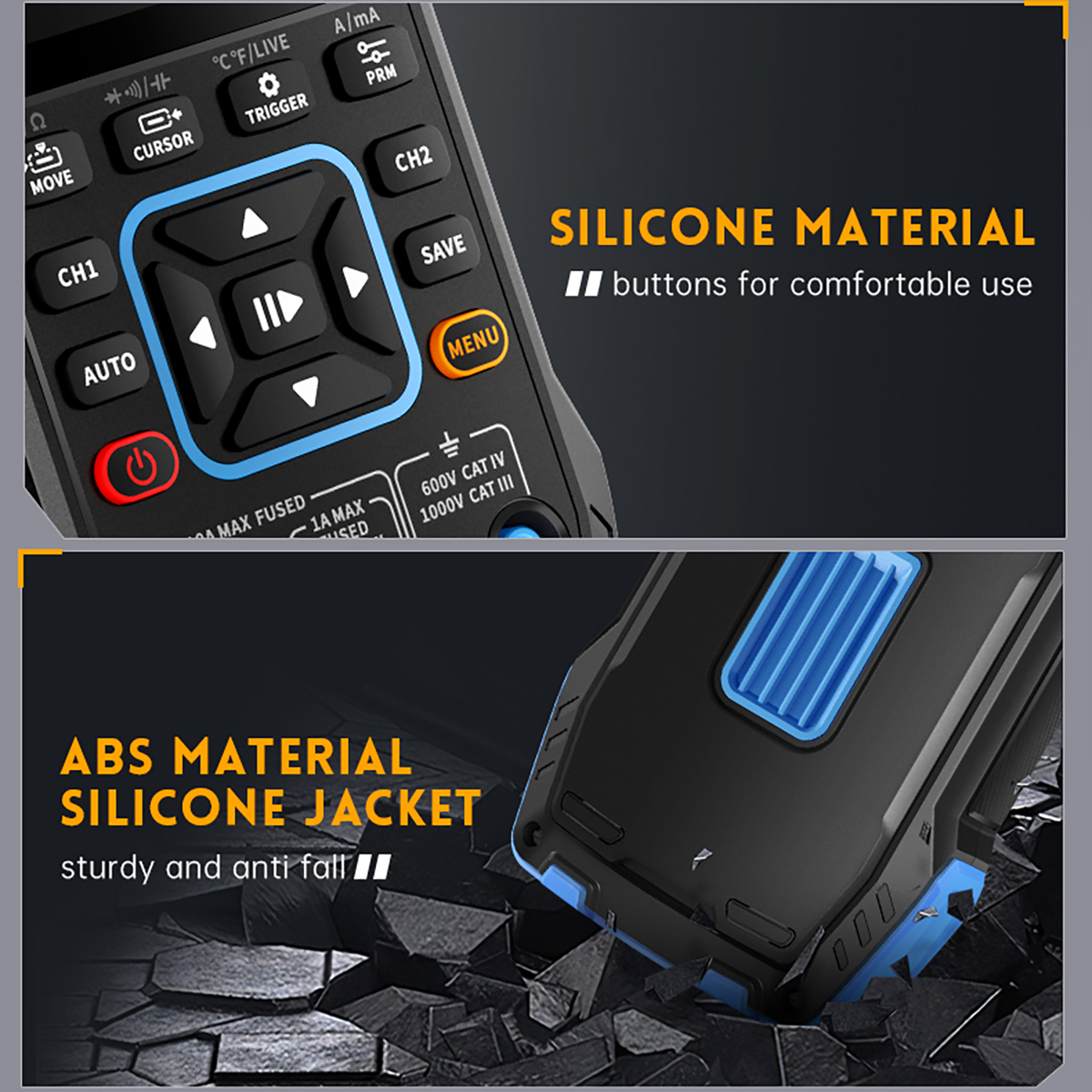

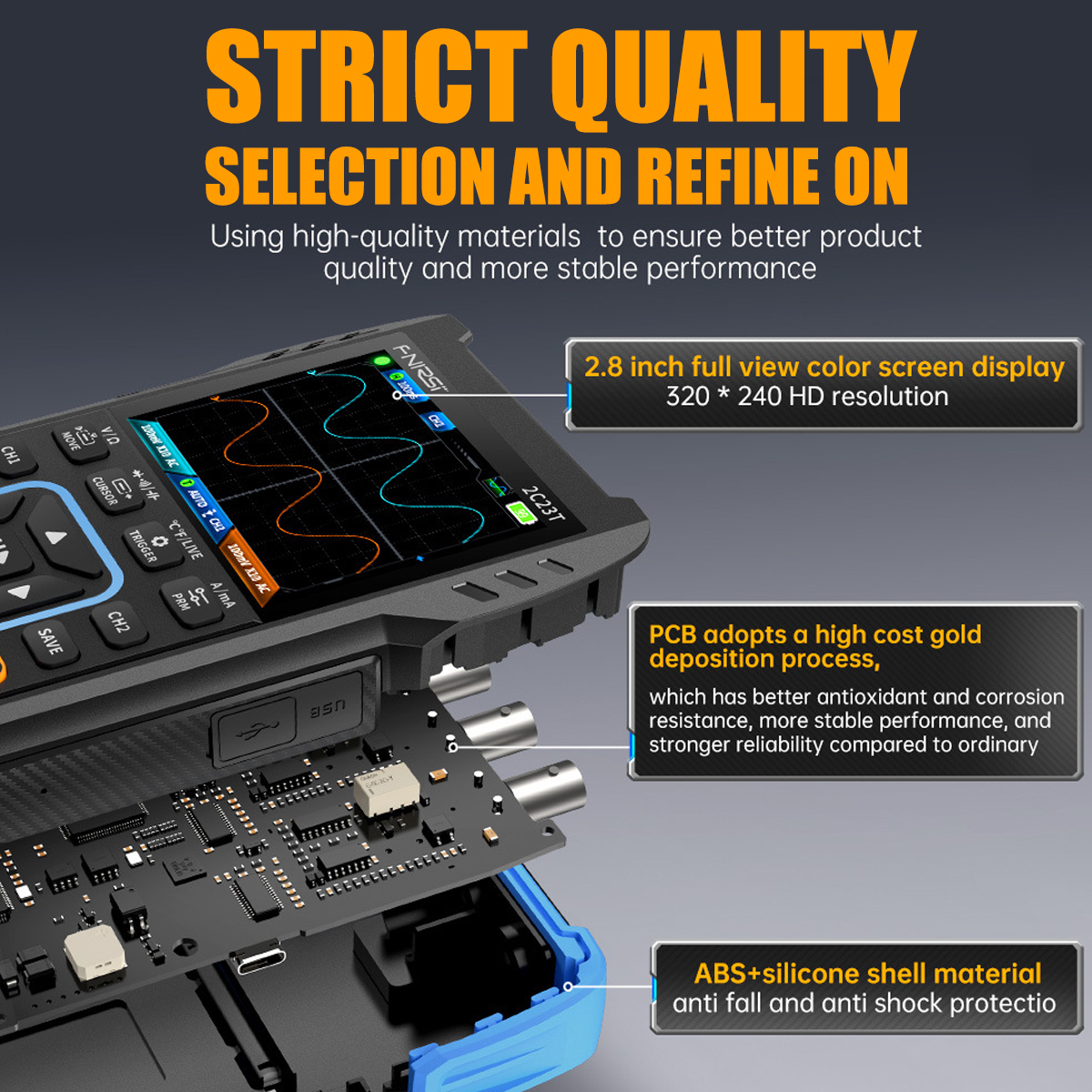

Material: Plastic silicone alloy

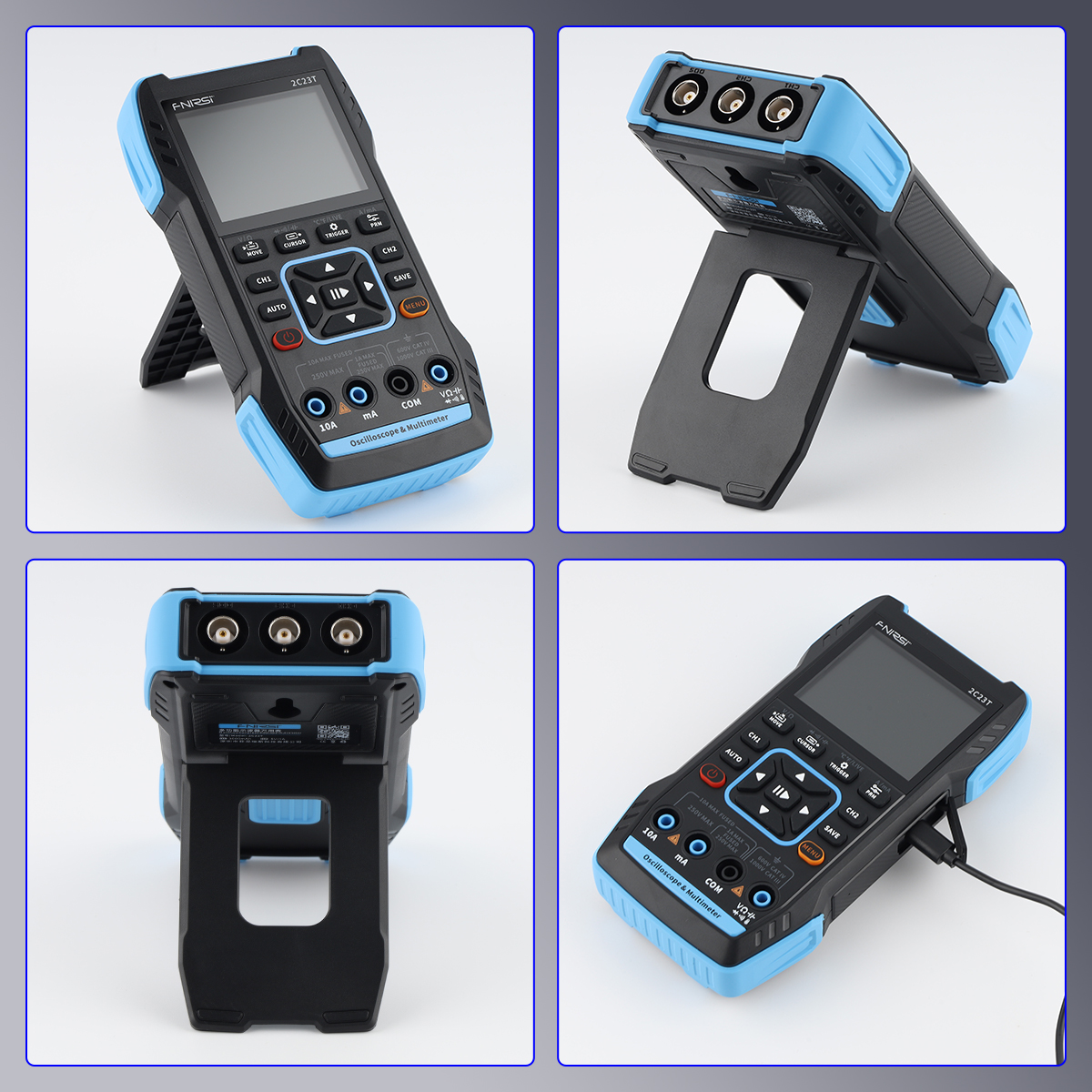

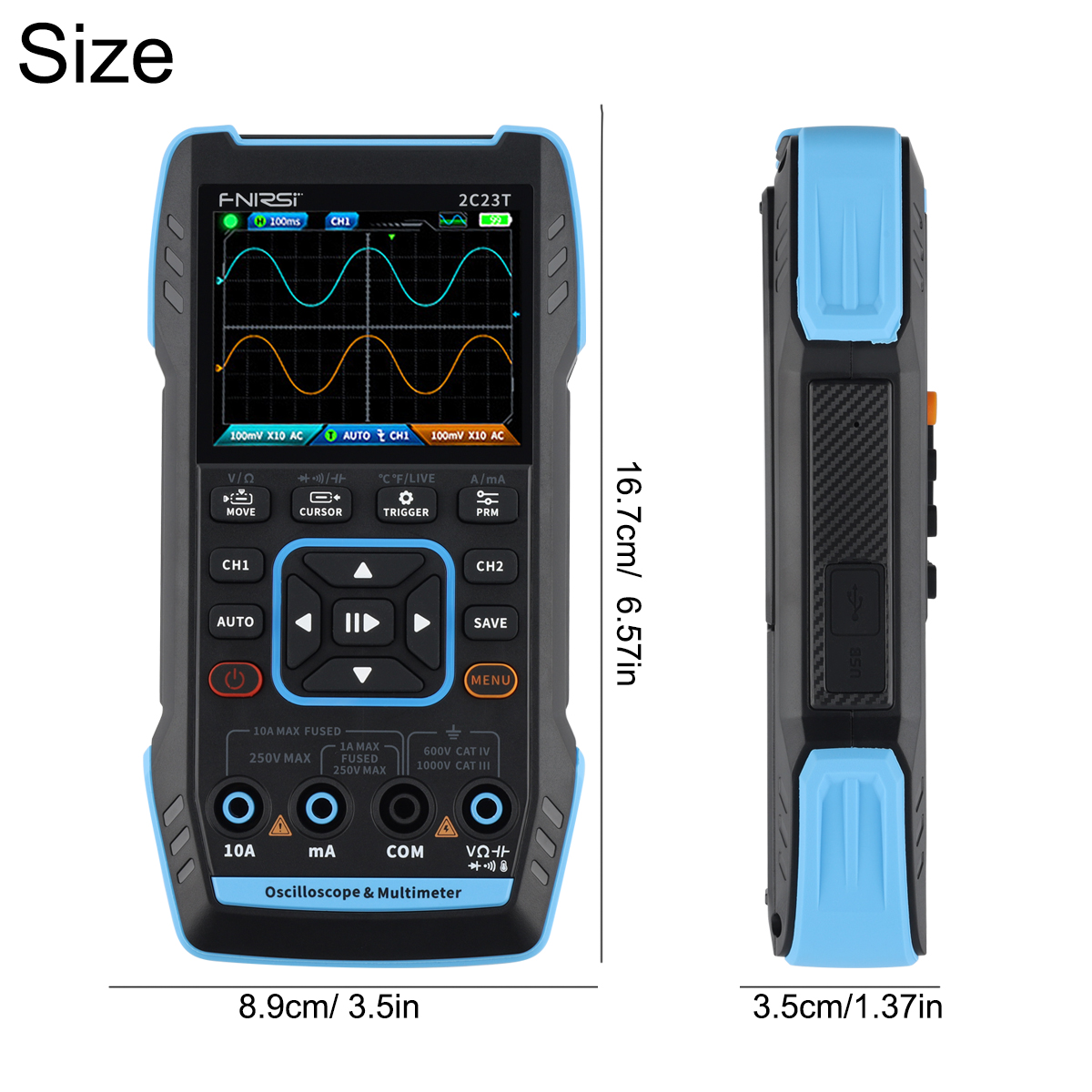

Product size: 167 * 89 * 35MM

Screen: 2.8 inch true color screen

Screen resolution: 320 * 240

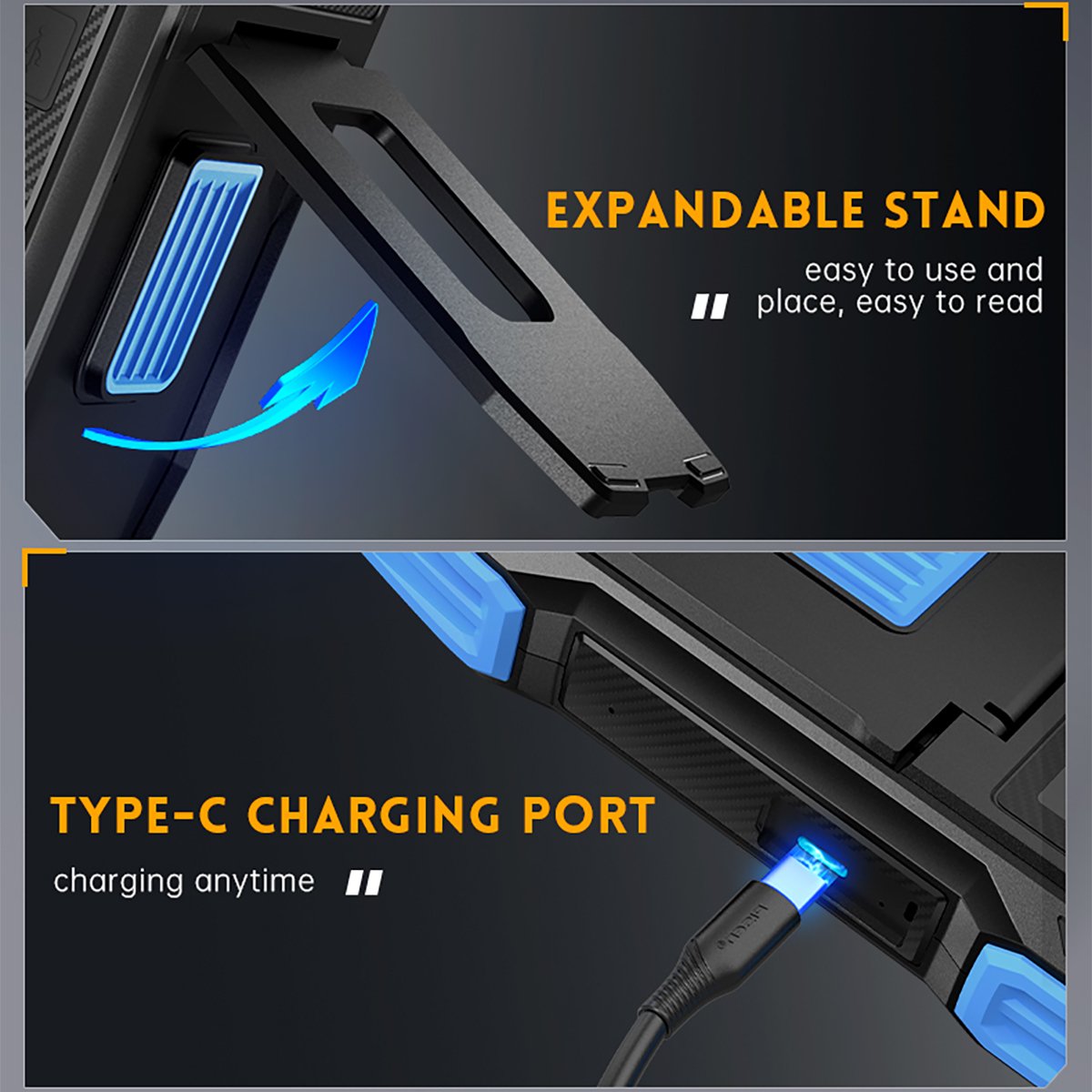

Charging input: TYPE-C (5V/1A)

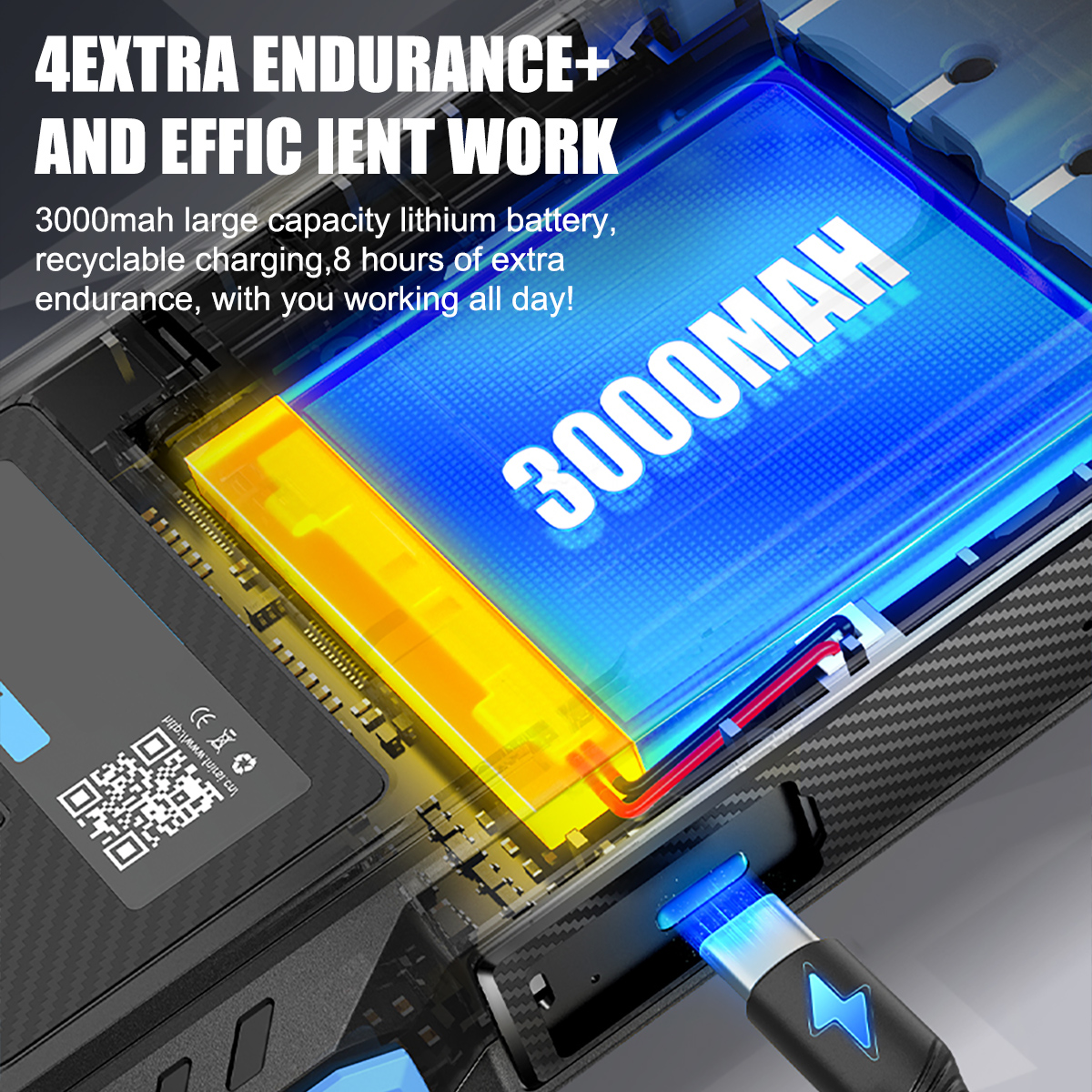

Battery: 3000mAh lithium battery

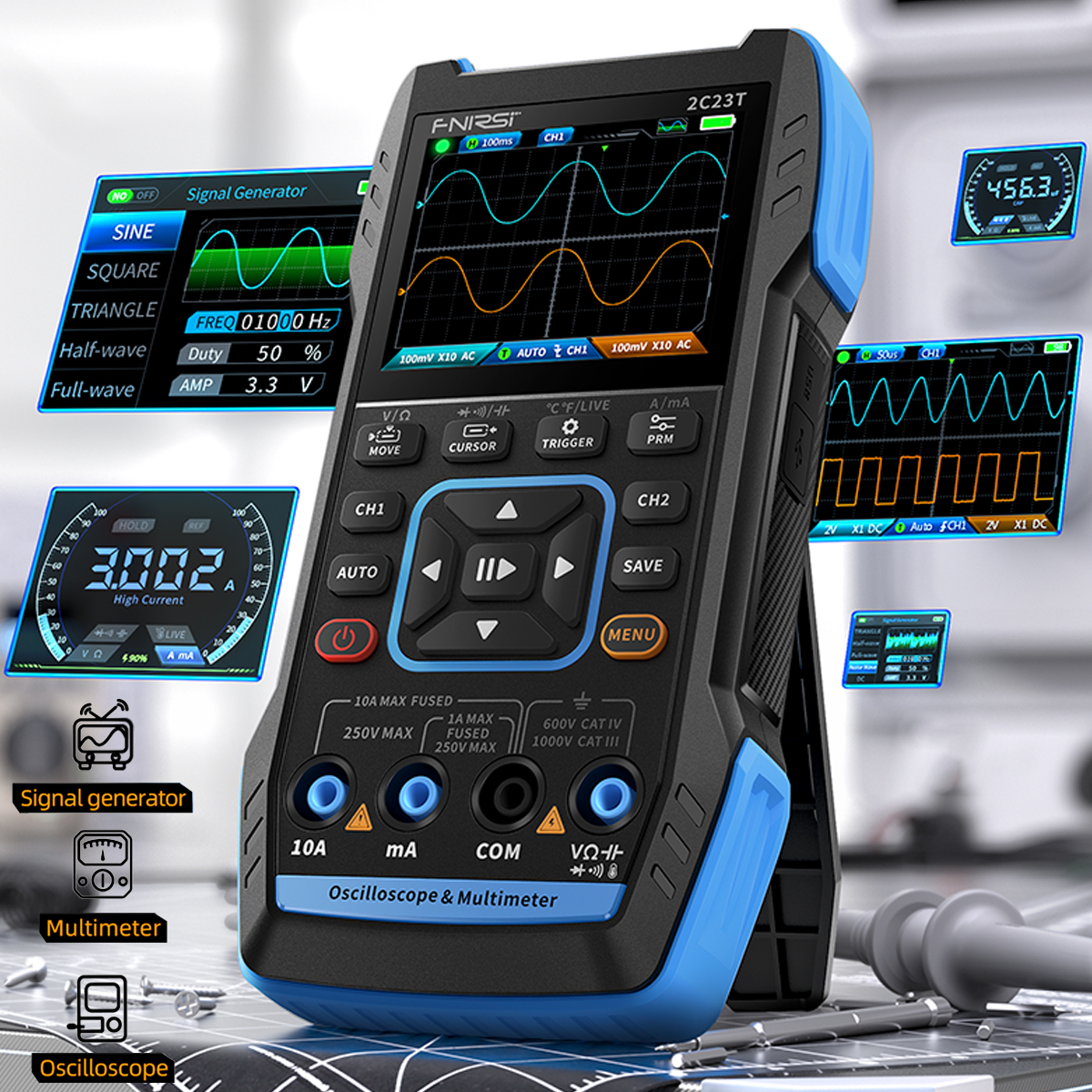

Main functions: Oscilloscope, signal generator, digital multimeter

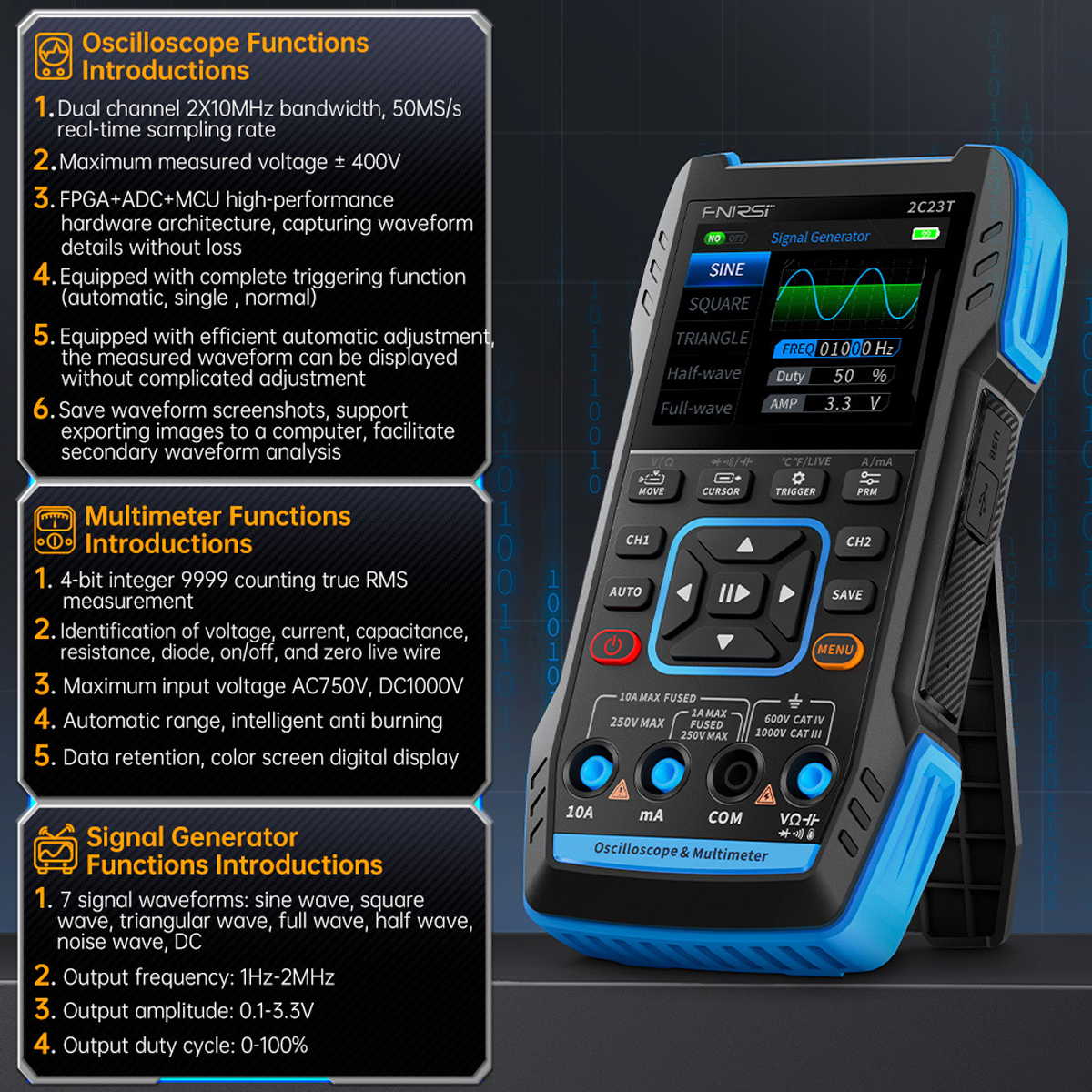

Three Major Functional Parameters:

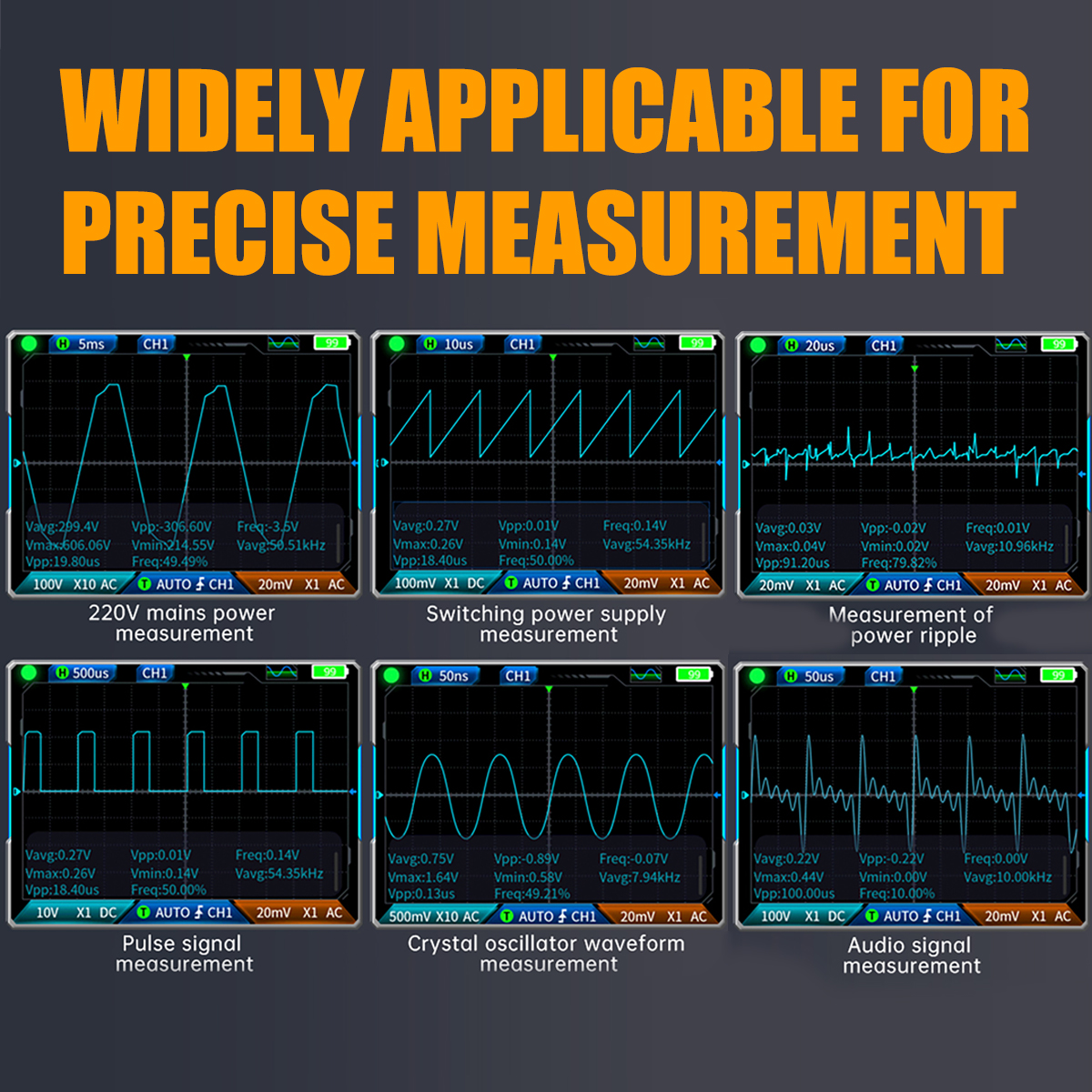

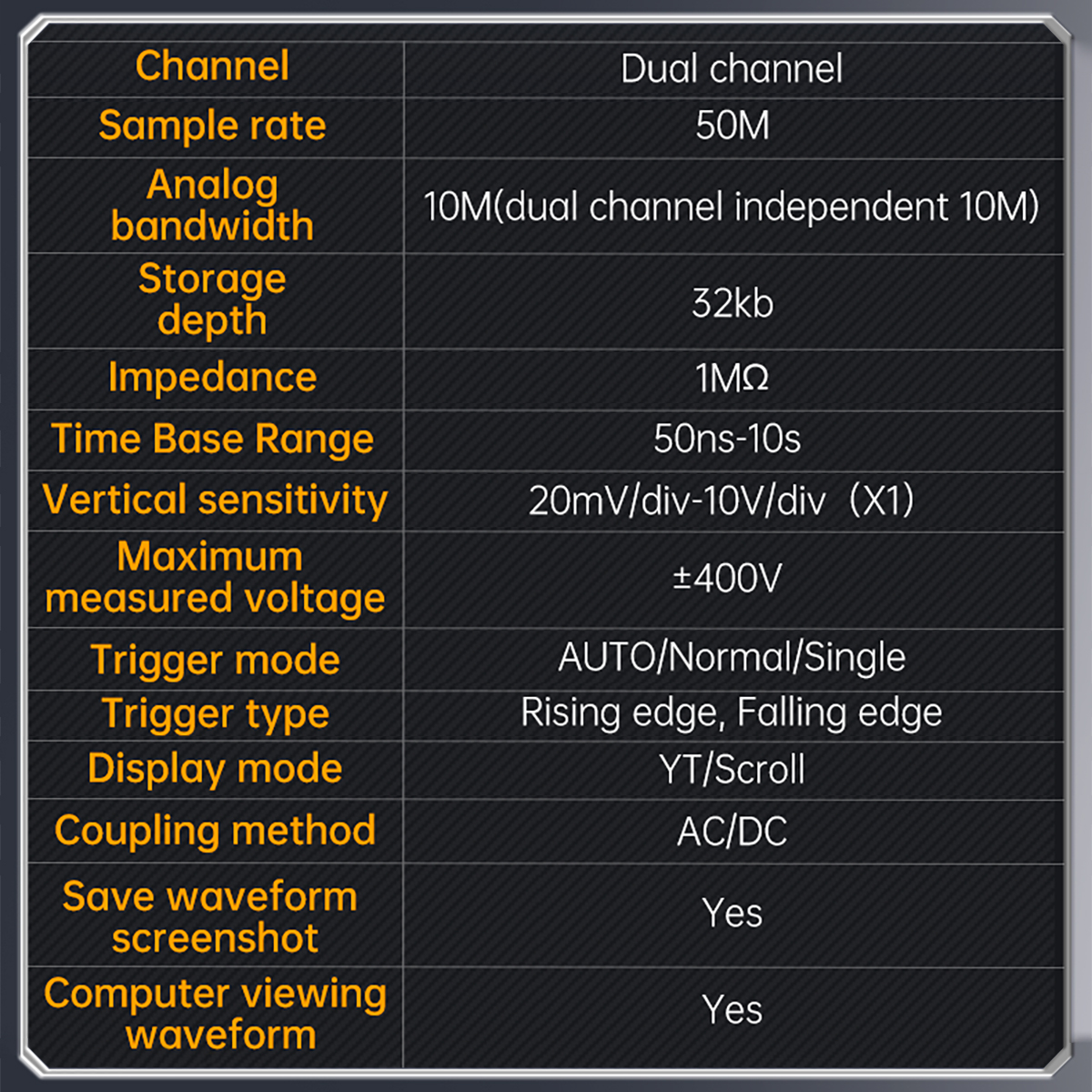

Oscilloscope

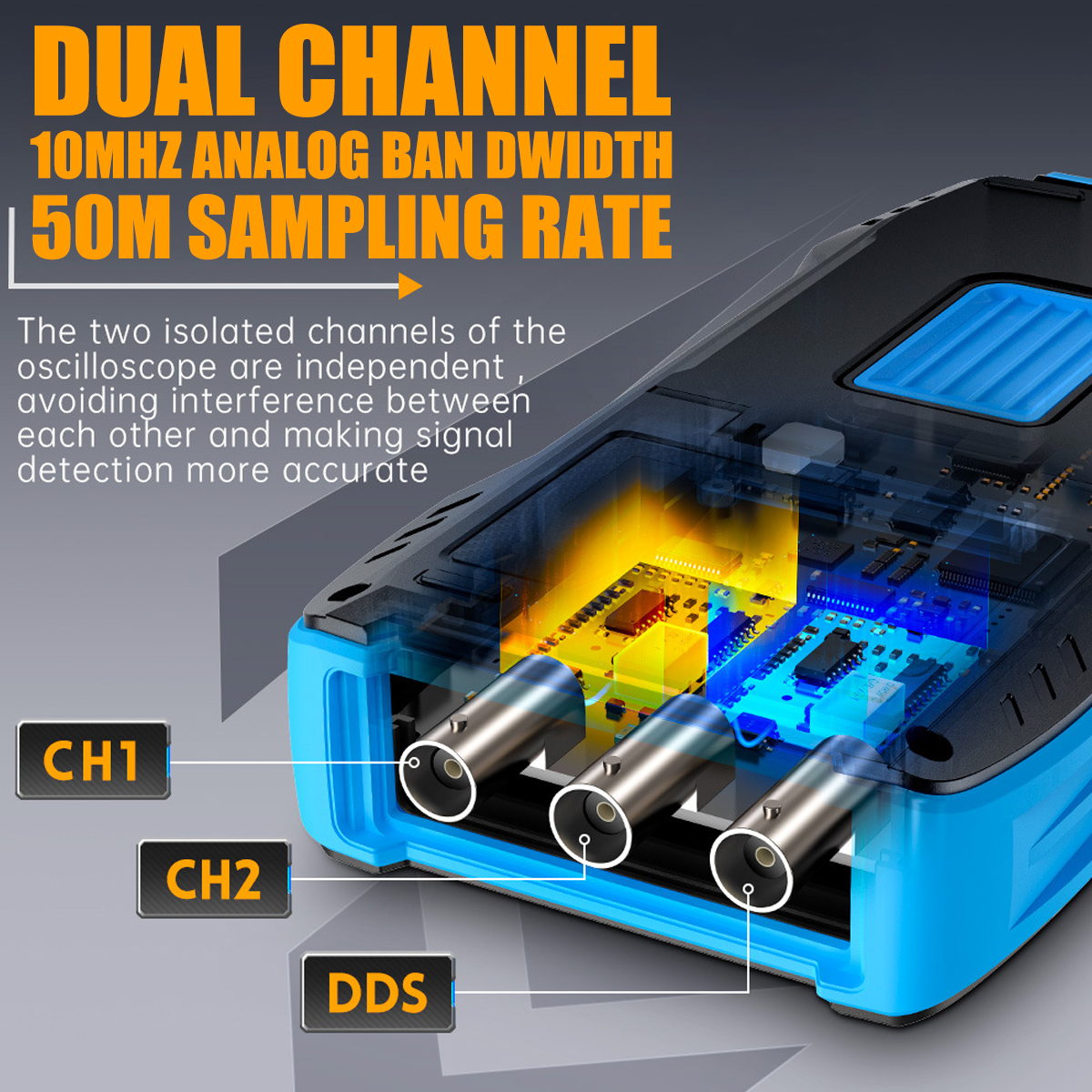

Channel:Dual channel

Sample rate:50M

Analog bandwidth:10M(dual channel independent 10M)

Storage depth:32kb

Impedance:1MΩ

Time Base Range:50ns-10s

Vertical sensitivity:20mV/div-10V/div(X1)

Maximum measured voltage:±400V

Trigger mode:AUTO/Normal/Single

Trigger type:Rising edge, Falling edge

Display mode:YT/Scroll

Coupling method:AC/DC

Save waveform screenshot:Yes

Export waveform images:Yes

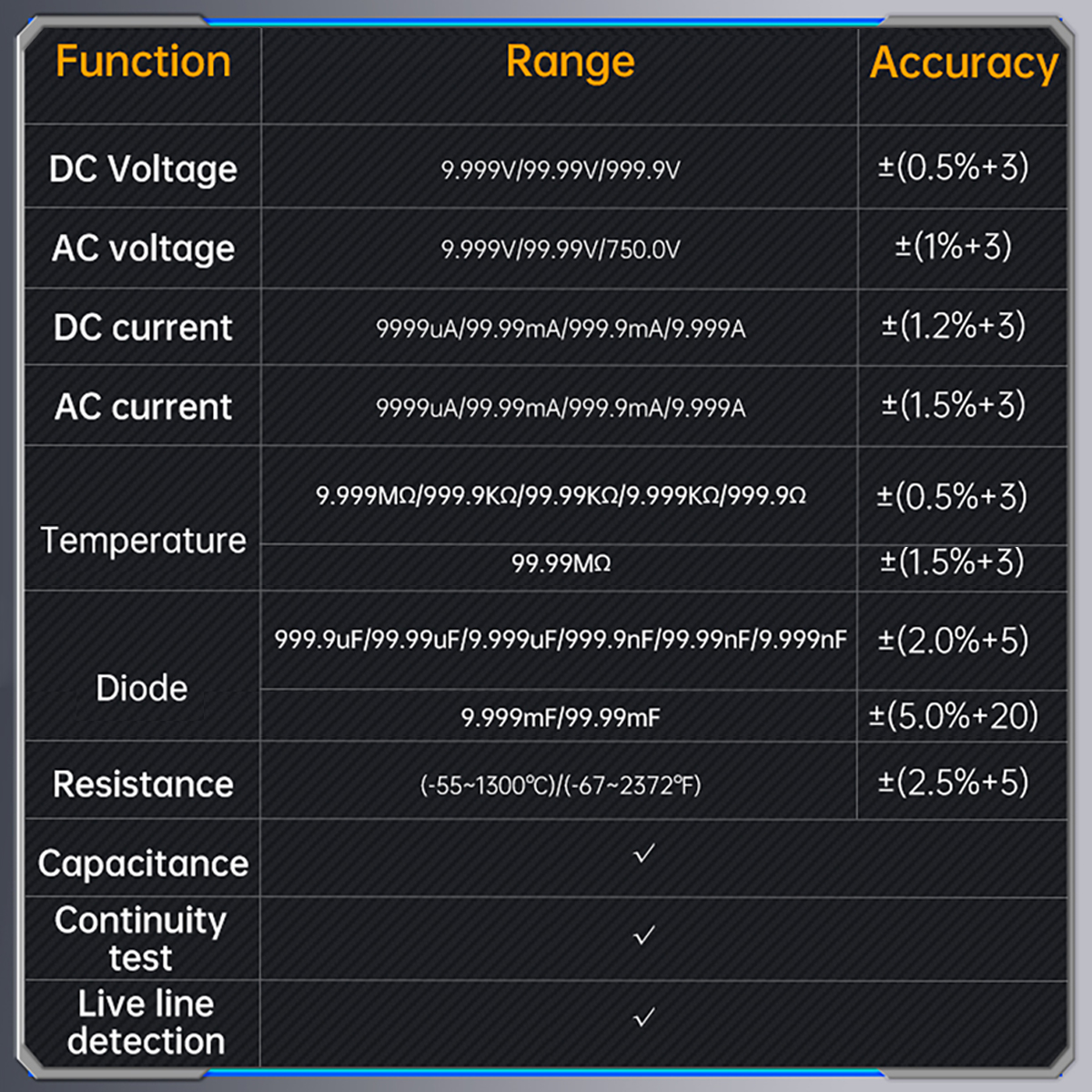

Multimeter

DC Voltage:9.999V~999.9V

AC voltage:9.999V~750.0V

DC current:9999uA~9.999A

AC current:9999uA~9.999A

Resistance:999.9Ω~99.99MΩ

Capacitance:9.999nF 99.99mF

Temperature:(-55~1300℃)/(-67~2372℉)

Diode:Yes

Continuity test:Yes

Live line detection:Yes

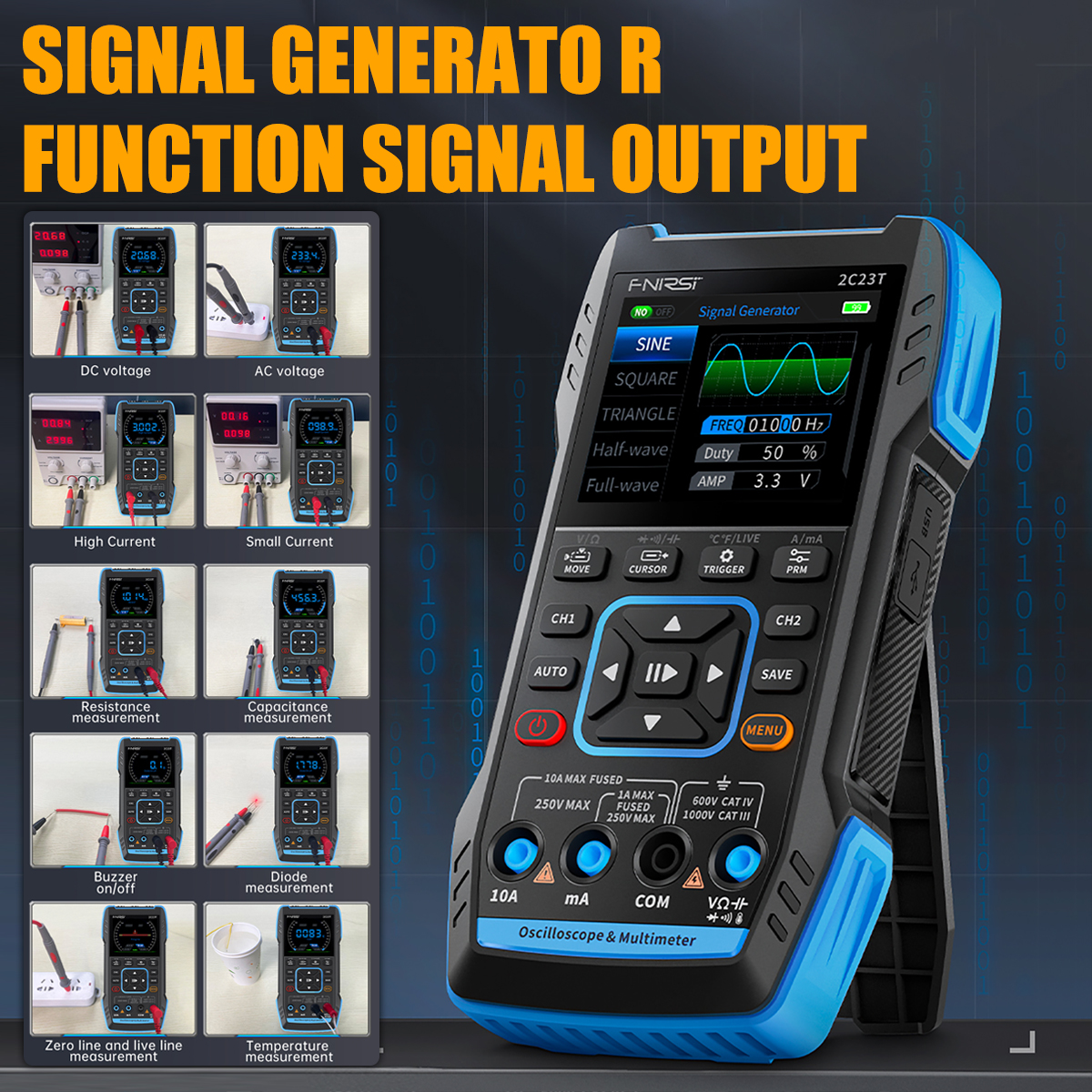

Function Signal Generator

Channel:Single channel

Frequency:1Hz-2MHz

Amplitude:0.1-3.3V

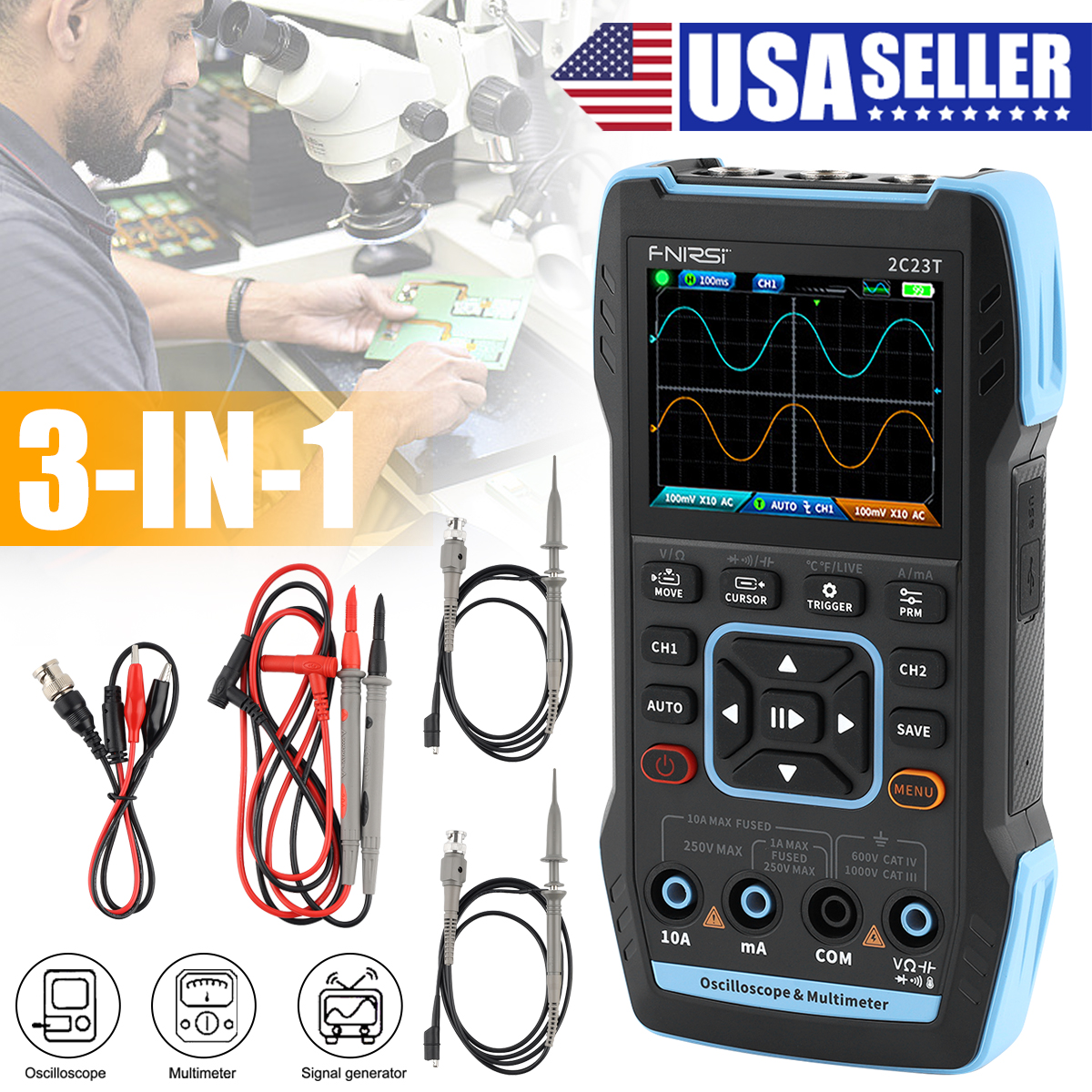

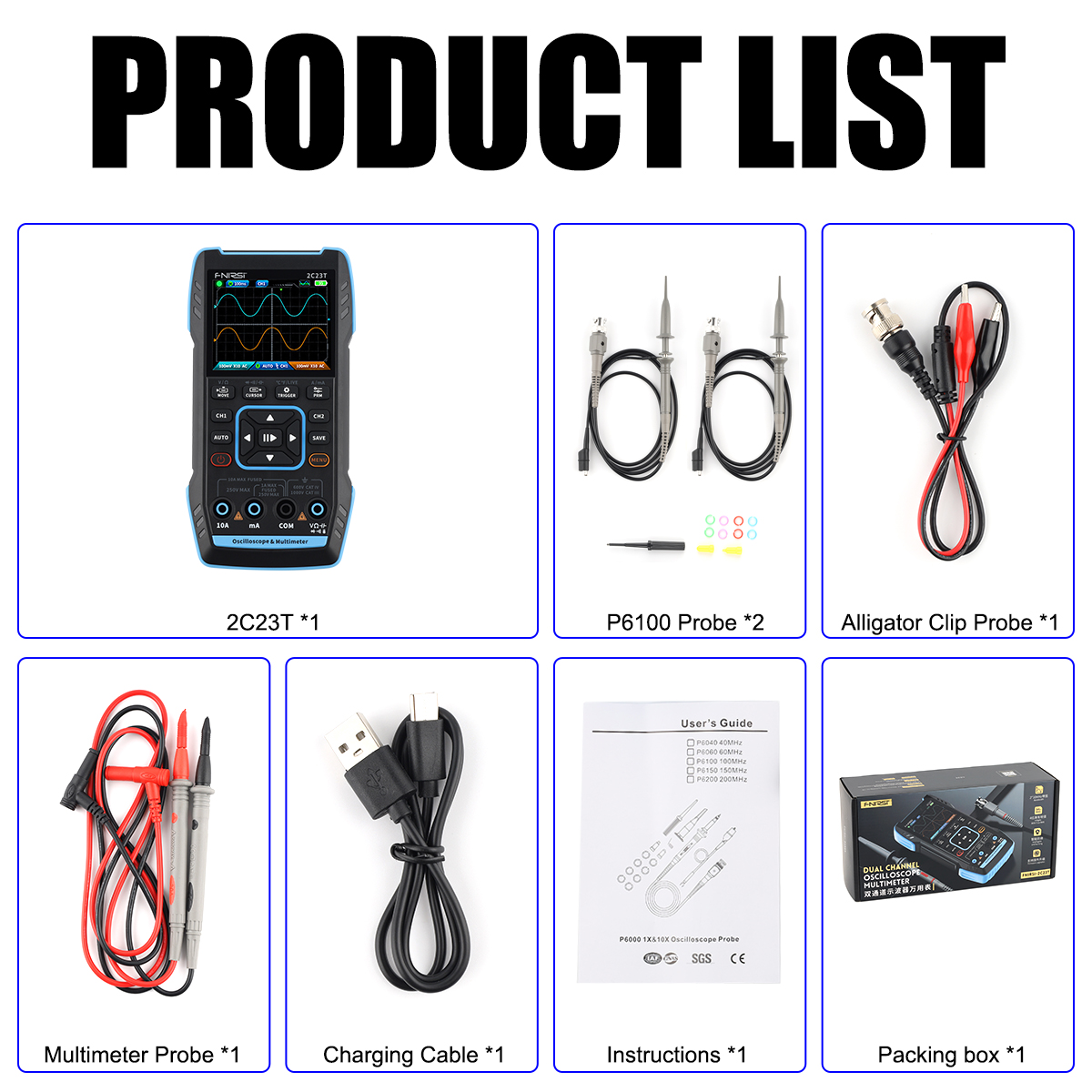

Packaging list:

2C23T *1

P6100 Probe *2

Crocodile clip probe *1

Multimeter Probe *1

Charging cable *1

User Manual *1

Packaging box *1
