Evemodel DT0605RWM-20N-EU Bi-Colour SMD LED Red / Warm White 0605 + Micro Braid 20 cm Pack of 20
Evemodel DT0605RWM-20N-EU Bi-Colour SMD LED Red / Warm White 0605 + Micro Braid 20 cm Pack of 20
- Soldering is very complex and difficult, but offers maximum flexibility in the installation of the LED and ensures extremely space-saving use.
- Brand: evemodel. Type: 0605. LED dimensions (L x W): 1.6 mm x 1.5 mm
- Light colour: red and warm white. Operating current: type. 15 mA, max. 20mA Connection voltage: red 2.0 V and warm white 3.1 V (DC or alternating current).
- The product is powered by batteries.
- Box contents: 20 pieces bi-colour SMD LEDs 0605 soldered with micro wire, 20 pieces of series resistors for connection to 9-18 V. Age note: only for adults (14+), not for children.
| Brand: | Evemodel |
|---|---|
| Color: | Gold |
| Manufacturer: | Evemodel |
| Part Number: | ZWCSRYN |
| Material Type: | Metal |
| Isin: | I8M6CZZ7TB9Y |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
High quality.

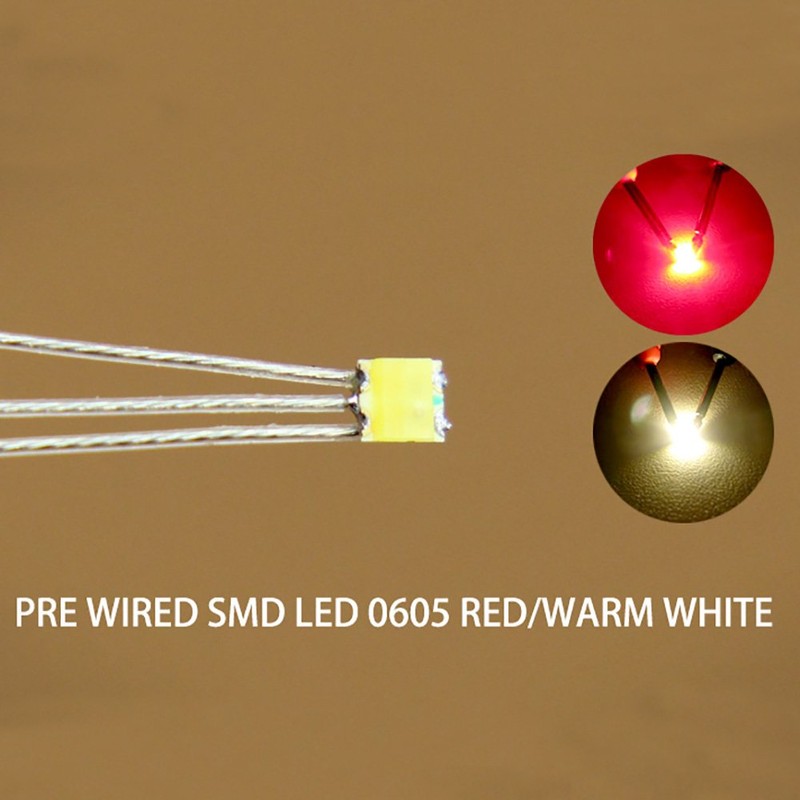

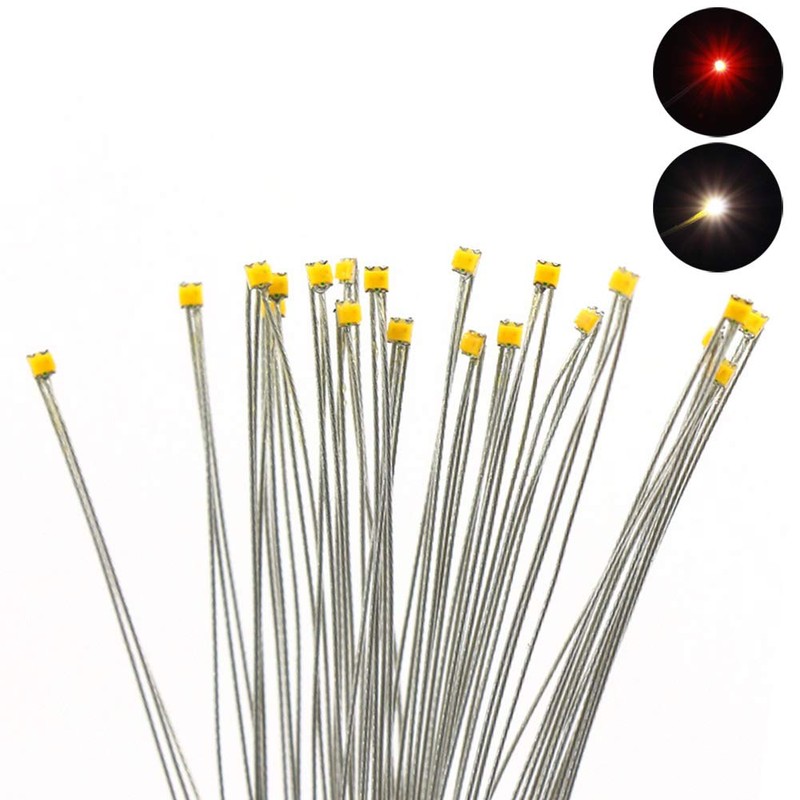

Bi-colour SMD LED 0605 + microstranded wire.
Probably the smallest LEDs on the market. Ideal for use in model making - small, discreet and bright.

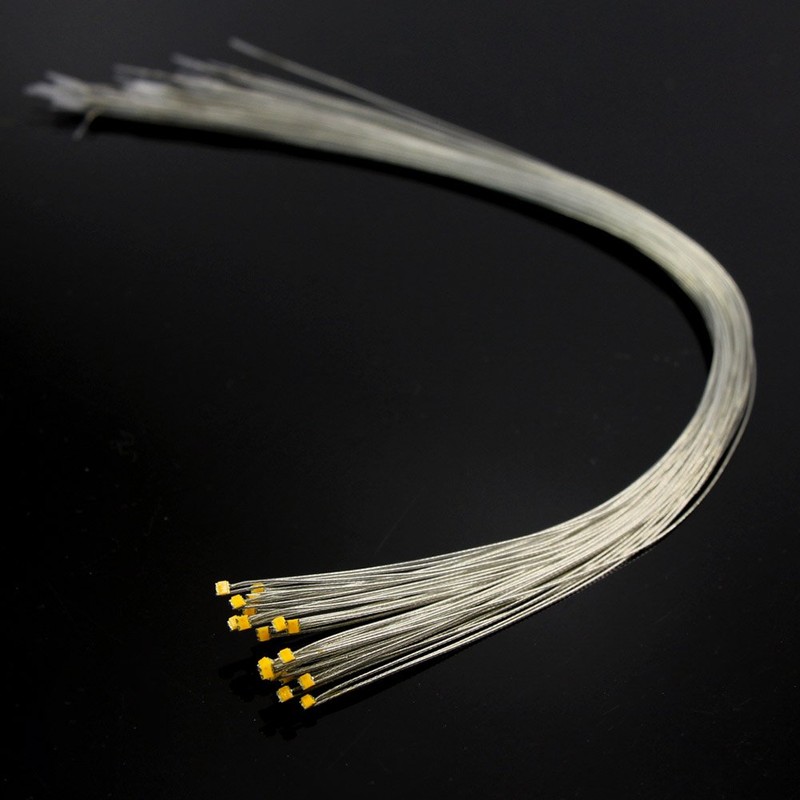

With approx. 20 cm long micro strand - ready soldered.
Soldering is very complex and difficult, but offers maximum flexibility in the installation of the LED and ensures extremely space-saving use.
For optimal insulation with a minimum outer diameter and at the same time "water-softer" suppleness, smoky grey micro strand with only 0.28 mm diameter is used. Their insulating jacket consists of a special, highly heat-resistant material mixture with a high Teflon content, so hardly any longitudinal shrinkage occurs when soldering.
The two colours can be controlled independently.
This double chip LED has been specially developed for the model railway.

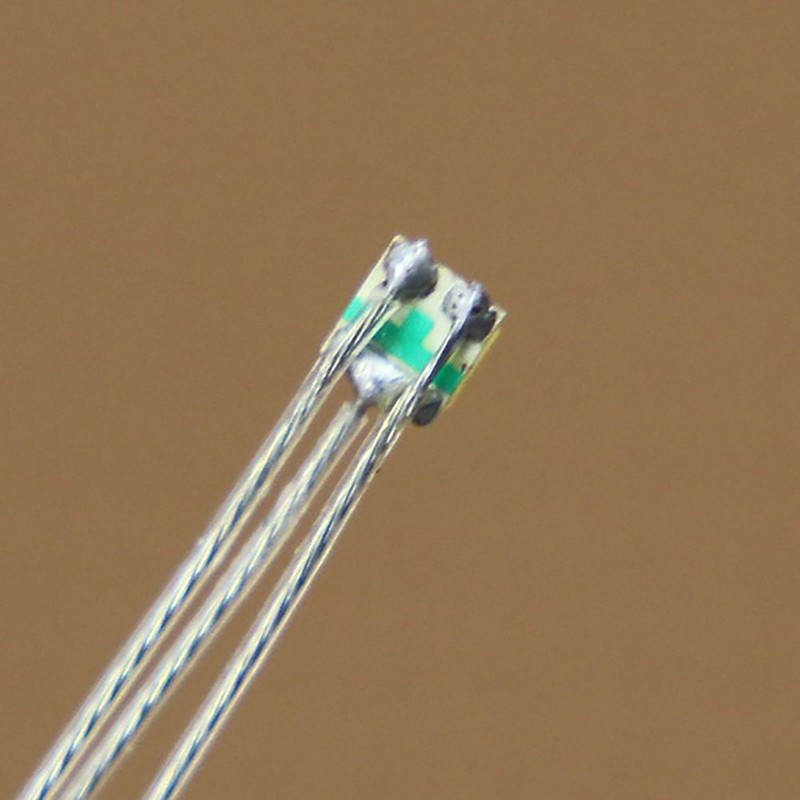

The two colours have a common anode.
For easy connection detection, the cathode is approx. 10 mm shorter than the anode.
Universal for all track widths.
Technical data:
Brand: evemodel.
Type: 0605.

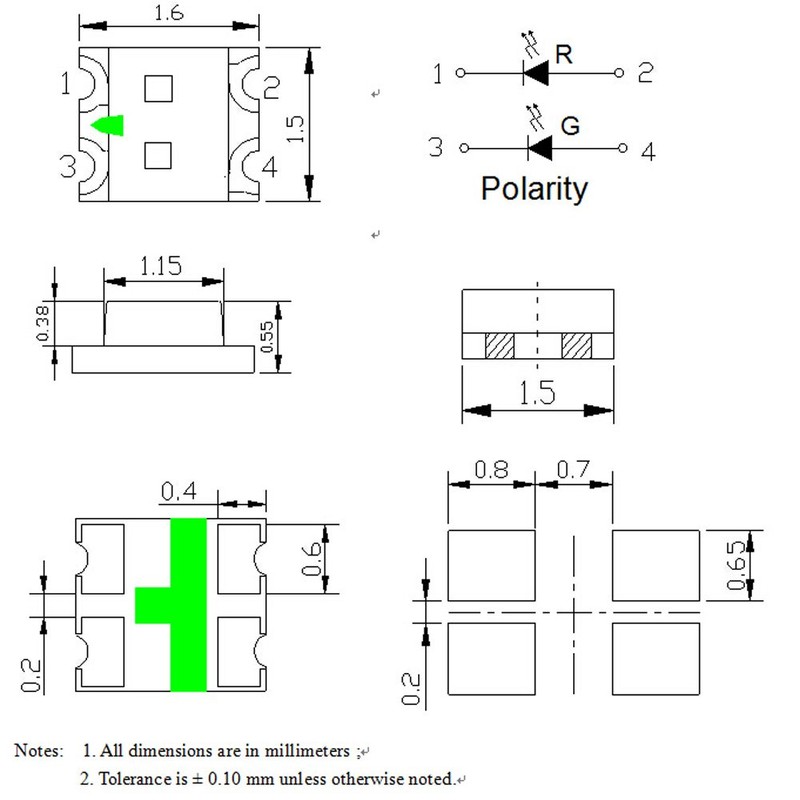

LED dimensions (L x W): 1.6 mm x 1.5 mm.
Light colour: red and warm white.
Beam angle: 130°.
Connection voltage: red 2.0 V and warm white 3.1 V (DC or alternating current).
Operating current: type. 15 mA, max. 20mA
Cable length: approx. 20 cm.
Serial resistors for connection to 9-18V are included. If you have the 9-18 V transformer, you need to switch the included resistor into the cable.
Box contents:
Pack of 20 bi-colour SMD LEDs 0605 soldered with micro braze.
Pack of 20 resistors for connection to 9-18 V.
Age note: only for adults (14+), not for children.
