Electric Bolt Lock DC 12V, 5 Lines Electronic Door Lock, Narrow Deadbolt Drop Bolt Door Lock with Time Delay LED Display for Door Entry Access Control (Power Off Lock)

Brand: Saluaqui
  • Parameters: The stainless steel deadbolt diameter is 12.8mm, the protruding length is 15mm, and the aluminum alloy structure is strong and durable.
  • Time Delay: Electronic Door Lock with door close time delay function, will lock until the door completely stop moving, rather than lock instantly, effectively protect the door and lock from damage.
  • Aluminum Alloy: Electric deadbolt lock is made of aluminum alloy material, firm, antirust, durable to use, and is impact resistant and wear proof.
  • Anti Prying: 12V DC Electric Bolt Lock equipped with lock cylinder work detection LED light display and door detection signal output contact, solid structure design with strong anti prying capability.
  • DC12V Electric Bolt Lock: The electric lock support DC12V input and 120mA operating current, 4 kinds of delay time can be adjusted: 0‑3‑6‑9 seconds.
Brand: Saluaqui
Size: Power Off Lock
Manufacturer: Saluaqui
Part Number: CSD7DV2
Material Type: Stainless Steel, Aluminium
Isin: IBL7N5YBTCCH

$113.22

  • Free shipping in US
  • Shipping: $14.5 Extended Delivery (Ships from overseas warehouse, 10-15 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Electric Bolt Lock DC 12V, 5 Lines Electronic Door Lock, Narrow Deadbolt Drop Bolt Door Lock with Time Delay LED Display for Door Entry Access Control (Power Off Lock)

Electric Bolt Lock DC 12V, 5 Lines Electronic Door Lock, Narrow Deadbolt Drop...

$113.22

Specification:
Item Type: Electric Bolt Lock
Material: Aluminium alloy
Working Voltage: DC12V
Working Current: Instantaneous starting current 1000mA, working current 120mA
Open Door Congratulation: The negative pole of the black wire is engaged with the orange wire
LED Display: Deadbolt status indication, red light when deadbolt is retracted, green light when deadbolt is plugged out
Locking Delay: 0-3-6-9 seconds adjustable
Deadbolt Size: Diameter 12.8mm/0.50in stainless steel deadbolt, protruding length 15mm/0.59in

Installation Instructions:
1. Read this manual in detail before use, checks whether the accessories are complete, and pays attention to the wiring method and installation precautions.
2. This product is composed of lock body and door valve plate, the circumferential disparity distance between the door valve plate and the electric lock shall not exceed 8mm during installation, so as to avoid insufficient magnet induction, pay attention to the lock tongue corresponding to the door valve plate hole.

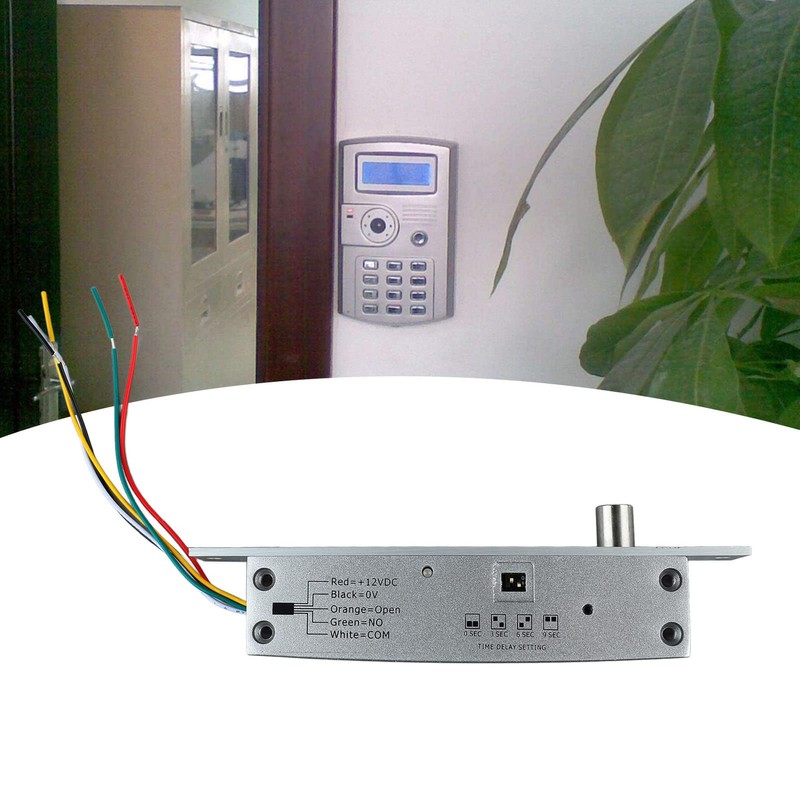

3. The electric lock wiring is led by red, black, orange, green, white, five colors. The red wire is connected to the positive pole of the lock (+), the black wire is connected to the negative pole of the lock (-), the green line and the white wire are the door signal, the white line is the common end (COM), the green line is normally open (NO), the orange line is the door opening contact line and the black line can be connected at the same time, and the door button can be connected.
4. Lock delay setting, a total of four setting method, 0-3-6-9 seconds adjustable.

Package List:
1 xElectric Bolt Lock
1 x Sticker
10 x Screw
2 x Gasket
1 x Metal Patch
1 x Keyhole Iron Sheet
