ECCPP Front Upper Control Arms & Ball Joints For Acura Integra, Honda Civic 1992-2001
ECCPP Front Upper Control Arms & Ball Joints For Acura Integra, Honda Civic 1992-2001
|
|
|
|
|
|
|
|
|
|
1.Fitting the Following vehicle:
1994-2001 Acura Integra
1992-1995 Honda Civic
1993-1997 Honda Civic del sol

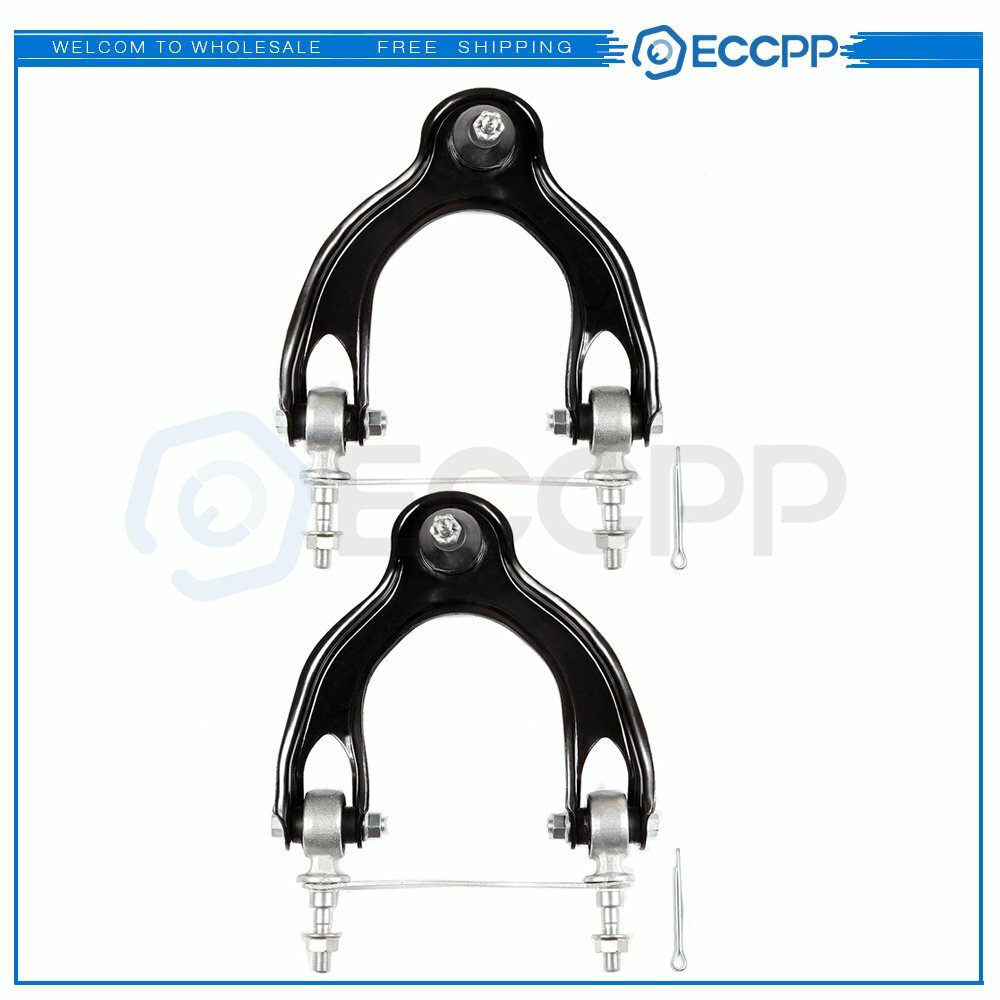

2.Package Includes:

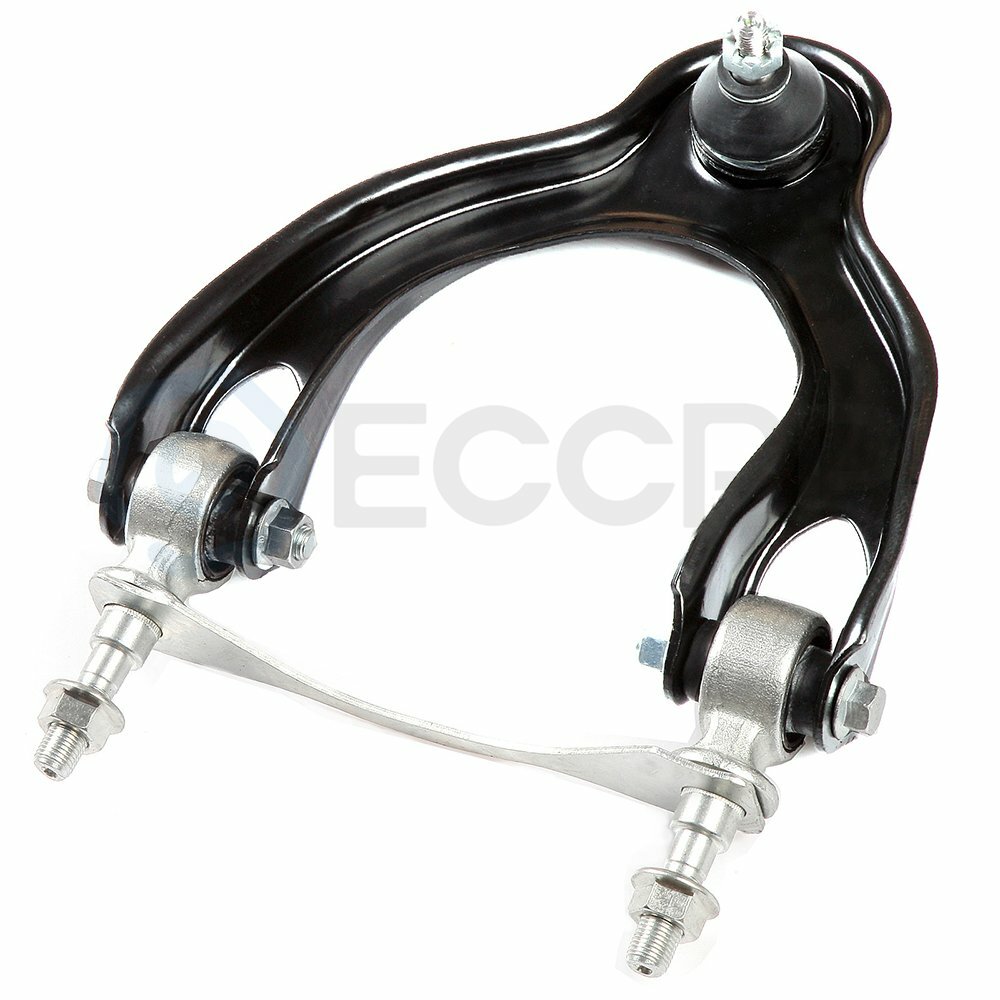

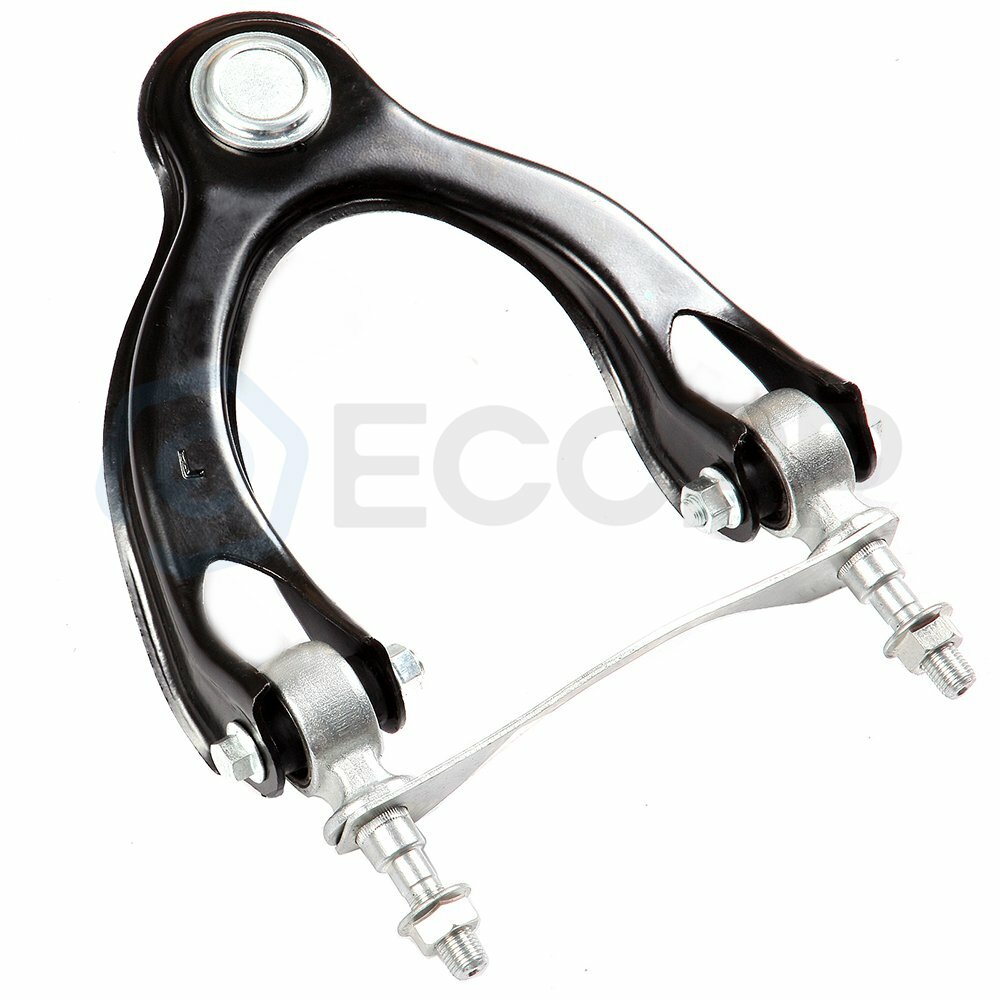

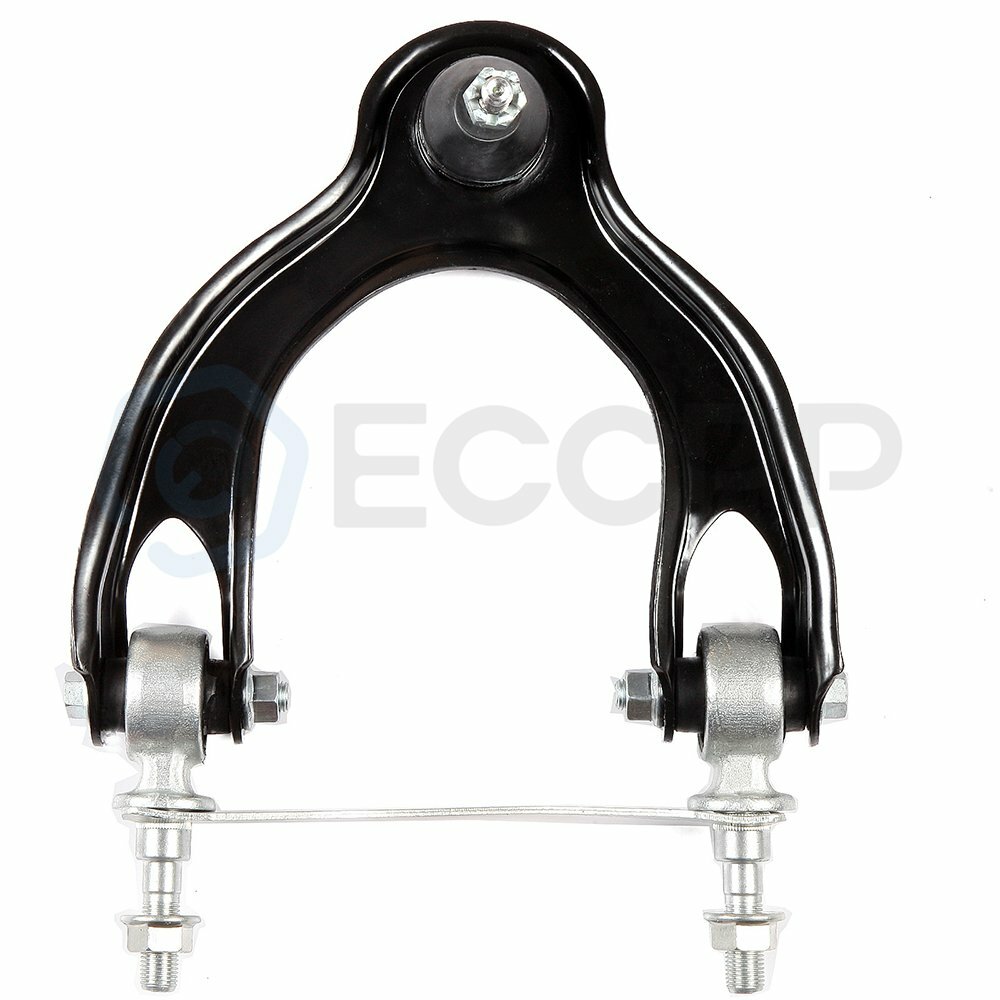

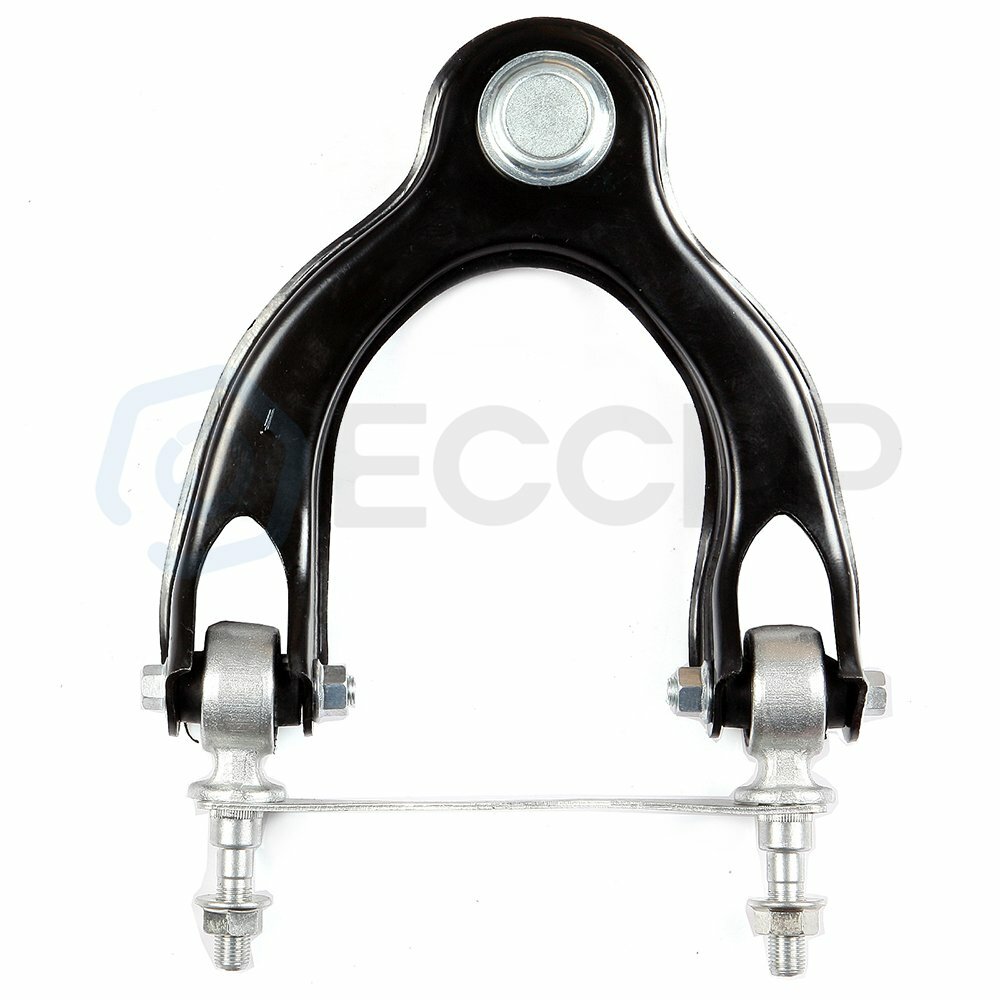

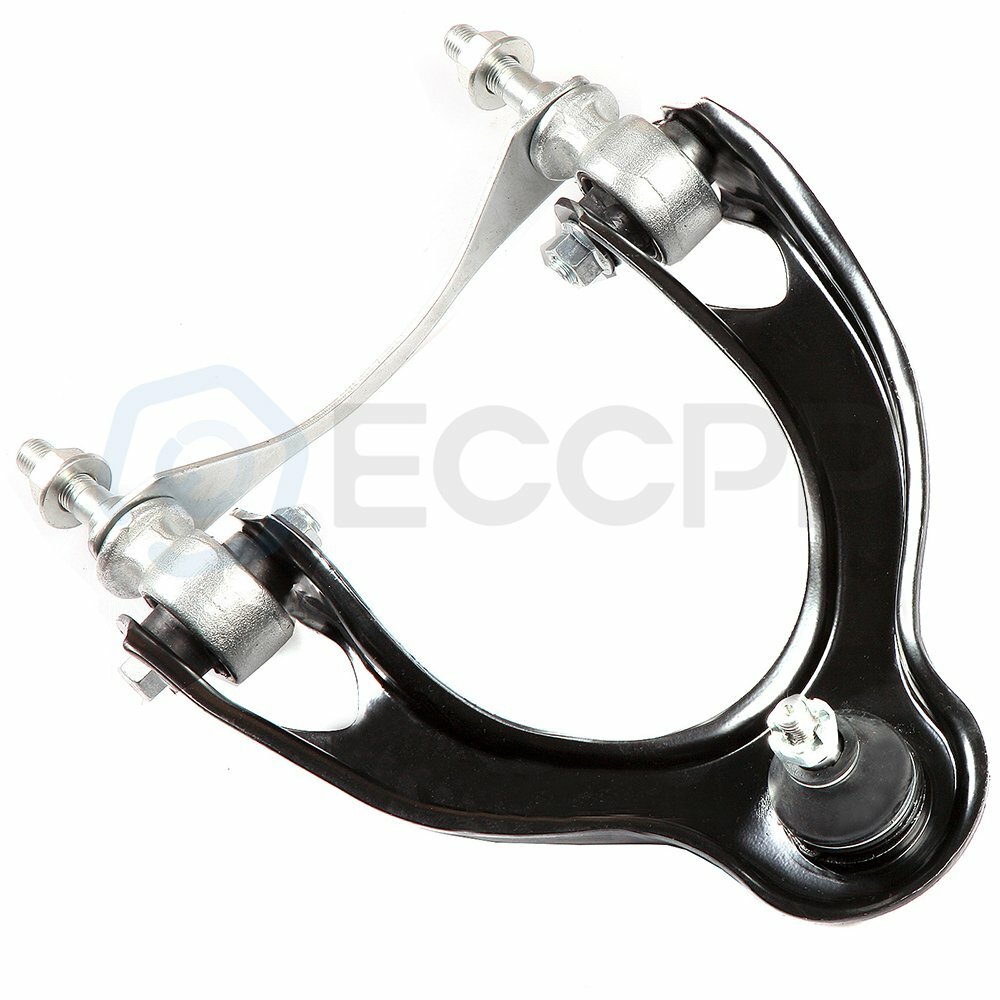

1x Front Upper Left Control Arm and Ball Joint Assembly (Driver Side) - K90449

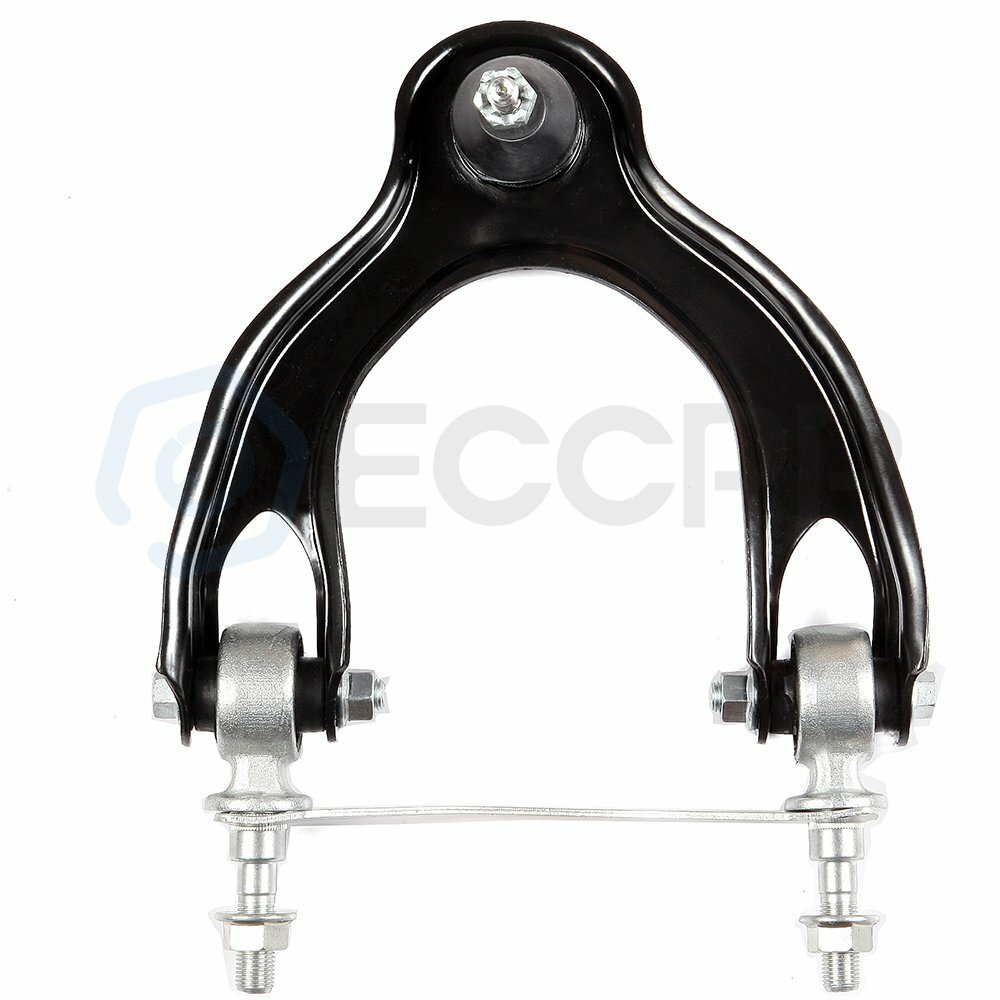

1x Front Upper Right Control Arm and Ball Joint Assembly (Passenger Side)- K904488
3.Note
Although some parts have grease fittings, other parts are factory sealed, but do not affect the fit and quality of the parts.
Please check above compatibility list to make sure it fits your vehicle.
Suspension Control Arm
Control arms are installed in pairs on the front and rear axle and connect the chassis to the wheels as part of the suspension. Therefore, they have a significant influence on the driving characteristics of the vehicle.
A dynamic or a comfortable driving style? The control arms are individually adjusted to the vehicle depending on the desired characteristics. They also absorb lateral movements and forces resulting from driving off and braking.
Suspension Control Arm Replacement Guideline:
Control arms are installed in pairs on the front and rear axle and connect the chassis to the wheels as part of the suspension. Therefore, they have a significant influence on the driving characteristics of the vehicle.
A dynamic or a comfortable driving style? The control arms are individually adjusted to the vehicle depending on the desired characteristics. They also absorb lateral movements and forces resulting from driving off and braking.
Picture(A)
A defective control arm can manifest in the following ways:
(1).Noise (squeaking, creaking, rumbling).
(2).Deteriorating driveability.
(3).Increasingly woolly and imprecise steering.
(4).Uneven tyre wear.
Tip:If the control arm is in working order, it is possible to only replace the defective bearings and joints. However, replacing bearings, control arm bushings and ball joints can be very complex and costly.
Picture(B)
1.First lift the vehicle using a car lift, ideally a wheel-free four-post car lift. This makes it easier to correctly tighten the control arm fixing screws.
WARNING:Depending on the axle design, the control arm may need to be secured against falling with a suitable device, e.g. a transmission lifter.
2.Treat the fixing screws and nuts of the control arm with rust solvent and leave it to work for a few minutes so that they are easier to loosen.
3.On vehicles with automatic headlight levelling, it may be necessary to detach the leveling sensor from the control arm.
Picture(C)
4.If the stabilizer is connected to the control arm, the next step is to loosen and remove the corresponding stabiliser fixing screws.
5.Loosen and remove the control arm fixing screws.
6.Loosen the ball joint at the steering knuckle with a suitable special tool (e.g. a puller).
7.Remove the old control arm.
Picture(D)
8.Clean the mounting flange of the ball joint pin on the steering knuckle with sandpaper and then with brake cleaner. Otherwise single rust particles can enter the new control arm joint via the ball pin, potentially leading to premature failure of the joint.
Picture(E)
9.Fit the new control arm with the supplied accessories and attach new fixing screws and nuts.
Picture(F)
10.Reattach the stabilizer and, if applicable, the leveling sensor for headlight leveling to the control arm.
NOTE:Do not tighten the fixing screws and nuts in this step, otherwise the rubber mounts will twist when the suspension compresses. This would lead to undesired preloading onf the mounts.
Picture(G)
11.Now lower the vehicle until the suspension is compressed. Depending on vehicle type, load or unload the vehicle until the required height published in the specific installation instruction is reached. This is where a wheel-free four-post car lift is advantageous, as the underside of the vehicle can still be easily accessed once lowered.
12.Tighten the fixing screws with the torque stipulated by the vehicle manufacturer.
13.Lower the vehicle all the way.
14.Measure the chassis and adjust if necessary.
15.Check and, if necessary, adjust the headlight settings on vehicles with automatic headlight leveling where the leveling sensor is attached to the control arm.
16.To conclude, test-drive the vehicle.
Frequently Asked Questions
(1).What's the function of control arm?
The control arm connects the hub and the frame of the car. There are ball joints on the hub side and bushings on the frame side to achieve up and down instead of forward and rearward.
(2).What is the significance of the control arm for the car?
As an important part of the car suspension, the control arm is used to transmit the required supporting force of the wheel and to withstand all the front and rear direction stresses. It is an important safety part of the chassis system. Therefore, it requires high strength and reliability in the design. Its fatigue strength is directly related to the safety of vehicles and members.
(3).How to tell the quality of control arm?
Look at the materials and processing of the control arm: the materials used to control the arm, common are steel and aluminum alloy. In ordinary family cars, steel control arms are very common, and the basic appeal is to meet the strength while controlling costs. In the middle and high-end models, you will see the control arm of the aluminum alloy and the wheel bearing housing. In addition to meeting the strength of the suspension, this material can further reduce the weight and reduce the weight of the suspension spring to improve the suspension response. Improve driving performance.
Look at chassis protection and workmanship: Regarding chassis protection, we mainly pay attention to whether it is equipped with engine under guard, whether there is coating or cover at the bottom of the car body, whether the oil pipe is covered with a guard plate, whether the front and rear wheel arches are protected. Board or coating coverage, etc.
(4).Do I need to replace the control arm if the bushings are worn? What is the safety risk?
Because the weight of the car is transferred through the control arm two rubber bushings are fitted at the pivot point and bolted to the frame. Road conditions and driving habits can contribute to the wear of these bushings which will become worn and fall apart. These bushing can be inspected by raising the car up and looking for an irregular configuration of the rubber center of the bushing. Many control arms have the ball joint manufactured into the arm which will be replaced along with the control arm itself. When one control arm is worn it is highly advised to replace the opposing arm.
(5).What is the average cost of replacing control arms?
The cost to replace control arms depend on the vehicle. Control arms cost different amounts depending on the vehicle, as well as the labor to install. Some are easy to install and take little time, while others can take several hours.
Item Specifics | |
---|---|
Placement on Vehicle | Front Left Right Upper |
Type | Control Arm & Ball Joint Assembly |
Universal Fitment | No |
Control Arm Construction | Forged |
Items Included | Mounting Hardware |
Custom Bundle | Yes |
Interchange Part Number | K90448,K90449 |
OE/OEM Part Number | Suspension Control Arms and Ball Joints Assembly |
Superseded Part Number | Front Driver And Passenger Side Replacement |
Manufacturer Warranty | 10 Year |
Brand | ECCPP |
Manufacturer Part Number | E80109101CP |
Adjustable | Yes |
Modified Item | Yes |
Kit Parts Included | Control Arm, Ball Joint |
Kit or Single Part | Kit |
Greasable or Sealed | Greasable |
OE Spec or Performance/Custom | OE Spec |
Surface Finish | Polished, Rust Protected |
Suspension Grade | Standard |
Quantity | 2 Pcs |
Partslink-number | 2 Front Upper Control Arm Upper Ball Joint |
Fitment | For 1992-1995 Honda Civic |
Part Type | Control Arm & Ball Joint Assembly |
Features | Greasable |

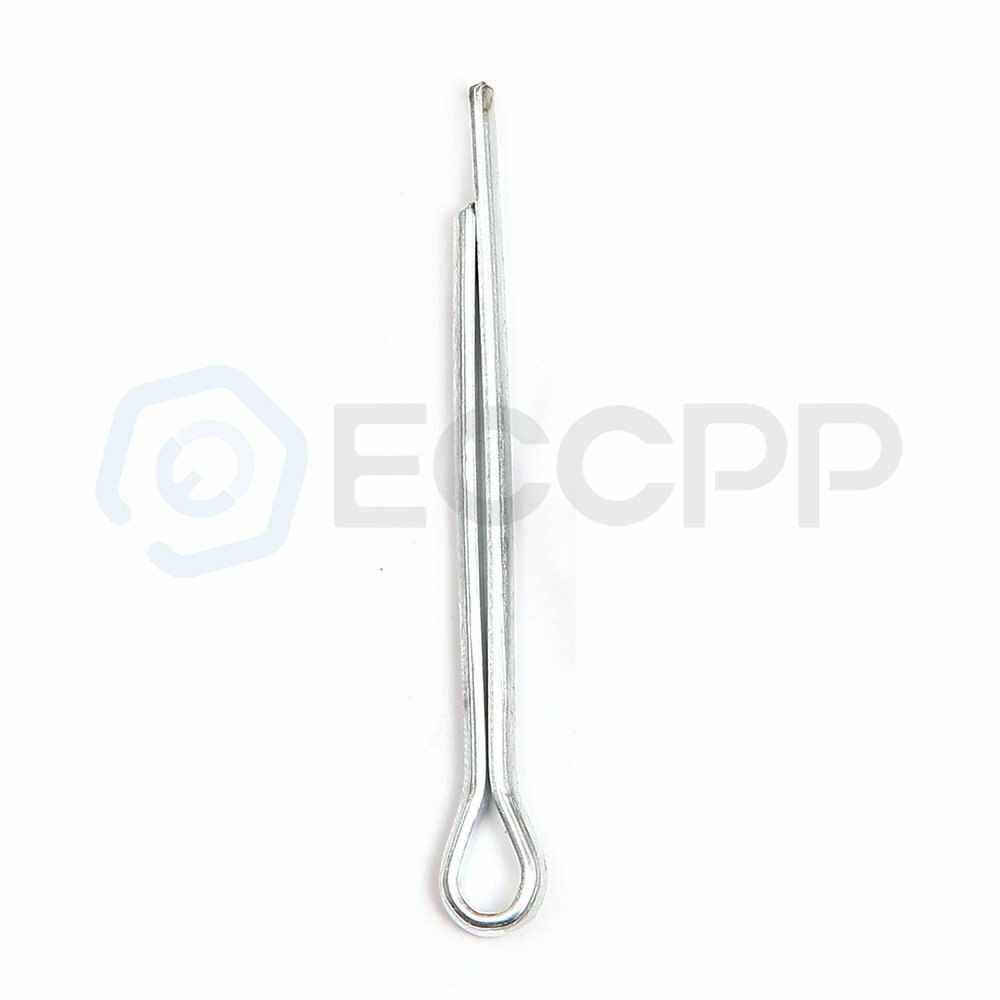

Cotter Pin Hole | Yes |
Material | Alloy Steel |
Mounting Style | Bolt-On |
Finish | Coated |
Item Specifics | |
---|---|
Placement on Vehicle | Front Left Right Upper |
Type | Control Arm & Ball Joint Assembly |
Universal Fitment | No |
Control Arm Construction | Forged |
Items Included | Mounting Hardware |
Custom Bundle | Yes |
Interchange Part Number | K90448,K90449 |
OE/OEM Part Number | Suspension Control Arms and Ball Joints Assembly |
Superseded Part Number | Front Driver And Passenger Side Replacement |
Manufacturer Warranty | 10 Year |
Brand | ECCPP |
Manufacturer Part Number | E80109101CP |
Adjustable | Yes |
Modified Item | Yes |
Kit Parts Included | Control Arm, Ball Joint |
Kit or Single Part | Kit |
Greasable or Sealed | Greasable |
OE Spec or Performance/Custom | OE Spec |
Surface Finish | Polished, Rust Protected |
Suspension Grade | Standard |
Quantity | 2 Pcs |
Partslink-number | 2 Front Upper Control Arm Upper Ball Joint |
Fitment | For 1992-1995 Honda Civic |
Part Type | Control Arm & Ball Joint Assembly |
Features | Greasable |
Cotter Pin Hole | Yes |
Material | Alloy Steel |
Mounting Style | Bolt-On |
Finish | Coated |
Targeted Disounts Terms
(1).Targeted Discount Terms only apply to auto parts purchased from ECCPPAUTOPARTS, which only includes suspension kit, control arm, tie rod end, ball joint, sway bar, stabilizer link, pitman arm, idler arm, steering center link.
(2).If you have reached any targeted discount threshold(s), please contact our customer services after you received all your items.
(3).Targeted Discount will be refunded from buyer's payment, which means ECCPPAUTOPARTS won't provide any extra targeted discounts if full refund is issued.
Targeted Shipping Discount
(4).Since our warehouse is located in Los Angeles, California, therefore you are qualified for extra 2% targeted shipping discount off the item sales if shipping address of your order is in California(CA), Washington(WA), Oregon(OR), Nevada(NV). If you have reached this targeted shipping discount threshold, please contact our customer services after you received all your items.
Note: Item sales means your payment for the product(s) only, excluding shipping and handling charges, US internet sales taxes.
(5).We usually need a 1-2 business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6 business days after your payment is received.
(6).ECCPPAUTOPARTS has the final power of interpretation of all the above Targeted Discount Terms and Procedures.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Proposition 65 requires businesses to provide warnings to Californians about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm.
(1).Warehouse is located in Los Angeles, California, where local pickup transaction is temporarily not available.
(2).Shipping services only cover 48 states and Washington DC in US Continental, while most of the time Alaska, Hawaii, Puerto Rico, American Samoa, U.S. Virgin Islands, Northern Marianas, Guam are not deliverable.
(3).USPS PO Box, APO Army Post Office, FPO Fleet Post Office addresses are not available.
(4).Global Shipping Program is temporarily not available due to the reason for package dimensions.
(5).We usually need a 1-2 business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6 business days after your payment is received.
(6).Your auto parts sometimes might be shipped with two or more separated packages due to weight limitation, please keep patient with no Item Not Received claim or Return request filed until by all of your items are received.
(7).Seller is required to purchase signature confirmation to be protected if a buyer reports an item not received or opens a payment dispute if the order has a total cost (including shipping costs and any taxes) of $750 or more.
Items valued over $15 on eBay that include a warranty or service contract must contain additional details in seller's listing description.
10 Year Warranty Terms and Procedures
(1).The warranty terms only apply to the auto parts purchased from ECCPPAUTOPARTS, which only includes suspension kit, control arm, tie rod end, ball joint, sway bar, stabilizer link, pitman arm, idler arm, steering center link.
(2).ECCPPAUTOPARTS carries no warranty responsibilities for any auto parts removing fees, installation fees, consulting fees, labor costs, towing charges, rental car reimbursements.
(3).The stated 10 year warranty is limited to only one brand new replacement for each part purchased during 10 year warranty time period.
(4).ECCPPAUTOPARTS promises free replacement due to quality defects or item not as described issues within 90 calendar days from the date when buyers receive their items in the situation when buyers are willing to provide convictive proofs or professional diagnose report if required, otherwise ECCPPAUTOPARTS has the right to refuse any replacement requests.
(5).ECCPPAUTOPARTS promises free replacement due to quality defects or item not as described issues after 90 calendar days from the date when buyers receive their items in the situation when buyers promise to prepay 15% of the original item sales price as postage for replacement, otherwise ECCPPAUTOPARTS has the right to refuse any replacement requests.
(6).ECCPPAUTOPARTS carries no warranty responsibilities for any replacement due to car accidents, drag racing, unprofessional replacement, road hazard, disassembly.
(7).Anyone who attempts to execute 10 year warranty procedures must be the original purchaser of the item(s), otherwise 10 year warranty terms void immediately.
(8).Anyone who attempts to execute 10 year warranty procedures must provide screenshot of his or her original eBay order details if required, including buyer user name, shipping address, item title, item id, final sales price.
(9).ECCPPAUTOPARTS has the final power of interpretation of the above 10 Year Warranty Terms and Procedures.
(1).Most of items support 60 Days Money Back Guarantee.
(2).Refunds will be credited within 2 or 3 business days after returned item(s) is received.
Front Upper Control Arms & Ball Joints For Acura Integra, Honda Civic 1992-2001
1.Fitting the Following vehicle: 1994-2001 Acura Integra 1992-1995 Honda Civic 1993-1997 Honda Civic del sol
2.Package Includes: 1x Front Upper Left Control Arm and Ball Joint Assembly (Driver Side) - K90449 1x Front Upper Right Control Arm and Ball Joint Assembly (Passenger Side)- K904488
3.Note Although some parts have grease fittings, other parts are factory sealed, but do not affect the fit and quality of the parts. Please check above compatibility list to make sure it fits your vehicle.
Suspension Control Arm Control arms are installed in pairs on the front and rear axle and connect the chassis to the wheels as part of the suspension. Therefore, they have a significant influence on the driving characteristics of the vehicle. A dynamic or a comfortable driving style? The control arms are individually adjusted to the vehicle depending on the desired characteristics. They also absorb lateral movements and forces resulting from driving off and braking.
Suspension Control Arm Replacement Guideline: Control arms are installed in pairs on the front and rear axle and connect the chassis to the wheels as part of the suspension. Therefore, they have a significant influence on the driving characteristics of the vehicle. A dynamic or a comfortable driving style? The control arms are individually adjusted to the vehicle depending on the desired characteristics. They also absorb lateral movements and forces resulting from driving off and braking. Picture(A) A defective control arm can manifest in the following ways: (1).Noise (squeaking, creaking, rumbling). (2).Deteriorating driveability. (3).Increasingly woolly and imprecise steering. (4).Uneven tyre wear. Tip:If the control arm is in working order, it is possible to only replace the defective bearings and joints. However, replacing bearings, control arm bushings and ball joints can be very complex and costly.
Picture(B) 1.First lift the vehicle using a car lift, ideally a wheel-free four-post car lift. This makes it easier to correctly tighten the control arm fixing screws. WARNING:Depending on the axle design, the control arm may need to be secured against falling with a suitable device, e.g. a transmission lifter. 2.Treat the fixing screws and nuts of the control arm with rust solvent and leave it to work for a few minutes so that they are easier to loosen. 3.On vehicles with automatic headlight levelling, it may be necessary to detach the leveling sensor from the control arm.
Picture(C) 4.If the stabilizer is connected to the control arm, the next step is to loosen and remove the corresponding stabiliser fixing screws.
5.Loosen and remove the control arm fixing screws. 6.Loosen the ball joint at the steering knuckle with a suitable special tool (e.g. a puller). 7.Remove the old control arm.
Picture(D) 8.Clean the mounting flange of the ball joint pin on the steering knuckle with sandpaper and then with brake cleaner. Otherwise single rust particles can enter the new control arm joint via the ball pin, potentially leading to premature failure of the joint.
Picture(E) 9.Fit the new control arm with the supplied accessories and attach new fixing screws and nuts.
Picture(F) 10.Reattach the stabilizer and, if applicable, the leveling sensor for headlight leveling to the control arm. NOTE:Do not tighten the fixing screws and nuts in this step, otherwise the rubber mounts will twist when the suspension compresses. This would lead to undesired preloading onf the mounts.
Picture(G) 11.Now lower the vehicle until the suspension is compressed. Depending on vehicle type, load or unload the vehicle until the required height published in the specific installation instruction is reached. This is where a wheel-free four-post car lift is advantageous, as the underside of the vehicle can still be easily accessed once lowered.
12.Tighten the fixing screws with the torque stipulated by the vehicle manufacturer. 13.Lower the vehicle all the way. 14.Measure the chassis and adjust if necessary. 15.Check and, if necessary, adjust the headlight settings on vehicles with automatic headlight leveling where the leveling sensor is attached to the control arm. 16.To conclude, test-drive the vehicle.
Frequently Asked Questions (1).What's the function of control arm?
(2).What is the significance of the control arm for the car?
(3).How to tell the quality of control arm? Look at the materials and processing of the control arm: the materials used to control the arm, common are steel and aluminum alloy. In ordinary family cars, steel control arms are very common, and the basic appeal is to meet the strength while controlling costs. In the middle and high-end models, you will see the control arm of the aluminum alloy and the wheel bearing housing. In addition to meeting the strength of the suspension, this material can further reduce the weight and reduce the weight of the suspension spring to improve the suspension response. Improve driving performance.
(4).Do I need to replace the control arm if the bushings are worn? What is the safety risk?
(5).What is the average cost of replacing control arms?
Targeted Disounts Terms Targeted Shipping Discount (5).We usually need a 1-2 business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6 business days after your payment is received. (6).ECCPPAUTOPARTS has the final power of interpretation of all the above Targeted Discount Terms and Procedures. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov (1).Warehouse is located in Los Angeles, California, where local pickup transaction is temporarily not available. Items valued over $15 on eBay that include a warranty or service contract must contain additional details in seller's listing description. 10 Year Warranty Terms and Procedures (1).Most of items support 60 Days Money Back Guarantee. Copyright of ECCPP. All rights reserved. |
Brand: | ECCPP |
---|---|
Isin: | IMF0AJCCRHJF |

IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

|
|
|
|
|
|
|
|
|
|
1.Fitting the Following vehicle:
1994-2001 Acura Integra
1992-1995 Honda Civic
1993-1997 Honda Civic del sol
2.Package Includes:
1x Front Upper Left Control Arm and Ball Joint Assembly (Driver Side) - K90449
1x Front Upper Right Control Arm and Ball Joint Assembly (Passenger Side)- K904488
3.Note
Although some parts have grease fittings, other parts are factory sealed, but do not affect the fit and quality of the parts.
Please check above compatibility list to make sure it fits your vehicle.
Suspension Control Arm
Control arms are installed in pairs on the front and rear axle and connect the chassis to the wheels as part of the suspension. Therefore, they have a significant influence on the driving characteristics of the vehicle.
A dynamic or a comfortable driving style? The control arms are individually adjusted to the vehicle depending on the desired characteristics. They also absorb lateral movements and forces resulting from driving off and braking.
Suspension Control Arm Replacement Guideline:
Control arms are installed in pairs on the front and rear axle and connect the chassis to the wheels as part of the suspension. Therefore, they have a significant influence on the driving characteristics of the vehicle.
A dynamic or a comfortable driving style? The control arms are individually adjusted to the vehicle depending on the desired characteristics. They also absorb lateral movements and forces resulting from driving off and braking.
Picture(A)
A defective control arm can manifest in the following ways:
(1).Noise (squeaking, creaking, rumbling).
(2).Deteriorating driveability.
(3).Increasingly woolly and imprecise steering.
(4).Uneven tyre wear.
Tip:If the control arm is in working order, it is possible to only replace the defective bearings and joints. However, replacing bearings, control arm bushings and ball joints can be very complex and costly.
Picture(B)
1.First lift the vehicle using a car lift, ideally a wheel-free four-post car lift. This makes it easier to correctly tighten the control arm fixing screws.
WARNING:Depending on the axle design, the control arm may need to be secured against falling with a suitable device, e.g. a transmission lifter.
2.Treat the fixing screws and nuts of the control arm with rust solvent and leave it to work for a few minutes so that they are easier to loosen.
3.On vehicles with automatic headlight levelling, it may be necessary to detach the leveling sensor from the control arm.
Picture(C)
4.If the stabilizer is connected to the control arm, the next step is to loosen and remove the corresponding stabiliser fixing screws.
5.Loosen and remove the control arm fixing screws.
6.Loosen the ball joint at the steering knuckle with a suitable special tool (e.g. a puller).
7.Remove the old control arm.
Picture(D)
8.Clean the mounting flange of the ball joint pin on the steering knuckle with sandpaper and then with brake cleaner. Otherwise single rust particles can enter the new control arm joint via the ball pin, potentially leading to premature failure of the joint.
Picture(E)
9.Fit the new control arm with the supplied accessories and attach new fixing screws and nuts.
Picture(F)
10.Reattach the stabilizer and, if applicable, the leveling sensor for headlight leveling to the control arm.
NOTE:Do not tighten the fixing screws and nuts in this step, otherwise the rubber mounts will twist when the suspension compresses. This would lead to undesired preloading onf the mounts.
Picture(G)
11.Now lower the vehicle until the suspension is compressed. Depending on vehicle type, load or unload the vehicle until the required height published in the specific installation instruction is reached. This is where a wheel-free four-post car lift is advantageous, as the underside of the vehicle can still be easily accessed once lowered.
12.Tighten the fixing screws with the torque stipulated by the vehicle manufacturer.
13.Lower the vehicle all the way.
14.Measure the chassis and adjust if necessary.
15.Check and, if necessary, adjust the headlight settings on vehicles with automatic headlight leveling where the leveling sensor is attached to the control arm.
16.To conclude, test-drive the vehicle.
Frequently Asked Questions
(1).What's the function of control arm?
The control arm connects the hub and the frame of the car. There are ball joints on the hub side and bushings on the frame side to achieve up and down instead of forward and rearward.
(2).What is the significance of the control arm for the car?
As an important part of the car suspension, the control arm is used to transmit the required supporting force of the wheel and to withstand all the front and rear direction stresses. It is an important safety part of the chassis system. Therefore, it requires high strength and reliability in the design. Its fatigue strength is directly related to the safety of vehicles and members.
(3).How to tell the quality of control arm?
Look at the materials and processing of the control arm: the materials used to control the arm, common are steel and aluminum alloy. In ordinary family cars, steel control arms are very common, and the basic appeal is to meet the strength while controlling costs. In the middle and high-end models, you will see the control arm of the aluminum alloy and the wheel bearing housing. In addition to meeting the strength of the suspension, this material can further reduce the weight and reduce the weight of the suspension spring to improve the suspension response. Improve driving performance.
Look at chassis protection and workmanship: Regarding chassis protection, we mainly pay attention to whether it is equipped with engine under guard, whether there is coating or cover at the bottom of the car body, whether the oil pipe is covered with a guard plate, whether the front and rear wheel arches are protected. Board or coating coverage, etc.
(4).Do I need to replace the control arm if the bushings are worn? What is the safety risk?
Because the weight of the car is transferred through the control arm two rubber bushings are fitted at the pivot point and bolted to the frame. Road conditions and driving habits can contribute to the wear of these bushings which will become worn and fall apart. These bushing can be inspected by raising the car up and looking for an irregular configuration of the rubber center of the bushing. Many control arms have the ball joint manufactured into the arm which will be replaced along with the control arm itself. When one control arm is worn it is highly advised to replace the opposing arm.
(5).What is the average cost of replacing control arms?
The cost to replace control arms depend on the vehicle. Control arms cost different amounts depending on the vehicle, as well as the labor to install. Some are easy to install and take little time, while others can take several hours.
Item Specifics | |
---|---|
Placement on Vehicle | Front Left Right Upper |
Type | Control Arm & Ball Joint Assembly |
Universal Fitment | No |
Control Arm Construction | Forged |
Items Included | Mounting Hardware |
Custom Bundle | Yes |
Interchange Part Number | K90448,K90449 |
OE/OEM Part Number | Suspension Control Arms and Ball Joints Assembly |
Superseded Part Number | Front Driver And Passenger Side Replacement |
Manufacturer Warranty | 10 Year |
Brand | ECCPP |
Manufacturer Part Number | E80109101CP |
Adjustable | Yes |
Modified Item | Yes |
Kit Parts Included | Control Arm, Ball Joint |
Kit or Single Part | Kit |
Greasable or Sealed | Greasable |
OE Spec or Performance/Custom | OE Spec |
Surface Finish | Polished, Rust Protected |
Suspension Grade | Standard |
Quantity | 2 Pcs |
Partslink-number | 2 Front Upper Control Arm Upper Ball Joint |
Fitment | For 1992-1995 Honda Civic |
Part Type | Control Arm & Ball Joint Assembly |
Features | Greasable |
Cotter Pin Hole | Yes |
Material | Alloy Steel |
Mounting Style | Bolt-On |
Finish | Coated |
Item Specifics | |
---|---|
Placement on Vehicle | Front Left Right Upper |
Type | Control Arm & Ball Joint Assembly |
Universal Fitment | No |
Control Arm Construction | Forged |
Items Included | Mounting Hardware |
Custom Bundle | Yes |
Interchange Part Number | K90448,K90449 |
OE/OEM Part Number | Suspension Control Arms and Ball Joints Assembly |
Superseded Part Number | Front Driver And Passenger Side Replacement |
Manufacturer Warranty | 10 Year |
Brand | ECCPP |
Manufacturer Part Number | E80109101CP |
Adjustable | Yes |
Modified Item | Yes |
Kit Parts Included | Control Arm, Ball Joint |
Kit or Single Part | Kit |
Greasable or Sealed | Greasable |
OE Spec or Performance/Custom | OE Spec |
Surface Finish | Polished, Rust Protected |
Suspension Grade | Standard |
Quantity | 2 Pcs |
Partslink-number | 2 Front Upper Control Arm Upper Ball Joint |
Fitment | For 1992-1995 Honda Civic |
Part Type | Control Arm & Ball Joint Assembly |
Features | Greasable |
Cotter Pin Hole | Yes |
Material | Alloy Steel |
Mounting Style | Bolt-On |
Finish | Coated |
Targeted Disounts Terms
(1).Targeted Discount Terms only apply to auto parts purchased from ECCPPAUTOPARTS, which only includes suspension kit, control arm, tie rod end, ball joint, sway bar, stabilizer link, pitman arm, idler arm, steering center link.
(2).If you have reached any targeted discount threshold(s), please contact our customer services after you received all your items.
(3).Targeted Discount will be refunded from buyer's payment, which means ECCPPAUTOPARTS won't provide any extra targeted discounts if full refund is issued.
Targeted Shipping Discount
(4).Since our warehouse is located in Los Angeles, California, therefore you are qualified for extra 2% targeted shipping discount off the item sales if shipping address of your order is in California(CA), Washington(WA), Oregon(OR), Nevada(NV). If you have reached this targeted shipping discount threshold, please contact our customer services after you received all your items.
Note: Item sales means your payment for the product(s) only, excluding shipping and handling charges, US internet sales taxes.
(5).We usually need a 1-2 business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6 business days after your payment is received.
(6).ECCPPAUTOPARTS has the final power of interpretation of all the above Targeted Discount Terms and Procedures.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Proposition 65 requires businesses to provide warnings to Californians about significant exposures to chemicals that cause cancer, birth defects or other reproductive harm.
(1).Warehouse is located in Los Angeles, California, where local pickup transaction is temporarily not available.
(2).Shipping services only cover 48 states and Washington DC in US Continental, while most of the time Alaska, Hawaii, Puerto Rico, American Samoa, U.S. Virgin Islands, Northern Marianas, Guam are not deliverable.
(3).USPS PO Box, APO Army Post Office, FPO Fleet Post Office addresses are not available.
(4).Global Shipping Program is temporarily not available due to the reason for package dimensions.
(5).We usually need a 1-2 business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6 business days after your payment is received.
(6).Your auto parts sometimes might be shipped with two or more separated packages due to weight limitation, please keep patient with no Item Not Received claim or Return request filed until by all of your items are received.
(7).Seller is required to purchase signature confirmation to be protected if a buyer reports an item not received or opens a payment dispute if the order has a total cost (including shipping costs and any taxes) of $750 or more.
Items valued over $15 on eBay that include a warranty or service contract must contain additional details in seller's listing description.
10 Year Warranty Terms and Procedures
(1).The warranty terms only apply to the auto parts purchased from ECCPPAUTOPARTS, which only includes suspension kit, control arm, tie rod end, ball joint, sway bar, stabilizer link, pitman arm, idler arm, steering center link.
(2).ECCPPAUTOPARTS carries no warranty responsibilities for any auto parts removing fees, installation fees, consulting fees, labor costs, towing charges, rental car reimbursements.
(3).The stated 10 year warranty is limited to only one brand new replacement for each part purchased during 10 year warranty time period.
(4).ECCPPAUTOPARTS promises free replacement due to quality defects or item not as described issues within 90 calendar days from the date when buyers receive their items in the situation when buyers are willing to provide convictive proofs or professional diagnose report if required, otherwise ECCPPAUTOPARTS has the right to refuse any replacement requests.
(5).ECCPPAUTOPARTS promises free replacement due to quality defects or item not as described issues after 90 calendar days from the date when buyers receive their items in the situation when buyers promise to prepay 15% of the original item sales price as postage for replacement, otherwise ECCPPAUTOPARTS has the right to refuse any replacement requests.
(6).ECCPPAUTOPARTS carries no warranty responsibilities for any replacement due to car accidents, drag racing, unprofessional replacement, road hazard, disassembly.
(7).Anyone who attempts to execute 10 year warranty procedures must be the original purchaser of the item(s), otherwise 10 year warranty terms void immediately.
(8).Anyone who attempts to execute 10 year warranty procedures must provide screenshot of his or her original eBay order details if required, including buyer user name, shipping address, item title, item id, final sales price.
(9).ECCPPAUTOPARTS has the final power of interpretation of the above 10 Year Warranty Terms and Procedures.
(1).Most of items support 60 Days Money Back Guarantee.
(2).Refunds will be credited within 2 or 3 business days after returned item(s) is received.

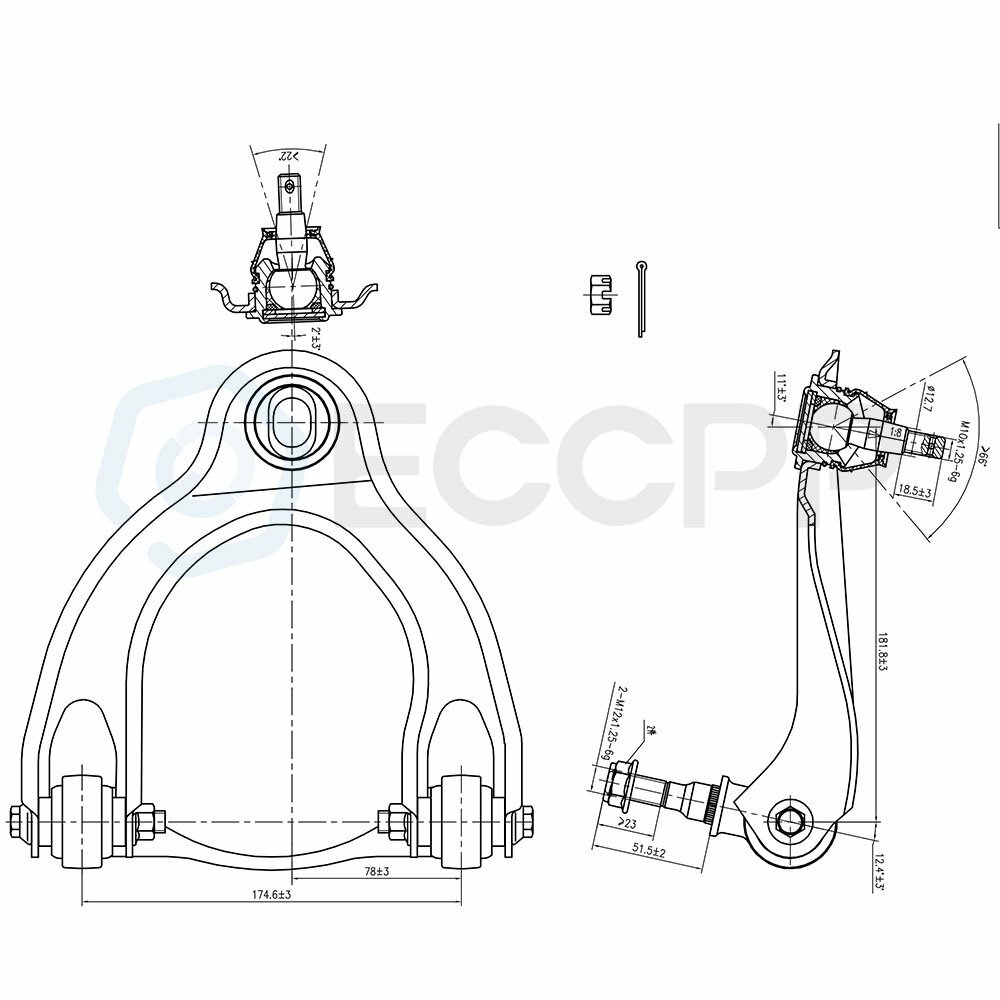

Front Upper Control Arms & Ball Joints For Acura Integra, Honda Civic 1992-2001
1.Fitting the Following vehicle: 1994-2001 Acura Integra 1992-1995 Honda Civic 1993-1997 Honda Civic del sol
2.Package Includes: 1x Front Upper Left Control Arm and Ball Joint Assembly (Driver Side) - K90449 1x Front Upper Right Control Arm and Ball Joint Assembly (Passenger Side)- K904488
3.Note Although some parts have grease fittings, other parts are factory sealed, but do not affect the fit and quality of the parts. Please check above compatibility list to make sure it fits your vehicle.
Suspension Control Arm Control arms are installed in pairs on the front and rear axle and connect the chassis to the wheels as part of the suspension. Therefore, they have a significant influence on the driving characteristics of the vehicle. A dynamic or a comfortable driving style? The control arms are individually adjusted to the vehicle depending on the desired characteristics. They also absorb lateral movements and forces resulting from driving off and braking.
Suspension Control Arm Replacement Guideline: Control arms are installed in pairs on the front and rear axle and connect the chassis to the wheels as part of the suspension. Therefore, they have a significant influence on the driving characteristics of the vehicle. A dynamic or a comfortable driving style? The control arms are individually adjusted to the vehicle depending on the desired characteristics. They also absorb lateral movements and forces resulting from driving off and braking. Picture(A) A defective control arm can manifest in the following ways: (1).Noise (squeaking, creaking, rumbling). (2).Deteriorating driveability. (3).Increasingly woolly and imprecise steering. (4).Uneven tyre wear. Tip:If the control arm is in working order, it is possible to only replace the defective bearings and joints. However, replacing bearings, control arm bushings and ball joints can be very complex and costly.
Picture(B) 1.First lift the vehicle using a car lift, ideally a wheel-free four-post car lift. This makes it easier to correctly tighten the control arm fixing screws. WARNING:Depending on the axle design, the control arm may need to be secured against falling with a suitable device, e.g. a transmission lifter. 2.Treat the fixing screws and nuts of the control arm with rust solvent and leave it to work for a few minutes so that they are easier to loosen. 3.On vehicles with automatic headlight levelling, it may be necessary to detach the leveling sensor from the control arm.
Picture(C) 4.If the stabilizer is connected to the control arm, the next step is to loosen and remove the corresponding stabiliser fixing screws.
5.Loosen and remove the control arm fixing screws. 6.Loosen the ball joint at the steering knuckle with a suitable special tool (e.g. a puller). 7.Remove the old control arm.
Picture(D) 8.Clean the mounting flange of the ball joint pin on the steering knuckle with sandpaper and then with brake cleaner. Otherwise single rust particles can enter the new control arm joint via the ball pin, potentially leading to premature failure of the joint.
Picture(E) 9.Fit the new control arm with the supplied accessories and attach new fixing screws and nuts.
Picture(F) 10.Reattach the stabilizer and, if applicable, the leveling sensor for headlight leveling to the control arm. NOTE:Do not tighten the fixing screws and nuts in this step, otherwise the rubber mounts will twist when the suspension compresses. This would lead to undesired preloading onf the mounts.
Picture(G) 11.Now lower the vehicle until the suspension is compressed. Depending on vehicle type, load or unload the vehicle until the required height published in the specific installation instruction is reached. This is where a wheel-free four-post car lift is advantageous, as the underside of the vehicle can still be easily accessed once lowered.
12.Tighten the fixing screws with the torque stipulated by the vehicle manufacturer. 13.Lower the vehicle all the way. 14.Measure the chassis and adjust if necessary. 15.Check and, if necessary, adjust the headlight settings on vehicles with automatic headlight leveling where the leveling sensor is attached to the control arm. 16.To conclude, test-drive the vehicle.
Frequently Asked Questions (1).What's the function of control arm?
(2).What is the significance of the control arm for the car?
(3).How to tell the quality of control arm? Look at the materials and processing of the control arm: the materials used to control the arm, common are steel and aluminum alloy. In ordinary family cars, steel control arms are very common, and the basic appeal is to meet the strength while controlling costs. In the middle and high-end models, you will see the control arm of the aluminum alloy and the wheel bearing housing. In addition to meeting the strength of the suspension, this material can further reduce the weight and reduce the weight of the suspension spring to improve the suspension response. Improve driving performance.
(4).Do I need to replace the control arm if the bushings are worn? What is the safety risk?
(5).What is the average cost of replacing control arms?
Targeted Disounts Terms Targeted Shipping Discount (5).We usually need a 1-2 business day as handling time for packaging and shipping scheduling. Estimated delivery dates should be 4-6 business days after your payment is received. (6).ECCPPAUTOPARTS has the final power of interpretation of all the above Targeted Discount Terms and Procedures. WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov (1).Warehouse is located in Los Angeles, California, where local pickup transaction is temporarily not available. Items valued over $15 on eBay that include a warranty or service contract must contain additional details in seller's listing description. 10 Year Warranty Terms and Procedures (1).Most of items support 60 Days Money Back Guarantee. Copyright of ECCPP. All rights reserved. |

- Placement on Vehicle: Front, Left, Right, Upper
- Type: Control Arm & Ball Joint Assembly
- Universal Fitment: No
- Control Arm Construction: Forged
- Items Included: Mounting Hardware
- Custom Bundle: Yes
- Interchange Part Number: K90448,K90449
- OE/OEM Part Number: Suspension Control Arms and Ball Joints Assembly
- Superseded Part Number: Front Driver And Passenger Side Replacement
- Manufacturer Warranty: 10 Year
- Brand: ECCPP
- UPC: Does not apply
- Manufacturer Part Number: E80109101CP
- Adjustable: Yes
- Modified Item: Yes
- Kit Parts Included: Control Arm, Ball Joint
- Kit or Single Part: Kit
- Greasable or Sealed: Greasable
- OE Spec or Performance/Custom: OE Spec
- Surface Finish: Polished, Rust Protected
- Suspension Grade: Standard
- Quantity: 2 Pcs
- Partslink-number: 2 Front Upper Control Arm, Upper Ball Joint
- Fitment: For 1992-1995 Honda Civic
- Part Type: Control Arm & Ball Joint Assembly
- Features: Greasable
- Cotter Pin Hole: Yes
- Material: Alloy Steel
- Mounting Style: Bolt-On
- Finish: Coated
Processing Time
- We process and ship orders Monday through Friday, excluding holidays.
- Most orders are processed within 1–3 business days, depending on product availability.
- Processing time does not include delivery time, which varies based on your location and the product’s shipping origin.
Shipping Coverage
We currently ship to addresses within the United States only.
Products may ship from:
- Our U.S. warehouses, or
- Our international fulfillment centers (including Korea, Japan, China, Australia, Mexico, Canada, the United Kingdom, and the EU).
Each product page clearly displays the “Ships From” location before checkout.
Shipping Methods & Estimated Delivery
Shipping Method | Estimated Delivery | Cost |
---|---|---|
Free Shipping (US) | 5–10 business days | Free, available on eligible items |
Standard Shipping (US to US by Item) | 5–10 business days | $6.50 for the first item, $3.00 each additional |
Standard Shipping (From US Warehouse by Weight) | 3–7 business days | Starts at $6.50, increasing by $2 for every additional 4 oz (0.25 lb) up to 1 lb, then by $4 for each additional pound beyond 1 lb. |
Extended Delivery (Ships from Overseas Warehouse) | 10–15 business days | $14.50 for the first item, $4.00 each additional |
Shipping costs vary by product weight, quantity and origin. Exact rates and delivery estimates are displayed on each product page and confirmed during checkout.
Free Shipping
We offer free standard shipping on select products or during promotional periods. Availability of free shipping will be displayed on the product page and at checkout.
Carriers
We primarily use USPS and UPS for U.S. deliveries. Items shipped from international warehouses may be handled by partner carriers depending on the country of origin.
Import Duties & Taxes
All import duties and taxes for goods imported into the United States are included in the product price. There are no hidden fees or additional charges at checkout.
Tracking & Notifications
Every order is fully trackable. You will receive a tracking number via email once your order ships. If your order ships in multiple packages, each package will have its own tracking number. If you don’t receive a shipping confirmation immediately, your order is still being processed and will arrive within the estimated timeframe shown at checkout.
You can track your shipment anytime using the Track Your Order page on our website.
Order Changes & Cancellations
If you need to modify or cancel an order, please contact our customer support team as soon as possible. Orders can only be canceled before they ship. Once shipped, cancellations are not possible, but you may request a return after the item is delivered.
Contact: support@ibspot.com
Item Not Received
If your tracking number shows “Delivered” but you haven’t received your package:
- Check with your local USPS or UPS office.
- Confirm that the shipping address provided was correct.
- If the issue remains unresolved, contact support@ibspot.com for assistance.
Damaged or Lost Parcels
If your package arrives damaged or fails to arrive, please contact us immediately. For deliveries to P.O. boxes, ibspot is not responsible for damage caused by weather, temperature, or theft.
Customer Support
For any questions about shipping, tracking, or delivery, our customer support team is here to help.
Email: support@ibspot.com
We’re always happy to help.
Please read our policy carefully before making a purchase.
We aim to ensure every customer has a smooth and transparent experience with ibspot.com.
Order Cancellation Policy
Customers may request to cancel an order before it has been shipped.
Once the package has been shipped, cancellations are no longer possible; however, you may still request a return after receiving your order.
How to Request a Cancellation
You can contact us through:
-
Email: support@ibspot.com
-
Contact Form: Submit a request through our Contact Us page
Please submit your cancellation request as soon as possible after placing the order to allow us to process it before shipment.
Return Policy
We accept returns for most items within 30 days of delivery for a full refund.
To be eligible for a return:
-
The item must be unused, in the same condition as received, and in its original packaging.
-
A tracking number must be provided to confirm the return shipment.
Non-Returnable Items
Certain products cannot be returned, including:
-
Perishable goods (for example, food, flowers, newspapers, magazines)
-
Intimate or sanitary goods
-
Hazardous materials or flammable liquids/gases
-
Gift cards
-
Downloadable software
-
Some health and personal care items
Partial Refunds (If Applicable)
Partial refunds may be granted in specific situations, such as:
-
Books with obvious signs of use
-
Opened CDs, DVDs, software, or vinyl records
-
Items not in their original condition, damaged, or missing parts not due to our error
-
Items returned more than 30 days after delivery
How to Return an Item
To initiate a return, please contact us at support@ibspot.com with your order number and details about the product you wish to return.
Our team will provide you with return instructions and a prepaid return label.
Shipping Cost for Returns
Please contact us before returning any item.
We will provide a free return shipping label.
If a return is sent back without prior contact or without our provided label, we cannot be held responsible for return shipping costs.
For items valued over $75, we recommend using a trackable shipping service or purchasing shipping insurance.
We cannot guarantee that we will receive your returned item if shipped independently.
Refund Processing
Once your return is received and inspected:
-
In-store returns are refunded to the original form of payment or issued as a gift card.
-
Mail-in returns using our prepaid label are refunded to the original payment method within 3–5 business days after we receive your return.
Please allow:
-
5–7 business days for the return to reach our Returns Center.
-
An additional 3–10 business days for your bank to post the refund to your account.
Damages, Issues & Claims
Please inspect your order immediately upon receipt.
If you receive a defective, damaged, or incorrect item, contact us right away at support@ibspot.com.
We’ll evaluate the issue promptly and make it right.
Product Claims
Before purchasing, please review product details carefully.
If there is a problem with your order upon arrival, visit our Support Center or contact us directly to arrange return shipping or replacement.
Exchanges
We do not process direct exchanges.
The fastest way to get what you need is to return the original item and place a new order once your return is accepted.
Return Address
IBSPOT Return Center
15 Sawmill Ln
Dover Plains, NY 12522
United States
Customer Support
Our support team is available 24/7 to assist with cancellations, returns, or general inquiries.
Email: support@ibspot.com
Contact Form: Contact Us page
Oops!
Sorry, it looks like some products are not available in selected quantity.
