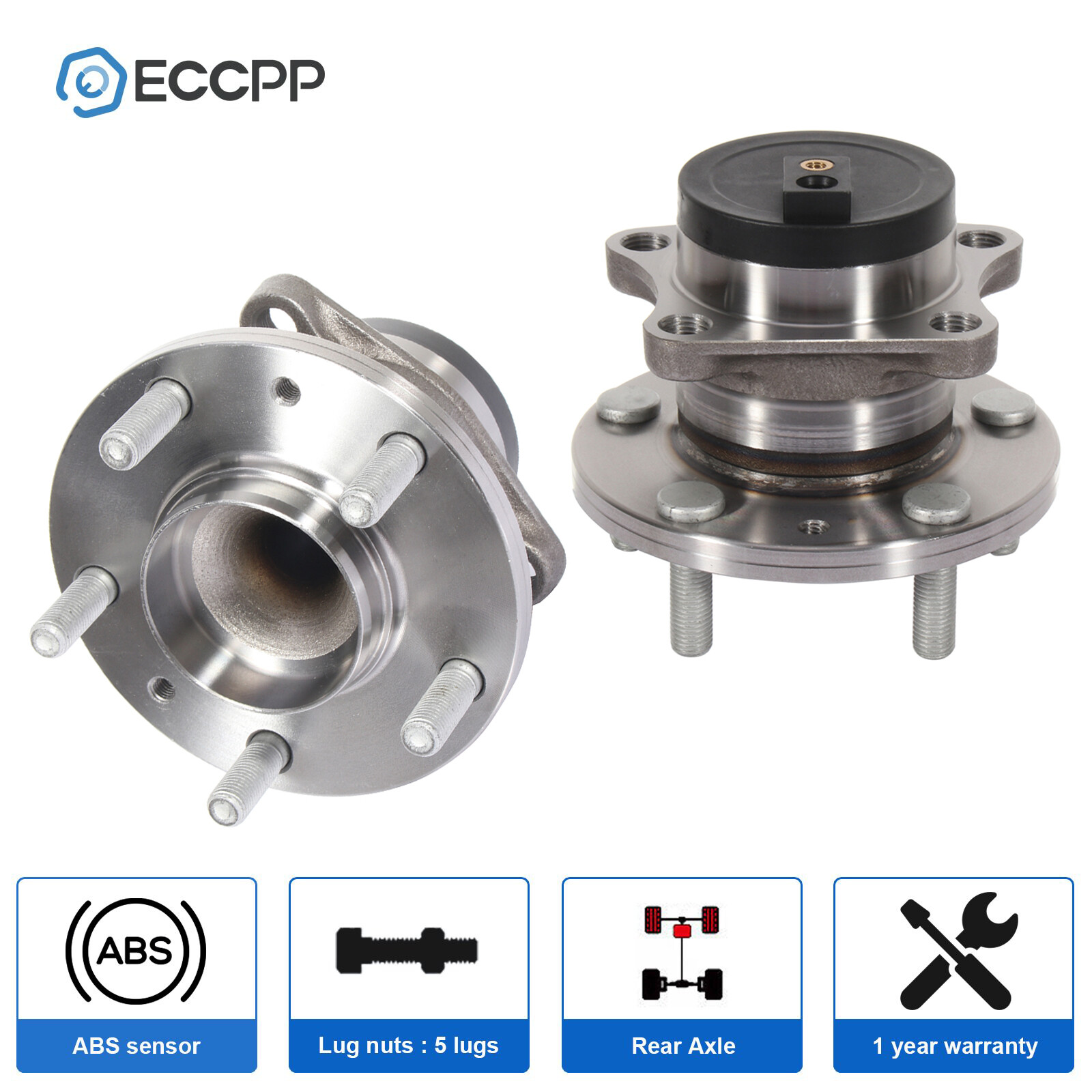

ECCPP 2 Pcs Wheel Hub Bearings Rear FWD For 2007 2008 2009 2010-2014 Mazda CX-9 3.7L

Brand: ECCPP
  • Product Features:
  •
    • Fits LH (Driver Side) & RH (Passenger Side) Rear
    • Fits 5 Lugs Wheels
    • Wheel studs already installed

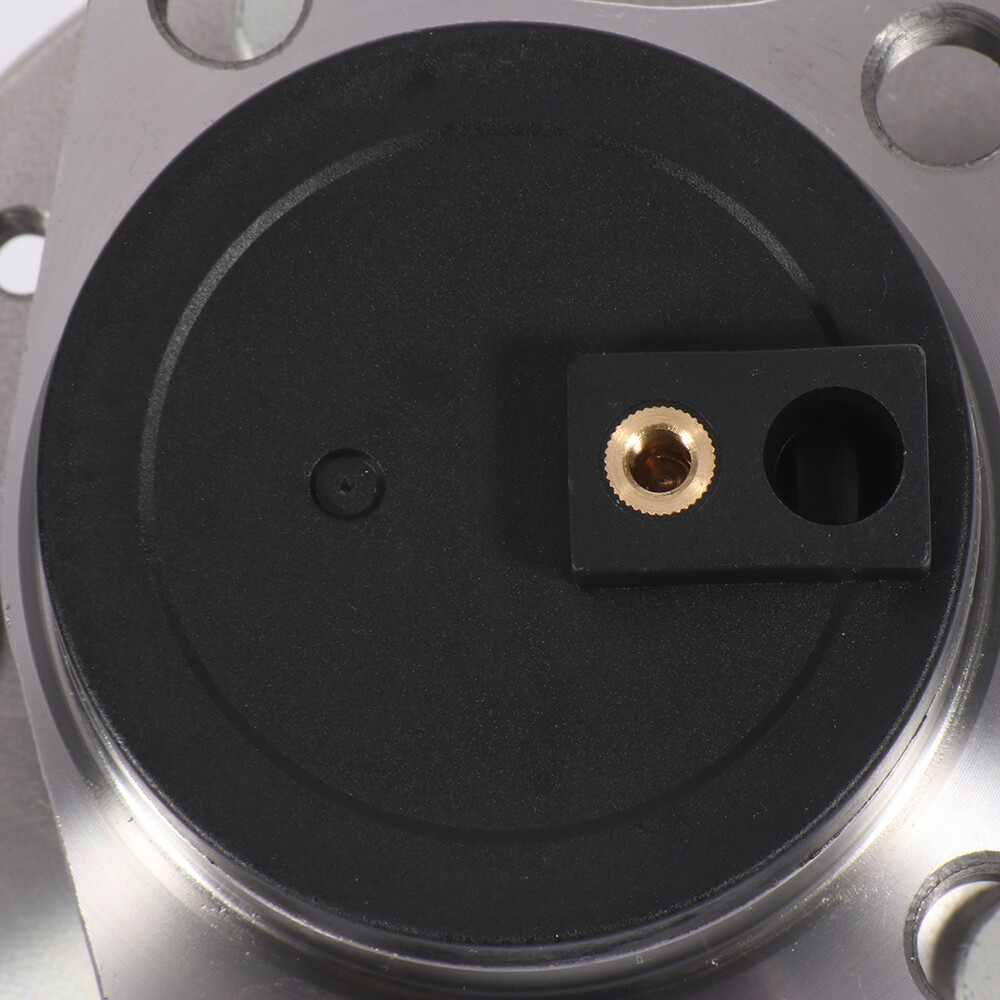

    • ABS Type: Sensor Cap
    • Drive Type: FWD

  • Item Description:
  •

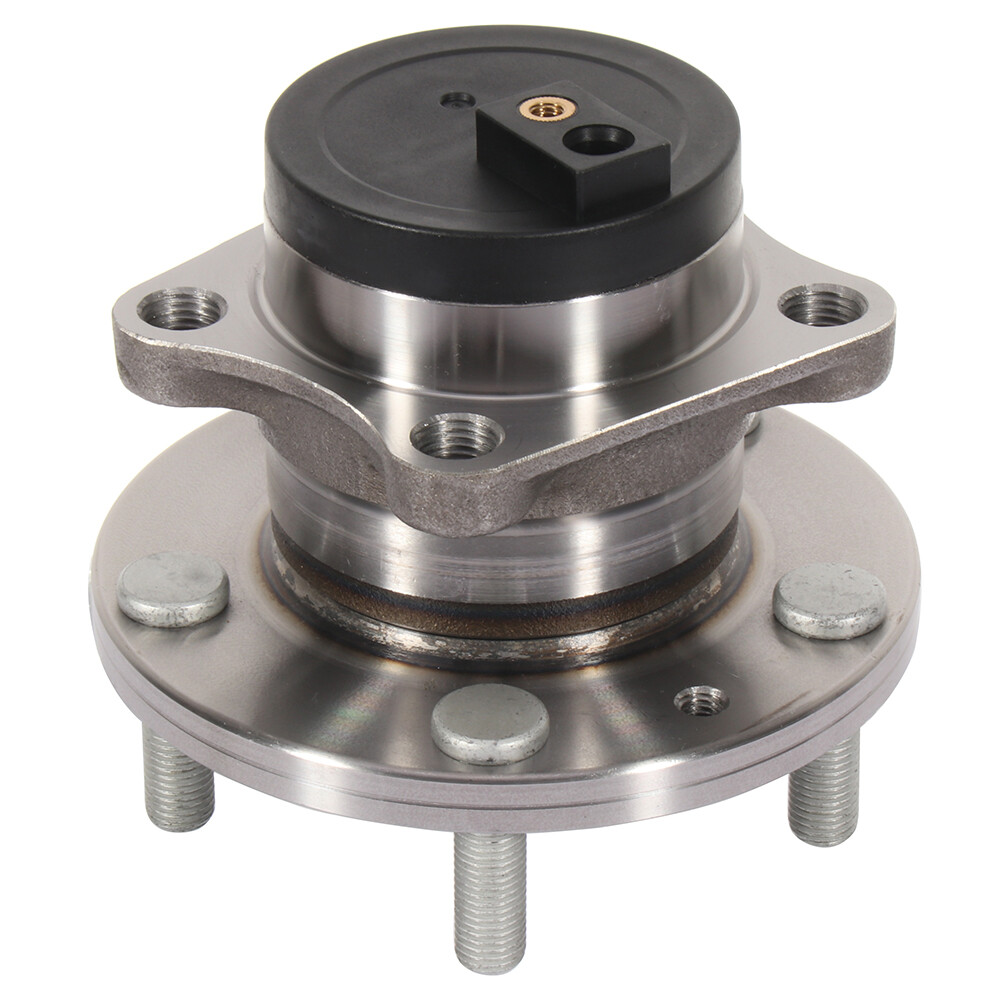

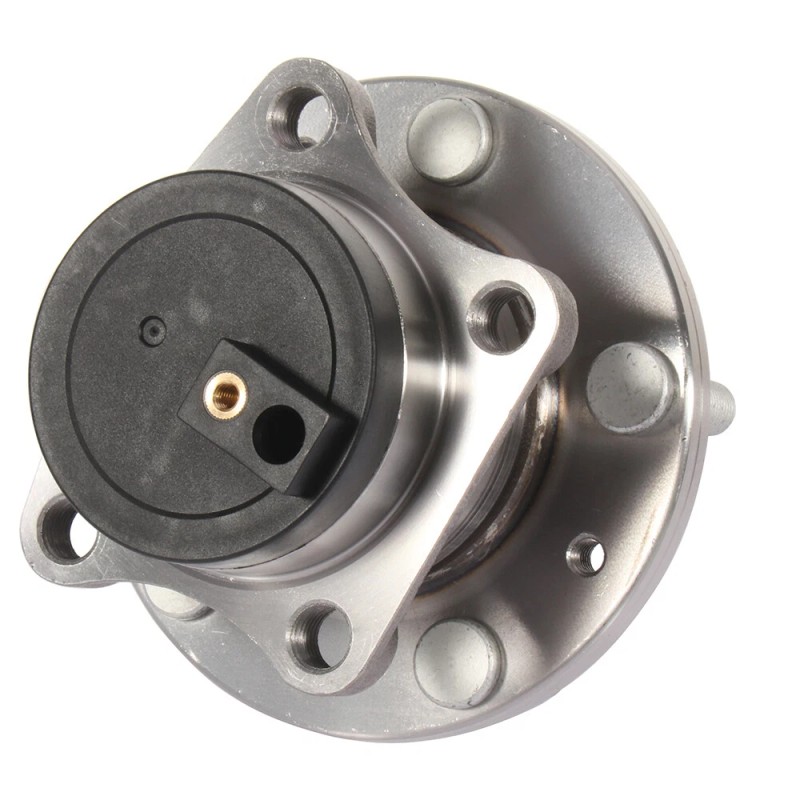

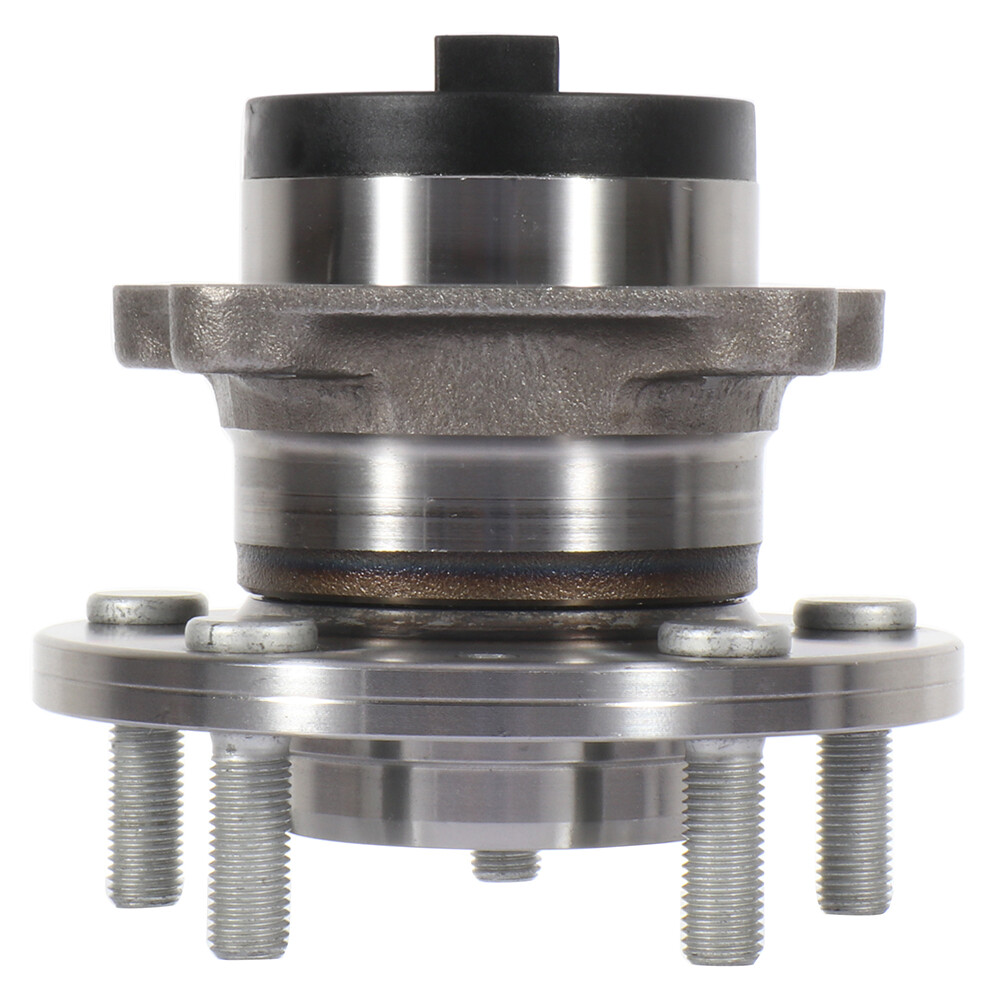

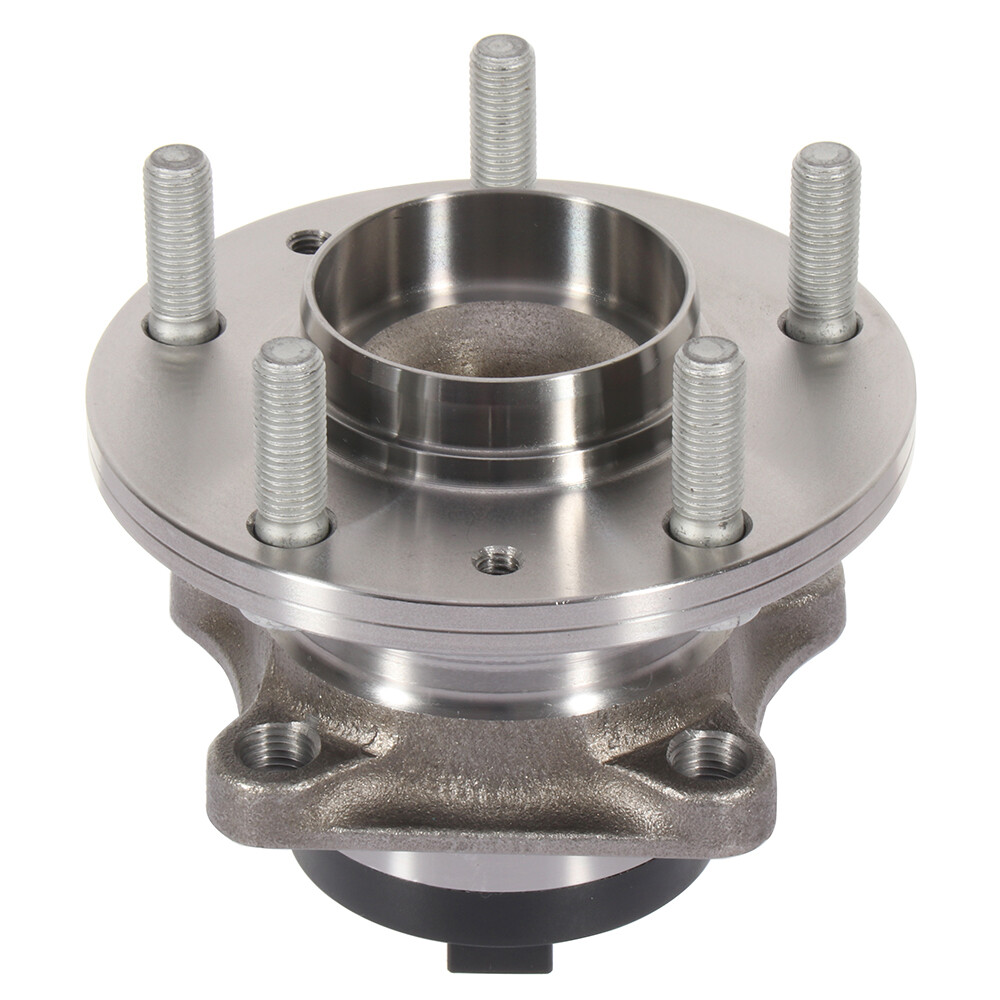

    • Brand New Wheel Hub Assembly
    • Direct replacement
    • Built to strict quality control standards
    • Replaces dealer part numbers: 512452, 40745004, 712452, 29512452, 745-3020, T70-512334, 411-289737, 102367, 051-6452, HA590041, TMHA590041, WA512452, WE61870, BR930787

  • Vehicle Fitment:
  •
    • Fits Mazda CX-9 2007-2014 FWD Only
    ​​
  • Package Include:
  •

  • 2 Pcs Wheel Hub Bearings Rear FWD For 2007 2008 2009 2010-2014 Mazda CX-9 3.7L

    Product Features:



    • Fits LH (Driver Side) & RH (Passenger Side) Rear
    • Fits 5 Lugs Wheels
    • Wheel studs already installed
    • ABS Type: Sensor Cap
    • Drive Type: FWD



    Item Description:



    • Brand New Wheel Hub Assembly
    • Direct replacement
    • Built to strict quality control standards
    • Replaces dealer part numbers: 512452, 40745004, 712452, 29512452, 745-3020, T70-512334, 411-289737, 102367, 051-6452, HA590041, TMHA590041, WA512452, WE61870, BR930787



    Vehicle Fitment:



    • Fits Mazda CX-9 2007-2014 FWD Only

    ​​

    Package Include:



    • (2) Wheel Hub Bearings



    Exploded View:





    1. Wheel hub and bearing
    2. Cotter pin
    3. Nut retainer
    4. Wheel hub lock nut
    5. Hub bolt
    6. Splash guard
    7. Steering knuckle



    Removal:





    1. Remove the bolt (1) and separate the front wheel sensor from the steering knuckle.?
    2. Remove brake caliper torque member bolts, leaving brake hose attached, reposition the caliper aside with wire.
    3. Put alignment marks (A) on disc brake rotor and wheel hub and bearing. Remove disc brake rotor.
    4. Remove cotter pin and the nut retainer,Loosen the wheel hub lock nut from the drive shaft using power tool.
    5. Using a piece of wood and a suitable tool, tap on the lock nut to disengage the drive shaft from the wheel hub and bearing.
    6. Remove the engine side cover.
    7. Remove the lower nut and bolt from the steering knuckle,Separate transverse link from steering knuckle.
    8. Separate drive shaft from wheel hub and bearing, Reposition the drive shaft aside with wire.
    9. Remove the wheel hub and bearing bolts using power tool.
    10. Remove the splash guard and the wheel hub and bearing from the steering knuckle.



    NOTE:



    • Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor;
    • Pull out the front wheel sensor, being careful to turn it as little as possible.
    • Do not pull on wheel sensorharness.



    Inspection after removel : Check components for deformationy,cracksy,and other damagey,and  boots of transverse link ball joint for cracksy,axial end play,and swing torque.

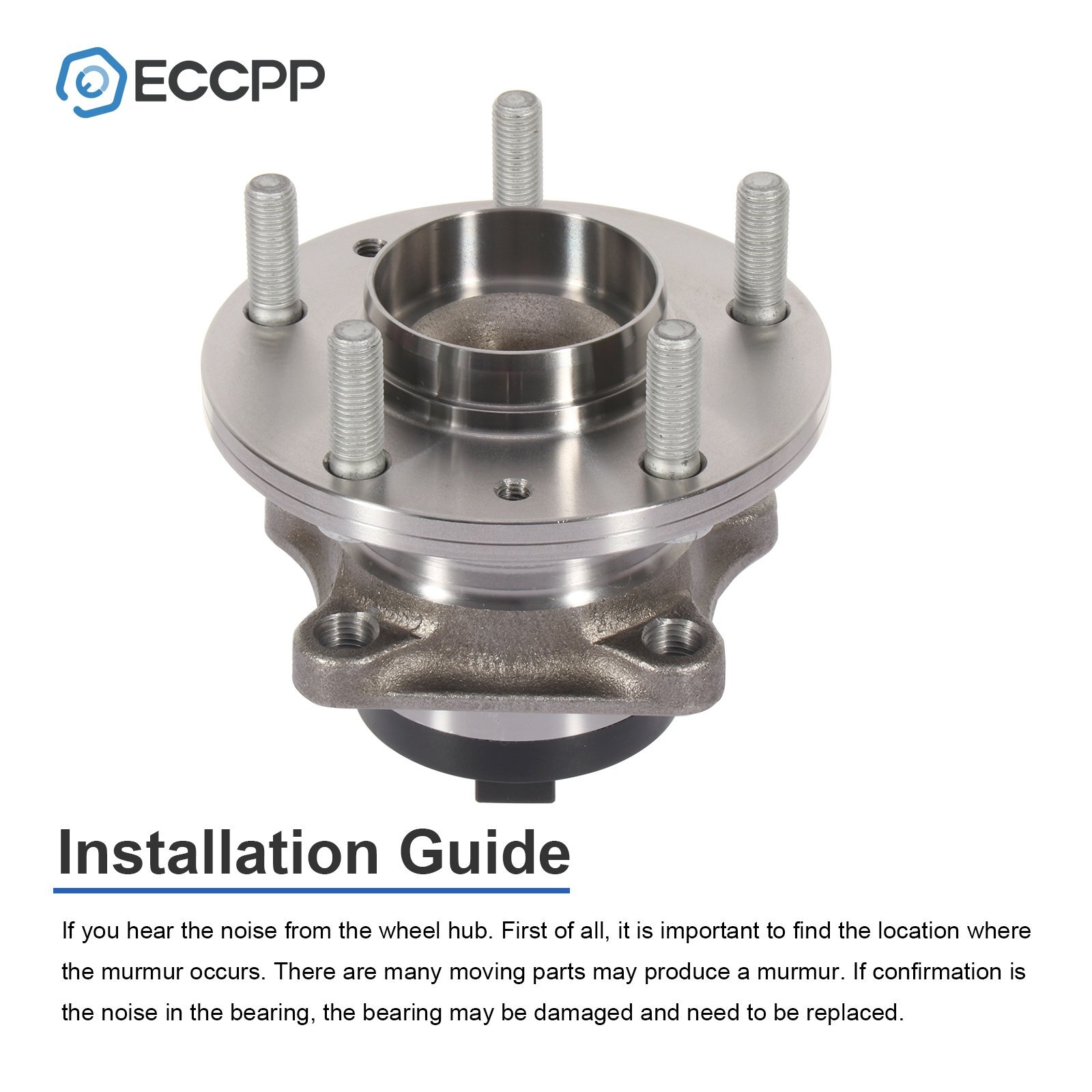

    Installation:



    Installation is in the reverse order of the removal



    Caution:



    1. Do not reuse the wheel stud.
    2. Do not reuse the cotter pin.
    3. Place a washer (A) as shown to install the wheel studs (1) by using the tightening force of the nut (B).
    4. Clean the mating surfaces of the joint sub-assembly and the wheel hub and bearing. Apply lubricant to the surface (A) of the joint sub-assembly.
    5. Hold the wheel hub and bearing using a suitable tool. Tighten the wheel hub lock nut





        6. Since the drive shaft is assembled by press-fitting, use a torque wrench to tighten the wheel hub lock nut. Do not use a power tool.

        7. Too much torque causes axle noise. Too little torque causes wheel bearing looseness. Tighten the wheel hub lock nut to the specification.

        8.  When installing a the cotter pin (1) and the nut retainer (2), securely bend the cotter pin to prevent rattles.

        9. Align the matching marks (A) on the disc brake rotor and on the wheel hub and bearing.


    Item Specifics
    Brand ECCPP
    Manufacturer Part Number ECP816978HK
    ABS Sensor Sensor Cap
    Placement on Vehicle Rear
    Material Steel
    Finish Polished, Rust Protected
    Type Wheel Hub & Bearing Assembly
    OE/OEM Part Number 512542
    Quantity 2
    Fitment 2007 2008 2009 2010 2011 2012 2013 2014 Mazda CX-9 3.7L
    Drive Type FWD
    Interchange Part Number WE61870, BR930787, 40745004, 051-6452, HA590041, 745-3020
    Anti-lock Braking System Yes

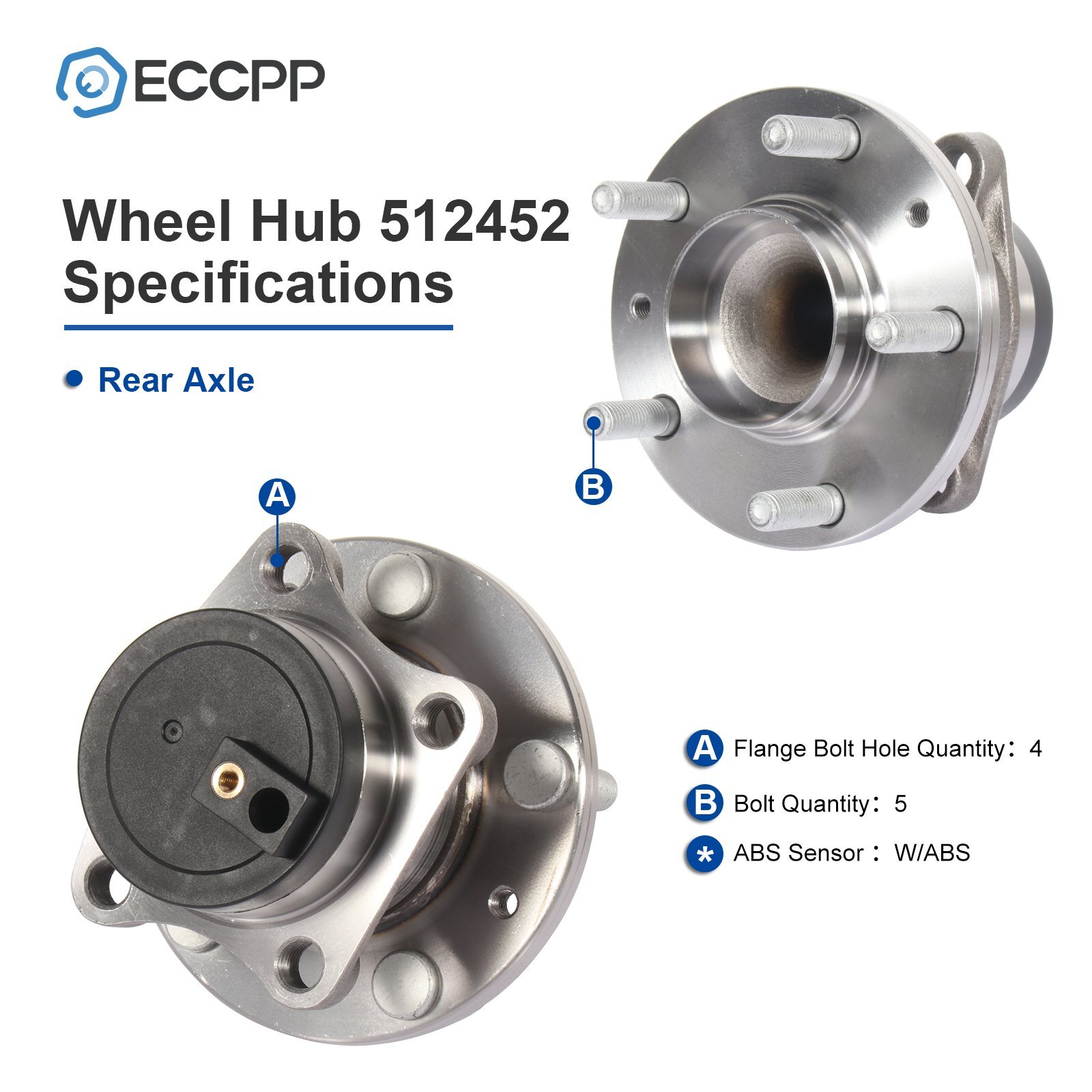

    Bolt Pattern 5 x 4.5 in (5 x 114.3 mm)
    Driven Or Non-Driven Type Hub Assembly Non-Driven
    Bolt Circle Diameter 4.5 in. / 114.3 mm
    Brake Pilot Diameter 2.83 in. / 72 mm
    Flange Bolt Hole Quantity 4
    Flange Bolt Size M14x1.5
    Flange Bolts Included No
    Flange Diameter 5.51 in. / 140 mm
    Flange Offset 2.48 in. / 62.9 mm
    Flange Shape Modified
    Hub Pilot Diameter 3.07 in. / 78 mm
    Wheel Pilot Diameter 2.64 in. / 67 mm
    Wheel Stud Quantity 5
    Wheel Stud Size M12x1.5
    Wheel Studs Included Yes


    Item Specifics
    Brand ECCPP
    Manufacturer Part Number ECP816978HK
    ABS Sensor Sensor Cap
    Placement on Vehicle Rear
    Material Steel
    Finish Polished, Rust Protected
    Type Wheel Hub & Bearing Assembly
    OE/OEM Part Number 512542
    Quantity 2
    Fitment 2007 2008 2009 2010 2011 2012 2013 2014 Mazda CX-9 3.7L
    Drive Type FWD
    Interchange Part Number WE61870, BR930787, 40745004, 051-6452, HA590041, 745-3020
    Anti-lock Braking System Yes
    Bolt Pattern 5 x 4.5 in (5 x 114.3 mm)
    Driven Or Non-Driven Type Hub Assembly Non-Driven
    Bolt Circle Diameter 4.5 in. / 114.3 mm
    Brake Pilot Diameter 2.83 in. / 72 mm
    Flange Bolt Hole Quantity 4
    Flange Bolt Size M14x1.5
    Flange Bolts Included No
    Flange Diameter 5.51 in. / 140 mm
    Flange Offset 2.48 in. / 62.9 mm
    Flange Shape Modified
    Hub Pilot Diameter 3.07 in. / 78 mm
    Wheel Pilot Diameter 2.64 in. / 67 mm
    Wheel Stud Quantity 5
    Wheel Stud Size M12x1.5
    Wheel Studs Included Yes


    • We stand behind every product we sell.
    • All of our brand new items come with a 60-Days money-back guarantee.
    • We define the item as defective only if it doesn't function as described.
    • It is the buyer's responsibility to understand the item description before bidding.
    • We will replace the defective items, provided that they are in stock within the warranty period posted with the listing and the buyer return the  original item and pay for the S&H cost for the replacement.
    •
    • We  will refund the purchase price if the replacement is not available or buyer  prefers a refund and send the original item back at his/her own cost.
    •
    • Shipping & handling cost are not refundable.
    • Man-made damage by  abuse or wrong operation is not covered by this warranty.
    • No  product liability insurance is assumed.

    • PayPal preferred.
    • Payments are expected within 7 days  after the last winning auction is closed; Otherwise Unpaid Item Dispute  will be filed with eBay.

     ​

    • Product will be shipped within 2 business days after full payment is received and verified. Delivery Time is about 3-7 business days to most  of countries.
    • All domestic orders will be shipped via USPS, UPS  or FedEx from our US warehouse and usually arrives to your door in about  3-5 business days.
    • We ship the package to your shipping address in eBay instead of the one in PayPal. Please tell us your shipping address if it is different from the one in eBay.
    • The tracking  number will be given for the customer to check the shipping status online (registered or faster service only).
    • We are not  responsible for any wrong or undeliverable addresses. Please verify and  update your shipping address on eBay during checkout.

    • International Buyers a€“ Please Note:
    • a) Import duties, taxes and  charges are not included in the item price or shipping charges. These  charges are the buyer's responsibility.
    • b) Please check with your  country's customs office to determine what these additional costs will  be prior to bidding.
    • Serious Buyer Only! Please place  bid or "Buy it now" only if you agree the price and terms of the product  and no argument after the auction.

    • We strive to source genuine products from the suppliers. However, if you feel any of our products violate your Trademark, Patent Right or any  other Intellectual Property Rights, please contact us. We will remove any offending listing immediately while awaiting further discussion.
