DUBEUYEW PCA9685 16 Channel 12 bit PWM Servo Motor Driver IIC Module, Compatible with Arduino Raspberry Pi, 2pack

Brand: DUBEUYEW
  • 【Easy to Use】: supports using only 2 pins (6 address select pins) to control 16 free-running PWM outputs, you can control the 16 way servo motor, so you can wire up to 62 of these on a single bus to control up to 992 PWM outputs. 3 pin connectors in groups of 4, so you can plug in 16 servos at one time.
  • 【Resistor protection】: All PWM output lines have a 220 ohm series resistor protection and can easily drive LED. 12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate.
  • 【Specification】: Voltage: DC5-10V power supply, Frequency: 40-1000Hz; Channel number: 16 channel; Resolution: 12 bit; Voltage: DC 5-10V, Size: Approx. 60 x 25 mm/ 2.36 x 0.98 inch
  • 【The PCA9685 Chip】: The PCA9685 chip is wrapped in the center of the board, PCA9685 contain a PWM driver with a built-in clock. 16 Channel PWM/Servo Driver IIC interface-PCA9685 for shield module servo shield.
  • 【After Service】:Please kindly contact us freely if there is any question in using our product. We will try our best to provide you with technical support.
Brand: DUBEUYEW
Manufacturer: DUBEUYEW
Part Number: PP4JR29
Isin: IPSSKW1PSD3A

$33.07

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
DUBEUYEW PCA9685 16 Channel 12 bit PWM Servo Motor Driver IIC Module, Compatible with Arduino Raspberry Pi, 2pack

DUBEUYEW PCA9685 16 Channel 12 bit PWM Servo Motor Driver IIC Module, Compati...

$33.07

Introduction:
The PCA9685 is a 16-channel I2C-bus controlled LED controller optimized for Red/Green/Blue/Amber (RGBA) color backlighting applications.
Each LED output has individual 12-bit resolution (4096 steps) PWM controller with a fixed frequency.
With the PCA9685 as the master chip, the 16-channel 12-bit PWM Servo Driver only needs 2 pins to control 16 servos, thus greatly reducing the occupant I/Os.
PCA9685 16-Channel 12-Bit PWM Servo Driver can help a lot when there are insufficient PWM output pins for the MCU in your project.

Features:

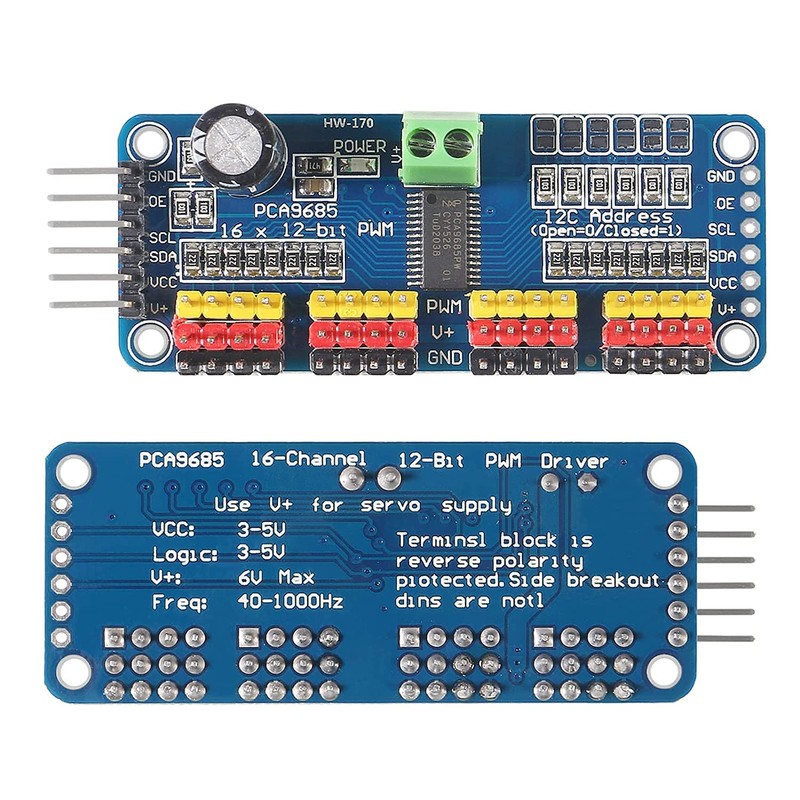

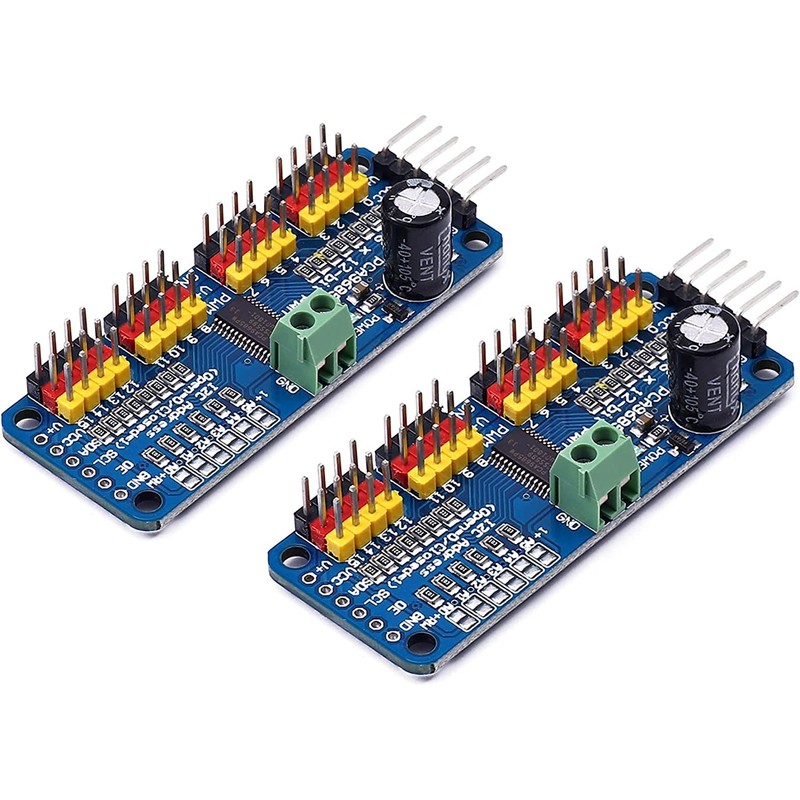

1. The PCA9685 chip is wrapped in the center of the board.
2. Power input terminal.
3. Green power indicator.
4. "Chain-able" design.
5. In the 4 groups of 3-pin connector to facilitate the insertion of 16 servo motor. (servo motor plug slightly wider than 0.1 ")
6. The polarity of the reverse polarity is input on the terminal block
7. Output enable pin to quickly disable all the outputs.
8. A spot to place a big capacitor on the V+ line.
9. All PWM output lines have a 220 ohm series resistor protection and can easily drive LED.
10. Reverse polarity protection on the terminal block input.
11. Adjustable frequency PWM up to about 1.6 KHz;Configurable push-pull or open-drain outputManufacturer.

Technical Parameters:
Voltage: DC5-10V power supply
Communication Interface: IIC 16-way steering gear control
Size: Approx. 62 x 25 x 13mm / 2.4 x 0.98 x 0.51"
Cascade design: V + line to place a large capacitor, the maximum external input voltage depends on the 10V 1000uf capacitor All PWM output lines have a 220 ohm series resistor protection and can easily drive LED
