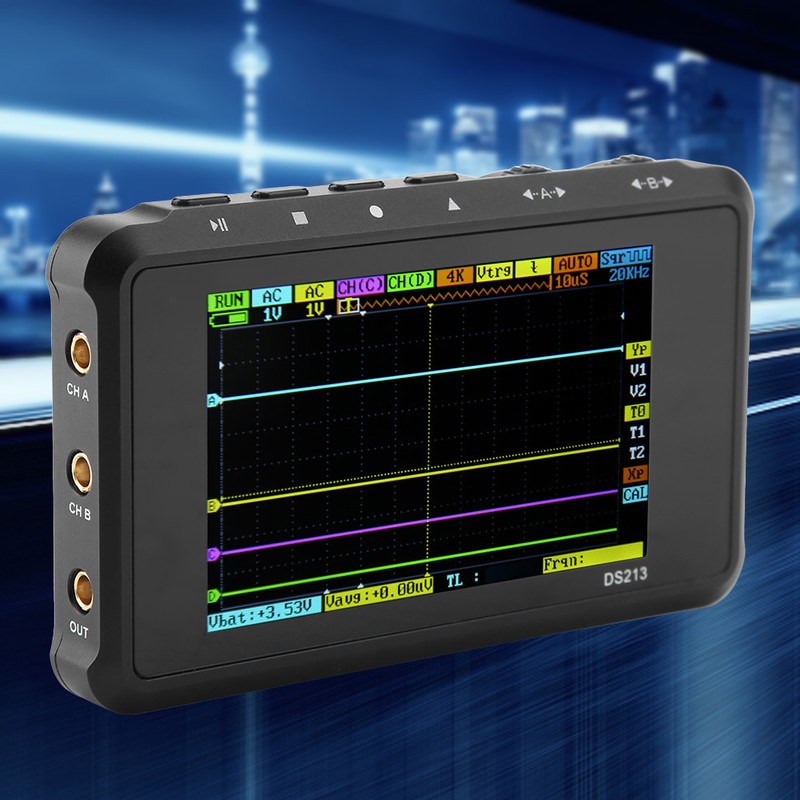

Overview:
DS213 is a "5-track 4-wave line" digital storage oscilloscope for general purpose engineering and electronic task based on ARM Cortex M3 core DS213 using FPGA to manage external control of ADC and data cache mode. It provides 4 application partitions to load and update up to 4 different application firmware. It also has an integrated 8 MB USB flash drive to store waveform data and update the system firmware. The oscilloscope code application layer is open source, and users can develop the oscilloscope firmware according to their needs.Features:
- Compact size, light weight, easy to carry and operate.

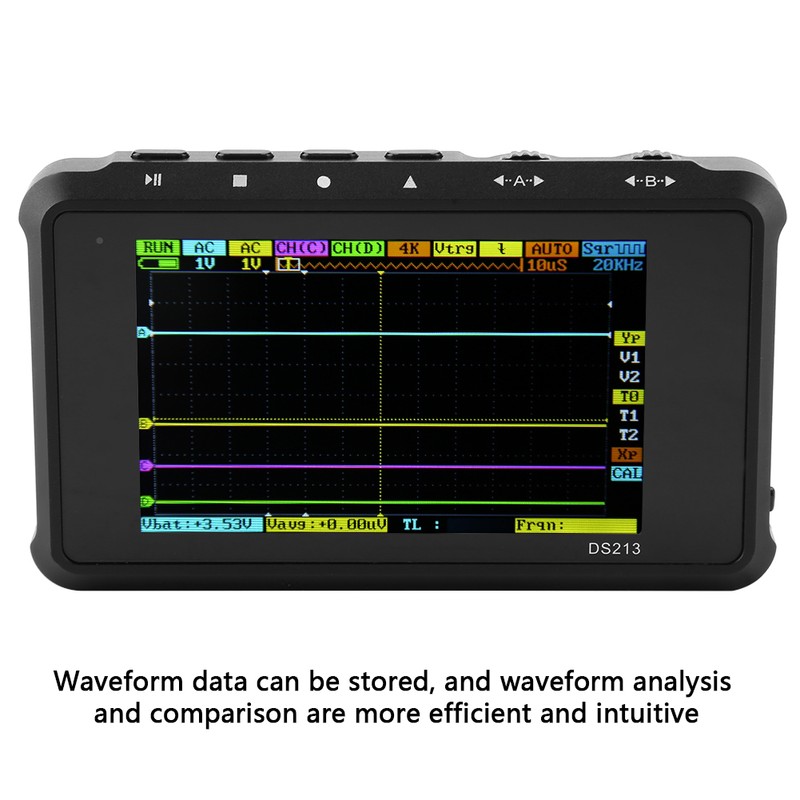

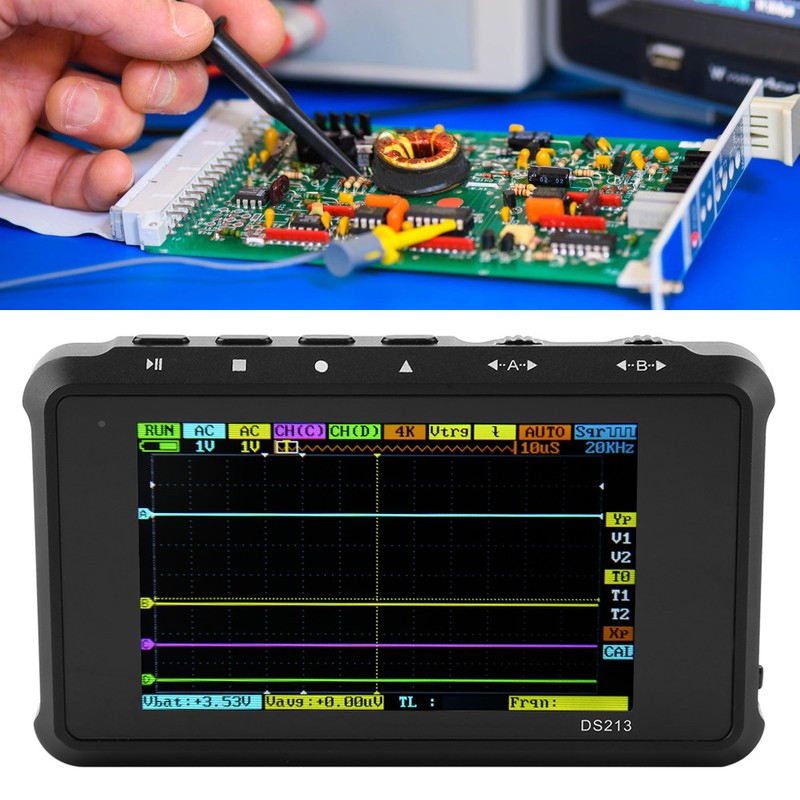

- Waveform data can be stored, and waveform analysis and comparison are more efficient and intuitive.

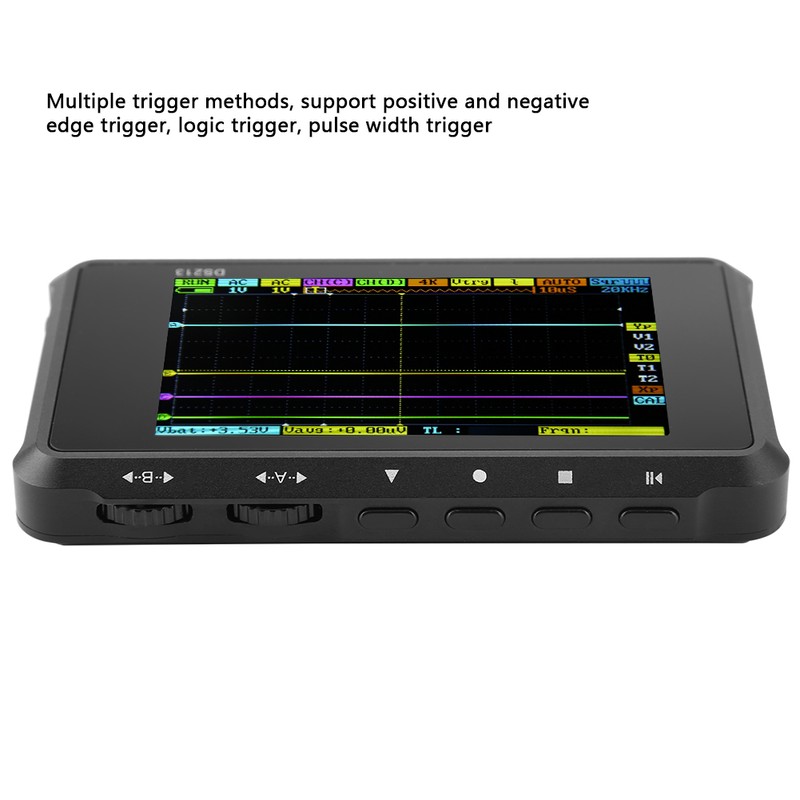

- Multiple trigger methods, support positive and negative edge trigger, logic trigger, pulse width trigger.
- With built-in 8M USB disk, large storage capacity.

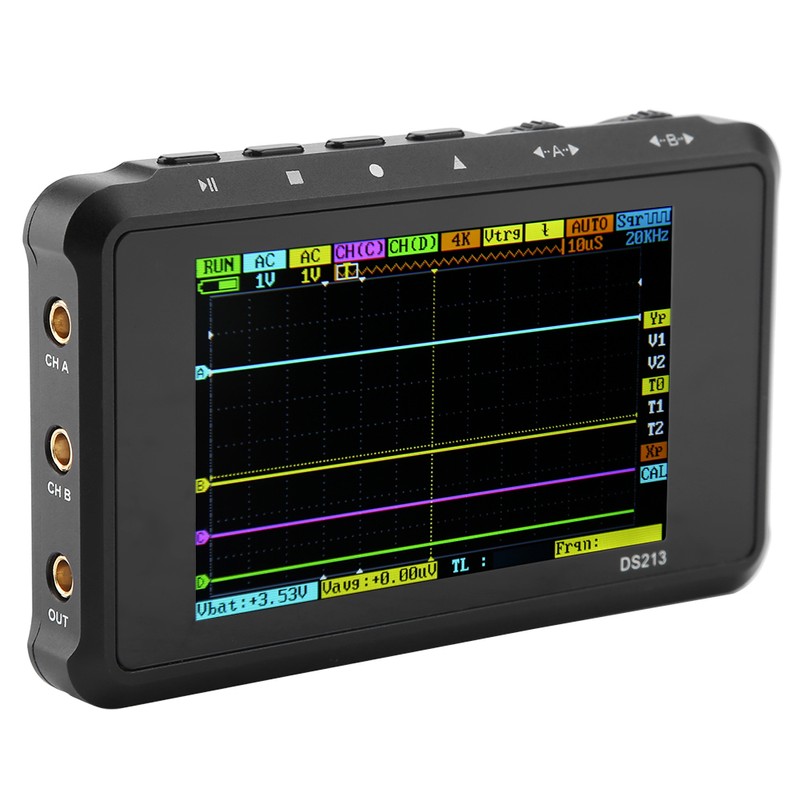

Specification:
CPU: ARM Cortex M3
FIFO & Control: FPGA
ADC: HWD9288-100

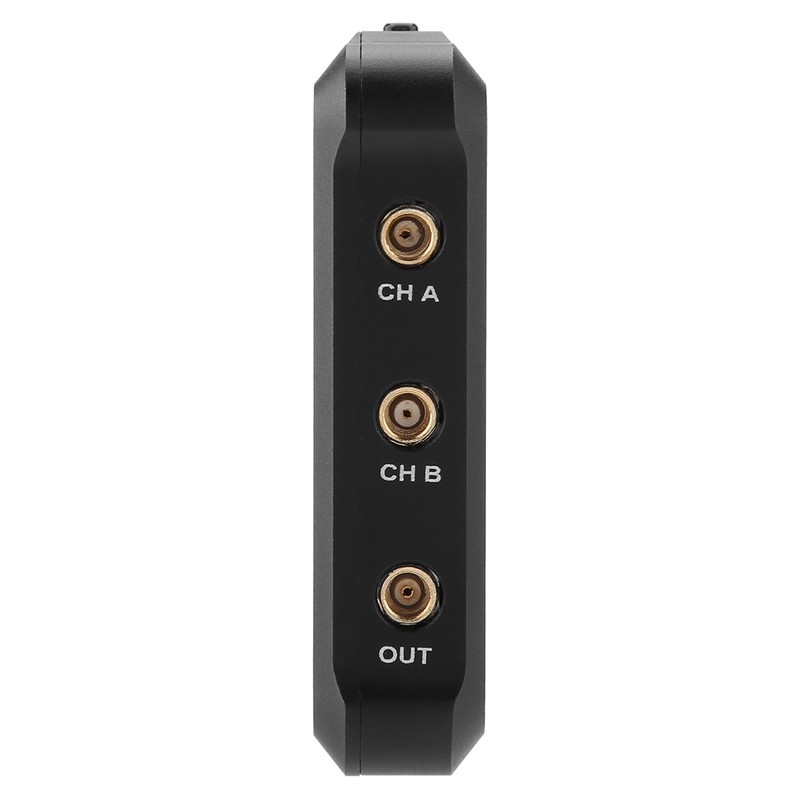

Analog channels: 2 ( {CH_A} {CH_B} )

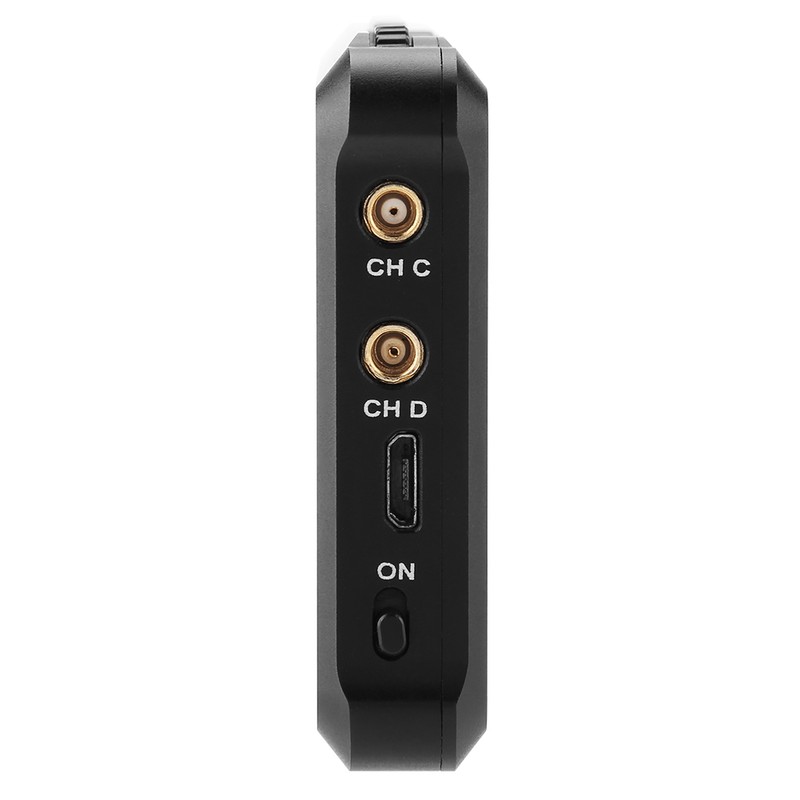

Digital channels: 2 ( {CH_C} {CH_D} )
Operation channel: INV {CH_A}, INV {CH_B}, {CH_A}+{CH_B}, {CH_A}-{CH_B}, {CH_C} & {CH_D}, {CH_C} | {CH_D}
Vertical Sensitivity: 10 mV-10 V / div (1-2-2-5 Step) (using x1 of the probe)
100 mV-100 V / div (1-2-2-5 Step) (using x10 of the probe)
Vertical Resolution: 8 bits
Storage depth : 4 channels, 4*4 K
Input coupling mode: DC, AC
± 400Vpp (using x10 of the probe)
Soft trigger type: positive and negative edge trigger, pulse width trigger, logic trigger
Trigger mode: automatic, standard, single, instant scan
Trigger Source: {CH_A} {CH_B} {CH_C} {CH_D}
Signal source: square wave 10Hz to 8 MHz, in total 20 changes and 3 sources of Vpp signal;
Sinusoidal / triangular / sawtooth wave: 10Hz to 20 MHz, in total 11 changes and 3 Vpp signal sources
Storage capacity: bulit-in 8M USB disk
File types: BMP,BUF, CSV
Automatic measurement type: maximum value, minimum value, crest value, average value, effective value, frequency, period, pulse width, duty cycle
Cursor measurement: time value, amplitude value

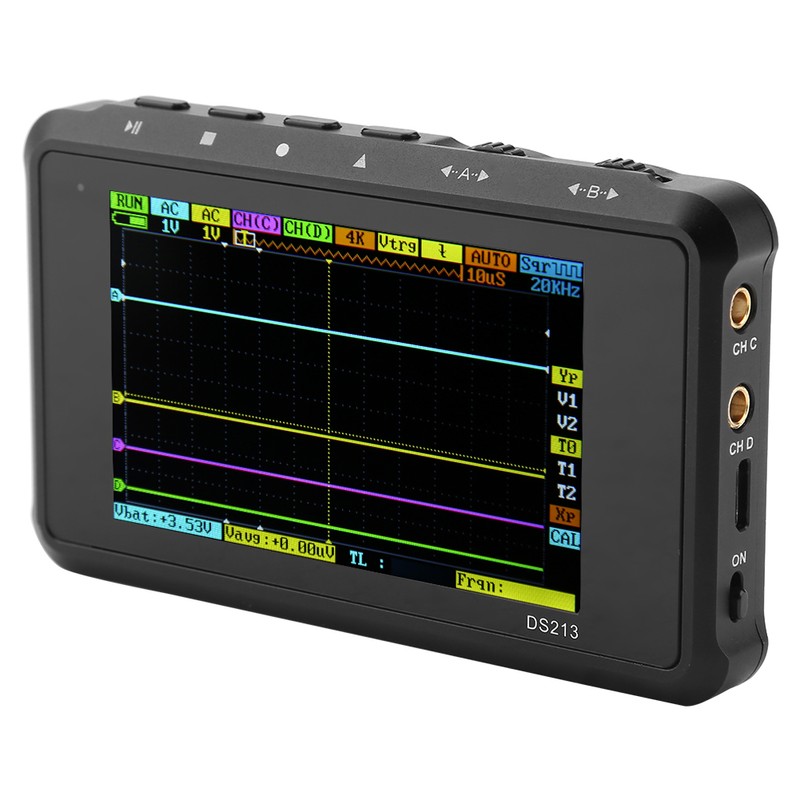

Display mode: (4 wave lines)
Line 1: {CH_A}, HIDE
Line 2: {CH_B}, HIDE
Line 3: {CH_C} REC_1, REC _ 2, REC _ 3, REC _ 4 hide
Line 4: {CH_D}, {CH_A} + {CH_B}, {CH_A} - {CH_B}, {CH_C} & {CH_D}, {CH_C} | {CH_D}, HIDE
Sampling mode: Real-time sampling
Sampling frequency: 100MSa / s
Battery: 1000mAh
Certificate: CE FCC
Weight: 296g/10.4oz

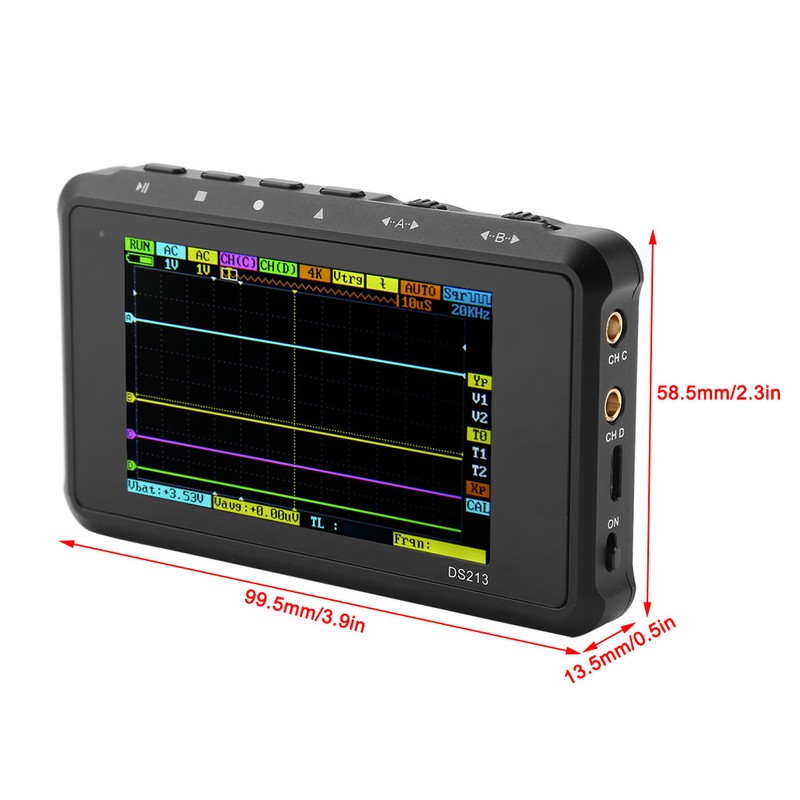

Size: 99.5*58.5*13.5mm/3.9*2.3*0.5inch
|
Model |
DS213 |
|
MCU |
STM32F103VE |
|
ADC |
HWD9288 |
|
Channel Number |
2 analog channel +2 digital channel |
|
AnalogBandwidth |
15MHz |
|
MaximumSampling Rate |
100MSa/s |
|
Maximum Storage Depth |
4K |
|
Horizontal Scanning Frequency |
100nS/Div~1S/Div(1-2-5 Step) |
|
VerticalSensitivity |
10mv/Div~10V/Div(1-2-5 Step) |
|
Input Impedance |
1MΩ |
|
CouplingMode |
DC/AC |
|
Trigger Type |
up / down trigger |
|
positive / negative pulse trigger |
|
|
logic trigger |
|
|
Automatic Adjustment Mode |
No |
|
OperationWaveform |
INV A, INV B, A+B, A-B, C&D, C|D, RecA, RecB, RecC, RecD |
|
SignalOutput
|
Square wave, sine wave, triangle wave, saw tooth wave |
|
Trigger Mode |
Auto, Normal, Single, Slow |
|
MeasuredValue
|
|
|
Storage |
Built-in 8M USB disk |
|
Number of available APP quantity |
2 |
|
Operation |
Keys, Encoders |
|
USB Interface |
Micro USB |
|
Battery |
1000mAh |
|
Screen Size |
3inch |
|
Screen Resolution |
400*240 |
|
OpenSource Situation |
Application layer open source |
|
Certificate |
CE/FCC |
Package List:

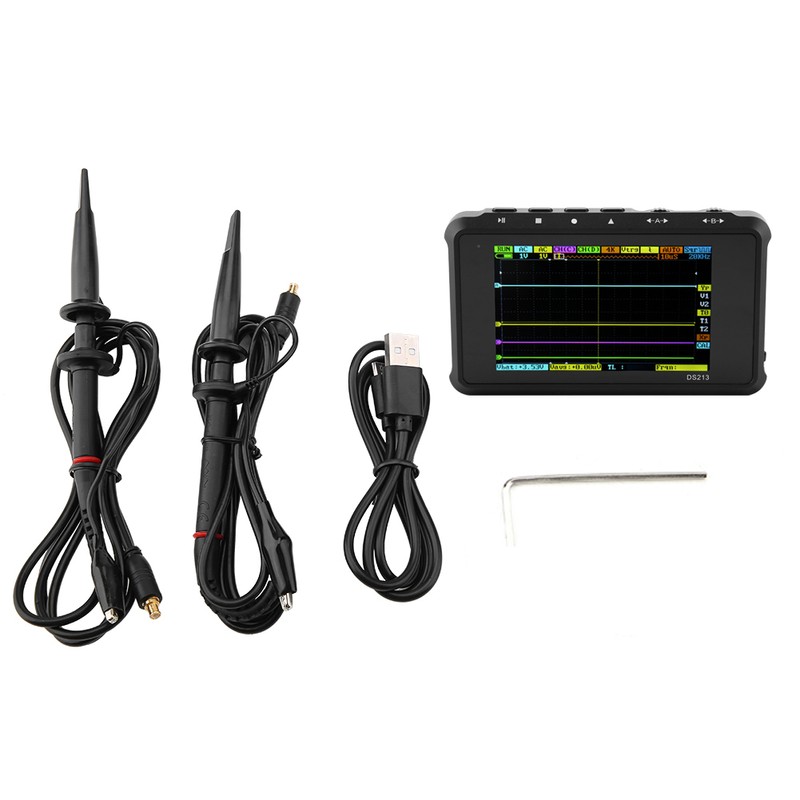

1 * Mini Oscilloscope
