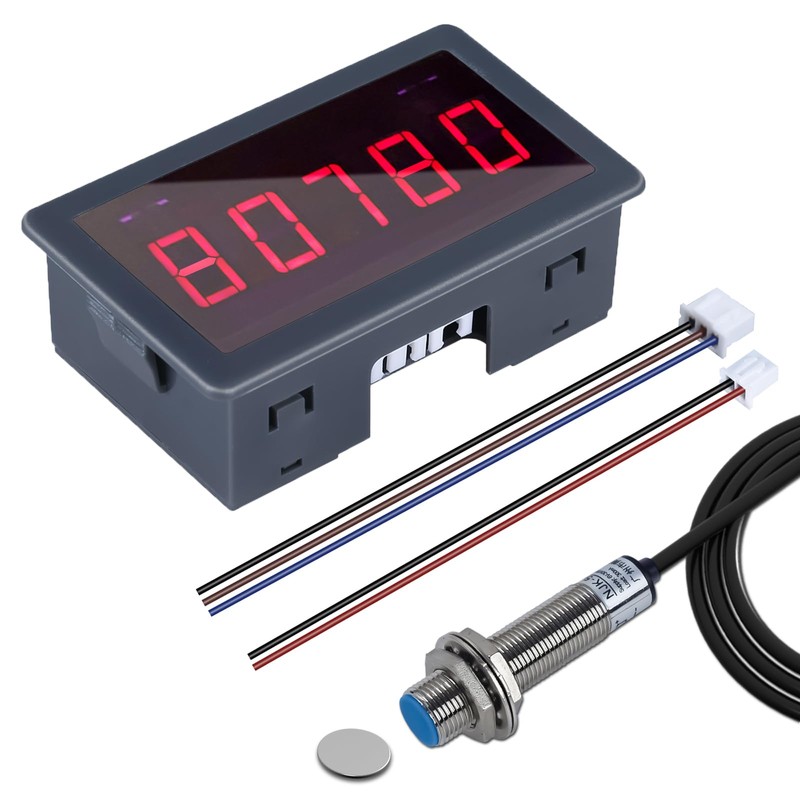

Digital LED Speedometer, 5-Bit Speed Meter with DC 5V-30V, Digital Motor Speedometer, with Support of Speed/s Mode, Frequency Division and Filter Function, Tachometer with Hall Near Field
Digital LED Speedometer, 5-Bit Speed Meter with DC 5V-30V, Digital Motor Speedometer, with Support of Speed/s Mode, Frequency Division and Filter Function, Tachometer with Hall Near Field
Digital LED Speedometer, 5-Bit Speed Meter with DC 5V-30V, Digital Motor Speedometer, with Support of Speed/s Mode, Frequency Division and Filter Function, Tachometer with Hall Near Field
Product Overview

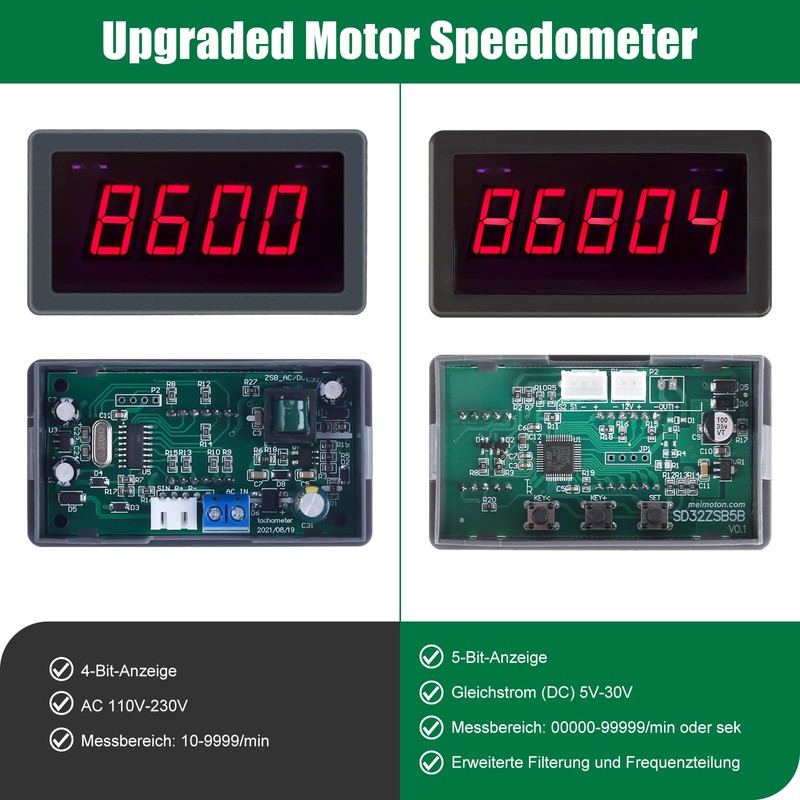

- 5 Digit LED Indicator - Different from traditional DC speedometer, this high-quality model offers a 5-digit LED display, which allows higher accuracy and a wider measuring range from 00000 to 99999 RPM.
- Wide Voltage Compatibility - With an efficient working voltage of DC 5V-30V, this speedometer is compatible with a variety of power sources and devices, making it versatile for various applications.
- DOUBLE MEASUREMENT MODES - Measure both RPM (revolutions per minute) and U/s (revolutions per second) with high accuracy and choose the unit that best suits your needs.

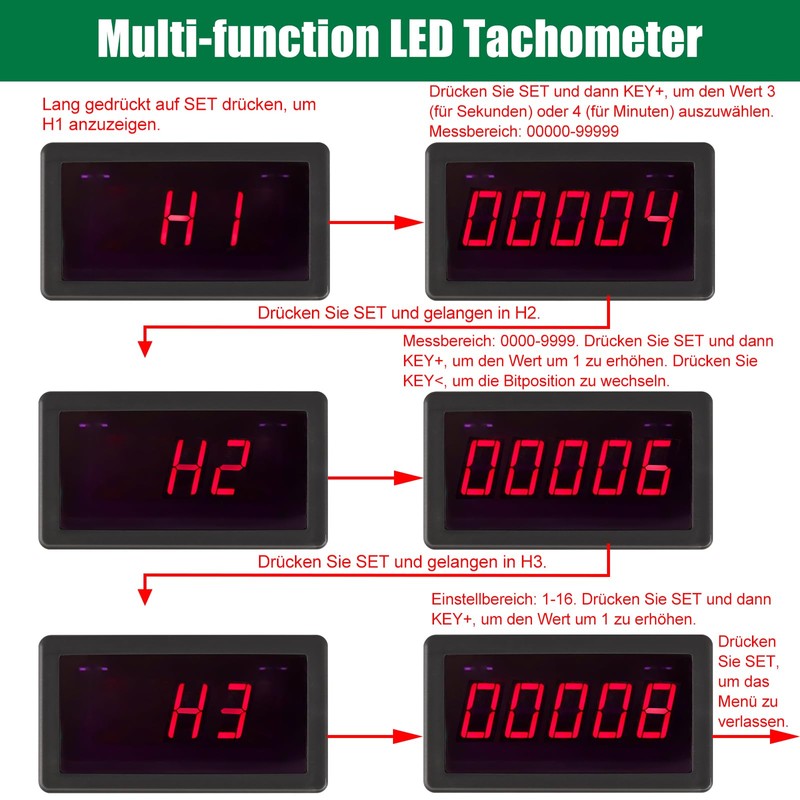

- Advanced Filtering and Frequency Division - With frequency division coefficient adjustment and filtering functions, this device allows for more accurate and stable readings.
- VERSATILE APPLICATIONS - Ideal for engine speed testing, machine tool monitoring, fan speed measurement and much more. The compact design and easy installation make it perfect for both professional use and hobby users.
| Brand: | BANRIA |
|---|---|
| Manufacturer: | BANRIA |
| Part Number: | XPSXPF3 |
| Isin: | I5AXK3EZ2DDL |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Product Overview
- 5 Digit LED Indicator - Different from traditional DC speedometer, this high-quality model offers a 5-digit LED display, which allows higher accuracy and a wider measuring range from 00000 to 99999 RPM.
- Wide Voltage Compatibility - With an efficient working voltage of DC 5V-30V, this speedometer is compatible with a variety of power sources and devices, making it versatile for various applications.
- DOUBLE MEASUREMENT MODES - Measure both RPM (revolutions per minute) and U/s (revolutions per second) with high accuracy and choose the unit that best suits your needs.
- Advanced Filtering and Frequency Division - With frequency division coefficient adjustment and filtering functions, this device allows for more accurate and stable readings.
- VERSATILE APPLICATIONS - Ideal for engine speed testing, machine tool monitoring, fan speed measurement and much more. The compact design and easy installation make it perfect for both professional use and hobby users.
| Brand: | BANRIA |
|---|---|
| Manufacturer: | BANRIA |
| Part Number: | XPSXPF3 |
| Isin: | I5AXK3EZ2DDL |
Functions:
1. Measuring range of 99999 RPM: the measuring range is 0-99999 rpm with a high measuring accuracy of +/- 0.1%, which meets the requirements of most application scenarios.
2. 5 Digit Digital Display: It uses a high-resolution digital display, which makes the displayed data clearer and clearer. The measurement data is updated every 3 seconds.

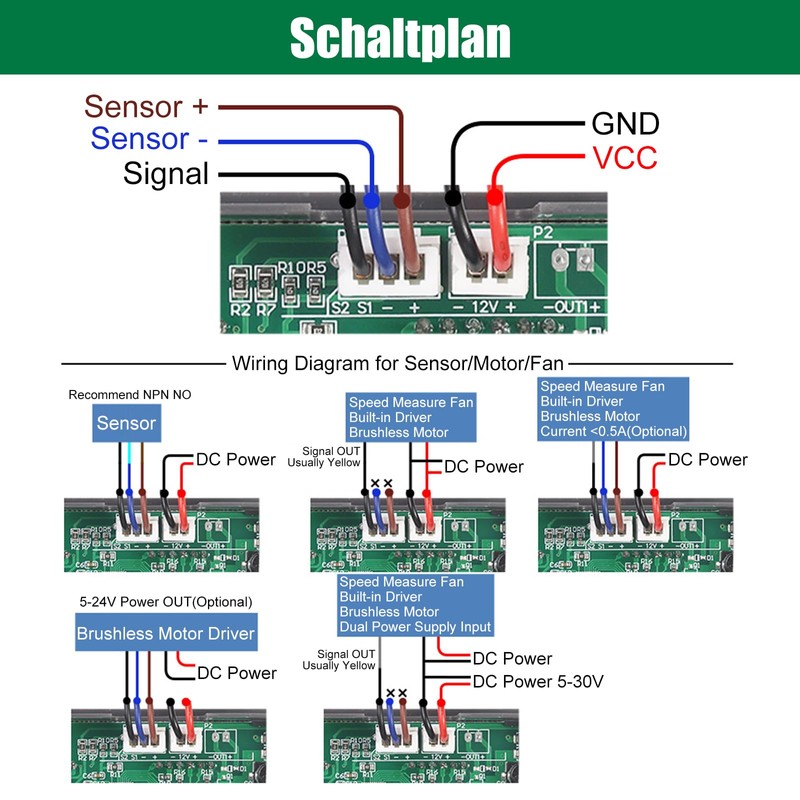

3. Hall Sensor: It is equipped with a magnet and a Hall sensor. The maximum distance between them is 10 mm. The sensor can output a signal when a magnet is detected. It is used to measure the speed of wheels and axles.
4. Note: Avoid interference from frequency converter; Measure only after fixing the sensor and magnet; Magnets must not be mounted on metallic surfaces to avoid interference.
Technical data:
1. Operating voltage: DC 5V-30V.
2. Operating current: <40 mA.
3. Measuring range: 0-99999.
4. Measuring accuracy: +/- 0.1%.
5. Display frequency: 3 times per second.
6. Sensor type: NJK-5002C NPN NO Low_Level
7. Sensor measuring distance: <10 mm.

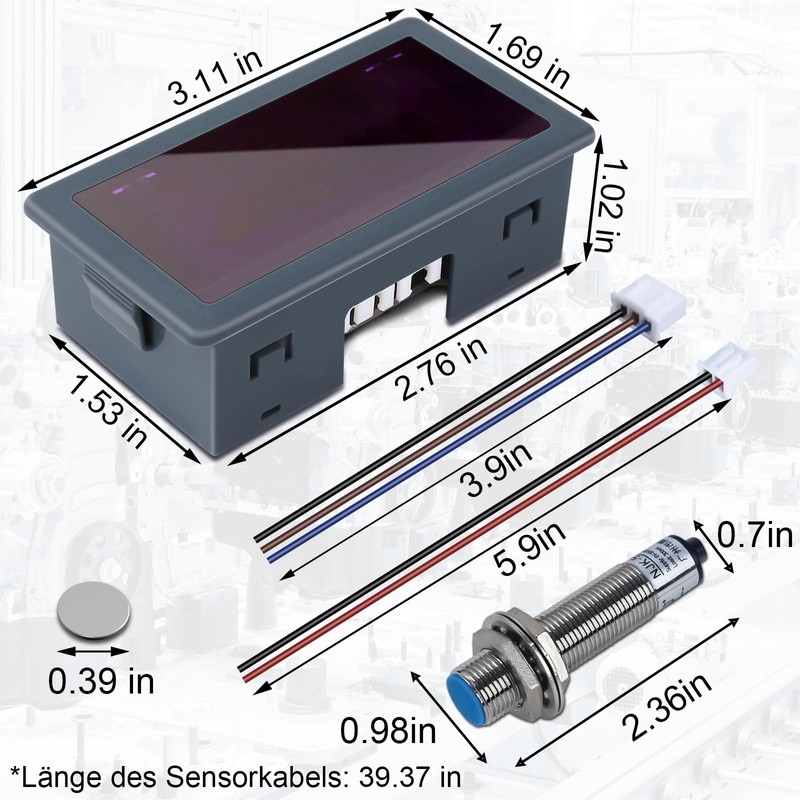

8. Speedometer dimensions: 794326 mm.
9. Sensor Diameter: M12
10. Sensor cable: 100 cm.

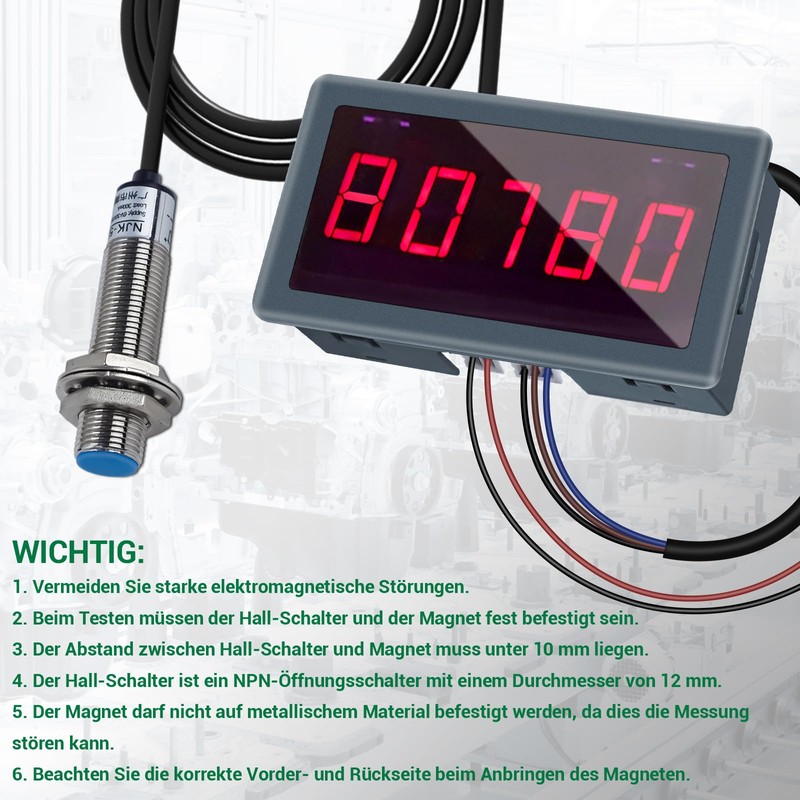

Important Notes:
1. The Hall switch is an NPN switch with a diameter of 12 mm and is normally open;
2. Magnets must not be mounted on metallic surfaces as they may interfere with detection. Please note the correct side when installing the magnet;
3. Mechanical switches are not recommended.
