DieseRC 5 V - 30 V Radio Remote Switch 1 Channel Radio Control Relay Receiver 12 V 24 V with Transmitter Key Ring Potential-Free Contact Relay Control (1 Receiver and 1 Transmitter)
DieseRC 5 V - 30 V Radio Remote Switch 1 Channel Radio Control Relay Receiver 12 V 24 V with Transmitter Key Ring Potential-Free Contact Relay Control (1 Receiver and 1 Transmitter)
DieseRC 5 V - 30 V Radio Remote Switch 1 Channel Radio Control Relay Receiver 12 V 24 V with Transmitter Key Ring Potential-Free Contact Relay Control (1 Receiver and 1 Transmitter)
- Excellent design: RF radio relay remote control switch. Stable and reliable performance with high reception sensitivity (>97dBm). High frequency signal transmission. A strong signal can pass through walls, floors, doors, boards, etc. It can be controlled within 50 metres distance in the open area. You can remotely control any machine connected to the relay receiver via the remote control.
- Easy to use: Extremely easy to set up and reset. 4 operating modes (Momentary/Toggle/Latched/Delay Mode) can be programmed. You can easily program yourself according to your needs. The operating mode of the product is adjustable. This item has already been set up in toggle mode.
- More flexibility: This receiver uses a high-quality 10A relay that can be used over 100,000 times. Make this product more durable. There are 3 ports (usually open pin, common pin, usually closed pin) for the wireless relay. This is a relay with potential free contacts. Dry contacts. 5V~30V wide range voltage safety receiver. So the voltage of 5V/12V/24V/30V can work well.
- Multiplayer control: One receiver can store about 20 stations. So you can share the stations with family. And one transmitter can control multiple receivers at the same time. The code of the chip is the EV1527 learning code, which represents the safe technology system. The remote control has a long service life.
- Wide application: products can be used in households, farms, factories, offices, laboratories, supermarkets, etc. You can remotely control any device connected to the relay receiver via the remote control. Such as garage door opener system, electric lock, electromagnetic door, lamp, lighting, ventilation device, water pump, signal transmission and DIY remote control switch.
| Brand: | DieseRC |
|---|---|
| Color: | 1 receiver and 1 transmitter |
| Manufacturer: | DieseRC |
| Part Number: | 4R46WZR |
| Isin: | IMGKUE5NB2CR |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

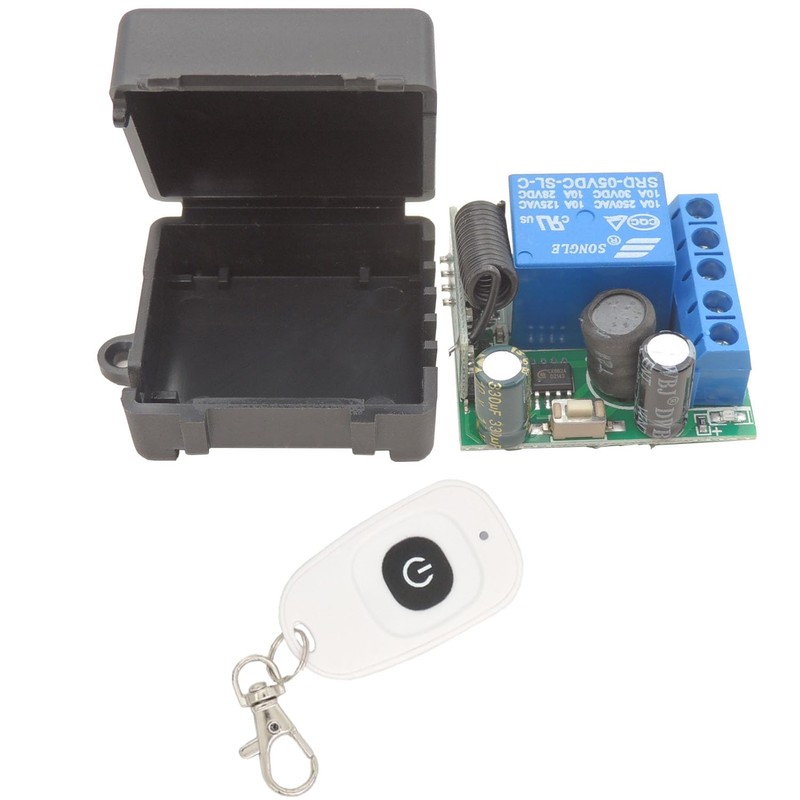

Package includes:
1 x relay receiver board (including case).
1 x transmitter (including battery).
1 x product manual.
Parameters:
- Operating voltage of the receiver: DC 6 V ~ 30 V.
- Input/output voltage: 1~250V.
- Quiescent current: <5 mA.
-Max. Current: 10 A.
-HF frequency.
- Working temperature: -30 ~ +80 °C.
- Remote control memory: 20 pieces.
- Supported coding: 1527 learning code.
- Reception range: the open space is more than 50 metres.

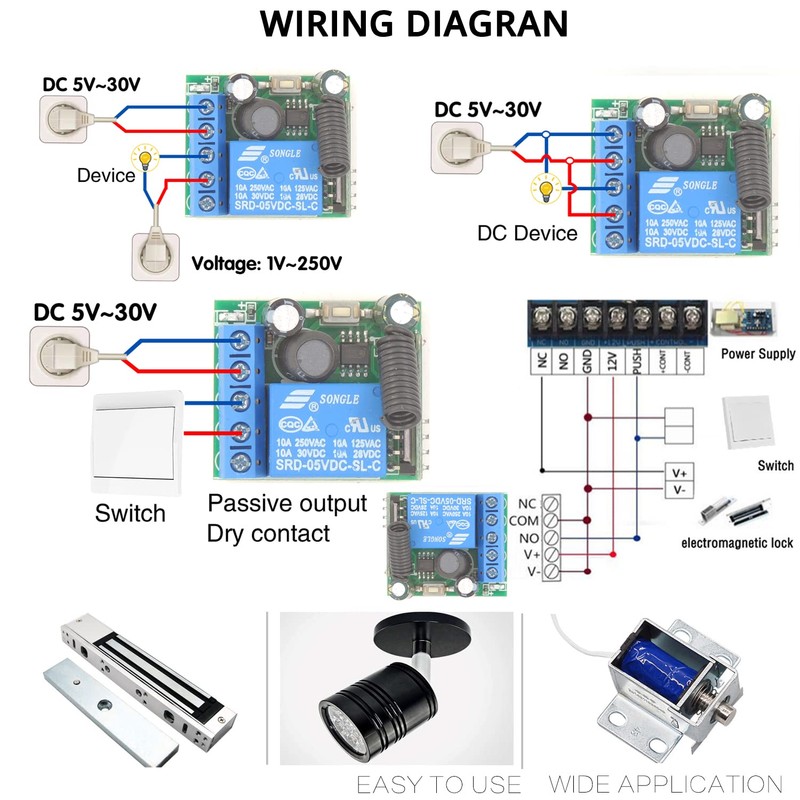

- Pin: COM, NO, NC.
- Operating mode: momentary / toggle / latched / delay mode.
- Battery: 2 x CR2016 (included).

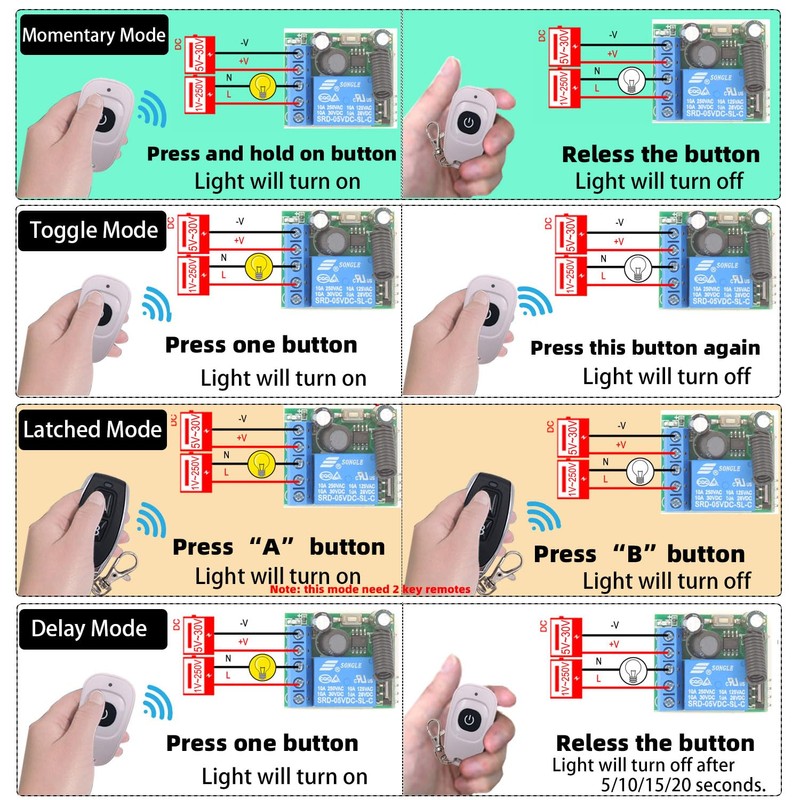

Use (operating mode):
Momentary mode:
1. Press and hold one button, relay turns on;
2. Release the button, this relay will turn off.
Switching mode:
1. Press one button, the relay turns on;
2. Press this button again, this relay will be switched off.
L Continuous mode:
1. Press the "ON" button, the relay will turn on;
2. Press the "OFF" button, this relay will turn off.
Delay mode: < /b>
1. Press and hold one button, the relay turns on;
2. Release the button, this relay will turn off after 5 (or 10/15/20) seconds.
< br> Reset:
Press the learning button (on the receiver) 8 times. successful.
Note:
After reset, all remote controls stop working.
Setup
1. Press the learning button (once for momentary mode, twice for toggle mode, 4/5/6/7 times for delay 5/10/15/20 seconds mode). Wait 3 seconds.
2. Press the "ON" button. Successful.
Set up locked mode.
1. Press the learning button three times. Wait 3 seconds.
2. Press the "ON" button.
3. Press the "OFF" button. Successful.
1 x relay receiver board (including case).
1 x transmitter (including battery).
1 x product manual.
Parameters:
- Operating voltage of the receiver: DC 6 V ~ 30 V.
- Input/output voltage: 1~250V.
- Quiescent current: <5 mA.
-Max. Current: 10 A.
-HF frequency.
- Working temperature: -30 ~ +80 °C.
- Remote control memory: 20 pieces.
- Supported coding: 1527 learning code.
- Reception range: the open space is more than 50 metres.
- Pin: COM, NO, NC.
- Operating mode: momentary / toggle / latched / delay mode.
- Battery: 2 x CR2016 (included).
Use (operating mode):
Momentary mode:
1. Press and hold one button, relay turns on;
2. Release the button, this relay will turn off.
Switching mode:
1. Press one button, the relay turns on;
2. Press this button again, this relay will be switched off.
L Continuous mode:
1. Press the "ON" button, the relay will turn on;
2. Press the "OFF" button, this relay will turn off.
Delay mode: < /b>
1. Press and hold one button, the relay turns on;
2. Release the button, this relay will turn off after 5 (or 10/15/20) seconds.
< br> Reset:
Press the learning button (on the receiver) 8 times. successful.
Note:
After reset, all remote controls stop working.
Setup
1. Press the learning button (once for momentary mode, twice for toggle mode, 4/5/6/7 times for delay 5/10/15/20 seconds mode). Wait 3 seconds.
2. Press the "ON" button. Successful.
Set up locked mode.
1. Press the learning button three times. Wait 3 seconds.
2. Press the "ON" button.
3. Press the "OFF" button. Successful.
