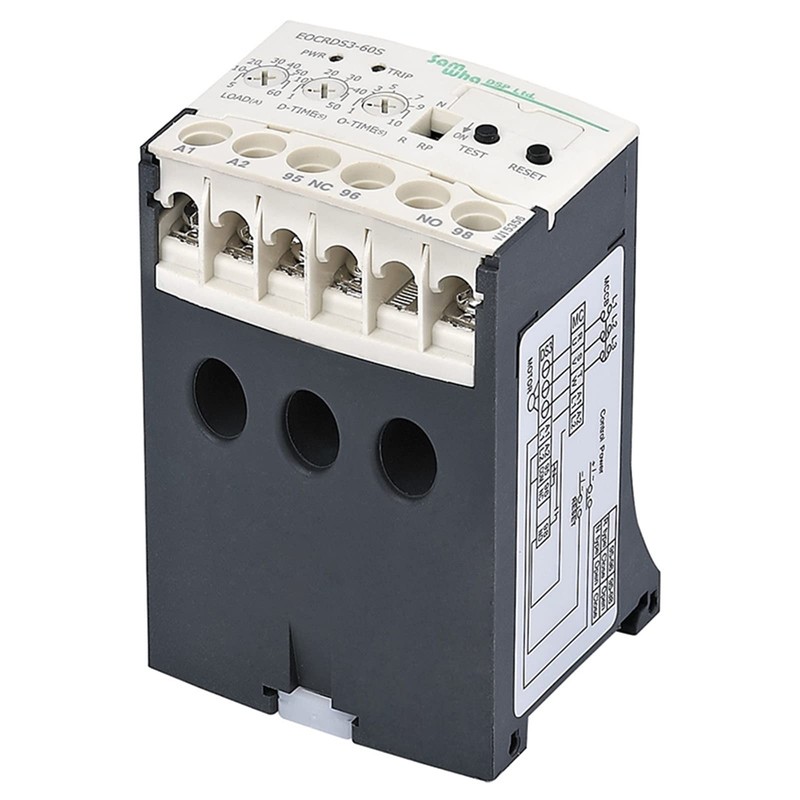

DAHSLNWKN EOCR-DS3 Slim Electronic Overload Relay Motor Protector Thermal Overload Relay (Size : 0.5-6A)
DAHSLNWKN EOCR-DS3 Slim Electronic Overload Relay Motor Protector Thermal Overload Relay (Size : 0.5-6A)
DAHSLNWKN EOCR-DS3 Slim Electronic Overload Relay Motor Protector Thermal Overload Relay (Size : 0.5-6A)
Product Overview
- Relays
| Brand: | DAHSLNWKN |
|---|---|
| Size: | 0.5-6A |
| Color: | One Color |
| Manufacturer: | DAHSLNWKN |
| Part Number: | 2L6HVQC |
| Material Type: | Copper |
| Isin: | IPHP5Y82RF3Q |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- Relays
| Brand: | DAHSLNWKN |
|---|---|
| Size: | 0.5-6A |
| Color: | One Color |
| Manufacturer: | DAHSLNWKN |
| Part Number: | 2L6HVQC |
| Material Type: | Copper |
| Isin: | IPHP5Y82RF3Q |
Relays
Features
MCU(Microprocessor Control Unit)
Slim compact design
Multiple Protection Functions
Independently Adjustable Starting Trip Delay &
Operating Time
PWR Trip Indication LED
Trip Indication and Trip Cause Display
Manual Instantaneous Electrical Remote Reset
Ambient Insensitive
Low Energy Consumption
No Volt Release / Fail-safe Operation)N Type
AC / DC Power Supply Universal
3-Phase Dedicated
3-Phase Dedicated
Used for
- Low Voltage Induced Electromotor (600V Level)
Protective Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the Existing Relay
Protetcion
Protective Item Operating (Trip) Time
Over-current = O-TIME
Stall = 4 set or less
Phase Loss = D-TIME
Reverse phase = 0.1 set
LED
Ammeter Function:
After the motor runs smoothly, turn the overcurrent setting knob slowly counter clockwise to the red indicator light, which is 100% of the actual running current. And then turn the knob clockwise to just turn off the red light at this point for the actual running current value of about 103%.
Run / Operation Indicator:
Relay Trip: Orange LED
Power / normal operating status: Green LED
Manual / Electric Reset
With test button held down,the orange LED is on and the product will trip after O-TIME.
The relay will be de-energized when RESET button is pushed or the control power is disconnected.

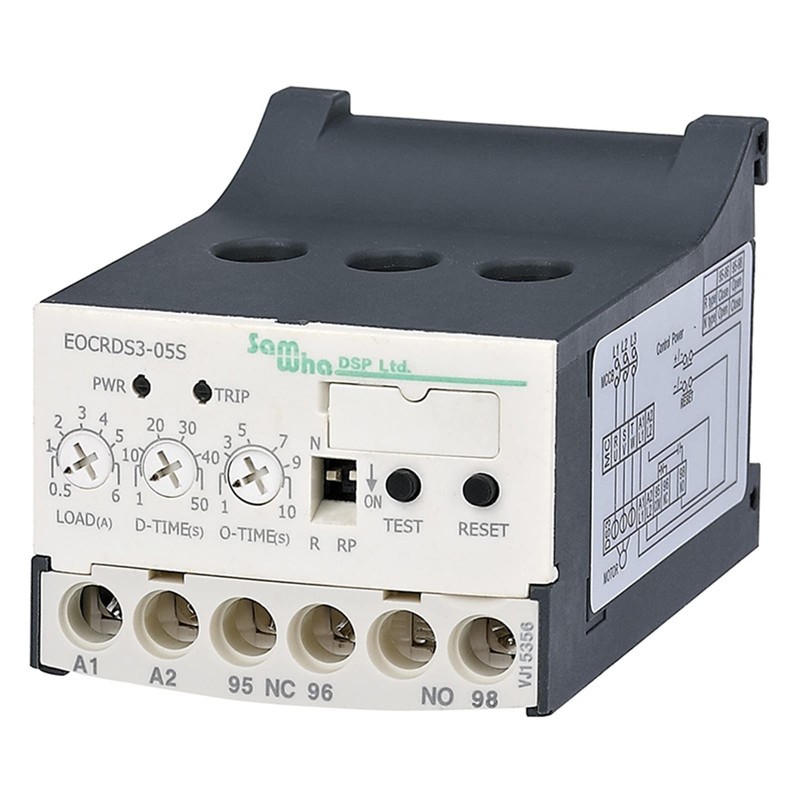

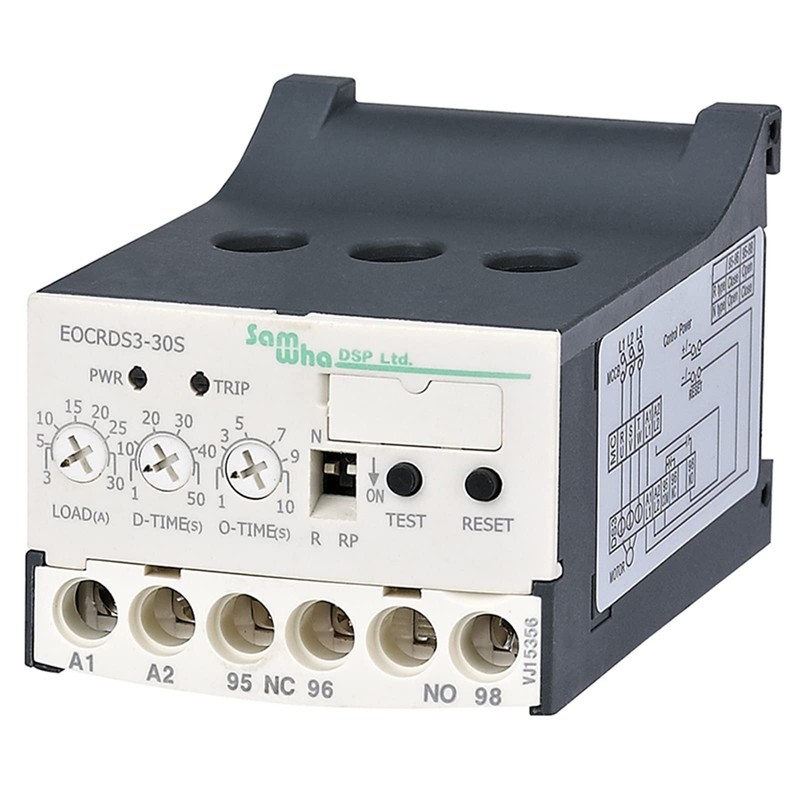

Set
After the installation is complete the as follows.
Set knob: D-TIME(Delay Time) Set two to three seconds longer than the motor starting time.
Set knob: O-TIME(Over-current run time) Set less than the motor's endurance time with over-current.
Set knob: Load(Rated Current) Set over 110% of the motor's rated current of under 120% of its operating current
TEST Instruction
With test button held down,the orange LED is on and the product will trip after O-TIME.
The relay will be de-en
Features
MCU(Microprocessor Control Unit)
Slim compact design
Multiple Protection Functions
Independently Adjustable Starting Trip Delay &
Operating Time
PWR Trip Indication LED
Trip Indication and Trip Cause Display
Manual Instantaneous Electrical Remote Reset
Ambient Insensitive
Low Energy Consumption
No Volt Release / Fail-safe Operation)N Type
AC / DC Power Supply Universal
3-Phase Dedicated
3-Phase Dedicated
Used for
- Low Voltage Induced Electromotor (600V Level)
Protective Relay
- Break-Down Watch Current Relay
- Alternative Replacement for the Existing Relay
Protetcion
Protective Item Operating (Trip) Time
Over-current = O-TIME
Stall = 4 set or less
Phase Loss = D-TIME
Reverse phase = 0.1 set
LED
Ammeter Function:
After the motor runs smoothly, turn the overcurrent setting knob slowly counter clockwise to the red indicator light, which is 100% of the actual running current. And then turn the knob clockwise to just turn off the red light at this point for the actual running current value of about 103%.
Run / Operation Indicator:
Relay Trip: Orange LED
Power / normal operating status: Green LED
Manual / Electric Reset
With test button held down,the orange LED is on and the product will trip after O-TIME.
The relay will be de-energized when RESET button is pushed or the control power is disconnected.
Set
After the installation is complete the as follows.
Set knob: D-TIME(Delay Time) Set two to three seconds longer than the motor starting time.
Set knob: O-TIME(Over-current run time) Set less than the motor's endurance time with over-current.
Set knob: Load(Rated Current) Set over 110% of the motor's rated current of under 120% of its operating current
TEST Instruction
With test button held down,the orange LED is on and the product will trip after O-TIME.
The relay will be de-en
