CTM 4x 2" Thick 4x110 ATV UTV Wheel Spacer Adapter Red Lug Honda Polaris Yamaha More

Brand: CTM

Important Notice

** You May Use Your Existing Lug Nuts to Lock Adapter to Hub **

** Please Double Check Your Bolt Pattern Before Buying **

** Please Mind Differences Between Front/Rear Wheels **


Wheel Compatibility Check

May I use the Same STOCK WHEEL: Yes

May I use the Same Thread Stock Lug Nuts/Bolts: You will Need to Use M12x1.25 Wheel Lug (Provided)

How about Other Wheels: Check Requirements Below

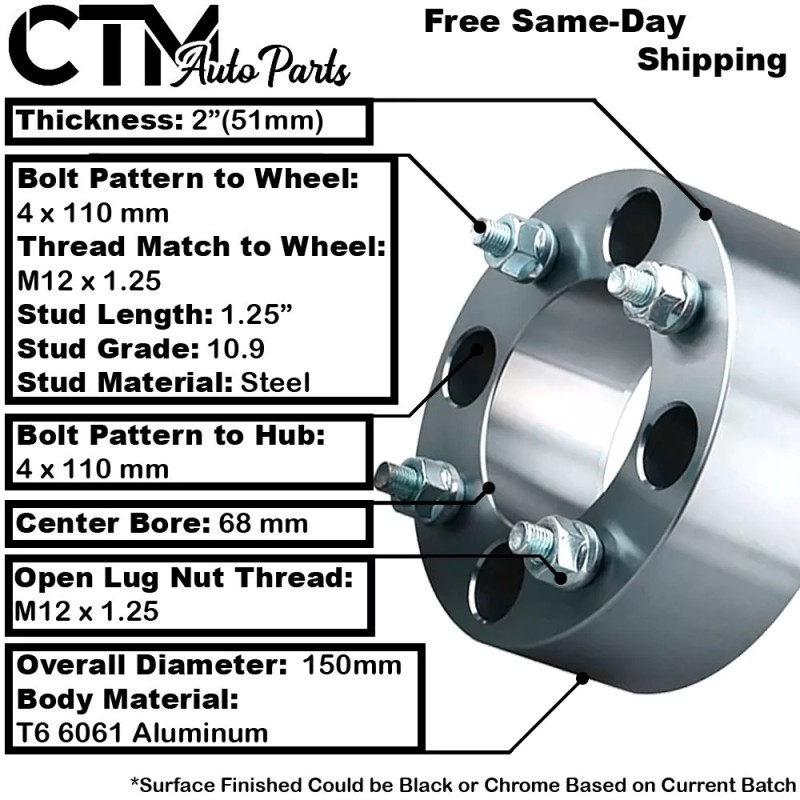

Product Specification:

About Socket Adapter

Adapter Thickness: 2”

Adapter Bolt Pattern Fit to Hub: 4x110mm

Adapter Bolt Pattern Fit to Wheel: 4x110mm

Adapter Center Bore: 68mm

Adapter Hub Ring: No

Adapter Overall Diameter: 150mm

Adapter Stud Thread Pitch: M12x1.25

Adapter Stud Grade: 10.9

Adapter Color: Chrome or Black Depending on Current Batch

Adapter Material: Cold Forged 6061 T6 Grade Aluminum


About Lug Nut

Lug Nut Thread Pitch: M12x1.25

Lug Nut Seat Type: 60 Degree Cone Seat

Lug Nut Hex Size: 6 Point Spline 0.8"

Lug Nut Overall Diameter: 0.8"(20mm)

Lug Nut Overall Height: 1.4"(35mm)

Lug Nut Thread Depth: 1.25"(32mm)

Lug Nut Finish: Red

Lug Nut Material Made: SCM Steel

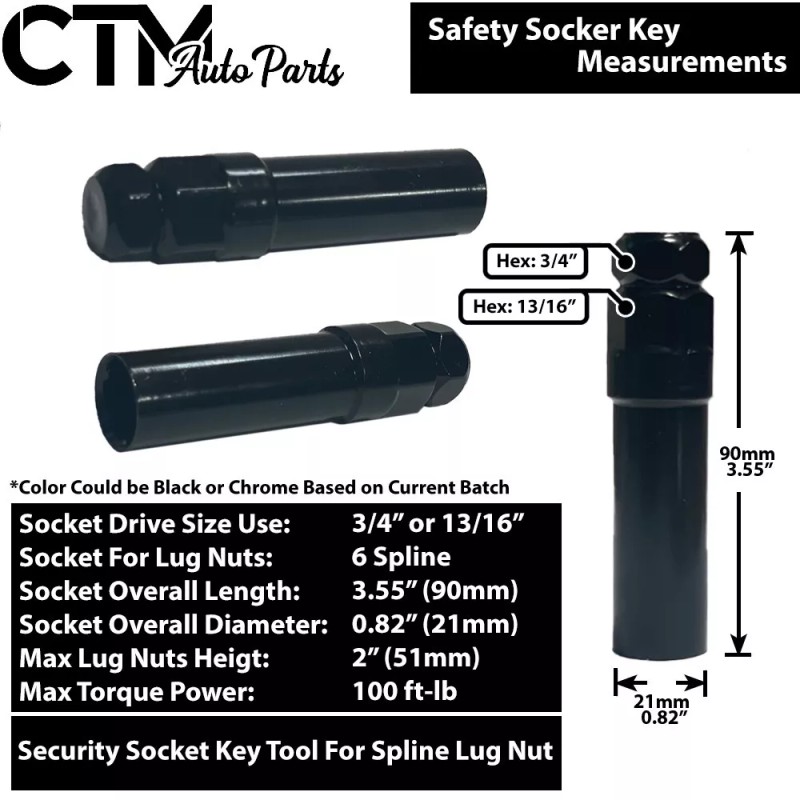

About Socket Key

Socket Type: 6 Point Spline Tuner Lug Nuts Socket

Socket Drive: 13/16" & 3/4" Hex Drive

Socket Fit Lug Nuts: 6 Point Spline Typed Lug Nuts

Socket Overall Diameter: 0.85"(21mm)

Socket Overall Length: 3.55"(90mm)

Socket Material Made: SCM Steel

Max Torque Power: 100 ft-lb



Requirements of the Vehicle Specification

Required Vehicle Hub Bolt Pattern: 4x110mm

Required Vehicle Hub Center Bore: 68mm or smaller

Required Vehicle Hub Stud Thread: Varies

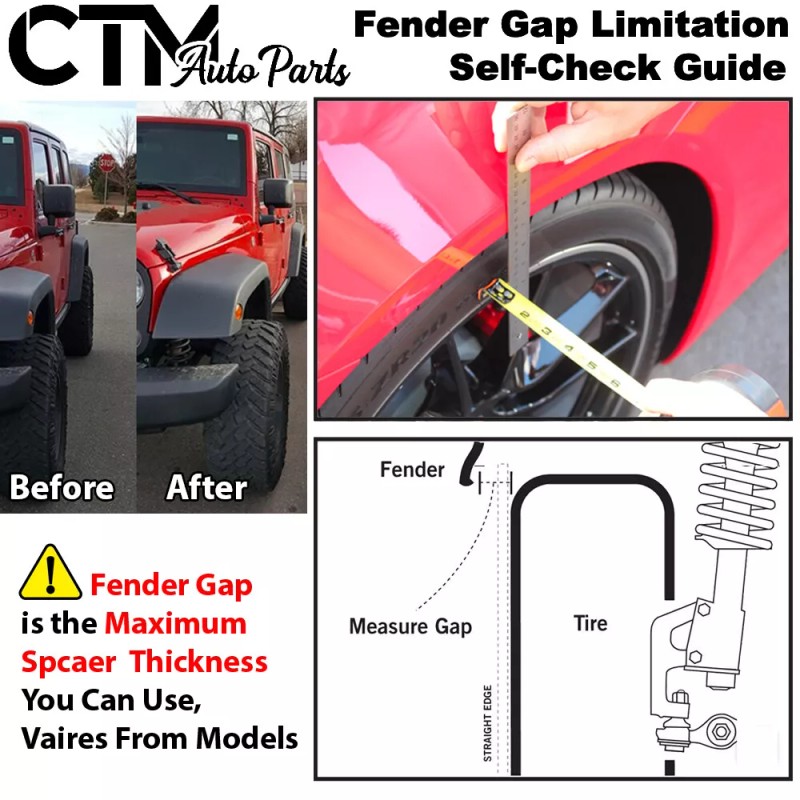

Min Required Vehicle Fender Gap: 2”

Max Vehicle Hub Stud Length: 2”

*If your stud is longer than 2” you will need to trim it to use the adapter.


Requirements of the Wheel Specification

Required Vehicle Wheel Bolt Pattern: 4x110mm

Required Vehicle Wheel Center Bore: 68mm or smaller

Required Vehicle Wheel Lug Thread: M12x1.25

Required Vehicle Wheel Lug Nuts Hex: Based on your Wheel



Requirements of the Wrench Size

Required Wrench Socket Size: 6 Point Splined (Provided)

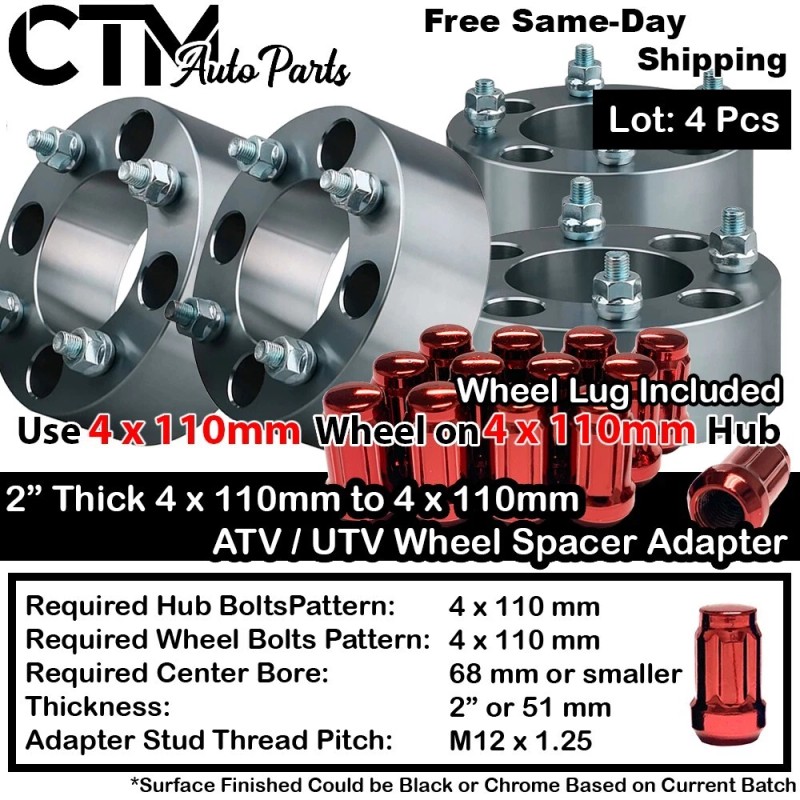

What You Will Receive:

4      pcs Wheel Adapters

16    pcs Wheel Lug Nuts (Used to Fit the Studs on Adapters)

1      pc  Socket Key


What You May Need As Extra:

16    pcs Open Lugs fit to your Hub



Compatibility Chart and Important Part Note:

Please Carefully Check for Generation information


MakeModelYear MadePCD FrontPCD RearRequired Wheel LugRequired Wheel PCD
Arctic Cat90 2 Stroke Auto03-044x1104x110M12x1.254x110mm
Arctic Cat90 4 Stroke Auto04-054x1104x110M12x1.254x110mm
Arctic Cat90 4 Stroke Auto/DVX06-084x1104x110M12x1.254x110mm
Arctic Cat250 2x4 Auto06-084x1104x110M12x1.254x110mm
Arctic Cat250 DVX06-084x1444x110M12x1.254x110mm
BombardierDS 90 Four-Stroke02-064x1104x110M12x1.254x110mm
BombardierDS 9002-064x1104x110M12x1.254x110mm
BombardierDS 5002-064x1104x110M12x1.254x110mm
BombardierDS 25020064x1104x110M12x1.254x110mm
BombardierQuest Max 650044x1104x110M12x1.254x110mm
BombardierQuest 90 4-Stroke044x1104x110M12x1.254x110mm
BombardierQuest 9002-044x1104x110M12x1.254x110mm
BombardierQuest 650 (XT)02-044x1104x110M12x1.254x110mm
BombardierQuest 500 4x4 XT044x1104x110M12x1.254x110mm
BombardierQuest 500 4x402-034x1104x110M12x1.254x110mm
BombardierQuest 500 4x4044x1104x110M12x1.254x110mm
BombardierQuest 500 2x402-034x1104x110M12x1.254x110mm
BombardierQuest 50044x1104x110M12x1.254x110mm
BombardierTraxter XL 50001-054x1104x110M12x1.254x110mm
BombardierTraxter Max 650 XT Auto CVT054x1104x110M12x1.254x110mm
BombardierTraxter Max 650 Auto CVT054x1104x110M12x1.254x110mm
BombardierTraxter Max 500 (XT)03-054x1104x110M12x1.254x110mm
BombardierTraxter 650 XT Auto CVT054x1104x110M12x1.254x110mm
BombardierTraxter 650 Auto CVT054x1104x110M12x1.254x110mm
BombardierTraxter 500 XT00-054x1104x110M12x1.254x110mm
BombardierTraxter 500 Auto CVT054x1104x110M12x1.254x110mm
BombardierTraxter 5001999-20054x1104x110M12x1.254x110mm
BombardierRally 20003-064x1104x110M12x1.254x110mm
Can-Am250 DS06-154x1104x110M12x1.254x110mm
Can-Am500 Traxter 4x499-024x1104x110M12x1.254x110mm
Can-Am500 Traxter 4x403-054x1104x110M12x1.254x110mm
Can-Am500 Traxter CVT054x1104x110M12x1.254x110mm
Can-Am500 Traxter XT01-054x1104x110M12x1.254x110mm
Can-Am500 Traxter XL01-034x1104x110M12x1.254x110mm
Can-Am500 Traxter XL04-054x1104x110M12x1.254x110mm
Can-Am500 Traxter Max03-054x1104x110M12x1.254x110mm
Can-Am500 Quest02-044x1104x110M12x1.254x110mm
Can-Am650 Traxter XT054x1104x110M12x1.254x110mm
Can-Am650 Traxter Max/ Max XT054x1104x110M12x1.254x110mm
Can-Am650 Quest XT02-034x1104x110M12x1.254x110mm
Can-Am650 Quest XT044x1104x110M12x1.254x110mm
Can-Am650 Quest Max04-054x1104x110M12x1.254x110mm
Can-AmDS450 X/MX/XC08-12, 14-154x1444x110M12x1.254x110mm
Can-AmDS65000-024x1444x110M12x1.254x110mm
Cannondale440 Speed02-034x1444x110M12x1.254x110mm
Cannondale440 Moto02-034x1444x110M12x1.254x110mm
Cannondale440 Glamis034x1444x110M12x1.254x110mm
CannondaleFX400014x1444x110M12x1.254x110mm
Cannondale440 Cannibal02-034x1444x110M12x1.254x110mm
Cannondale440 Blaze02-034x1444x110M12x1.254x110mm
CFMotoCFORCE 800All Year4x1104x110M12x1.254x110mm
CFMotoCFORCE 600 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoCFORCE 600 / X6 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoCFORCE 500All Year4x1104x110M12x1.254x110mm
CFMotoCFORCE 400All Year4x1104x110M12x1.254x110mm
CFMotoUFORCE 800 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoUFORCE 600 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoUFORCE 500 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoUFORCE 1000 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoZFORCE 800 / Z8All Year4x1104x110M12x1.254x110mm
CFMotoZFORCE 600 / Z6All Year4x1104x110M12x1.254x110mm
CFMotoZFORCE 500 TRAIL EFIAll Year4x1104x110M12x1.254x110mm
CFMotoZFORCE 1000 EX EFIAll Year4x1104x110M12x1.254x110mm
HondaATC200X83-854x1104x110M12x1.254x110mm
HondaATC200X86-874x1104x110M12x1.254x110mm
HondaATC250ES Big Red85-874x1104x110M12x1.254x110mm
HondaATC250R834x1104x110M12x1.254x110mm
HondaATC250R844x1104x110M12x1.254x110mm
HondaATC250R85-864x1104x110M12x1.254x110mm
HondaATC250SX85-874x1104x110M12x1.254x110mm
HondaATC350X85-864x1104x110M12x1.254x110mm
HondaATC7082-854x1103x100M12x1.254x110mm
HondaBIG RED MUV700 4x409-134x1104x110M12x1.254x110mm
HondaFL350R Odyssey854x1104x110M12x1.254x110mm
HondaPioneer 500 UTVAll Years4x1104x110M12x1.254x110mm
HondaPioneer 700 UTVAll Years4x1104x110M12x1.254x110mm
HondaPioneer 700-4 UTVAll Years4x1104x110M12x1.254x110mm
HondaTRX 200 Fourtrax 20090-914x1104x110M12x1.254x110mm
HondaTRX200/D Fourtrax Type II91-974x1104x110M12x1.254x110mm
HondaTRX200SX Fourtrax86-884x1104x110M12x1.254x110mm
HondaTRX250 Fourtrax 25085-874x1104x110M12x1.254x110mm
HondaTRX250 Recon/ES97-164x1104x110M12x1.254x110mm
HondaTRX250X09-114x1104x110M12x1.254x110mm
HondaTRX250X Fourtrax87-88, 91-934x1104x110M12x1.254x110mm
HondaTRX300 Fourtrax88-914x1104x110M12x1.254x110mm
HondaTRX300 Fourtrax92-004x1104x110M12x1.254x110mm
HondaTRX300FW 4x4884x1104x110M12x1.254x110mm
HondaTRX300FW 4x488, 90-004x1104x110M12x1.254x110mm
HondaTRX350 4x486-894x1104x110M12x1.254x110mm
HondaTRX350 Rancher S/ES 2x400-094x1104x110M12x1.254x110mm
HondaTRX350 Rancher S/ES 4x400-094x1104x110M12x1.254x110mm
HondaTRX350FM00-024x1104x110M12x1.254x110mm
HondaTRX350TE/TM Rancher00-024x1104x110M12x1.254x110mm
HondaTRX400 Rancher/GPScape04-074x1104x110M12x1.254x110mm
HondaTRX400FA Fourtrax Rancher AT04-074x1104x110M12x1.254x110mm
HondaTRX400FW Foreman 4x495-034x1104x110M12x1.254x110mm
HondaTRX400X09, 12-134x1104x110M12x1.254x110mm
HondaTRX420 TM/TE Fourtrax Rancher S/ES07-104x1104x110M12x1.254x110mm
HondaTRX420FA Fourtrax Rancher AT 4x409-164x1104x110M12x1.254x110mm
HondaTRX420FM/FE Fourtrax Rancher 4x4 S/ES07-164x1104x110M12x1.254x110mm
HondaTRX420FPA Fourtrax Rancher AT 4x4 ES/EPS144x1104x110M12x1.254x110mm
HondaTRX420FPE Fourtrax Rancher 4x4 ES EPS09-114x1104x110M12x1.254x110mm
HondaTRX420FPM Fourtrax Rancher 4x4 EPS094x1104x110M12x1.254x110mm
HondaTRX450FM/FE Fourtrax Foreman S/ES02-044x1104x110M12x1.254x110mm
HondaTRX450S/ES Fourtrax Foreman S/ES98-014x1104x110M12x1.254x110mm
HondaTRX500 FourTrax Foreman 4x415-164x1104x110M12x1.254x110mm
HondaTRX500 Fourtrax Rubicon 4x414-164x1104x110M12x1.254x110mm
HondaTRX500 Rubicon/GPScape01-09, 11-134x1104x110M12x1.254x110mm
HondaTRX500FE Fourtrax Foreman 4x4 ES05-09, 11-144x1104x110M12x1.254x110mm
HondaTRX500FGA Fourtrax Rubicon GPScape04-094x1104x110M12x1.254x110mm
HondaTRX500FM Fourtrax Foreman 4x405-134x1104x110M12x1.254x110mm
HondaTRX500FPA Fourtrax Rubicon GPScape EPS09, 11-134x1104x110M12x1.254x110mm
HondaTRX500FPE Fourtrax Foreman 4x4 ES07-134x1104x110M12x1.254x110mm
HondaTRX500FPM Fourtrax Foreman 4x408-094x1104x110M12x1.254x110mm
HondaTRX500TM Fourtrax Foreman 2x405-064x1104x110M12x1.254x110mm
HondaTRX650FA Rincon GPScape03-054x1104x110M12x1.254x110mm
HondaTRX650FGA Fourtrax Rincon04-054x1104x110M12x1.254x110mm
HondaTRX680 Fourtrax Rincon13-164x1104x110M12x1.254x110mm
HondaTRX680FA Fourtrax Rincon06-124x1104x110M12x1.254x110mm
HondaTRX680FGA Rincon/GPScape06-094x1104x110M12x1.254x110mm
HondaTRX70 Fourtrax86-874x1103x100M12x1.254x110mm
HondaTRX250EX01-094x1444x110M12x1.254x110mm
HondaTRX250R86-894x1444x110M12x1.254x110mm
HondaTRX250R Fourtrax88-894x1444x110M12x1.254x110mm
HondaTRX300EX Fourtrax93-004x1444x110M12x1.254x110mm
HondaTRX300EX Sportrax01-084x1444x110M12x1.254x110mm
HondaTRX300X094x1444x110M12x1.254x110mm
HondaTRX400EX06-094x1444x110M12x1.254x110mm
HondaTRX450ER, TRX450R Kick Start04-054x1444x110M12x1.254x110mm
HondaTRX450ER, TRX450R, Electric Start08-09, 12-134x1444x110M12x1.254x110mm
HondaTRX450ER, TRX450R, Kick Start06-074x1444x110M12x1.254x110mm
HondaTRX450ER, TRX450R, Kick Start08-094x1444x110M12x1.254x110mm
HondaTRX450ER. TRX450R, Electric Start06-074x1444x110M12x1.254x110mm
KawasakiKSF50A/KFX5003-064x1104x110M12x1.254x110mm
KawasakiKSF50B/KFX5007-094x1104x110M12x1.254x110mm
KawasakiKSF80A/KFX8003-064x1104x110M12x1.254x110mm
KawasakiKSF90A/KFX9007-164x1104x110M12x1.254x110mm
KawasakiKLF110A Mojave 11087-884x1104x110M12x1.254x110mm
KawasakiKSF400A/KVF400 Prairie03-064x1104x110M12x1.254x110mm
KawasakiKVF650F/G/H Brute Force 4x4 IRS06-144x1104x110M12x1.254x110mm
KawasakiKVF750A-F Brute Force 750 4x4 IRS05-164x1104x110M12x1.254x110mm
KawasakiKSF400A/KFX40003-064x1444x110M12x1.254x110mm
KawasakiKSF450B/KFX450R08-134x1444x110M12x1.254x110mm
KymcoMaxxerAll Year4x1104x110M12x1.254x110mm
KymcoMongooseAll Year4x1104x110M12x1.254x110mm
KymcoMxerAll Year4x1104x110M12x1.254x110mm
KymcoMXUAll Year4x1104x110M12x1.254x110mm
KymcoUXVAll Year4x1104x110M12x1.254x110mm
Polaris50 Outlaw08-144x1104x110M12x1.254x110mm
Polaris50 Predator044x1104x110M12x1.254x110mm
Polaris50 Predator(if built before 8/1/04)054x1104x110M12x1.254x110mm
Polaris50 Predator (if built after 8/1/0405-064x1104x110M12x1.254x110mm
Polaris50 Predator074x1104x110M12x1.254x110mm
Polaris50 Scrambler01-024x1104x110M12x1.254x110mm
Polaris50 Scrambler034x1104x110M12x1.254x110mm
Polaris90 Outlaw07-144x1104x110M12x1.254x110mm
Polaris90 Predator04-064x1104x110M12x1.254x110mm
Polaris90 Scrambler014x1104x110M12x1.254x110mm
Polaris90/90X Scrambler024x1104x110M12x1.254x110mm
Polaris90 Scrambler034x1104x110M12x1.254x110mm
Polaris90 Sportsman01-064x1104x110M12x1.254x110mm
Polaris90 Sportsman07-144x1104x110M12x1.254x110mm
Polaris170 RZRAll Years4x1104x110M12x1.254x110mm
Polaris450 Outlaw S08-104x1564x110M12x1.254x110mm
Polaris500 Outlaw06-074x1564x110M12x1.254x110mm
Polaris500 Predator044x1564x110M12x1.254x110mm
Polaris500 Predator05-074x1564x110M12x1.254x110mm
Polaris500 Predator/LE044x1564x110M12x1.254x110mm
Polaris500 Predator/LE05-074x1564x110M12x1.254x110mm
Polaris525 Outlaw/IRS07-094x1564x110M12x1.254x110mm
Polaris525 Outlaw S08-094x1564x110M12x1.254x110mm
SuzukiLTF250 Ozark03-09, 12-144x1104x110M12x1.254x110mm
SuzukiLT-A400 Eiger Auto 2x402-04, 06-074x1104x110M12x1.254x110mm
SuzukiLT-A400F Eiger Auto 4x402-074x1104x110M12x1.254x110mm
SuzukiLTA400F King Quad 400AS 4x408-094x1104x110M12x1.254x110mm
SuzukiLTF400 Eiger 400 2x402-074x1104x110M12x1.254x110mm
SuzukiLTF400F Eiger 400 4x402-074x1104x110M12x1.254x110mm
SuzukiLTA400F King Quad 400FS 4x408-094x1104x110M12x1.254x110mm
SuzukiLT-Z400/Z Quadsport03-09, 12-134x1104x110M12x1.254x110mm
SuzukiLTA450X King Quad 4x4/450 Axi 4x4All Years4x1104x110M12x1.254x110mm
SuzukiLT500F Quad Master 4x400-014x1104x110M12x1.254x110mm
SuzukiLTF-A500F Vinson Auto 4WD02-034x1104x110M12x1.254x110mm
SuzukiLTF-A500F Vinson Auto 4WD04-074x1104x110M12x1.254x110mm
SuzukiLTF500F Vinson 500 4x4034x1104x110M12x1.254x110mm
SuzukiLTF500F Vinson 500 4x404-074x1104x110M12x1.254x110mm
SuzukiLTA500X King Quad11-154x1104x110M12x1.254x110mm
SuzukiLTA700X King Quad 700 4x405-074x1104x110M12x1.254x110mm
SuzukiLTA750X King Quad Axi 4x4All Years4x1104x110M12x1.254x110mm
SuzukiQUV620F Q.U.V. 4x4054x1104x110M12x1.254x110mm
SuzukiLT250S Quadsport04-094x1444x110M12x1.254x110mm
SuzukiLT-R450 Quadracer06-094x1444x110M12x1.254x110mm
YamahaYFB250 Bear Tracker99-044x1104x110M12x1.254x110mm
YamahaYFM250 Big Bear07-094x1104x110M12x1.254x110mm
YamahaYFM250 Bruin05-064x1104x110M12x1.254x110mm
YamahaYFB250FW Timberwolf 4x494-004x1104x110M12x1.254x110mm
YamahaYFM250 Moto 489-914x1104x110M12x1.254x110mm
YamahaYFM350 Bruin 2x4/4x404-064x1104x110M12x1.254x110mm
YamahaYFM350 Grizzly Auto 2/4x407-144x1104x110M12x1.254x110mm
YamahaYFM350ER89-954x1104x125M12x1.254x110mm
YamahaYFM350FW 4WD87-024x1104x110M12x1.254x110mm
YamahaYFM350FX Wolverine95-014x1104x110M12x1.254x110mm
YamahaYFM350FX Wolverine02-054x1104x110M12x1.254x110mm
YamahaYFM350 2x497-984x1104x110M12x1.254x110mm
YamahaYFM400 Big Bear00-074x1104x110M12x1.254x110mm
YamahaYFM400 Grizzly Auto07-084x1104x110M12x1.254x110mm
YamahaYFM400FW Kodiak93-954x1104x110M12x1.254x110mm
YamahaYFM400FW Kodiak96-024x1104x110M12x1.254x110mm
YamahaYFM400FA Kodiak Auto03-064x1104x110M12x1.254x110mm
YamahaYFM450 Grizzly AutoAll Years4x1104x110M12x1.254x110mm
YamahaYFM450FA Kodiak Auto03-064x1104x110M12x1.254x110mm
Yamaha450 Rhino074x1104x110M12x1.254x110mm
YamahaYFM450 Wolverine/SE074x1104x110M12x1.254x110mm
YamahaYFM550 GrizzlyAll Years4x1104x110M12x1.254x110mm
YamahaYFM600 Grizzly98-014x1104x110M12x1.254x110mm
YamahaYFM660 Grizzly02-074x1104x110M12x1.254x110mm
Yamaha660 Rhino06-074x1104x110M12x1.254x110mm
YamahaYFM700 GrizzlyAll Years4x1104x110M12x1.254x110mm
Yamaha700 Rhino08-144x1104x110M12x1.254x110mm
YamahaVikingAll Years4x1104x110M12x1.254x110mm
YamahaViking VIAll Years4x1104x110M12x1.254x110mm
YamahaYXE700 WolverineAll Years4x1104x110M12x1.254x110mm
YamahaYXZ 1000RAll Years4x1104x110M12x1.254x110mm


Notes:

  • Buyer must check compatibility chart before buying, any vehicle that is not displayed in the capability may NOT fit.
  • Buyer must check part notes regarding generations, wheel type, etc.
  • For Adapter thickness limitation, buyer must measure Fender Gap before buying.
  • Parts must meet all the requirements listed in the description in order to ensure fitment and safety.
  • If you are not sure, you can always contact customer service for help.



Return & Exchange Policy:

Your happiness with the product is our top concern. We allow returns based on the following rules:

  • Return & Exchange is allowed within 30-day of Purchase Date
  • Return Product must be unused, intact, and with the original package
  • Buyer is responsible for return shipping charge
  • Buyer is responsible for all exchange shipping charge
  • Please allow 3 business day after the delivery of your return for us to process the refund.
  • 15% RMA Restocking Fee is applied to all Adapter/Spacer/Spike orders.
  • Please use a specific return shipping address (not the ship-from address) to avoid the 30% Processing Fee.
  • If you have any questions or concerns, please do not hesitate to let us know.



Shipping:

  • All shipments will be shipped via Fedex 2 Days (Same-Day), If your address is not qualified for FedEx Service, it will be shipped via USPS Priority Mail (2-5 Days).
  • Order placed before 9:00 am PST will be shipped on the same day. Order placed after 9:00am will be shipped promptly the next business day.
  • If you wish to cancel or modify order, please notify Customer Service before 9:00 am PST or we won't be able to change/cancel your order prior to shipping.
  • We also provide local pickup service! Contact us for more information.

Warranty:

  • 30-Day Return Policy;
  • For Colored Lug Nuts (Any color other than Chrome), we suggest the use of manual torque for installation to avoid damage to the paint layer.
  • Warranty is voided if power tool is used
  • Abuse of Usage (Excessive power torque) will not be covered by Warranty



Frequent Asked Questions:

Q:    When will my order shipped?

A:    Order made by 9:00 am Pacific Time will be shipped same day, except Holidays, Weekends. Order made after 9:00 am Pacific Time will be shipped on next Business Day.



Q:    The shipping status indicates my package was sent, but there is no movement or scan.

A:    Order sent during peak hour or season may subject to delayed by shipping company in rare case, some package will be delivered without having tracking information due to the shipping company system glitch. If we did not send out something due to any reason, we will contact you in the same day.



Q:    My package was returned to sender

A:    Shipping company will return packages if the address is wrong, missing apartment number, vacant, or security issues of your drop off location. Please double check your address before buying, once the package is returned, there will be additional shipping charge.



Q:    Shipping company holds my package and requests for additional postage

A:    All the package postage was paid off upon our agreement with Shipping company, if there is possibility that you get the notice of additional postage, please DO NOT make payment and refuse the package. Contact customer service for help. We will NOT be responsible to additional postage paid on customer side.



Q:    Can I request to change my address?

A:    Please send customer service message as soon as possible if you need to change address, once the package was sent, we won't be able to change address.



Q:    I did not receive my order, but the tracking information says delivered.

A:    For delivered status package, please contact your local shipping company agency for information. You can also make claim directly to them.


Q:    It won't fit my vehicle but the description includes my model

A:    Compatibility chart is only used to check stud thread corresponded to wheel lugs. There are many other factors on your wheel will determine the fitment such as HEX, SEAT TYPE that is determined by rim that is NOT included in the compatibility chart. Some models within the same year may have different configurations. Please check GENERATION as well. For vintage model, your stud may have been changed due to the age of the car. Please check carefully.



Q:    My car is not listed in the compatibility chart, but the requirement matches, can I use this sets?

A:    As long as you check all the requirements match, you are good to use it.


Q:    What does Fender Gap mean?

A:    Fender Gap is the maximum Thickness of Adapter you can use, if you go beyond fender gap, your wheel will run the fender to cause problems. Please refer to the guide to measure fender gap before buying.


Q:    How do I choose correct thickness?

A:    Please refer to the Fender Gap Limitation to select from the safe range.


Q:    I need more help or support, discount, bulk deal

A:    Contact customer service for help at any time.



Disclaimer:

  • Professional Installation is recommended.
  • Please use proper power tools and/or manual installation based on the vehicle's recommended torque spec (found on vehicle's operator manual)
  • Our liability is limited to the purchase price of the listed product.
  • By purchasing this product, you acknowledge that you fully understand the information and terms listed above.
Brand: CTM
Isin: IE9SOJBM8SZI

$253.43

$255.90
1% off
  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
CTM 4x 2" Thick 4x110 ATV UTV Wheel Spacer Adapter Red Lug Honda Polaris Yamaha More

CTM 4x 2" Thick 4x110 ATV UTV Wheel Spacer Adapter Red Lug Honda Polaris Yama...

$253.43 $255.90 (1% off)

Important Notice

** You May Use Your Existing Lug Nuts to Lock Adapter to Hub **

** Please Double Check Your Bolt Pattern Before Buying **

** Please Mind Differences Between Front/Rear Wheels **


Wheel Compatibility Check

May I use the Same STOCK WHEEL: Yes

May I use the Same Thread Stock Lug Nuts/Bolts: You will Need to Use M12x1.25 Wheel Lug (Provided)

How about Other Wheels: Check Requirements Below


Product Specification:

About Socket Adapter

Adapter Thickness: 2”

Adapter Bolt Pattern Fit to Hub: 4x110mm

Adapter Bolt Pattern Fit to Wheel: 4x110mm

Adapter Center Bore: 68mm

Adapter Hub Ring: No

Adapter Overall Diameter: 150mm

Adapter Stud Thread Pitch: M12x1.25

Adapter Stud Grade: 10.9

Adapter Color: Chrome or Black Depending on Current Batch

Adapter Material: Cold Forged 6061 T6 Grade Aluminum


About Lug Nut

Lug Nut Thread Pitch: M12x1.25

Lug Nut Seat Type: 60 Degree Cone Seat

Lug Nut Hex Size: 6 Point Spline 0.8"

Lug Nut Overall Diameter: 0.8"(20mm)

Lug Nut Overall Height: 1.4"(35mm)

Lug Nut Thread Depth: 1.25"(32mm)

Lug Nut Finish: Red

Lug Nut Material Made: SCM Steel


About Socket Key

Socket Type: 6 Point Spline Tuner Lug Nuts Socket

Socket Drive: 13/16" & 3/4" Hex Drive

Socket Fit Lug Nuts: 6 Point Spline Typed Lug Nuts

Socket Overall Diameter: 0.85"(21mm)

Socket Overall Length: 3.55"(90mm)

Socket Material Made: SCM Steel

Max Torque Power: 100 ft-lb



Requirements of the Vehicle Specification

Required Vehicle Hub Bolt Pattern: 4x110mm

Required Vehicle Hub Center Bore: 68mm or smaller

Required Vehicle Hub Stud Thread: Varies

Min Required Vehicle Fender Gap: 2”

Max Vehicle Hub Stud Length: 2”

*If your stud is longer than 2” you will need to trim it to use the adapter.


Requirements of the Wheel Specification

Required Vehicle Wheel Bolt Pattern: 4x110mm

Required Vehicle Wheel Center Bore: 68mm or smaller

Required Vehicle Wheel Lug Thread: M12x1.25

Required Vehicle Wheel Lug Nuts Hex: Based on your Wheel



Requirements of the Wrench Size

Required Wrench Socket Size: 6 Point Splined (Provided)


What You Will Receive:

4      pcs Wheel Adapters

16    pcs Wheel Lug Nuts (Used to Fit the Studs on Adapters)

1      pc  Socket Key


What You May Need As Extra:

16    pcs Open Lugs fit to your Hub



Compatibility Chart and Important Part Note:

Please Carefully Check for Generation information


MakeModelYear MadePCD FrontPCD RearRequired Wheel LugRequired Wheel PCD
Arctic Cat90 2 Stroke Auto03-044x1104x110M12x1.254x110mm
Arctic Cat90 4 Stroke Auto04-054x1104x110M12x1.254x110mm
Arctic Cat90 4 Stroke Auto/DVX06-084x1104x110M12x1.254x110mm
Arctic Cat250 2x4 Auto06-084x1104x110M12x1.254x110mm
Arctic Cat250 DVX06-084x1444x110M12x1.254x110mm
BombardierDS 90 Four-Stroke02-064x1104x110M12x1.254x110mm
BombardierDS 9002-064x1104x110M12x1.254x110mm
BombardierDS 5002-064x1104x110M12x1.254x110mm
BombardierDS 25020064x1104x110M12x1.254x110mm
BombardierQuest Max 650044x1104x110M12x1.254x110mm
BombardierQuest 90 4-Stroke044x1104x110M12x1.254x110mm
BombardierQuest 9002-044x1104x110M12x1.254x110mm
BombardierQuest 650 (XT)02-044x1104x110M12x1.254x110mm
BombardierQuest 500 4x4 XT044x1104x110M12x1.254x110mm
BombardierQuest 500 4x402-034x1104x110M12x1.254x110mm
BombardierQuest 500 4x4044x1104x110M12x1.254x110mm
BombardierQuest 500 2x402-034x1104x110M12x1.254x110mm
BombardierQuest 50044x1104x110M12x1.254x110mm
BombardierTraxter XL 50001-054x1104x110M12x1.254x110mm
BombardierTraxter Max 650 XT Auto CVT054x1104x110M12x1.254x110mm
BombardierTraxter Max 650 Auto CVT054x1104x110M12x1.254x110mm
BombardierTraxter Max 500 (XT)03-054x1104x110M12x1.254x110mm
BombardierTraxter 650 XT Auto CVT054x1104x110M12x1.254x110mm
BombardierTraxter 650 Auto CVT054x1104x110M12x1.254x110mm
BombardierTraxter 500 XT00-054x1104x110M12x1.254x110mm
BombardierTraxter 500 Auto CVT054x1104x110M12x1.254x110mm
BombardierTraxter 5001999-20054x1104x110M12x1.254x110mm
BombardierRally 20003-064x1104x110M12x1.254x110mm
Can-Am250 DS06-154x1104x110M12x1.254x110mm
Can-Am500 Traxter 4x499-024x1104x110M12x1.254x110mm
Can-Am500 Traxter 4x403-054x1104x110M12x1.254x110mm
Can-Am500 Traxter CVT054x1104x110M12x1.254x110mm
Can-Am500 Traxter XT01-054x1104x110M12x1.254x110mm
Can-Am500 Traxter XL01-034x1104x110M12x1.254x110mm
Can-Am500 Traxter XL04-054x1104x110M12x1.254x110mm
Can-Am500 Traxter Max03-054x1104x110M12x1.254x110mm
Can-Am500 Quest02-044x1104x110M12x1.254x110mm
Can-Am650 Traxter XT054x1104x110M12x1.254x110mm
Can-Am650 Traxter Max/ Max XT054x1104x110M12x1.254x110mm
Can-Am650 Quest XT02-034x1104x110M12x1.254x110mm
Can-Am650 Quest XT044x1104x110M12x1.254x110mm
Can-Am650 Quest Max04-054x1104x110M12x1.254x110mm
Can-AmDS450 X/MX/XC08-12, 14-154x1444x110M12x1.254x110mm
Can-AmDS65000-024x1444x110M12x1.254x110mm
Cannondale440 Speed02-034x1444x110M12x1.254x110mm
Cannondale440 Moto02-034x1444x110M12x1.254x110mm
Cannondale440 Glamis034x1444x110M12x1.254x110mm
CannondaleFX400014x1444x110M12x1.254x110mm
Cannondale440 Cannibal02-034x1444x110M12x1.254x110mm
Cannondale440 Blaze02-034x1444x110M12x1.254x110mm
CFMotoCFORCE 800All Year4x1104x110M12x1.254x110mm
CFMotoCFORCE 600 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoCFORCE 600 / X6 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoCFORCE 500All Year4x1104x110M12x1.254x110mm
CFMotoCFORCE 400All Year4x1104x110M12x1.254x110mm
CFMotoUFORCE 800 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoUFORCE 600 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoUFORCE 500 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoUFORCE 1000 EFIAll Year4x1104x110M12x1.254x110mm
CFMotoZFORCE 800 / Z8All Year4x1104x110M12x1.254x110mm
CFMotoZFORCE 600 / Z6All Year4x1104x110M12x1.254x110mm
CFMotoZFORCE 500 TRAIL EFIAll Year4x1104x110M12x1.254x110mm
CFMotoZFORCE 1000 EX EFIAll Year4x1104x110M12x1.254x110mm
HondaATC200X83-854x1104x110M12x1.254x110mm
HondaATC200X86-874x1104x110M12x1.254x110mm
HondaATC250ES Big Red85-874x1104x110M12x1.254x110mm
HondaATC250R834x1104x110M12x1.254x110mm
HondaATC250R844x1104x110M12x1.254x110mm
HondaATC250R85-864x1104x110M12x1.254x110mm
HondaATC250SX85-874x1104x110M12x1.254x110mm
HondaATC350X85-864x1104x110M12x1.254x110mm
HondaATC7082-854x1103x100M12x1.254x110mm
HondaBIG RED MUV700 4x409-134x1104x110M12x1.254x110mm
HondaFL350R Odyssey854x1104x110M12x1.254x110mm
HondaPioneer 500 UTVAll Years4x1104x110M12x1.254x110mm
HondaPioneer 700 UTVAll Years4x1104x110M12x1.254x110mm
HondaPioneer 700-4 UTVAll Years4x1104x110M12x1.254x110mm
HondaTRX 200 Fourtrax 20090-914x1104x110M12x1.254x110mm
HondaTRX200/D Fourtrax Type II91-974x1104x110M12x1.254x110mm
HondaTRX200SX Fourtrax86-884x1104x110M12x1.254x110mm
HondaTRX250 Fourtrax 25085-874x1104x110M12x1.254x110mm
HondaTRX250 Recon/ES97-164x1104x110M12x1.254x110mm
HondaTRX250X09-114x1104x110M12x1.254x110mm
HondaTRX250X Fourtrax87-88, 91-934x1104x110M12x1.254x110mm
HondaTRX300 Fourtrax88-914x1104x110M12x1.254x110mm
HondaTRX300 Fourtrax92-004x1104x110M12x1.254x110mm
HondaTRX300FW 4x4884x1104x110M12x1.254x110mm
HondaTRX300FW 4x488, 90-004x1104x110M12x1.254x110mm
HondaTRX350 4x486-894x1104x110M12x1.254x110mm
HondaTRX350 Rancher S/ES 2x400-094x1104x110M12x1.254x110mm
HondaTRX350 Rancher S/ES 4x400-094x1104x110M12x1.254x110mm
HondaTRX350FM00-024x1104x110M12x1.254x110mm
HondaTRX350TE/TM Rancher00-024x1104x110M12x1.254x110mm
HondaTRX400 Rancher/GPScape04-074x1104x110M12x1.254x110mm
HondaTRX400FA Fourtrax Rancher AT04-074x1104x110M12x1.254x110mm
HondaTRX400FW Foreman 4x495-034x1104x110M12x1.254x110mm
HondaTRX400X09, 12-134x1104x110M12x1.254x110mm
HondaTRX420 TM/TE Fourtrax Rancher S/ES07-104x1104x110M12x1.254x110mm
HondaTRX420FA Fourtrax Rancher AT 4x409-164x1104x110M12x1.254x110mm
HondaTRX420FM/FE Fourtrax Rancher 4x4 S/ES07-164x1104x110M12x1.254x110mm
HondaTRX420FPA Fourtrax Rancher AT 4x4 ES/EPS144x1104x110M12x1.254x110mm
HondaTRX420FPE Fourtrax Rancher 4x4 ES EPS09-114x1104x110M12x1.254x110mm
HondaTRX420FPM Fourtrax Rancher 4x4 EPS094x1104x110M12x1.254x110mm
HondaTRX450FM/FE Fourtrax Foreman S/ES02-044x1104x110M12x1.254x110mm
HondaTRX450S/ES Fourtrax Foreman S/ES98-014x1104x110M12x1.254x110mm
HondaTRX500 FourTrax Foreman 4x415-164x1104x110M12x1.254x110mm
HondaTRX500 Fourtrax Rubicon 4x414-164x1104x110M12x1.254x110mm
HondaTRX500 Rubicon/GPScape01-09, 11-134x1104x110M12x1.254x110mm
HondaTRX500FE Fourtrax Foreman 4x4 ES05-09, 11-144x1104x110M12x1.254x110mm
HondaTRX500FGA Fourtrax Rubicon GPScape04-094x1104x110M12x1.254x110mm
HondaTRX500FM Fourtrax Foreman 4x405-134x1104x110M12x1.254x110mm
HondaTRX500FPA Fourtrax Rubicon GPScape EPS09, 11-134x1104x110M12x1.254x110mm
HondaTRX500FPE Fourtrax Foreman 4x4 ES07-134x1104x110M12x1.254x110mm
HondaTRX500FPM Fourtrax Foreman 4x408-094x1104x110M12x1.254x110mm
HondaTRX500TM Fourtrax Foreman 2x405-064x1104x110M12x1.254x110mm
HondaTRX650FA Rincon GPScape03-054x1104x110M12x1.254x110mm
HondaTRX650FGA Fourtrax Rincon04-054x1104x110M12x1.254x110mm
HondaTRX680 Fourtrax Rincon13-164x1104x110M12x1.254x110mm
HondaTRX680FA Fourtrax Rincon06-124x1104x110M12x1.254x110mm
HondaTRX680FGA Rincon/GPScape06-094x1104x110M12x1.254x110mm
HondaTRX70 Fourtrax86-874x1103x100M12x1.254x110mm
HondaTRX250EX01-094x1444x110M12x1.254x110mm
HondaTRX250R86-894x1444x110M12x1.254x110mm
HondaTRX250R Fourtrax88-894x1444x110M12x1.254x110mm
HondaTRX300EX Fourtrax93-004x1444x110M12x1.254x110mm
HondaTRX300EX Sportrax01-084x1444x110M12x1.254x110mm
HondaTRX300X094x1444x110M12x1.254x110mm
HondaTRX400EX06-094x1444x110M12x1.254x110mm
HondaTRX450ER, TRX450R Kick Start04-054x1444x110M12x1.254x110mm
HondaTRX450ER, TRX450R, Electric Start08-09, 12-134x1444x110M12x1.254x110mm
HondaTRX450ER, TRX450R, Kick Start06-074x1444x110M12x1.254x110mm
HondaTRX450ER, TRX450R, Kick Start08-094x1444x110M12x1.254x110mm
HondaTRX450ER. TRX450R, Electric Start06-074x1444x110M12x1.254x110mm
KawasakiKSF50A/KFX5003-064x1104x110M12x1.254x110mm
KawasakiKSF50B/KFX5007-094x1104x110M12x1.254x110mm
KawasakiKSF80A/KFX8003-064x1104x110M12x1.254x110mm
KawasakiKSF90A/KFX9007-164x1104x110M12x1.254x110mm
KawasakiKLF110A Mojave 11087-884x1104x110M12x1.254x110mm
KawasakiKSF400A/KVF400 Prairie03-064x1104x110M12x1.254x110mm
KawasakiKVF650F/G/H Brute Force 4x4 IRS06-144x1104x110M12x1.254x110mm
KawasakiKVF750A-F Brute Force 750 4x4 IRS05-164x1104x110M12x1.254x110mm
KawasakiKSF400A/KFX40003-064x1444x110M12x1.254x110mm
KawasakiKSF450B/KFX450R08-134x1444x110M12x1.254x110mm
KymcoMaxxerAll Year4x1104x110M12x1.254x110mm
KymcoMongooseAll Year4x1104x110M12x1.254x110mm
KymcoMxerAll Year4x1104x110M12x1.254x110mm
KymcoMXUAll Year4x1104x110M12x1.254x110mm
KymcoUXVAll Year4x1104x110M12x1.254x110mm
Polaris50 Outlaw08-144x1104x110M12x1.254x110mm
Polaris50 Predator044x1104x110M12x1.254x110mm
Polaris50 Predator(if built before 8/1/04)054x1104x110M12x1.254x110mm
Polaris50 Predator (if built after 8/1/0405-064x1104x110M12x1.254x110mm
Polaris50 Predator074x1104x110M12x1.254x110mm
Polaris50 Scrambler01-024x1104x110M12x1.254x110mm
Polaris50 Scrambler034x1104x110M12x1.254x110mm
Polaris90 Outlaw07-144x1104x110M12x1.254x110mm
Polaris90 Predator04-064x1104x110M12x1.254x110mm
Polaris90 Scrambler014x1104x110M12x1.254x110mm
Polaris90/90X Scrambler024x1104x110M12x1.254x110mm
Polaris90 Scrambler034x1104x110M12x1.254x110mm
Polaris90 Sportsman01-064x1104x110M12x1.254x110mm
Polaris90 Sportsman07-144x1104x110M12x1.254x110mm
Polaris170 RZRAll Years4x1104x110M12x1.254x110mm
Polaris450 Outlaw S08-104x1564x110M12x1.254x110mm
Polaris500 Outlaw06-074x1564x110M12x1.254x110mm
Polaris500 Predator044x1564x110M12x1.254x110mm
Polaris500 Predator05-074x1564x110M12x1.254x110mm
Polaris500 Predator/LE044x1564x110M12x1.254x110mm
Polaris500 Predator/LE05-074x1564x110M12x1.254x110mm
Polaris525 Outlaw/IRS07-094x1564x110M12x1.254x110mm
Polaris525 Outlaw S08-094x1564x110M12x1.254x110mm
SuzukiLTF250 Ozark03-09, 12-144x1104x110M12x1.254x110mm
SuzukiLT-A400 Eiger Auto 2x402-04, 06-074x1104x110M12x1.254x110mm
SuzukiLT-A400F Eiger Auto 4x402-074x1104x110M12x1.254x110mm
SuzukiLTA400F King Quad 400AS 4x408-094x1104x110M12x1.254x110mm
SuzukiLTF400 Eiger 400 2x402-074x1104x110M12x1.254x110mm
SuzukiLTF400F Eiger 400 4x402-074x1104x110M12x1.254x110mm
SuzukiLTA400F King Quad 400FS 4x408-094x1104x110M12x1.254x110mm
SuzukiLT-Z400/Z Quadsport03-09, 12-134x1104x110M12x1.254x110mm
SuzukiLTA450X King Quad 4x4/450 Axi 4x4All Years4x1104x110M12x1.254x110mm
SuzukiLT500F Quad Master 4x400-014x1104x110M12x1.254x110mm
SuzukiLTF-A500F Vinson Auto 4WD02-034x1104x110M12x1.254x110mm
SuzukiLTF-A500F Vinson Auto 4WD04-074x1104x110M12x1.254x110mm
SuzukiLTF500F Vinson 500 4x4034x1104x110M12x1.254x110mm
SuzukiLTF500F Vinson 500 4x404-074x1104x110M12x1.254x110mm
SuzukiLTA500X King Quad11-154x1104x110M12x1.254x110mm
SuzukiLTA700X King Quad 700 4x405-074x1104x110M12x1.254x110mm
SuzukiLTA750X King Quad Axi 4x4All Years4x1104x110M12x1.254x110mm
SuzukiQUV620F Q.U.V. 4x4054x1104x110M12x1.254x110mm
SuzukiLT250S Quadsport04-094x1444x110M12x1.254x110mm
SuzukiLT-R450 Quadracer06-094x1444x110M12x1.254x110mm
YamahaYFB250 Bear Tracker99-044x1104x110M12x1.254x110mm
YamahaYFM250 Big Bear07-094x1104x110M12x1.254x110mm
YamahaYFM250 Bruin05-064x1104x110M12x1.254x110mm
YamahaYFB250FW Timberwolf 4x494-004x1104x110M12x1.254x110mm
YamahaYFM250 Moto 489-914x1104x110M12x1.254x110mm
YamahaYFM350 Bruin 2x4/4x404-064x1104x110M12x1.254x110mm
YamahaYFM350 Grizzly Auto 2/4x407-144x1104x110M12x1.254x110mm
YamahaYFM350ER89-954x1104x125M12x1.254x110mm
YamahaYFM350FW 4WD87-024x1104x110M12x1.254x110mm
YamahaYFM350FX Wolverine95-014x1104x110M12x1.254x110mm
YamahaYFM350FX Wolverine02-054x1104x110M12x1.254x110mm
YamahaYFM350 2x497-984x1104x110M12x1.254x110mm
YamahaYFM400 Big Bear00-074x1104x110M12x1.254x110mm
YamahaYFM400 Grizzly Auto07-084x1104x110M12x1.254x110mm
YamahaYFM400FW Kodiak93-954x1104x110M12x1.254x110mm
YamahaYFM400FW Kodiak96-024x1104x110M12x1.254x110mm
YamahaYFM400FA Kodiak Auto03-064x1104x110M12x1.254x110mm
YamahaYFM450 Grizzly AutoAll Years4x1104x110M12x1.254x110mm
YamahaYFM450FA Kodiak Auto03-064x1104x110M12x1.254x110mm
Yamaha450 Rhino074x1104x110M12x1.254x110mm
YamahaYFM450 Wolverine/SE074x1104x110M12x1.254x110mm
YamahaYFM550 GrizzlyAll Years4x1104x110M12x1.254x110mm
YamahaYFM600 Grizzly98-014x1104x110M12x1.254x110mm
YamahaYFM660 Grizzly02-074x1104x110M12x1.254x110mm
Yamaha660 Rhino06-074x1104x110M12x1.254x110mm
YamahaYFM700 GrizzlyAll Years4x1104x110M12x1.254x110mm
Yamaha700 Rhino08-144x1104x110M12x1.254x110mm
YamahaVikingAll Years4x1104x110M12x1.254x110mm
YamahaViking VIAll Years4x1104x110M12x1.254x110mm
YamahaYXE700 WolverineAll Years4x1104x110M12x1.254x110mm
YamahaYXZ 1000RAll Years4x1104x110M12x1.254x110mm


Notes:

  • Buyer must check compatibility chart before buying, any vehicle that is not displayed in the capability may NOT fit.
  • Buyer must check part notes regarding generations, wheel type, etc.
  • For Adapter thickness limitation, buyer must measure Fender Gap before buying.
  • Parts must meet all the requirements listed in the description in order to ensure fitment and safety.
  • If you are not sure, you can always contact customer service for help.



Return & Exchange Policy:

Your happiness with the product is our top concern. We allow returns based on the following rules:

  • Return & Exchange is allowed within 30-day of Purchase Date
  • Return Product must be unused, intact, and with the original package
  • Buyer is responsible for return shipping charge
  • Buyer is responsible for all exchange shipping charge
  • Please allow 3 business day after the delivery of your return for us to process the refund.
  • 15% RMA Restocking Fee is applied to all Adapter/Spacer/Spike orders.
  • Please use a specific return shipping address (not the ship-from address) to avoid the 30% Processing Fee.
  • If you have any questions or concerns, please do not hesitate to let us know.



Shipping:

  • All shipments will be shipped via Fedex 2 Days (Same-Day), If your address is not qualified for FedEx Service, it will be shipped via USPS Priority Mail (2-5 Days).
  • Order placed before 9:00 am PST will be shipped on the same day. Order placed after 9:00am will be shipped promptly the next business day.
  • If you wish to cancel or modify order, please notify Customer Service before 9:00 am PST or we won't be able to change/cancel your order prior to shipping.
  • We also provide local pickup service! Contact us for more information.

Warranty:

  • 30-Day Return Policy;
  • For Colored Lug Nuts (Any color other than Chrome), we suggest the use of manual torque for installation to avoid damage to the paint layer.
  • Warranty is voided if power tool is used
  • Abuse of Usage (Excessive power torque) will not be covered by Warranty



Frequent Asked Questions:

Q:    When will my order shipped?

A:    Order made by 9:00 am Pacific Time will be shipped same day, except Holidays, Weekends. Order made after 9:00 am Pacific Time will be shipped on next Business Day.



Q:    The shipping status indicates my package was sent, but there is no movement or scan.

A:    Order sent during peak hour or season may subject to delayed by shipping company in rare case, some package will be delivered without having tracking information due to the shipping company system glitch. If we did not send out something due to any reason, we will contact you in the same day.



Q:    My package was returned to sender

A:    Shipping company will return packages if the address is wrong, missing apartment number, vacant, or security issues of your drop off location. Please double check your address before buying, once the package is returned, there will be additional shipping charge.



Q:    Shipping company holds my package and requests for additional postage

A:    All the package postage was paid off upon our agreement with Shipping company, if there is possibility that you get the notice of additional postage, please DO NOT make payment and refuse the package. Contact customer service for help. We will NOT be responsible to additional postage paid on customer side.



Q:    Can I request to change my address?

A:    Please send customer service message as soon as possible if you need to change address, once the package was sent, we won't be able to change address.



Q:    I did not receive my order, but the tracking information says delivered.

A:    For delivered status package, please contact your local shipping company agency for information. You can also make claim directly to them.


Q:    It won't fit my vehicle but the description includes my model

A:    Compatibility chart is only used to check stud thread corresponded to wheel lugs. There are many other factors on your wheel will determine the fitment such as HEX, SEAT TYPE that is determined by rim that is NOT included in the compatibility chart. Some models within the same year may have different configurations. Please check GENERATION as well. For vintage model, your stud may have been changed due to the age of the car. Please check carefully.



Q:    My car is not listed in the compatibility chart, but the requirement matches, can I use this sets?

A:    As long as you check all the requirements match, you are good to use it.


Q:    What does Fender Gap mean?

A:    Fender Gap is the maximum Thickness of Adapter you can use, if you go beyond fender gap, your wheel will run the fender to cause problems. Please refer to the guide to measure fender gap before buying.


Q:    How do I choose correct thickness?

A:    Please refer to the Fender Gap Limitation to select from the safe range.


Q:    I need more help or support, discount, bulk deal

A:    Contact customer service for help at any time.



Disclaimer:

  • Professional Installation is recommended.
  • Please use proper power tools and/or manual installation based on the vehicle's recommended torque spec (found on vehicle's operator manual)
  • Our liability is limited to the purchase price of the listed product.
  • By purchasing this product, you acknowledge that you fully understand the information and terms listed above.
  • Lug Nuts Thread Pitch: M12x1.25
  • Adapter Thickness: 2"
  • Number in Pack: 4
  • Lug Nuts Height: 1.4"(35mm)
  • Items Included: Key, Lug Nut, Removal Tool, Spacer Adaptor, Wheel Spacer
  • Adapter Outside Diameter: 150mm
  • Lug Nuts Overall Flange: 0.8"(20mm)
  • Placement on Vehicle: Front, Left, Rear, Right
  • Adapter Bolt Pattern to Wheel: 4x110mmLug Nuts Overall Diamete
  • Adapter Center Bore: 68mm
  • Inside Diameter: 68 mm
  • Adapter Stud Grade: 10.9
  • Features: Durable, Easy Installation, Rust-resistant Coating
  • Adapter Material: Cold Forged 6061 T6 Grade Aluminum
  • Finish: Rust Preventative, Zinc Plated
  • Performance Part: Yes
  • Hub Bore: 68 mm
  • Lug Nuts Material Made: Solid SCM Steel
  • Lug Nuts Surface Finish: Red
  • Adapter Stud Thread (Fit to Wheel Lug): M12x1.25
  • Color: Silver
  • Manufacturer Part Number: 4110-4110E
  • Centering: 68 mm
  • Material: Aluminum
  • Thread Size: M12x1.25
  • Vintage Part: Yes
  • Bolt Pattern: 4 x 110 mm
  • Adapter Bolt Pattern to Hub: 4x110mm
  • Brand: CTM
  • Type: Wheel Adapter
  • Adapter Open Lug Nut Thread (Fit to Hub): M12x1.25
  • Lug Nuts Seat Type: Conical Seat 60 Degree
  • Outside Diameter: 150 mm
  • Universal Fitment: Yes
  • Spacer Thickness: 2"



Processing Time

  • We process and ship orders Monday through Friday, excluding holidays.
  • Most orders are processed within 1–3 business days, depending on product availability.
  • Processing time does not include delivery time, which varies based on your location and the product’s shipping origin.

Shipping Coverage

We currently ship to addresses within the United States only.

Products may ship from:

  • Our U.S. warehouses, or
  • Our international fulfillment centers (including Korea, Japan, China, Australia, Mexico, Canada, the United Kingdom, and the EU).

Each product page clearly displays the “Ships From” location before checkout.


Shipping Methods & Estimated Delivery



Shipping Method Estimated Delivery Cost
Free Shipping (US) 5–10 business days Free, available on eligible items
Standard Shipping (US to US by Item) 5–10 business days $6.50 for the first item, $3.00 each additional
Standard Shipping (From US Warehouse by Weight) 3–7 business days Starts at $6.50, increasing by $2 for every additional 4 oz (0.25 lb) up to 1 lb, then by $4 for each additional pound beyond 1 lb.
Extended Delivery (Ships from Overseas Warehouse) 10–15 business days $14.50 for the first item, $4.00 each additional

Shipping costs vary by product weight, quantity and origin. Exact rates and delivery estimates are displayed on each product page and confirmed during checkout.

Free Shipping

We offer free standard shipping on select products or during promotional periods. Availability of free shipping will be displayed on the product page and at checkout.


Carriers

We primarily use USPS and UPS for U.S. deliveries. Items shipped from international warehouses may be handled by partner carriers depending on the country of origin.


Import Duties & Taxes

All import duties and taxes for goods imported into the United States are included in the product price. There are no hidden fees or additional charges at checkout.


Tracking & Notifications

Every order is fully trackable. You will receive a tracking number via email once your order ships. If your order ships in multiple packages, each package will have its own tracking number. If you don’t receive a shipping confirmation immediately, your order is still being processed and will arrive within the estimated timeframe shown at checkout.

You can track your shipment anytime using the Track Your Order page on our website.


Order Changes & Cancellations

If you need to modify or cancel an order, please contact our customer support team as soon as possible. Orders can only be canceled before they ship. Once shipped, cancellations are not possible, but you may request a return after the item is delivered.

Contact: support@ibspot.com


Item Not Received

If your tracking number shows “Delivered” but you haven’t received your package:

  1. Check with your local USPS or UPS office.
  2. Confirm that the shipping address provided was correct.
  3. If the issue remains unresolved, contact support@ibspot.com for assistance.

Damaged or Lost Parcels

If your package arrives damaged or fails to arrive, please contact us immediately. For deliveries to P.O. boxes, ibspot is not responsible for damage caused by weather, temperature, or theft.


Customer Support

For any questions about shipping, tracking, or delivery, our customer support team is here to help.

Email: support@ibspot.com

We’re always happy to help.

Please read our policy carefully before making a purchase.
We aim to ensure every customer has a smooth and transparent experience with ibspot.com.


Order Cancellation Policy

Customers may request to cancel an order before it has been shipped.
Once the package has been shipped, cancellations are no longer possible; however, you may still request a return after receiving your order.

How to Request a Cancellation

You can contact us through:

Please submit your cancellation request as soon as possible after placing the order to allow us to process it before shipment.


Return Policy

We accept returns for most items within 30 days of delivery for a full refund.

To be eligible for a return:

  • The item must be unused, in the same condition as received, and in its original packaging.

  • A tracking number must be provided to confirm the return shipment.

Non-Returnable Items

Certain products cannot be returned, including:

  • Perishable goods (for example, food, flowers, newspapers, magazines)

  • Intimate or sanitary goods

  • Hazardous materials or flammable liquids/gases

  • Gift cards

  • Downloadable software

  • Some health and personal care items

Partial Refunds (If Applicable)

Partial refunds may be granted in specific situations, such as:

  • Books with obvious signs of use

  • Opened CDs, DVDs, software, or vinyl records

  • Items not in their original condition, damaged, or missing parts not due to our error

  • Items returned more than 30 days after delivery


How to Return an Item

To initiate a return, please contact us at support@ibspot.com with your order number and details about the product you wish to return.
Our team will provide you with return instructions and a prepaid return label.


Shipping Cost for Returns

Please contact us before returning any item.
We will provide a free return shipping label.

If a return is sent back without prior contact or without our provided label, we cannot be held responsible for return shipping costs.

For items valued over $75, we recommend using a trackable shipping service or purchasing shipping insurance.
We cannot guarantee that we will receive your returned item if shipped independently.


Refund Processing

Once your return is received and inspected:

  • In-store returns are refunded to the original form of payment or issued as a gift card.

  • Mail-in returns using our prepaid label are refunded to the original payment method within 3–5 business days after we receive your return.

Please allow:

  • 5–7 business days for the return to reach our Returns Center.

  • An additional 3–10 business days for your bank to post the refund to your account.


Damages, Issues & Claims

Please inspect your order immediately upon receipt.
If you receive a defective, damaged, or incorrect item, contact us right away at support@ibspot.com.
We’ll evaluate the issue promptly and make it right.

Product Claims

Before purchasing, please review product details carefully.
If there is a problem with your order upon arrival, visit our Support Center or contact us directly to arrange return shipping or replacement.


Exchanges

We do not process direct exchanges.
The fastest way to get what you need is to return the original item and place a new order once your return is accepted.


Return Address

IBSPOT Return Center
15 Sawmill Ln
Dover Plains, NY 12522
United States


Customer Support

Our support team is available 24/7 to assist with cancellations, returns, or general inquiries.

Email: support@ibspot.com
Contact Form: Contact Us page

Oops!

Sorry, it looks like some products are not available in selected quantity.

OK

Subscribe To Our Newsletter

Disclaimer: Statements made, or products sold through this website, have not been evaluated by the United States Food and Drug Administration. Products are not intended to diagnose, treat, cure or prevent any disease.
