Consfly 10HZ-2.7GHZ Frequency Counter with Output Cable, Dual Channel Frequency Meter Tester for Lab & Equipment Maintenance
Consfly 10HZ-2.7GHZ Frequency Counter with Output Cable, Dual Channel Frequency Meter Tester for Lab & Equipment Maintenance
Consfly 10HZ-2.7GHZ Frequency Counter with Output Cable, Dual Channel Frequency Meter Tester for Lab & Equipment Maintenance

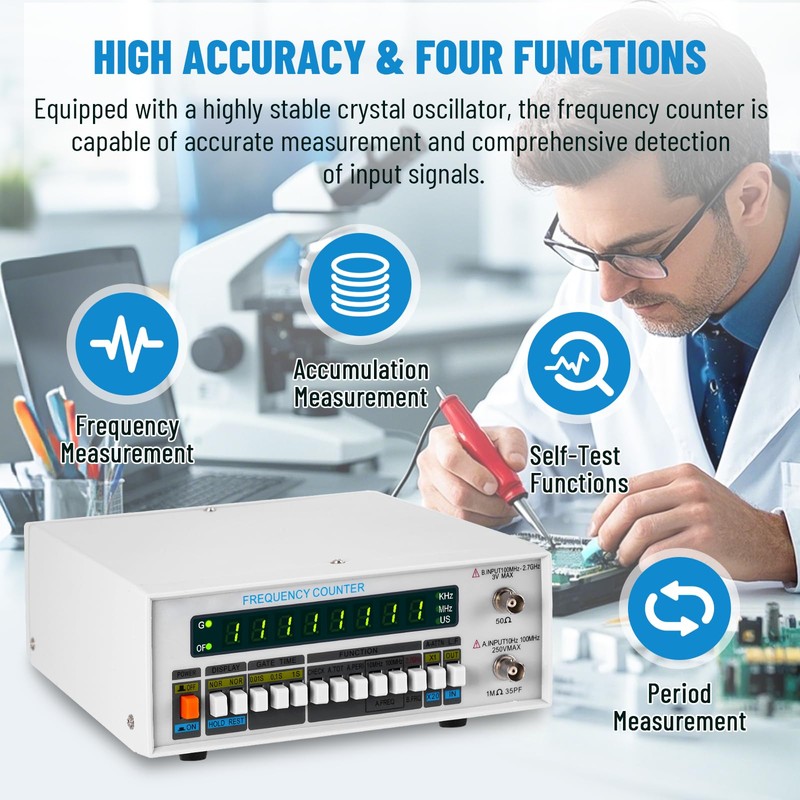

- High Accuracy & Four Functions: Equipped with a highly stable crystal oscillator, this frequency counter is capable of accurate measurement and comprehensive detection of input signals. It also has frequency measurement, period measurement, accumulation measurement and self-test functions, which can meet your various measurement needs.

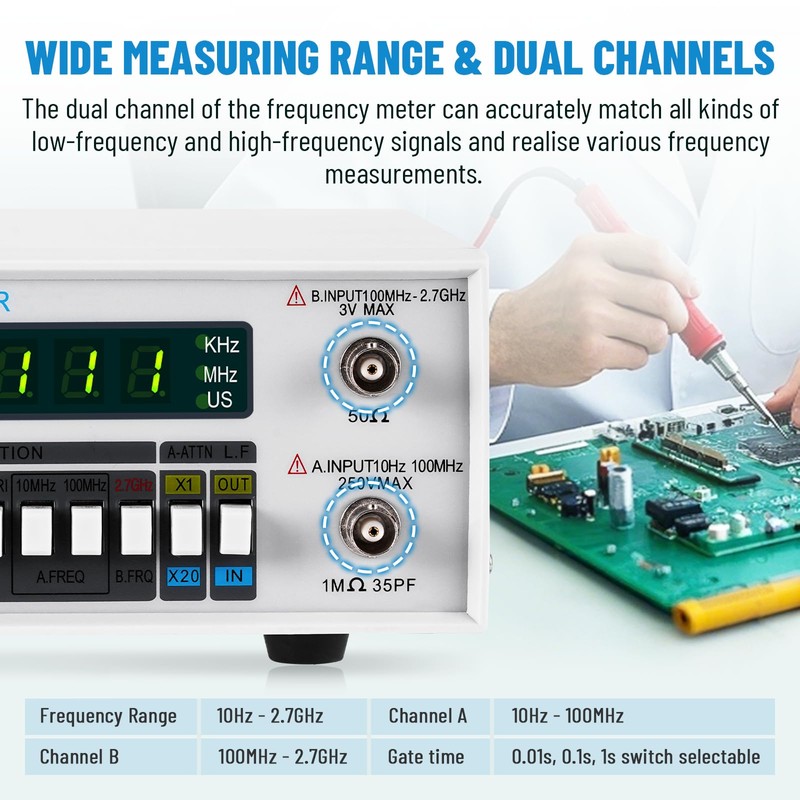

- Wide Measuring Range & Dual Channels: The frequency counter can measure the frequency range of 10Hz - 2.7GHz. Channel A: 10Hz - 100MHz（ 10MHz supports direct counting, 10MHz - 100MHz supports proportional counting）; Channel B: 100MHz - 2.7GHz. This can accurately match all kinds of low-frequency and high-frequency signals and realise various frequency measurements.
- Multi-function buttons: The frequency counter has several function buttons such as reset, gate time, self-test, etc., which can realise function switching, data holding, instrument resetting. This is very convenient and can effectively enhance the measurement efficiency.
- Easy to Use: The frequency meter comes with an output cable, which makes it convenient for you to connect the frequency meter with various external devices. It also has a heat dissipating aluminium sheet, which allows it to effectively control the temperature of the body and keep it stable while working. It has 4 foot pads on the bottom, which prevent the machine from slipping and avoid damage to the machine.
- Precision time base: Time base frequency: 10MHz, short-term stability: ±3×10-⁹ / 1s (average), long-term stability: 2×10-⁵ / month. Temperature coefficient ±1×10-⁵ (0 - 40°C) . When the power supply voltage changes by ±10%, the time - base frequency changes by ±1×10⁻⁷.
- Clear Panel: This frequency tester is equipped with a 0.39 - inch LED display and a cyclic self - checking function, with indicators such as gate time, KHz, MHz, etc. It can clearly display measurement data, effectively improving working accuracy.
- Wide Application: The frequency meter is designed with low power consumption circuitry, compact design and small size. Suitable for laboratory, school teaching, factory equipment maintenance and other places.
| Brand: | Consfly |
|---|---|
| Manufacturer: | Consfly |
| Part Number: | Y1JNN4D |
| Isin: | ICXD1YGUIDUA |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Specification
Product Name: Frequency counter
Voltage: 110V/60W
Product Weight: 2kg
Product Size: 24 * 20.5 * 8.5cm
Measuring Mode
1) Frequency Measurements
Channel A:
Range: 10Hz～10MHz direct count, 10MHz to 100MHz count in proportion
Direct count: 1Hz, 10Hz, 100Hz switch selectable
Count in proportion: 10Hz, 100Hz, 1000Hz switch selectable
Gate time: 0.01s, 0.1s, 1s switch selectable
Accuracy: ±1 count value ±base time error ×measured frequency
Channel B
Range: 100MHz～2.7GHz
Resolution: 100Hz, 1kHz, 10kHz
Gate time: 0.01s, 0.1s, 1s
Accuracy: ±1 count value ±base time error × measured frequency
2) Period measurement
Input: Channel A
Range: 10Hz～10MHz
Resolution: 10⁻⁷s, 10⁻⁸s, 10⁻⁹s switch selectable
Accuracy: ±1count value ±base time error × measured period
3) Accumulated measurements
Input: Channel A
Range: 10Hz～10MHz
Resolution: ±1 count pulse
Self-checking
Display:8 LED display with 0～9 character simultaneous display
Input Characteristics
Channel A:
Input sensitivity
10MHz range: 10Hz～8MHz( 20mVrms )
8MHz～10MHz( 30mVrms )
100MHz range: 10MHz～80MHz( 20mVrms )
80MHz～100MHz( 30mVrms )
Attenuation: ×1、×20 fixed
Filter (CH1 only) Low pass: AC 100 kHz-3dB
Impedance: Approximate 1MΩ (less then 35pF)
Maximum safety voltage: 250V (DC+ACrms)
Channel B
Input sensitivity: 20mVrms
Impedance: Approximate 50Ω
Maximum safety voltage: 3V
Packing List
Frequency meter *1
Power cord *1
Output cable*1
Instruction Manual *1
Product Name: Frequency counter
Voltage: 110V/60W
Product Weight: 2kg
Product Size: 24 * 20.5 * 8.5cm
Measuring Mode
1) Frequency Measurements
Channel A:
Range: 10Hz～10MHz direct count, 10MHz to 100MHz count in proportion
Direct count: 1Hz, 10Hz, 100Hz switch selectable
Count in proportion: 10Hz, 100Hz, 1000Hz switch selectable
Gate time: 0.01s, 0.1s, 1s switch selectable
Accuracy: ±1 count value ±base time error ×measured frequency
Channel B
Range: 100MHz～2.7GHz
Resolution: 100Hz, 1kHz, 10kHz
Gate time: 0.01s, 0.1s, 1s
Accuracy: ±1 count value ±base time error × measured frequency
2) Period measurement
Input: Channel A
Range: 10Hz～10MHz
Resolution: 10⁻⁷s, 10⁻⁸s, 10⁻⁹s switch selectable
Accuracy: ±1count value ±base time error × measured period
3) Accumulated measurements
Input: Channel A
Range: 10Hz～10MHz
Resolution: ±1 count pulse
Self-checking
Display:8 LED display with 0～9 character simultaneous display
Input Characteristics
Channel A:
Input sensitivity
10MHz range: 10Hz～8MHz( 20mVrms )
8MHz～10MHz( 30mVrms )
100MHz range: 10MHz～80MHz( 20mVrms )
80MHz～100MHz( 30mVrms )
Attenuation: ×1、×20 fixed
Filter (CH1 only) Low pass: AC 100 kHz-3dB
Impedance: Approximate 1MΩ (less then 35pF)
Maximum safety voltage: 250V (DC+ACrms)
Channel B
Input sensitivity: 20mVrms
Impedance: Approximate 50Ω
Maximum safety voltage: 3V
Packing List
Frequency meter *1
Power cord *1
Output cable*1
Instruction Manual *1
