Charlies Gear Strat Solderless HSS Wiring Upgrade +Treble bleed +Coil split +Tone on all P'ups

Brand: Charlies Gear
Over 350 wiring harness models in this store
------------------------------------------------------------------

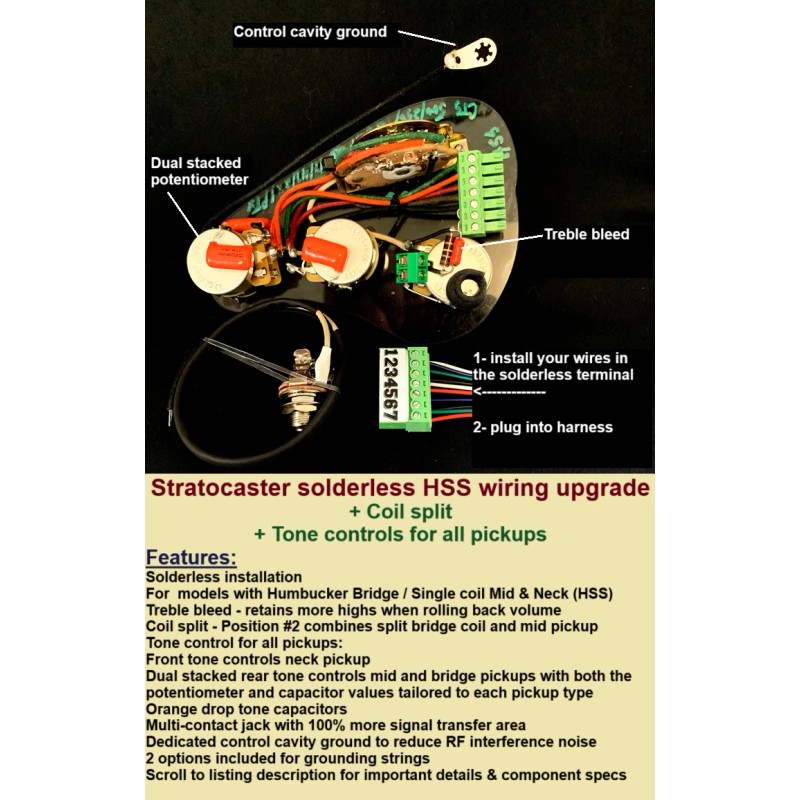

Stratocaster HSS wiring upgrade
Solderless installation
Completely wired (not a kit) Ready to install
Charlies Gear USA
Features:
Solderless installation
For models with Humbucker Bridge / Single coil Mid & Neck (HSS)
Treble bleed - retains more highs when rolling back volume
Coil split - Position #2 combines split bridge coil and mid pickup
Tone control for all pickups:
Front tone controls neck pickup
Dual stacked rear tone controls mid and bridge pickups with both the potentiometer and capacitor values tailored to each pickup type
Orange drop tone capacitors
Multi-contact jack with 100% more signal transfer area
Dedicated control cavity ground to reduce RF interference noise
2 options included for grounding strings
Scroll to listing description for important details & component specs
Please note: 4 or 5 wire humbucker required for the coil split option to work

Installation:
This system is designed to make upgrading your electronics with premium components easy, quick and frustration free.
1- Slip your stripped wires into the solderless terminal ports and secure with the included 2mm screwdriver.
2- mount your new harness in the control cavity
3- plug the solderless terminal into the harness.
BING - BANG - BOOM - DONE!
 Plus, no burned fingers!
***Makes future pickup upgrades a snap***
  • Specifications:

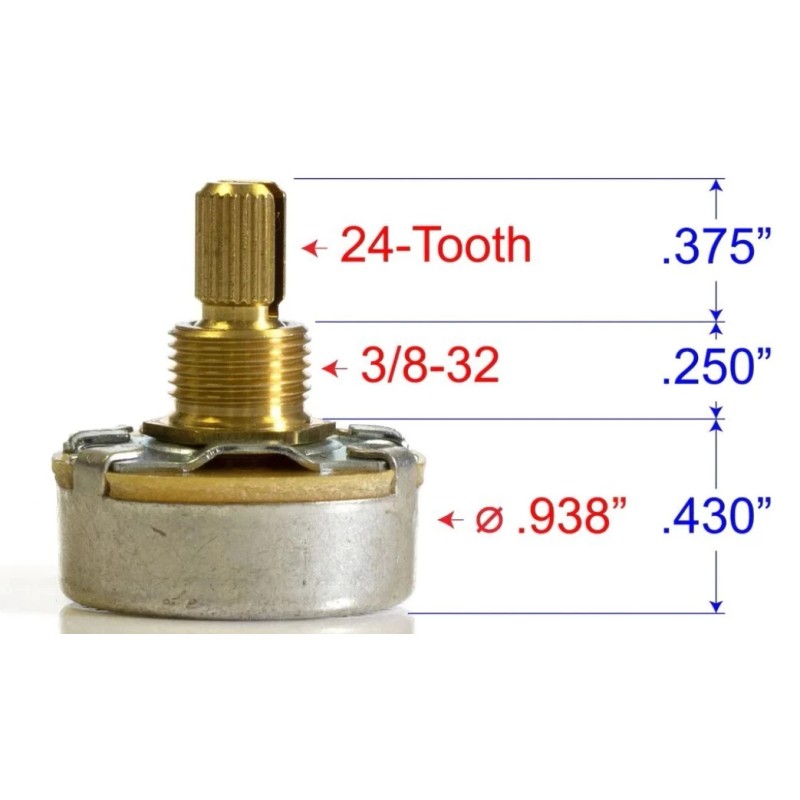

  • CTS #450G audio taper potentiometers:
  • Master volume and 2 tone controls
  • Brass bushings for smooth operation & longer life

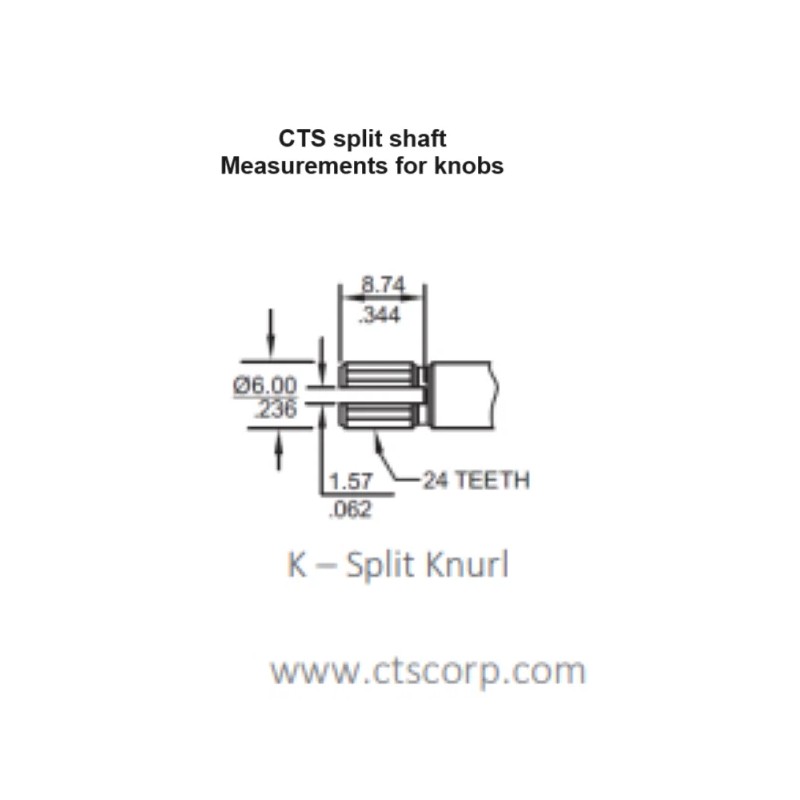

  • Split shafts with fine splines for knobs
  • Volume: 500k
  • Tone pots:
  • Front = 250k
  • Rear = 250k/500k stacked (dual potentiometer for mid & bridge)
  • Orange drop tone caps:
  • .047uF tone cap for neck pickup
  • .047uF tone cap for mid pickup
  • .022uF tone cap for bridge pickup
  • Treble bleed helps retain your highs when you roll back volume / tone

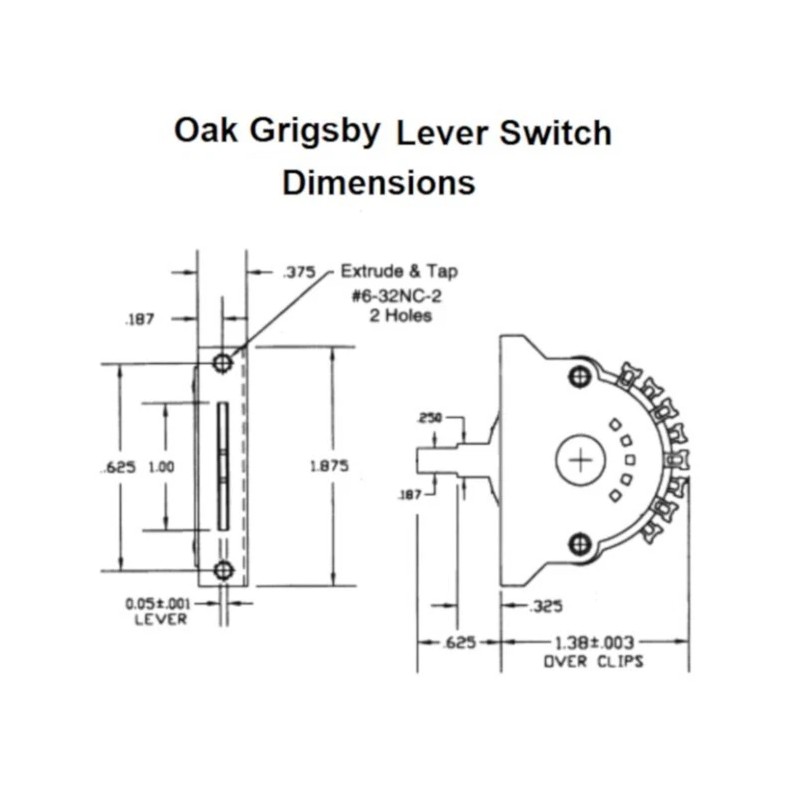

  • Oak Grigsby 5 way blade switch
  • Nice smooth roller bearing action between detents
  • Position 2 gives you 1 bridge coil combined with mid pickup

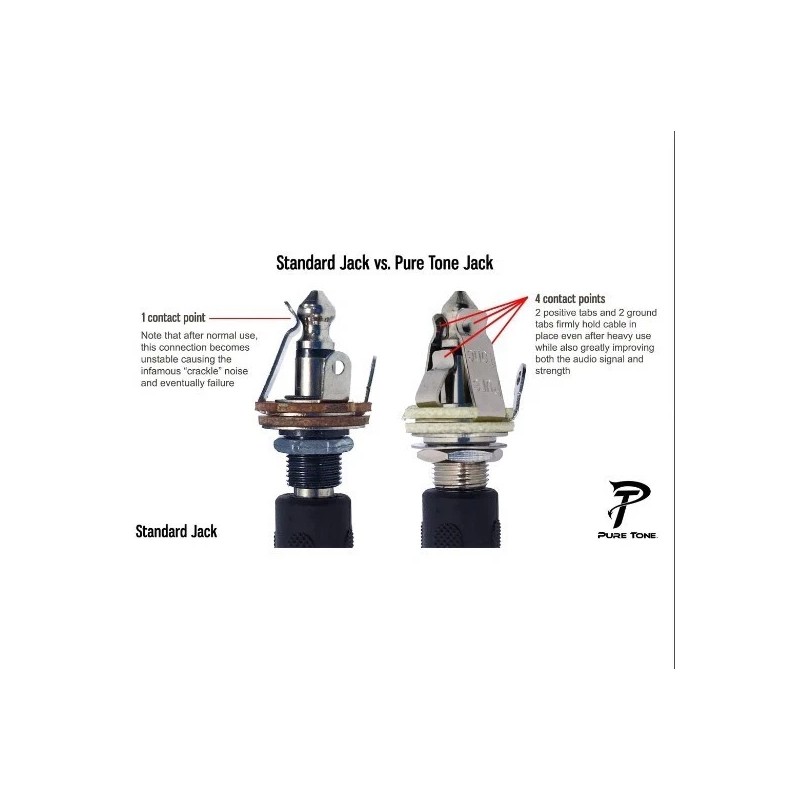

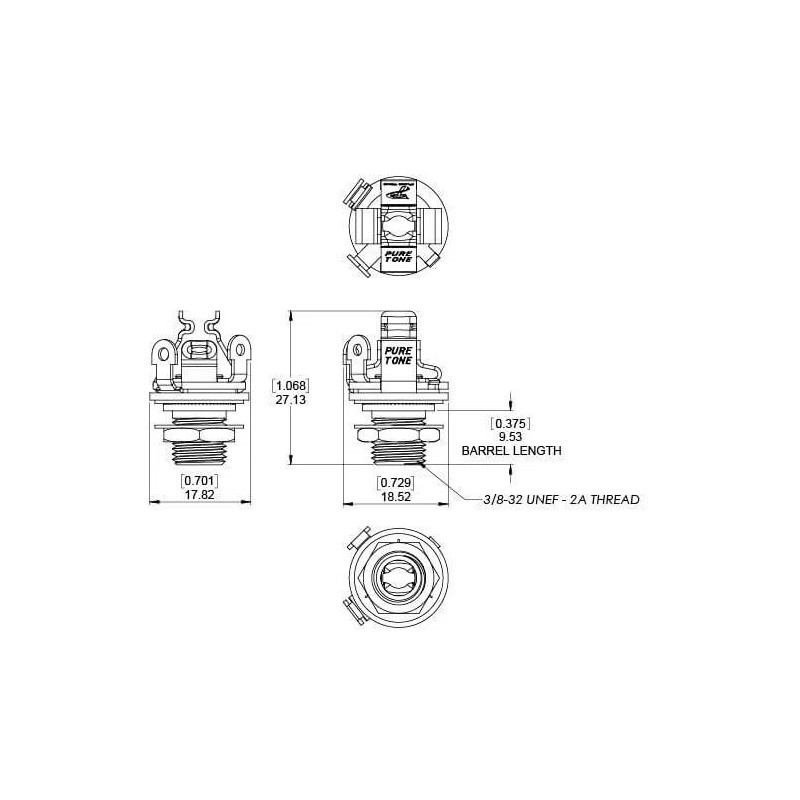

  • Pure tone 1/4" mono output jack
  • Gavitt 22 gauge cloth covered wiring
  • Installation hardware
  • High quality solderless terminal for easy installation
  • 2mm screwdriver for terminal
  • Installation wiring diagram
  • Fast shipping with USPS ground Advantage Delivery


Over 350 wiring harness models in this store
Can't find your harness?
Have yours custom made & ready in a few days!
    International sales: import duties may apply.
Brand: Charlies Gear
Isin: IOB0IKIR9K0G

$377.73

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Charlies Gear Strat Solderless HSS Wiring Upgrade +Treble bleed +Coil split +Tone on all P'ups

Charlies Gear Strat Solderless HSS Wiring Upgrade +Treble bleed +Coil split +...

$377.73

Over 350 wiring harness models in this store
------------------------------------------------------------------

Stratocaster HSS wiring upgrade
Solderless installation
Completely wired (not a kit) Ready to install
Charlies Gear USA
Features:
Solderless installation
For models with Humbucker Bridge / Single coil Mid & Neck (HSS)
Treble bleed - retains more highs when rolling back volume
Coil split - Position #2 combines split bridge coil and mid pickup
Tone control for all pickups:
Front tone controls neck pickup
Dual stacked rear tone controls mid and bridge pickups with both the potentiometer and capacitor values tailored to each pickup type
Orange drop tone capacitors
Multi-contact jack with 100% more signal transfer area
Dedicated control cavity ground to reduce RF interference noise
2 options included for grounding strings
Scroll to listing description for important details & component specs
Please note: 4 or 5 wire humbucker required for the coil split option to work

Installation:
This system is designed to make upgrading your electronics with premium components easy, quick and frustration free.
1- Slip your stripped wires into the solderless terminal ports and secure with the included 2mm screwdriver.
2- mount your new harness in the control cavity
3- plug the solderless terminal into the harness.
BING - BANG - BOOM - DONE!
 Plus, no burned fingers!
***Makes future pickup upgrades a snap***
  • Specifications:
  • CTS #450G audio taper potentiometers:
  • Master volume and 2 tone controls
  • Brass bushings for smooth operation & longer life
  • Split shafts with fine splines for knobs
  • Volume: 500k
  • Tone pots:
  • Front = 250k
  • Rear = 250k/500k stacked (dual potentiometer for mid & bridge)
  • Orange drop tone caps:
  • .047uF tone cap for neck pickup
  • .047uF tone cap for mid pickup
  • .022uF tone cap for bridge pickup
  • Treble bleed helps retain your highs when you roll back volume / tone
  • Oak Grigsby 5 way blade switch
  • Nice smooth roller bearing action between detents
  • Position 2 gives you 1 bridge coil combined with mid pickup
  • Pure tone 1/4" mono output jack
  • Gavitt 22 gauge cloth covered wiring
  • Installation hardware
  • High quality solderless terminal for easy installation
  • 2mm screwdriver for terminal
  • Installation wiring diagram
  • Fast shipping with USPS ground Advantage Delivery


Over 350 wiring harness models in this store
Can't find your harness?
Have yours custom made & ready in a few days!

    International sales: import duties may apply.
  • Brand: Charlies Gear
  • Tone control: 3 pickups
  • Type: solderless guitar wiring harness
  • Position: NA
  • Custom Bundle: No
  • Color: NA
  • Model: 316 Solderless HSS Strat /1V/2T+TB+stack
  • MPN: 316-HSS-Strat/CS/TB/Stack/PTx
  • Country/Region of Manufacture: United States
  • To Fit: Fender Stratocaster, HSS Stratocaster
  • UPC: Does not apply
