CarBole Ignition Coil & Spark Plug & Valve Cover Gasket For Ford F150 F250 5.4 2004-2006

Brand: CarBole
  • Description:

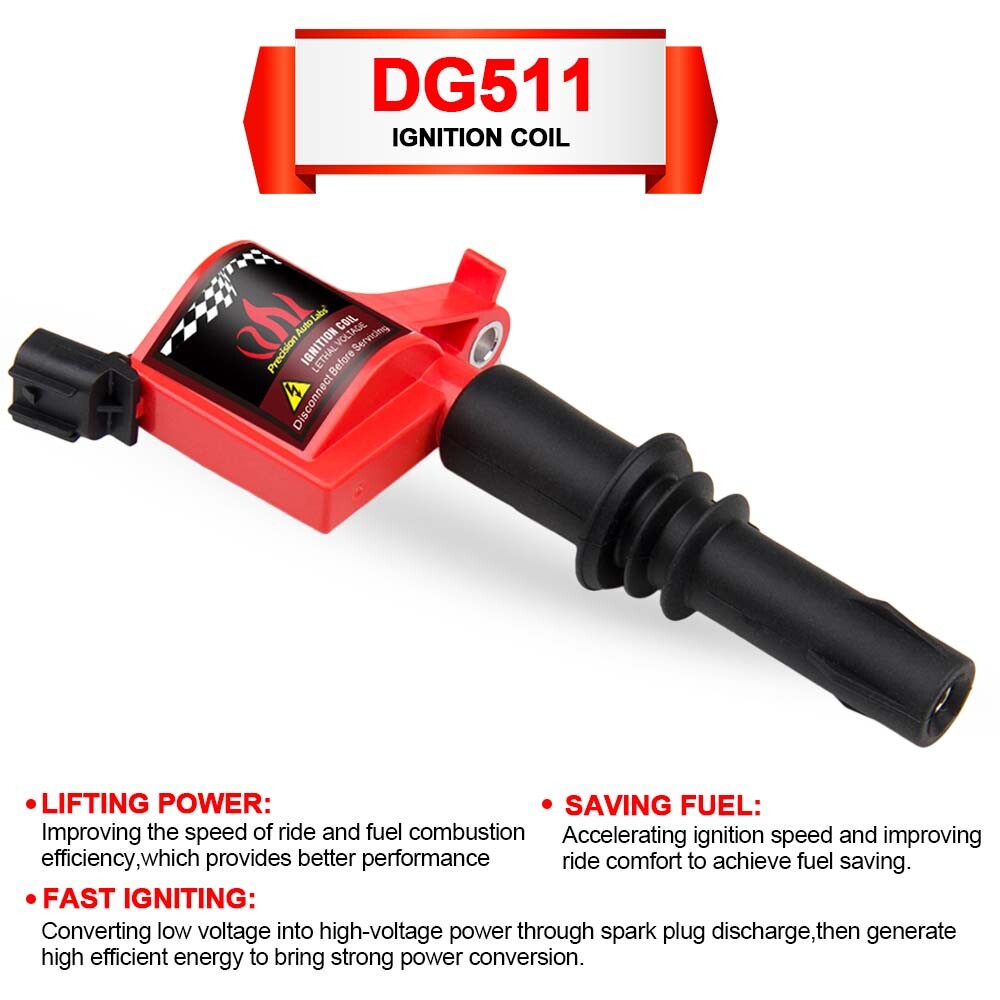

  • Ignition Coil & Spark Plug & Valve Cover Gasket For Ford F150 F250 5.4 2004-2006

    Description:

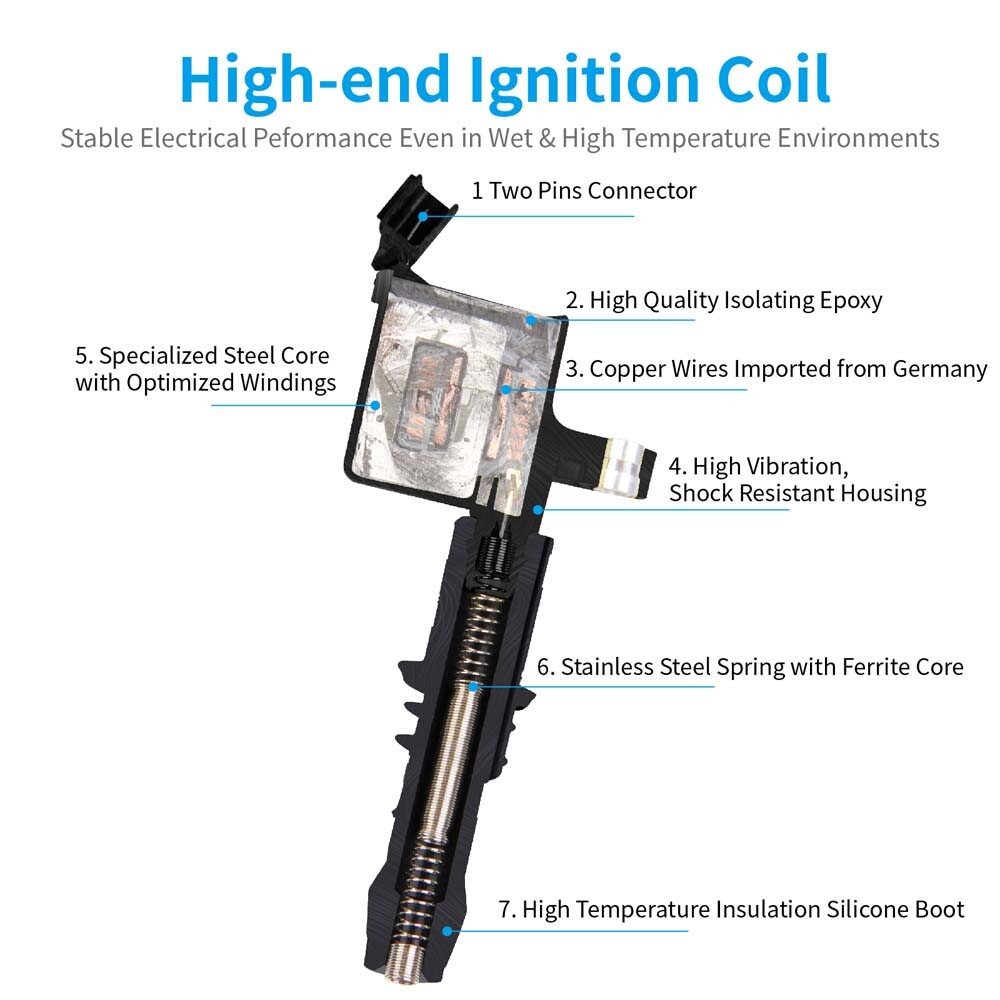

    Direct plug-in replacement, Features top grade silicone magnetic steel , and German copper wire and high temperature epoxy.  The internal winding design is optimized for higher energy racing application. It deliver 15% more energy than OEM coil, The advanced bobbin technology increased the durability, all coil products were validated with most strict performance and environmental test, resists shock and vibration. Secondary contacts are made of brass, maximum the energy transfer to spark plug.

    1. Wire--Imported from German Elektrisoal,top quality in the world.

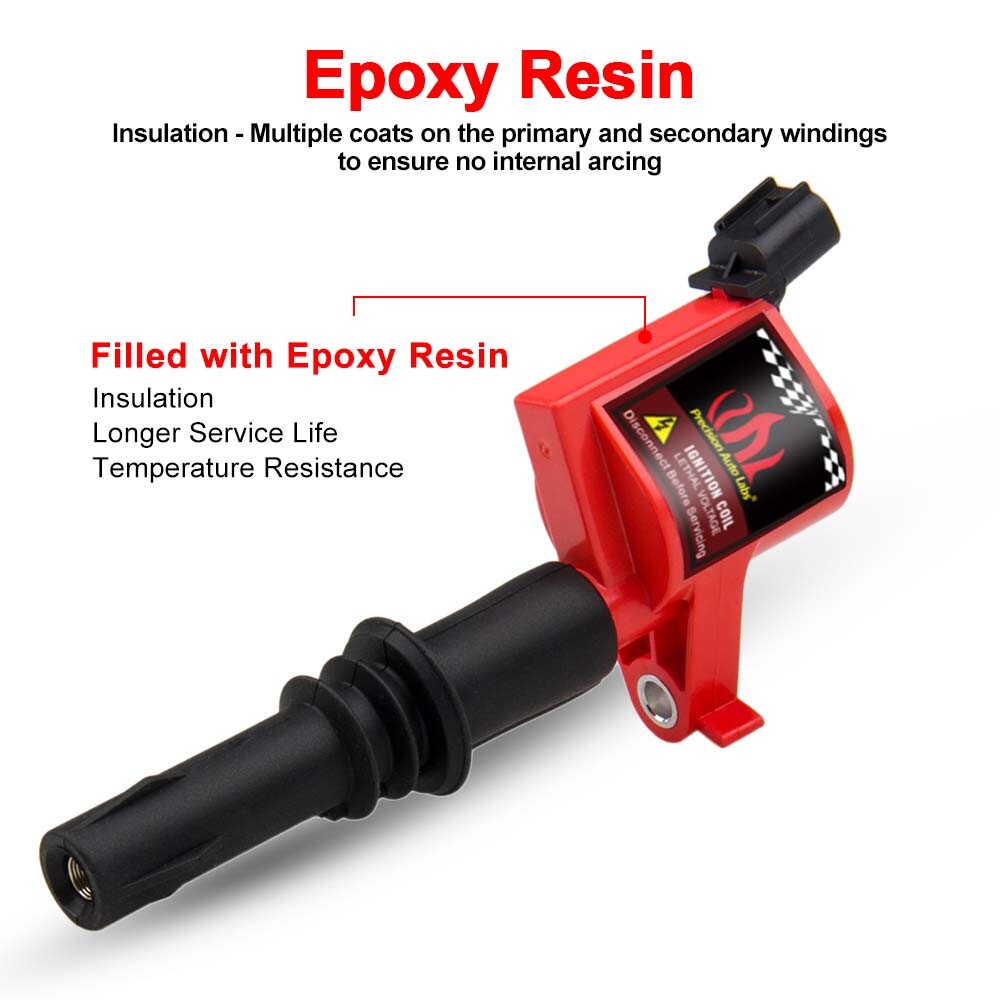

    2. Epoxy-- Imported from German Elektrisoal,top quality high insulation epoxy.
    3. Plastic—GE Valox resin, professional high voltage di-electric resistant resin.
    4. Manufactured in facility TS16949 quality control system certified.

    This is a set of eight (8) brand new, high quality direct fit Ignition Coils with boots & springs.
    lifetime Warranty 100% Satisfaction Guarantee & 30-Days Money Back.
    These coils are of superior quality & are ISO9001 Certified for quality assurande.
    Super high di-electric performance epoxy & Superior quality copper wire & Super high conductive coil

    Part number cross reference:
    3L3Z12029BA-3L3E12A366CA, 3L3Z12029BA-3L3U12A366BB, PZT14F, HT15, PZH14F
    PZH14F, HT15, PZT14F, SP507, SP515, SP546, GN10182, 5C1584, 50082, E508
    SP515, SP546, DG511, DG-511, FD508, C1659, C1541, C1659, DQ50101D, UF537, UF-537
    3L3Z12029BA-3L3E12A366CA, 3L3Z12029BA-3L3U12A366BB

    Features:
    Input Voltage: DC 12V

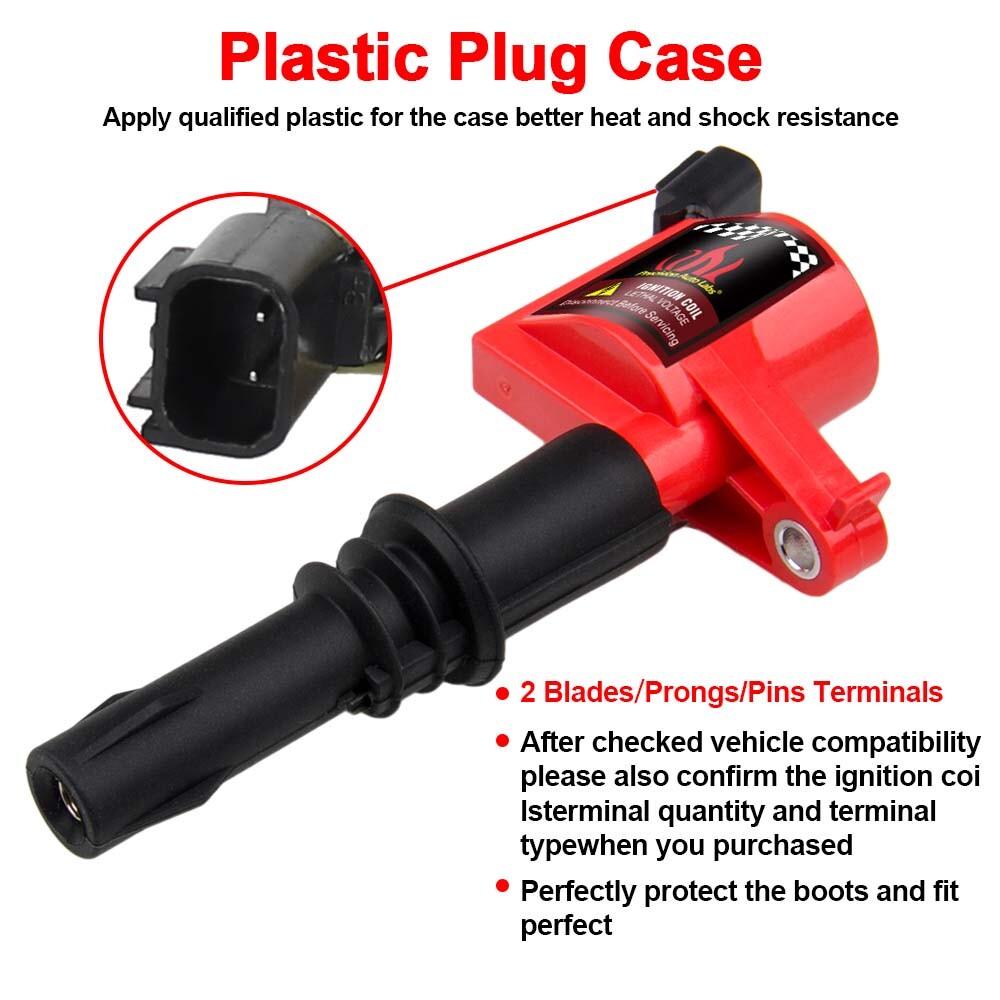

    Connector Gender:Female
    Terminal Gender:Male
    Connection: 2 Pins
    Terminal Type: Blade

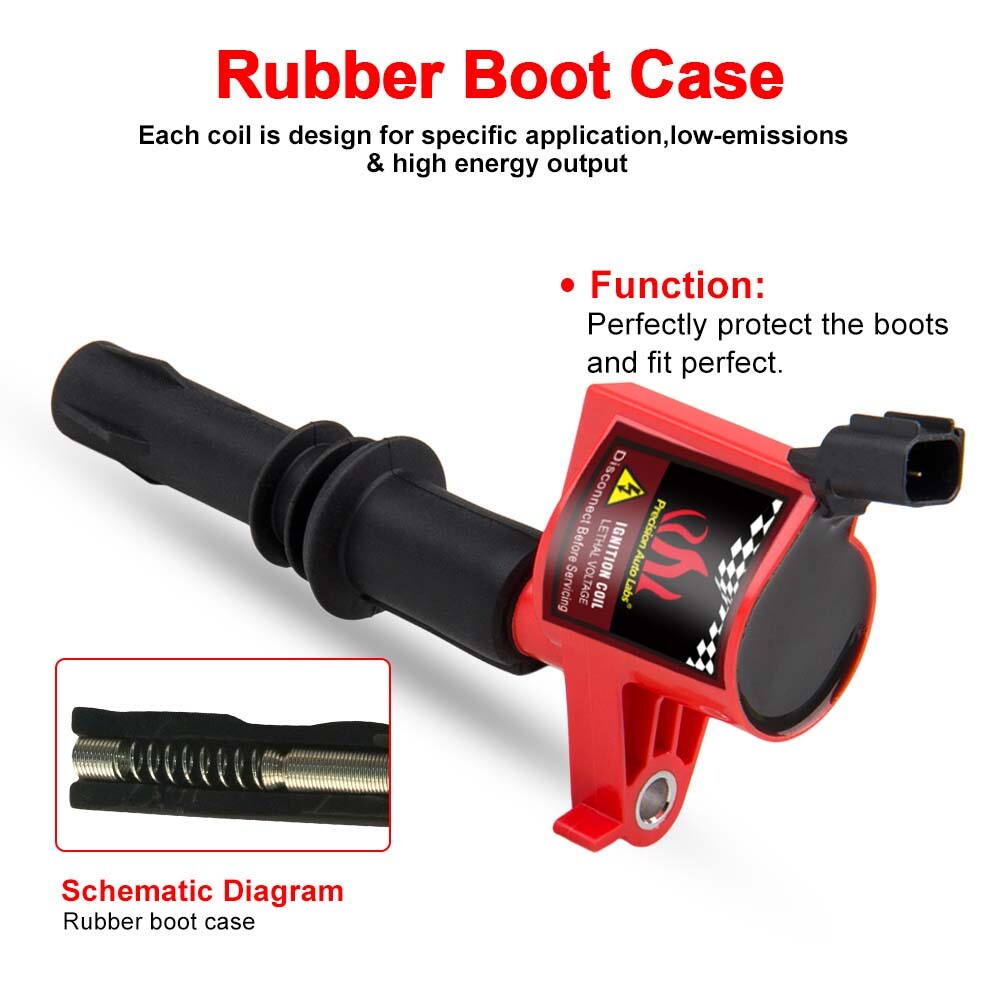

    Product build in coil boot and spring within its assembly
    Copper Windinga inside with better connectivity
    Designed to deliver trouble-free, consistent performance
    Improved coil efficiency reduces the need to generate high voltage, right for your vehicle and lifestyle
    Excellent mechanical stability and corrosion protection
    Lower fuel consumption and reduced exhaust emissions for your vehicle
    Manufactured to meet or exceed strict quality requirements

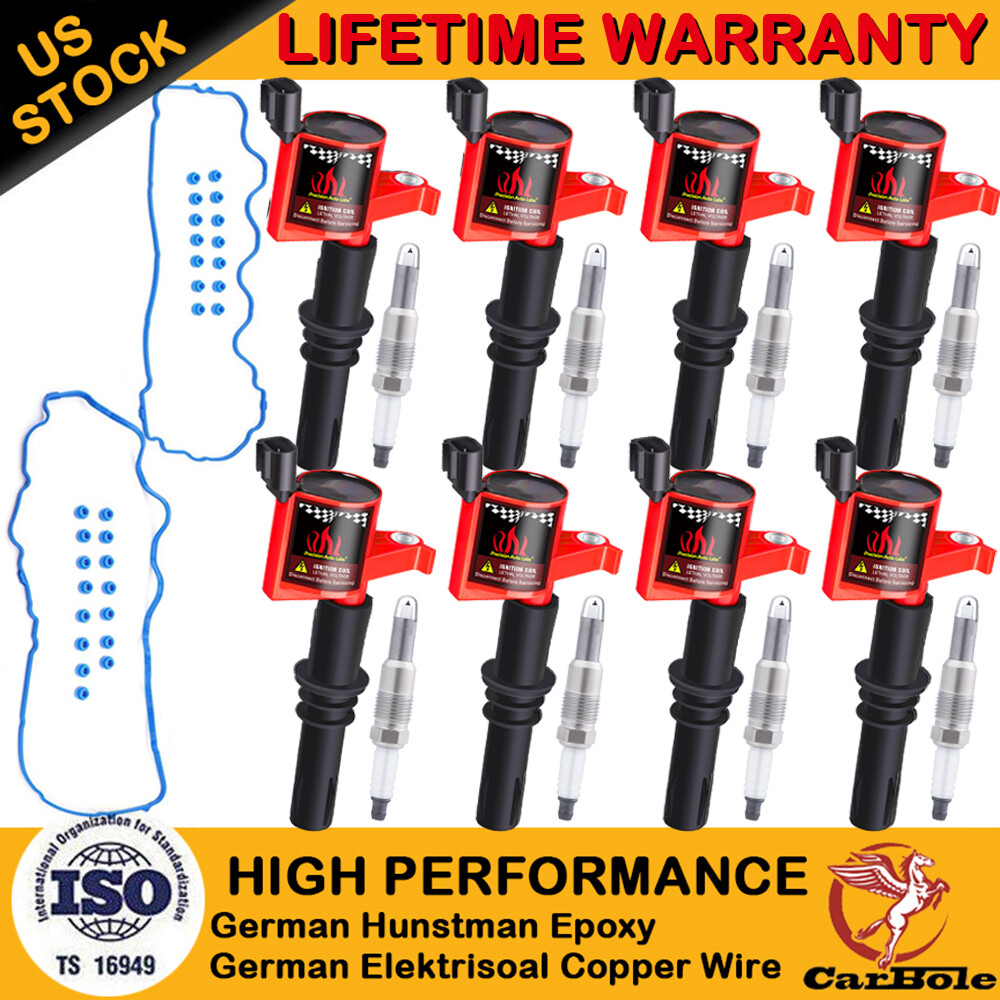

    Package included:

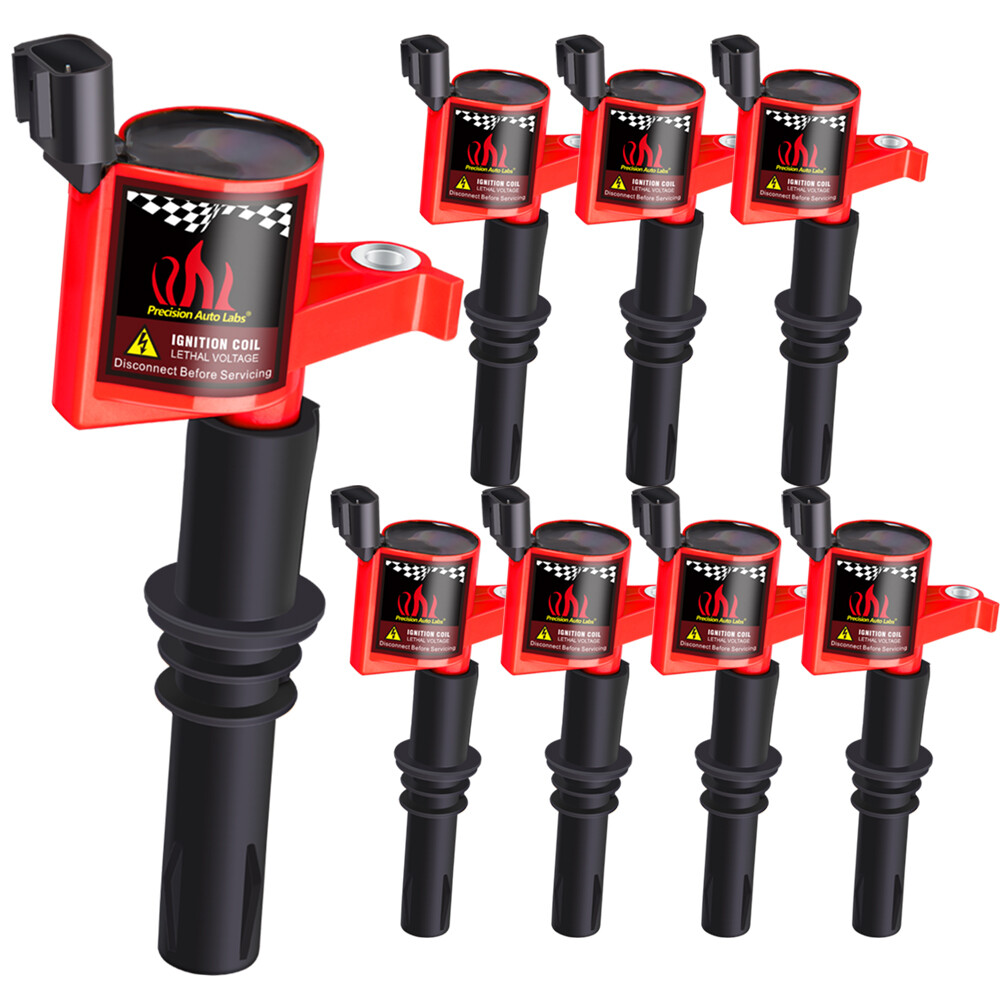

    8Pcs Ignition Coils

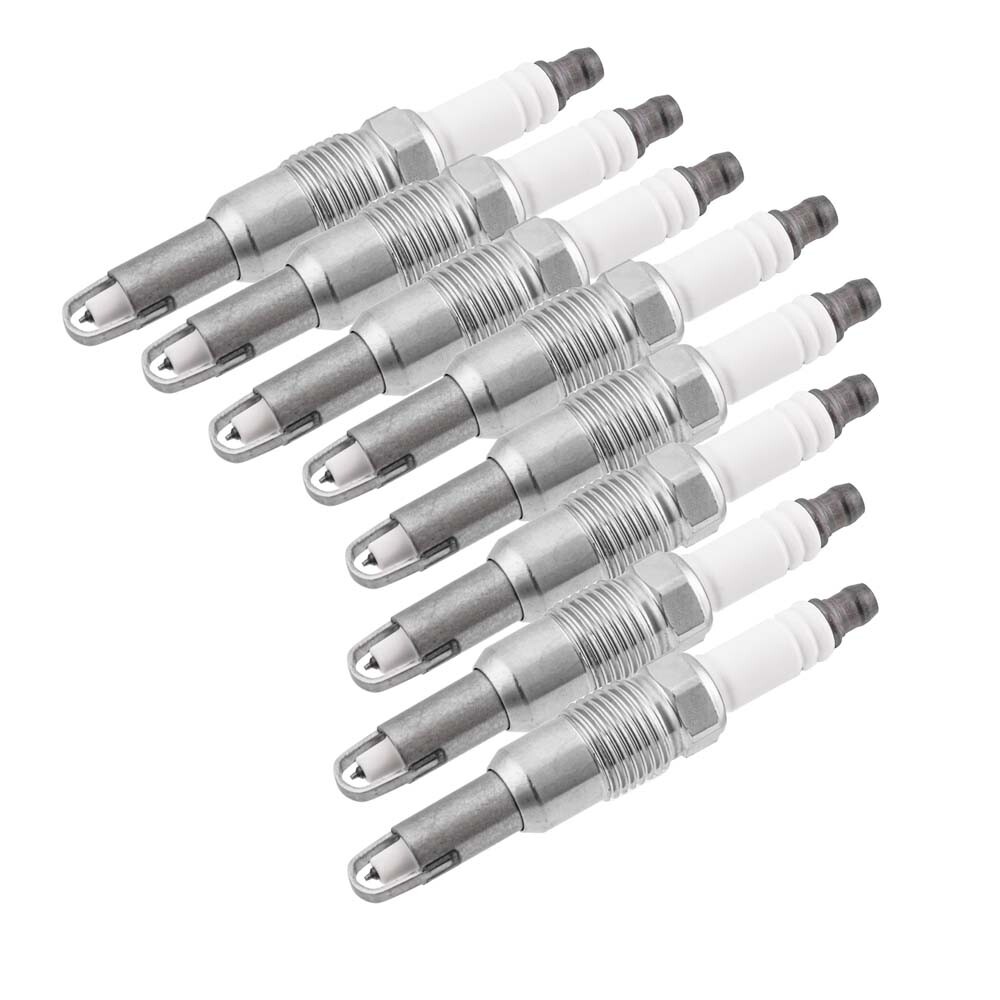

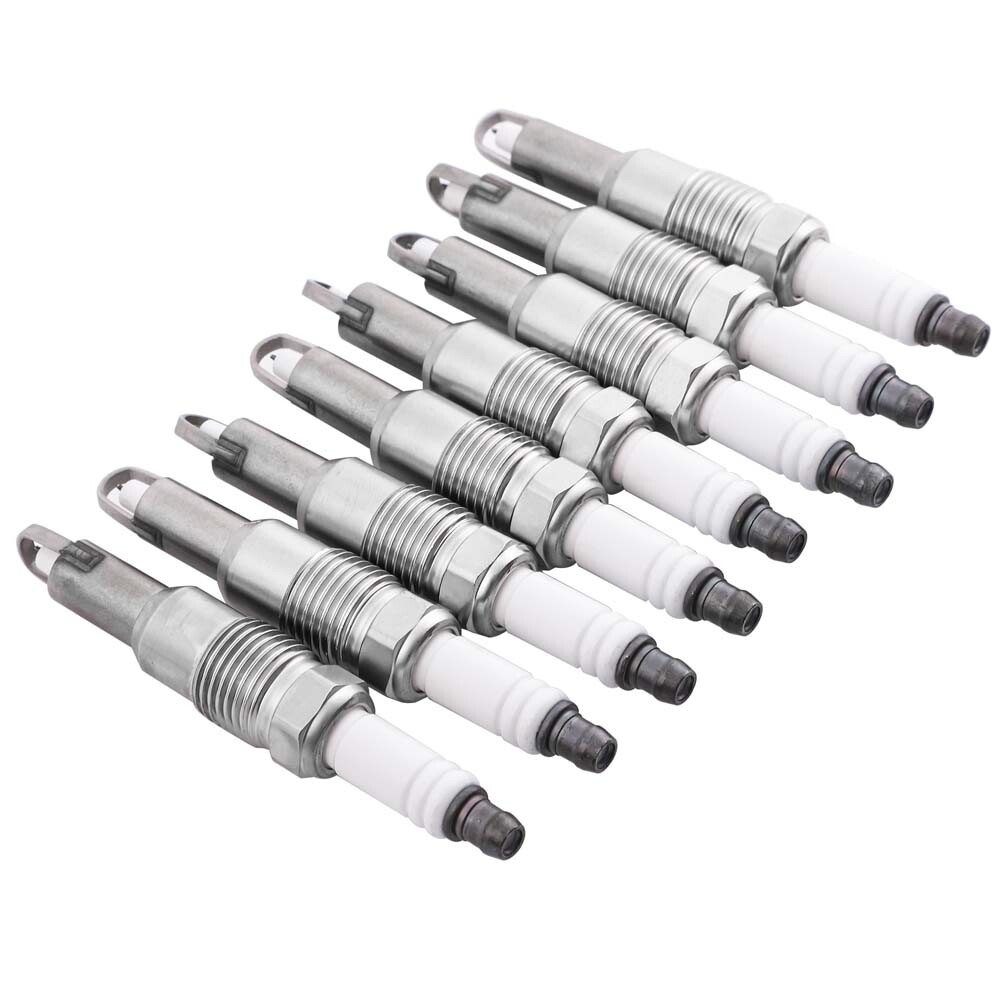

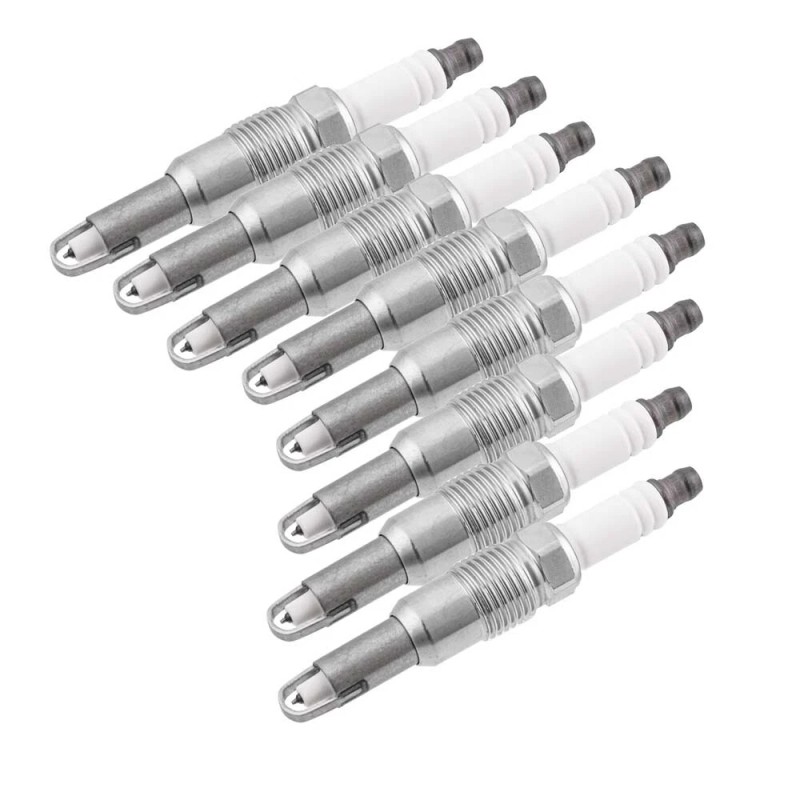

    8Pcs Spark Plugs

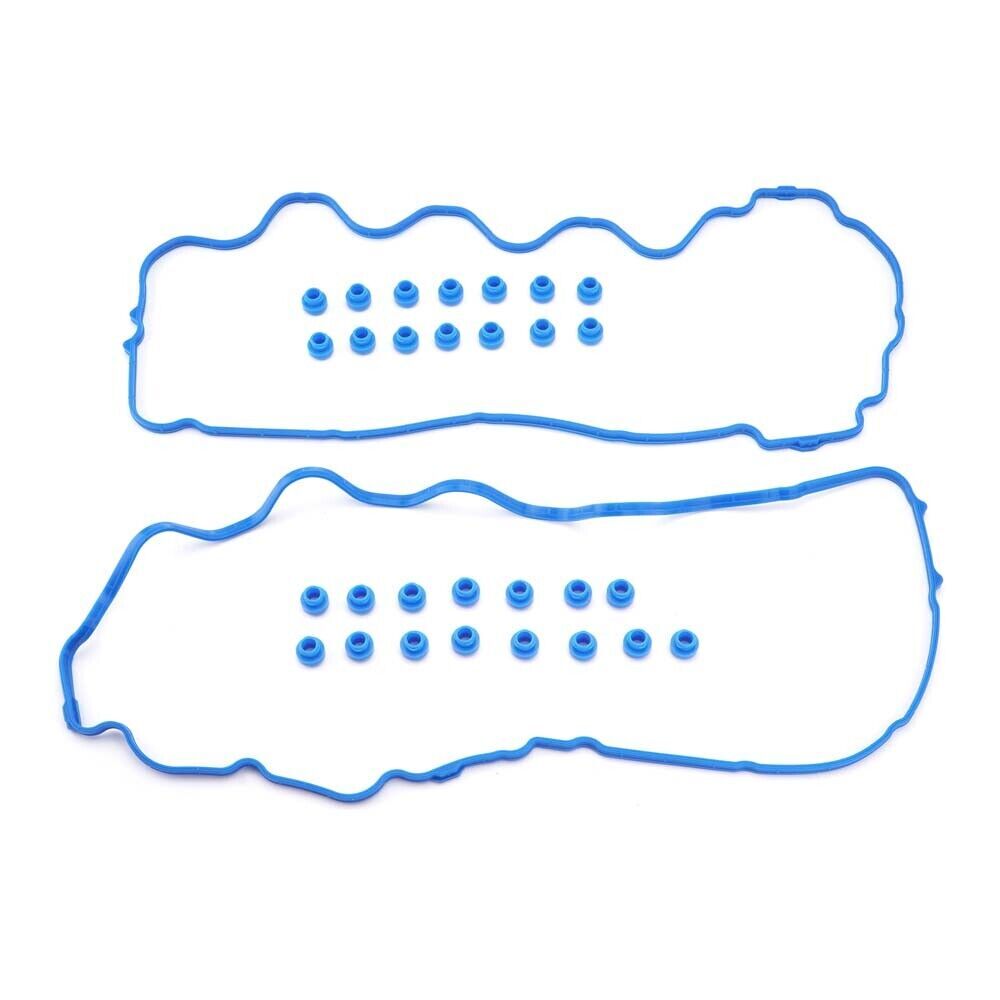

    2 Valve Cover Gaskets

    29 Grommets

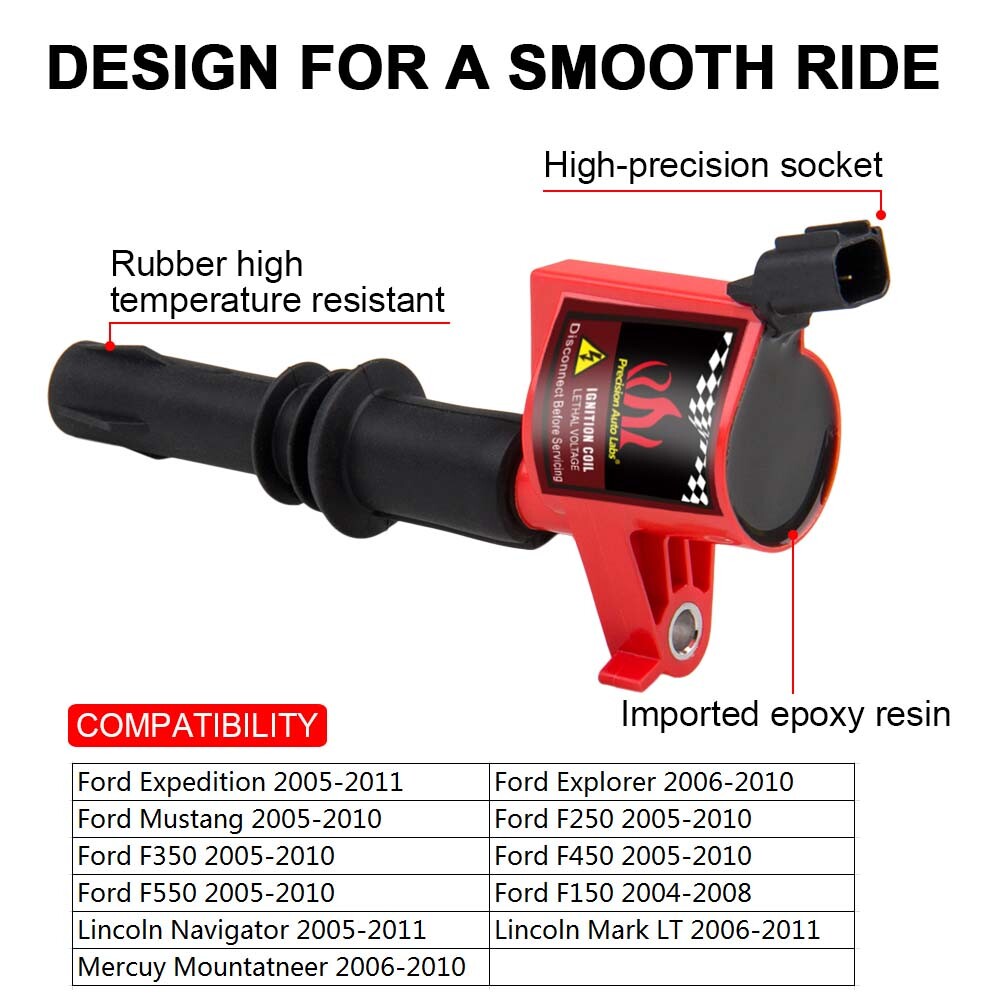

    Fitment:

    2006 Ford Explorer 4.6L V8
    2005-2006 Ford F-250 4.6L V8
    2006 Mercury Mountaineer 4.6L V8
    2005-2006 Ford Mustang 4.6L V8
    2005-2006 Ford Expedition 5.4L V8
    2004-2006 Ford F-150 5.4L V8
    2005-2006 Ford F-250 Super Duty 5.4L V8
    2005-2006 Ford F-350 5.4L V8
    2005-2006 Ford F-350 Super Duty 5.4L V8
    2006 Lincoln Mark LT 5.4L V8
    2005-2006 Lincoln Navigator 5.4L V8

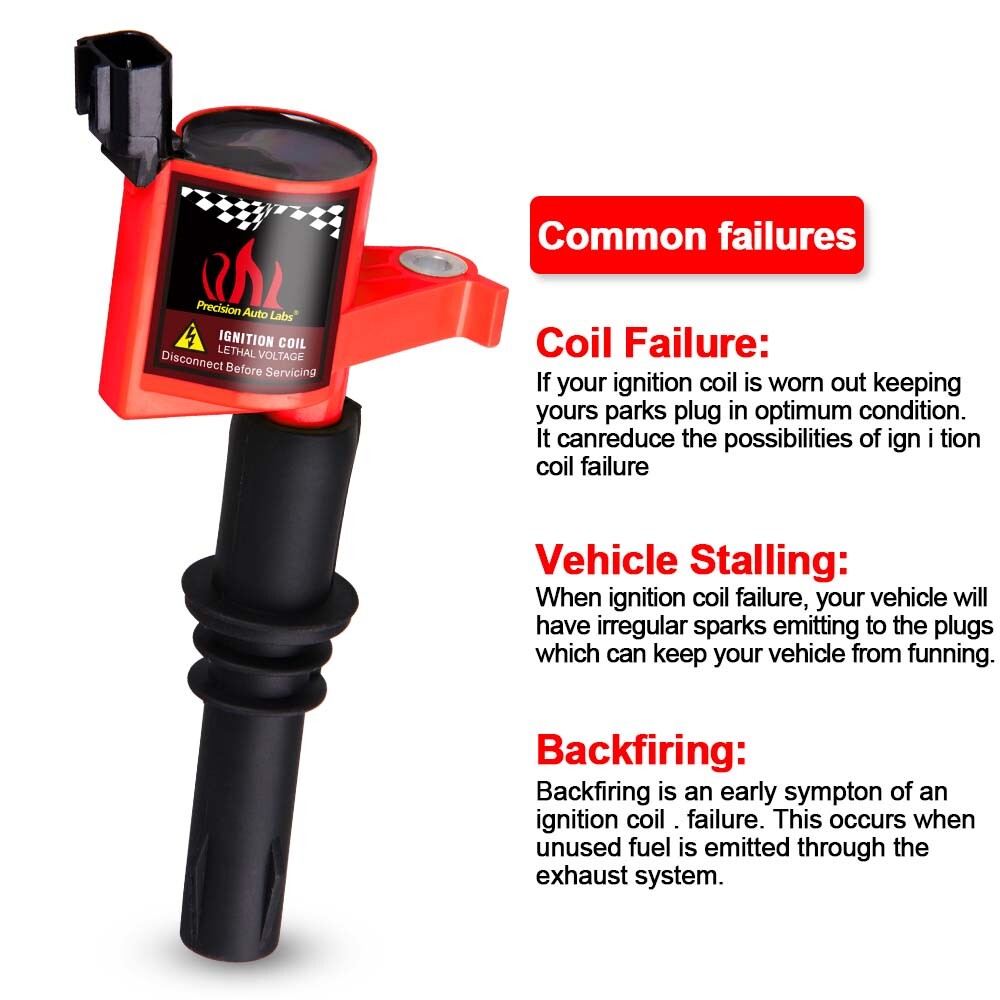

    Failure judgment:

    A.If the engine failed with the ignition system, such as inability to start up, lack of strength for fail, etc. the ignition coil shall be checked.

    B.Eliminate failures of the spark plug, distributor, and high-voltage line.

    C.If the ignition coil is not damaged in appearance, measure the primary and secondary resistance of the ignition coil, if it exceeds the rated range, the ignition coil shall be judged as disable.

    Installation check and judgment:

    Start up the engine after installation, to confirm the failure is eliminated.



    Suggestions on Safety & Environment Protection:

    A.Prior to the replacement of the ignition coil, make sure that all the high voltage outputs have been switched off, in order not to cause bodily injury.

    B.In order to protect the environment, please hand the replaced old parts to professional service station for recycling, or a professional reject disposal agency. Thanks for your cooperation!



    Advantage:

    BEST IGNITION COIL PACK AVAILABLE - Our ignition coil are tested and meet or exceed performance requirements,buy Precision Auto Labs ignition coil can save over $50-$100 in US auto parts store

    HIGH QUALITY MATERIAL SELECTION - Our ignition coils are designed with proven materials, such as high quality wires and wire coating that resists the cracks, pin holes and imperfections that most often lead to failure issues

    FEATURES - Each coil is design for specific application, low-emissions, and high energy output, and they will eliminate misfires and provide maximum voltage

    COMPATIBLE VEHICLES - Please check the description or use the year/make/model drop down bar and interchangeable part numbers to confirm the compatibility before purchase



    Notes: Fits 3-valve engines only with early style 16mm high thread design spark plugs. Replaces coils with

    short 4.00 inch black boots and are marked 3L3E on top of coil only.
    THESE DO NOT FIT THE 2004 and newer F-150 with the 4.6L V8.
    The 2004+ 4.6L  V8 model F-150 uses the "DG508" coils that you can find in our store!



    ATTENTION!!!!This's a straight shaft ignition coil,the curve shaft coil also in stock.Most customers

    always mixed the straight shaft & curve shaft , and purchased the wrong item . Please review the info above

    carefully to make sure this part fits your vehicle. If you have questions on whether this part fits your vehicle,

    please feel free to contact us via eBay.Thank you !



    Certificates of our product:









    Our Factory:


    Item Specifics
    Brand :CarBole
    Type :Ignition Coil
    Manufacturer Part Number :DG-511, SP-546, C1541, DQ50101D, 3L3Z12029BA-3L, FD508, UF-537
    OE/OEM Part Number :DG511, 3L3E12A366CA, 3L3Z12029BA, C1584, 50082, 601000, GN10182
    Manufacturer Warranty :Lifetime
    Coil Wire Attachment :Female/Socket
    Coil Style :Coil pack
    Primary Resistance :0.500 ohms
    Coil Internal Construction :Epoxy
    Maximum Voltage :28,000 V
    Turns Ratio :61:1
    Secondary Resistance :5.43K ohms
    Coil Shape :Round
    Boots style :Straight Boots
    Voltage :12V
    Connector Gender :Female
    Terminal Gender :Male
    Connection :2 pins
    Terminal Type :Blade
    Placement on Vehicle :Front
    Spark Plug Part Number :SP515, SP546, PZT14F, SP507, PZH14F, HT15, PZT2F, SP421, SP-54
    Color :Red
    Interchange Part Number :E508, 82438, 5C1584, C1659, UF537, 11054, EE03A, 3L3E-12A366-CA
    Superseded Part Number :3L3U12A366BB, IC1154AA08, 6736003, IC558, 52-1839, 4B0552, 6B3124
    Other Part Number :3L3Z12029BA-3L3E12A366CA, 3L3Z12029BA-3L3U12A366BB, 55138, FD508T
    Notes :Fits 3-valve engines only
    Valve Cover Gasket Part Number :VCF330-C, VS50664R, VS50372

    Payment

    We accept Credit card, Debit card, Apple Pay, Google Pay and PayPal.

    Shipping

    * All of the items will be shipped to buyer's EBAY address, please confirm your address on Ebay before you buy.
    * Import duties and any other fee are not included in the item costs or shipping costs. Buyers are responsible for those charges
    .

    Returns

    If the item is broken or has any other problem when you receive it, please feel free to contact us. We will handle your problem as soon as possible. You can return the item for a replacement or refund. You have 30 days to return the item since the day that the item was delivered.

    Customer Services

    Please leave a positive feedback and 5-star ratings for us if you're satisfied with our items and service. We'll do the same for you as well.

    About CarBole

    CarBole is one of the most experienced manufacturers in performance fuel and ignition systems around the world, proving itself on the racetracks and drag strips of the world – and on the street. With an ever-expanding line of coils and all the spark plug wires, tune-up kits, and fuel injectors hot rodders have trusted and relied on for years, CarBole is constantly developing innovative new products designed to push power, speed, and performance to match advancements in automotive technology. As always, CarBole offers a comprehensive selection of performance products, including coils, digital fuel injection systems, fuel injectors, distributors, caps, rotors, ignition wires, spark plugs.
