California JOS New Solderless Breadboard Protoboard 830 Tie Point MB-102 Test Circuit PCB Kits - PACKAGE 1

FIRST DAY FREE SHIPPING W/TRACKING NUMBER

100% Satisfaction Warranty & Premium-Quality Guarantee

60 Days Money back Guarantee






MB102 Solderless Breadboard Protoboard 830 Tie Point Test Circuit PCB Set

Product description:

100% Brand new and high quality.


MB102 Breadboard 830 Points:
830 tie-point IC-circuit area plus 2x100 tie-point distribution strips providing 4 power rails.
White ABS plastic body with black printed legend. Color legend on distribution strips.
With self-adhesive tape on the back, make it easy to stick on the Arduino Prototype Shield.
830 tie points total. 200 in 2 power rails


Features:
- Solderless
- terminal Strip, tie-point 630
- Distribution Strips, tie-point 200
- Wire size: Suitabe for 20-29 AWG wires
- Size: 16.5 x 5.5 x 0.85 cm.
-----------------------------------

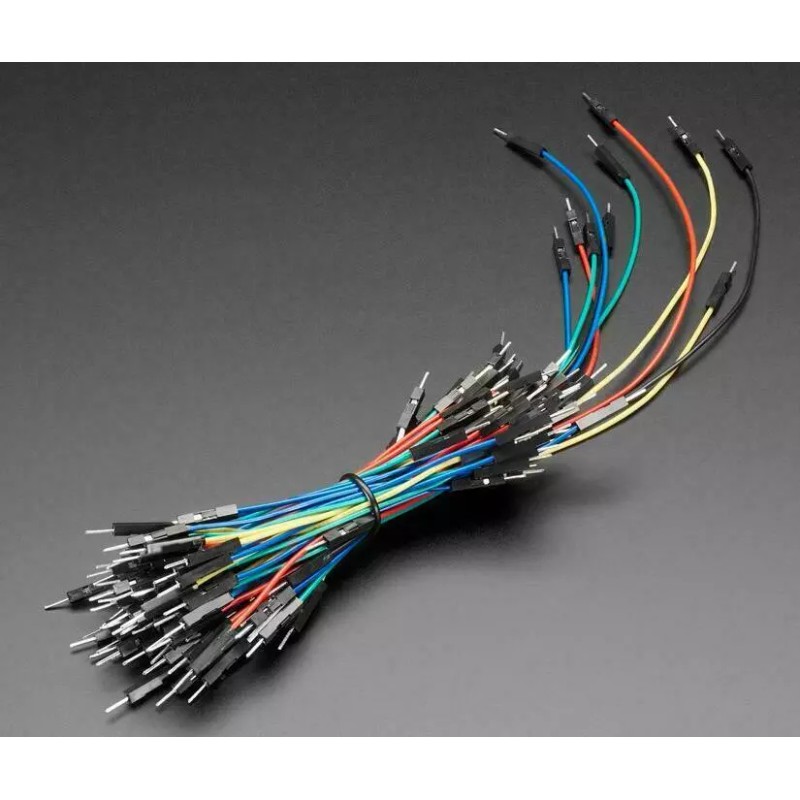

Breadboard jumper cable wires 65PCS:
49 pcs 120mm length*2
8 pcs 150mm length*2
4 pcs 200mm length*2
4 pcs 240mm length*2


Description:
100% Brand new and high quality.
The male to male flexible breadboard jumper wire provides an easy way for you to build your own circuitry on a breadboard, ideal for creating circuits between your microcontroller and the breadboard on the bots with both ends of a prototyping board connector.


Features:
- Material- pure copper wire,PVC,Good conductivity,can be used repeatedly
- Color & Size - Green,white,black,yellow,red,orange - 4.72 inch(65pcs),6.29 inch(15pcs),7.87 inch(10pcs),9.84 inch(10pcs),many kinds of colors and sizes can do all kinds of circuit experiments.
-----------------------------------

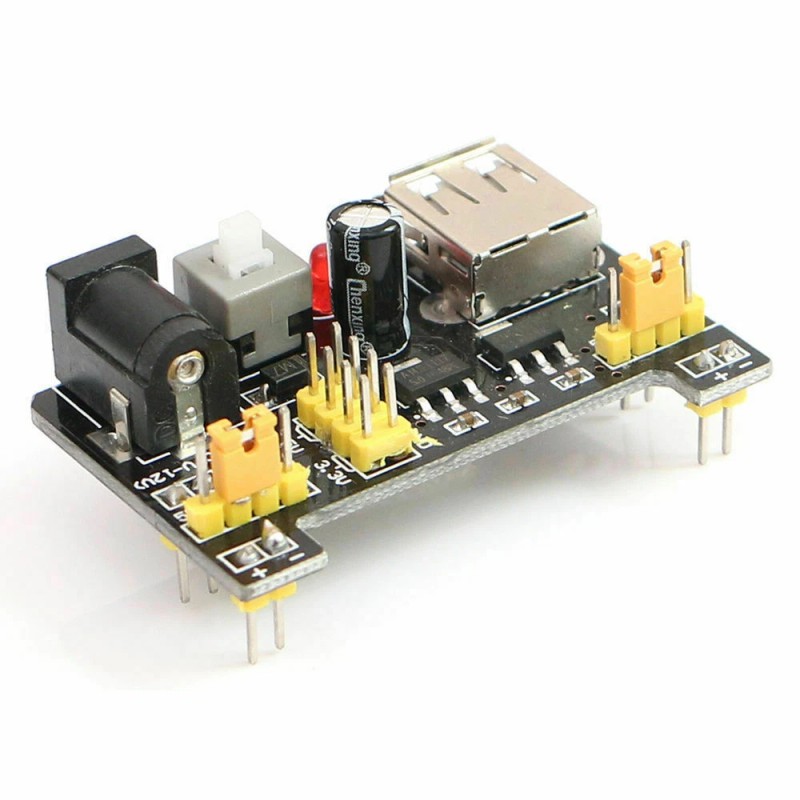

Breadboard Power Supply Module:

Description:
100% Brand new and high quality.
Very easy to use power supply board for use with the MB102 Breadboards. You have two separate power supplies 3.3v or 5v. You can have two different voltages or both
can be set the same. The voltage outputs are set by jumpers on each output. The board can be powered from a wall wort power supply 6.5-12volts. It works great for
powering your Arduino or Raspberry Pi project boards.


Features:
For MB102 breadboard, two way independent control, can be switched to 0V, 3.3V, 5V.
Fit for: MB-102 Breadboard;
Input Voltage : DC 6.5-12V;
Output Voltage : DC 3.3V 5V;
Locking ON / OFF Switch, no need to unplug the power adapter.
LED Power Indicator indicated when the board is powered up.
Output Current: 700mA(Max);
Total Size : 51 x 32 x 19mm/ 2" x 1.3" x 0.75" (L*W*H)
----------------------------------
-

Please check and choose what you need, We appreciate your business!

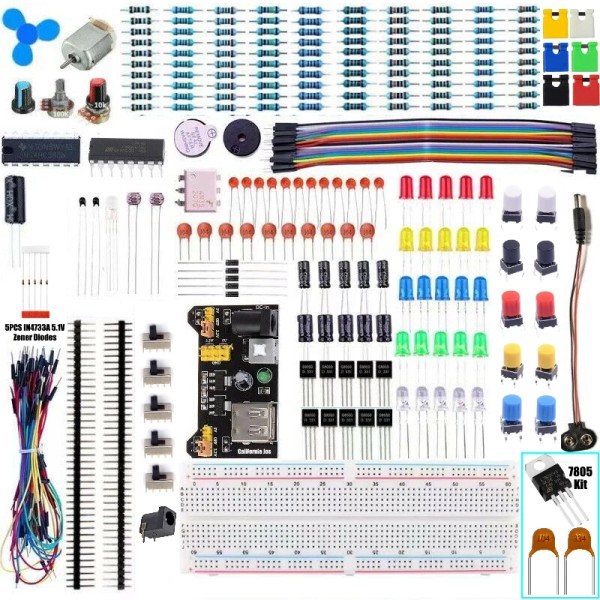

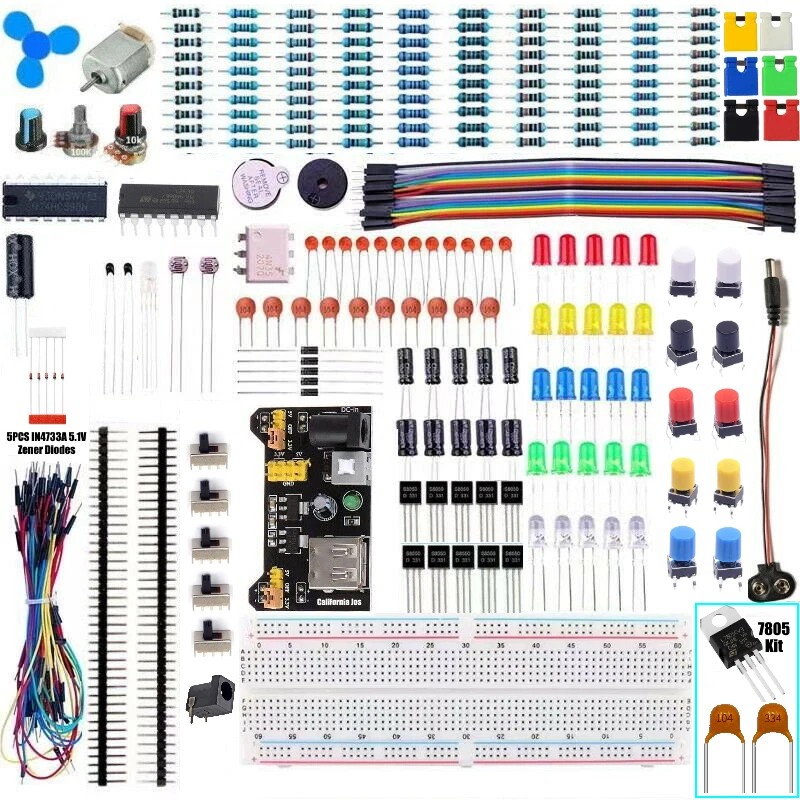

PACKAGE 1:

1pcs Power Supply Module  (warning : Pls do not use the voltage higher than 9v)

1pcs 830 Tie-Points Breadboard

1pcs 65 Jumper Wire

20pcs Female-to-Male Dupont Wire

2pcs Pin Header (40 Pins)

1pcs 9V Battery Clip

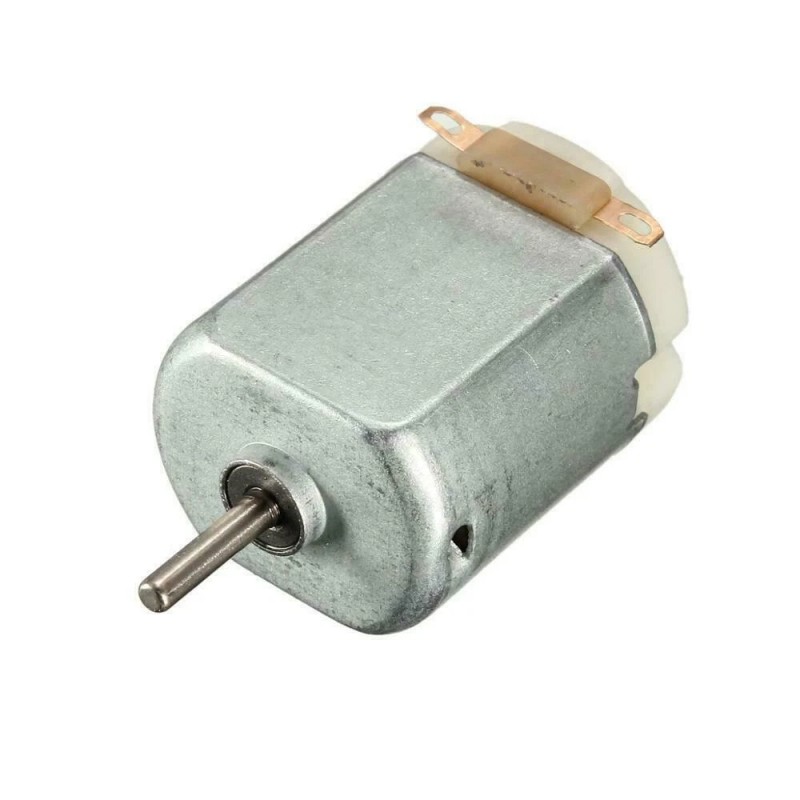

1x  130 DC Motor

1x  130 DC Motor Fan
1X 130 DC Motor Clip

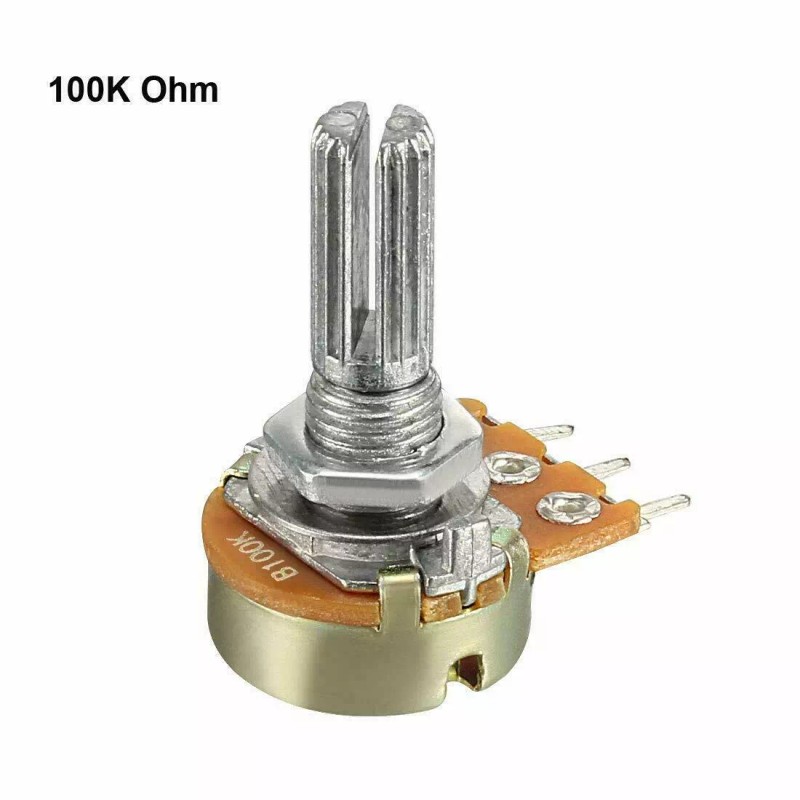

2x  Potentiometer (100K and 10K with Red and Blue Cap)

5pcs Diode Rectifier (1N4007)

5pcs NPN Transistor 8050

5pcs PNP Transistor 8550


1x  IC 74HC595 8 bit Shift Register DIP-16
1x  IC L293D Push-Pull Four-Channel Motor Driver IC DIP-16
1x  IC 4N35 Lite-On 4N35 Optocouplers Phototransistor 30V IC

1x  Active Buzzer
1x  Passive Buzzer

1x  Tilt Switch
2x  Thermistor
2x  Photoresist

5x  1N4733A (5.1v Zener Diode)


5x  SPDT Swith

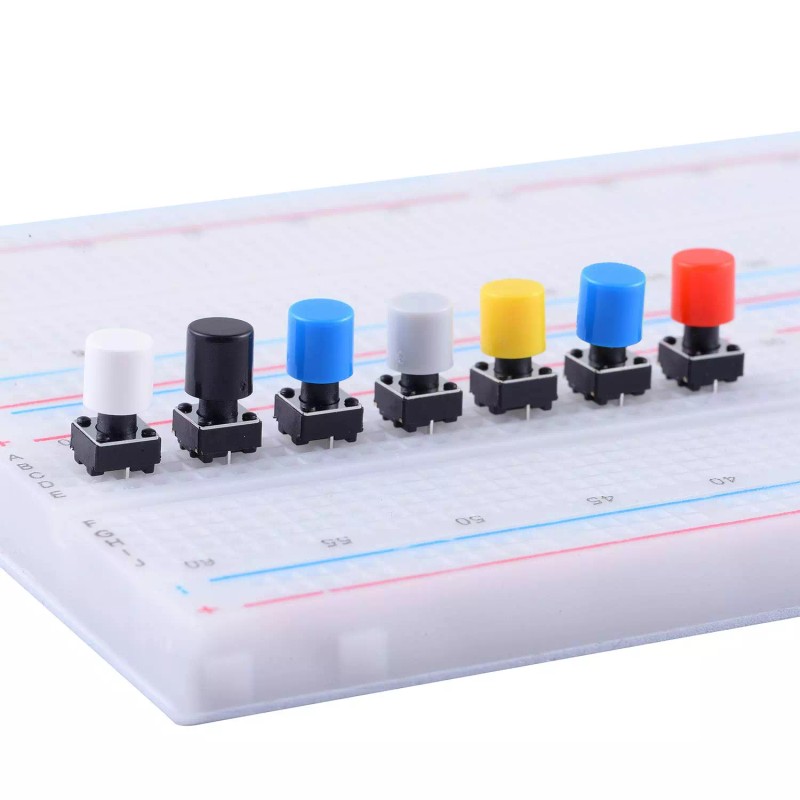

10pcs Button (6mm*6mm*9mm) with colorful caps.

10pcs 22pf Ceramic Capacitor

10pcs 104 Ceramic Capacitor

5pcs Electrolytic Capacitor (10UF 50V)

5pcs Electrolytic Capacitor (100UF 50V)

5pcs White LED

5pcs Yellow LED

5pcs Blue LED

5pcs Green LED

5pcs Red LED

1pcs RGB LED-(Common Cathode)

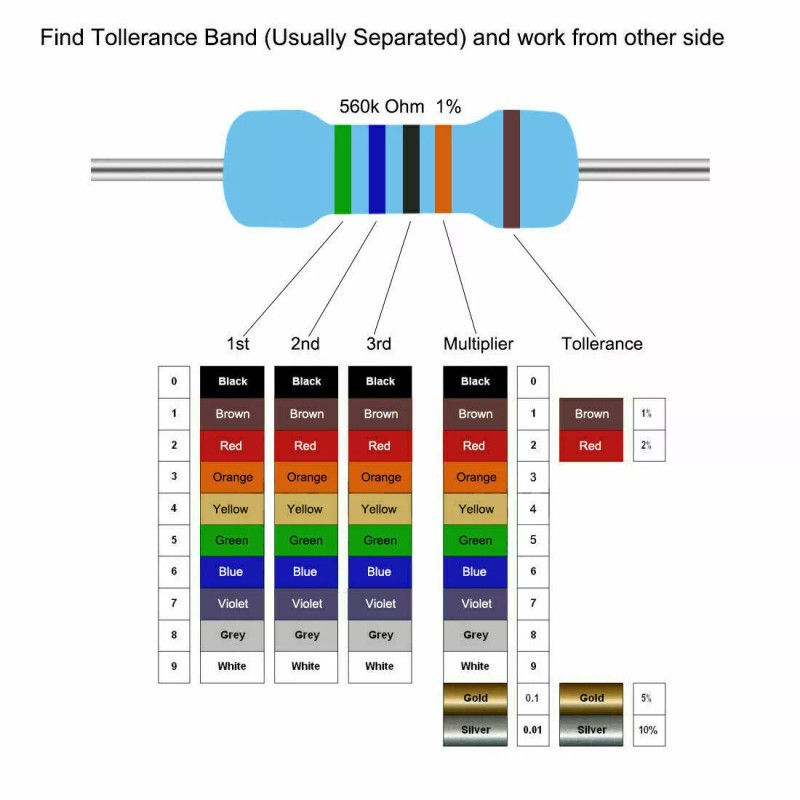

10pcs Resistor (10R)

10pcs Resistor (100R)

10pcs Resistor (220R)

10pcs Resistor (330R)

10pcs Resistor (1K)

10pcs Resistor (2K)

10pcs Resistor (5K1)

10pcs Resistor (10K)

10pcs Resistor (100K)

10pcs Resistor (1M)


6PCS 2.54mm Colorful Jumper Caps

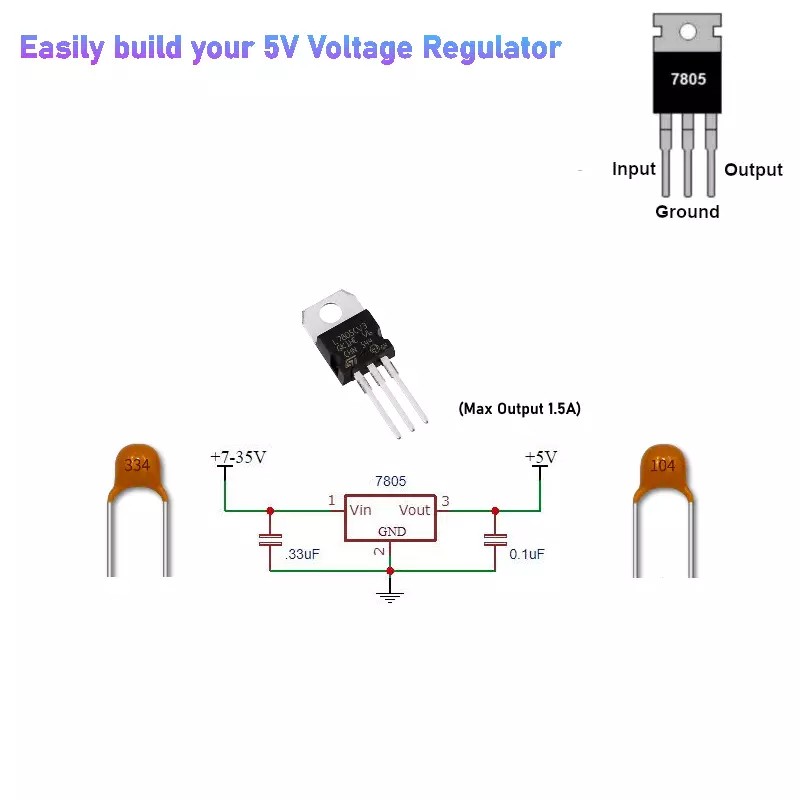

5V Voltage regulator kit(7805+334 capacitor+104 capacitor)

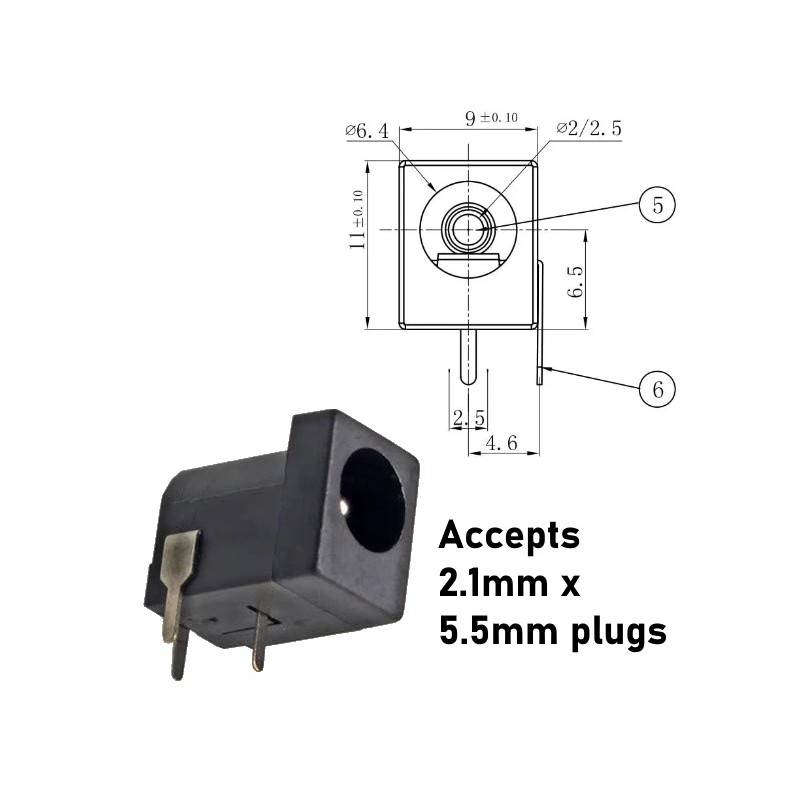

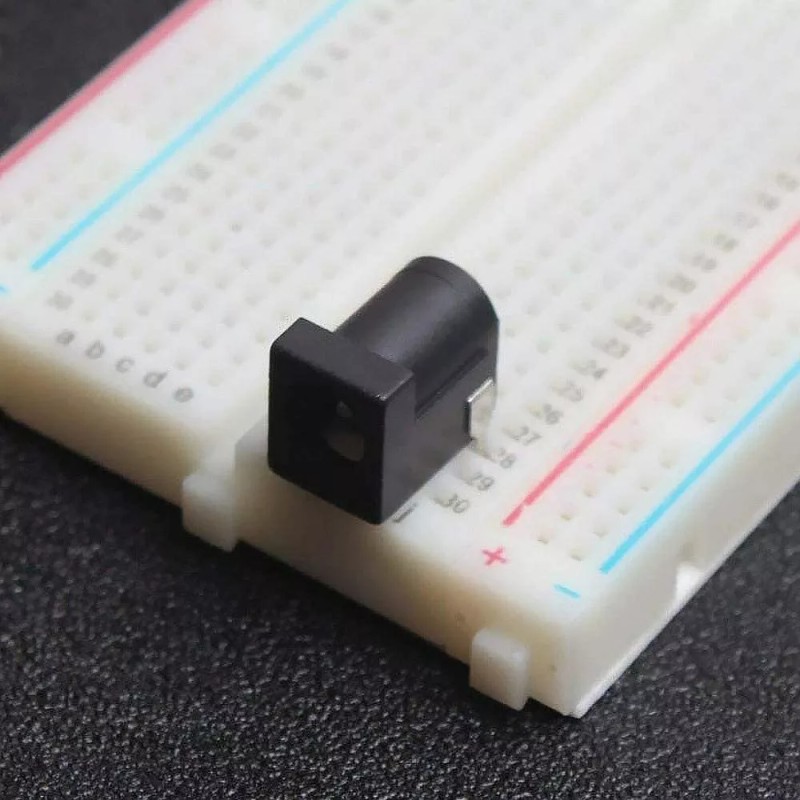

1 PCS Speicialized  DC power JACK for Breadboard.


(PACKAGE 2= Package1+9 V DC power supply adapter)







Brand: California JOS
Isin: IN0FFYHGRGAR

$51.06
