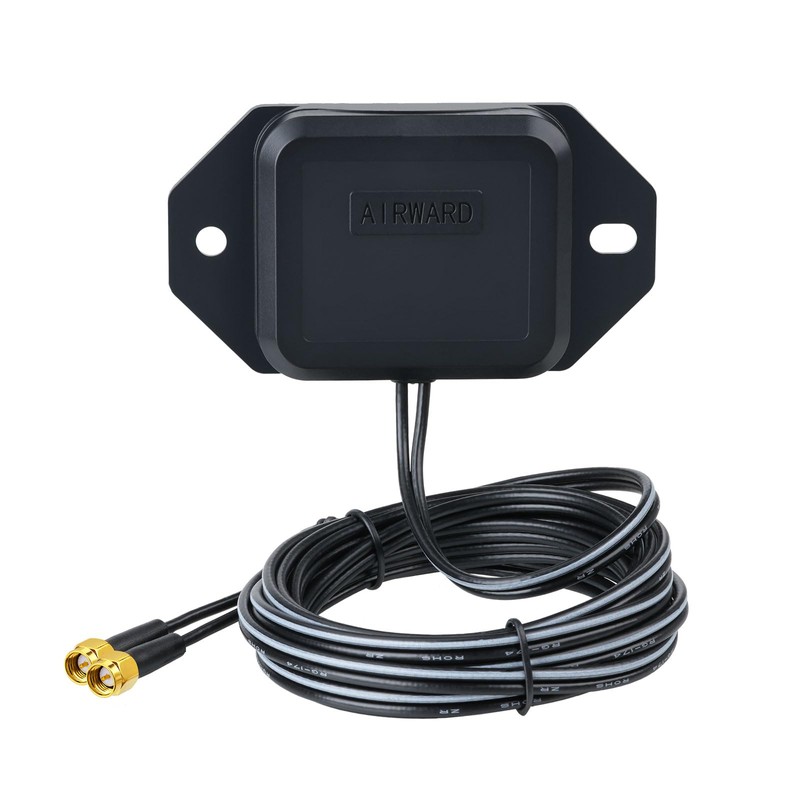

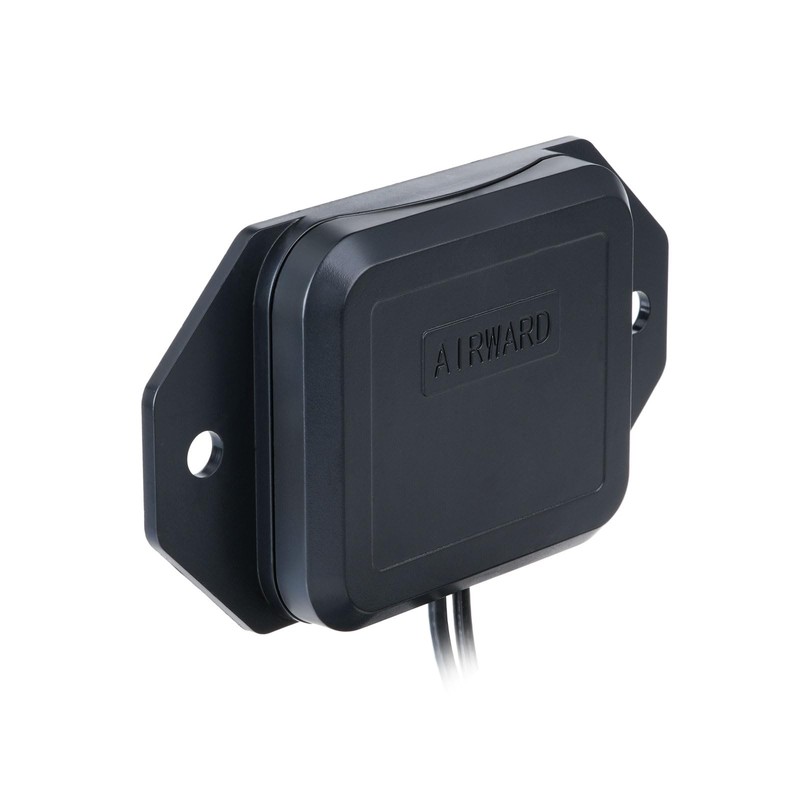

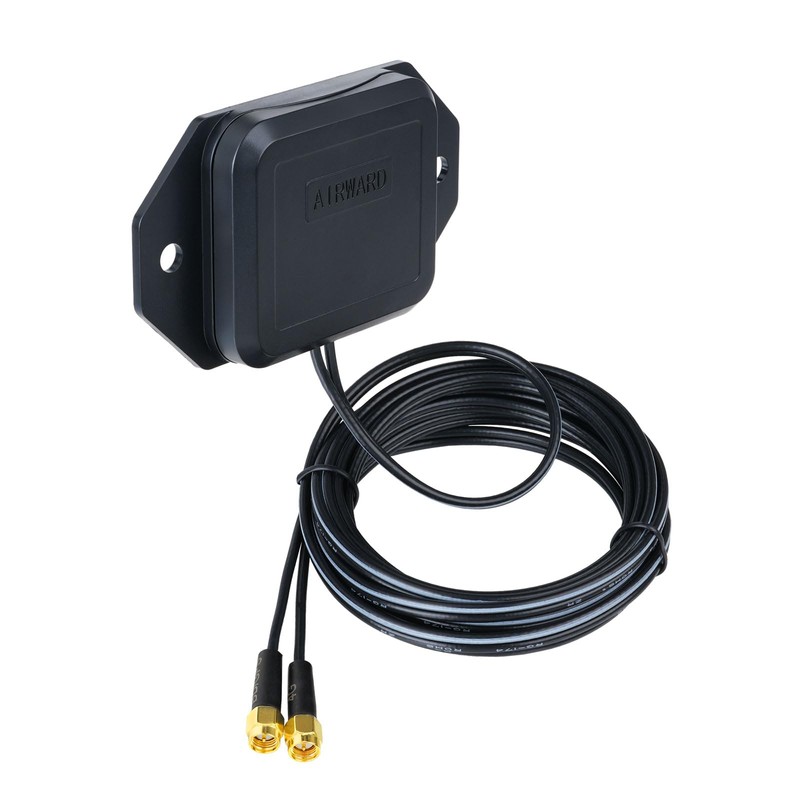

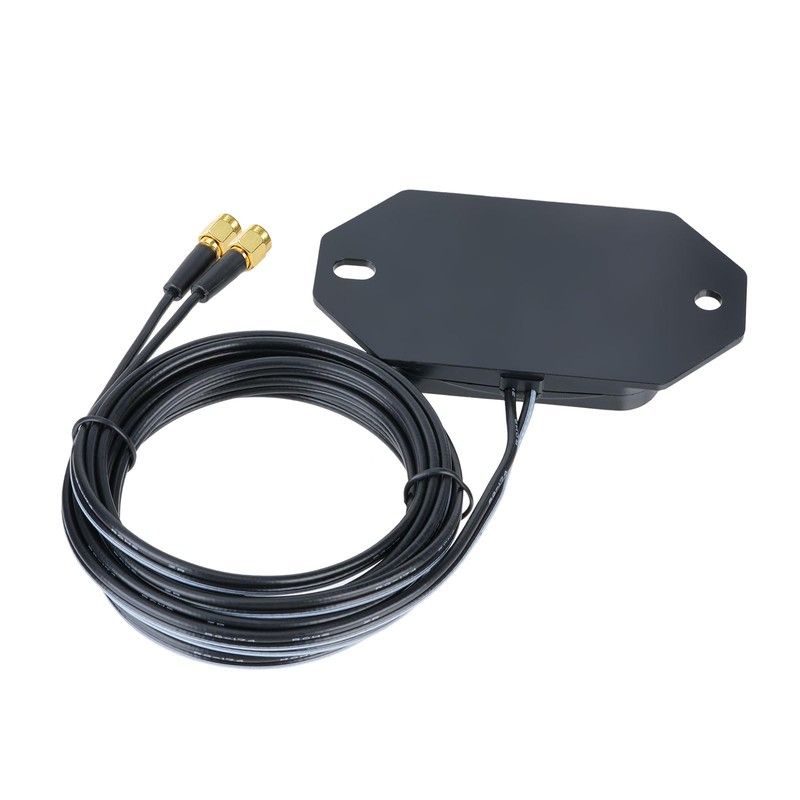

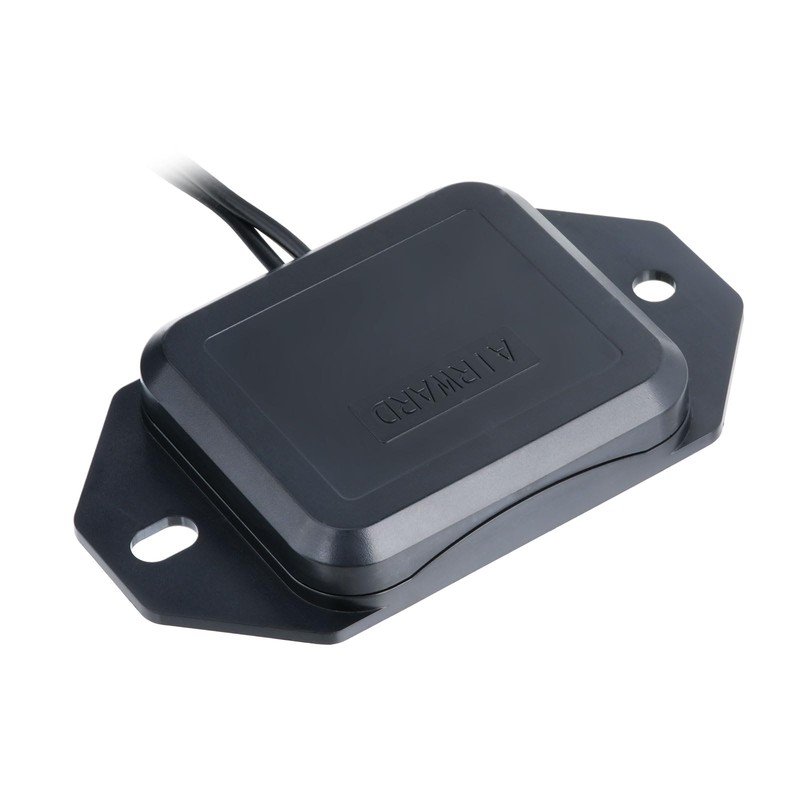

Bingfu Dual-Band GPS BeiDou 4G LTE SMA Cellular Antenna 28dB LNA High Gain for Automotive IoT Tracking

Brand: BINGFU
  • Stable BeiDou and GPS Signals: Supports BeiDou at 1561 MHz and GPS at 1575 MHz for high accuracy positioning in automotive and IoT tracking; RHCP polarization provides stable signals in urban or obstructed areas; 28 dB gain with noise figure less than 1.5 dB ensures reliable performance; SAW filtering minimizes interference to enhance real time tracking
  • 4G LTE Coverage:​Operates in 824 to 960 MHz and 1710 to 2690 MHz bands for wide network connectivity; 2.5 dB gain improves data transmission for seamless 4G LTE communication; Includes 10 ft RG174 cable with SMA connector for easy plug and play setup in car or IoT devices
  • Industrial Durability:​IP65 rated ABS housing resists dust and water for outdoor or harsh environments; Functions in extreme temperatures from minus 40 to 85 degrees C for year round use; Vibration resistant design handles movement up to 50 Hz for automotive applications; RoHS compliance ensures safety and longevity
  • Easy Installation:​Low power consumption under 30 mA at 3.3 V reduces energy costs and extends battery life; Horizontal mounting optimization simplifies positioning on vehicles or equipment; Plug and play integration saves time for quick global deployments; RoHS compliant for worldwide compatibility
  • Reliable Tracking Solution:​Designed for automotive tracking and IoT asset monitoring; Dual system support boosts precision for real time location updates; Waterproof and durable construction ensures consistent performance on the go; Combines 4G and GPS capabilities for versatile high precision tracking needs
Brand: BINGFU
Color: Black
Manufacturer: Bingfu
Part Number: L7QRRYX
Isin: IJAXPFRLTHEM

$41.78

  • Free shipping in US
  • Shipping: $6.5 Standard Shipping (5-10 Business Days)
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
Bingfu Dual-Band GPS BeiDou 4G LTE SMA Cellular Antenna 28dB LNA High Gain for Automotive IoT Tracking

Bingfu Dual-Band GPS BeiDou 4G LTE SMA Cellular Antenna 28dB LNA High Gain fo...

$41.78

Specification:

GNSS Module:
BeiDou: 1561.098±2.046MHz
GPS: 1575.42±1.023MHz
Bandwidth: >5MHz
Gain: 4.5dBic (zenith-mounted)
VSWR: ≤2.0
Polarization: Right-Hand Circular (RHCP)
LNA Specifications:
Gain: 28dB
Noise Figure: <1.5dB
Operating Voltage: 3.0-3.6V DC
Current Consumption: ≤30mA @3.3V

4G LTE Module:
Frequency Bands: 824-960MHz & 1710-2690MHz
VSWR: ≤3.0 (Typical: 1.32-1.86)
Efficiency: 43.89-57.52%
Gain: 2.5dBi

Mechanical & Environmental:

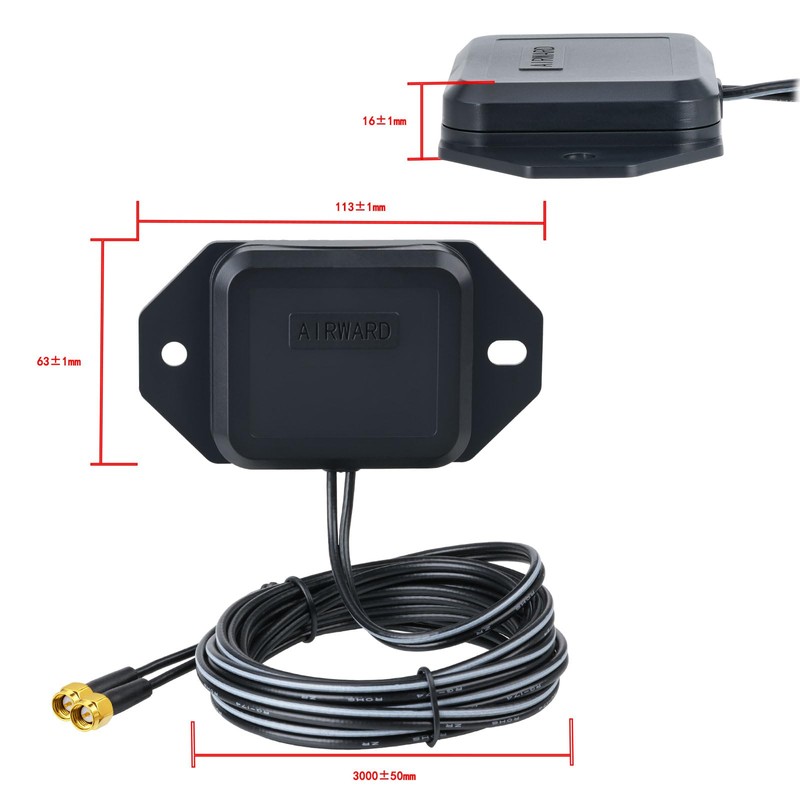

Dimensions: 113x63x16mm (optimized for horizontal mounting)
Cable: RG174, 3M/10ft
Connectors: Dual SMA male
Operating Temperature: -40°C to +85°C
Storage Temperature: -40°C to +90°C

Certifications & Compliance:
RoHS compliant
IP65 waterproof rating
Vibration resistant (sine sweep 10-50Hz)

Applications:
Automotive fleet management
IoT asset tracking devices
Industrial equipment monitoring
Marine navigation systems

List:1 x Combination Antenna
