AUTOOL EVAP Smoke Machine Fuel Pipe System Leakage Detector Car Smoke Tester

Brand: Autool
fast shipping,3-7 days delivery


Description：

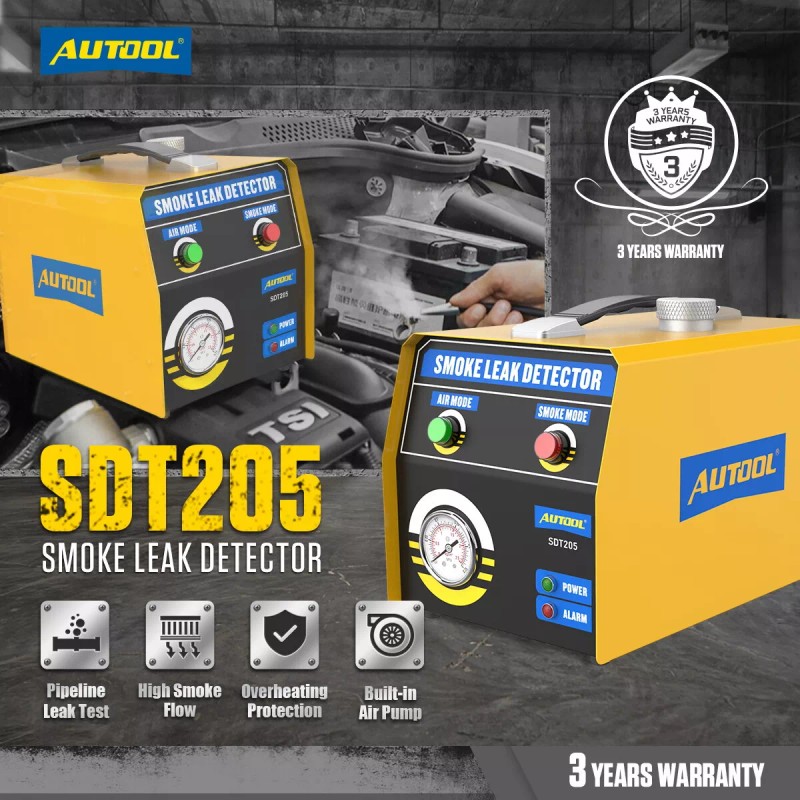

AUTOOL SDT 205 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on the pipe systems quickly and exactly, such as fuel pipe, air Intake system, exhaust system, and cooling tank.

Function Explaination:
1.Evaporative Emission Control (EVAP) System Test: it can test the leakage of fuel evaporation in the EVAP system.
2.Tightness Test: it can test the tightness and leakage of the tested pipeline under system pressure.
3.Intake System Test: it can test the air tightness and damage degree of the pipes in the intake system.
4.Exhaust System Test: it can test the air tightness and damage degree of the pipes in the exhaust system.

Features:

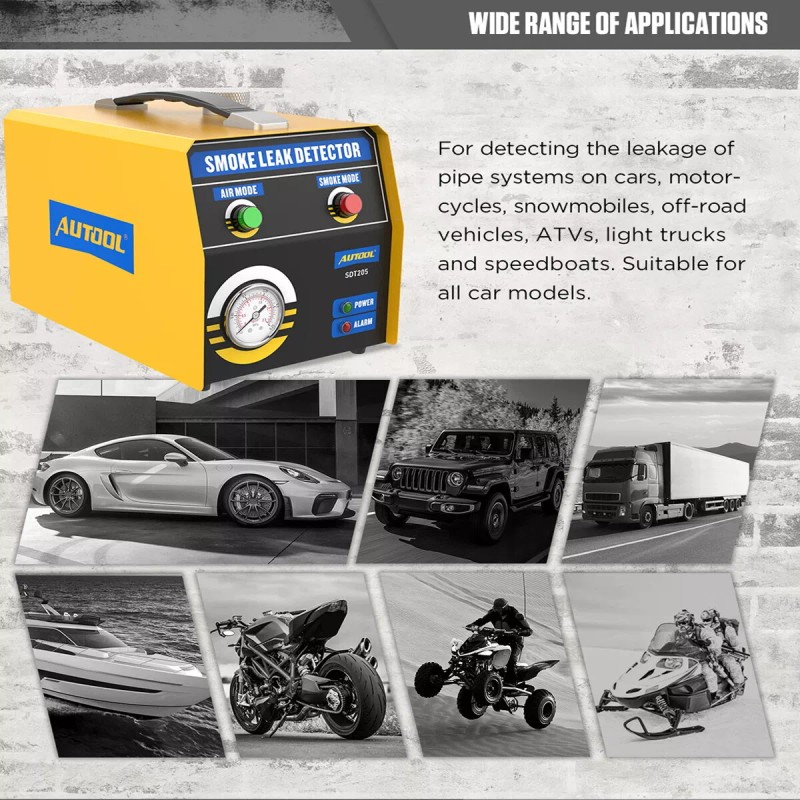

➤ 1. [Wide Range of Applications]: For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats. Suitable for all car models.
➤ 2.[Powerful and Easy to Operate ]: The AUTOOL SDT 205 has its own Air Pump without relying on other machines and Pressure Gauge with precise scales. Simply connect the detector with the DC12V battery, it can output thick smoke within 30s after turning on.
➤ 3. [Independently Switch Design]: It works on the EVAP system. (Provided with another version that specially designed for EVAP system). Equipped with dual flowmeters for accurate data display & Independently controlled Air mode and Smoke mode.
➤ 4.[Safety]: This smoke detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power to secure the safety of both the operator and device.
➤ 5. [3 Years Warranty]: For damage caused by non-human factors, we promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.



• Support Systems:EVAP System,Intake System,Exhaust System,Fuel Tank System,Car Sealing,Various Pipe Fittings



Fast Soke Output
Built-in air pump and smoke generator, which can produce a stable and large amount of smoke within 10 seconds.
Independent Switch Control
AIR MODE
Independently controlled built-in air pump.
SMOKE MODE
Independently controlled smoke generator.
Overheating And Anti-frost Protection
If the temperature of the device exceeds 80°C, it switches off automatically and can still function at -15°C.
Wide Application
Detection of leakage of pipe systems for all vehicle models, such as cars, motorcycles,
snowmobiles, off-road vehicles, ATVs,
Trucks and speedboats.






1.Unscrew the oil fller cap and add
test oil.
2.Connect the car battery, turn on the air pump and smoke generator
3.Connect the car battery, turn on the air pump and smoke generator.
4.The leak can be judged according to where the smoke appears.


Cutions:
1.We suggest you to use the baby oil.
2.When you use this detector the first time, please fill 10ml oil, not beyond this range.
3.New oil can be filled with only when the smoke is light,and it can’t be filled over 10ml every time.
4.Before filling new oil, please pour out the remaining oil in the detector.
5.Please replace the detector oil regularly.
6.MRCARTOOL provides 2 year warranty and 24 hours email support.Please feel free to contact us if you need any help.





Specifications
Power supply: DC12V, vehicle battery
Working pressure: 15 psi,≈1kg/c㎡
Smoke emission value:6L/min
Air pressure output:Built-in air supply
Working temperature: -10°C~+40°C
Package weight:3.7kg
Main unit dimensions:250x 160x165mm
Package:1x Main Unit;1x Smoke output tube;1x Power cable;1 Set xRubber stopples (with serial specification);1x 30ml oil bottle;1xUser manual




AUTOOL SDT106
AUTOOL SDT202
AUTOOL SDT203
AUTOOL SDT205
AUTOOL SDT205S
AUTOOL SDT206
AUTOOL SDT208
Output Pressure ≤15Psi（≈1Kg） ≤15Psi（≈1Kg）     <1.2bar     ≤15Psi（≈1Kg） ≤15Psi（≈1Kg） ≤15Psi（≈1Kg） ≤10Psi
Output Flow 1~6(L/min) 1~6(L/min) 1-7(L/min) 1~6(L/min) 1~6(L/min) 1~6(L/min) 1~15(L/min)
Test Oil Capacity     20ML     20ML     20ML     20ML     20ML     20ML     20ML
Air Mode           ✓ ✓ ✓ ✓
Smoke Mode ✓ ✓ ✓ ✓ ✓ ✓ ✓
Built-in Air Pump ✓   ✓ ✓ ✓ ✓ ✓
Flow Control Valve     ✓   ✓ ✓ ✓
Pressure Gauge       ✓ ✓ ✓ ✓ ✓ ✓
Oil Output       ✓ ✓ ✓ ✓
Oil Level Gauge           ✓ ✓



Brand: Autool
Isin: IKRIRI8L61UH

$387.35

  • Free shipping in US

  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers

  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
AUTOOL EVAP Smoke Machine Fuel Pipe System Leakage Detector Car Smoke Tester

AUTOOL EVAP Smoke Machine Fuel Pipe System Leakage Detector Car Smoke Tester

$387.35

fast shipping,3-7 days delivery


Description：
AUTOOL SDT 205 Car Smoke Leak Detector is a professional auto pipe leak detect tool. It will help us position cars motorcycles leakage on the pipe systems quickly and exactly, such as fuel pipe, air Intake system, exhaust system, and cooling tank.

Function Explaination:
1.Evaporative Emission Control (EVAP) System Test: it can test the leakage of fuel evaporation in the EVAP system.
2.Tightness Test: it can test the tightness and leakage of the tested pipeline under system pressure.
3.Intake System Test: it can test the air tightness and damage degree of the pipes in the intake system.
4.Exhaust System Test: it can test the air tightness and damage degree of the pipes in the exhaust system.

Features:
➤ 1. [Wide Range of Applications]: For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats. Suitable for all car models.
➤ 2.[Powerful and Easy to Operate ]: The AUTOOL SDT 205 has its own Air Pump without relying on other machines and Pressure Gauge with precise scales. Simply connect the detector with the DC12V battery, it can output thick smoke within 30s after turning on.
➤ 3. [Independently Switch Design]: It works on the EVAP system. (Provided with another version that specially designed for EVAP system). Equipped with dual flowmeters for accurate data display & Independently controlled Air mode and Smoke mode.
➤ 4.[Safety]: This smoke detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power to secure the safety of both the operator and device.
➤ 5. [3 Years Warranty]: For damage caused by non-human factors, we promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.



• Support Systems:EVAP System,Intake System,Exhaust System,Fuel Tank System,Car Sealing,Various Pipe Fittings



Fast Soke Output
Built-in air pump and smoke generator, which can produce a stable and large amount of smoke within 10 seconds.
Independent Switch Control
AIR MODE
Independently controlled built-in air pump.
SMOKE MODE
Independently controlled smoke generator.
Overheating And Anti-frost Protection
If the temperature of the device exceeds 80°C, it switches off automatically and can still function at -15°C.
Wide Application
Detection of leakage of pipe systems for all vehicle models, such as cars, motorcycles,
snowmobiles, off-road vehicles, ATVs,
Trucks and speedboats.






1.Unscrew the oil fller cap and add
test oil.
2.Connect the car battery, turn on the air pump and smoke generator
3.Connect the car battery, turn on the air pump and smoke generator.
4.The leak can be judged according to where the smoke appears.


Cutions:
1.We suggest you to use the baby oil.
2.When you use this detector the first time, please fill 10ml oil, not beyond this range.
3.New oil can be filled with only when the smoke is light,and it can’t be filled over 10ml every time.
4.Before filling new oil, please pour out the remaining oil in the detector.
5.Please replace the detector oil regularly.
6.MRCARTOOL provides 2 year warranty and 24 hours email support.Please feel free to contact us if you need any help.





Specifications
Power supply: DC12V, vehicle battery
Working pressure: 15 psi,≈1kg/c㎡
Smoke emission value:6L/min
Air pressure output:Built-in air supply
Working temperature: -10°C~+40°C
Package weight:3.7kg
Main unit dimensions:250x 160x165mm
Package:1x Main Unit;1x Smoke output tube;1x Power cable;1 Set xRubber stopples (with serial specification);1x 30ml oil bottle;1xUser manual




AUTOOL SDT106
AUTOOL SDT202
AUTOOL SDT203
AUTOOL SDT205
AUTOOL SDT205S
AUTOOL SDT206
AUTOOL SDT208
Output Pressure ≤15Psi（≈1Kg） ≤15Psi（≈1Kg）     <1.2bar     ≤15Psi（≈1Kg） ≤15Psi（≈1Kg） ≤15Psi（≈1Kg） ≤10Psi
Output Flow 1~6(L/min) 1~6(L/min) 1-7(L/min) 1~6(L/min) 1~6(L/min) 1~6(L/min) 1~15(L/min)
Test Oil Capacity     20ML     20ML     20ML     20ML     20ML     20ML     20ML
Air Mode           ✓ ✓ ✓ ✓
Smoke Mode ✓ ✓ ✓ ✓ ✓ ✓ ✓
Built-in Air Pump ✓   ✓ ✓ ✓ ✓ ✓
Flow Control Valve     ✓   ✓ ✓ ✓
Pressure Gauge       ✓ ✓ ✓ ✓ ✓ ✓
Oil Output       ✓ ✓ ✓ ✓
Oil Level Gauge           ✓ ✓



PushAuction
  • Manufacturer Part Number: AUTOOL SDT205
  • Brand: Autool
  • Country/Region of Manufacture: China
  • Warranty: 3 YEARS
  • Voltage: DC 12V
  • Vehicle Type: Heavy Duty/Commercial, Motorcycle, Passenger Vehicle, ATV
  • Type: Vehicle/motorcycle fuel pipe leakage detector
  • OBD Interface: CAN, EOBD, OBD, OBDII
  • Supported System: Intake system, Exhaust system, EVAP system, Cooling system, Engine system
  • Output pressure: 15psi≈1kg/c
  • Output flow: 6L /min
  • Air supply mode: Bulid-in air pump
  • Fluid capacity: less than 100ml
  • Package dimension: 350x235x300mm
  • UPC: Does not apply
