ANNKE
Compatible and Expandable 5MP 16CH 5-in-1 Hybrid DVR
Secure Your Home Around the Clock
Human/Vehicle Detection & Real-time Email Alerts
This DVR detects the movements of key objects like human&vehicle, which reduces up to 99% false alarms caused by leaves, lights, rain, etc. Meanwhile, you can get email alerts in real time once find there is someone loitering around your home.
Powerful 5-in-1 Hybrid DVR
This expandable hybrid DVR supports different resolutions of different cameras (TVI/AHD/CVI/CVBS/IP Cam) input, and it can access 16-ch analog cam and 2-ch IP cam, if you switch to IP channel, you can access 24 IP cameras at the same time.
Customized Privacy Area
To protect your privacy, you may set up the privacy mask. The system will ignore the masked zones when recording videos.
Multiple Protection of Your Security
There are many kinds of protection mechanisms to protect your safety like password activated devices, separate APP accounts, remote encryption and work even without internet. These ensure your privacy is no longer a crisis but secured in video stream transferring & downloading.
Multiple Terminal Remote Access & Sharing
You can perform multiple terminal remote access via this DVR. Also, you can share this access privilege with your family. Only you, the admin user, can add or remove the sub accounts, preventing the device from being added by others.
-

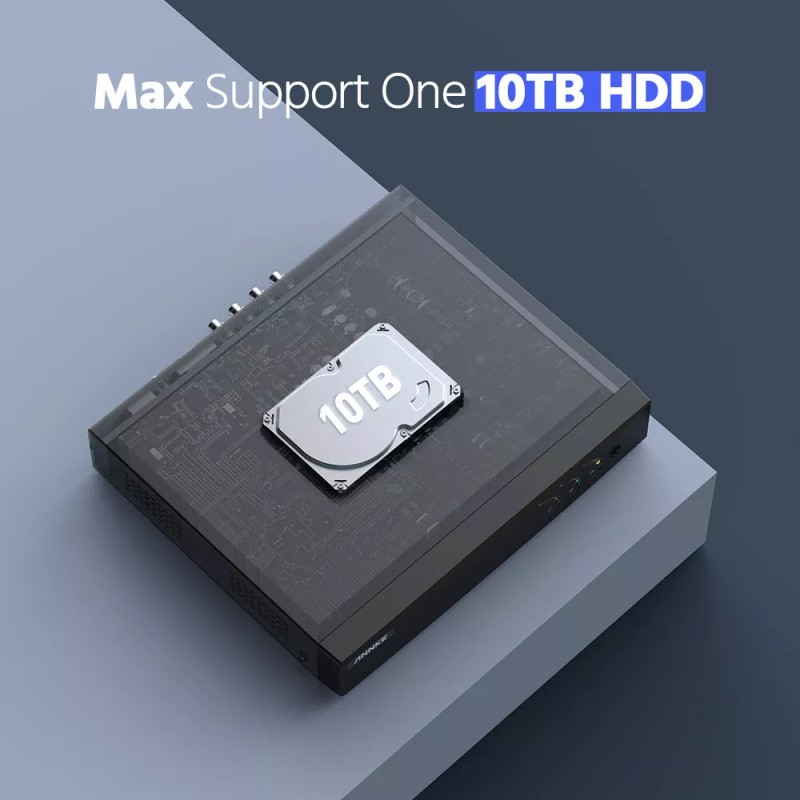

Strong Storage Records All
This DVR not only supports a maximum of 10TB HDD but also supports NAS Internet storage input. And you will not worry about the storage and achieve hassle-free storage.
-
H.265+ Video Format
Compared with H.264, this DVR adapts H.265+ video compression which supports less bandwidth consumption, besides, it can offer smooth and fast videos without latency, achieving ultra-long video recording.
-

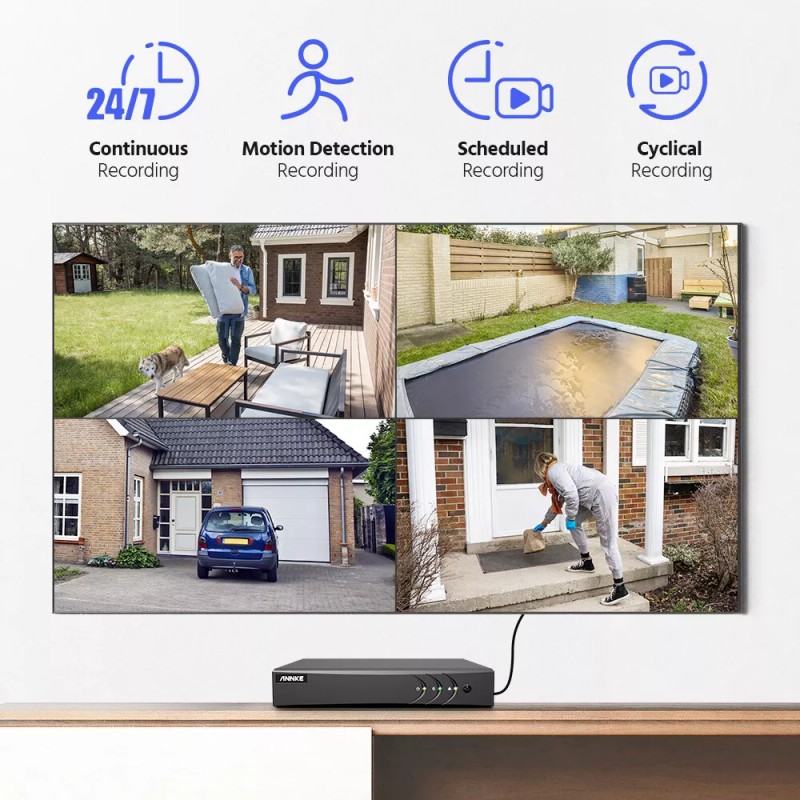

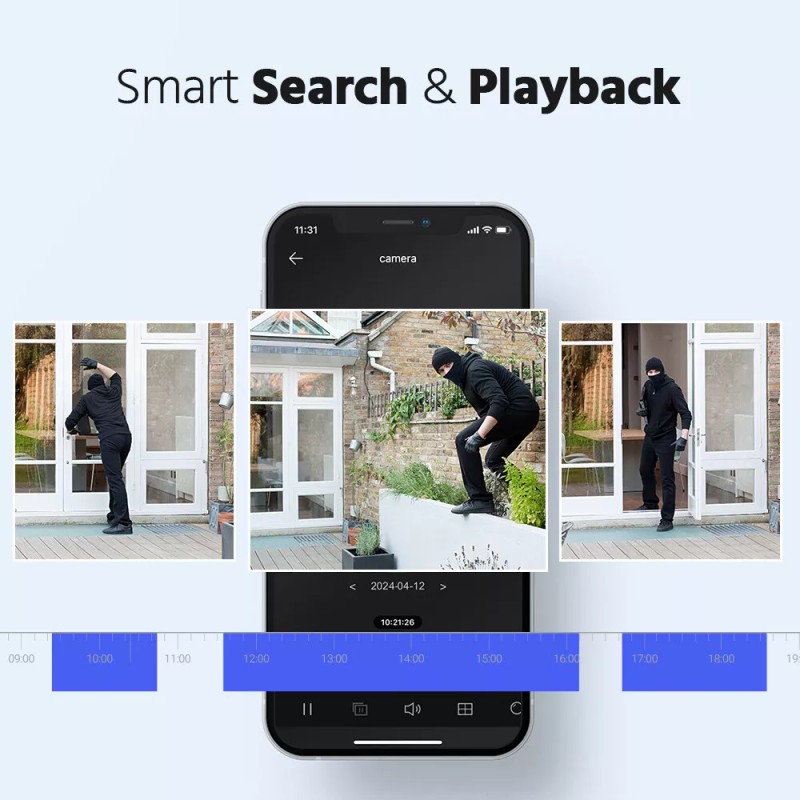

Smart Playback
There are various recording options so you can customize it.Also, smart search and playback can help you find what you want in loads of videos in a sec.
-
All-Around Certified Device
Every DVR & camera has passed the severe testing conducted by authorizations like UL, CE, FCC, HDMI, etc. And ANNKE App has conformed to GDPR.
-

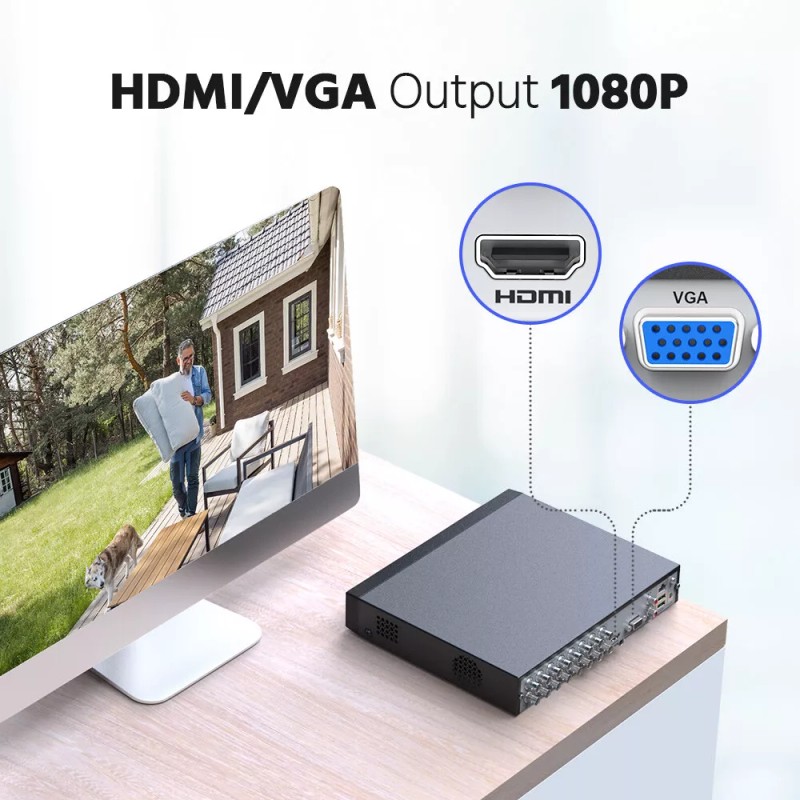

1080P HDMI/VGA Output
This DVR supports HDMI/VGA outputs with up to 1080P clarity, assuring you have a good vision experience and never miss any details.
-
With or Without Internet
After pairing with a security cameras and installing an HDD to the DVR, you can record continuous videos even without Internet. For remote access & playback, motion detection alerts, Internet access is required.
16CH DVR | ||||
Video & Audio | Video Compression | H.264+/H.264/H.265/H.265+ | Video Input | 16CH Analog HD/Analog + 2CH IP Video (up to 24 channel when IP enhanced mode on) |
Video Output | HDMI and VGA Up to 1080P | |||

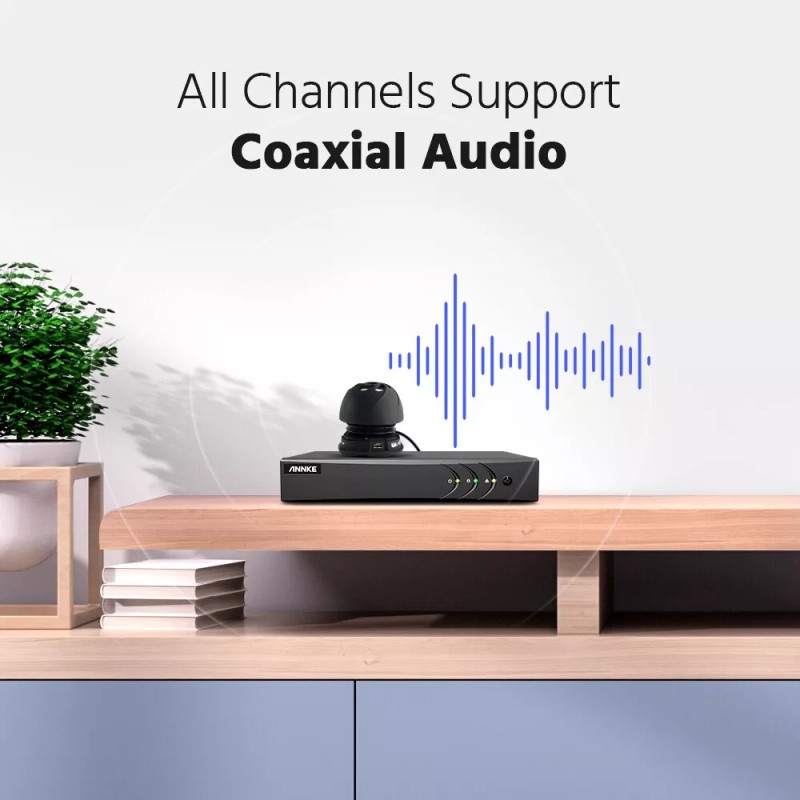

Audio Input | 1-ch RCA, 16-ch via coaxial cable | Audio Output | 1-ch RCA | |
Supported Camera Types | Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; Support AHD Input: 4MP, 1080p, 720P; Support CVI Input: 4MP, 1080p, 720P; Support CVBS Input; Support IP Video Input:6MP/5MP/4MP/3MP/1080P/720P |
Analog HD Playback Resolution | 3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps | |
Protocols | TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS | |||
IPC Playback Resolution | Up to 6MP | Max Playback Channel | 4-ch | |
Motion Detection 2.0 | All analog channels support human and vehicle detection to reduce false alarm | |||
Hard Drive | HDD | 1 SATA interface | HDD Capacity | Up to 10TB capacity |
External Interface | Network interface | 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface | USB | USB2.0x2 |
General | Operating Power | DC12V,≤ 20W (without HDD) | Dimensions(W x H x D) | 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
Working Temperature | '-14 °F – 131 °F /-10 °C – 55 °C | Weight (without hard disk) | ≤ 1.2 kg (2.6 lb)(without HDD) |
Brand: | ANNKE |
---|---|
Isin: | IIDKX5PI40PA |
