American Educational DT830B 7-1306-41 Digital Multimeter, 750VAC, 1000VDC, 10 Amp, 2000 Kilohms

  • Digital multimeter measures current, voltage, and resistance
  • Comes with a set of detachable test leads
  • Diode test detects proper functioning of a circuit’s diodes
  • Tests for forward current gain of bipolar (PN) transistors
  • Meets International Electrotechnical Commission (IEC) safety standard 61010
Brand: American Educational Products
Manufacturer: American Educational
Part Number: 7-1306-41
Model: 7-1306-41
Product Dimensions: 5.0 x 4.0 x 1.3 inches; 5.6 ounces
Isin: IZKNDRB1VVU2

$31.02

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
American Educational DT830B 7-1306-41 Digital Multimeter, 750VAC, 1000VDC, 10 Amp, 2000 Kilohms

American Educational DT830B 7-1306-41 Digital Multimeter, 750VAC, 1000VDC, 10...

$31.02

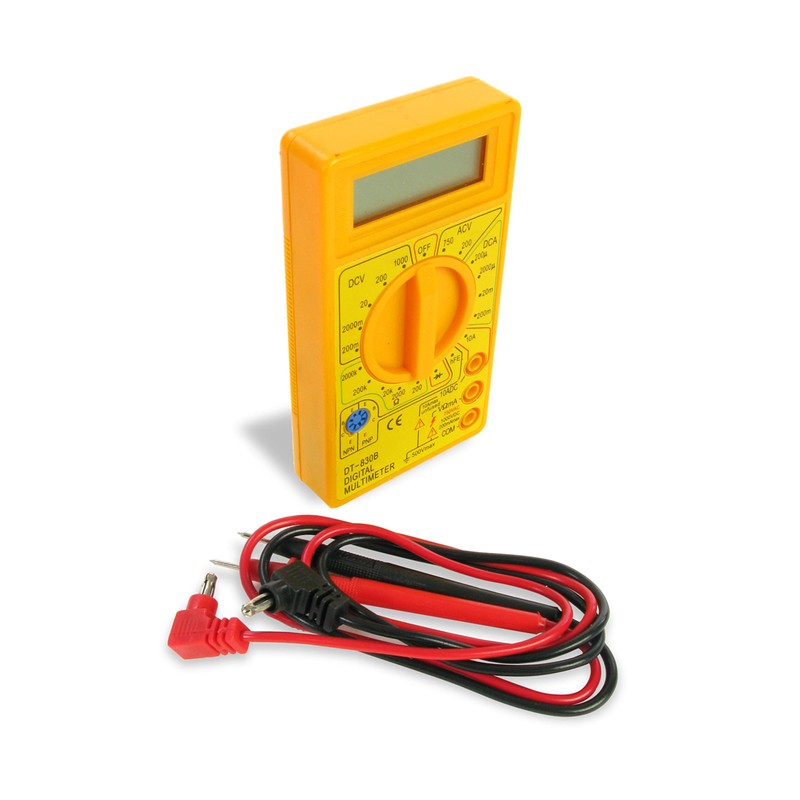

The American Educational DT830B 7-1306-41 digital multimeter (also known as a multitester) measures current, voltage, and resistance in electrical testing applications. The meter comes with a set of detachable test leads. A diode test detects proper functioning of a circuit's diodes, and the meter also tests for forward current gain of bipolar (PN) transistors. A low-battery indicator alerts the operator when the battery needs to be changed. The LCD has a 2,000-count resolution, meaning it can display up to 1,999 units (3 digits) before the operating range needs to be changed. It meets International Electrotechnical Commission (IEC) safety standard 61010.

#### Specifications

Maximum alternating current (AC) input| 10 amp ---|--- Maximum direct current (DC) input| 10 amp Maximum AC voltage input| 750 volts (V) Maximum DC voltage input| 1,000V Maximum resistance detected| 2,000 kilohms Power supply| 9V battery (one, installed) Weight| 110 g/3.88 oz. Dimensions| 125 x 70 x 23 mm/5 x 2-3/4 x 3/4 inches (H x W x D)

H is height, the vertical distance from the lowest to highest point; W is width, the horizontal distance from left to right; D is depth, the horizontal distance from front to back.

Multitesters (also called multimeters) are electrical test meters that measure multiple properties of an electrical circuit, such as current, voltage, resistance, capacitance, and continuity. Available in handheld or benchtop models, multitesters diagnose electrical problems in electrical equipment, wiring, and power supplies. A variety of probes, clamps, and leads can be used to connect the meter to a circuit or device. Multitesters display information either in analog or digital form. Factors that influence meter choice include the electrical properties to be measured, the anticipated range of results, and the desired level of protection against transient voltages. Safety ratings are based on the International Electrotechnical Commission's (IEC) standards for low-voltage test equipment. IEC 61010 delineates four overvoltage installation categories. In general, a meter with a category IV rating will provide more protection against transient voltages than a meter with a lower category rating.

American Educational Products manufactures learning materials in math, science, and reading/language arts for students in pre-kindergarten through grade 12. The company, founded in 1986, is headquartered in Fort Collins, CO.

##### What's in the Box?

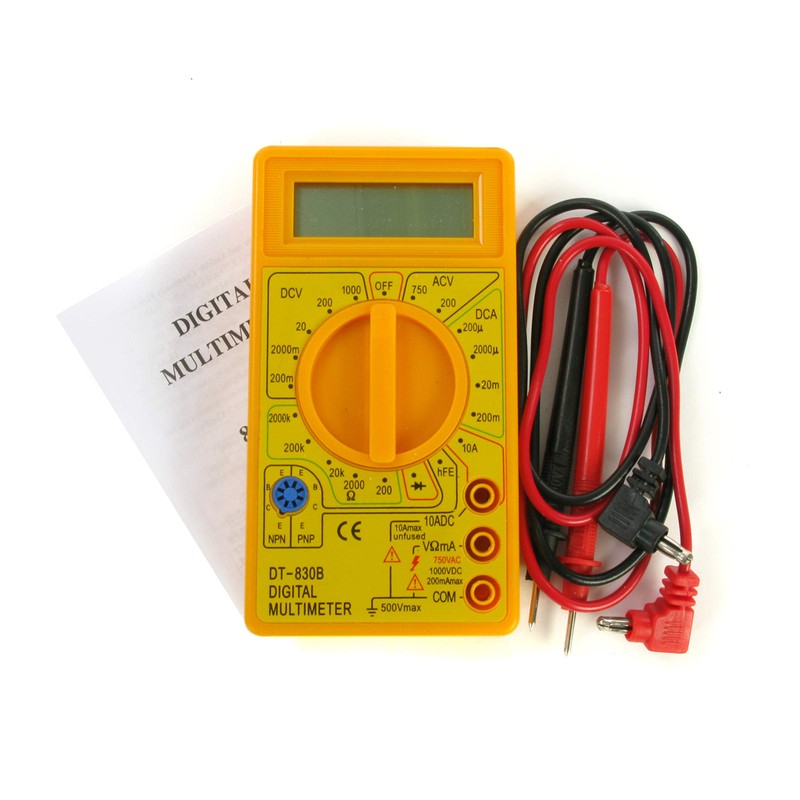

* American Educational DT830B 7-1306-41 digital multimeter * (1) Set test leads * 9V battery (installed) * Instructions
