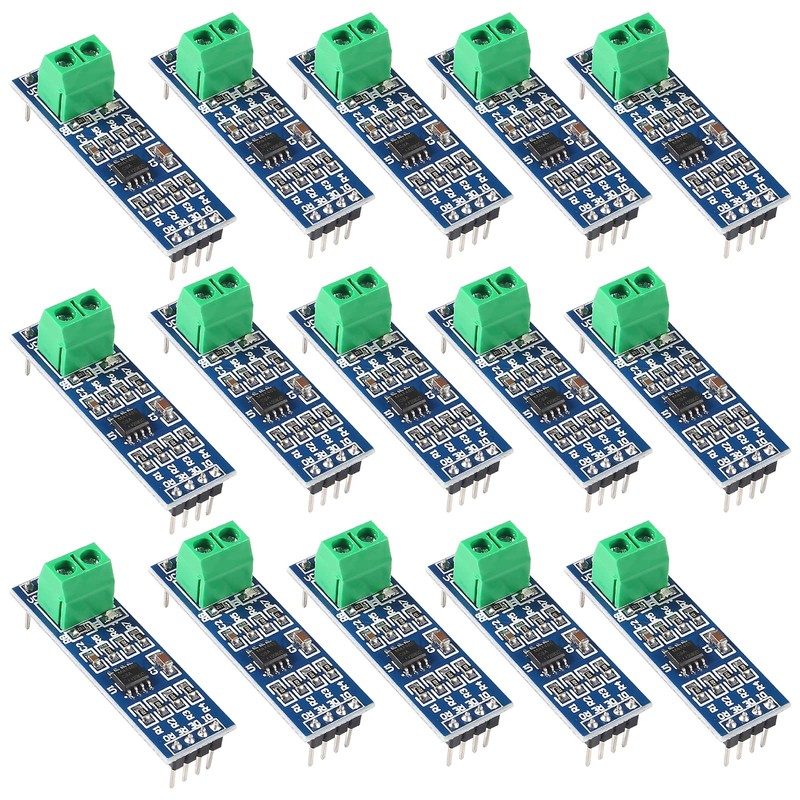

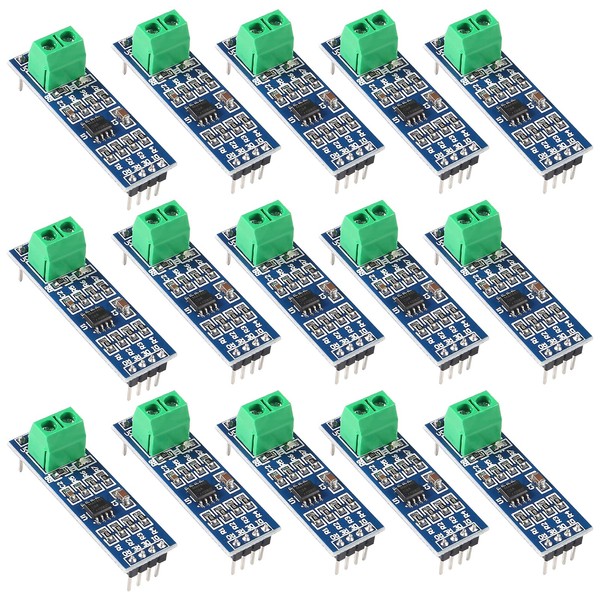

Alinan 15pcs MAX485 RS485 Transceiver Module TTL UART Serial to RS-485 MCU Development Board
Alinan 15pcs MAX485 RS485 Transceiver Module TTL UART Serial to RS-485 MCU Development Board
- ★Serial data can be transmitted in both directions (half duplex) at a data rate up to 2.5Mbps.
- ★The low power transceiver module is based on the MAX485 IC to allow serial communication over very long cable runs (up 4000 feet / 1200 meters).
- ★Can connect multiple modules together for communication between 2 or more devices(up to 32). For even greater distances two modules can be configured as a repeater.

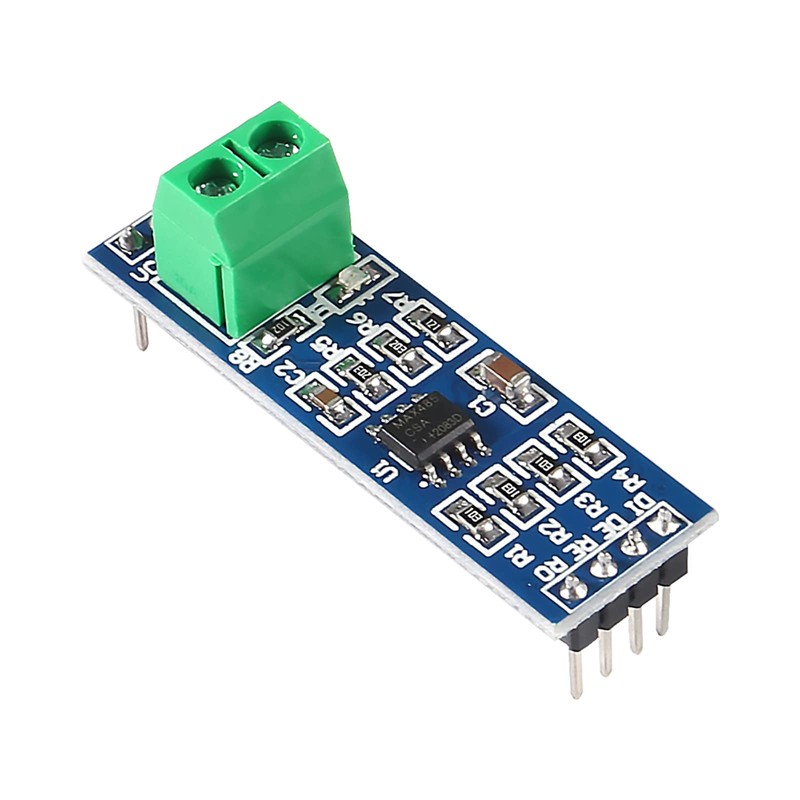

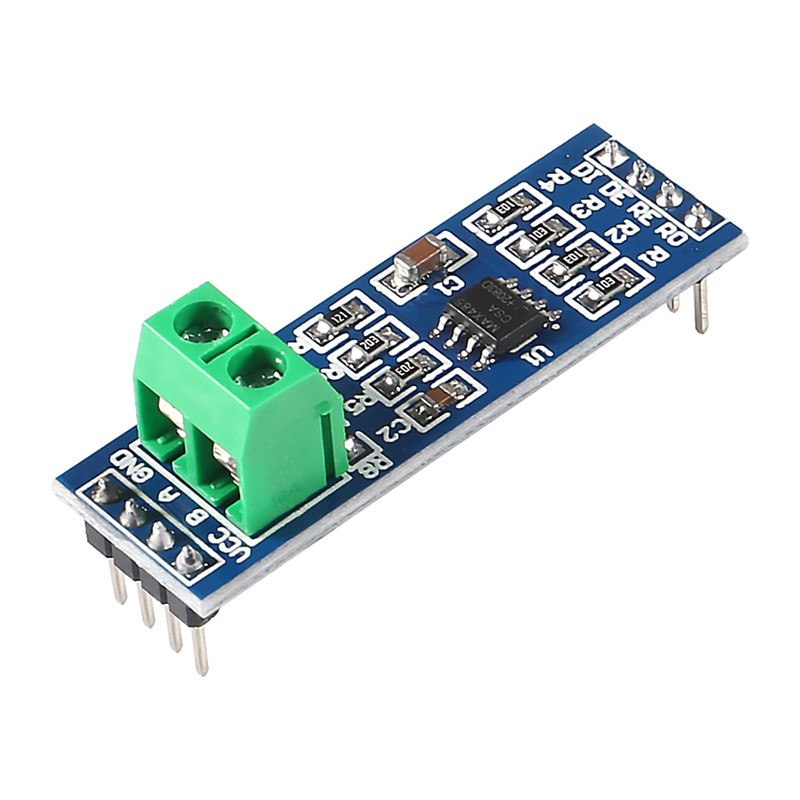

- ★Data connections to the modules are provided by a standard 0.1" pitch header pins which can also be connected into standard prototyping PCB and breadboards. Screw terminals provide convention connection to the actual data cable.
- 【Application】: Use to Low-Power RS-485 Transceivers, Low-Power RS-422 Transceivers, Level Translators, Transceivers for EMI-Sensitive Applications, Industrial-Control Local Area Networks.
| Brand: | Alinan |
|---|---|
| Manufacturer: | Alinan |
| Part Number: | 7N65VKX |
| Isin: | ISENTNVLRGMU |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Working Voltage: 5V
Main Chip: MAX485
Speeds: up to 2.5Mbit/Sec
Distances: up to 1200 meters
Multi-drop Supports: up to 32 devices on same bus
Uses differential signaling for noise immunity
On board 5.08(mm) 2P connector for RS 485 wires

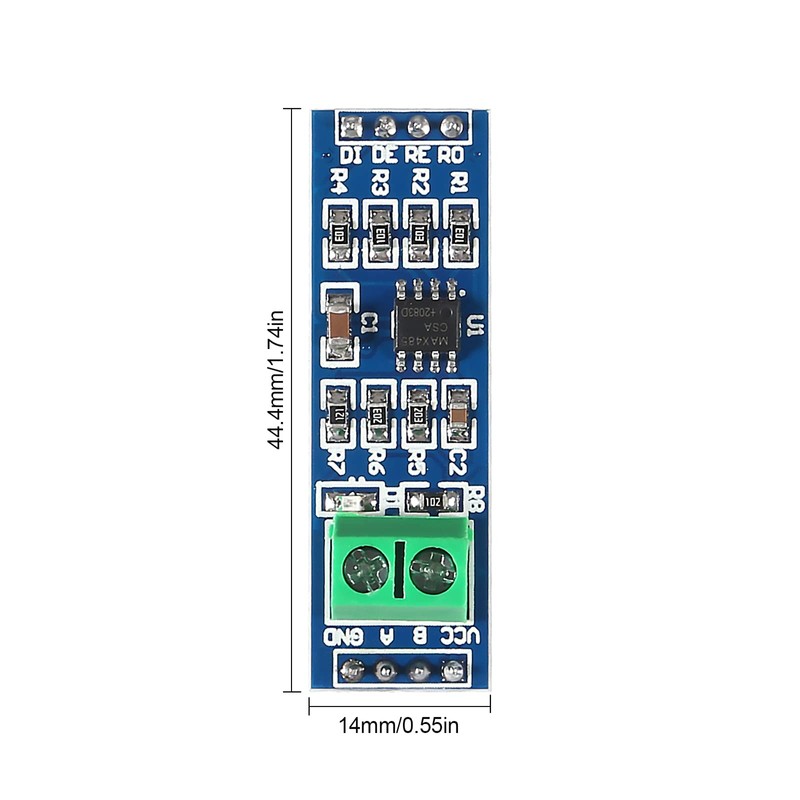

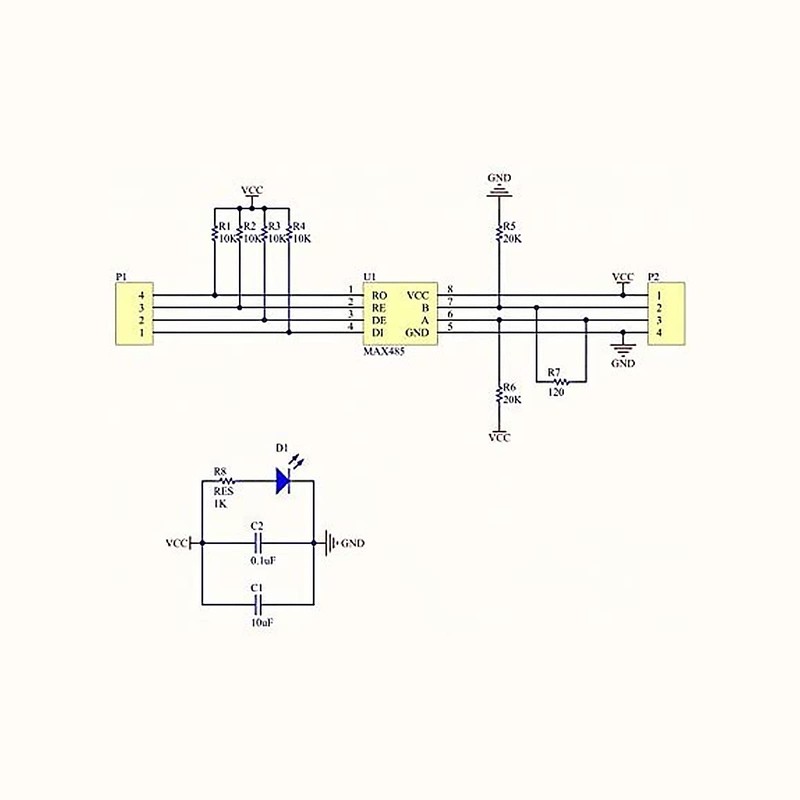

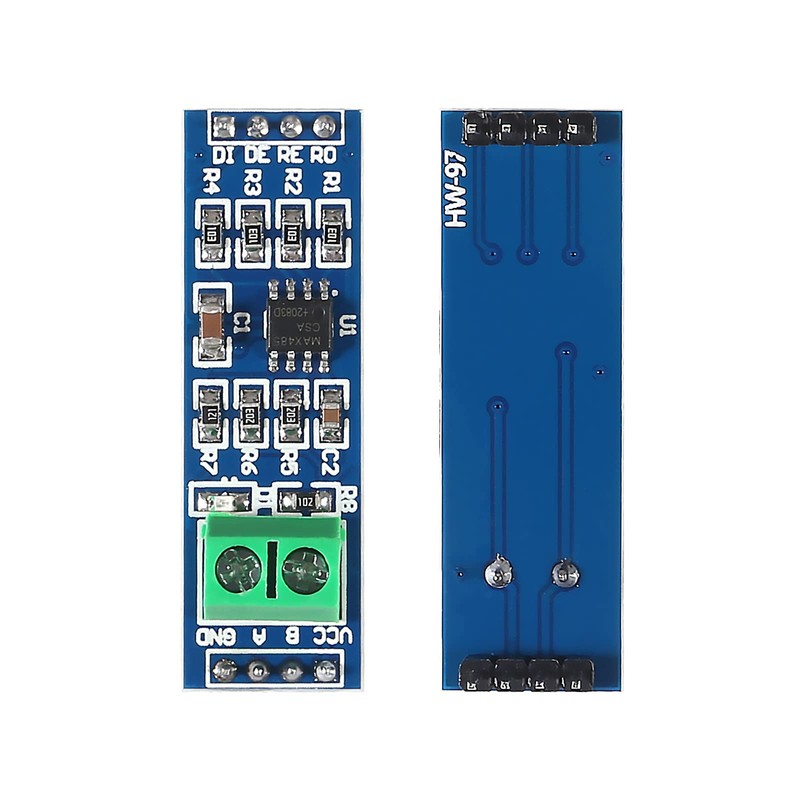

All the pins of the chip are brought out, can be controlled by MCUPIN: VCC: 5V
A: Non-inverting receiver input and no-ninverting driver output
B: Inverting receiver input and inverting driver output
GND: 0V
R0: Receiver output (to rx pin of micro controller)
RE: Receiver output enable (low to enable)
DE: Driver output enable (high to enable)
DI: Driver input (to Tx pin of micro controller)
