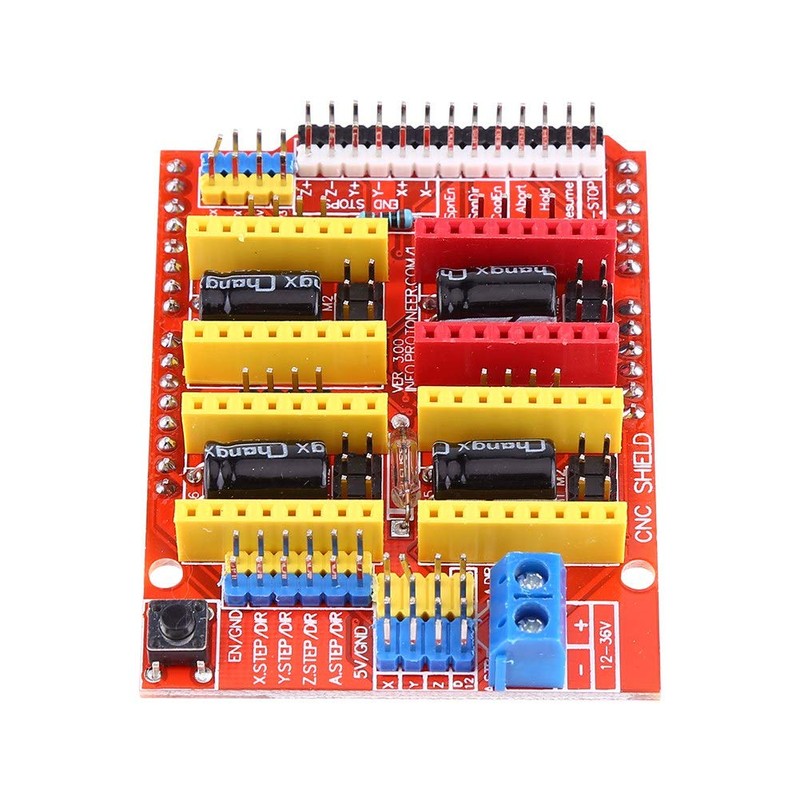

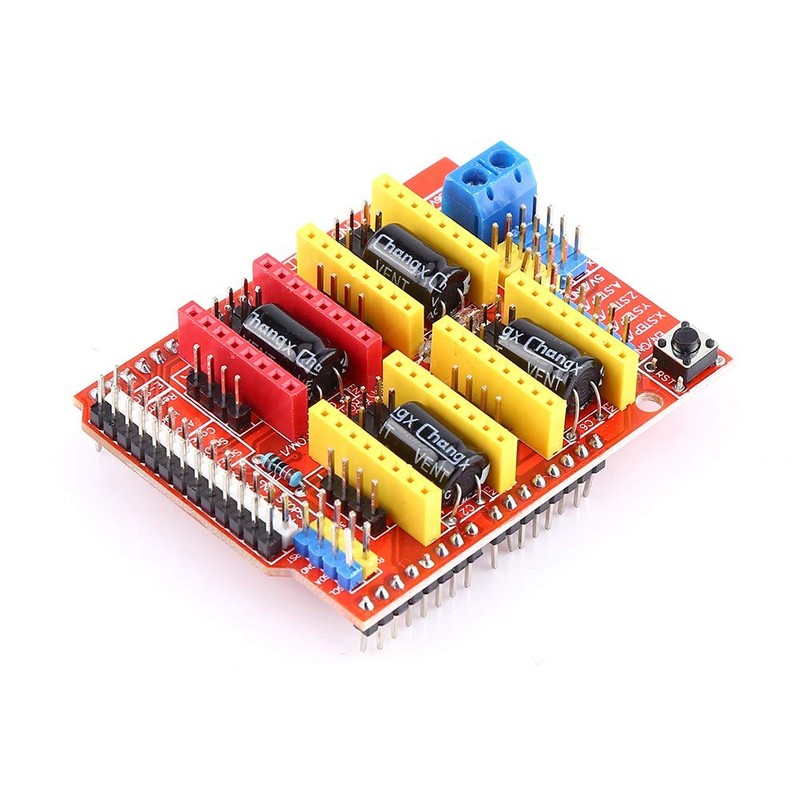

Akozon CNC Shield Expansion Board +4Pcs A4988 Stepper Motor Driver with Heatsink for Engraver 3D Printer for Kits
Akozon CNC Shield Expansion Board +4Pcs A4988 Stepper Motor Driver with Heatsink for Engraver 3D Printer for Kits
Akozon CNC Shield Expansion Board +4Pcs A4988 Stepper Motor Driver with Heatsink for Engraver 3D Printer for Kits
- >>> The A4988 is a complete microstep motor driver with built-in converter for ease of use.?The product can operate bipolar stepper motors in half-continuous, 1/8 and 1/16 modes, with output performance up to 35 V and ± 1 A. Internal circuit includes: thermal shutdown with hysteresis, undervoltage lockout (UVLO), and cross current .?No special power sequencing is required.
- >>> Compatible with GRBL 0.8.?Open-source firmware running on , converting G code command to stepping .PWM steering and steering pin, 4-shaft support (X, Y, Z, A - you can copy X, Y, Z or use pins D12 and D13 The A4988 is available in a surface-mounted QFN (ES) package with dimensions of 5mm × 5mm, a nominal total package height of 0.90mm, and an exposed heat sink to improve performance. thermal dissipation.
- >>> The A4988 includes a fixed off time current regulator that can operate in slow or mixed damping mode.?The converter is the key to the ease of use of the A4988.?As long as you enter a pulse in the "Step " input, you can drive the motor to produce microsteps.?There is no need for phase sequence tables, control lines, or complex interface programming.
- >>> In microstep mode, the A4988 hash control automatically selects the current decay mode (slow or mixed).?Hybrid attenuation current control schemes can reduce audible motor noise, increase step accuracy, and reduce power consumption.?An internal synchronous rectification control circuit is provided to improve power consumption during pulse width modulation (PWM)
- >>> This is a set of disassembled parts, and you need some basic welding skills to weld them together.?Use removable A4988 compatible stepper driver Expansion board can be used for engraving machine or 3D printer driver Compact design, stepper motor can connect 4 pin connectors or be soldered Jumpers to set Micro-Stepping for stepper pilots.
| Brand: | Akozon |
|---|---|
| Part Number: | DNYFR5V |
| Isin: | IFUUQ4CQWQ3G |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Specifications:
CNC Expansion Board:Version: V3.0
Color: Red
Size: 68 x 53 x 18mm / 2.67 x 2.08 x 0.7"
Voltage: DC 12V to 36V (only DRV8825 driver can handle up to 36V, so please consider voltage for power supply)
Color: Red
Size: 20 x 15mm / 0.78 x 0.59"
Thermal Shutdown Circuit: Yes
Cross Current : Yes
Ground Fault : Yes
Short Circuit : Yes
Compatible Logic Voltage: 3.3V and 5V
Five Step Modes: Full, 1/2, 1/4, 1/8 and 1/16
Mix with slow current attenuation model.Internal UVLO and low RDS (on) output.
Automatic current attenuation mode Detection/Select.
Phase-in rectifier, low power consumption.
Warning: Connecting or disconnecting stepping motor while driver is powered on might damage driver.
Size: 8 x 8mm / 0.31 x 0.31"
Color: White
1 x V3 Extension Board
4 x Drivers
4 x Heat Sinks
