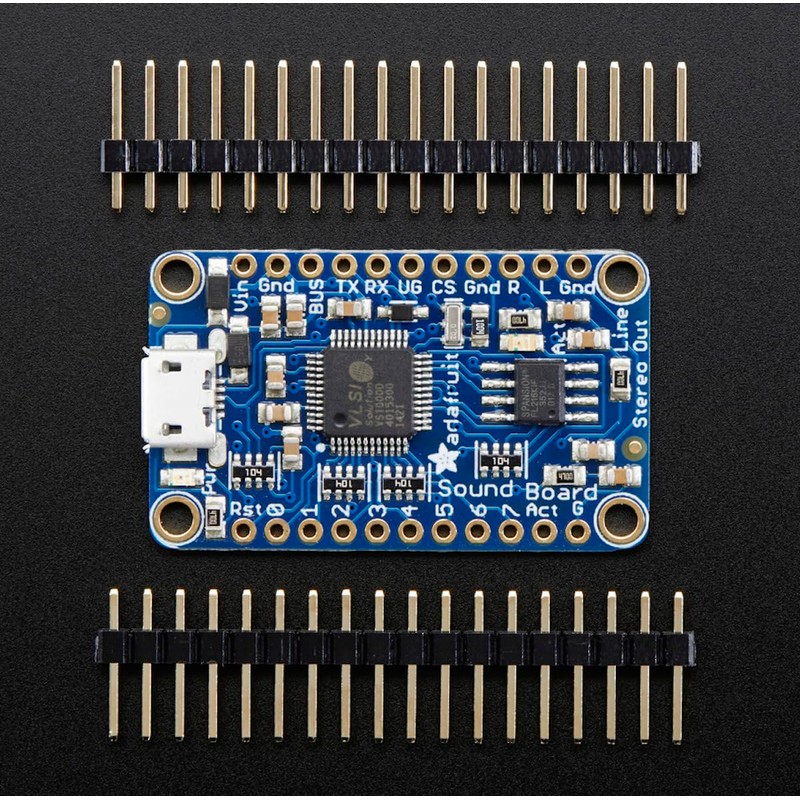

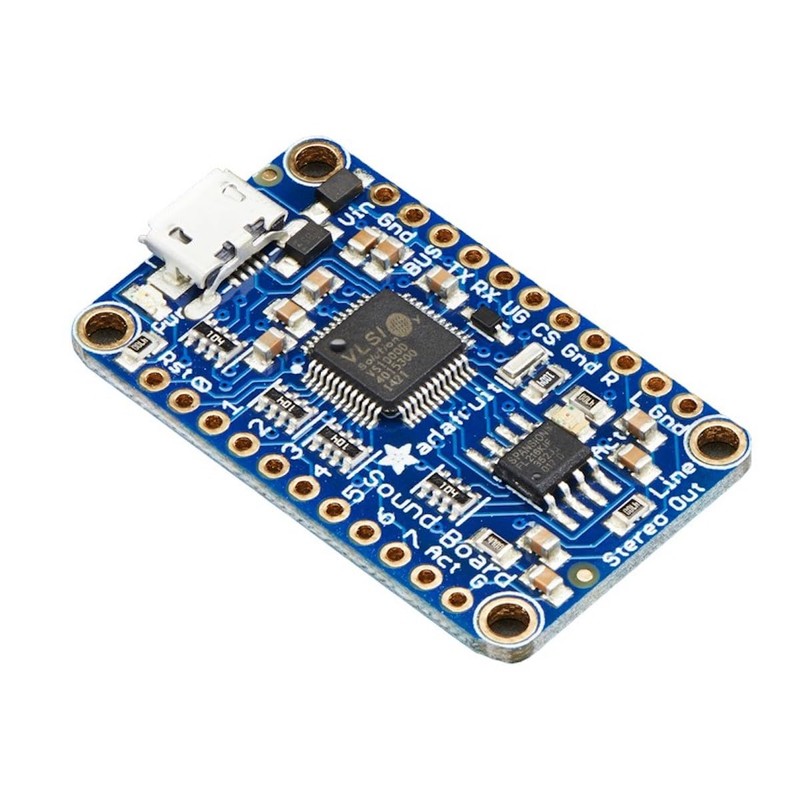

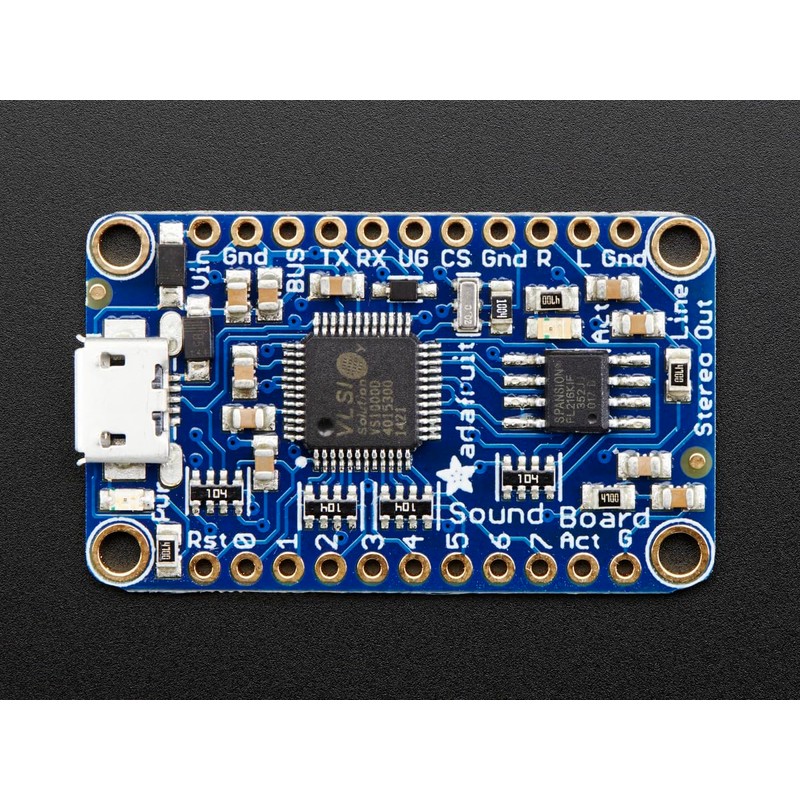

Adafruit Audio FX Mini Sound Board - WAV/OGG Trigger - 2MB Flash [ADA2342]
Adafruit Audio FX Mini Sound Board - WAV/OGG Trigger - 2MB Flash [ADA2342]
Adafruit Audio FX Mini Sound Board - WAV/OGG Trigger - 2MB Flash [ADA2342]
- Adafruit Audio FX Mini Sound Board
- WAV/OGG Trigger with 2MB Flash
- OGG audio format
- Operating Voltage: 3 to 5V DC
- Board Dimensions: 38mm x 23mm x 4mm / 1.5" x 0.9" x 0.2" Board Weight: 3.6g
| Brand: | Adafruit |
|---|---|
| Manufacturer: | Adafruit |
| Part Number: | 0M8UOR8 |
| Isin: | IPYRSFRKYRQY |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Would you like to add audio/sound effects to your next project, without an Arduino+Shield? Or maybe you don't even know how to use microcontrollers, you just want to make a sound play whenever you press a button. What about something that has to be very small and portable? You are probably feeling a little frustrated: it's been very hard to find a simple, low cost audio effects trigger that is easy to use and does not require any programming
The Sound Board has a lot of amazing features that make it the easiest thing ever:
No Arduino or other microcontroller required! It is completely stand-alone, just needs a 3 to 5.5VDC battery
Small - only 1.5" x 0.9"
2MB storage onboard. Good for a few minutes of compressed stereo, and maybe a half a minutes of uncompressed stereo. Double that if you go with mono.
Built in Mass Storage USB - Plug any micro USB cable into the Sound Board and your Windows computer, you can drag and drop your files right on as if it were a USB key
Compressed or Uncompressed audio - Go with compressed Ogg Vorbis files for longer audio files, or uncompressed WAV files
High Quality Sound - You want 44.1KHz 16 bit stereo? Not a problem! The decoding hardware can handle any bit/sample rate and mono or stereo
8 Triggers - Connect up to 8 buttons or switches, each one can trigger audio files to play
Stereo line out - Headphones, powered speakers or even wire up one of our amplifiers to make loud sounds. We also have a version with built-in stereo speaker amplifier
Five different trigger effects - by changing the name of the files, you can create five different types of triggers which will cover a large range of projects without any programming

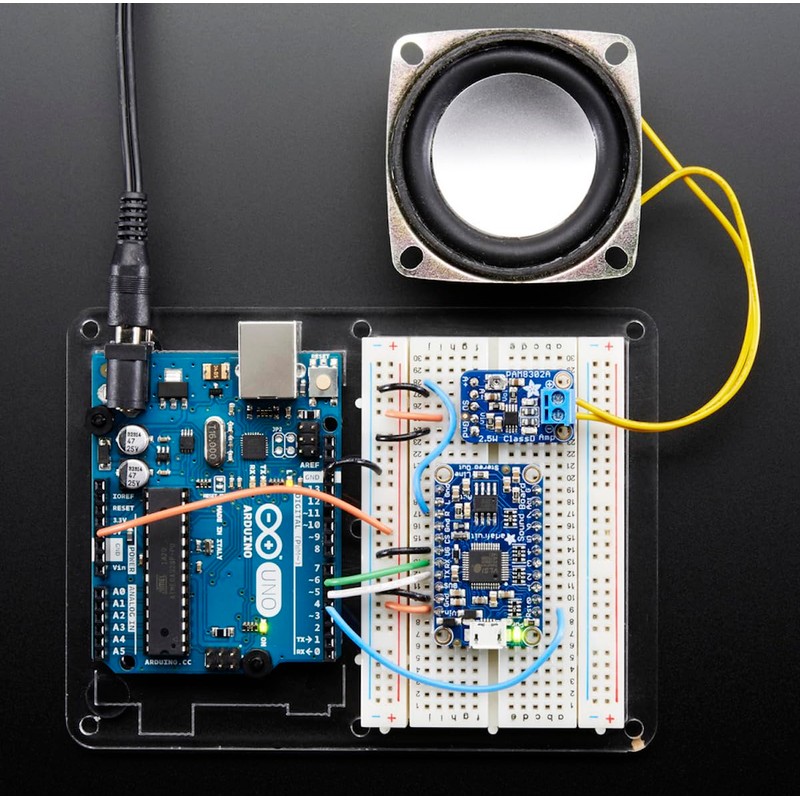

Control over UART (9600 Baud) via any microcontroller, we have an Arduino Library for basic control over playback and volume.
Trigger modes: Basic, Hold Looping, Latching loop, Play next, Play random
