A ABSOPRO Air Conditioner AC Compressor Clutch Kit for Nissan Murano Pathfinder 2013-2015 for Nissan Maxima Quest 2014 for Infiniti QX60 JX35 for DKS17D AC Compressor Clutch No.11167671

Brand: A ABSOPRO
  • [Fitment] This AC Compressor Clutch suit for Nissan Murano 2009-2014, for Nissan Pathfinder 2013, for Nissan Pathfinder 2014 V6 3.5L, for Nissan Pathfinder 2015 (To 9/2014), for Nissan Maxima 2008-2014, for Nissan Quest 2011-2015 (To 8/2014), for Infiniti QX60 2014-2015 V6 3.5L, for Infiniti JX35 2013 (From 11/2012), OE Number:67671/11167671/7512742/68671/92600JP01C/2021990AM/10000652/CO11319C/6512742/10347880/551274.Please confirm car make model year engine before purchase.
  • [Function& Specification] Compressor Style: for DKS17D, Pulley Groove Quantity: 7, Voltage: 12V, Pin: 2, Pulley Diameter (MM): 119mm/4.7". Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow. Air conditioning compressor clutch can solve the clutch stop rotating, not meshing noise, leakage, engine overload and other problems.
  • [Reliable Quality] Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off. Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft. Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch. Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.
  • [Installation] 1. Disconnect the car battery and Locate the AC compressor (usually belt-driven, near the engine). 2. Remove the Serpentine Belt, Disconnect the Clutch Electrical Connector, Remove the old Clutch Assembly( deattatch center bolt, the hub, snap ring, pulley and clutch coil). 3. Install the New Clutch Kit, Slide on the new pulley and secure it with snap ring, press hub onto, Adjust the Air Gap by Add or remove shims.4. Reassemble & Test the AC system(no noises, cold air output).
  • [Package] Included: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 1x Snap Rings, 2x Shims, 4x Bolts. Please replace AC Clutch if met: Worn-out clutch bearing, Damaged coil or electrical failure, Physical wear on the hub or pulley, AC compressor not engaging properly.
Brand: A ABSOPRO
Size: 6.1"x5.8"x2.6"
Color: Black
Manufacturer: A ABSOPRO
Part Number: 8R4HCCX
Material Type: Steel
Isin: IEHQREJXVUWL

$104.27

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
A ABSOPRO Air Conditioner AC Compressor Clutch Kit for Nissan Murano Pathfinder 2013-2015 for Nissan Maxima Quest 2014 for Infiniti QX60 JX35 for DKS17D AC Compressor Clutch No.11167671

A ABSOPRO Air Conditioner AC Compressor Clutch Kit for Nissan Murano Pathfind...

$104.27

OE Number:
67671/11167671/7512742/68671/92600JP01C/2021990AM/10000652/CO11319C/6512742/10347880/551274

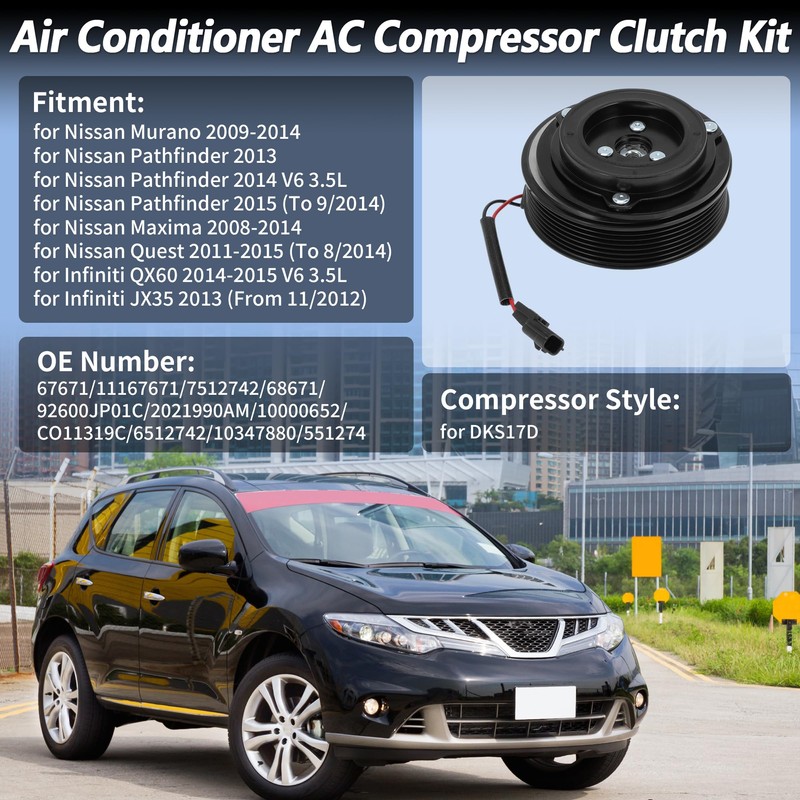

Fitment
for Nissan Murano 2009-2014,for Nissan Pathfinder 2013,for Nissan Pathfinder 2014 V6 3.5L,for Nissan Pathfinder 2015 (To 9/2014),for Nissan Maxima 2008-2014,for Nissan Quest 2011-2015 (To 8/2014),for Infiniti QX60 2014-2015 V6 3.5L,for Infiniti JX35 2013 (From 11/2012)

Specifications
Pin:2
Material: Steel
Compressor Style: for DKS17D
Pulley Groove Quantity: 7
Voltage: 12V

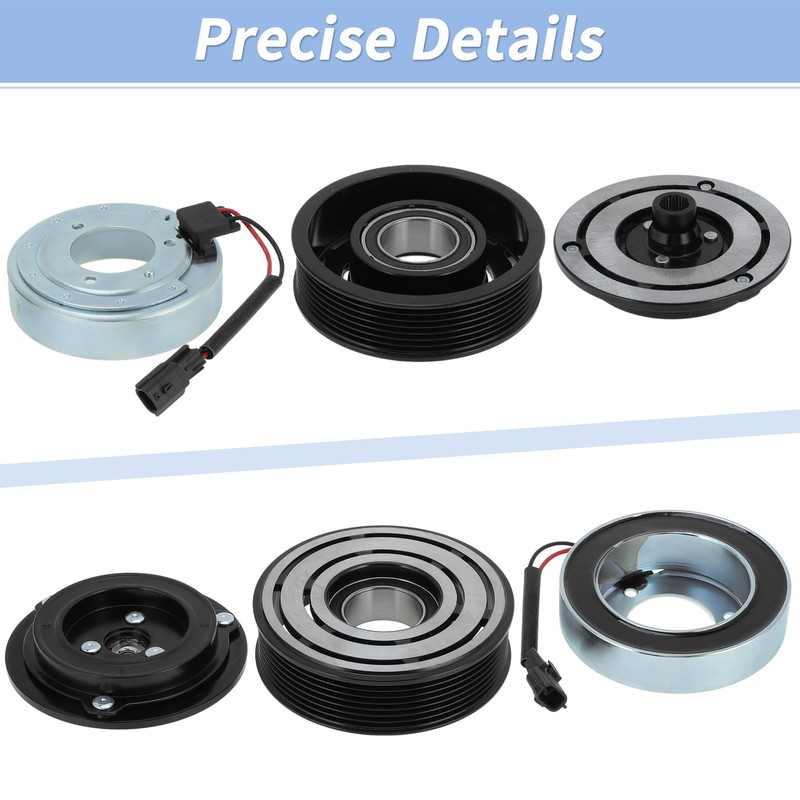

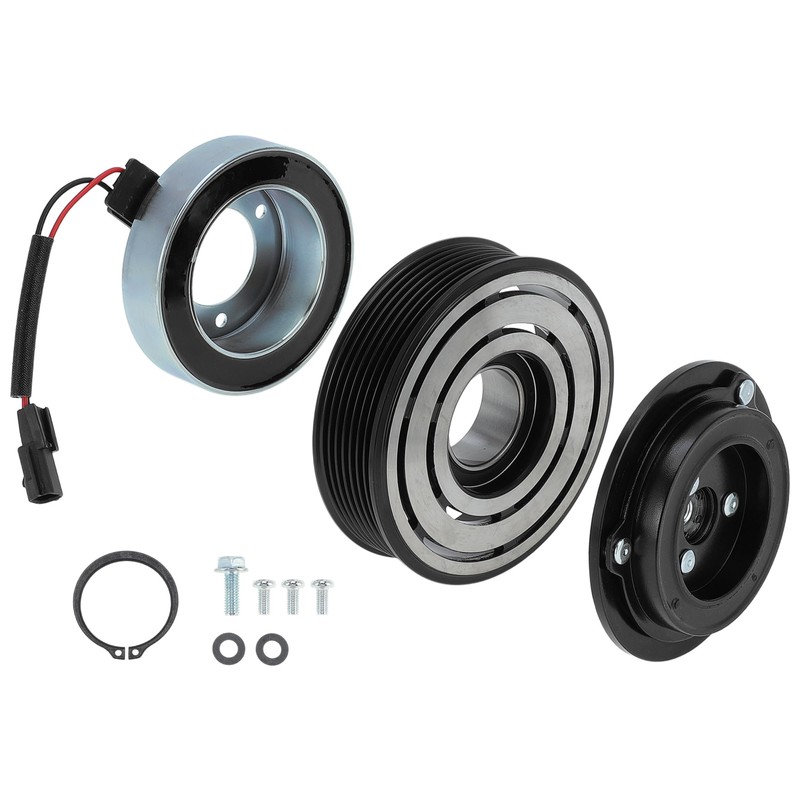

Package: 1x Pulley With Bearing, 1x Front Plate Hub, 1x Electromagnetic Coil, 1x Snap Rings, 2x Shims, 4x Bolts
This is a non-OEM product, accessory only!

Feature

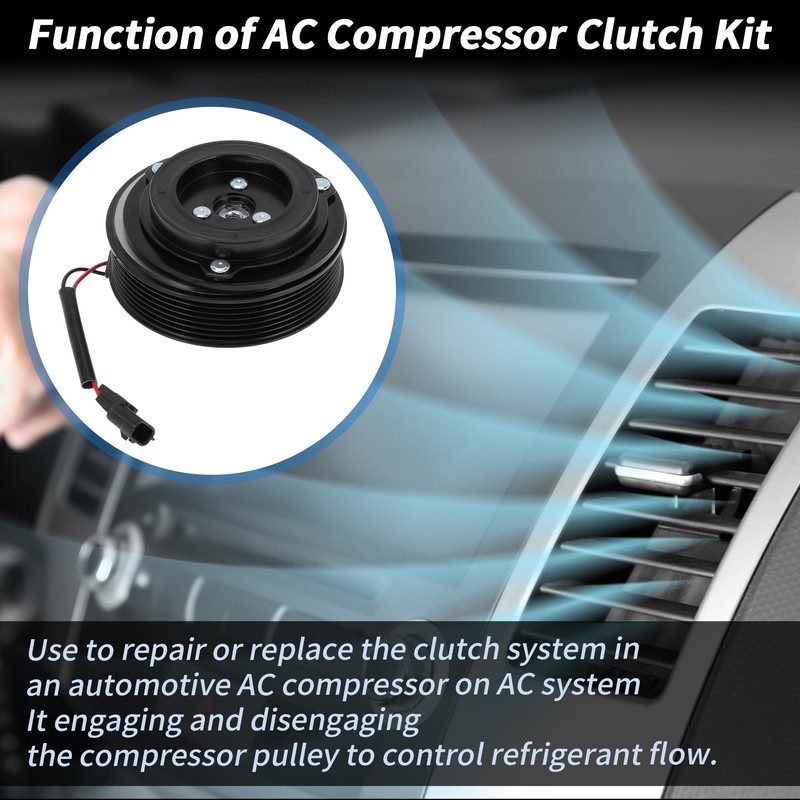

Use to repair or replace the clutch system in an automotive AC compressor on AC system, It engaging and disengaging the compressor pulley to control refrigerant flow.

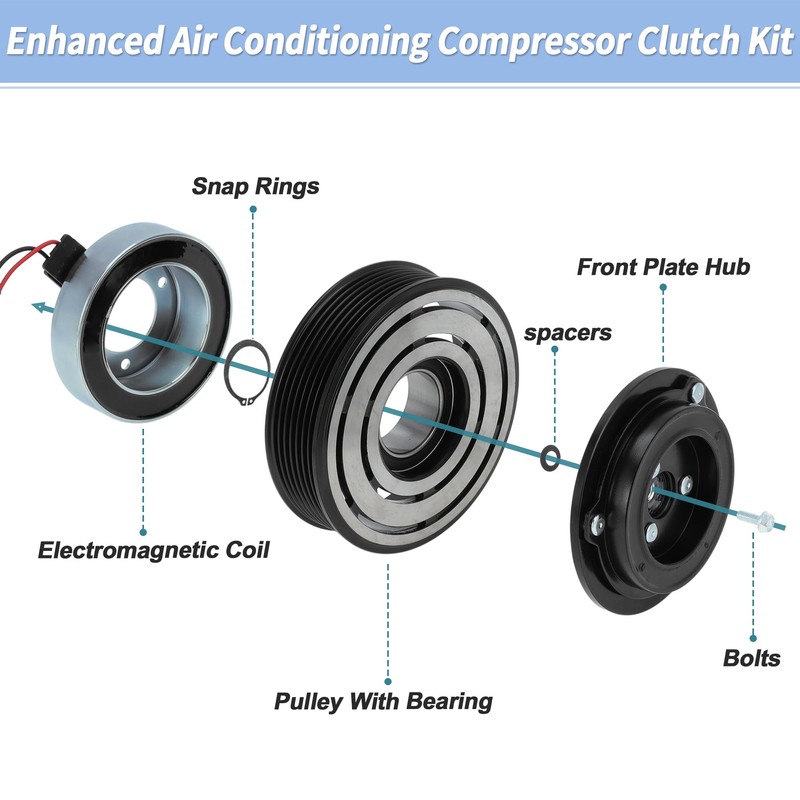

Steel Clutch Pulley Contains a sealed ball bearing for Rotates with the serpentine belt when the AC is off.
Steel Clutch Hub for Engages with the pulley when the coil is energized, turning the compressor shaft.
Steel Clutch Electromagnetic Coil with Copper inner for Generates a magnetic field to engage the clutch.
Spring steel Snap Rings & Shims for Adjusts the air gap between the clutch pulley and hub, Secures components in place.

Signal of a Failing AC Clutch:
AC blows warm air intermittently
Unusual grinding or squealing noises
Clutch does not engage when AC is on
Visible wear or damage on the clutch assembly

Replace AC Clutch if met:
Worn-out clutch bearing.
Damaged coil or electrical failure.
Physical wear on the hub or pulley.
AC compressor not engaging properly
