50 Caliber Racing 1/2 Heim Joint Rod End Kit 1/2 Heim Joints for 1" OD 120 Wall 8pc 4-Link Tie Rod

eBay listing template designed by DSUTV

Custom 4 Link Radius Rod fabrication kit

1/2" Chromoly Heim Joints - Bungs for 1" OD .120 wall

Product Description

50 Caliber Racing Custom 4-Link Heim Joint Rod End Kit - 1/2"-20 x 1/2 Chromoly Heims, Bungs for 1" OD .120 Wall

4-Link Rod end fabrication kit complete with 1/2 x 1/2 heat treated chromoly heim joints, jam nuts, and weld in bungs (tube adapter). Designed specifically for 1.0" OD tubing, with wall thickness of .120. Heim joints are made from 4130 Chromoly steel, with a kevlar / teflon PTFE liner. The load rating and size make these excellent for building a custom 4 link setup, radius rods, sway bar links and for UTVs, cars, trucks and more.

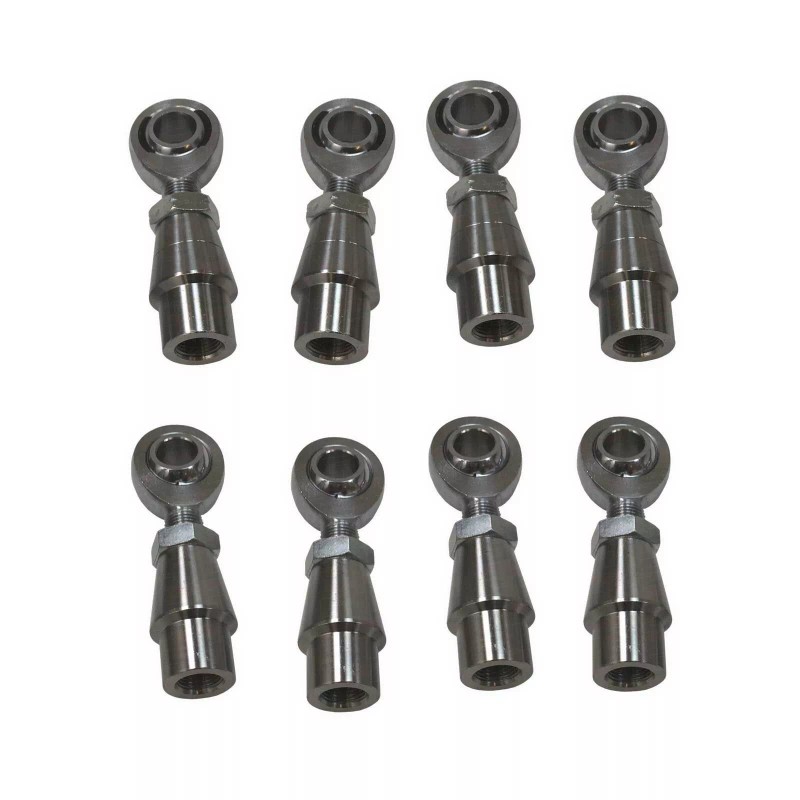

Includes:
- (4) 1/2-20 x 1/2 bore Heim Joints - RH Thread
- (4) 1/2-20 x 1/2 bore Heim Joints - LH Thread
- (4) RH Jam Nuts
- (4) LH Jam Nuts
- (4) RH Weld in Bungs
- (4) LH Weld in Bungs
* Does not include misalignment spacers. They are available separately, contact us for more info.

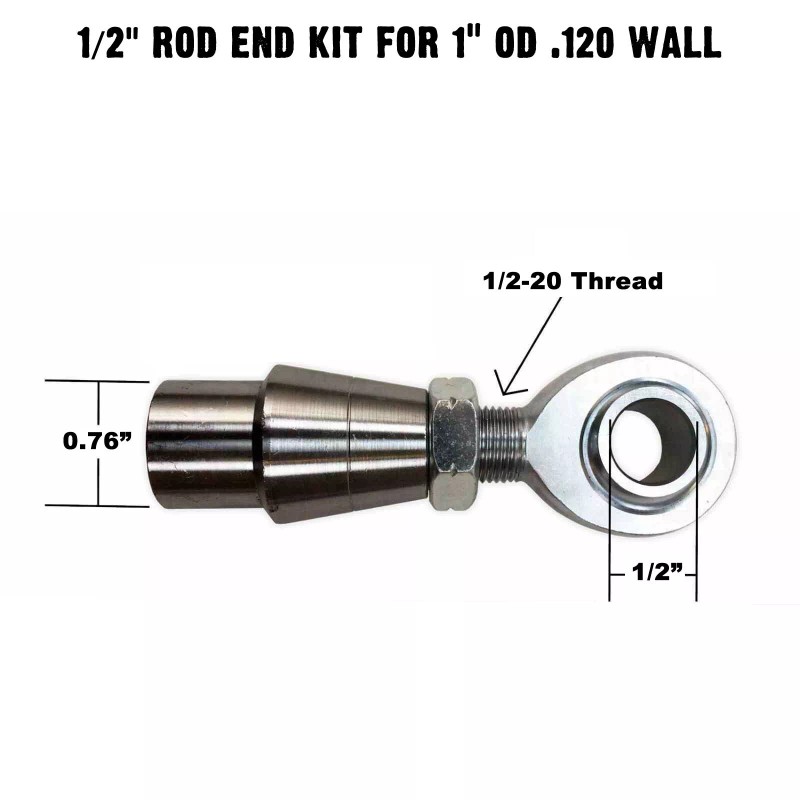

Specifications:

Heim Joints:
- 4130 Chromoly Steel with kevlar / teflon Liner
- Static radial load rating: 16,238 lb
- Thread pitch: 1/2"-20
- Bore: 1/2"
- Ball end diameter: 1.312"
- Socket width: .500"
- Ball width: .625
- Center line length: 2.438"

Bungs:
- Thread: Female 1/2"-20
- Material: Chromoly Steel
- Thread Length: Full length
- 1" OD x .120 Wall x 0.76" ID


Perfect for fabricating custom suspension and steering links on your go kart, sand rail, hot rod, race car, utv and more!

- 4-Link suspension
- Tie Rods
- Hi steer components
- Radius rods
- Panhard bar / trackbar
- Drag link
- Control arms
- Sway bar end links
- Custom Mounts


For more great Off Road products, scroll to the bottom of this ad, or go to our ebay store

50 Caliber Racing Rod End Kits

  • Heavy Duty 4130 Chromoly Heim Joints
  • Heim Joints have kevlar / teflon Liner
  • Low profile chromoly jam nuts
  • Beveled bungs for better clearance
  • Bungs are fully threaded all the way through
  • Extremely high load ratings for heim joint size
  • Excellent for fabricating all kinds of custom linkage
  • Free shipping to USA!
  • DS-6101A10-001
