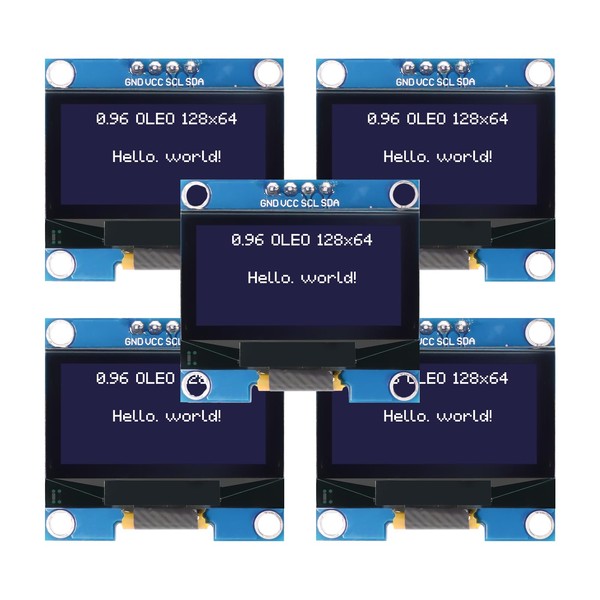

5 Pcs 0.96 Inch OLED I2C IIC Display Module, AYWHP 128x64 Pixel Serial Display Board, Module for Arduino Display and ESP32 Display Compatible with Arduino and Raspberry Pi(White)
5 Pcs 0.96 Inch OLED I2C IIC Display Module, AYWHP 128x64 Pixel Serial Display Board, Module for Arduino Display and ESP32 Display Compatible with Arduino and Raspberry Pi(White)
5 Pcs 0.96 Inch OLED I2C IIC Display Module, AYWHP 128x64 Pixel Serial Display Board, Module for Arduino Display and ESP32 Display Compatible with Arduino and Raspberry Pi(White)
- 【OLED Screen】Self-luminous OLED technology does not require backlight, has the advantages of high contrast, wide viewing angle and low energy consumption, and is clear and easy to read even with small fonts, making it very suitable for battery-powered devices and portable projects
- 【Low Power Consumption】OLED I2C IIC 128x64 resolution, clear display, high contrast, viewing angle greater than 160°, power consumption: 0.04W in normal operation, 0.08W when full screen is lit
- 【SSD1306】Supports I2C/IIC interface, IIC address can be changed, convenient for use with different machines Four square holes for easy installation, convenient for seamless connection with Arduino screen , Raspberry pi accessories and other microcontrollers.
- 【Easy to Integrate】The small size design of 0.96 inches is very suitable for electronic projects with limited space, and is easy to integrate in limited space, such as smart devices and wearable devices.
- 【Wide Compatibility】OLED I2C IIC Compatible with R3 board and Mega board, Raspberry pi, 51 MCU, STIM 32, etc., providing underlying driver technology support, suitable for various electronic projects and DIY applications
| Brand: | AYWHP |
|---|---|
| Color: | white |
| Manufacturer: | AYWHP |
| Part Number: | K3HV5TV |
| Isin: | IKP0ZUQDLTQX |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Description:

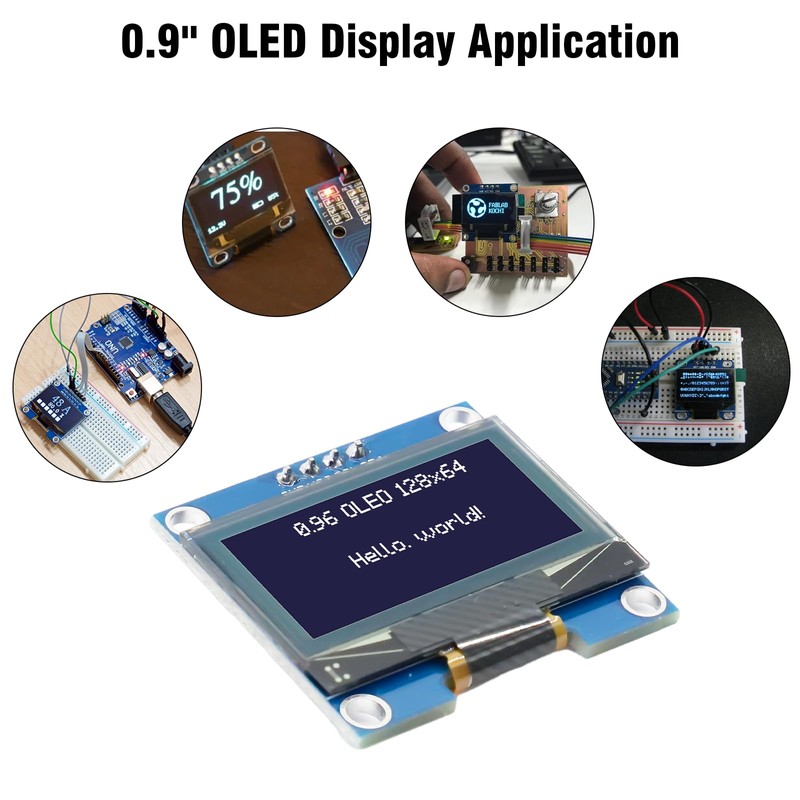

This 0.96-inch OLED I2C display module is an ultra-small, high-performance display with a 128x64 pixel OLED screen that supports high-contrast display effects, making it particularly suitable for embedded development and various DIY projects. Each set of products contains 5 display modules, which is suitable for large-scale project development or multi-device display needs. The OLED display module is connected to the main control board such as Arduino, ESP32, Raspberry Pi through the I2C protocol, which greatly facilitates wiring and connection, saves GPIO pins, and reduces the complexity of development. It has ultra-low power consumption, is suitable for low-power devices and mobile applications, and ensures long-term operation stability. This display module is widely used in various occasions such as robot control, IoT devices, data monitoring, home automation systems, etc.
Features:

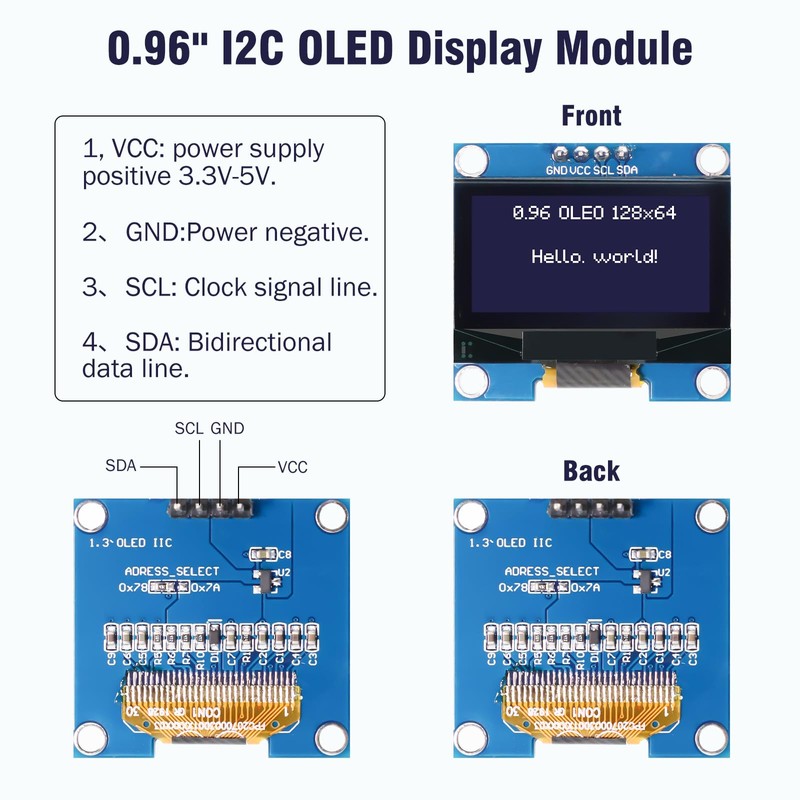

The IIC interface can be easily lit with only 2 IOs
Military-grade process standards, long-term stable operation
Provide a wealth of multi-platform routines and provide underlying driver technology support
Yellow-blue, white, and blue three-color display schemes are optional
Parameters:
Driver chip: SSD1315
Resolution: 128*64
Viewing angle: >160°
Power consumption: 0.04W
Wide voltage support: 3.3-5V DC
Operating temperature: -30℃-80℃
Communication mode: IIC, only 2 I/O interfaces are required
OLED self-luminous, no backlight required
Use modeling software to get characters
Specifications:
Screen size: 0.96 inches
Panel size: 27mm*27mm*4.1mm
Effective area: 21.74*10.86mm
Pixel pitch: 0.17*0.17mm
Pixel size: 0.15*0.15mm
Products include:
5 x 0.96 inch OLED I2C IIC display module
