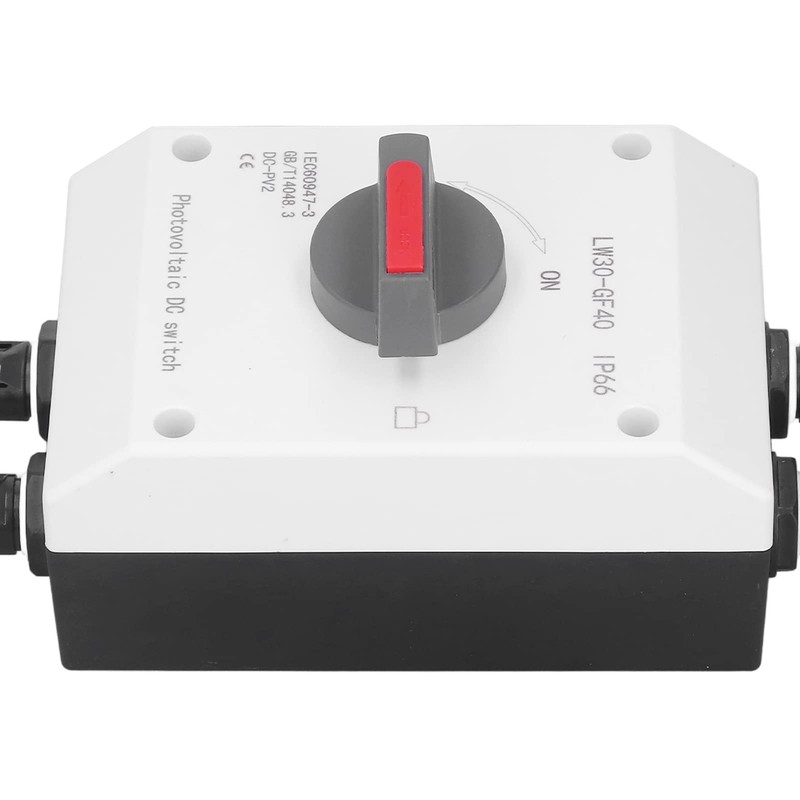

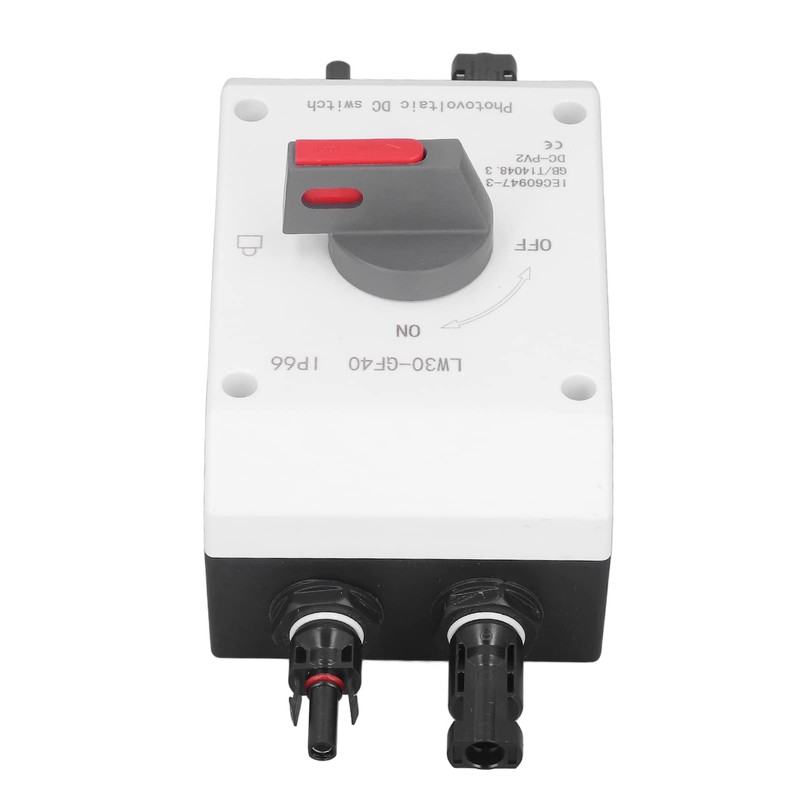

4P 1200VDC 32A Photovoltaic DC Isolator Solar Switch,IP66 Waterproof Insulated Switch for Solar Powered RV DC Switch ( Proctive)
4P 1200VDC 32A Photovoltaic DC Isolator Solar Switch,IP66 Waterproof Insulated Switch for Solar Powered RV DC Switch ( Proctive)
4P 1200VDC 32A Photovoltaic DC Isolator Solar Switch,IP66 Waterproof Insulated Switch for Solar Powered RV DC Switch ( Proctive)
Product Overview

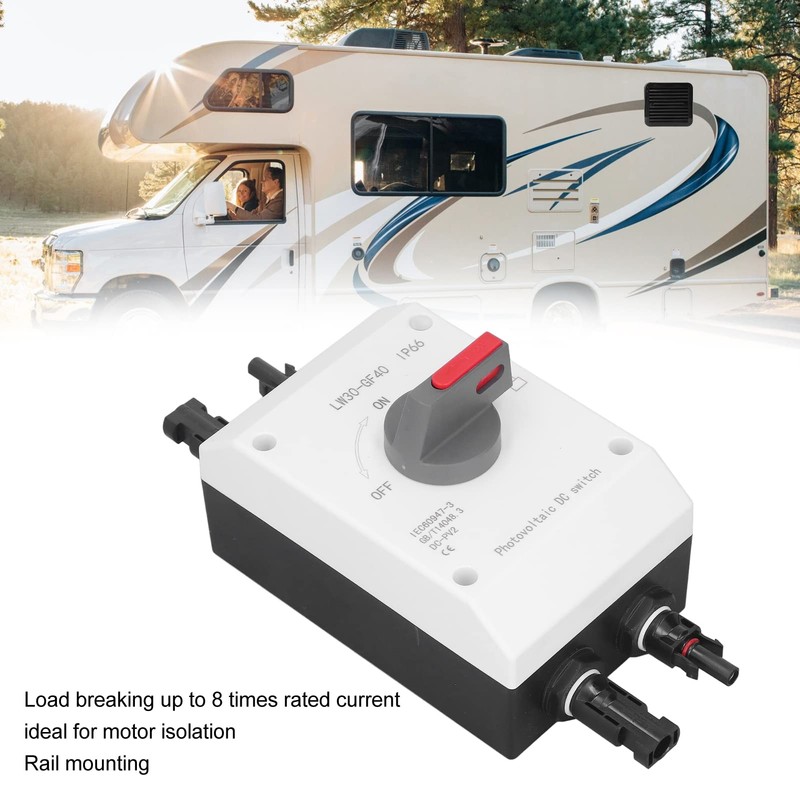

- PV ISOLATION SWITCH: can be plugged and unplugged repeatedly, automatic locking provides docking and long service life. Compact, suitable for places with limited space. rail mounting, very convenient. Load breaking up to 8 times rated current, making it ideal for motor isolation.

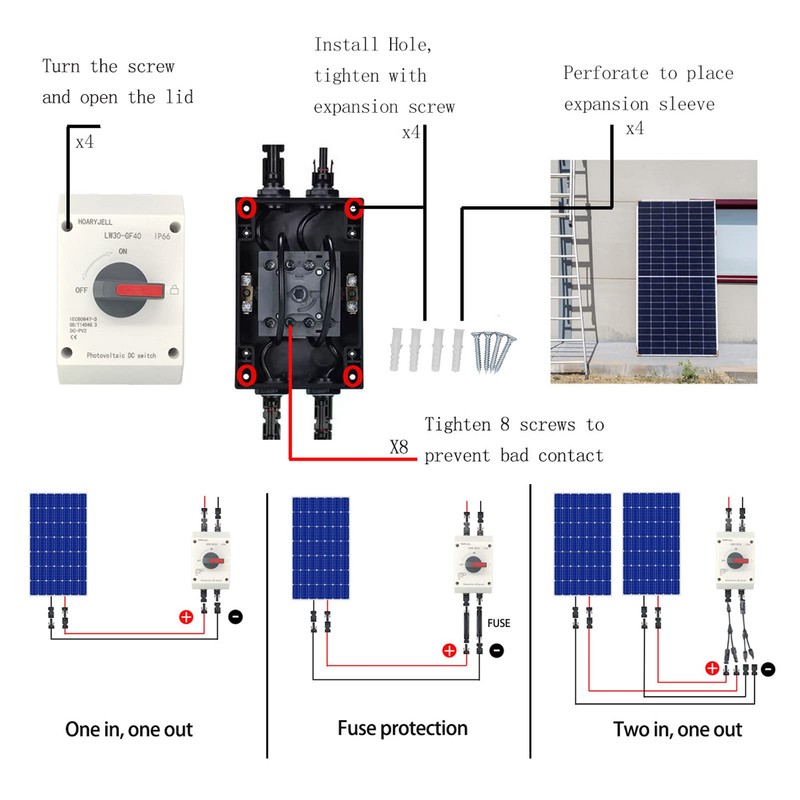

- DC MAIN SWITCH: It is used to turn off all poles of the solar module. It is installed on the string wire between the module and the grid inverter or controller. It is a high-quality circuit breaker. Depending on the configuration, it can switch up to 32A of switching current at voltages up to 1200V.
- IP66 WATERPROOF AND DUSTPROOF: exquisite housing, well selected materials, PC flame retardant material, good insulation, high water resistance, good dimensional stability, high temperature resistance, and alkali resistance.
- FEATURES: Magnetic double interrupter for effective arc suppression There are two inlet holes on both sides of the product for incoming and outgoing wires.

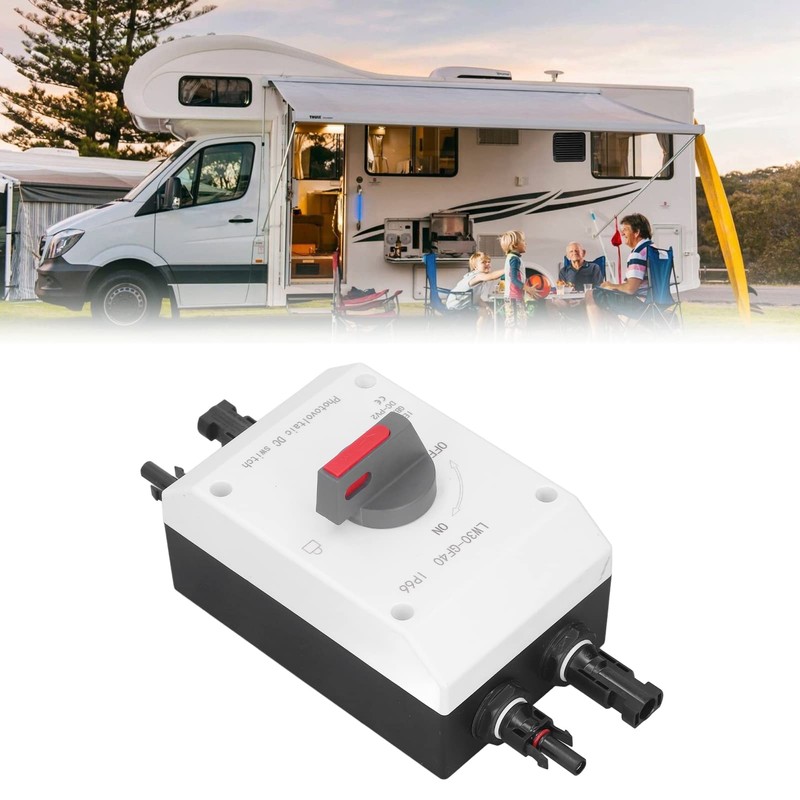

- WIDE APPLICATION: This switch is widely used for systems for RVs, boats and off grid, on grid solar systems.
| Brand: | Yunseity |
|---|---|
| Size: | Fuse Proctive |
| Color: | Popular |
| Manufacturer: | Yunseity |
| Part Number: | MF56X6Y |
| Material Type: | Polycarbonate |
| Isin: | IVY855WKAC1R |
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- PV ISOLATION SWITCH: can be plugged and unplugged repeatedly, automatic locking provides docking and long service life. Compact, suitable for places with limited space. rail mounting, very convenient. Load breaking up to 8 times rated current, making it ideal for motor isolation.
- DC MAIN SWITCH: It is used to turn off all poles of the solar module. It is installed on the string wire between the module and the grid inverter or controller. It is a high-quality circuit breaker. Depending on the configuration, it can switch up to 32A of switching current at voltages up to 1200V.
- IP66 WATERPROOF AND DUSTPROOF: exquisite housing, well selected materials, PC flame retardant material, good insulation, high water resistance, good dimensional stability, high temperature resistance, and alkali resistance.
- FEATURES: Magnetic double interrupter for effective arc suppression There are two inlet holes on both sides of the product for incoming and outgoing wires.
- WIDE APPLICATION: This switch is widely used for systems for RVs, boats and off grid, on grid solar systems.
| Brand: | Yunseity |
|---|---|
| Size: | Fuse Proctive |
| Color: | Popular |
| Manufacturer: | Yunseity |
| Part Number: | MF56X6Y |
| Material Type: | Polycarbonate |
| Isin: | IVY855WKAC1R |
Item Type: Photovoltaic DC Switch
Material: PC
Number of Poles: 4P
Maximum Rated Voltage: 1200V
Maximum Insulation Voltage: 1200V
Rated Current: 32A
Waterproof Grade: IP66
Standard: IEC60947 3
Ambient Temperature: -25℃ to +85℃
Insulation Voltage: DC1500V
Connection Method:M20, M25
Package List:
1 x Switch
4 x Screw
4 x Expansion Tube
or
1 x Switch 4 x Screw
4 x Expansion Tube
16 x Connector Accessory(4 Set)
1 x Wrench
or
1 x Switch
4 x Screw
4 x Expansion Tube
16 x Connector Accessory(4 Set)
1 x Wrench
2 x
or
1 x Switch
4 x Screw
4 x Expansion Tube
16 x Connector Accessory(4 Set)
1 x Wrench
2 x Y3 Connector
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
