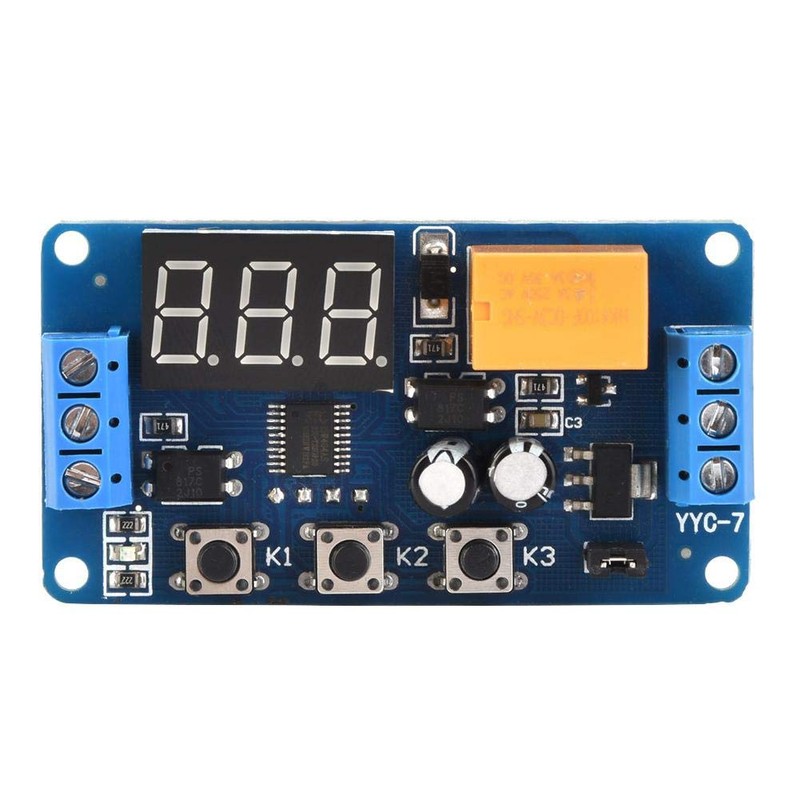

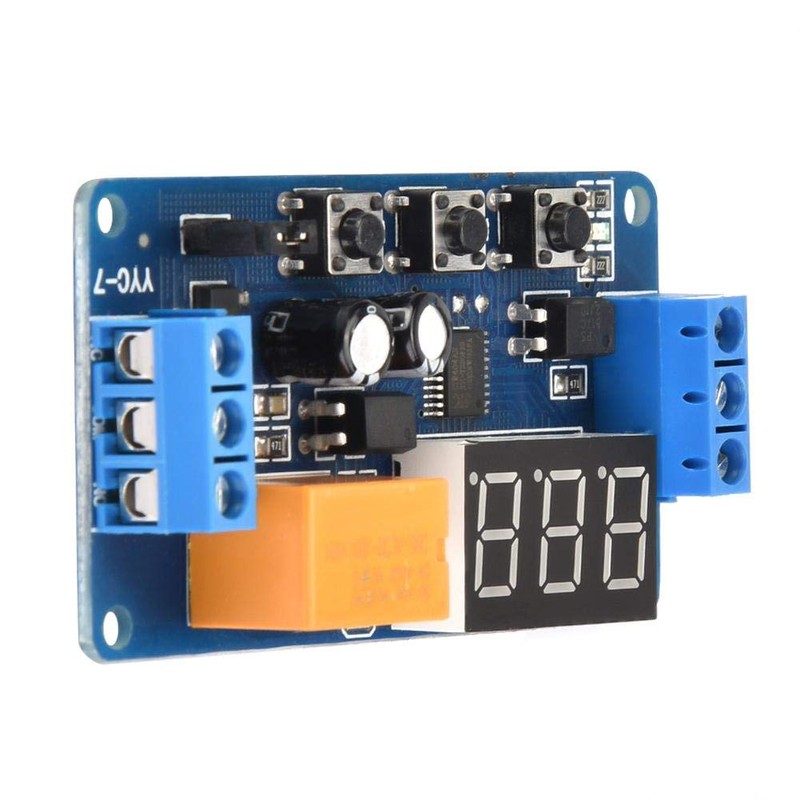

3V 3.7V 4.5V 5V 6V 7.4V Adjustable Cycle Timer Control Relay Time Delay Switch Module Timing Delay Relay Module Motor Bulb LED Belt DC Motor Compatible with Small Pump Timer Relay Module
3V 3.7V 4.5V 5V 6V 7.4V Adjustable Cycle Timer Control Relay Time Delay Switch Module Timing Delay Relay Module Motor Bulb LED Belt DC Motor Compatible with Small Pump Timer Relay Module
3V 3.7V 4.5V 5V 6V 7.4V Adjustable Cycle Timer Control Relay Time Delay Switch Module Timing Delay Relay Module Motor Bulb LED Belt DC Motor Compatible with Small Pump Timer Relay Module
- (Made of High Quality Materials) Made of high quality electronic components, it is reliable and has a long life. Excellent stability performance
- Commonly used battery configuration parameters: To provide power, you can use the commonly used 3.7V lithium battery, 5V power bank, and switching power supply. Output light bonding separation improves interference. This module uses an industrial circuit board, and the configuration parameters are stored after a power outage

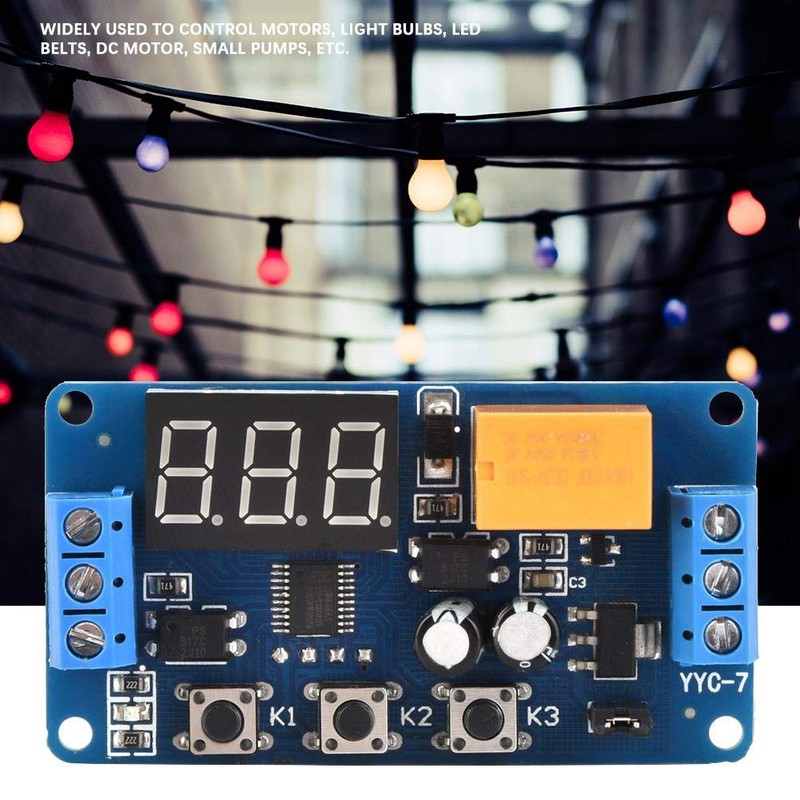

- (Applications) Widely used for controlling motors, bulbs, LED belts, DC motors, small pumps, etc
- (About Cycle Timer Relay) Working current: DC 3V - 7V; Voltage range without jumper: 3V - 5.5V Voltage range without jumper: 3.8V - 7V; Signal source: DC 3V - 12V (usually uses power positive trigger, button, PNP sensor, PLC signal, etc.); Output capacity: DC 30V 3A or AC 220V 3A. Yes ; Static Current : 15mA Working current: 30mA; Service life: > 100,000 times; Operating temperature: 40℃~85℃; Size: 64.2×34.8×15mm / 2.5×1.4×0.6in; Weight: 22g / 0.8oz (Approx.)
- (Package Quality Assurance): 1 x Cycle Timer Relay; Quality assurance: We strive to improve the quality, but if you have any problems with the product, please contact us and we will respond immediately. We will urgent return and refund policy
| Brand: | Walfront |
|---|---|
| Manufacturer: | Walfront |
| Part Number: | P241JDR |
| Isin: | IPUCIVRKLC0F |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Function:
Delay Time Range: Minimum 0.1 Second, Max 999 Minutes, Adjustable
P-1: The signal trigger relay is excited and the relay goes out after time. During Delay Period:
A: Reactivate trigger B: Trigger again to start new timing C: Trigger again to reset the relay and end timing
P-2: The signal trigger starts timing T1, and when time passes, the relay is excited for T2, then not excited (reset)
P-3: Cycle: T1 power transfer, T2 power stop, infinity cycle T1 and T2 are both adjustable.
A: After power-on, the relay will be connected first, then the continuous stop for the infinite cycle. B: After the power is turned on, the relay will be charged for infinite cycle after the first stop of power
P-4: The relay is excited when there is a signal. Timing starts when the signal goes off, and the relay will turn off. During the delay period, if the signal reappears, cancel the delay. And when the signal disappears, it will start timing again.
Mode Selection: After powering on, press and hold the K1 button for 2 seconds, then press K1 to enter selection mode P1-4. The K2 fits the model.
P-1: The signal trigger relay is excited and the relay goes out after time. During Delay Period:
A: Trigger is disabled B: Trigger again to start new timing C: Trigger again to reset the relay and end timing
P-2: The signal trigger starts timing T1, and when time passes, the relay is excited for T2, then not excited (reset)
P-3: Cycle: T1 power transfer, T2 power stop, infinity cycle T1 and T2 are both adjustable.
A: After power-on, the relay is first excited and then releases excitement for the infinity period. B:After power-on, the relay is first disappeared, then excited for the infinite period. P-4: The relay is excited when there is a signal. Timing starts when the signal goes off, and the relay will turn off. During the delay period, if the signal reappears, cancel the delay. And when the signal disappears, it will start timing again.
After selecting the working mode, press K1 to switch the function fine-tuning settings i.e. A, B, C.
Set time instruction:
K2: Shift button: Press to adjust the flashing position of the display. The K3 adjusts the flashing direction. The display will stop flashing until you press K2.
K3: When the display is flashing, K3 will adjust the number from 0 to 9.
When the display is not flashing, K3 will adjust the decimal position: Decimal point in the unit position indicates 0 to 999 minutes, "10" position indicates 0 to 99.9 seconds, without decimals means 0 to 999 seconds.
Note: Features P-2 and P-3 have two time groups that require adjustment. Press K2 6 times, the first 3 time adjust the time, the last 3 time to adjust the time (blue light indicates the time of the relay and the blue light off indicates the power stop time setting of the relay).
Delay Time Range: Minimum 0.1 Second, Max 999 Minutes, Adjustable
P-1: The signal trigger relay is excited and the relay goes out after time. During Delay Period:
A: Reactivate trigger B: Trigger again to start new timing C: Trigger again to reset the relay and end timing
P-2: The signal trigger starts timing T1, and when time passes, the relay is excited for T2, then not excited (reset)
P-3: Cycle: T1 power transfer, T2 power stop, infinity cycle T1 and T2 are both adjustable.
A: After power-on, the relay will be connected first, then the continuous stop for the infinite cycle. B: After the power is turned on, the relay will be charged for infinite cycle after the first stop of power
P-4: The relay is excited when there is a signal. Timing starts when the signal goes off, and the relay will turn off. During the delay period, if the signal reappears, cancel the delay. And when the signal disappears, it will start timing again.
Mode Selection: After powering on, press and hold the K1 button for 2 seconds, then press K1 to enter selection mode P1-4. The K2 fits the model.
P-1: The signal trigger relay is excited and the relay goes out after time. During Delay Period:
A: Trigger is disabled B: Trigger again to start new timing C: Trigger again to reset the relay and end timing
P-2: The signal trigger starts timing T1, and when time passes, the relay is excited for T2, then not excited (reset)
P-3: Cycle: T1 power transfer, T2 power stop, infinity cycle T1 and T2 are both adjustable.
A: After power-on, the relay is first excited and then releases excitement for the infinity period. B:After power-on, the relay is first disappeared, then excited for the infinite period. P-4: The relay is excited when there is a signal. Timing starts when the signal goes off, and the relay will turn off. During the delay period, if the signal reappears, cancel the delay. And when the signal disappears, it will start timing again.
After selecting the working mode, press K1 to switch the function fine-tuning settings i.e. A, B, C.
Set time instruction:
K2: Shift button: Press to adjust the flashing position of the display. The K3 adjusts the flashing direction. The display will stop flashing until you press K2.
K3: When the display is flashing, K3 will adjust the number from 0 to 9.
When the display is not flashing, K3 will adjust the decimal position: Decimal point in the unit position indicates 0 to 999 minutes, "10" position indicates 0 to 99.9 seconds, without decimals means 0 to 999 seconds.
Note: Features P-2 and P-3 have two time groups that require adjustment. Press K2 6 times, the first 3 time adjust the time, the last 3 time to adjust the time (blue light indicates the time of the relay and the blue light off indicates the power stop time setting of the relay).
