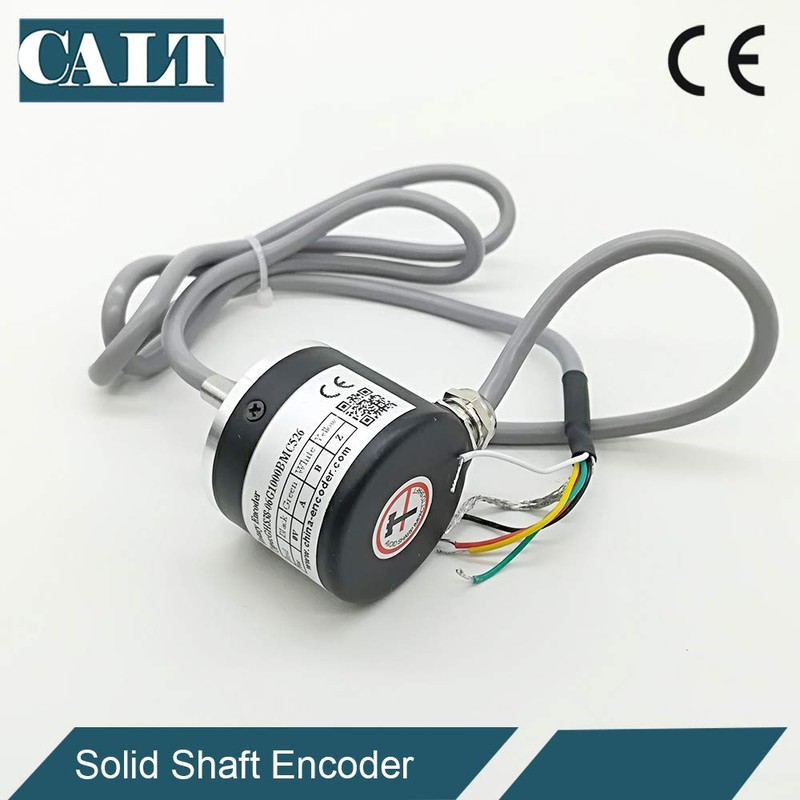

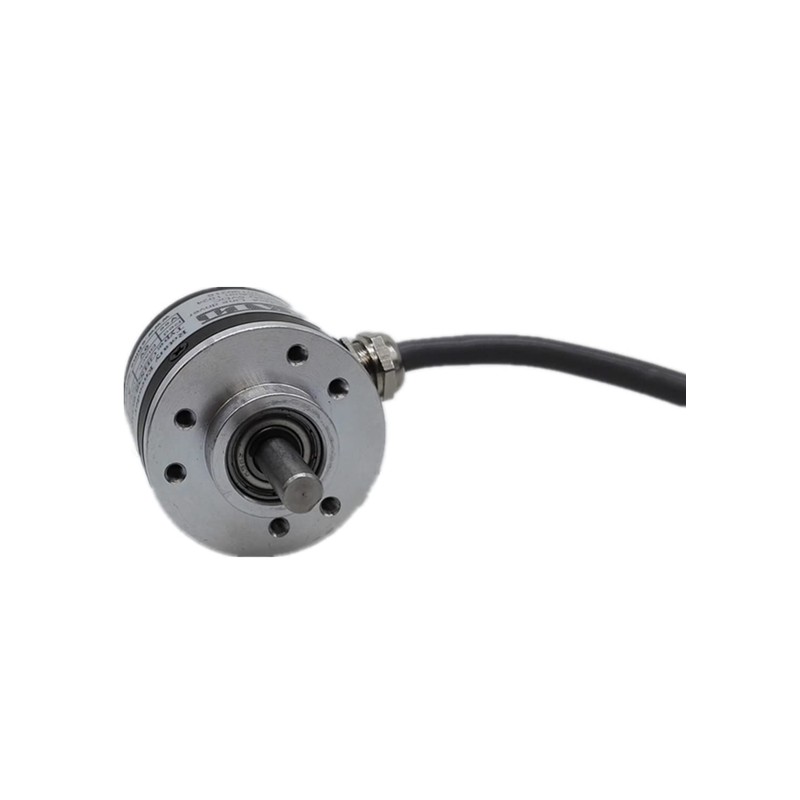

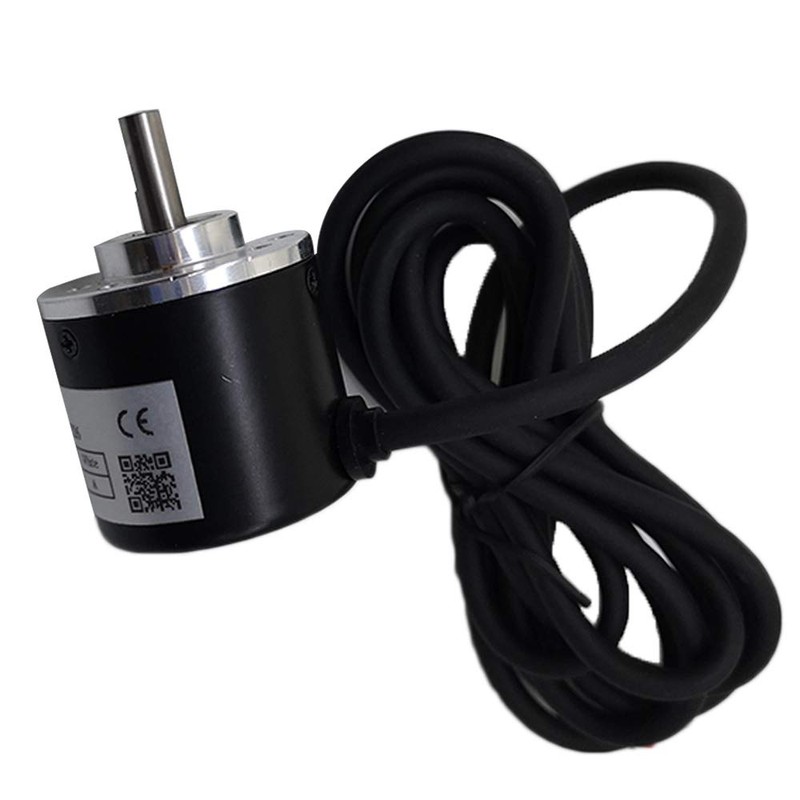

38mm Body Diameter 6mm Solid Shaft Rotary Encoder 2000PPR Line Driver Output 5V Power Supply

Brand: CALT

Product Overview

  • 【Package Included】1PCS GHS38 Solid Shaft Incremental rotary encoder
  • 【Electrical Specifications】2000P/R Resolution, Line Driver output with ABZ signals, DC5V power supply
  • 【Mechanical Specifications】Encoder size Ø38mm x 38mm/1.49" x 1.49"; Shaft size 6mm x 12.5mm/0.23" x 0.49". Net Weight 100g/0.22 pounds. Work Temperature -30~85ºC
  • 【Product material】Stainless steel shaft has a higher stability and protection. Aluminum alloy shell
  • 【Features and Application】Good reliability, long life and anti-jamming performance. This encoder can be widely used in automatic control, automatic measurement, as the angle and speed sensors
Brand: CALT
Size: 2000PPR
Color: Line driver with 5V
Manufacturer: CALT
Part Number: EWK93KQ
Material Type: Aluminum
Isin: I8U1DENUOGYJ

$92.03

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

More seller options

Starting from

Compare all sellers
scroll to top arrow
38mm Body Diameter 6mm Solid Shaft Rotary Encoder 2000PPR Line Driver Output 5V Power Supply

38mm Body Diameter 6mm Solid Shaft Rotary Encoder 2000PPR Line Driver Output ...

$92.03

Product Overview

  • 【Package Included】1PCS GHS38 Solid Shaft Incremental rotary encoder
  • 【Electrical Specifications】2000P/R Resolution, Line Driver output with ABZ signals, DC5V power supply
  • 【Mechanical Specifications】Encoder size Ø38mm x 38mm/1.49" x 1.49"; Shaft size 6mm x 12.5mm/0.23" x 0.49". Net Weight 100g/0.22 pounds. Work Temperature -30~85ºC
  • 【Product material】Stainless steel shaft has a higher stability and protection. Aluminum alloy shell
  • 【Features and Application】Good reliability, long life and anti-jamming performance. This encoder can be widely used in automatic control, automatic measurement, as the angle and speed sensors
Brand: CALT
Size: 2000PPR
Color: Line driver with 5V
Manufacturer: CALT
Part Number: EWK93KQ
Material Type: Aluminum
Isin: I8U1DENUOGYJ

Description

The Incremental Rotary Encoder is designed to provide pulse feedback when the shaft is rotated. It is low cost yet compact, high quality and an incremental rotary encoder.
Widely used in Steel Industry, Textile Machinery, Port Machinery, Plastic Machinery, Lifting Machinery, Pressure Machinery, Glass Machinery, Printing Machinery, Wood Machinery, Packaging Machinery, Machine Tool, ogistics Machinery, Tire Machinery, Electronics and Solar, Elevator.

Color: Like the picture show
power supply:DC5-26V wide voltage or DC5V
Speed: more than 6000 r / min
Size: Shaft: 6mm Dia, Shell Size: 38mm Dia,
Output: Line Driver output with ABC A-B-C- signals ;Voltage out put ;Push-pull with ABZ 3 signals;NPN
Connection:
When 3 channels: Red=VCC, Black = 0V, Green = A, White = B, Yellow = Z
When 6 channels: Red = VCC, Black = 0V, Green = A, White = B, Yellow = Z, Brown=A-, Grey=B-, Orange= Z
Note: If the encoder is not connected to the device can not be directly oscilloscope oscilloscope (open collector output without pull-up resistor when there is no voltage output) If you want the oscilloscope in AB two-phase output with two pull-up resistors. Cable:1meter cable side
