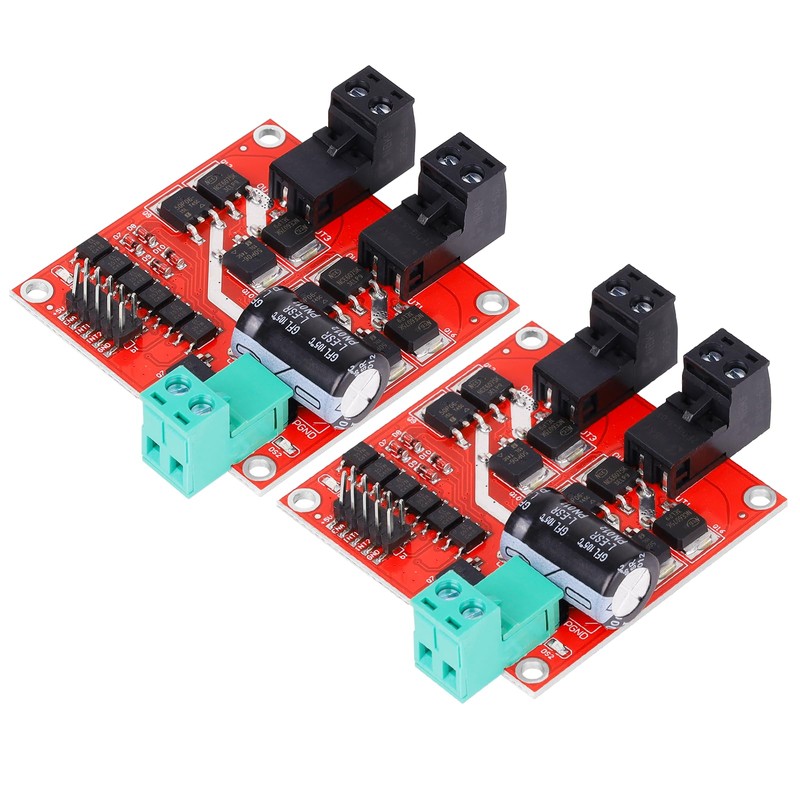

160W DC Motor Driver,L298 Dual H Bridge Motor Speed Controller 6.5V-27V 7A PWM Motor Regulator Board,Electric Motor Control Module Industrial with Optocoupler Isolation 2 Pack

Brand: Ransanx

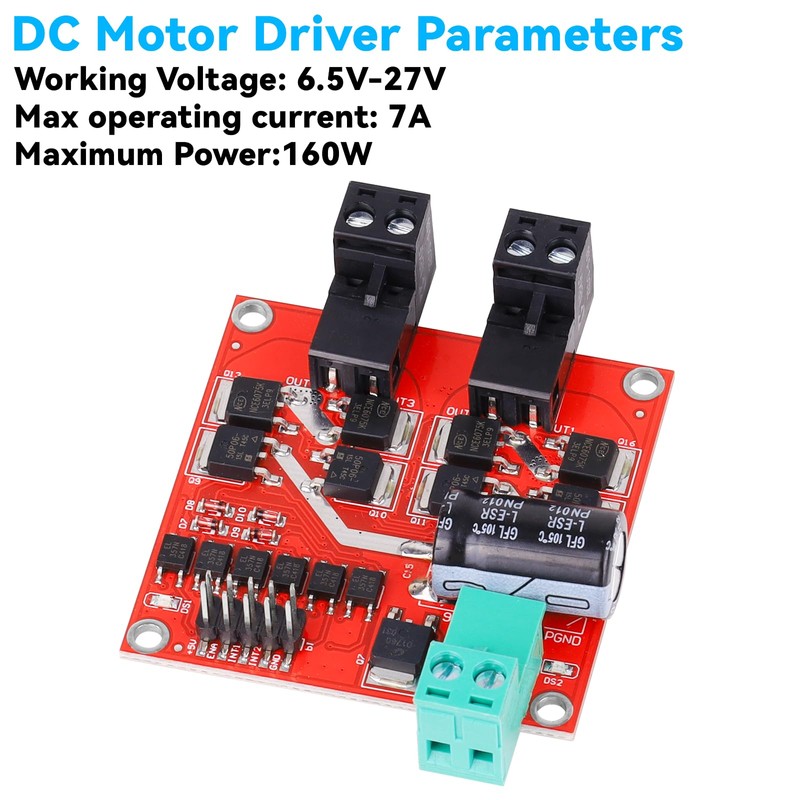

  • 【DC Motor Driver Parameters】Input Voltage Range Of DC 6.5V-27V, Can Be Input DC 12V Or 24V, The Rated Output Current Of Each Port is 7A, The Total Output Power is 160W
  • 【Motor Speed Controller】Motor Controller Board With Double H-Bridge, Can Drive Two DC Motors At The Same Time, Single Circuit 7A Current, High Power

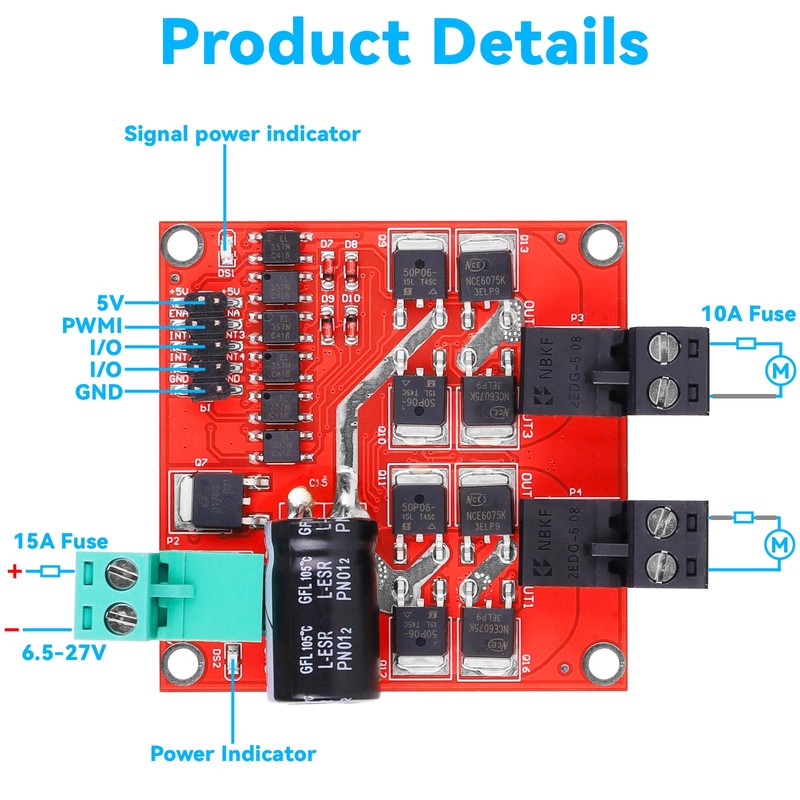

  • 【Forward And Reverse Function】With In1, In2/In3, In4 Identification Port Can Control The Motor Forward Or Reverse Rotation.
  • 【PWM Motor Speed Control】Enable Signal Terminal (Ena) Input PWM Can Be Adjusted Speed, Pwm Frequency Range 0-10khz
  • 【Safe And Reliable】① Motor Drive Module With Undervoltage Protection To Prevent Transient High-Current Damage To The Module ② Signal Opto-Coupler Isolation Input, Can Be Directly Controlled By The Io Port, Without Interference ③ High-Power Tvs And Electrostatic Discharge Circuit, Inhibit Transient Interference Pulses And Static Electricity, Enhance The Emc Performance, The Product Is Stable And Reliable, Industrial-Grade Design
Brand: Ransanx
Manufacturer: Ransanx
Part Number: 21NS598
Isin: IHW7FOOPJHFZ

$43.38

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
160W DC Motor Driver,L298 Dual H Bridge Motor Speed Controller 6.5V-27V 7A PWM Motor Regulator Board,Electric Motor Control Module Industrial with Optocoupler Isolation 2 Pack

160W DC Motor Driver,L298 Dual H Bridge Motor Speed Controller 6.5V-27V 7A PW...

$43.38

Notes:
1. The driver power supply cannot be connected upside down. It is recommended to connect a fuse in series at the power interface, and the voltage should be between 6.5 and 27V. If the voltage is overvoltage, the drive module may be burned when powered on.

2. It is recommended that the rated output current of the power supply be more than 2 times the rated current of the motor, so as not to cause the power supply to fail to provide the current required when the motor starts, resulting in the power supply voltage falling and the power supply voltage not reaching the input voltage required by the driver, so that the drive module performs undervoltage protection. Turn off the output and cause the motor to stall.

3. The motor interface cannot be short-circuited, otherwise the drive module may be burned. It is recommended to connect a 10A fuse in series at the motor interface.

4. When switching between forward and reverse, you need to brake above 0.1S before reversing. You can't reverse the motor before it stops, otherwise the driver may be damaged.

5. When the drive module is powered off, do not directly or indirectly rotate the motor at high speed, otherwise the electromotive force generated by the motor may burn the drive module. If the application needs to rotate the motor at high speed when the drive module is powered off, it is recommended to connect a relay in series (NO and COM ends are connected in series) to the motor interface of the driver, and the relay coil is shared with the driver. In this way, when the power supply is powered off, the relay will disconnect the driver from the motor.

6. Be careful not to let the driver get wet, do not let the components on the driver board short circuit, and do not touch the pins and pads of the components on the board with your hands.
