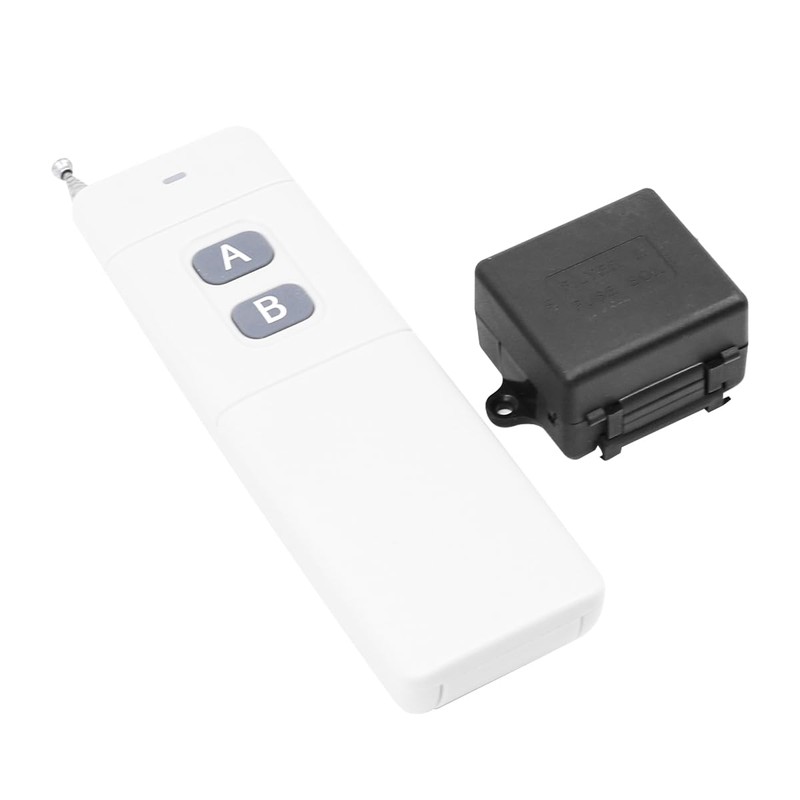

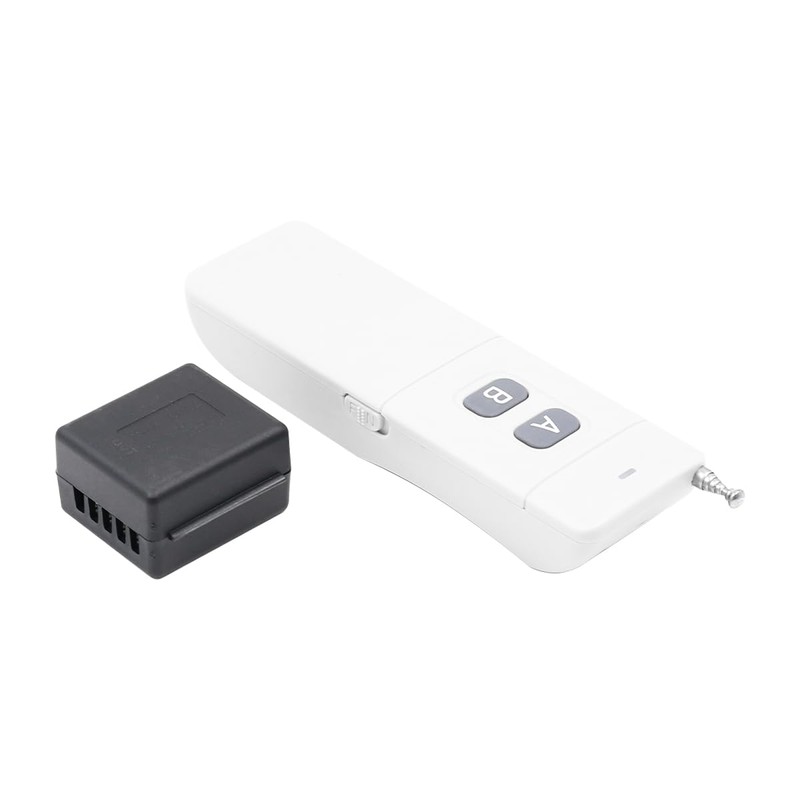

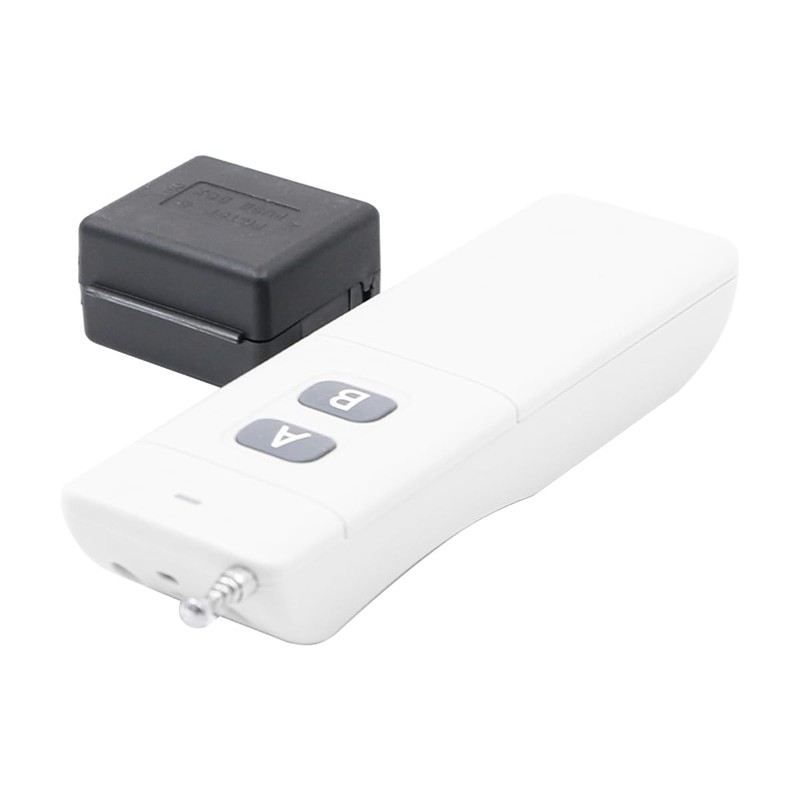

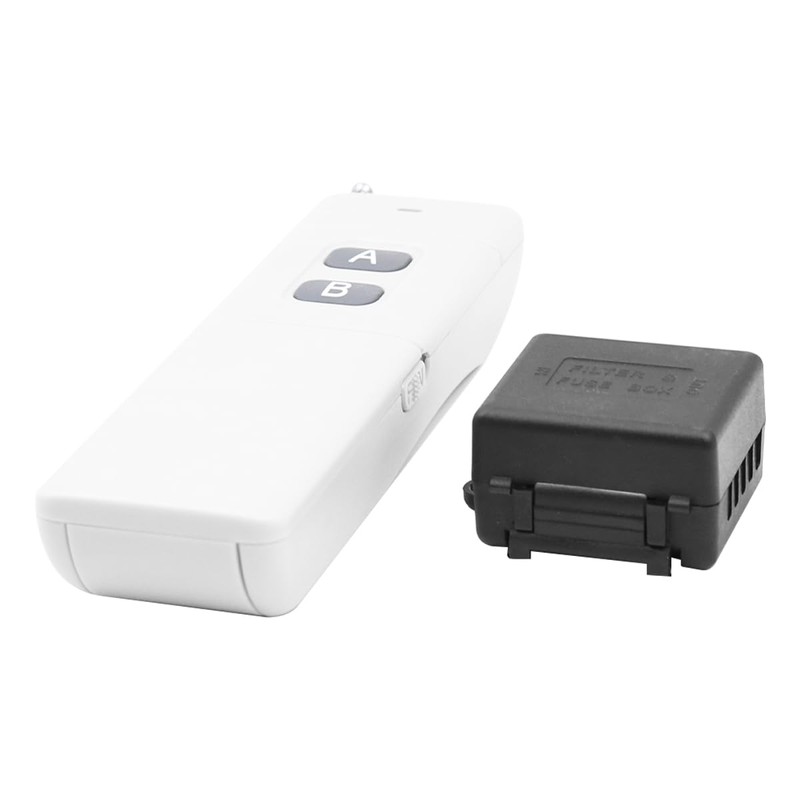

ZONADAH DC8V Wireless Remote Switch 3280ft Long Range 433Mhz 1 RF Relay Receivers Wireless Relay Momentary Switch for Garage Doors Lights Windows
ZONADAH DC8V Wireless Remote Switch 3280ft Long Range 433Mhz 1 RF Relay Receivers Wireless Relay Momentary Switch for Garage Doors Lights Windows
ZONADAH DC8V Wireless Remote Switch 3280ft Long Range 433Mhz 1 RF Relay Receivers Wireless Relay Momentary Switch for Garage Doors Lights Windows
- 1. Advanced Decoding Technology: With MCU software decoding, our Switch Module ensures precise and secure control. It supports intelligent learning types such as 1527 and traditional fixed codes like 2262, offering compatibility with a wide range of devices.
- 2. Versatile Power Management: The Switch Module operates flawlessly within a DC voltage range of 5.5-30V, handling loads of up to 10A. Its compact design, measuring 40x37x25mm, showcases the integration of ABS and PC plastics for durability.
- 3. Multi-mode Operation: Choose from a variety of working modes, including momentary, latching, interlock, delay switch, and incoming call light activation (5s, 10s, 1s, 20s). Tailor the module to your specific needs effortlessly.
- 4. Extended Wireless Range: The Remote Control, operating at 433MHz, boasts an impressive reception distance of 50-1000 meters. The ASK modulation ensures robust anti-interference, allowing seamless control within this vast range.
- 5. High Sensitivity and Outstanding Performance: The Switch Module and Remote Control offer high sensitivity, ensuring optimal performance across diverse environmental conditions. Whether it's through walls, floors, or doors, these devices deliver reliable control.
| Brand: | ZONADAH |
|---|---|
| Manufacturer: | ZONADAH |
| Part Number: | QY57LTY |
| Product Dimensions: | 4.72 x 2.76 x 1.57 inches; 6.4 ounces |
| Isin: | IZYW4AJGWF8B |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.
Specifications:

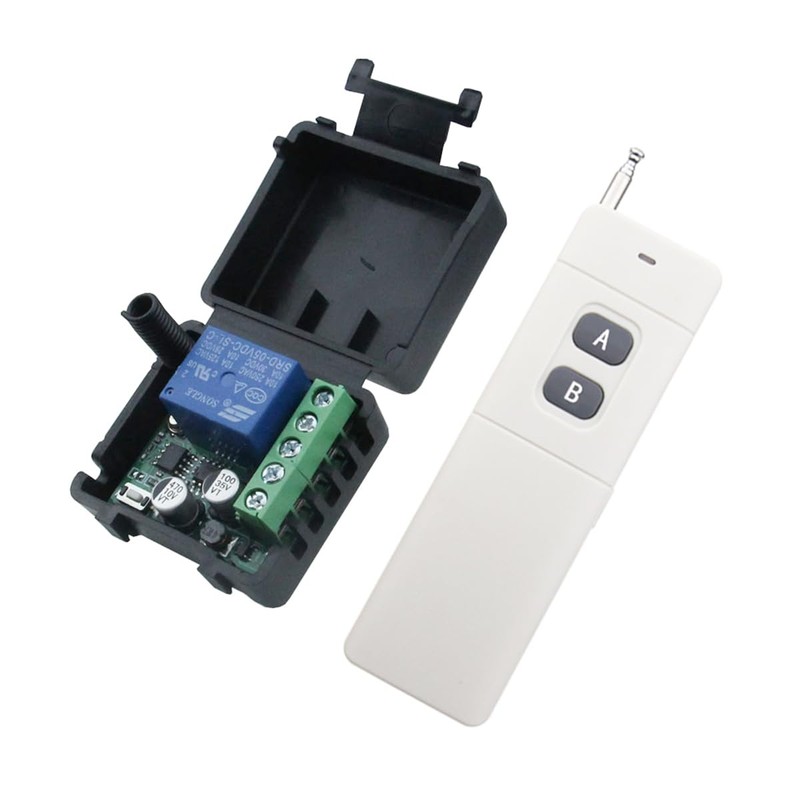

Switch Module:
- Working voltage: DC 5.5-30V
Load current: ≤ 10A.
- Modulation: ASK.
- Output type: 1 channel relay switching signal (load current <10A)
- Standby current: 3.6mA ~ 10mA.
- Storage capacity: up to 20 remote controls
- Multiple working modes: momentary, latching, delay switch, incoming call light on (5s, 10s, 1s, 20s)
- RF frequency: 433MHz.
- RF working mode: super heterodyne reception
Receiver sensitivity: > 97dBm.

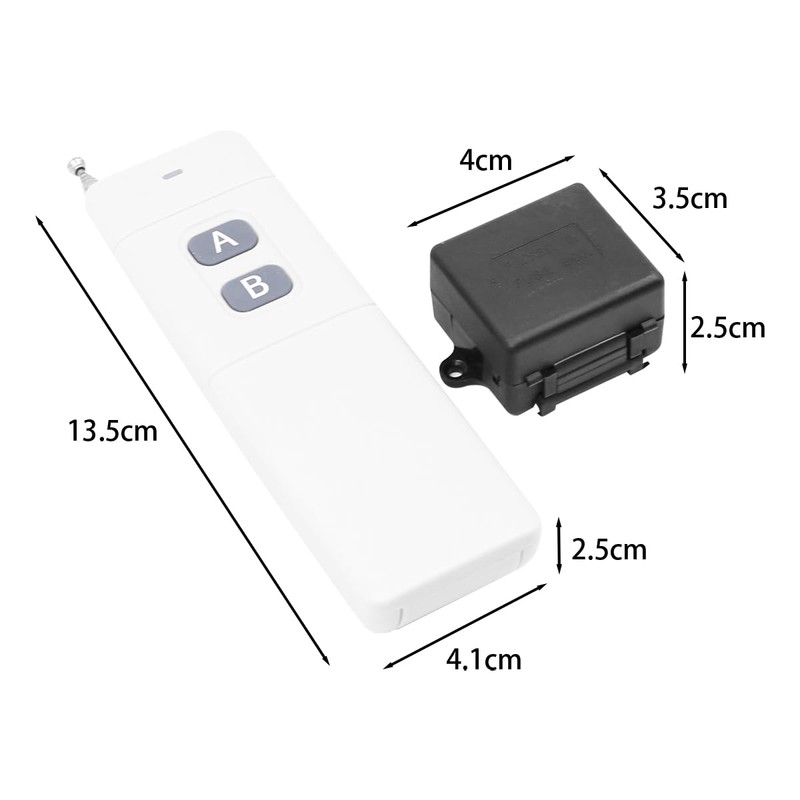

Dimensions: 40 x 37 x 25mm (mini case).
- Remote receiving range: 50 to 1000 meters.
- Working environment: -20 ~ 80 °C.

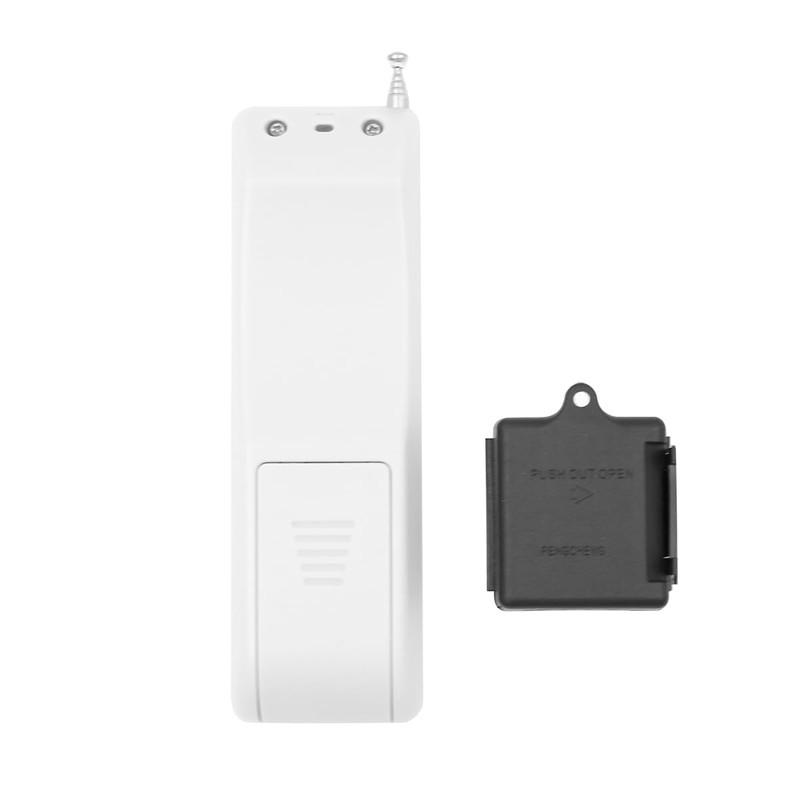

Remote control:
- Power supply voltage: DC 6 V.
- Working current: ≤ 12 mA.
- Operating frequency: 433 MHz.
- Reference distance: 1000 meters
- Modulation: ASK.
- Dimensions: 60 x 31 x 11 mm.
- Coding method: learning code 1527.
Seize the future of wireless control with ZONADAH. From lighting to motors, fans and industrial equipment, our cutting-edge technology offers unmatched convenience and reliability. Redefine your control experience and choose ZONADAH.
User Instructions:
Clear Pairing Code:
(Clear the code before switching modes)
Press the learning/pairing button 9 times. The LED will turn off.
The LED will flash 5 times, indicating the code is cleared.
(If you need to change the working mode of the same remote, clear the code first and then re-pair.)
Pairing Instructions:1. Momentary Function:
Press the pairing button on the control board once. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
2. Self-Locking Function:
Press the pairing button on the control board twice consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
3. Interlocking Function:
Press the pairing button on the control board three times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
4. 5-Second Delay Learning Method:
Press the pairing button on the control board four times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
5. 10-Second Delay Learning Method:
Press the pairing button on the control board five times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
6. 15-Second Delay Learning Method:
Press the pairing button on the control board six times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
7. 20-Second Delay Learning Method:
Press the pairing button on the control board seven times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
8. Power-On Activation Function Learning Method:
(This function automatically activates the relay after power is restored, also known as the "power-on light" function.)
Press the pairing button on the control board eight times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
Important Note:
Ensure the wiring is correct before use to prevent short circuits.
Switch Module:
- Working voltage: DC 5.5-30V
Load current: ≤ 10A.
- Modulation: ASK.
- Output type: 1 channel relay switching signal (load current <10A)
- Standby current: 3.6mA ~ 10mA.
- Storage capacity: up to 20 remote controls
- Multiple working modes: momentary, latching, delay switch, incoming call light on (5s, 10s, 1s, 20s)
- RF frequency: 433MHz.
- RF working mode: super heterodyne reception
Receiver sensitivity: > 97dBm.
Dimensions: 40 x 37 x 25mm (mini case).
- Remote receiving range: 50 to 1000 meters.
- Working environment: -20 ~ 80 °C.
Remote control:
- Power supply voltage: DC 6 V.
- Working current: ≤ 12 mA.
- Operating frequency: 433 MHz.
- Reference distance: 1000 meters
- Modulation: ASK.
- Dimensions: 60 x 31 x 11 mm.
- Coding method: learning code 1527.
Seize the future of wireless control with ZONADAH. From lighting to motors, fans and industrial equipment, our cutting-edge technology offers unmatched convenience and reliability. Redefine your control experience and choose ZONADAH.
User Instructions:
Clear Pairing Code:
(Clear the code before switching modes)
Press the learning/pairing button 9 times. The LED will turn off.
The LED will flash 5 times, indicating the code is cleared.
(If you need to change the working mode of the same remote, clear the code first and then re-pair.)
Pairing Instructions:1. Momentary Function:
Press the pairing button on the control board once. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
2. Self-Locking Function:
Press the pairing button on the control board twice consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
3. Interlocking Function:
Press the pairing button on the control board three times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
4. 5-Second Delay Learning Method:
Press the pairing button on the control board four times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
5. 10-Second Delay Learning Method:
Press the pairing button on the control board five times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
6. 15-Second Delay Learning Method:
Press the pairing button on the control board six times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
7. 20-Second Delay Learning Method:
Press the pairing button on the control board seven times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
8. Power-On Activation Function Learning Method:
(This function automatically activates the relay after power is restored, also known as the "power-on light" function.)
Press the pairing button on the control board eight times consecutively. The LED will flash once and then light up.
After the LED is lit, press the desired button on the remote control.
The control board LED will flash 3 times, indicating successful pairing.
Important Note:
Ensure the wiring is correct before use to prevent short circuits.
