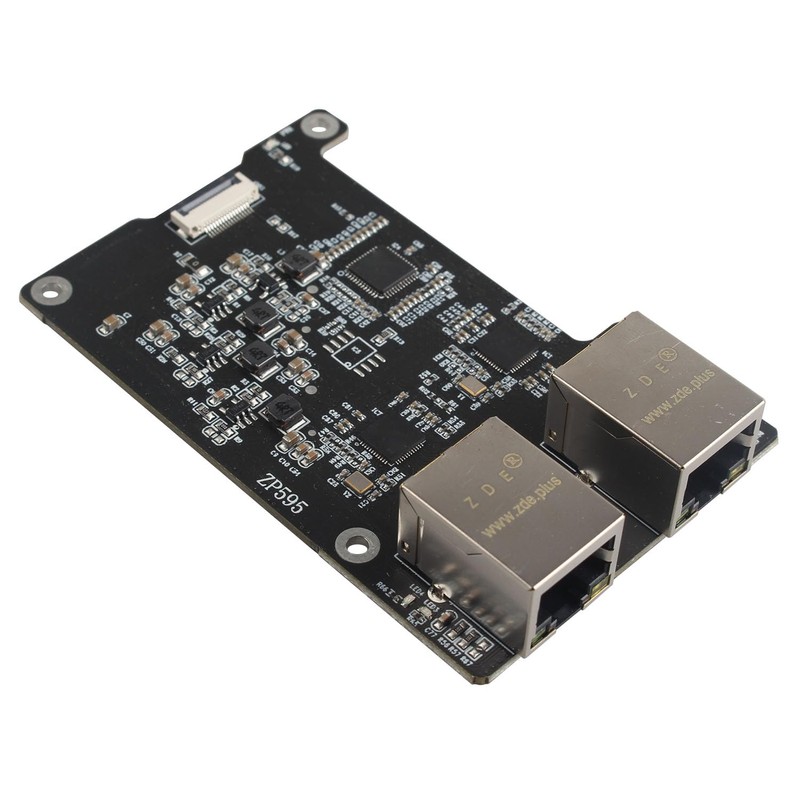

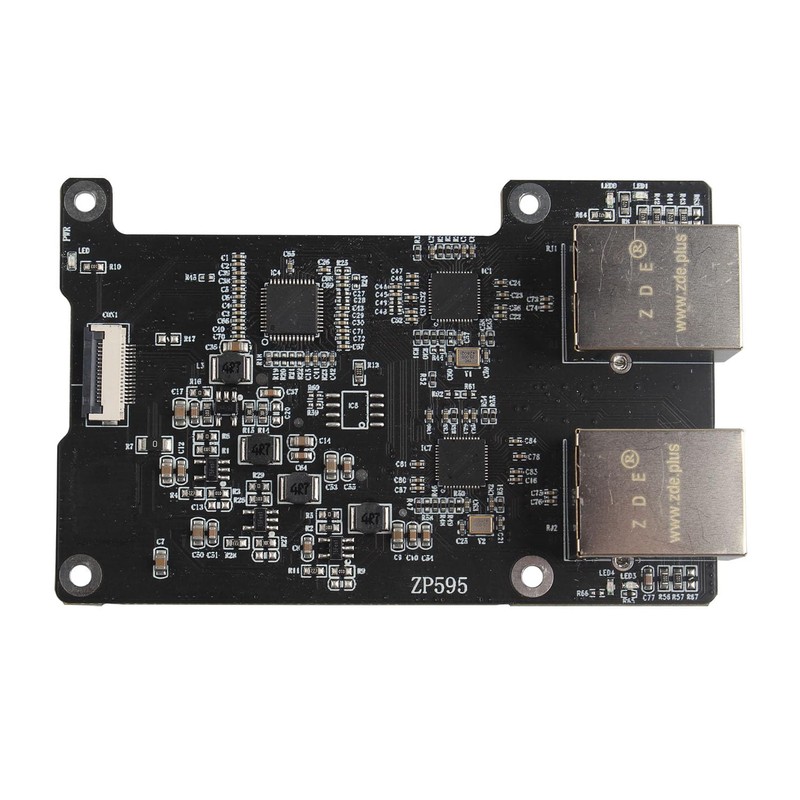

ZDE ZP595 PCIe to Dual 2.5G Ethernet Port HAT Expansion Board For Raspberry Pi 5
$122.85
- $9.99 shipping from United Kingdom View details
-
Arrives

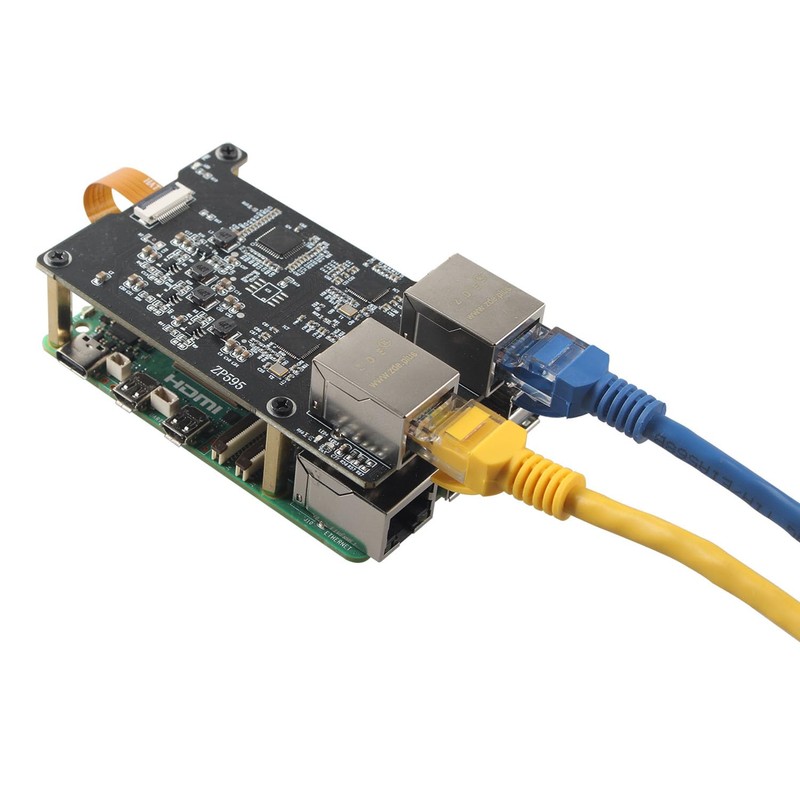

- This expansion board adds two 2.5G network port for Raspberry Pi 5, which can meet your various needs for those who need to use Raspberry Pi 5 as a router, gateway, firewall, and other network devices that need more than one network port.
- Through the PCIe interface with PCIe Switch chip to expand into two PCIe interfaces and then through the RTL8125 chip to achieve the expansion of dual 2.5Gbps Ethernet.
- After power on, the expansion board can be automatically recognised as eth1 and eth2 without driver under Raspberry Pi official OS/OpenWrt system. However, when you use ubuntu system, you need to install the driver of RTL8125 and then you can use it.
- PCIe to Dual 2.5G Ethernet Port HAT expansion board, able to achieve high-speed reading/writing.

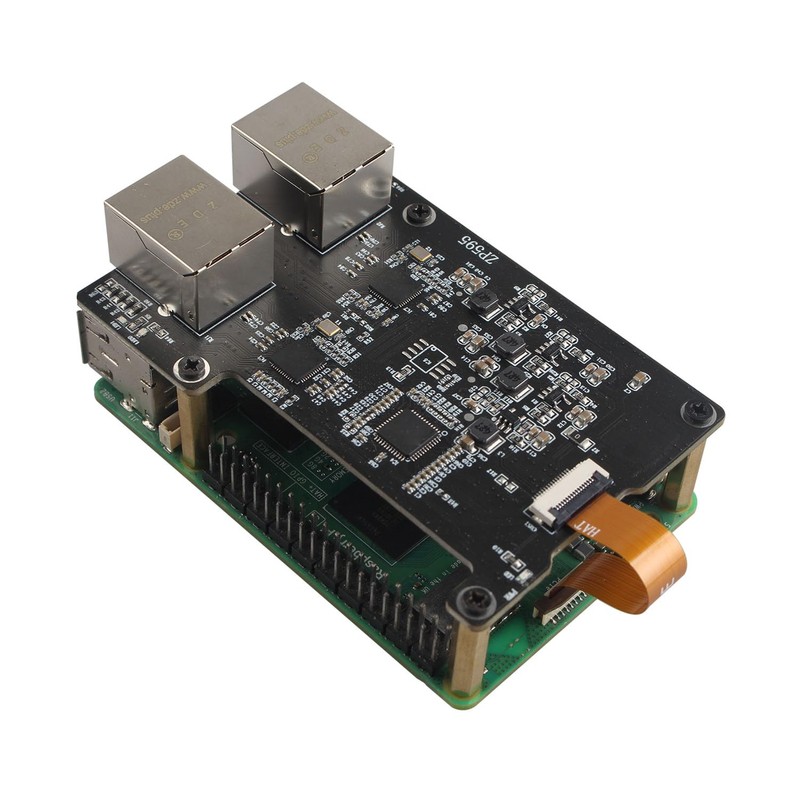

- Specially designed for Raspberry Pi 5, compatible with Raspberry Pi 5 8GB/4GB computer (NOT include Raspberry Pi 5).
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- This expansion board adds two 2.5G network port for Raspberry Pi 5, which can meet your various needs for those who need to use Raspberry Pi 5 as a router, gateway, firewall, and other network devices that need more than one network port.
- Through the PCIe interface with PCIe Switch chip to expand into two PCIe interfaces and then through the RTL8125 chip to achieve the expansion of dual 2.5Gbps Ethernet.
- After power on, the expansion board can be automatically recognised as eth1 and eth2 without driver under Raspberry Pi official OS/OpenWrt system. However, when you use ubuntu system, you need to install the driver of RTL8125 and then you can use it.
- PCIe to Dual 2.5G Ethernet Port HAT expansion board, able to achieve high-speed reading/writing.
- Specially designed for Raspberry Pi 5, compatible with Raspberry Pi 5 8GB/4GB computer (NOT include Raspberry Pi 5).
This expansion board adds two 2.5G network port for Raspberry Pi 5, which can meet your various needs for those who need to use Raspberry Pi 5 as a router, gateway, firewall, and other network devices that need more than one network port.
PCIe to Dual 2.5G Ethernet Port HAT expansion board, able to achieve high-speed reading/writing.
Through the PCIe interface with PCIe Switch chip to expand into two PCIe interfaces and then through the RTL8125 chip to achieve the expansion of dual 2.5Gbps Ethernet.
As the use of PCIe Switch chip, the performance of this product may slightly lower than 2.5Gbps + 2.5Gbps. Please consider it if you mind that.
After power on, the shield can be automatically recognised as eth1 and eth2 without driver under Raspberry Pi official OS/OpenWrt system. However, when you use ubuntu system, you need to install the driver of RTL8125 and then you can use it.
Specially designed for Raspberry Pi 5, compatible with Raspberry Pi 5 2GB/4GB/8GB/16GB pc computer (NOT include Raspberry Pi 5).
Supports the installation of official Pi 5 Active Cooler or other cooling fan for better heatsink of the board.
Note:
Due to the poor PCIe compatibility of the oldest version of the Raspberry Pi 5, the Raspberry Pi 5 can not recognize some PCIe devices. Later purchased versions of the Raspberry Pi 5 have improved the compatibility issue and can basically recognize PCIe devices. As we use the PCIe Switch Chip, the oldest version of Raspberry Pi 5 can not recognise PCIe Switch Chip, but the subsequent Raspberry Pi 5 versions can recognise and use normally.
Since we have used the PCIe Switch Chip, there may be a slight drop in performance.
Specifications:
Model: ZP595

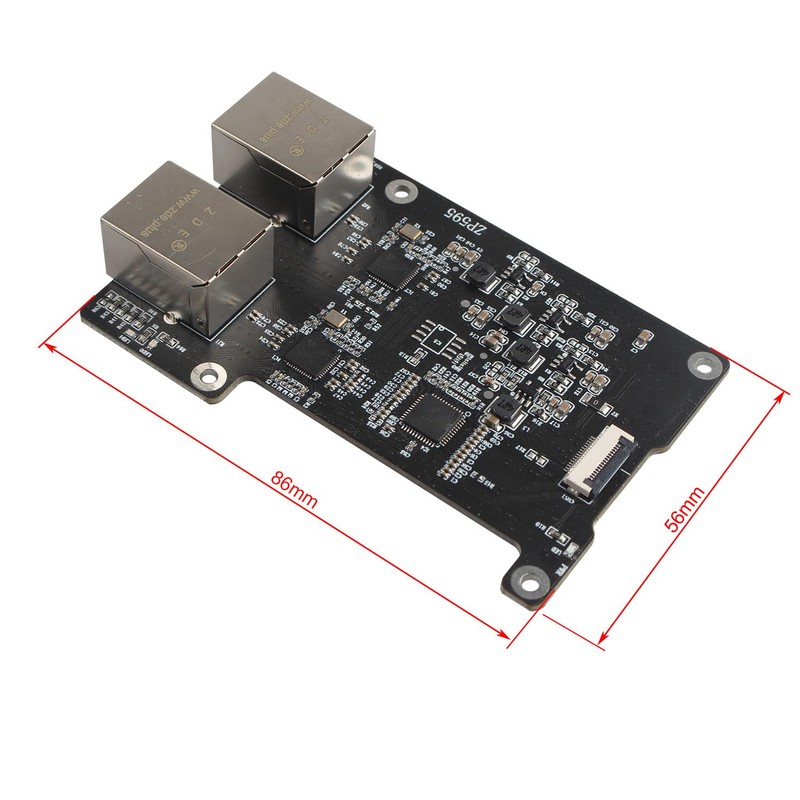

Dimensions: 56x86mm
Weight: 28.3g

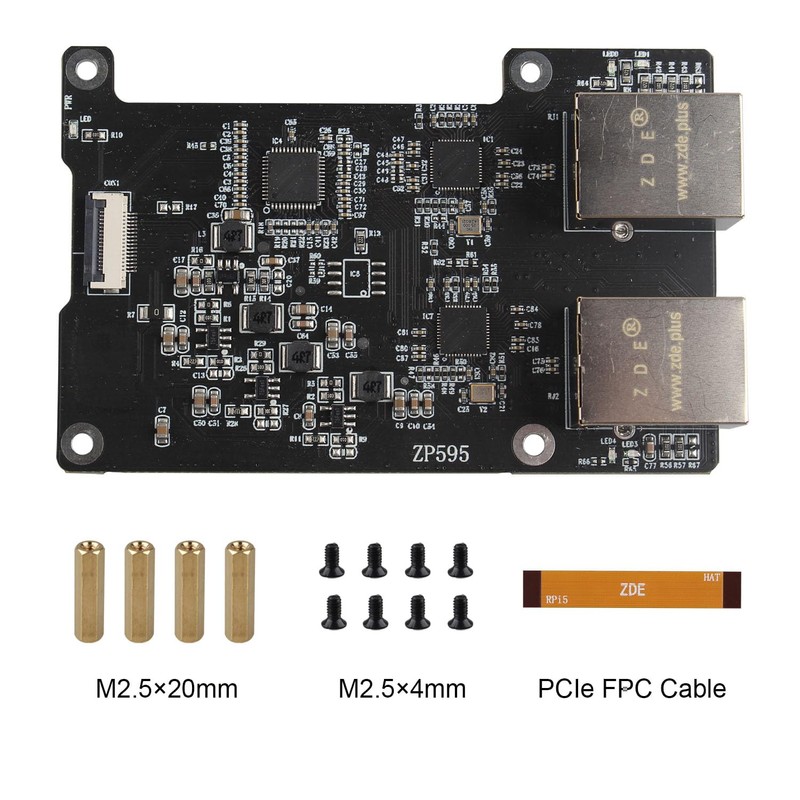

Packing List:
1 x ZP595 Expansion Board
4 x M2.5x20mm Spacers
8 x M2.5x4mm Screws

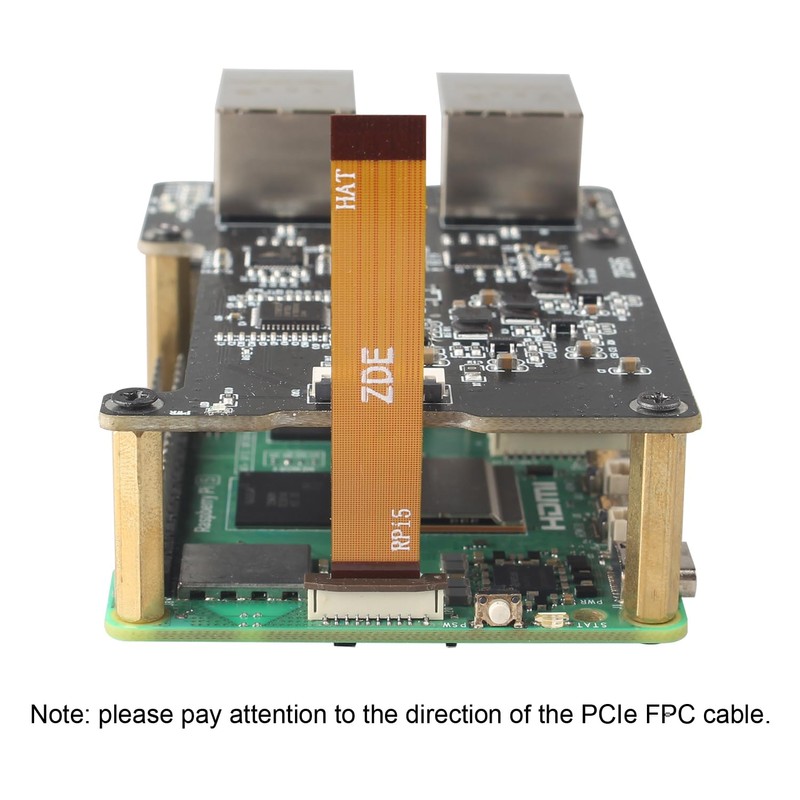

1 x PCIe FPC cable
