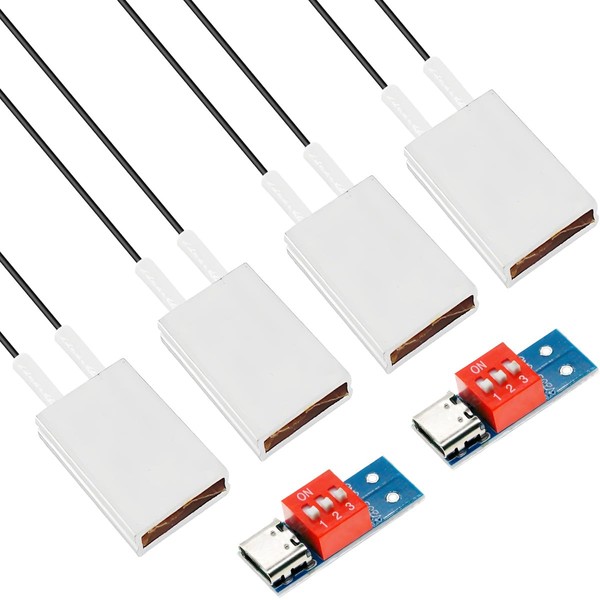

Youmile Pack of 4 PTC Heating Element Heating Plate Electric Heating Core Constant Temperature Heating Plate AC/DC 12V/80℃/2-5W Aluminium Shell with Deception Module for Low Power Micro Devices
$25.80
-
Arrives
- 【WHAT IT DOES】This is a PTC constant temperature heater. This series includes various specifications, Teflon high temperature resistant wire, no positive or negative pole, which is mainly used for batteries, safety, medical, scientific research, industrial engines, aerospace and other electronic and electrical heaters, preheaters and low power dehumidifications
- 【Working Principle】The internal heating element of the PTC heater is a thermistor with positive temperature coefficient, whose resistance value increases gradually as the temperature of the PTC thermistor body increases. The higher the temperature, the greater the resistance value

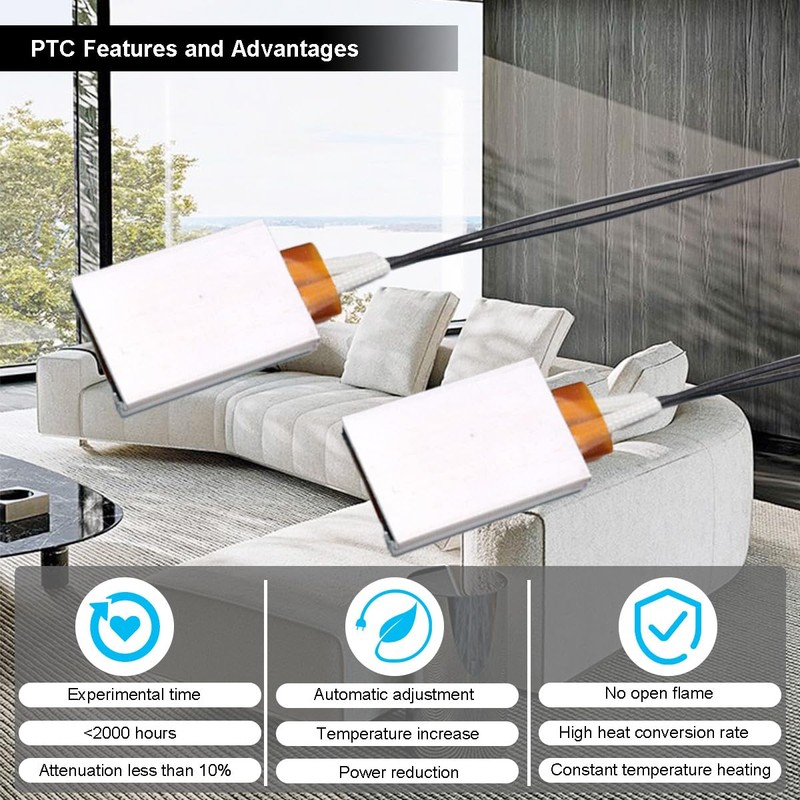

- 【Product advantages】: dry combustion, energy saving, durable, no open flame. Suitable for warming, preheating and dehumidifying low power micro devices
- 【Power Selection】: Direct connection to the rated voltage, either AC or DC, no positive or negative pole. Using the example of a 12 V heating plate, it can be connected to 12 V AC or DC. The current of the power supply must be greater than the maximum heating current of the heating plate, otherwise the heating plate cannot be powered
- 【About the performance】: After turning on the PTC heating plate, the power increases from small to large and then back to small and finally stabilizes. The stable performance is directly related to heat dissipation. Faster heat dissipation leads to higher power consumption. The actual power consumed should be less than the maximum output
- 【Widely used】: such as electric heating elements for mosquito nets, heating elements for shoe warmers, heating elements for fan heaters, electric heating elements for cups, heating elements for water dispensers, insulation of car parts, heating and dehumidification of instruments, preheating electronic components at constant temperature, portable heating elements and many other applications that can be developed

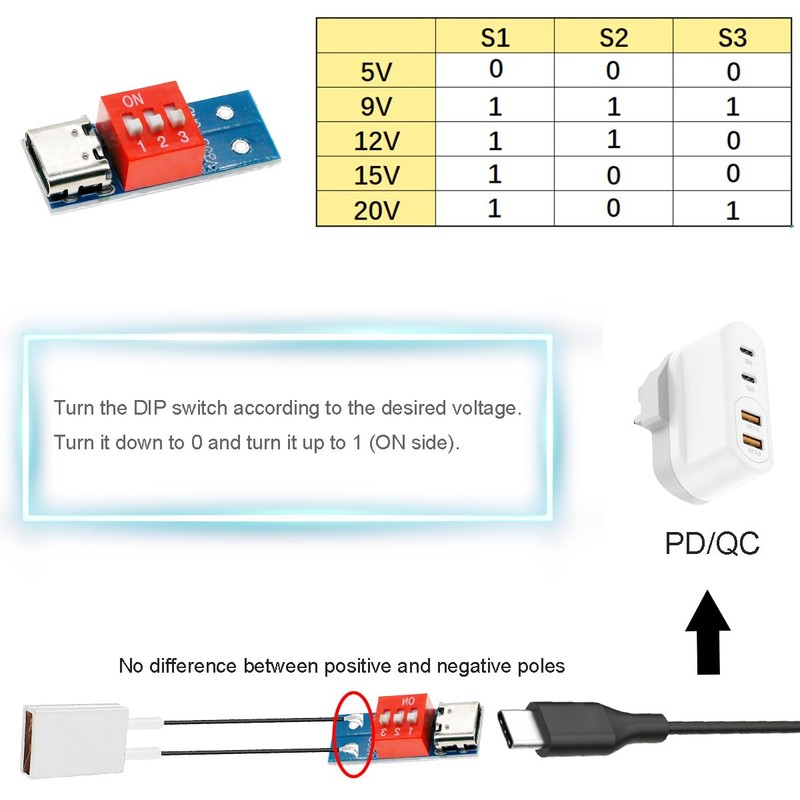

- 【Package Includes】: 4 x 12V/80℃/2-5W PTC heating plate; 2 x PD/QC module for adjustable voltage
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 【WHAT IT DOES】This is a PTC constant temperature heater. This series includes various specifications, Teflon high temperature resistant wire, no positive or negative pole, which is mainly used for batteries, safety, medical, scientific research, industrial engines, aerospace and other electronic and electrical heaters, preheaters and low power dehumidifications
- 【Working Principle】The internal heating element of the PTC heater is a thermistor with positive temperature coefficient, whose resistance value increases gradually as the temperature of the PTC thermistor body increases. The higher the temperature, the greater the resistance value
- 【Product advantages】: dry combustion, energy saving, durable, no open flame. Suitable for warming, preheating and dehumidifying low power micro devices

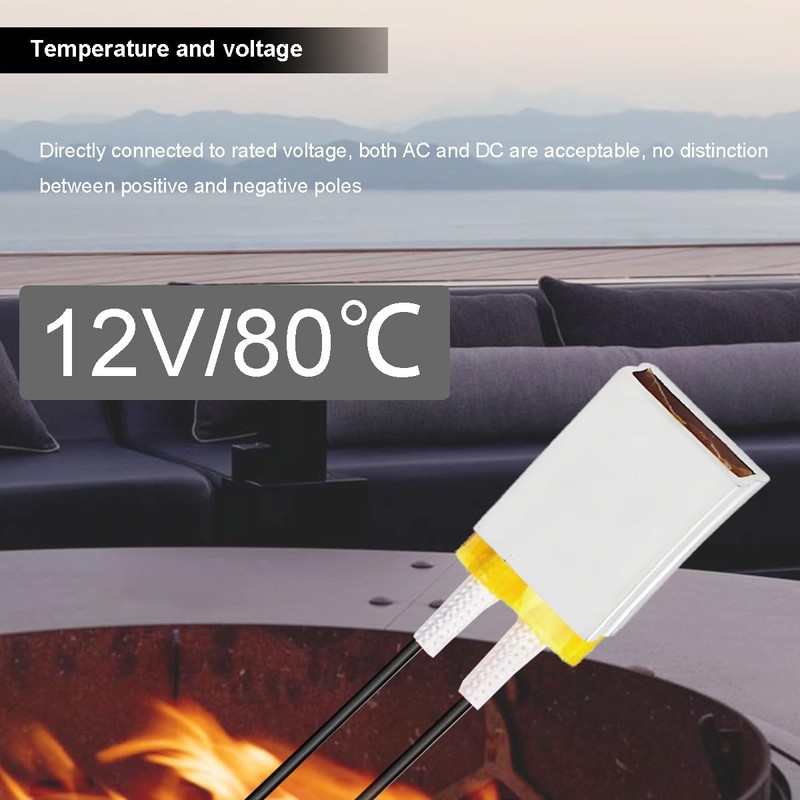

- 【Power Selection】: Direct connection to the rated voltage, either AC or DC, no positive or negative pole. Using the example of a 12 V heating plate, it can be connected to 12 V AC or DC. The current of the power supply must be greater than the maximum heating current of the heating plate, otherwise the heating plate cannot be powered
- 【About the performance】: After turning on the PTC heating plate, the power increases from small to large and then back to small and finally stabilizes. The stable performance is directly related to heat dissipation. Faster heat dissipation leads to higher power consumption. The actual power consumed should be less than the maximum output
- 【Widely used】: such as electric heating elements for mosquito nets, heating elements for shoe warmers, heating elements for fan heaters, electric heating elements for cups, heating elements for water dispensers, insulation of car parts, heating and dehumidification of instruments, preheating electronic components at constant temperature, portable heating elements and many other applications that can be developed
- 【Package Includes】: 4 x 12V/80℃/2-5W PTC heating plate; 2 x PD/QC module for adjustable voltage

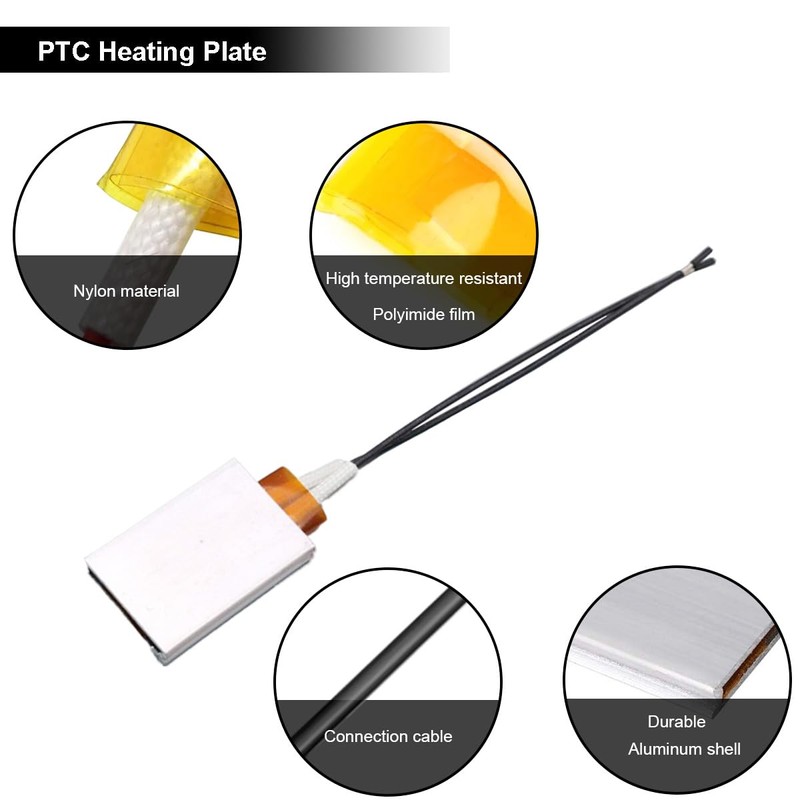

Product name: PTC heating plate.
Supply voltage: AC/DC 12 V.
Maximum temperature: 80°C.
Product size: 12 x 8 x 3 mm.
Heating material: PTC ceramic heating.
Wire: high temperature resistant wire
Wire length: 15 cm.
Temperature error: plus or minus 10°C.
Notes:
1. The power supply current must be greater than the maximum heating current of the heating sheet, otherwise it will not be able to carry the heating sheet.
2. It is strictly forbidden to remove the yellow film on the surface, soak it in water, bend it, or open holes. Dry burning is allowed.
3. The faster the heat dissipation, the more power consumption.
4. Multiple heating sheets should be connected in parallel when used together. The more heating sheets, the greater the power.
5. The reduction of power supply voltage will make the heating time longer and the power smaller, but the temperature will remain basically constant (the temperature will drop slightly).
6. The actual use temperature is controlled by the environment and the heat absorption conditions on site, which is slightly different from the marked temperature.

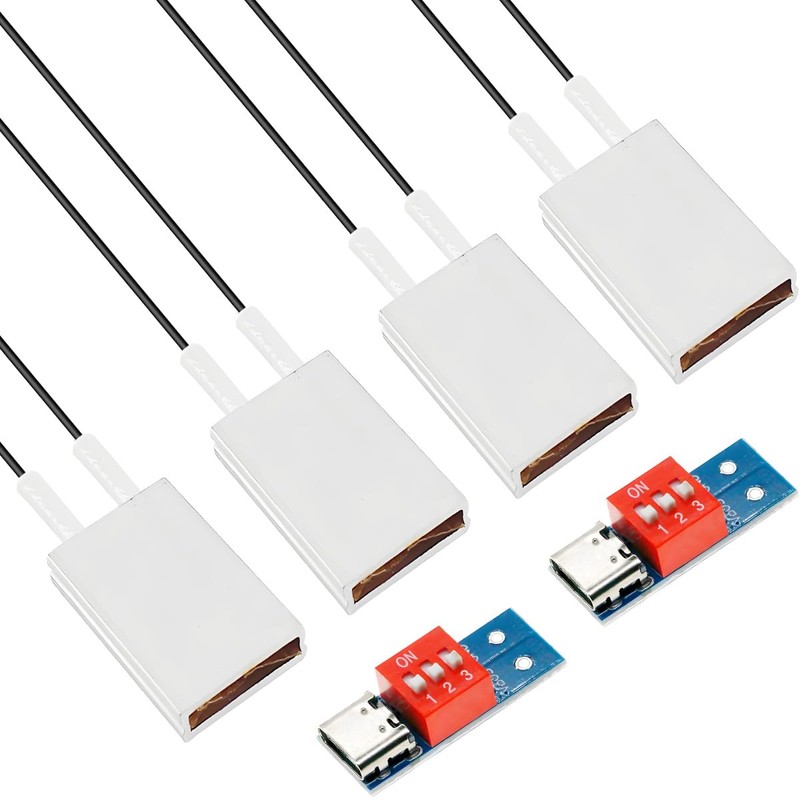

Package includes:
4 x 12 V/80 ℃/2-5 W PTC heating plate.
2 x PD/QC adjustable voltage decoy modules
