Youmile Four-Wire Thermostat 12 V PWM Fan Speed Controller Module for PC Fan Speed Control Function

$32.31

  • $14.50 shipping from Germany
    Duties & customs included — no extra fees on delivery
  • Arrives

  • ✅ [PRODUCT USE]:The fan thermostat can automatically adjust the speed of the four-core PWM fan or manually adjust it to dissipate heat for your computer in time and improve the running speed of your computer.

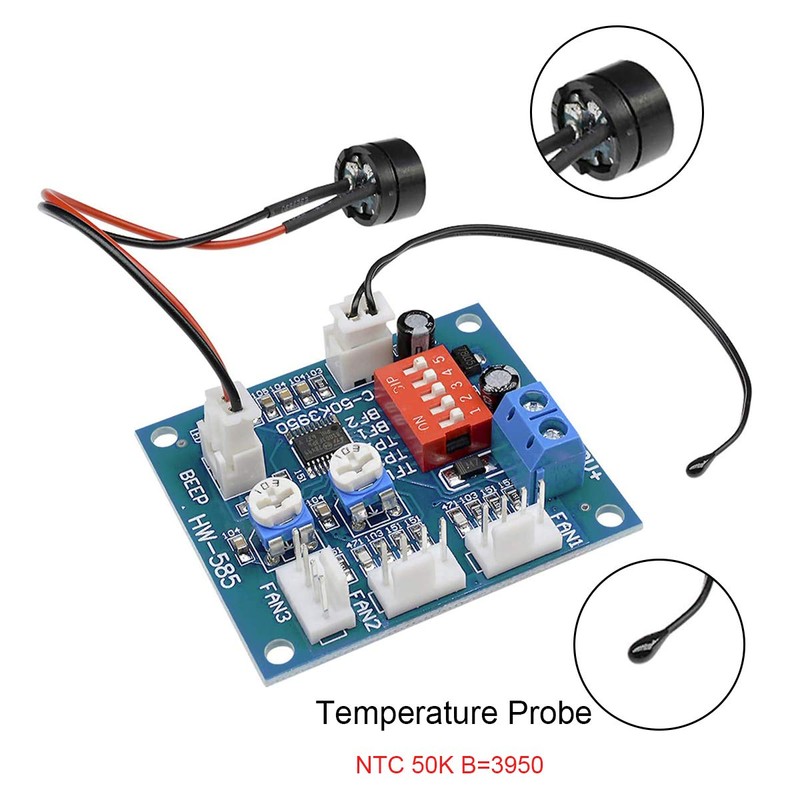

  • ✅[Temperature Probe]: Fan thermostat with temperature probe. If the temperature detected by the temperature sensor is greater than the maximum acceleration temperature, the fan thermostat allows the fan to operate at full speed. When the temperature is below the minimum acceleration temperature, the fan thermostat allows the fan to rotate at the minimum speed.

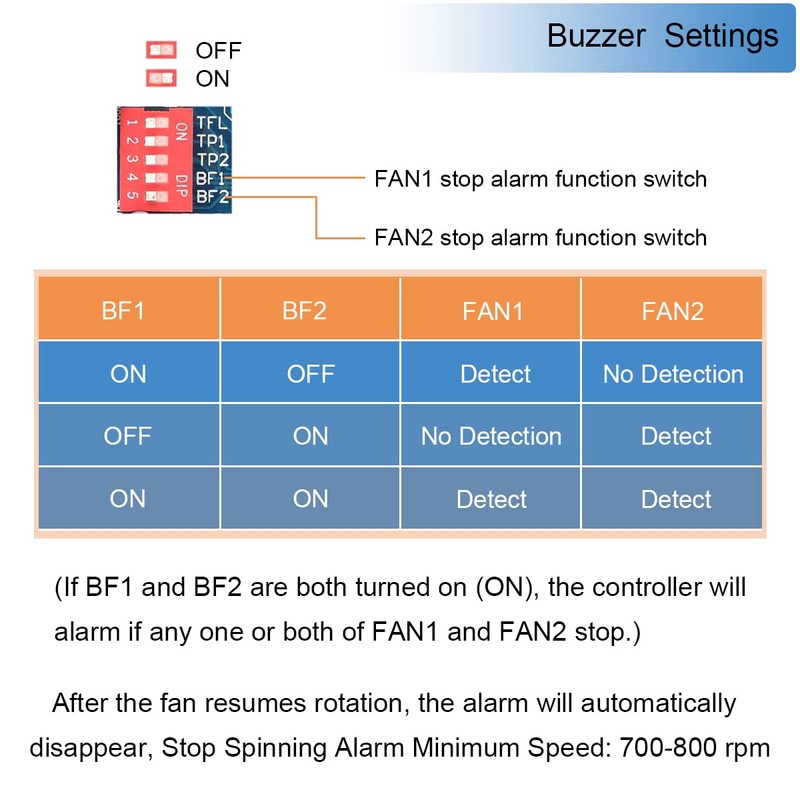

  • ✅ [Buzzer Alarm]: The fan thermostat with buzzer sounds when your FAN1 or FAN2 fan fails. When the fan resumes the speed, the alarm is automatically canceled. Minimum standstill alarm speed: 700-800 rpm.
  • ✅[Specification]: Working voltage: DC12V. Load capacity of the circuit - Current of each output: 5A (max. ); 3 fans work simultaneously maximum current: 9A.

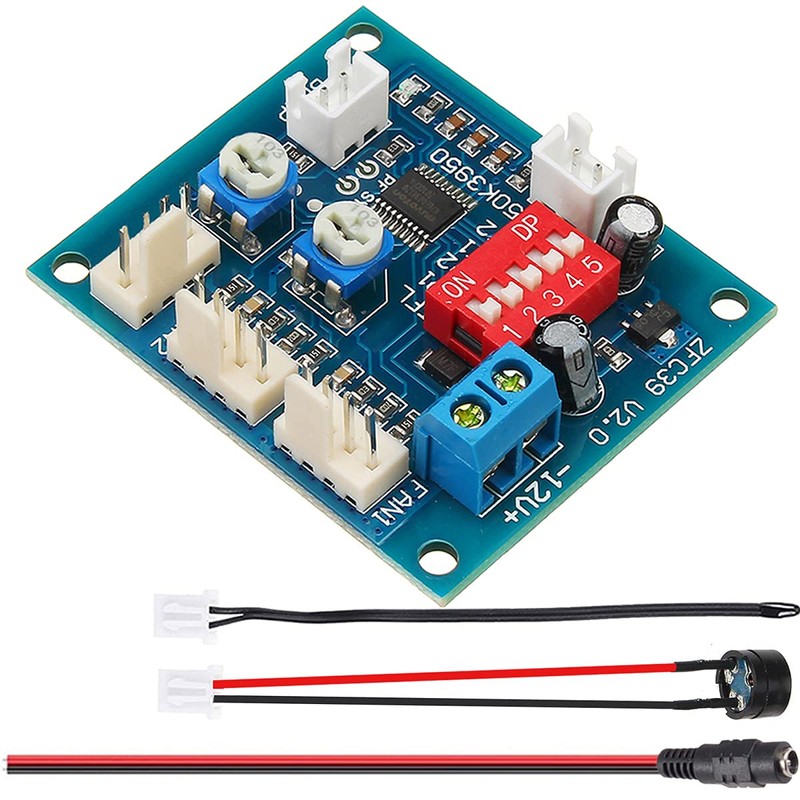

  • Package contents: 1 x DC 12 V fan speed controller, 1 x DC socket cable 20 cm. Please note: The fan speed controller module only supports standard four-wire PWM fans from Intel and cannot control non-standard reverse timing fans.

Manufacturer:
YOUMILE
Part Number:
1FC9YGJ
Isin:
IGXD7FYCILUE

$32.31

  • $14.50 shipping from Germany
    Duties & customs included — no extra fees on delivery
  • Arrives

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
Youmile Four-Wire Thermostat 12 V PWM Fan Speed Controller Module for PC Fan Speed Control Function

Youmile Four-Wire Thermostat 12 V PWM Fan Speed Controller Module for PC Fan ...

$32.31

  • ✅ [PRODUCT USE]:The fan thermostat can automatically adjust the speed of the four-core PWM fan or manually adjust it to dissipate heat for your computer in time and improve the running speed of your computer.
  • ✅[Temperature Probe]: Fan thermostat with temperature probe. If the temperature detected by the temperature sensor is greater than the maximum acceleration temperature, the fan thermostat allows the fan to operate at full speed. When the temperature is below the minimum acceleration temperature, the fan thermostat allows the fan to rotate at the minimum speed.
  • ✅ [Buzzer Alarm]: The fan thermostat with buzzer sounds when your FAN1 or FAN2 fan fails. When the fan resumes the speed, the alarm is automatically canceled. Minimum standstill alarm speed: 700-800 rpm.
  • ✅[Specification]: Working voltage: DC12V. Load capacity of the circuit - Current of each output: 5A (max. ); 3 fans work simultaneously maximum current: 9A.
  • Package contents: 1 x DC 12 V fan speed controller, 1 x DC socket cable 20 cm. Please note: The fan speed controller module only supports standard four-wire PWM fans from Intel and cannot control non-standard reverse timing fans.

Manufacturer:
YOUMILE
Part Number:
1FC9YGJ
Isin:
IGXD7FYCILUE

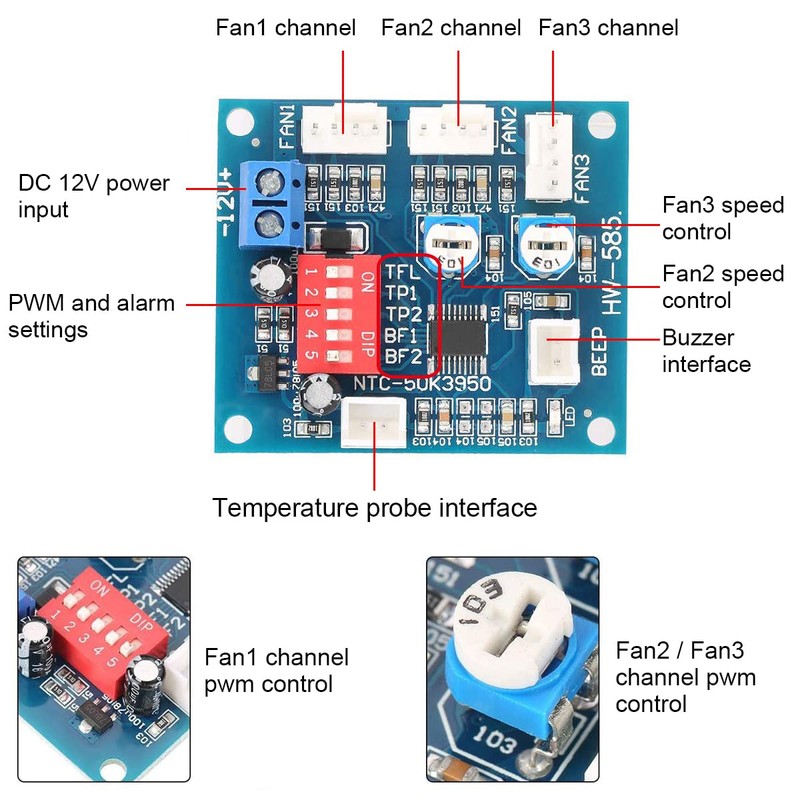

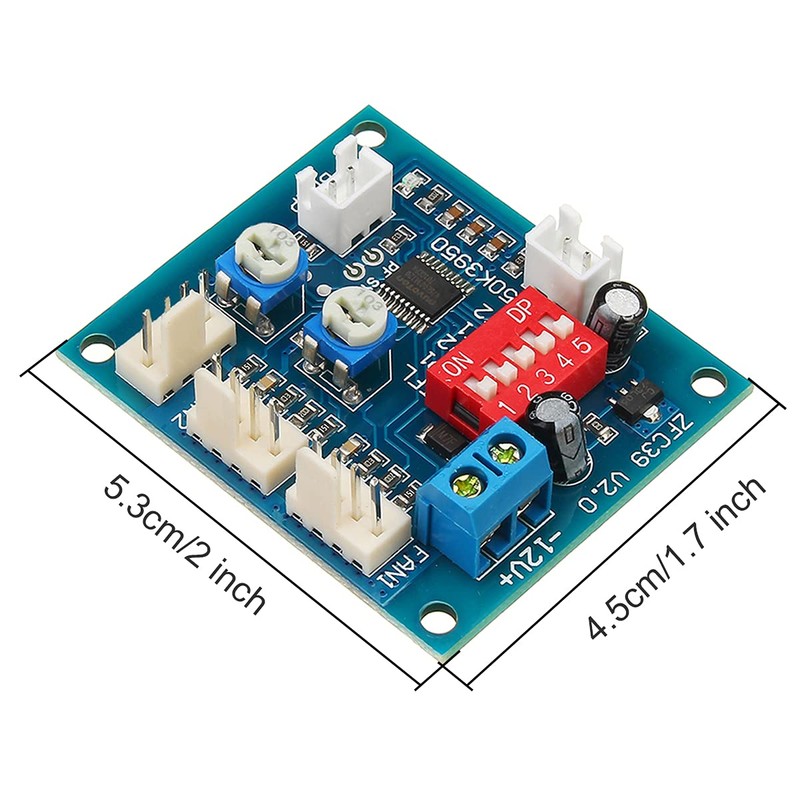

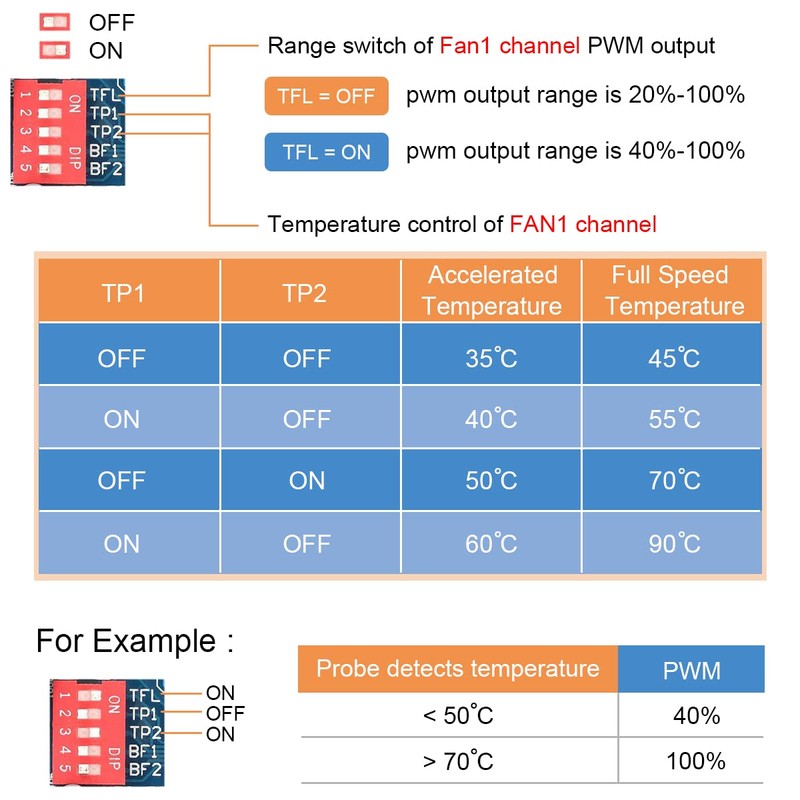

If you want to reset the fan, you need to disconnect the fan thermostat from the power supply, flip the adjustment switch and finally turn it on again. Specification PCB size: 50 mm x 43 mm x 13 mm (L x W x H). Positioning hole position: 44 mm x 37 mm. Hole diameter: 3 mm. Operating voltage: DC12 V. Bus current: 9 A (max.) Temperature probe parameters: 50K B=3950 stall alarm minimum speed: 700-800 rpm [fan1-channel PWM setting] TFL = OFF: FAN1 PWM output range is 20%-100% TFL = ON: FAN1 PWM output range is 40%-100% see picture 5 for the temperature 5 Fan1 channel control settings. (Note: the above range is only the PWM range, the actual fan control effect varies by fan) [Fan2, Fan3-channel PWM settings] Control the PWM of the Fan2 and Fan3 channels respectively via two potentiometers on the board. The PWM output range of FAN2 is between 10% and 100%. The PWM output range of FAN3 is between 10% and 100%. Buzzer alarm setting: BF1 and BF2 are fan stop alarm functions. BF1 switch: FAN1 stop alarm function switch BF2 switch: FAN2 stop alarm function switch (when BF1 and BF2 are both on (ON), the control emits an alarm when one or both of FAN1 and FAN2 stop. Fan3 has no alarm function.) Package Content: 1 x DC 12V Fan Speed Controller 1 x DC Female Cable 20cm
