Youmile CAN Bus Shield TJA1050 CAN Controller Interface Module Bus Driver Interface Module 51 MCU ARM Controller Development Board (Pack of 4)
$23.97
- $9.99 shipping from Germany View details
-
Arrives
- Excellent performance: the excellent symmetry of the TJA1050 output stage makes its EMC performance better than other products of the same type. The electromagnetic anti-interference EMI is extremely high.
- ✅[HIGH TRANSFER RATE]: The transfer rate is up to 1Mbps and the lowest can be 60Kbps.
- Multi-node connection: at least 110 nodes can be connected. Nodes that are not turned on do not cause interference in the bus.
- ✅[Anti-interference]: protect the bus pins to prevent temporary interference in the automotive environment
- ✅[Package Content]: 4pcs TJA1050 CAN controller interface module; 4pcs 6pin pin header; 25pcs dupont wire.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Excellent performance: the excellent symmetry of the TJA1050 output stage makes its EMC performance better than other products of the same type. The electromagnetic anti-interference EMI is extremely high.
- ✅[HIGH TRANSFER RATE]: The transfer rate is up to 1Mbps and the lowest can be 60Kbps.
- Multi-node connection: at least 110 nodes can be connected. Nodes that are not turned on do not cause interference in the bus.
- ✅[Anti-interference]: protect the bus pins to prevent temporary interference in the automotive environment
- ✅[Package Content]: 4pcs TJA1050 CAN controller interface module; 4pcs 6pin pin header; 25pcs dupont wire.
Like PCA82C250, TJA1050 complies with ISO 11898 standard. Therefore, it can work with other transceiver products that comply with ISO 11898 standard. Electromagnetic compatibility (EMC) is the main design goal of TJA1050. Its radiation ratio in the key AM band PA82C250 is lower than 20dB.
In addition to EMC, another important feature of TJA1050: When it is not powered on, the bus exhibits passive characteristics. This makes TJA1050 a more optimized transceiver for clamp-15 nodes that lose power after ignition. The node (clamp-30) that is continuously powered on requires a dedicated low-power mode to keep the power consumption of the entire system as low as possible.

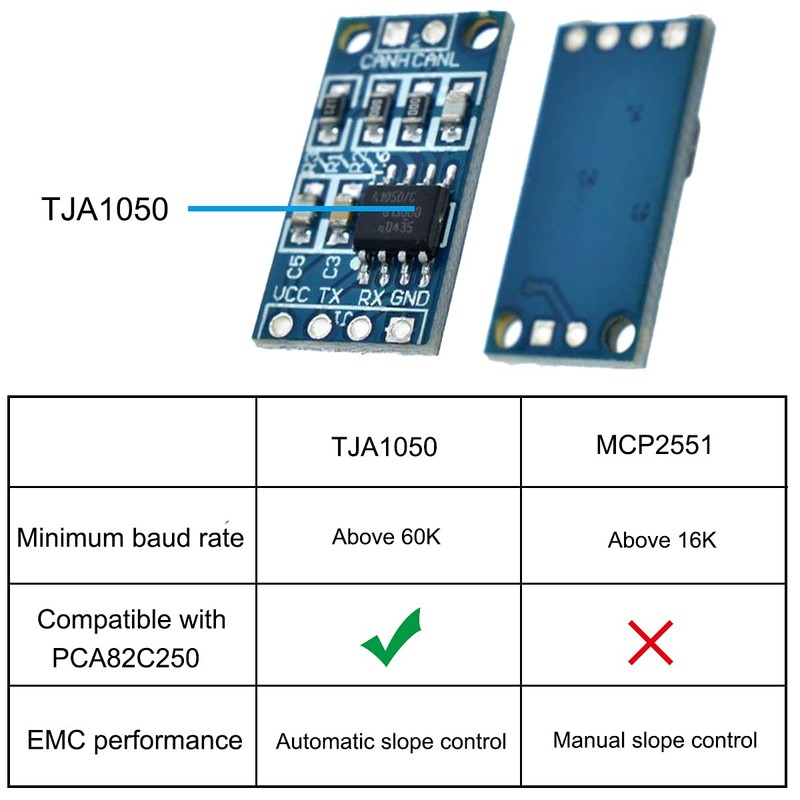

Since the pins of TJA1050 and PCA82C250 are compatible with each other, TJA1050 can be used directly in existing applications without the need to modify the PCB

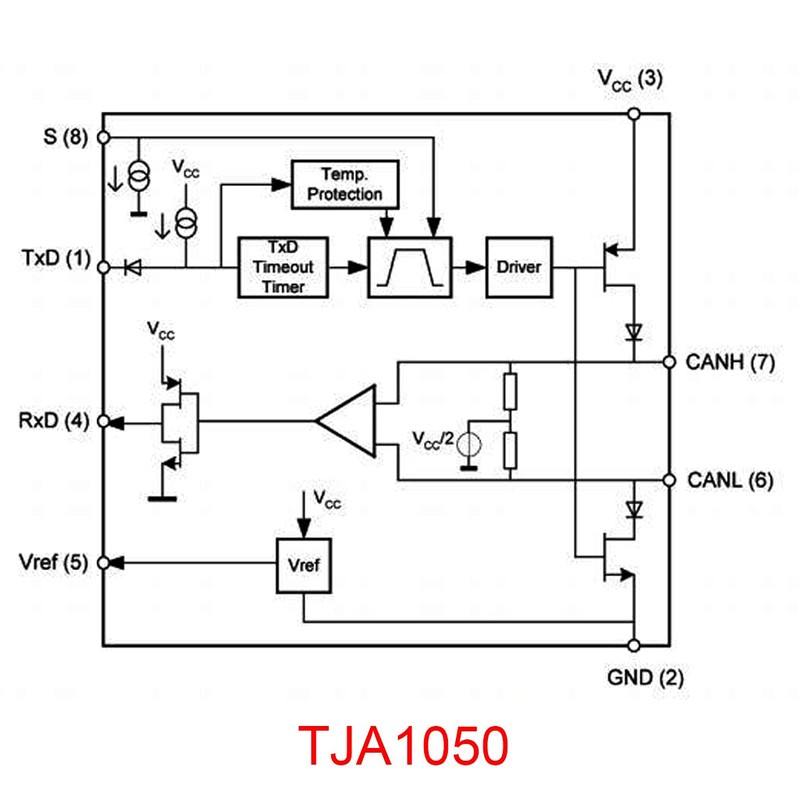

Feature
1. High rate up to 1Mbit/s.
2. Very low electromagnetic radiation EME.
3. Electromagnetic anti-interference EMI is extremely high.
4. The TxD pin has a timeout function to prevent clamping at the dominant bus level.
5. Listen-only mode and Babbling Idiot protection are provided in silent mode.
6. Protect the bus pins to prevent transient interference in the automotive environment.
7. TJA1050 CAN module input power is 5V
8. The output driver is temperature protected
9. Prevent short circuit of battery to ground
10. At least 110 nodes can be connected

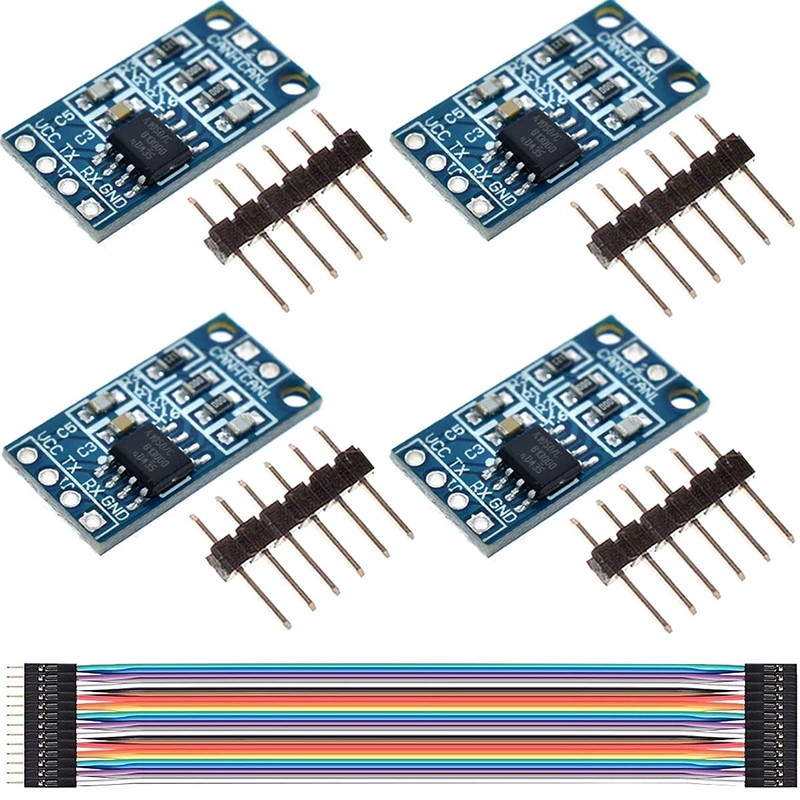

Package includes:
4 x CAN controller interface modules.
4 x 6-pin headers.
25 x Dupont wire
