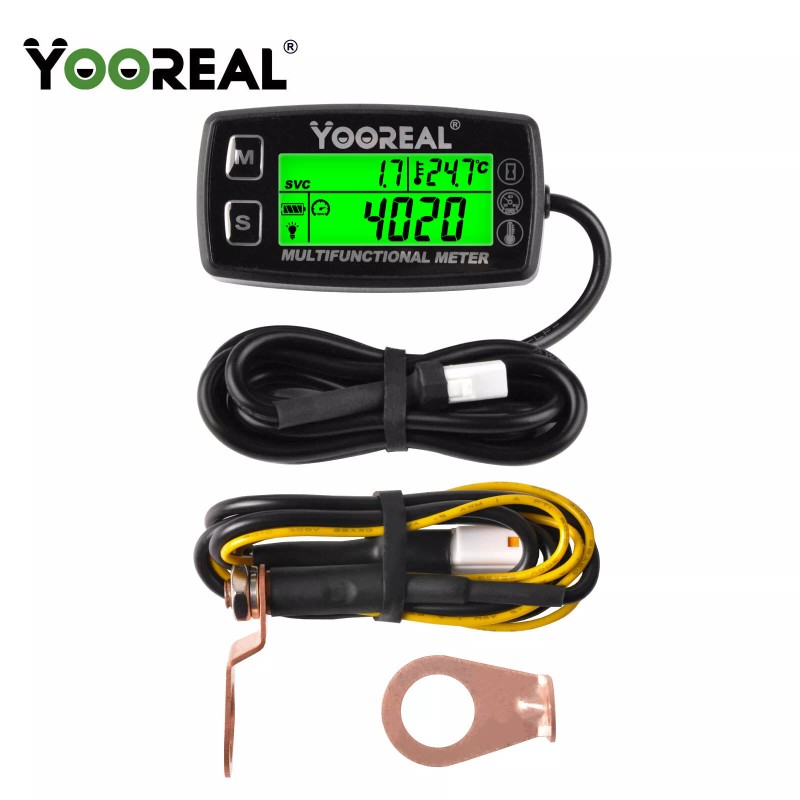

YOOREAL Digital Engine Temperature RPM Gauge Tachometer Hour Meter of lawn mower
$66.30
- Free US shipping
-
Arrives
Product Description
It has temperature guage meter,hours and tachometer.In addition,temp function can record real-time temp and max temp(can be reset),alert overtemperature,temp unit can be switched;hour meter can record TOT,resettable partial timer,countdown maintenance value;tachometer can record real-time rpm,max rpm(can be reset),alert overspeed;backlight display;user shutdown;record the times of engine working;replacement battery reminder;waterproof rate:IP67.Suitable for small gasoline engine,such as scooter,mini bike,garden tractor,snowmobile,dump truck,motorcycle and etc.
- (The initial hour meter can be set before the machine runs or within 1 hour of operation.For example, if your device is already running 200H, you can set the TOT time of the hourly counter to 200H.)

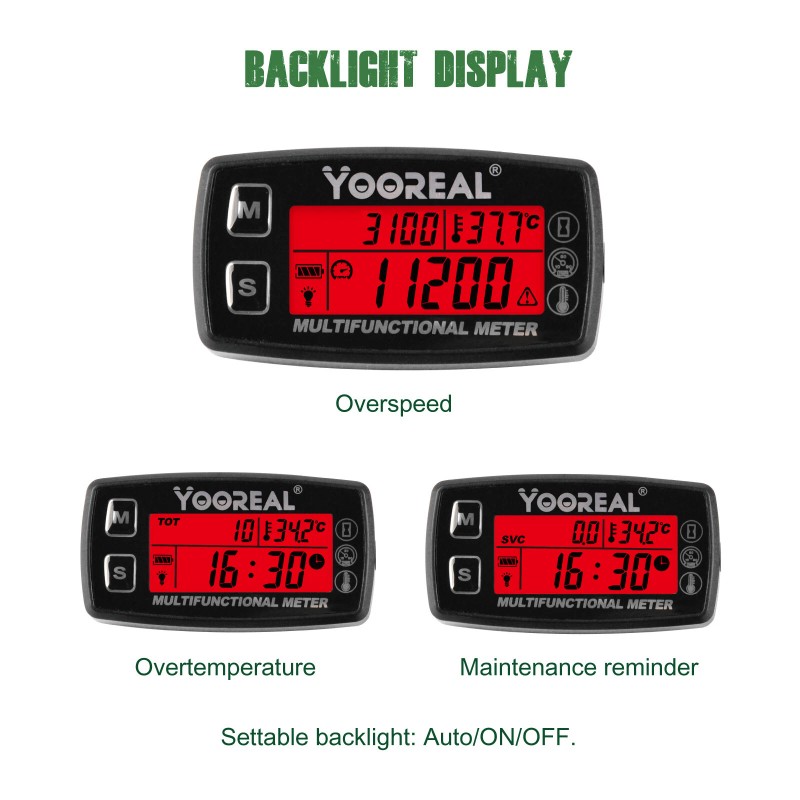

- It has 2 colors of backlight: green and red, the green backlight will help you use it at night or in dim places, and the red backlight will remind you that the maintenance has arrived, the temperature and the RPM value is exceeded.
Product Functions

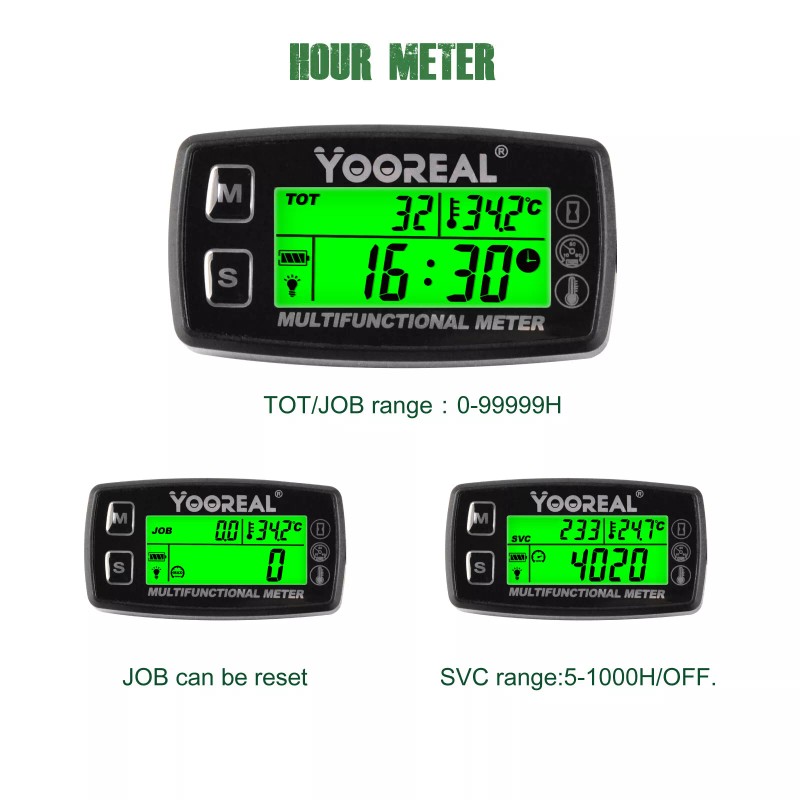

2.Hours Function:
- TOT non-resettable and back to 0 when exceed 999,99H.
- Record the partial working time(JOB), it is resettable.
- SVC range：5-1000 H.It can be turn off.
- TOT initial time can be set. For example, if your device has been running for 200 hours, you can set the initial time of the hour counter to 200H.

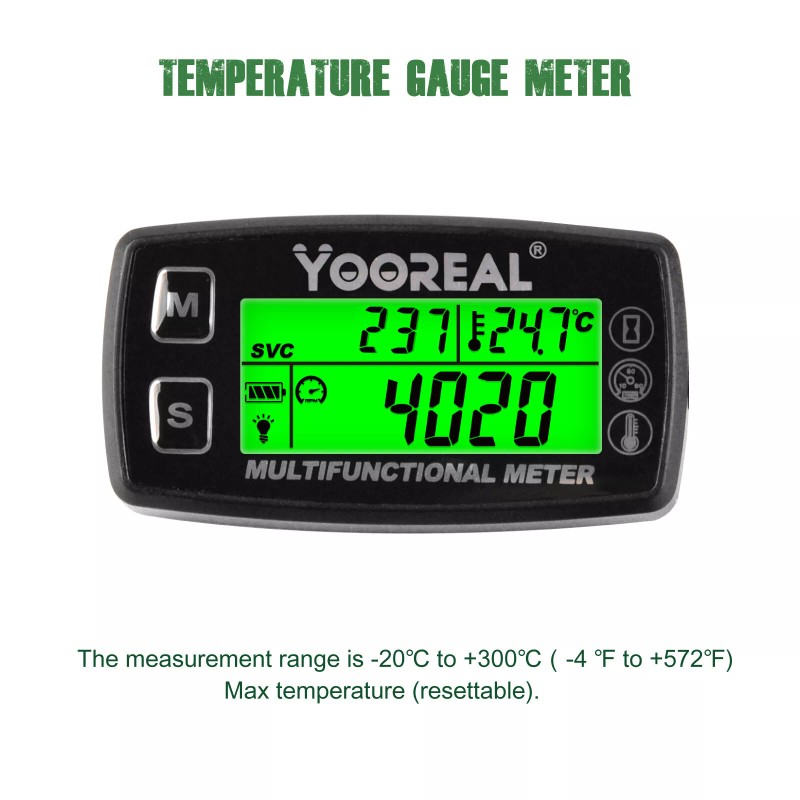

1.Thermometer Function：
- Two temp probes are included in the accessory, which can be replaced by removing the screws according to your own needs.
- Alert the temperature value exceed with red backlight display
- Temperature measurement range: -20℃ to +300℃（-4 ℉ to +572℉）,the unit can be switched ℃ or ℉ freely.
- The maximum temperature value can be reset.
3.Tachometer Function:
- Display the highest RPM hit since the engine started.
- Adjust the idle revolution by different engine firing patterns.
- RPM range: 0-25,000RPM.
Yooreal has established a complete laboratory for testing and improving the product's quality
Buttons Testing
| High Pressure Water Washer Testing
| Drop testing
| High & Low temperature
|

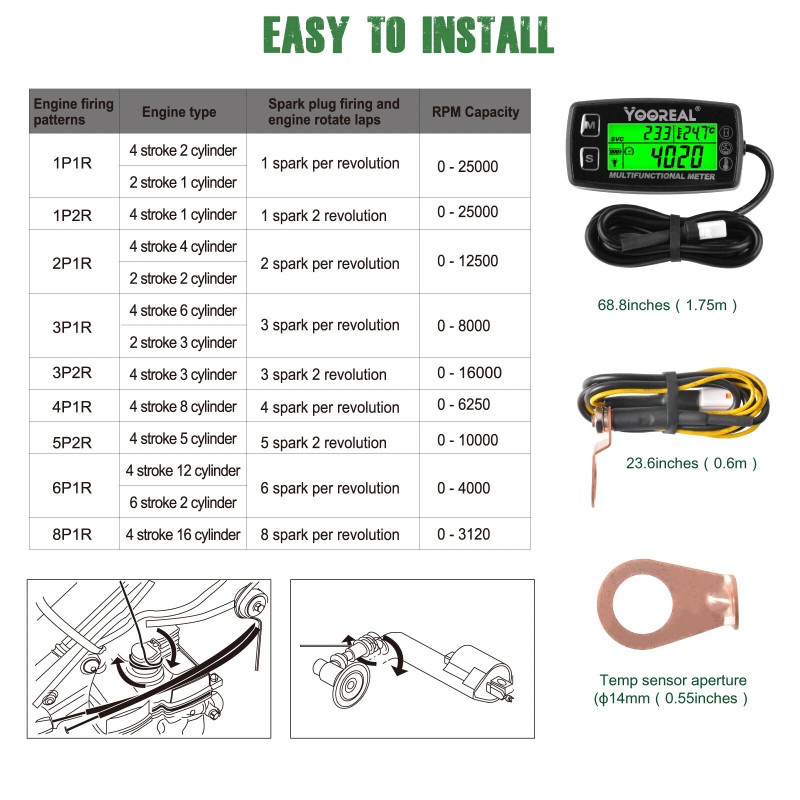

Application
Suitable for gas engine:
- 2 stroke 1 cylinder/2 stroke 2 cylinder/2 stroke 3 cylinder
- 4 stroke 1 cylinder/4 stroke 2 cylinder/4 stroke 3 cylinder/4 stroke 4 cylinder/4 stroke 5 cylinder/4 stroke 6 cylinder/4 stroke 8 cylinder/4 stroke 12 cylinder/4 stroke 16 cylinder
- 6 stroke 2 cylinder
- Note: Some 4 stroke 1 cylinder with same engine firing pattern as 2 stroke 1 cylinder, the setup is 1P1R.
- 4 stroke installation,wrap pickup wire around head of coil;2 stroke installation,wrap pickup wire around spark plug head.

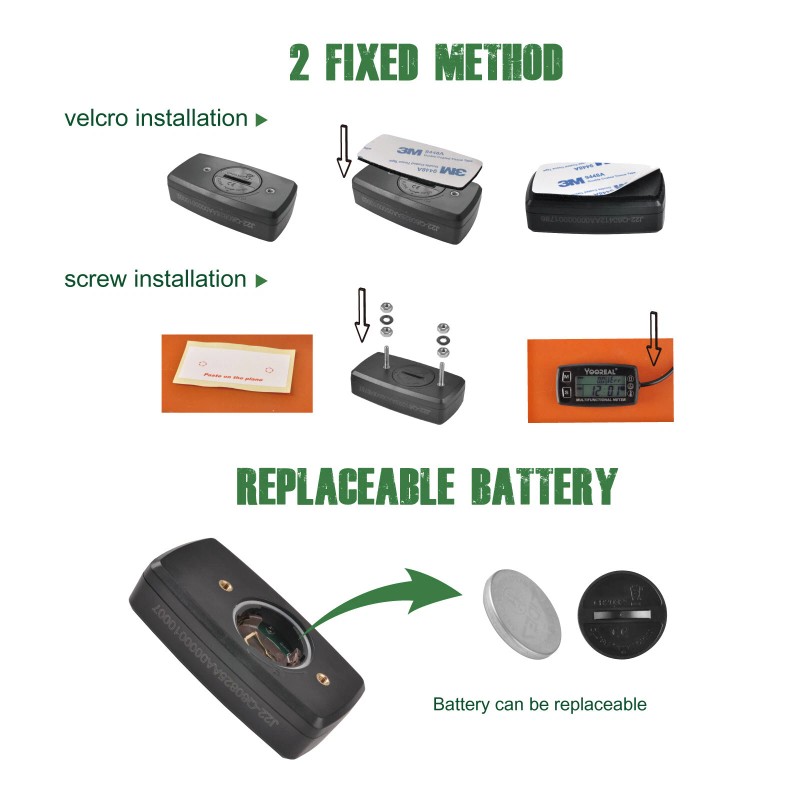

EASY TO INSTALL：Double-sided mounting & Screw mounting
This tachometer hour meter suitable for Outdoor Power Equipment,Vehicles,Generators,Agriculture,Boats,Construction Machinery etc... such as:Lawn Mower Garden Tractor Riding mower Leaf Blower Pressure washer chainsaw Snowblower Brush Mower Line Trimmer string trimmer Pressure Washer Portable inverter generator Motorcycle Dirtbike ATV UTV Scooter Paramotor Harley dual-sport bike Golf cart Outboard Jetski Pontoon boat Mercury Raceboat Hovercraft etc...
SPECIFICATIONS
| Product model | YR -HM035A1 |
| Battery type | CR2032 replaceable,The design department added an insulating separator under the battery. The insulating diaphragm needs to be removed during use. |
| Waterproof rate | IP67 |
| Clock system | 24H |
| Housing material | ABS+PC |
| TOT/JOB range | 0-99999H |
| RPM range RPM accuracy | 0-25000RPM; 10 RPM |
| Alert RPM range | 100-25000RPM/OFF |
| SVC range | 5-1000H/OFF |
| Total length of wire | 1.75m(68.8 inches) |
| Temp sensor length | 0.6m(23.6 inches) |

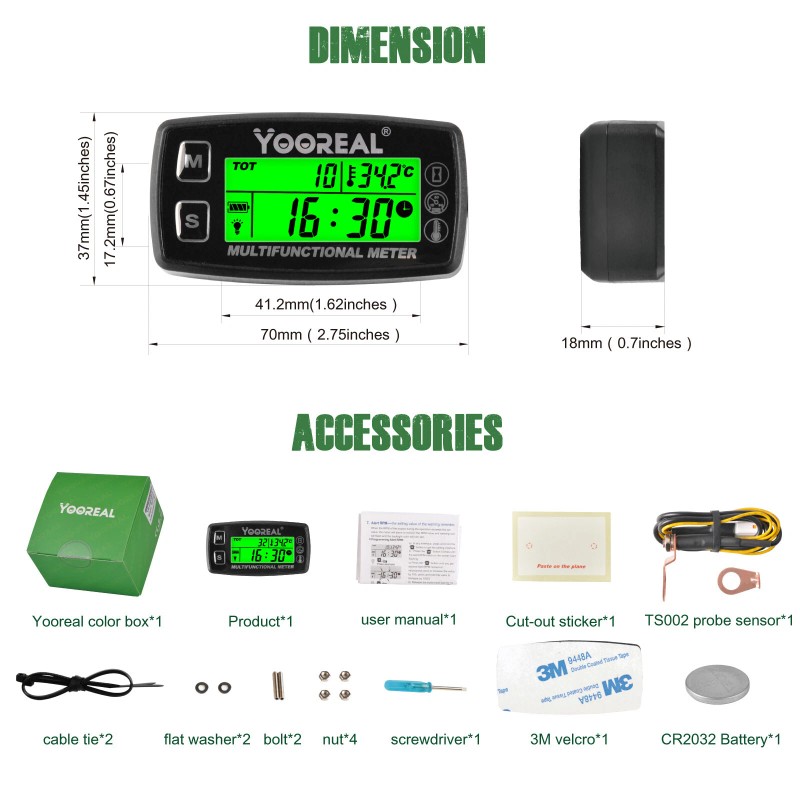

| Display Window Size | 41.2*17.2mm(1.6*0.68inches) |
| Product Dimension | 68.93x37x18mm(2.71*1.46*0.71inches) |
| Accessories | Product*1, Cut-out sticker,3M velcro, Cable tie*2,Bolt*2,Nut*4,Flat Washer*2 ,CR2032 Battery,TS002 probe sensor,User manual. |
| About metal probes | Metal temperature probes with a diameter of 14 mm and a measurement diameter of 14 mm or less can be used. |
| After-sales service | 2 years after-sales service,product problems are returned or replaced free of charge |
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
Product Description
It has temperature guage meter,hours and tachometer.In addition,temp function can record real-time temp and max temp(can be reset),alert overtemperature,temp unit can be switched;hour meter can record TOT,resettable partial timer,countdown maintenance value;tachometer can record real-time rpm,max rpm(can be reset),alert overspeed;backlight display;user shutdown;record the times of engine working;replacement battery reminder;waterproof rate:IP67.Suitable for small gasoline engine,such as scooter,mini bike,garden tractor,snowmobile,dump truck,motorcycle and etc.
- (The initial hour meter can be set before the machine runs or within 1 hour of operation.For example, if your device is already running 200H, you can set the TOT time of the hourly counter to 200H.)
- It has 2 colors of backlight: green and red, the green backlight will help you use it at night or in dim places, and the red backlight will remind you that the maintenance has arrived, the temperature and the RPM value is exceeded.
Product Functions
2.Hours Function:
- TOT non-resettable and back to 0 when exceed 999,99H.
- Record the partial working time(JOB), it is resettable.
- SVC range：5-1000 H.It can be turn off.
- TOT initial time can be set. For example, if your device has been running for 200 hours, you can set the initial time of the hour counter to 200H.
1.Thermometer Function：
- Two temp probes are included in the accessory, which can be replaced by removing the screws according to your own needs.
- Alert the temperature value exceed with red backlight display
- Temperature measurement range: -20℃ to +300℃（-4 ℉ to +572℉）,the unit can be switched ℃ or ℉ freely.
- The maximum temperature value can be reset.
3.Tachometer Function:
- Display the highest RPM hit since the engine started.
- Adjust the idle revolution by different engine firing patterns.
- RPM range: 0-25,000RPM.
Yooreal has established a complete laboratory for testing and improving the product's quality
Buttons Testing
| High Pressure Water Washer Testing
| Drop testing
| High & Low temperature
|
Application
Suitable for gas engine:
- 2 stroke 1 cylinder/2 stroke 2 cylinder/2 stroke 3 cylinder
- 4 stroke 1 cylinder/4 stroke 2 cylinder/4 stroke 3 cylinder/4 stroke 4 cylinder/4 stroke 5 cylinder/4 stroke 6 cylinder/4 stroke 8 cylinder/4 stroke 12 cylinder/4 stroke 16 cylinder
- 6 stroke 2 cylinder
- Note: Some 4 stroke 1 cylinder with same engine firing pattern as 2 stroke 1 cylinder, the setup is 1P1R.
- 4 stroke installation,wrap pickup wire around head of coil;2 stroke installation,wrap pickup wire around spark plug head.
EASY TO INSTALL：Double-sided mounting & Screw mounting
This tachometer hour meter suitable for Outdoor Power Equipment,Vehicles,Generators,Agriculture,Boats,Construction Machinery etc... such as:Lawn Mower Garden Tractor Riding mower Leaf Blower Pressure washer chainsaw Snowblower Brush Mower Line Trimmer string trimmer Pressure Washer Portable inverter generator Motorcycle Dirtbike ATV UTV Scooter Paramotor Harley dual-sport bike Golf cart Outboard Jetski Pontoon boat Mercury Raceboat Hovercraft etc...
SPECIFICATIONS
| Product model | YR -HM035A1 |
| Battery type | CR2032 replaceable,The design department added an insulating separator under the battery. The insulating diaphragm needs to be removed during use. |
| Waterproof rate | IP67 |
| Clock system | 24H |
| Housing material | ABS+PC |
| TOT/JOB range | 0-99999H |
| RPM range RPM accuracy | 0-25000RPM; 10 RPM |
| Alert RPM range | 100-25000RPM/OFF |
| SVC range | 5-1000H/OFF |
| Total length of wire | 1.75m(68.8 inches) |
| Temp sensor length | 0.6m(23.6 inches) |
| Display Window Size | 41.2*17.2mm(1.6*0.68inches) |
| Product Dimension | 68.93x37x18mm(2.71*1.46*0.71inches) |
| Accessories | Product*1, Cut-out sticker,3M velcro, Cable tie*2,Bolt*2,Nut*4,Flat Washer*2 ,CR2032 Battery,TS002 probe sensor,User manual. |
| About metal probes | Metal temperature probes with a diameter of 14 mm and a measurement diameter of 14 mm or less can be used. |
| After-sales service | 2 years after-sales service,product problems are returned or replaced free of charge |
Product Description
It has temperature guage meter,hours and tachometer.In addition,temp function can record real-time temp and max temp(can be reset),alert overtemperature,temp unit can be switched;hour meter can record TOT,resettable partial timer,countdown maintenance value;tachometer can record real-time rpm,max rpm(can be reset),alert overspeed;backlight display;user shutdown;record the times of engine working;replacement battery reminder;waterproof rate:IP67.Suitable for small gasoline engine,such as scooter,mini bike,garden tractor,snowmobile,dump truck,motorcycle and etc.
- (The initial hour meter can be set before the machine runs or within 1 hour of operation.For example, if your device is already running 200H, you can set the TOT time of the hourly counter to 200H.)
- It has 2 colors of backlight: green and red, the green backlight will help you use it at night or in dim places, and the red backlight will remind you that the maintenance has arrived, the temperature and the RPM value is exceeded.
Product Functions
2.Hours Function:
- TOT non-resettable and back to 0 when exceed 999,99H.
- Record the partial working time(JOB), it is resettable.
- SVC range：5-1000 H.It can be turn off.
- TOT initial time can be set. For example, if your device has been running for 200 hours, you can set the initial time of the hour counter to 200H.
1.Thermometer Function：
- Two temp probes are included in the accessory, which can be replaced by removing the screws according to your own needs.
- Alert the temperature value exceed with red backlight display
- Temperature measurement range: -20℃ to +300℃（-4 ℉ to +572℉）,the unit can be switched ℃ or ℉ freely.
- The maximum temperature value can be reset.
3.Tachometer Function:
- Display the highest RPM hit since the engine started.
- Adjust the idle revolution by different engine firing patterns.
- RPM range: 0-25,000RPM.
Yooreal has established a complete laboratory for testing and improving the product's quality
Buttons Testing
| High Pressure Water Washer Testing
| Drop testing
| High & Low temperature
|
Application
Suitable for gas engine:
- 2 stroke 1 cylinder/2 stroke 2 cylinder/2 stroke 3 cylinder
- 4 stroke 1 cylinder/4 stroke 2 cylinder/4 stroke 3 cylinder/4 stroke 4 cylinder/4 stroke 5 cylinder/4 stroke 6 cylinder/4 stroke 8 cylinder/4 stroke 12 cylinder/4 stroke 16 cylinder
- 6 stroke 2 cylinder
- Note: Some 4 stroke 1 cylinder with same engine firing pattern as 2 stroke 1 cylinder, the setup is 1P1R.
- 4 stroke installation,wrap pickup wire around head of coil;2 stroke installation,wrap pickup wire around spark plug head.
EASY TO INSTALL：Double-sided mounting & Screw mounting
This tachometer hour meter suitable for Outdoor Power Equipment,Vehicles,Generators,Agriculture,Boats,Construction Machinery etc... such as:Lawn Mower Garden Tractor Riding mower Leaf Blower Pressure washer chainsaw Snowblower Brush Mower Line Trimmer string trimmer Pressure Washer Portable inverter generator Motorcycle Dirtbike ATV UTV Scooter Paramotor Harley dual-sport bike Golf cart Outboard Jetski Pontoon boat Mercury Raceboat Hovercraft etc...
SPECIFICATIONS
| Product model | YR -HM035A1 |
| Battery type | CR2032 replaceable,The design department added an insulating separator under the battery. The insulating diaphragm needs to be removed during use. |
| Waterproof rate | IP67 |
| Clock system | 24H |
| Housing material | ABS+PC |
| TOT/JOB range | 0-99999H |
| RPM range RPM accuracy | 0-25000RPM; 10 RPM |
| Alert RPM range | 100-25000RPM/OFF |
| SVC range | 5-1000H/OFF |
| Total length of wire | 1.75m(68.8 inches) |
| Temp sensor length | 0.6m(23.6 inches) |
| Display Window Size | 41.2*17.2mm(1.6*0.68inches) |
| Product Dimension | 68.93x37x18mm(2.71*1.46*0.71inches) |
| Accessories | Product*1, Cut-out sticker,3M velcro, Cable tie*2,Bolt*2,Nut*4,Flat Washer*2 ,CR2032 Battery,TS002 probe sensor,User manual. |
| About metal probes | Metal temperature probes with a diameter of 14 mm and a measurement diameter of 14 mm or less can be used. |
| After-sales service | 2 years after-sales service,product problems are returned or replaced free of charge |
Item Specifics
- Brand: Yooreal
- Unit of Measure: rpm
- Needle Color: Black
- Type: Temperature Gauge & Tach hour meter
- Display Type: Digital
- Manufacturer Warranty: 2 Years
- Color: Black
- Features: Clock, Speed Warning System, Record real-time temp and max temp(can be reset, alert overtemperature, hour meter, Record real-time rpm,max rpm(can be reset), Alert overspeed, backlight, Record the times of engine working, Replacement battery reminder, Waterproof rate:IP67, The initial hour meter can be set
- Material: ABS+PC
- Universal Fitment: Yes
- Certification: CE,RoHS
- UPC: 760752645972
