YABOANG DC DC Converter Voltage Converter 24/48/60/72V to 24V 20A 480W MAX with Waterproof Fuse and Terminal Block, Automatic Down Voltage Regulator, for Car Engines and Instruments etc
YABOANG DC DC Converter Voltage Converter 24/48/60/72V to 24V 20A 480W MAX with Waterproof Fuse and Terminal Block, Automatic Down Voltage Regulator, for Car Engines and Instruments etc
YABOANG DC DC Converter Voltage Converter 24/48/60/72V to 24V 20A 480W MAX with Waterproof Fuse and Terminal Block, Automatic Down Voltage Regulator, for Car Engines and Instruments etc
- Voltage converter features: increased 24/48/60/72V to 24V 20A 480W MAX, transmission efficiency: 95%, fixed output voltage, our voltage converter is equipped with junction box and fuse, which is safe, reliable and easy to use. If the voltage is too high, the circuit is faulty or abnormal, the fuse burns through and the transformer shuts off to protect the electrical devices. This also reduces the risk of fire and explosion
- Protection circuits: our boost power converter, waterproof, shockproof, moisture-proof, dust-proof, over-current protection, overvoltage protection, short circuit protection, overload protection and overheating protection ensure safety
- Robust: DC-DC converter By pouring the high-quality electronic components into the housing, enormous stability and vibration resistance is achieved, a long service life and integrity are guaranteed, a longer service life

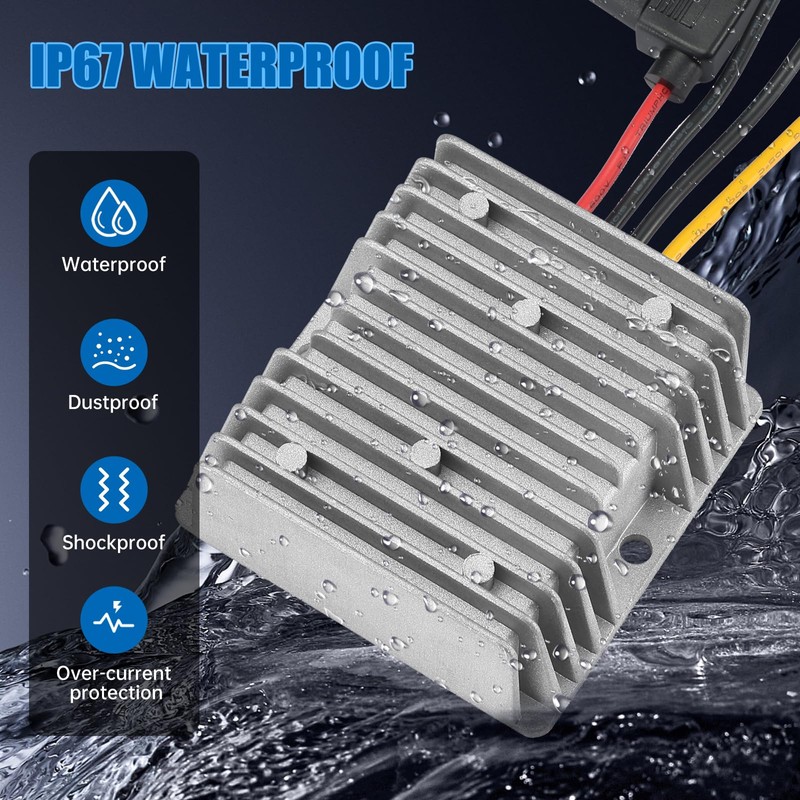

- Waterproof IP67: the current transformer is moulded with organosilicon, making it dustproof, waterproof and vibration-resistant, suitable for outdoor use and a variety of harsh environments, longer service life
- Applications The DC DC boost converters are widely used in cars, photovoltaics, industrial equipment, trucks, boats, agricultural machinery, camping, mobile equipment, hobby and DIY, as well as home and portable DVD, audio, etc。

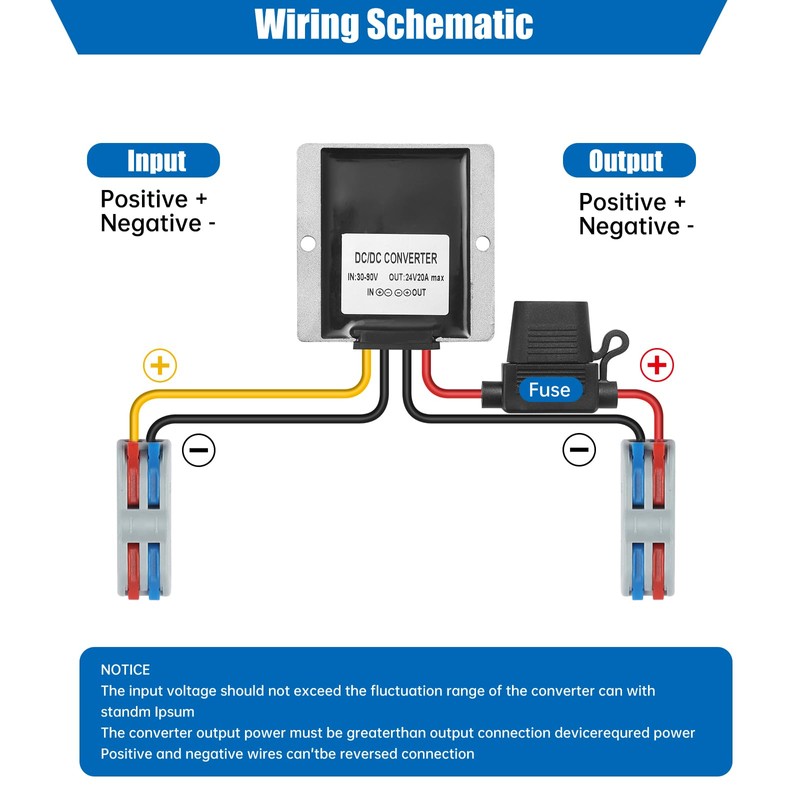

- Attention: Please note that the positive and negative poles must not be connected upside down, as this will cause permanent damage to the product and may cause leakage, explosion or fire. Do not use the device near a heat source (e.g. fire or heating), do not connect the input line to 220 V, do not put the device into the fire or heat it, do not close the positive and negative poles of the device with wires or other metal objects, non-professional personnel must not disassemble and repair it themselves
| Brand: | YABOANG |
|---|---|
| Manufacturer: | YABOANG |
| Part Number: | 46TWXTT |
| Isin: | IRRW1JZ9X8CX |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
GUARANTEED SAFE CHECKOUT
-
MONEY BACK GUARANTEE
30 days money back guarantee, no additional fee charged.
-
EXCELLENT SUPPORT
We provide 24/7 online customer support via email.
-
Fast Shipping
One week domestic shipping. Global delivery to the US in 2 weeks.

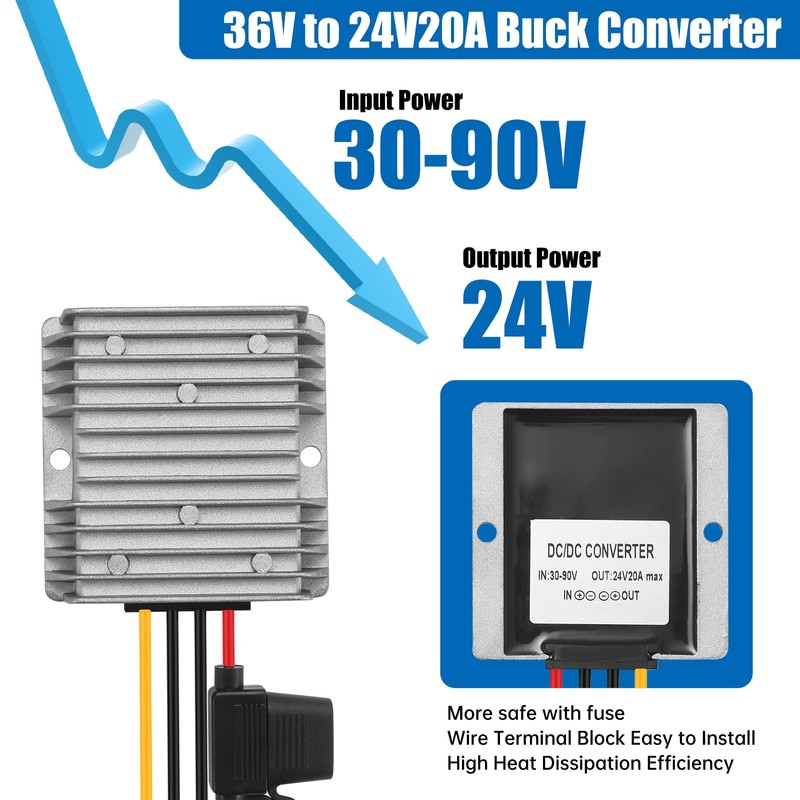

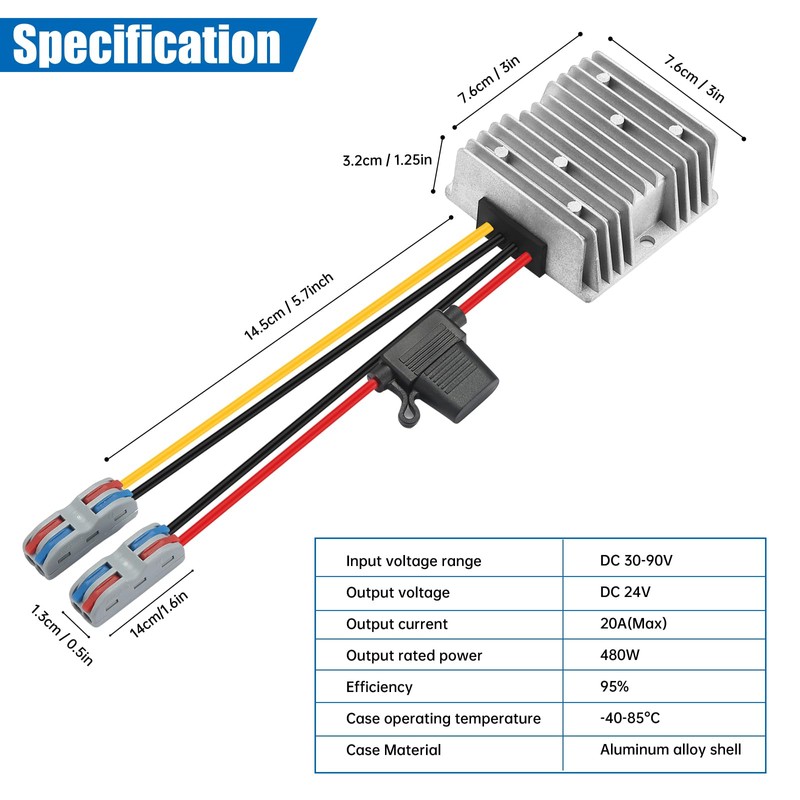

DC-DC converter: 24/48/60/72V to 24V 20A 480W MAX
Input parameters:
Rated input voltage: 24/48/60/72V.
2. Transmission efficiency: 95%.
Input cable: 15-16 cm (R+ B).
Output parameters:
Output voltage: 24 V.
Output: 20 A max.
3. Maximum output power: 480 W max.
4. Idle adjustment rate 2%.
5. Load control 3%.
6. Standby current loss ≤ 20 mA.
7. Output cable 15-16 cm (Y+ B)
Environmental parameters:
1. Working temperature: -20 - 65 °C.
Storage temperature: -40 - 85 °C.
3. Working humidity 10%-90%RH°.
Defence function:
1. Classification of waterproof IP67
2. Short circuit protection: yes.
3. Protection against overheating: yes.
4. Overcurrent protection: yes.
Please read the safety instructions carefully to avoid leaks, explosions or fires.
1. Do not use the device near a heat source (such as a fire or heater).
2. Do not connect the input line to 220 V power
3. Do not put the product in the fire or heat it
4. Do not short connect the positive or negative pole of the device with wires or other metal objects
5. Non-professional personnel must not disassemble and repair the device themselves
6. The product is not equipped with protection against reverse polarity of the input. Note that the positive and negative poles of the input must not be interchanged, and that the reverse polarity leads to permanent damage to the product
Storage: Store the product in a dry and cool place with a temperature of -40°C to 80°C, avoid contact with corrosive substances and keep it away from fire and heat sources
8. Heat dissipation method: natural heat dissipation, no other equipment is required to support.
Package includes:
1 x Converter
Input parameters:
Rated input voltage: 24/48/60/72V.
2. Transmission efficiency: 95%.
Input cable: 15-16 cm (R+ B).
Output parameters:
Output voltage: 24 V.
Output: 20 A max.
3. Maximum output power: 480 W max.
4. Idle adjustment rate 2%.
5. Load control 3%.
6. Standby current loss ≤ 20 mA.
7. Output cable 15-16 cm (Y+ B)
Environmental parameters:
1. Working temperature: -20 - 65 °C.
Storage temperature: -40 - 85 °C.
3. Working humidity 10%-90%RH°.
Defence function:
1. Classification of waterproof IP67
2. Short circuit protection: yes.
3. Protection against overheating: yes.
4. Overcurrent protection: yes.
Please read the safety instructions carefully to avoid leaks, explosions or fires.
1. Do not use the device near a heat source (such as a fire or heater).
2. Do not connect the input line to 220 V power
3. Do not put the product in the fire or heat it
4. Do not short connect the positive or negative pole of the device with wires or other metal objects
5. Non-professional personnel must not disassemble and repair the device themselves
6. The product is not equipped with protection against reverse polarity of the input. Note that the positive and negative poles of the input must not be interchanged, and that the reverse polarity leads to permanent damage to the product
Storage: Store the product in a dry and cool place with a temperature of -40°C to 80°C, avoid contact with corrosive substances and keep it away from fire and heat sources
8. Heat dissipation method: natural heat dissipation, no other equipment is required to support.
Package includes:
1 x Converter
