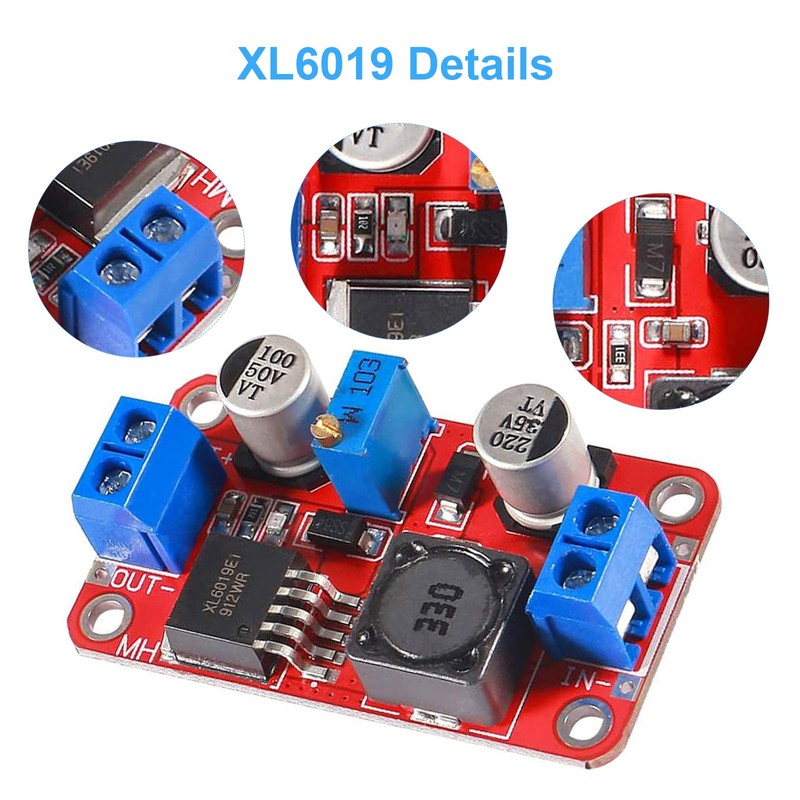

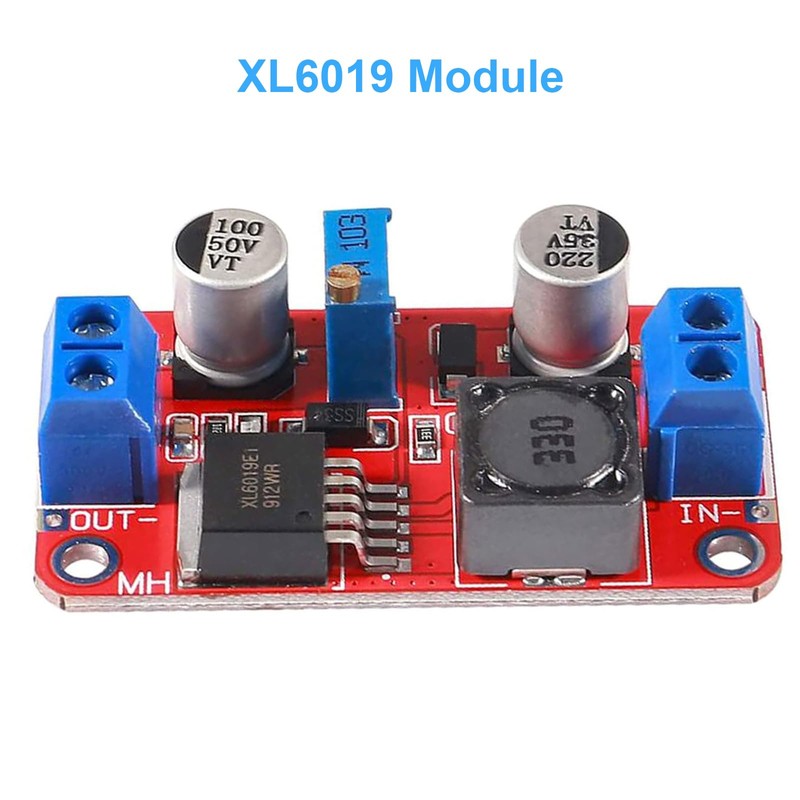

XL6019 Step Up Converter Binghe 3 Pieces Booster Modules, XL6019 Voltage Converter, Adjustable DC-DC Boost Power Modules, 3-35V to 5-40V for Portable Electronic Devices
$37.37
- $9.99 shipping from Germany View details
-
Arrives
- Integrated MOSFET design: Step Up Converter uses a conventional, fully integrated Boost constant voltage output scheme with an integrated MOSFET, which requires fewer external components and reduces system costs.
- Wide voltage input: XL6019 step up converter, the input voltage range is wide, up to 35 V, which makes it suitable for different performance environments.
- Adjustable output voltage: booster modules. The output voltage is adjustable and can be up to 40 V, which meets different application requirements.
- High reliability: XL6019 voltage converter built-in over-temperature and over-current protection circuits ensure high system reliability.
- High efficiency: step up converter: the conversion efficiency of the system can reach over 90%, which facilitates the thermal design and is suitable for boost applications up to 30 W.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Integrated MOSFET design: Step Up Converter uses a conventional, fully integrated Boost constant voltage output scheme with an integrated MOSFET, which requires fewer external components and reduces system costs.
- Wide voltage input: XL6019 step up converter, the input voltage range is wide, up to 35 V, which makes it suitable for different performance environments.
- Adjustable output voltage: booster modules. The output voltage is adjustable and can be up to 40 V, which meets different application requirements.
- High reliability: XL6019 voltage converter built-in over-temperature and over-current protection circuits ensure high system reliability.
- High efficiency: step up converter: the conversion efficiency of the system can reach over 90%, which facilitates the thermal design and is suitable for boost applications up to 30 W.
Description:

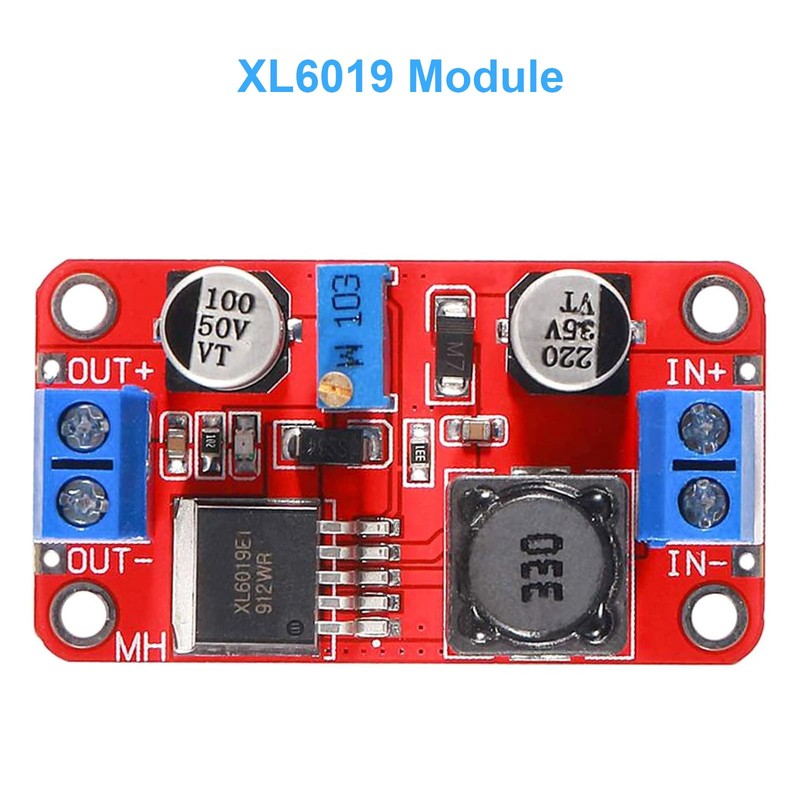

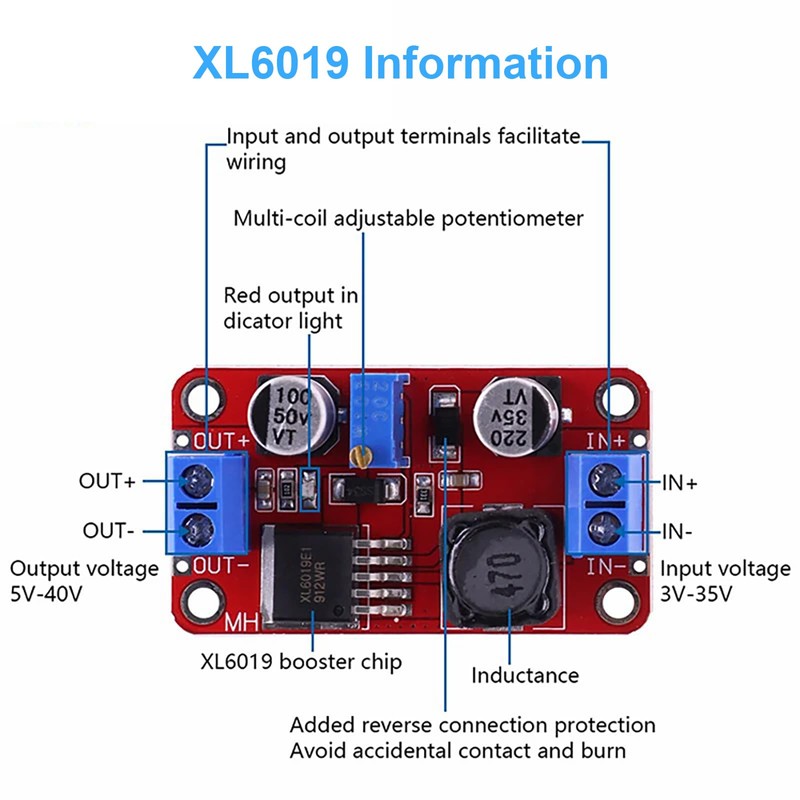

MS + -> Positive; IN ---> Negative
OUT + -> Positive; OFF ---> Negative
Input voltage: DC 3-35V (max. 40 V).
Output voltage: DC 5-40V (max. 45V adjustable) Input Current: 5A (Max)
Conversion efficiency: 94% (MAX)
Output ripple: 100 mV (MAX)
Switching frequency: 220 kHz.
Working temperature: industrial (-40°C to +85°C).
Voltage regulation: ±0.5%.
Load control: ±0.5%.
Chip: XL6019.
Overheating protection: yes.
Short circuit protection: yes.
Features:
1. The use of conventional Boost fully integrated constant voltage output control, the internal integration of MOSFET, less peripheral devices, low system costs;
2. Wide voltage range input, input voltage up to 35 V.
Adjustable output voltage, can support 40 V.
Built-in over-temperature protection, over-current protection, a full range of reliability protection circuit, high reliability.
5. The system conversion efficiency can reach more than 90%, convenient thermal design.
6, TO263-5L standard package, suitable for boosting applications within 30W.
Please note:
1. Input and output must be connected correctly.
For use at less than 2.5M, longer operating current is recommended while adding the heat sink ground (10W power above); As it amplifies the module, please keep the minimum difference of 1.5V to ensure stable output.
2. Long time work is recommended to use the current within 2.5 A, plus heat sink (10 W or more output); because it is a boost module to ensure the stability of the output, please maintain a small 1.5 V differential voltage.
Box contents:

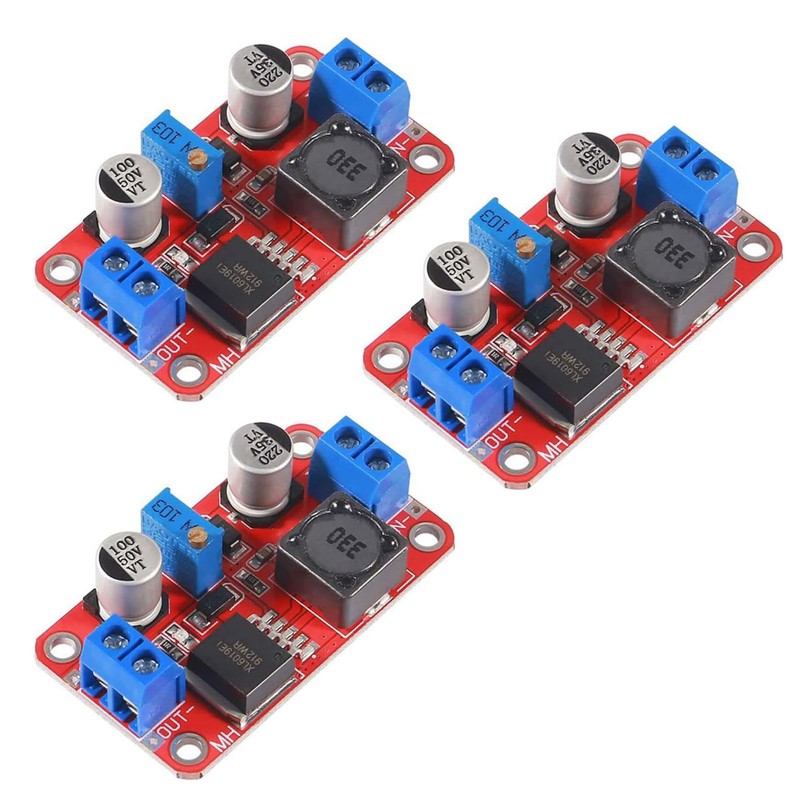

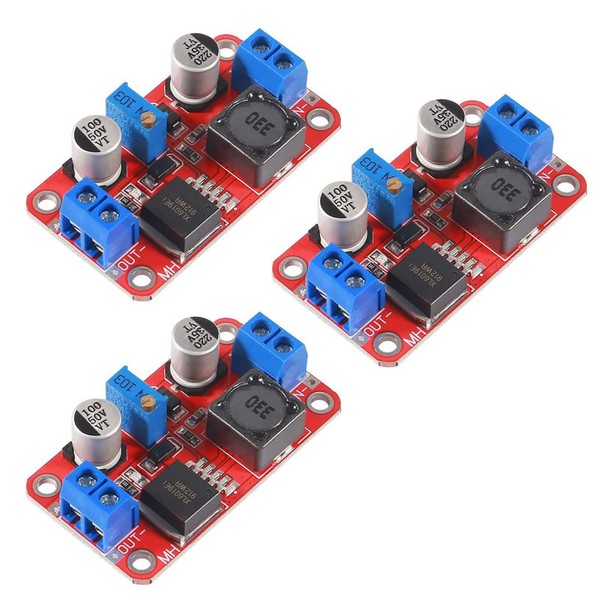

3 x XL6019 step up converter.
