XGOIENZI RT809F Programmer 8 Adapters Motherboard Reader sop8 IC Socket Flash Programmer Clip eprom Clamp VGA ICSP LCD PCB Board 24 25 93 Series
$264.59
-
$14.50
shipping from Germany
Duties & customs included — no extra fees on delivery -
Arrives

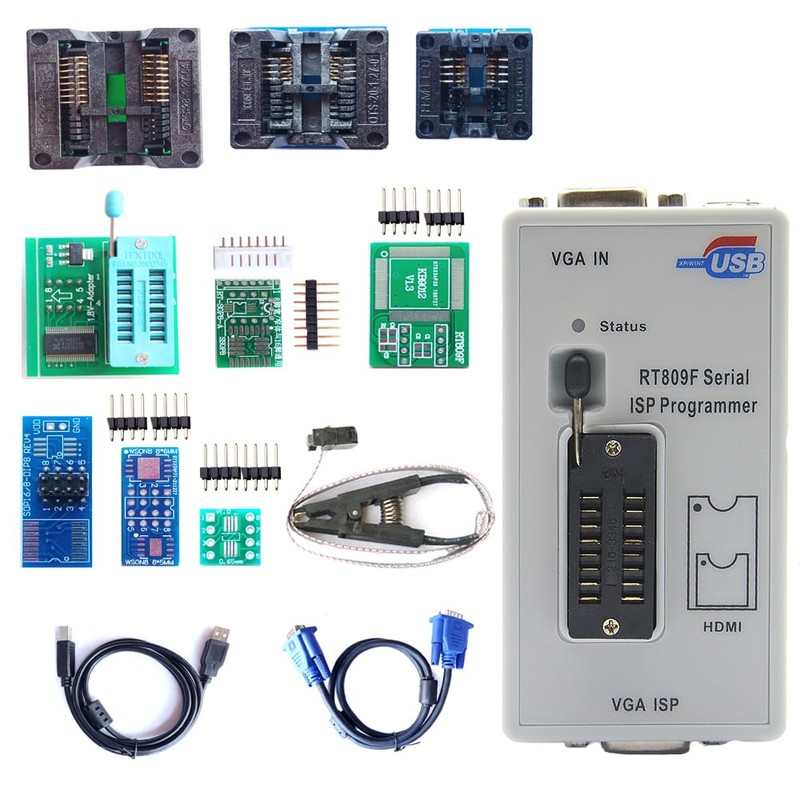

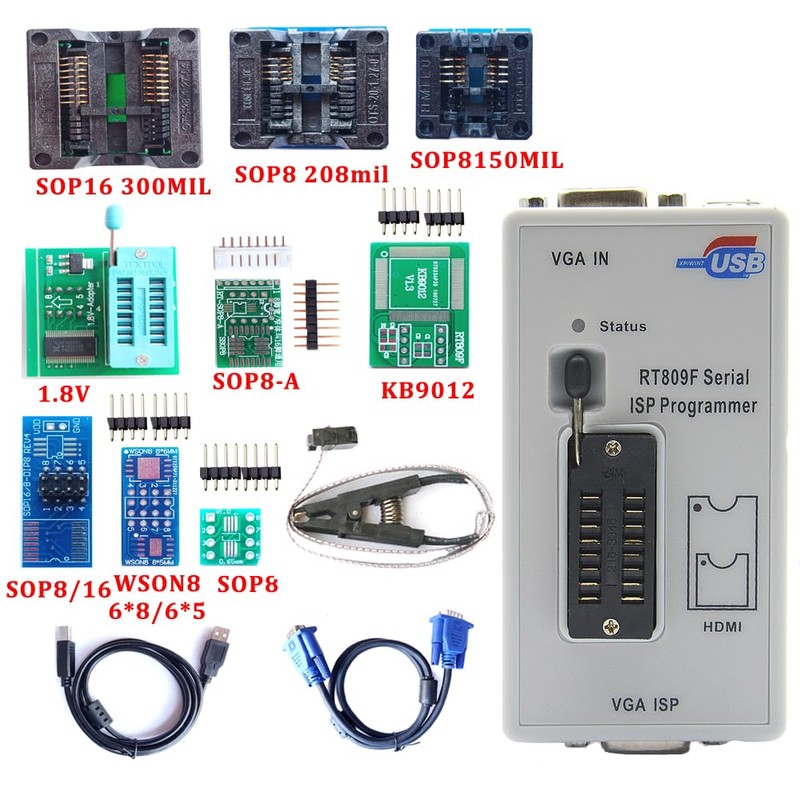

- Packing list: 1*RT809F Programmer1*USB Cable 1*VAG +Cable 1*CD (software) 1*SOP Simple socket 1*SOIC8-DIP8 ZIF adapter (200~208mil) 1*SOP8 - DIP8 adapter (~150 mil) 1*KB902 Board1*wsom8 1*SOP16-DIP8 adapter(300mil) 1*SOP8 Clip 1*SOP8 adapter for SOP8 Clip
- Support all series of 24,IIC EEPROM Memory.Besides, it can automatically identify chip model from 24C01 to 24C16,Automatic identify write protection level of the 24 series' 7th pin. 5) Support all series of 25 and 26 SPI FLASH Memory,support identify the chips part number automaticly,the capacity is up to 256Mbit.
- Support all series 93 MircroWire Memory,including Japanese special chips. 7) It is the only one programmer which have the function of supporting RTD2120 chip's double bank read and write online. Including the BANK0 which the firmware in and BANK1 area ,which menu in. It can read double BANK in only 6 seconds.Support RTD2122's three BANK read and write online. 8) Support reading and writing DDC-EDID data of LCD display and LCD TV online. Very easy to solve EDID data problems.
- Support reading and writing laptop screen EDID data online, very easy to solve the problem of DELL and SONY laptop's choose screen. Our store have screen wires sale. 10) Support Leroy, Ding Branch, Rainbow Star, Triumph, Kang Yue and Wang Jie general driver board. Write the driver board MCU by VGA port without taking the components out of the board. The programmer software has a new additional function, it can restore the chips. If the board has been damaged when programming
- Support to read and write firmware of LCD display and TV motherboard online and out off line,Support NT68F63/NT68F632/NT68F633 series MCU and WT61P4 models. 13) Support MCU's programming online, such as W78E65P-40,it can replcace the MCU of M6759,SM5964,SM89516,P89C51RD andTP2804 which are very easy to be damaged. 14) Support LCD and DVD program online.Such as MT2389,MT1379,MT8223 and 8226 etc. 15) Support DVD program online. Such as 8202D 8202S,8202L,8281 and 8200 etc
- Packing list: 1*RT809F Programmer1*USB Cable 1*VAG +Cable 1*CD (software) 1*SOP Simple socket 1*SOIC8-DIP8 ZIF adapter (200~208mil) 1*SOP8 - DIP8 adapter (~150 mil) 1*KB902 Board1*wsom8 1*SOP16-DIP8 adapter(300mil) 1*SOP8 Clip 1*SOP8 adapter for SOP8 Clip
- Support all series of 24,IIC EEPROM Memory.Besides, it can automatically identify chip model from 24C01 to 24C16,Automatic identify write protection level of the 24 series' 7th pin. 5) Support all series of 25 and 26 SPI FLASH Memory,support identify the chips part number automaticly,the capacity is up to 256Mbit.
- Support all series 93 MircroWire Memory,including Japanese special chips. 7) It is the only one programmer which have the function of supporting RTD2120 chip's double bank read and write online. Including the BANK0 which the firmware in and BANK1 area ,which menu in. It can read double BANK in only 6 seconds.Support RTD2122's three BANK read and write online. 8) Support reading and writing DDC-EDID data of LCD display and LCD TV online. Very easy to solve EDID data problems.
- Support reading and writing laptop screen EDID data online, very easy to solve the problem of DELL and SONY laptop's choose screen. Our store have screen wires sale. 10) Support Leroy, Ding Branch, Rainbow Star, Triumph, Kang Yue and Wang Jie general driver board. Write the driver board MCU by VGA port without taking the components out of the board. The programmer software has a new additional function, it can restore the chips. If the board has been damaged when programming
- Support to read and write firmware of LCD display and TV motherboard online and out off line,Support NT68F63/NT68F632/NT68F633 series MCU and WT61P4 models. 13) Support MCU's programming online, such as W78E65P-40,it can replcace the MCU of M6759,SM5964,SM89516,P89C51RD andTP2804 which are very easy to be damaged. 14) Support LCD and DVD program online.Such as MT2389,MT1379,MT8223 and 8226 etc. 15) Support DVD program online. Such as 8202D 8202S,8202L,8281 and 8200 etc
