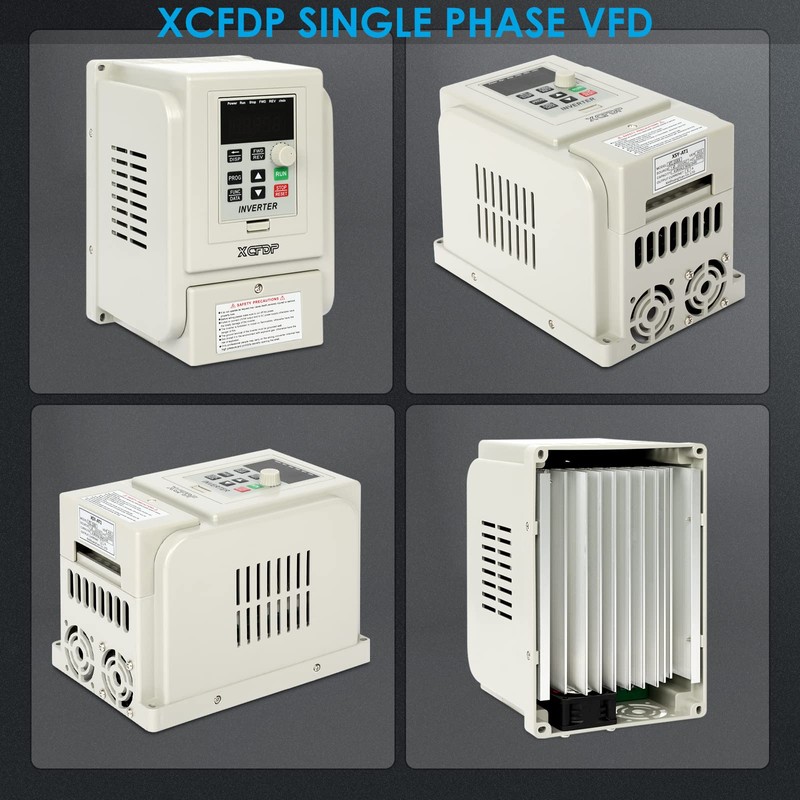

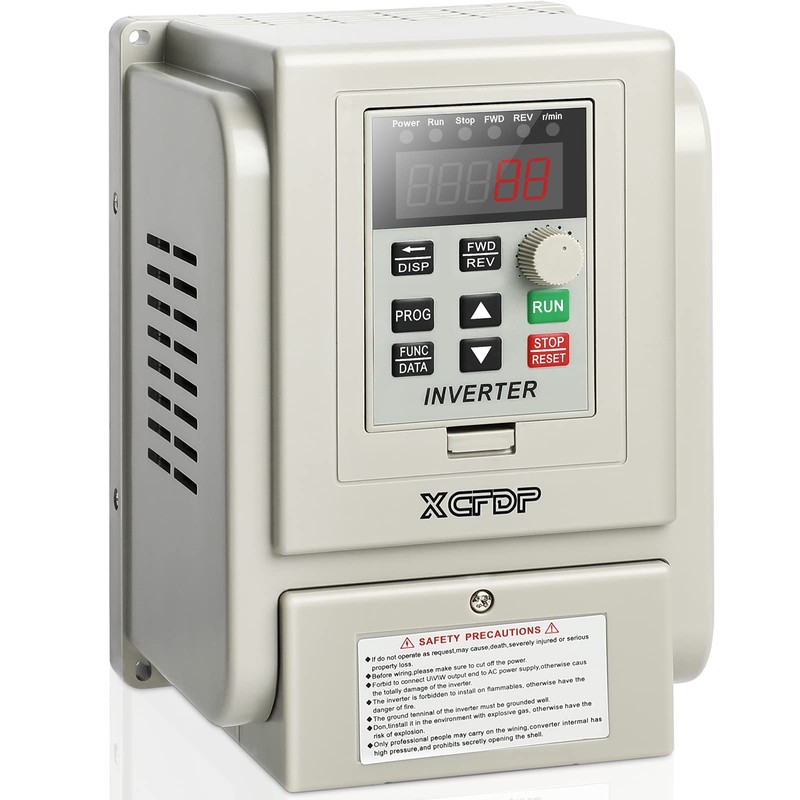

XCFDP AC 220V/2.2kw 3HP Variable Frequency Drive,12A VFD Inverter Single Phase to 3 Phase Frequency Converter for Spindle Motor Speed Control(Single-Phase Input, 3 Phase Output)
$237.84
- $5.95 shipping from United States
-
Arrives

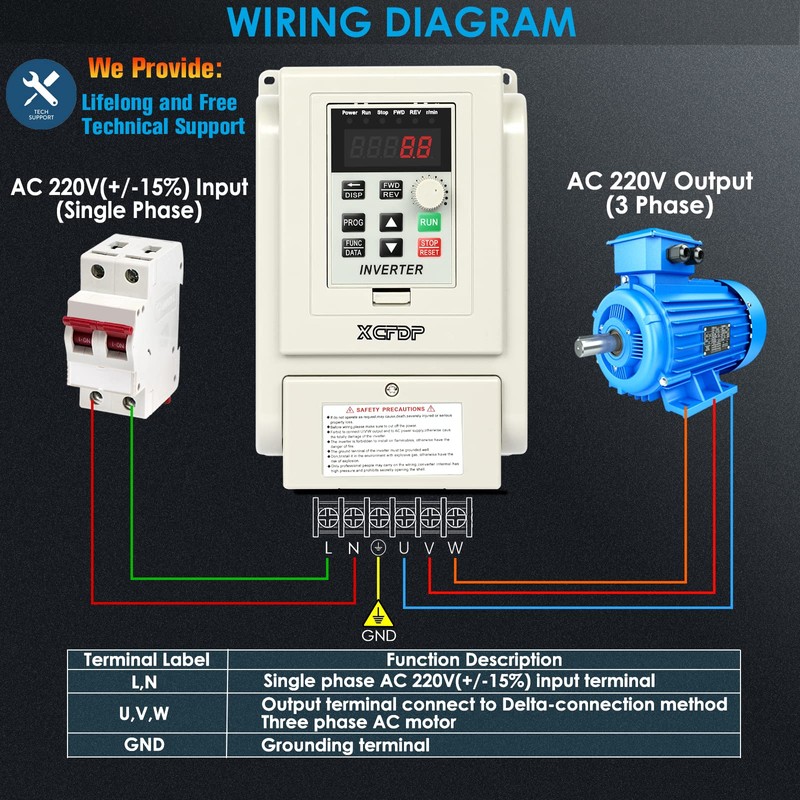

- 【BASIC PARAMETERS】This single phase vfd drive: 1 phase input and 3 phase output;Input voltage: 220V(+/-15%),Output voltage: 220V; Input frequency: 50/60 Hz,Output frequency: 0-400 Hz; The power is 2.2KW 3HP 12A, AC 220V; VFD Dimension: 4.61 x 4.96 x 6.89 inches (L x W x H).NOTE:Some products do not have the "XCFDP" brand logo on the product due to the production batch, and there is no difference in other parameters, please don't mind this.
- 【EXCELLENT PERFORMANCE】With the copper coil of good quality,this Vfd drive is safer and more durable.And this vfd adopts the multi-grid design with enough cooling space between the electronic components and the case, so it is easier to cool quickly.

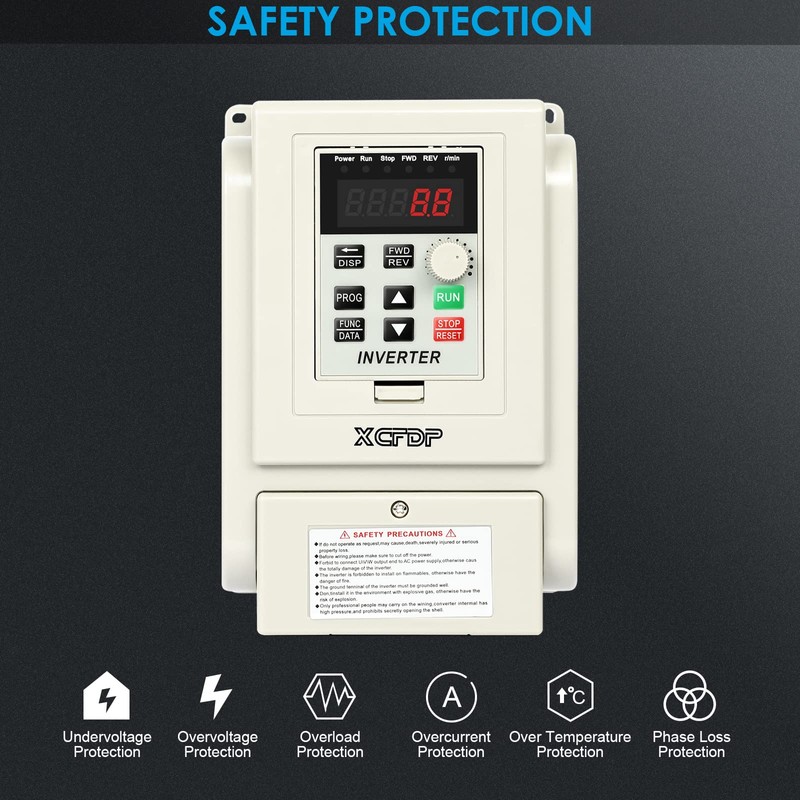

- 【MULTI-PROTECTION AND EASY TO OPERATE】this vfd drive is screwed tightly and equipped with multiple protection functions for stable and safe operation,such as Three Anti-Paint Protection Lines,Over Current Protection,Over Voltage Protection,Overload Protection,Short Circuit Protection.And the simple removable control panel and the easy connection make this vfd easier to use.(!!NOTE:Comes with 20cm control panel cable inside the vfd, extra extension cables are not included.)
- 【WIDE APPLICATION】This vfd inverter single to 3 phase is widely used in various types of automatic control equipment, such as: Spindle Motor,Speed Control,CNC,Drill Press, HVAC, Lathe, Milling, Pumps, Conveyors, Mach3, Fan, Cooling, Compressor, Three-phase motor and other machines, etc...PLEASE NOTE: your motor power should not be more than twice the power of this vfd!!
- 【CUSTOMER SERVICE】Pre-Sale: Since our VFDs contain many models, welcome to consult our customer service to choose one of the vfd you need; After-Sale: This single phase vfd comes with a general user manual of multiple models, please refer to the part of AT1--Single-phase to three-phase. No matter what the problems before or during use, please feel free to contact our customer service in time.You will get WORRY-FREE 18-MONTHS WARRANTY & LIFELONG TECH SUPPORT.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- 【BASIC PARAMETERS】This single phase vfd drive: 1 phase input and 3 phase output;Input voltage: 220V(+/-15%),Output voltage: 220V; Input frequency: 50/60 Hz,Output frequency: 0-400 Hz; The power is 2.2KW 3HP 12A, AC 220V; VFD Dimension: 4.61 x 4.96 x 6.89 inches (L x W x H).NOTE:Some products do not have the "XCFDP" brand logo on the product due to the production batch, and there is no difference in other parameters, please don't mind this.
- 【EXCELLENT PERFORMANCE】With the copper coil of good quality,this Vfd drive is safer and more durable.And this vfd adopts the multi-grid design with enough cooling space between the electronic components and the case, so it is easier to cool quickly.
- 【MULTI-PROTECTION AND EASY TO OPERATE】this vfd drive is screwed tightly and equipped with multiple protection functions for stable and safe operation,such as Three Anti-Paint Protection Lines,Over Current Protection,Over Voltage Protection,Overload Protection,Short Circuit Protection.And the simple removable control panel and the easy connection make this vfd easier to use.(!!NOTE:Comes with 20cm control panel cable inside the vfd, extra extension cables are not included.)
- 【WIDE APPLICATION】This vfd inverter single to 3 phase is widely used in various types of automatic control equipment, such as: Spindle Motor,Speed Control,CNC,Drill Press, HVAC, Lathe, Milling, Pumps, Conveyors, Mach3, Fan, Cooling, Compressor, Three-phase motor and other machines, etc...PLEASE NOTE: your motor power should not be more than twice the power of this vfd!!
- 【CUSTOMER SERVICE】Pre-Sale: Since our VFDs contain many models, welcome to consult our customer service to choose one of the vfd you need; After-Sale: This single phase vfd comes with a general user manual of multiple models, please refer to the part of AT1--Single-phase to three-phase. No matter what the problems before or during use, please feel free to contact our customer service in time.You will get WORRY-FREE 18-MONTHS WARRANTY & LIFELONG TECH SUPPORT.

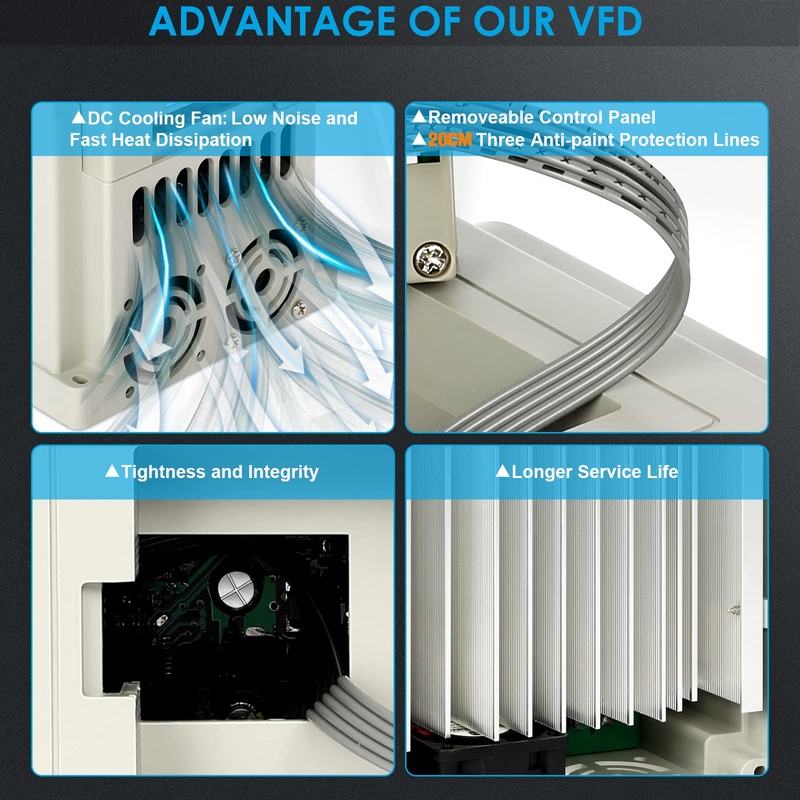

*DC cooling fan low noise, large volume.
*Three anti-paint protection lines, improve and extend the life of the fuselage.
*The machine is screwed to ensure the safety and reliability of the use.
*Fine workmanship and stable performance Long service life.
Specification
Color: White Rated Load: 3HP
Power Rating: 2.2KW
Input Voltage: AC220V
Output Voltage: AC220V
Output Current: AC12A
Input Frequency: 50/60HZ
Output Frequency: 0-400HZ
Working Temperature: -10-40 °C
Number Of Phases(Input): Single Phase
Number Of Phases(Output): 3 Phase
Output Voltage Adjusting Method: PWM control

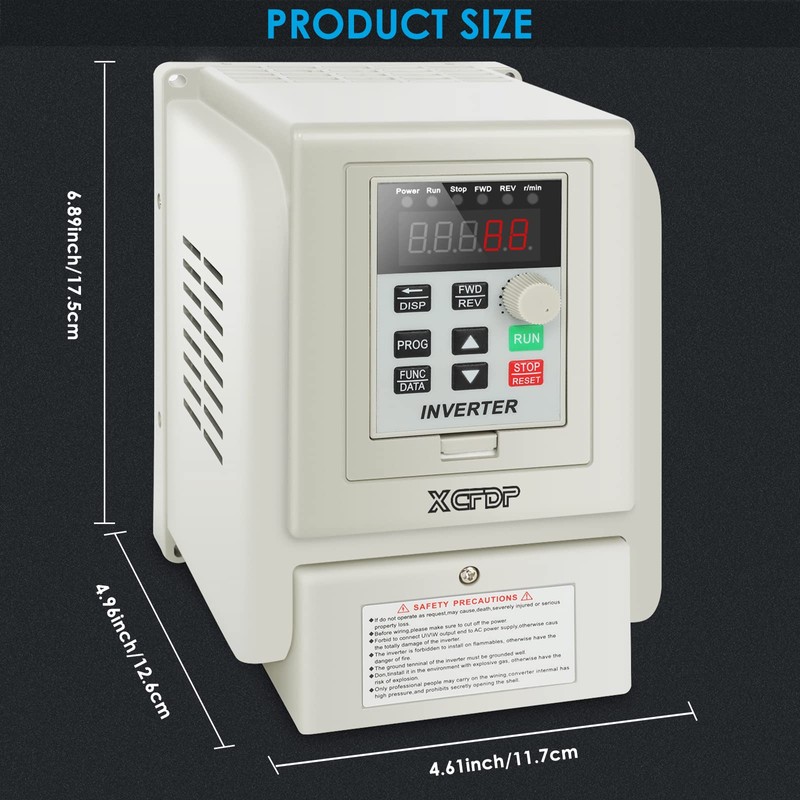

Dimension: 4.61 x 4.96 x 6.89 inches
Package Including
Package Included: 1 x VFD Frequency Converter
