X8R AIR COMPRESSOR REPLACEMENT PISTON SEALS REPAIR KIT FOR RANGE ROVER L322 06-09

Brand: X8R
  Land Rover Discovery 3 4 Range Rover Sport Air Compressor Piston Seal Repair
SYMPTOMS OF FAULT

Is your vehicles air suspension rising slowly, noisily, or perhaps failing to rise at all? EAS Amber light lit? Fault code C1A20, C1A1364, C50, or C1A20-64 showing? One or more of these errors: “Suspension error only normal height available” “Suspension fault; pressure not rising quick enough” Or “Pressure does not decrease when venting gallery”?

THE FAULT

The piston seals within your vehicles EAS air compressor are worn reducing output significantly.

The likely cause of the faults noted above and most common cause is a worn piston and glide ring within the air suspensions compressor unit. Coupled with saturation of the filters in the compressors drier unit. This results in reduction of compressor output and triggers vehicle faults as well as extending the time taken to lift the vehicle.

THE SOLUTION

Fit our replacement piston seals and restore your compressor to full health. Please note this listing is for our piston seal kit only, please check out our store for filter kits.




This kit includes a new improved design glide ring and piston ring, constructed to the finest of tolerances from improved materials to restore output. Also included is two custom tools to allow easy replacement of these seals. X2 air collet Viton o-rings, X2 piston liner Viton seals, X1 high temp Piston liner gasket -no need to reuse the poor quality originals.

UK stock
Constructed out of high quality materials to last the lifetime of your vehicle
Next day delivery available
Improved design parts

Land Rover Discovery 3 4 Range Rover Sport L322 Air Compressor Piston Seal Repair Fix Kit Installation Instructions - YouTube

Video will open in a new window

[isdntekvideo]
VEHICLES AFFECTED

Land Rover Discovery MK3
2005 to 2009
Land Rover Discovery MK4
2009 to 2012


Ranger Rover Sport
2005 to 2013


Range Rover L322
2006 to 2009



Original Hitachi Compressor Only



Our kit will only repair the original Hitachi compressor illustrated above.

If the compressor has been changed in vehicles life to a different compressor our kit will not repair this. It is worthwhile checking the compressor is as illustrated to the left (see instructions on how to access compressor) Associated part numbers, our kit will only repair Hitachi compressor. RQG000017 RQG000018 RQG000019 RQL500040 RQG500060 RQG500061 RQG500062 RQG500070 QG500071 RQG500072 RQG500080 RQG500090 RYG500160 LR023964 LR010376 LR045251 LR044360 LR01530 LR015303 UUB504700 VUB504700

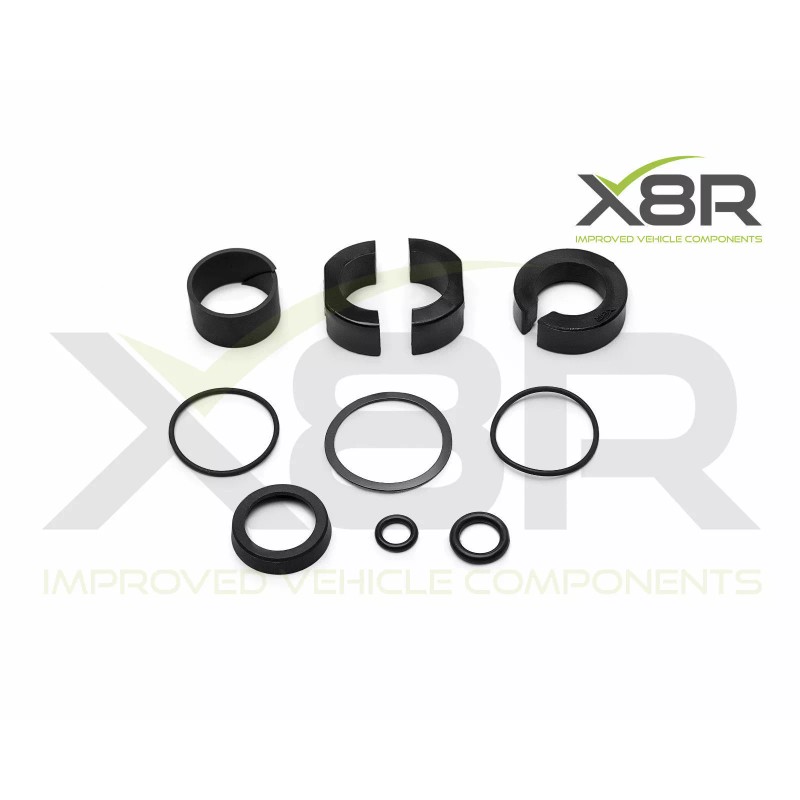

YOU WILL RECEIVE

1x Glide ring

1x Piston ring

  2x Air collet Viton o-rings

  2x Piston liner Viton seals

  1x High temp Piston liner gasket

  Set of tools to fit the piston seal



Brand: X8R
Isin: I3NU4RAOHIZN

$65.49

  • Free shipping in US
  • Arrives:

  • Free 30-Day returns

In Stock

Sold by , Fulfilled by IBSPOT
Ships from USA

IBspot Buyer Protection

Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms

supported payment methods:Visa, Mastercard, Discover, Amex, Apple Pay, Google Pay

GUARANTEED SAFE CHECKOUT

More seller options

Starting from

Compare all sellers
  • MONEY BACK GUARANTEE

    30 days money back guarantee, no additional fee charged.

  • EXCELLENT SUPPORT

    We provide 24/7 online customer support via email.

  • Fast Shipping

    One week domestic shipping. Global delivery to the US in 2 weeks.

scroll to top arrow
X8R AIR COMPRESSOR REPLACEMENT PISTON SEALS REPAIR KIT FOR RANGE ROVER L322 06-09

X8R AIR COMPRESSOR REPLACEMENT PISTON SEALS REPAIR KIT FOR RANGE ROVER L322 0...

$65.49

  Land Rover Discovery 3 4 Range Rover Sport Air Compressor Piston Seal Repair
SYMPTOMS OF FAULT

Is your vehicles air suspension rising slowly, noisily, or perhaps failing to rise at all? EAS Amber light lit? Fault code C1A20, C1A1364, C50, or C1A20-64 showing? One or more of these errors: “Suspension error only normal height available” “Suspension fault; pressure not rising quick enough” Or “Pressure does not decrease when venting gallery”?

THE FAULT

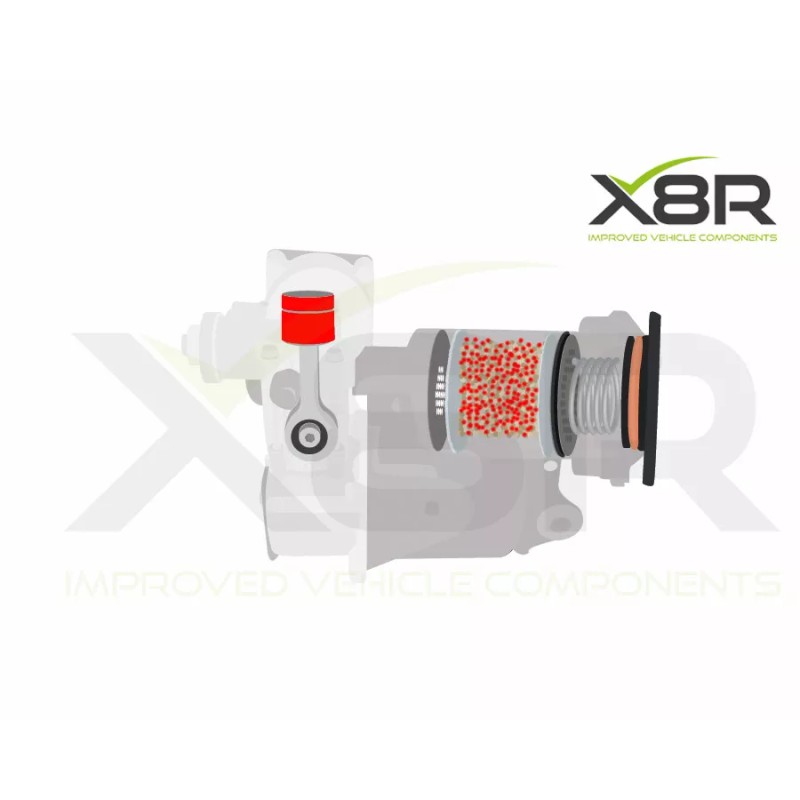

hitachi compressor faulty seals
The piston seals within your vehicles EAS air compressor are worn reducing output significantly.

The likely cause of the faults noted above and most common cause is a worn piston and glide ring within the air suspensions compressor unit. Coupled with saturation of the filters in the compressors drier unit. This results in reduction of compressor output and triggers vehicle faults as well as extending the time taken to lift the vehicle.

THE SOLUTION

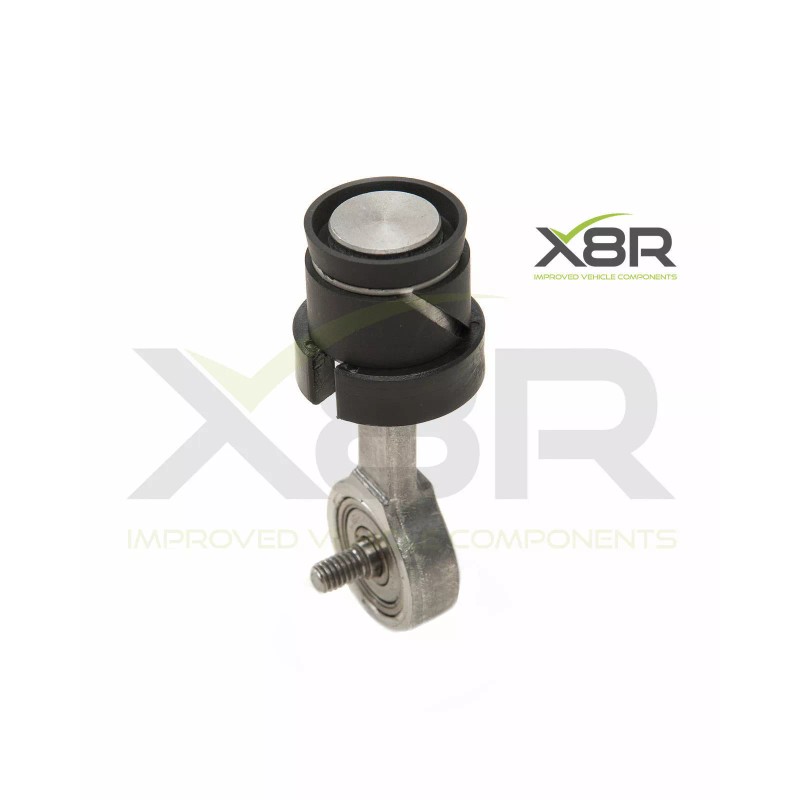

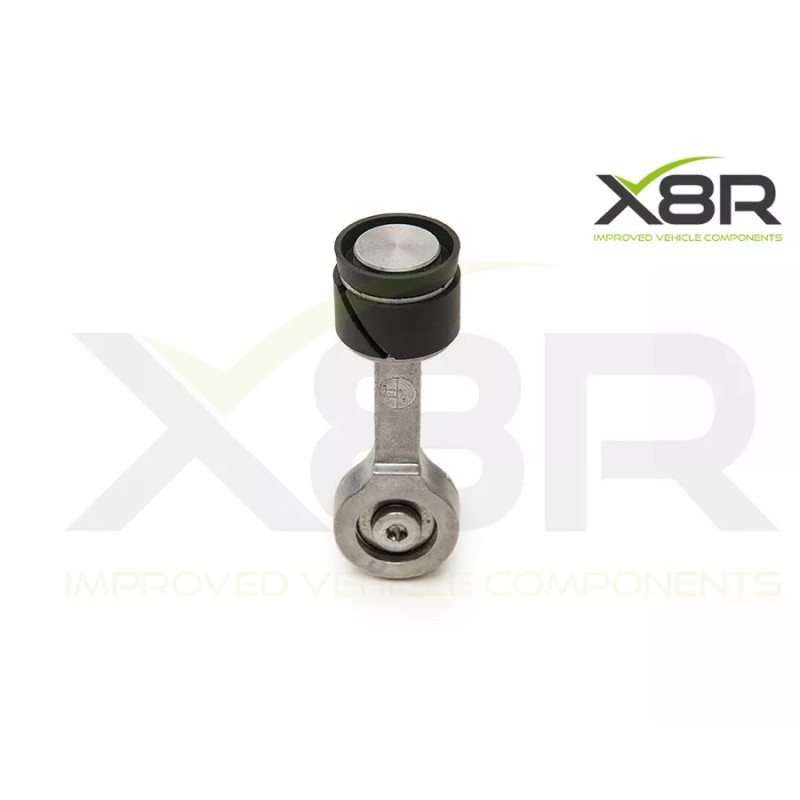

new seal fitted on hitachi piston rod
Fit our replacement piston seals and restore your compressor to full health. Please note this listing is for our piston seal kit only, please check out our store for filter kits.

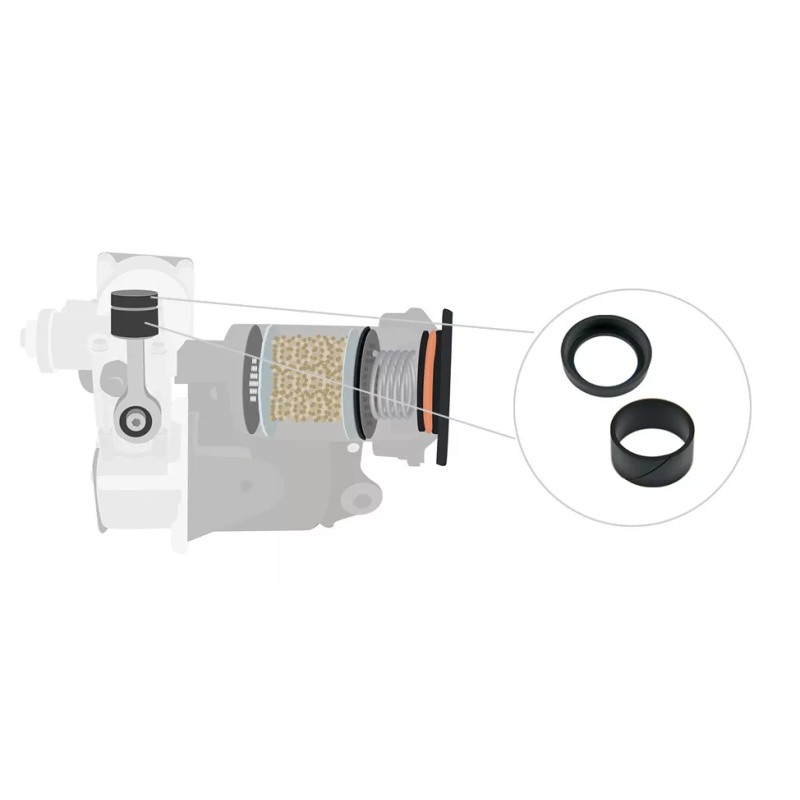

This kit includes a new improved design glide ring and piston ring, constructed to the finest of tolerances from improved materials to restore output. Also included is two custom tools to allow easy replacement of these seals. X2 air collet Viton o-rings, X2 piston liner Viton seals, X1 high temp Piston liner gasket -no need to reuse the poor quality originals.

UK stock
Constructed out of high quality materials to last the lifetime of your vehicle
Next day delivery available
Improved design parts

Land Rover Discovery 3 4 Range Rover Sport L322 Air Compressor Piston Seal Repair Fix Kit Installation Instructions - YouTube

Video will open in a new window

[isdntekvideo]

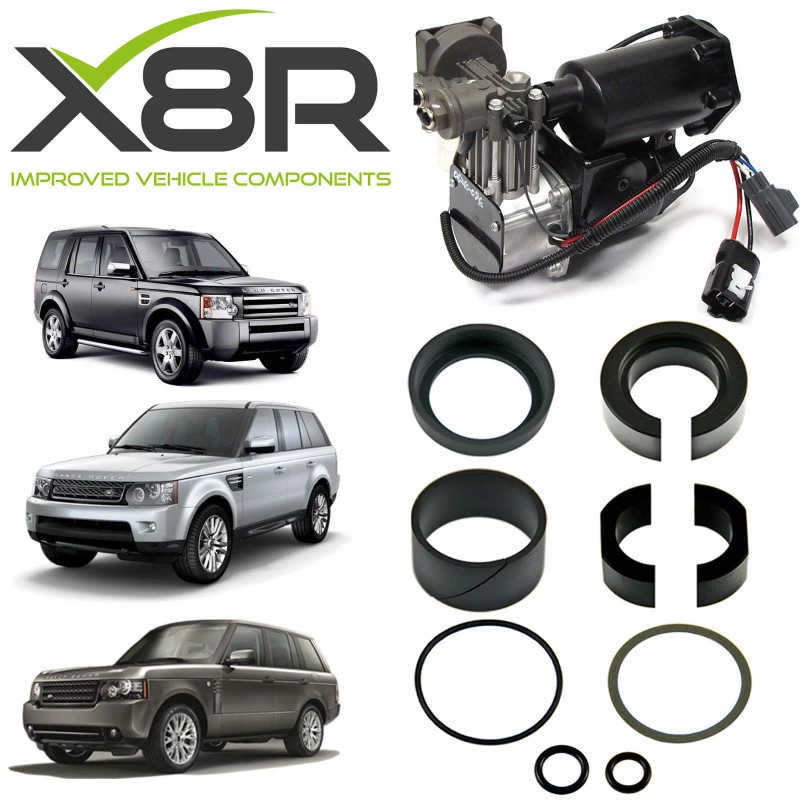

VEHICLES AFFECTED
Land Rover Discovery Mk3 Mk4
Land Rover Discovery MK3
2005 to 2009
Land Rover Discovery MK4
2009 to 2012


Range Rover Sport
Ranger Rover Sport
2005 to 2013


Range Rover L322
Range Rover L322
2006 to 2009



Original Hitachi Compressor Only



Hitachi compressor



Our kit will only repair the original Hitachi compressor illustrated above.

If the compressor has been changed in vehicles life to a different compressor our kit will not repair this. It is worthwhile checking the compressor is as illustrated to the left (see instructions on how to access compressor) Associated part numbers, our kit will only repair Hitachi compressor. RQG000017 RQG000018 RQG000019 RQL500040 RQG500060 RQG500061 RQG500062 RQG500070 QG500071 RQG500072 RQG500080 RQG500090 RYG500160 LR023964 LR010376 LR045251 LR044360 LR01530 LR015303 UUB504700 VUB504700

YOU WILL RECEIVE
New piston seal and sleeve replacement kit

1x Glide ring

1x Piston ring

  2x Air collet Viton o-rings

  2x Piston liner Viton seals

  1x High temp Piston liner gasket

  Set of tools to fit the piston seal



  • Other Part Number: REPAIR KIT
  • YOU WILL RECEIVE:: 1x glide ring, 1x piston ring, 2x air collet Viton o-rings
  • Manufacturer Part Number: X8R27
  • Associated part numbers (4):: LR045251 LR044360 LR01530 LR015303 UUB504700 VUB504700
  • Associated part numbers (2):: RQG500061 RQG500062 RQG500070 QG500071 RQG500072
  • Superseded Part Number: Fault code C1A20, C1A1364, C50, or C1A20-64 show?, Land Rover Discovery MK3 2005 to 2009, Land Rover Discovery MK4 2009 to 2012, Ranger Rover Sport 2005 to 2013, Range Rover L322 2006 to 2009, Original Hitachi Compressor Only
  • Associated part numbers (3):: RQG500080 RQG500090 RYG500160 LR023964 LR010376
  • Instruction: x8r.co.uk/mwdownloads/download/link/id/125
  • Associated part numbers (1):: RQG000017 RQG000018 RQG000019 RQL500040 RQG500060
  • YOU WILL RECEIVE: 2x piston liner Viton seals, 1x high temp Piston liner gasket
  • Brand: X8R
  • Video instruction: www.youtube.com/embed/zlr0bzLvG-o?rel=0
  • Interchange Part Number: VUB504700, AIR COMPRESSOR REPLACEMENT PISTON SEALS, SEALS REPAIR KIT FOR RANGE ROVER L322 06-09
  • Manufacturer Warranty: 90 Day
  • Country/Region of Manufacture: United Kingdom
