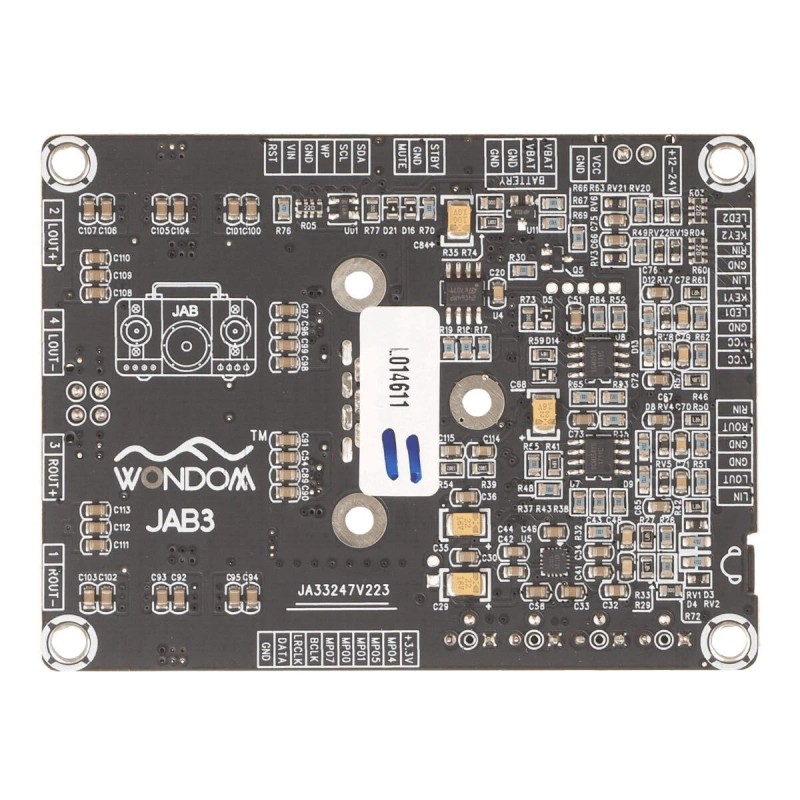

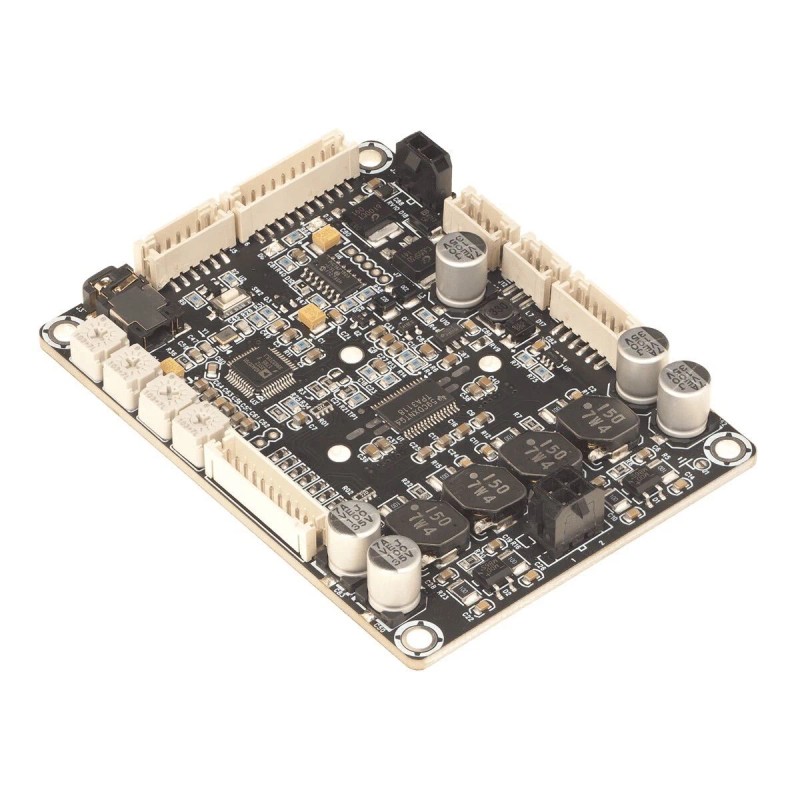

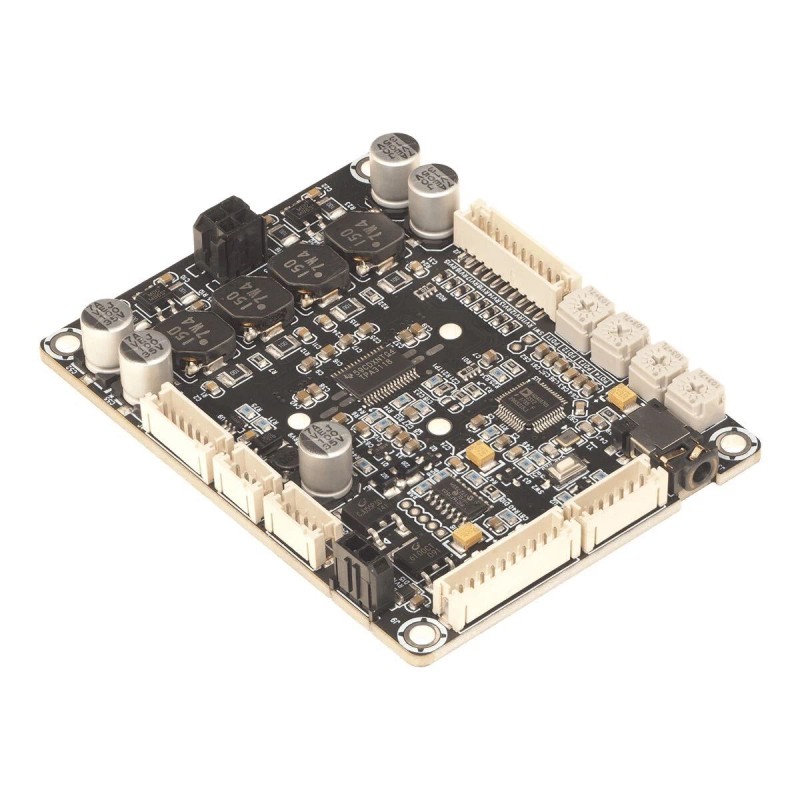

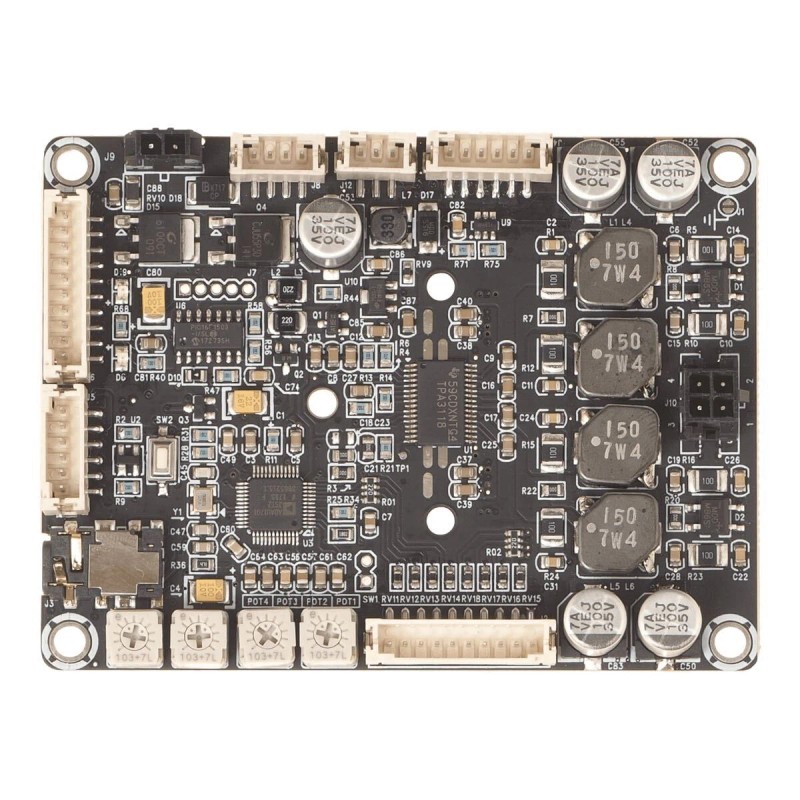

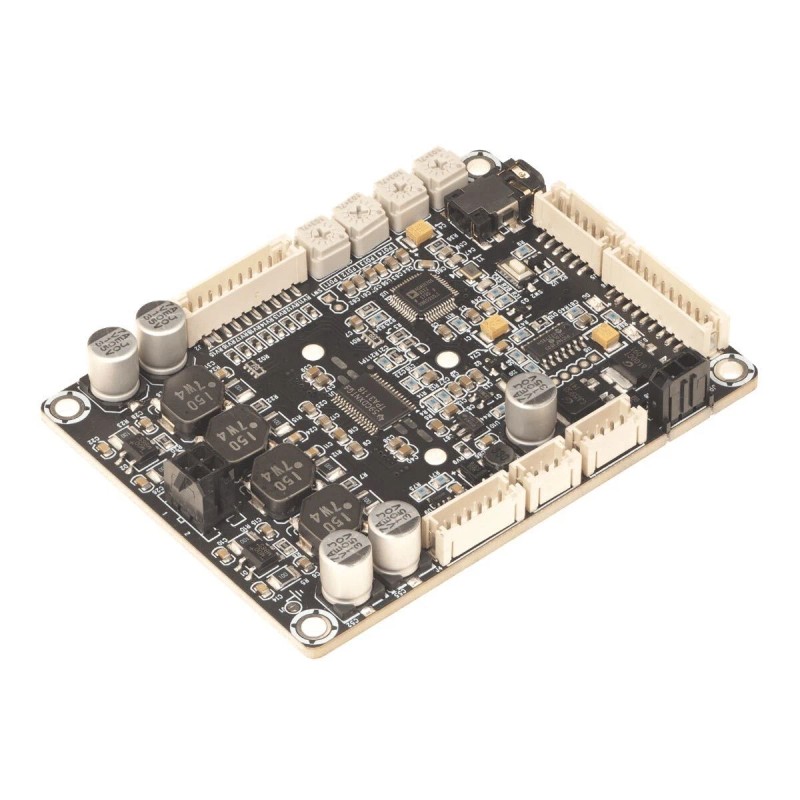

WONDOM JAB3-160 1 x 60 Watt Class D Audio Amplifier Board w/DSP | AA-JA31211
$53.49
- Free US shipping
-
Arrives
- Integrated with ADAU1701 DSP, Supporting SigmaStuio Programming & PC UI Control:
The on board fully programmable 28-/56-bit audio DSP ADAU1701 from Analog device is competent in various signal processing applications. This process can compensate for real-world limitations of speakers, amplifiers, and listening environments, providing dramatic improvements in perceived audio quality.
Four potentiometers are provided on JAB3 for real time hardware control of the whole audio system for volume, gain and high / band pass filter.
Thanks to the integrated ADAU1701 DSP, JAB3 supports multiple control methods. JAB3 is mounted with four on-boards potentiometers, which are for volume and frequency adjustment. After connection with WONDOM ICP series (ICP1, ICP5) programmer, JAB3 supports programming through SigmaStudio. After connection with ICP5, the JAB3 supports PC UI control.
- High Quality Audio Performance:
Thanks to dedicated PCB layout design and engineers’ attentive debugging, this JAB3 - 160 audio amplifier board features high audio performance, whose SNR is 88dB and THD+N performs well as 0.03% @ 4Ohm, 1W, 200Hz.
- Low Power Consumption and Long Playback Time:
Power management system and Signal level sensor system are employed on JAB3 for low power consumption. We have preset a threshold on the input voltage of the signal. When there is no signal detected in 5min, JAB3 would enter into standby mode automatically.
This JAB3 - 160 audio module dissipates only 150mW in standby mode. The extremely low power consumption ensures long playback time especially when JAB3 - 160 is powered by battery boards, which is absolutely an advantage for portable Bluetooth speakers.
- Supporting Battery Power:
A DC10V-26V power supply is required to power JAB3 - 160.
In addition to power supply, JAB3 also supports battery power, which greatly improve the portability and flexibility of audio systems.
Please kindly noted that MPPT circuit is not employed in JAB3. So JAB3 cannot be used to recharge batteries. If you only buy JAB3 and want portable battery power, it is recommended to use WONDOM Battery charging, protection and balance board – BCPB series. If you have a JAB1 / JAB2 at hand, you can use the WONDOM Battey charging and protection board (JAB – BE, AA-JA11113) for power.
- Easy Installation:
Four screw holes provided make this Bluetooth amplifier board easy for installation and quick for integration in any cabinet. We provide a Functional cables kit (JAB - FC) for your convenient operations. Furthermore, a 3.6" x 2.7" L-style aluminum bracket (JAB - LAB) is available to fix the Bluetooth amp in wiring process and to install the board to cabinets.
1pc AA-JA31211, JAB3-160
1pc Molex-2Pos power supply cable, 50cm/ 19.69''
1pc Molex-4Pos speaker cable, 50cm/ 19.69''
1pc 3.5mm Line Input Cable, 50cm/ 19.69''
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- Integrated with ADAU1701 DSP, Supporting SigmaStuio Programming & PC UI Control:
The on board fully programmable 28-/56-bit audio DSP ADAU1701 from Analog device is competent in various signal processing applications. This process can compensate for real-world limitations of speakers, amplifiers, and listening environments, providing dramatic improvements in perceived audio quality.
Four potentiometers are provided on JAB3 for real time hardware control of the whole audio system for volume, gain and high / band pass filter.
Thanks to the integrated ADAU1701 DSP, JAB3 supports multiple control methods. JAB3 is mounted with four on-boards potentiometers, which are for volume and frequency adjustment. After connection with WONDOM ICP series (ICP1, ICP5) programmer, JAB3 supports programming through SigmaStudio. After connection with ICP5, the JAB3 supports PC UI control.
- High Quality Audio Performance:
Thanks to dedicated PCB layout design and engineers’ attentive debugging, this JAB3 - 160 audio amplifier board features high audio performance, whose SNR is 88dB and THD+N performs well as 0.03% @ 4Ohm, 1W, 200Hz.
- Low Power Consumption and Long Playback Time:
Power management system and Signal level sensor system are employed on JAB3 for low power consumption. We have preset a threshold on the input voltage of the signal. When there is no signal detected in 5min, JAB3 would enter into standby mode automatically.
This JAB3 - 160 audio module dissipates only 150mW in standby mode. The extremely low power consumption ensures long playback time especially when JAB3 - 160 is powered by battery boards, which is absolutely an advantage for portable Bluetooth speakers.
- Supporting Battery Power:
A DC10V-26V power supply is required to power JAB3 - 160.
In addition to power supply, JAB3 also supports battery power, which greatly improve the portability and flexibility of audio systems.
Please kindly noted that MPPT circuit is not employed in JAB3. So JAB3 cannot be used to recharge batteries. If you only buy JAB3 and want portable battery power, it is recommended to use WONDOM Battery charging, protection and balance board – BCPB series. If you have a JAB1 / JAB2 at hand, you can use the WONDOM Battey charging and protection board (JAB – BE, AA-JA11113) for power.
- Easy Installation:
Four screw holes provided make this Bluetooth amplifier board easy for installation and quick for integration in any cabinet. We provide a Functional cables kit (JAB - FC) for your convenient operations. Furthermore, a 3.6" x 2.7" L-style aluminum bracket (JAB - LAB) is available to fix the Bluetooth amp in wiring process and to install the board to cabinets.
1pc AA-JA31211, JAB3-160
1pc Molex-2Pos power supply cable, 50cm/ 19.69''
1pc Molex-4Pos speaker cable, 50cm/ 19.69''
1pc 3.5mm Line Input Cable, 50cm/ 19.69''
- Integrated with ADAU1701 DSP, Supporting SigmaStuio Programming & PC UI Control:
The on board fully programmable 28-/56-bit audio DSP ADAU1701 from Analog device is competent in various signal processing applications. This process can compensate for real-world limitations of speakers, amplifiers, and listening environments, providing dramatic improvements in perceived audio quality.
Four potentiometers are provided on JAB3 for real time hardware control of the whole audio system for volume, gain and high / band pass filter.
Thanks to the integrated ADAU1701 DSP, JAB3 supports multiple control methods. JAB3 is mounted with four on-boards potentiometers, which are for volume and frequency adjustment. After connection with WONDOM ICP series (ICP1, ICP5) programmer, JAB3 supports programming through SigmaStudio. After connection with ICP5, the JAB3 supports PC UI control.
- High Quality Audio Performance:
Thanks to dedicated PCB layout design and engineers’ attentive debugging, this JAB3 - 160 audio amplifier board features high audio performance, whose SNR is 88dB and THD+N performs well as 0.03% @ 4Ohm, 1W, 200Hz.
- Low Power Consumption and Long Playback Time:
Power management system and Signal level sensor system are employed on JAB3 for low power consumption. We have preset a threshold on the input voltage of the signal. When there is no signal detected in 5min, JAB3 would enter into standby mode automatically.
This JAB3 - 160 audio module dissipates only 150mW in standby mode. The extremely low power consumption ensures long playback time especially when JAB3 - 160 is powered by battery boards, which is absolutely an advantage for portable Bluetooth speakers.
- Supporting Battery Power:
A DC10V-26V power supply is required to power JAB3 - 160.
In addition to power supply, JAB3 also supports battery power, which greatly improve the portability and flexibility of audio systems.
Please kindly noted that MPPT circuit is not employed in JAB3. So JAB3 cannot be used to recharge batteries. If you only buy JAB3 and want portable battery power, it is recommended to use WONDOM Battery charging, protection and balance board – BCPB series. If you have a JAB1 / JAB2 at hand, you can use the WONDOM Battey charging and protection board (JAB – BE, AA-JA11113) for power.
- Easy Installation:
Four screw holes provided make this Bluetooth amplifier board easy for installation and quick for integration in any cabinet. We provide a Functional cables kit (JAB - FC) for your convenient operations. Furthermore, a 3.6" x 2.7" L-style aluminum bracket (JAB - LAB) is available to fix the Bluetooth amp in wiring process and to install the board to cabinets.
1pc AA-JA31211, JAB3-160
1pc Molex-2Pos power supply cable, 50cm/ 19.69''
1pc Molex-4Pos speaker cable, 50cm/ 19.69''
1pc 3.5mm Line Input Cable, 50cm/ 19.69''
- Compatible Brand: Universal
- Brand: Wondom
- Type: Board
- Color: Black
- Features: DSP, Mono
- MPN: AA-JA31211
- Country/Region of Manufacture: China
- Amplifier Class: D
- UPC: Does not apply
