WMYCONGCONG 10個セット TCRT5000赤外線反射センサーモジュール IR用バリアライントラック光電スイッチ ジャンパー線付き 、Arduinoスマートカーロボット用

$25.17

  • 赤外線反射型センサーTCRT5000を使用し、感度を調整するために多くの調整可能な精密ポテンショメータで設計されています。
  • 幅広いアプリケーション:障害物検知、ワットメーターのパルスデータサンプリング、白と黒の線の検知、FAXやシュレッダー紙の検知、ロボットアームの動きの制限のため。
  • 動作電圧:3.3V-5V; 反射距離の検出:1mm〜25mmに適合。
  • VCC用:電源の正極(3-5V)を接続します。 GND:電源の負極を接続します。 DO:TTLスイッチ用信号出力。 AO:アナログ信号出力。
  • パッケージの内容:10 * TCRT5000赤外線反射IR用センサーモジュール+1 * 10ピンメス-メスジャンパーワイヤー+1 * 10ピンオス-メスジャンパーワイヤー+10ピンオス-オスジャンパーワイヤー。

Manufacturer:
WMYCONGCONG
Part Number:
1RPJ44L
Isin:
IEQ6KU8I71SV

$25.17

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
WMYCONGCONG 10個セット TCRT5000赤外線反射センサーモジュール IR用バリアライントラック光電スイッチ ジャンパー線付き 、Arduinoスマートカーロボット用

WMYCONGCONG 10個セット TCRT5000赤外線反射センサーモジュール IR用バリアライントラック光電スイッチ ジャンパー線付き 、Ardui...

$25.17

  • 赤外線反射型センサーTCRT5000を使用し、感度を調整するために多くの調整可能な精密ポテンショメータで設計されています。
  • 幅広いアプリケーション:障害物検知、ワットメーターのパルスデータサンプリング、白と黒の線の検知、FAXやシュレッダー紙の検知、ロボットアームの動きの制限のため。
  • 動作電圧:3.3V-5V; 反射距離の検出:1mm〜25mmに適合。
  • VCC用:電源の正極(3-5V)を接続します。 GND:電源の負極を接続します。 DO:TTLスイッチ用信号出力。 AO:アナログ信号出力。
  • パッケージの内容:10 * TCRT5000赤外線反射IR用センサーモジュール+1 * 10ピンメス-メスジャンパーワイヤー+1 * 10ピンオス-メスジャンパーワイヤー+10ピンオス-オスジャンパーワイヤー。

Manufacturer:
WMYCONGCONG
Part Number:
1RPJ44L
Isin:
IEQ6KU8I71SV

仕様:

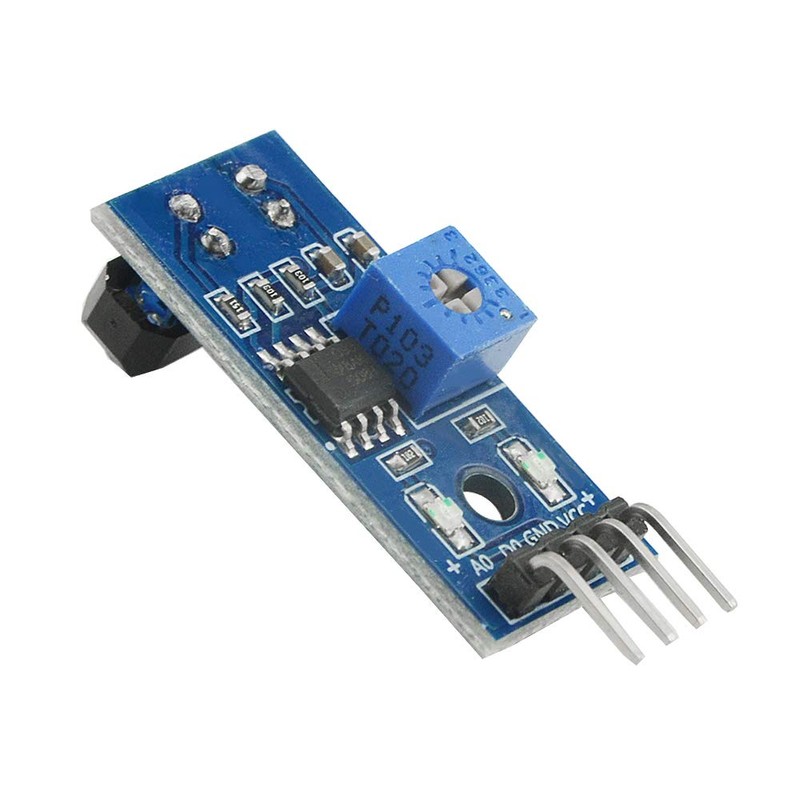

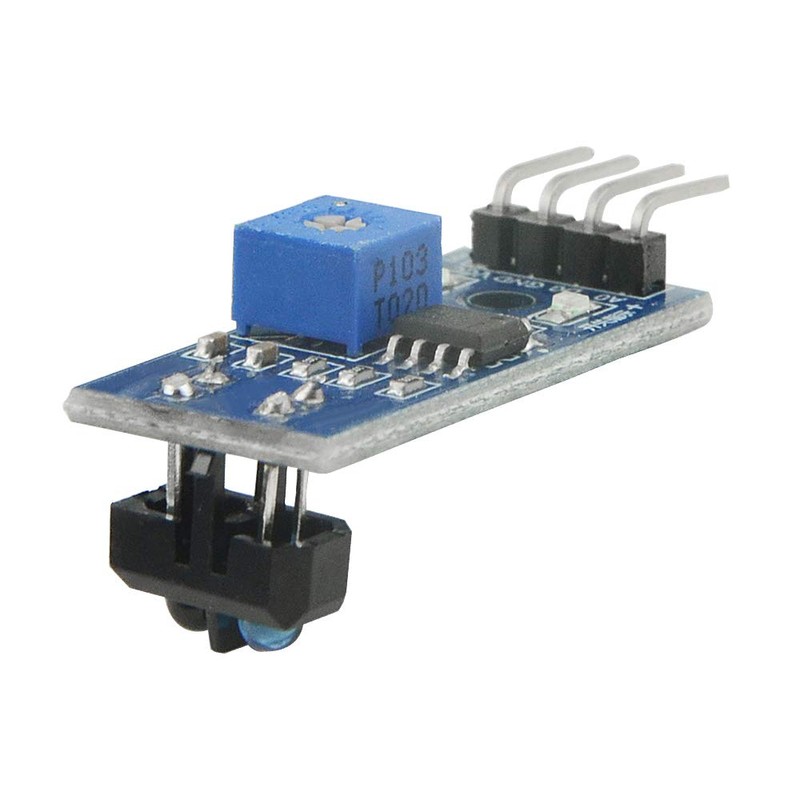

1、TCRT5000赤外線反射センサーを使用
2.検出反射距離:1mm〜25mm
3、コンパレータ出力、信号はクリーン、波形は良好、駆動能力は強く、15mA以上。
4、ポテンショメータ調整感度付き
5、動作電圧3.3V-5V
6、出力形式:デジタルスイッチ出力(0および1)
7、簡単なインストールのための固定ボルト穴付き

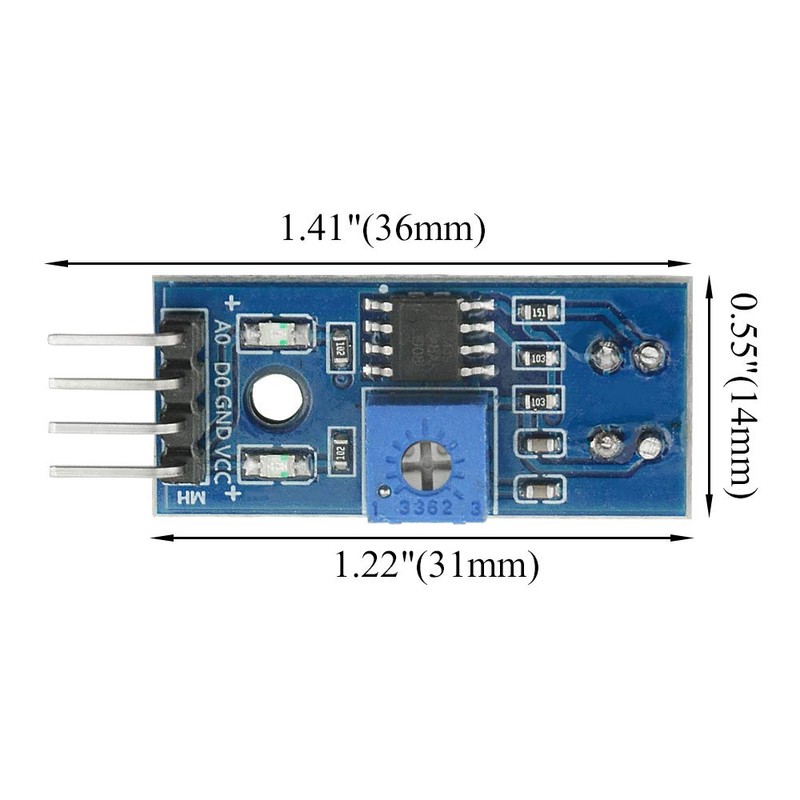

8、小型基板PCBサイズ:3.2cm x 1.4cm
9、広電圧LM393コンパレータを使用

使用法:
1、メーターパルスデータサンプリング用
2、ファックス機シュレッダー紙検出用
3、障害物の検出用
4、黒と白の線の検出用

特徴:
TCRT5000センサーの赤外線発光ダイオードは継続的に赤外線を放射します。放出された赤外線が反射または反射されないが、強度が十分に大きくない場合、赤外線受信管は常にオフ状態であり、出力モジュールはハイ信号出力であり、ダイオードが常にオフであることを示します。 ;検出された物体が検出範囲内に現れると、赤外線が反射して戻り、強度が十分に大きくなり、赤外線受信管が飽和します。このとき、モジュールの出力端はローで、ダイオードが点灯していることを示しています。

配線:

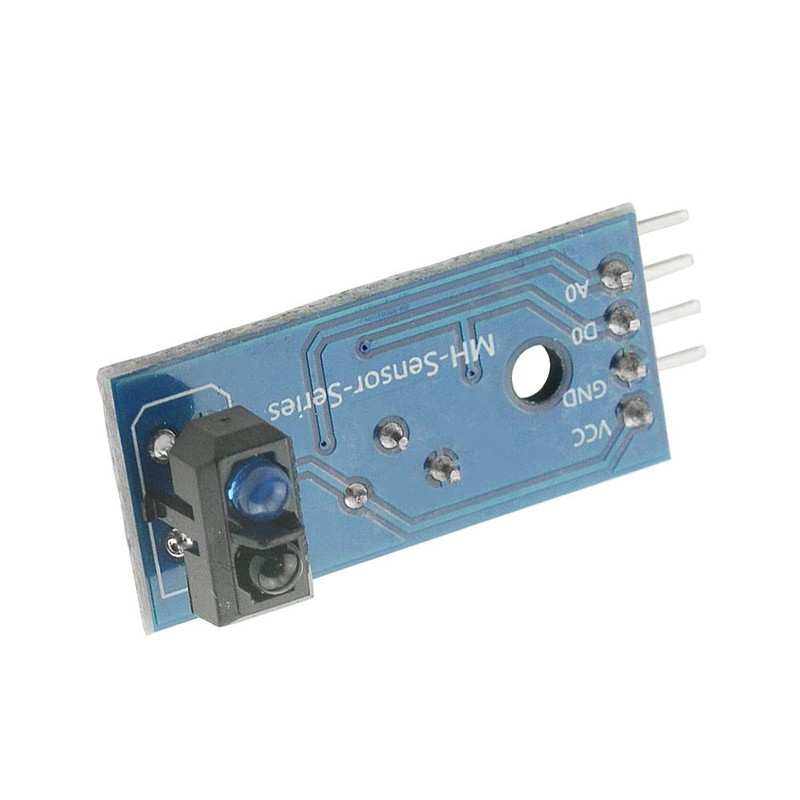

1. VCC用:電源の正極(3-5V)を接続します
2、GND:負電源に接続
3、DO用:TTLスイッチ用信号出力
4、AO用:アナログ信号出力(異なる距離出力異なる電圧、この足は一般的に接続できません)

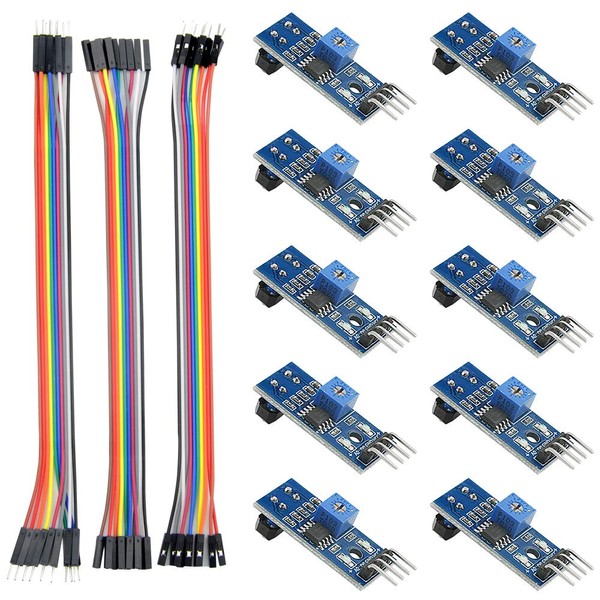

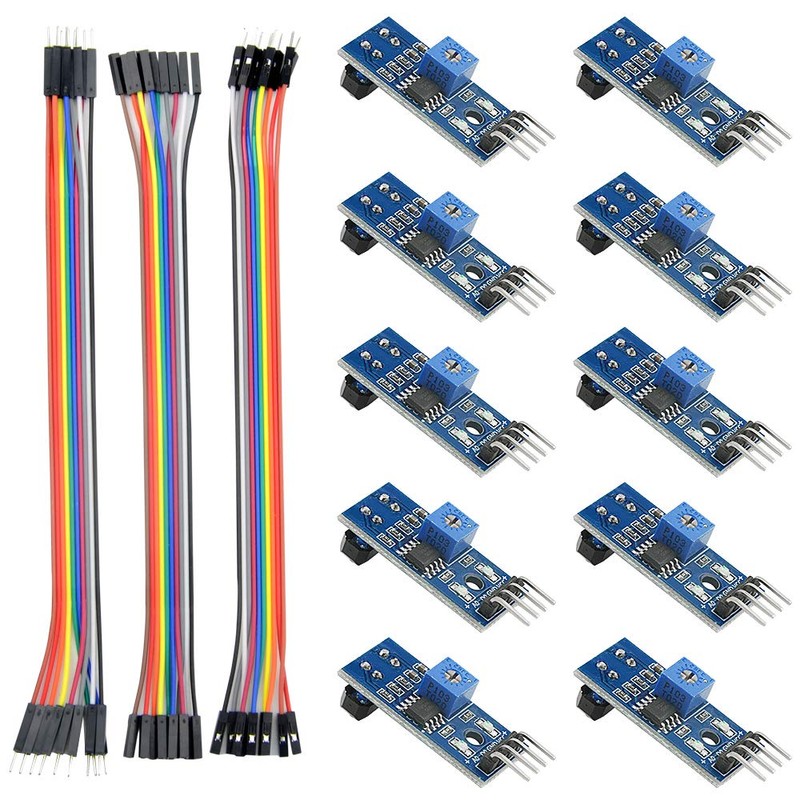

パッケージの内容:
10 * TCRT5000赤外線反射IR用センサーモジュール

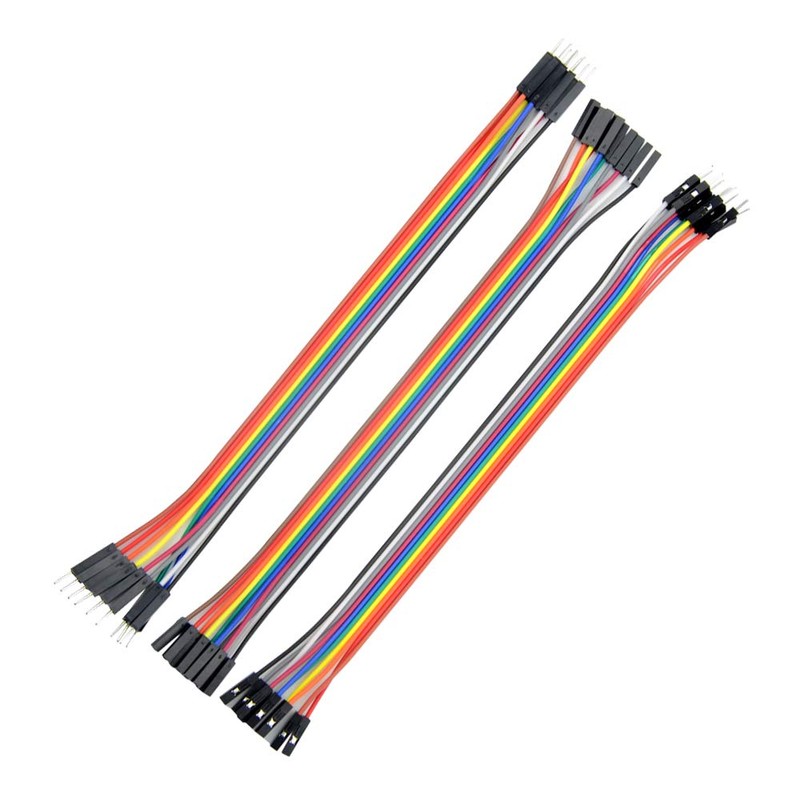

1 * 10ピンメス-メスジャンパー線
1 * 10ピンオス-メスジャンパー線
1 * 10ピンオス-オスジャンパー線
