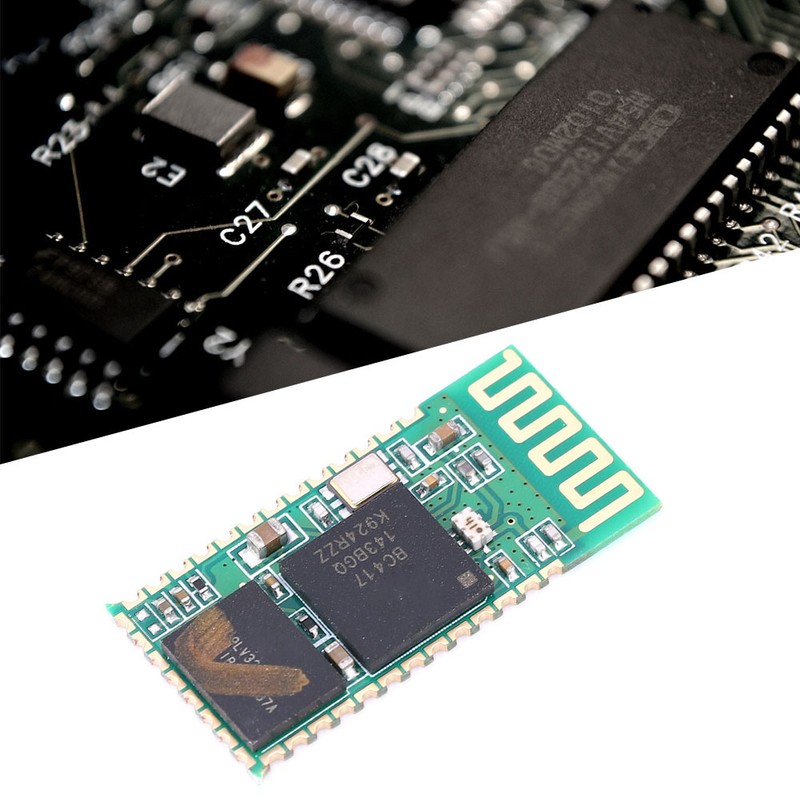

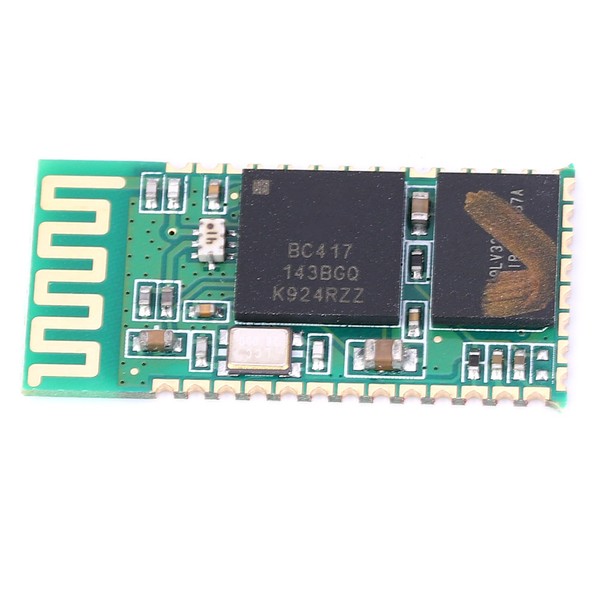

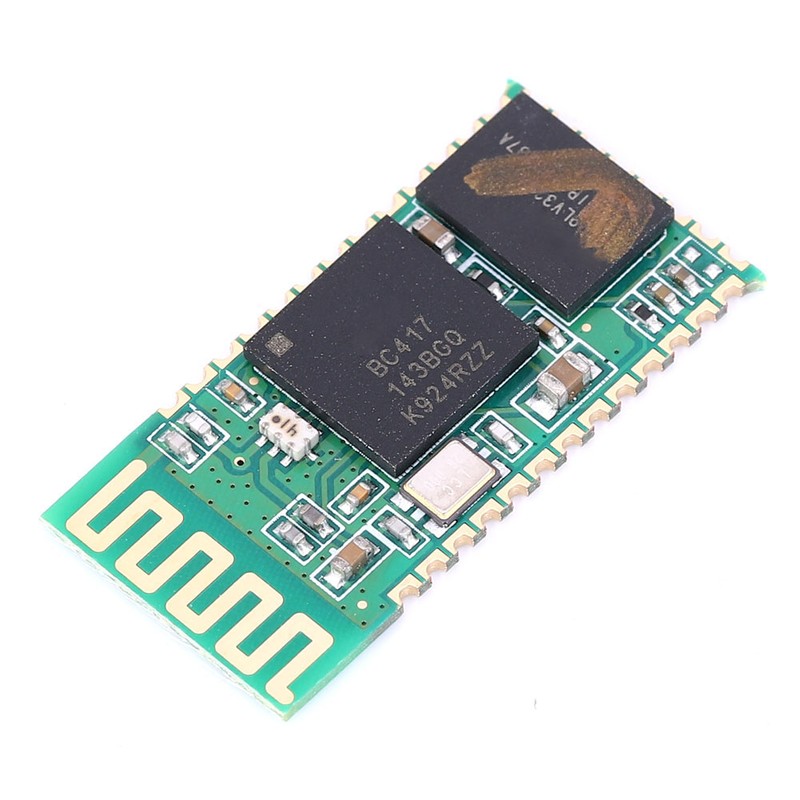

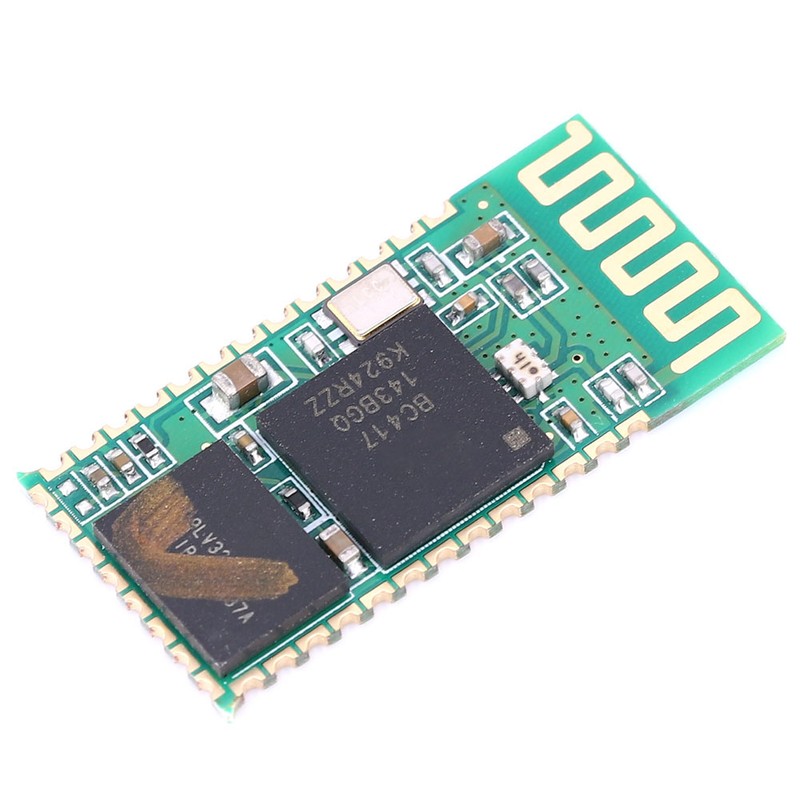

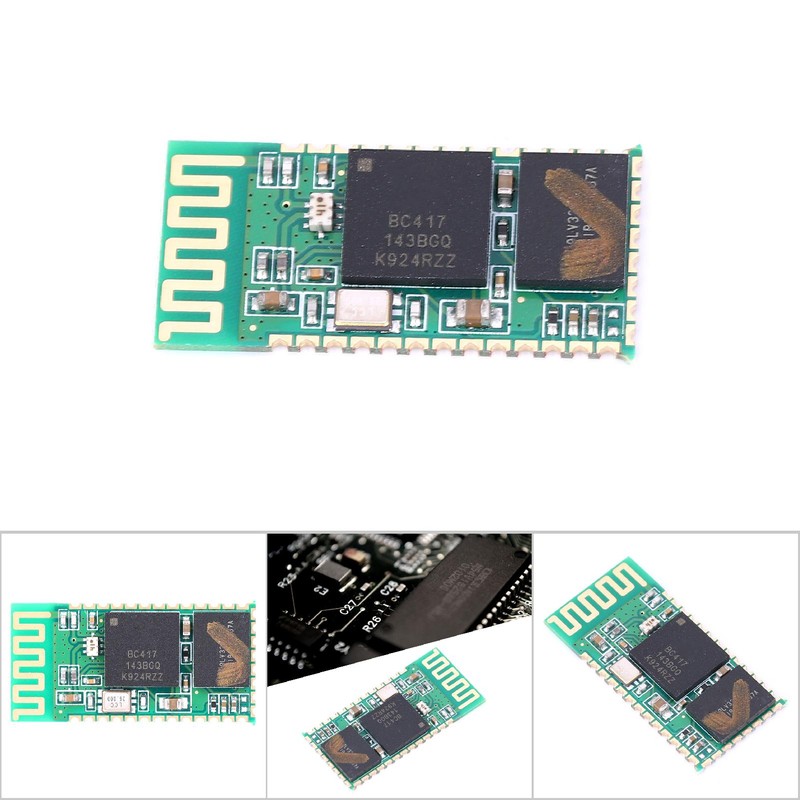

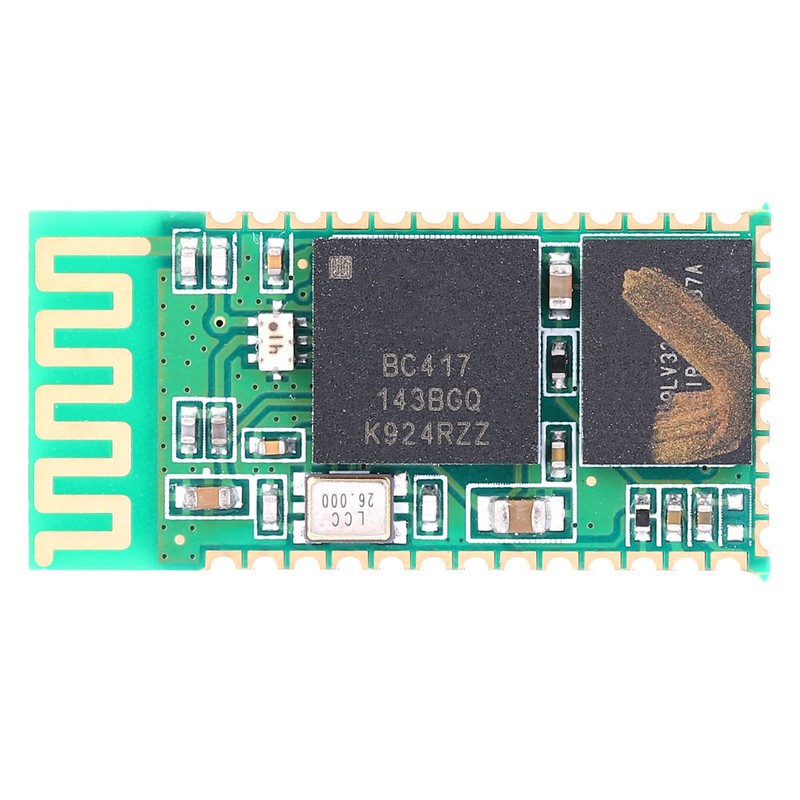

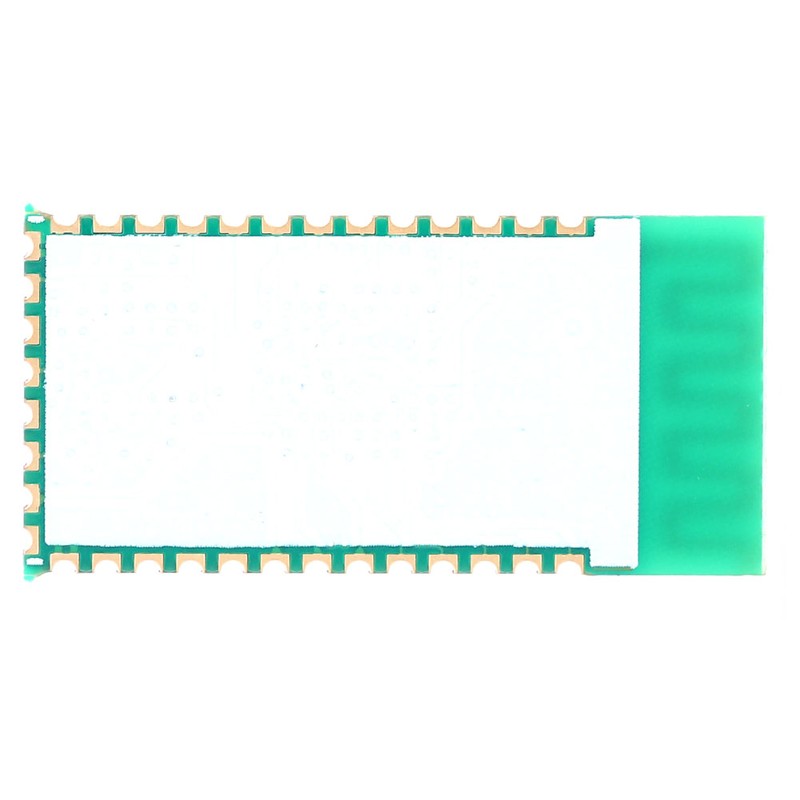

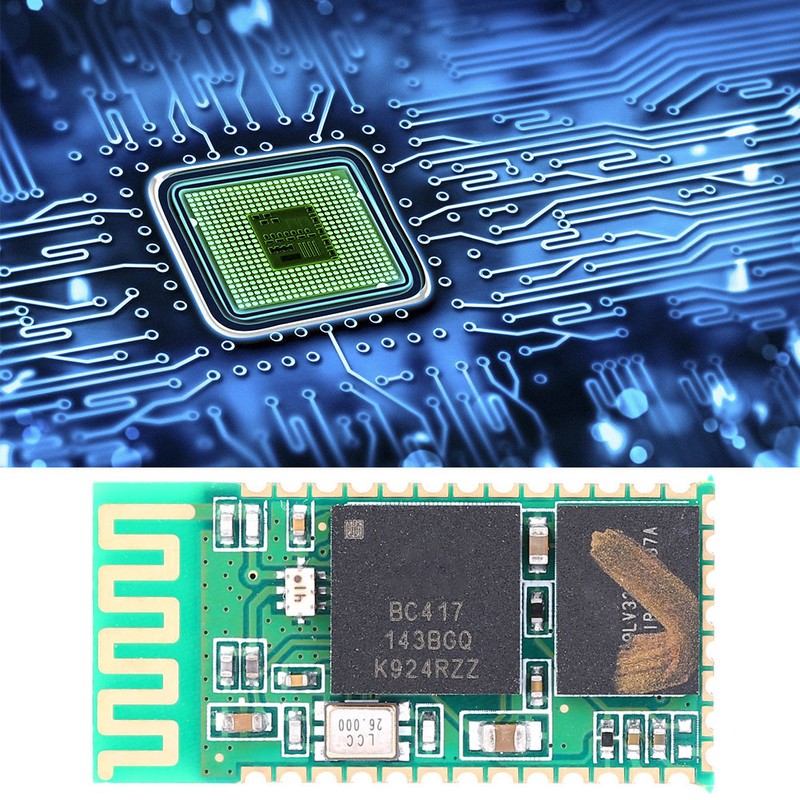

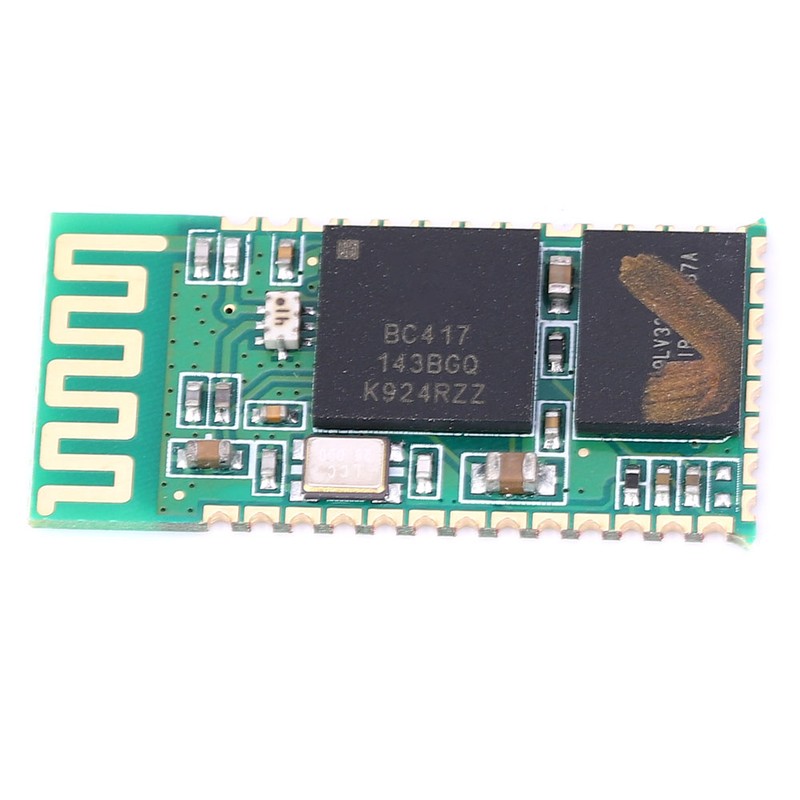

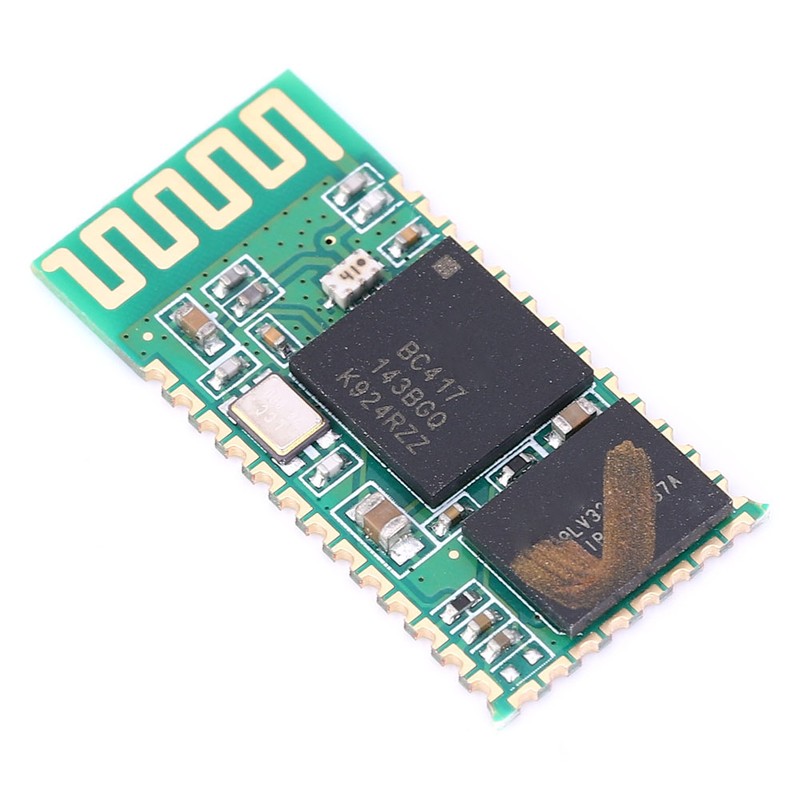

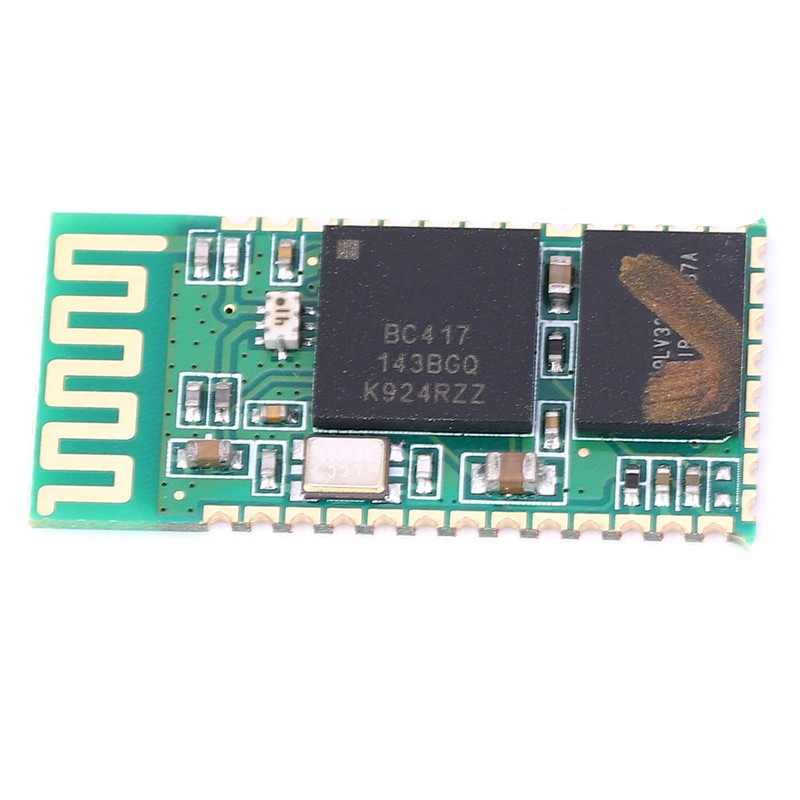

Wireless Bluetooth RF Transceiver Module Serial RS232 TTL 3.3V~3.6V
$17.70
- $9.99 shipping from United States View details
-
Arrives
1、Is a master‑slave integrated Bluetooth serial port module, the master‑slave can be commanded to switch, the instruction is rich and complete. 2、Host: Search for slave devices and cannot be searched by other devices. 3、Slave: The device used to be searched, cannot actively search for other devices. 4、After the master and slave are connected, it is equivalent to a serial cable. At this time, there is no master‑slave, that is, transparent transmission mode. 5、STC microcontroller can wireless upgrade and download programs. 6、Suitable for GPS navigation system, hydropower gas meter reading system, industrial site acquisition control system, can be seamlessly connected with Bluetooth laptop, computer Bluetooth adapter, PDA, etc.
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
1、Is a master‑slave integrated Bluetooth serial port module, the master‑slave can be commanded to switch, the instruction is rich and complete. 2、Host: Search for slave devices and cannot be searched by other devices. 3、Slave: The device used to be searched, cannot actively search for other devices. 4、After the master and slave are connected, it is equivalent to a serial cable. At this time, there is no master‑slave, that is, transparent transmission mode. 5、STC microcontroller can wireless upgrade and download programs. 6、Suitable for GPS navigation system, hydropower gas meter reading system, industrial site acquisition control system, can be seamlessly connected with Bluetooth laptop, computer Bluetooth adapter, PDA, etc.
1、Is a master‑slave integrated Bluetooth serial port module, the master‑slave can be commanded to switch, the instruction is rich and complete. 2、Host: Search for slave devices and cannot be searched by other devices. 3、Slave: The device used to be searched, cannot actively search for other devices. 4、After the master and slave are connected, it is equivalent to a serial cable. At this time, there is no master‑slave, that is, transparent transmission mode. 5、STC microcontroller can wireless upgrade and download programs. 6、Suitable for GPS navigation system, hydropower gas meter reading system, industrial site acquisition control system, can be seamlessly connected with Bluetooth laptop, computer Bluetooth adapter, PDA, etc.
More Information
Item Type: Bluetooth RF Transceiver Module
Bluetooth Protocol: V2.0
Default Parameter: Baud Rate: 9600, Pairing Code: 1234, Working Mode: Slave
Working Current: During pairing: 30~40mA; After pairing is completed, no communication: 2~8mA, During communication: 8mA without sleep
Communication Distance: 10m under open conditions, about 8m under normal use environment
| Pin | Name | Description |
|---|---|---|
| 1 | TX | |
| 2 | RX | Module serial port
|
| 12 | VCC | Power Supply 3.3V |
| 13 | GND | Gorund |
| 32 | LED | |
| 34 | KEY |
There are two ways for the module to enter the AT command.
1: Set the KEY pin to high level (or connect to VCC), and then power on the module. At this time, the LED flashes slowly (2S once), the module enters the AT state, and the baud rate is fixed at 38400.
2: When the module is powered on, set the KEY pin to low level (or connect to GND). At this time, the LED flashes quickly (1S twice), and then sets the KEY pin to high level (or connect to VCC). The module will also enter the AT command, but the LED will still flash quickly, and the baud rate will be default 9600.
Bluetooth Module Communicates with Computer
1: First power on the Bluetooth module, check if "OK" is returned after "AT" is sent (Note: That sending AT command needs to add carriage return or line feed)
2: Power on the Bluetooth adapter, search for the nearby Bluetooth module, double-click to find the serial port service, then input pairing code, and finally connect the serial port to find the virtual serial port of the Bluetooth adapter.
3: Finally open two serial port assistants, select the Bluetooth adapter and the serial port corresponding to module, realize serial communication
Bluetooth Module Communicates with Mobile Phone
The mobile phone needs to have a corresponding serial port application software to receive and send.
1: Install the serial port application software on the mobile phone (the protocol inside the for iOS system is authorized, does not support the SPP protocol, so it cannot be paired with the serial port module, some for Android phones may not be compatible)
2: First power on the Bluetooth module, check if "OK" is returned after "AT" is sent (Note: That sending AT command needs to add carriage return or line feed)
3: Open the serial port assistant in the phone, search for the Bluetooth device, and input pairing code to communicate.
