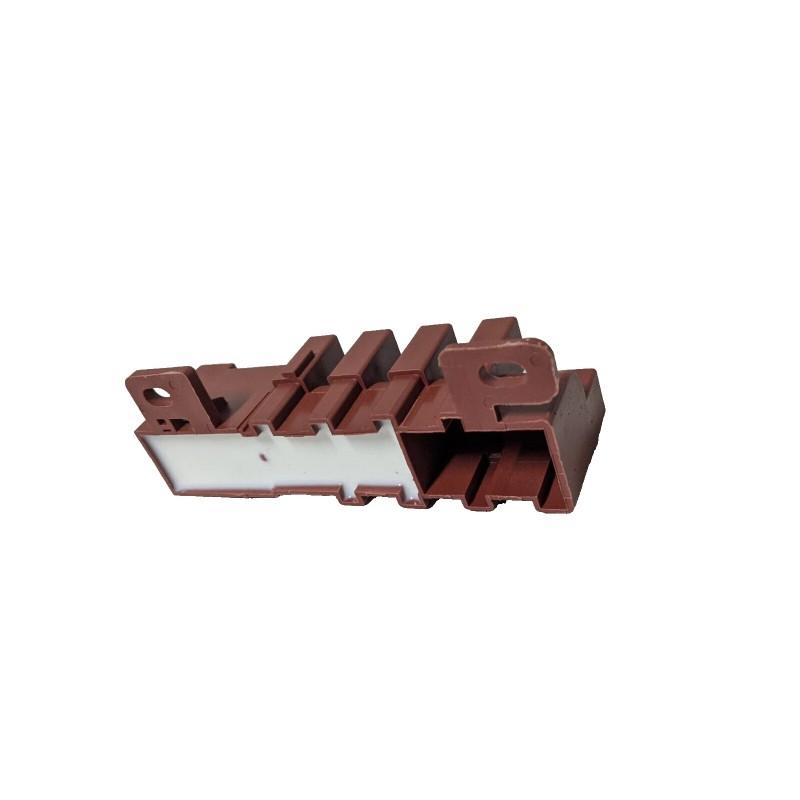

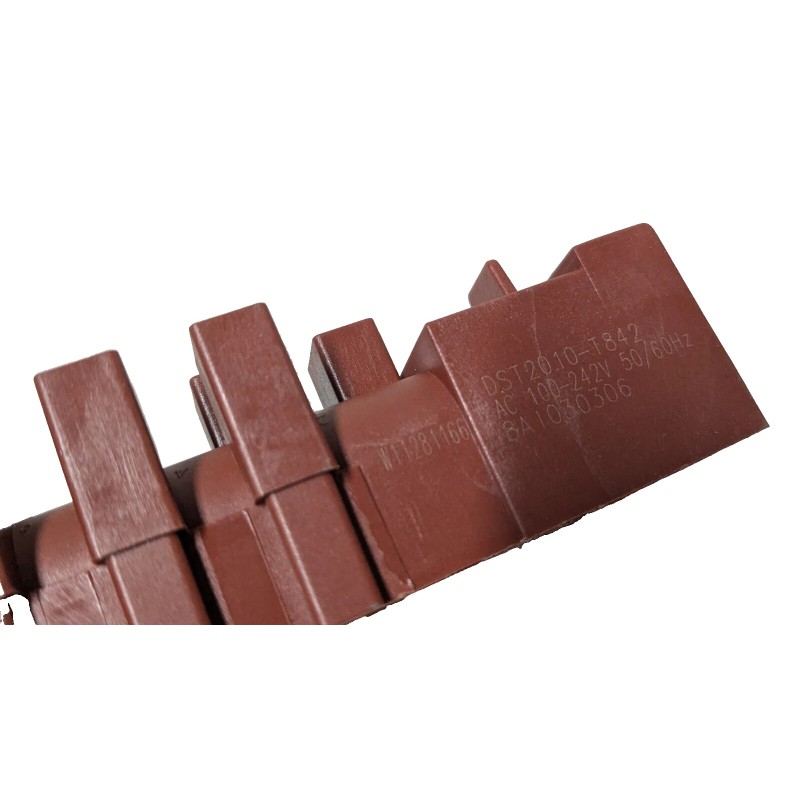

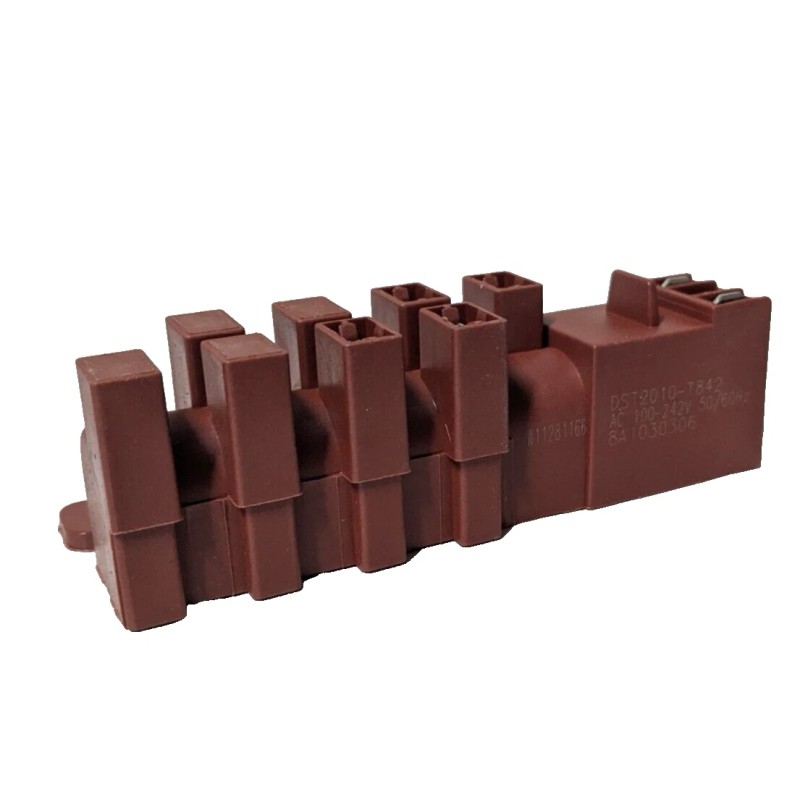

Whirlpool New Genuine OEM Whirlpool Oven Range Spark Module W11590249 W11281166
$39.30
- Free US shipping
-
Arrives
Gas Range Stove Spark Module for Whirlpool W11590249 W11281166 (6610341)
Overview
The Whirlpool W11590249 (also known as part number 6610341) is a spark module used in gas range stoves to ignite the burners. It is a critical component for ensuring the proper functioning of the ignition system. This module is commonly found in Whirlpool, KitchenAid, Maytag, and other brands under the Whirlpool Corporation umbrella.
Specifications
Part Number: W11281166 W11590249 (also labeled as 6610341)
Type: Spark Ignition Module
Compatibility: Designed for gas range stoves
Voltage: 120V AC
Function: Generates sparks to ignite the gas burners
Terminals: Typically has 5 or 6 terminals for wiring connections
Common Symptoms of Failure:
No spark at the burners
Intermittent sparking
Continuous sparking even when the burner is lit
Troubleshooting
If your gas range stove is not igniting properly, the spark module may be the issue. Follow these steps to diagnose the problem:
Check for Power:
Ensure the range is plugged in and receiving power.
Verify the circuit breaker or fuse is not tripped.
Inspect the Ignition Electrode:
Look for visible damage or misalignment of the electrode.
Clean any debris or grease that may be blocking the electrode.
Test the Spark Module:
Disconnect the power to the range.
Remove the spark module and inspect for burnt or damaged terminals.
Use a multimeter to test the module for continuity (refer to the manufacturer's specifications for proper resistance values).
Check Wiring Connections:
Ensure all wires are securely connected to the module and electrodes.
Look for frayed or damaged wires.
Replace the Module:
If the module fails testing or shows signs of damage, replace it with a new one (W11590249 or 6610341).
Installation Instructions
Turn Off Power:
Unplug the range or turn off the circuit breaker to ensure safety.
Access the Spark Module:
Remove the rear access panel or control panel of the range to locate the spark module.
Disconnect Wires:
Take a photo or label the wires connected to the module for easy reinstallation.
Disconnect the wires from the old module.
Remove the Old Module:
Unscrew or unclip the old module from its mounting location.
Install the New Module:
Secure the new module in place.
Reconnect the wires to the corresponding terminals.
Reassemble the Range:
Replace the access panel or control panel.
Restore power to the range.
Test the Ignition:
Turn on the burners to ensure the new module is functioning correctly.
Most Popular Model Numbers It Is Used For
The W11590249 (6610341) spark module is compatible with a wide range of Whirlpool, KitchenAid, and Maytag gas range stoves. Some of the most popular model numbers include:
Whirlpool:
WFG320M0BS
WFG340M0BS
WFG371LVQ
WFG505W0BS
WFG745H0ES
KitchenAid:
KFGD500ESS
KFGG500ESS
KFGS366VSS
KFGU509VSS
Maytag:
MGR6775ADS
MGR6775ADW
MGR8800FZ
