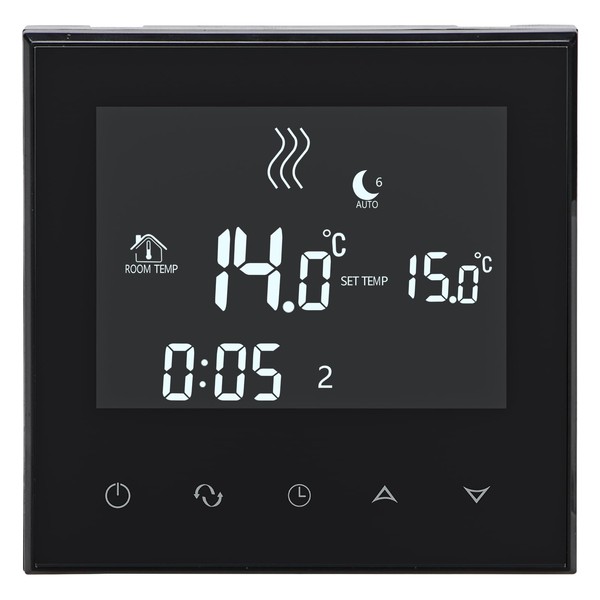

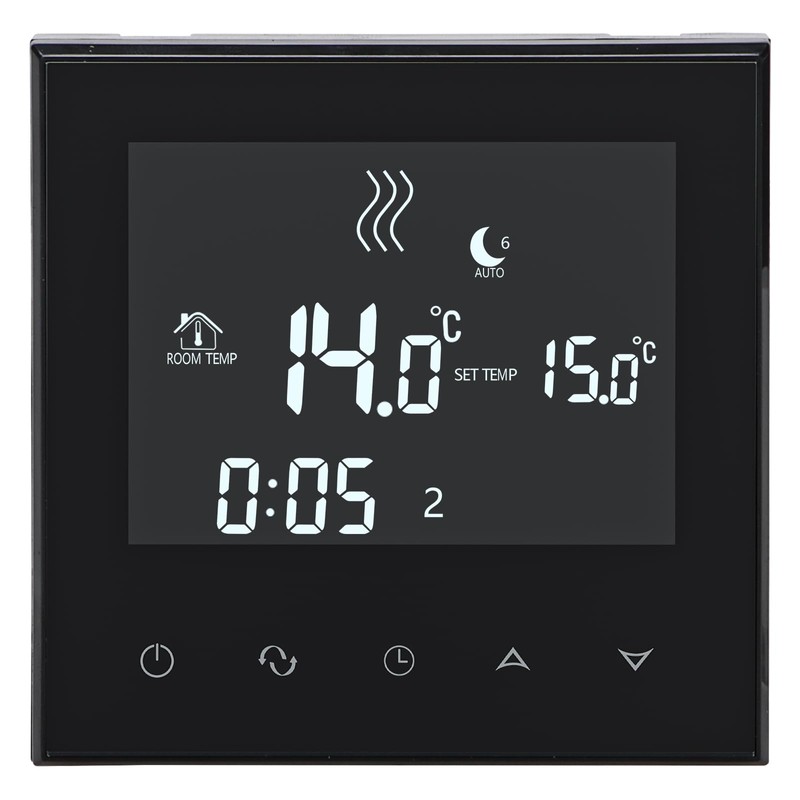

Wengart Home Thermostat Programmable WG03-4,AC230V Max3A Touch Screen LCD Display Work for Radiant Floor Heating Black

$93.95

  • This programmable floor heating thermostat is compatible with water floor heating systems, flush-mounted, compatible with 86 European cassettes, and CE certified. Output AC230V 3A, support normally open normally closed electric heating actuator, provide you with the control you need to save money and energy and maximize comfort.
  • The temperature range of the room thermostat can be set to 5-99°C, and manual mode and programming operation mode can be selected according to different applications.

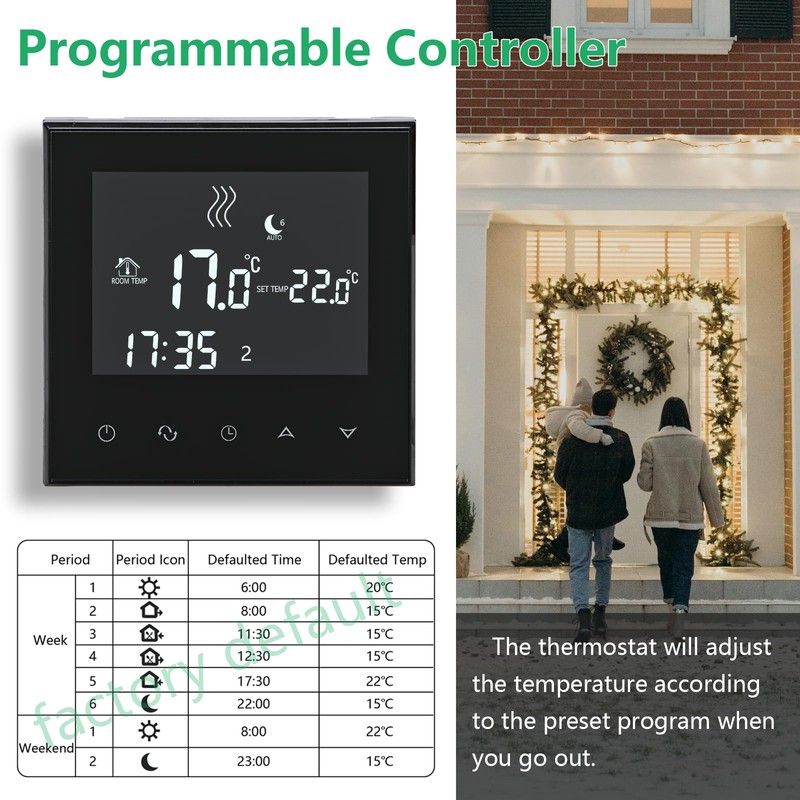

  • The room thermostat has a one-week programming function, which can automatically switch to the temperature you set within the set time. There are 6 fixed time periods on working days and 2 fixed time periods on rest days. At the same time, you can freely choose 5 days or 6 days on working days or 7 days. Gives you the freedom to plan your weekly schedule and helps you save on energy bills.
  • The room thermostat has a temperature calibration function. When the measured temperature is far from the actual temperature of the room, it can be calibrated by 0.5°C.

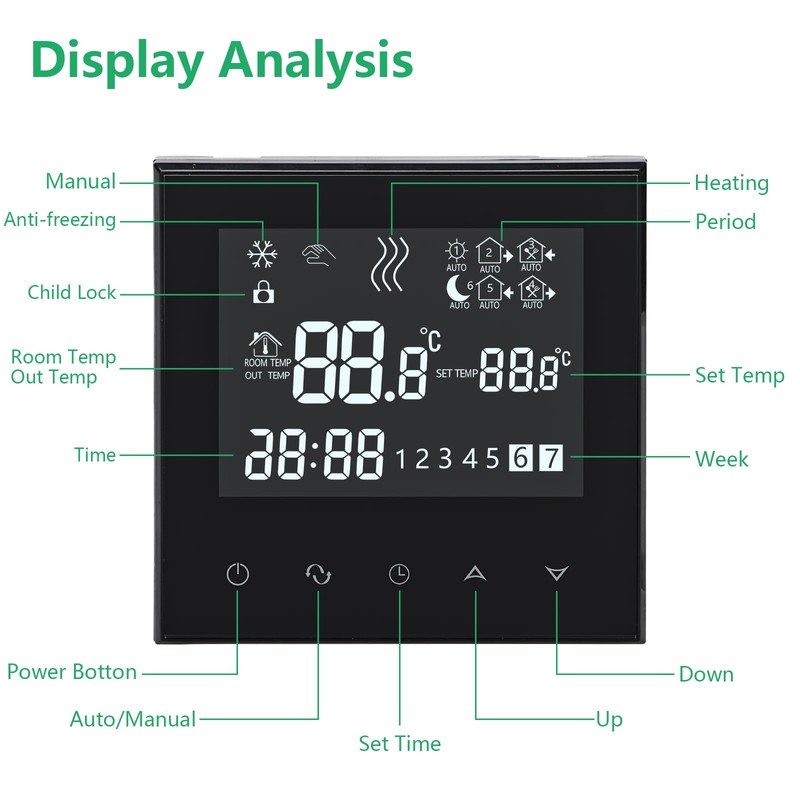

  • The digital thermostat has an LCD display, and the large screen displays the room temperature, set temperature, current heating status and current time, which is convenient for understanding the current status of the thermostat.
  • The room thermostat can choose built-in air sensor or external sensor probe. When using an external sensor, it is suitable for 3950, 10K=25°C sensor
  • The room thermostat has a white backlight, which lights up when the thermostat is operated, and automatically turns off after 10 seconds without any button operation, which is convenient for setting the thermostat in a dark environment.
  • The room thermostat has a power-off memory setting parameter function, and the information can be saved for a long time in the power-off state after the parameter setting. The room thermostat can lock the buttons, and the machine can be turned on and off after locking, and other buttons do not work, preventing children from touching them by mistake
  • The room thermostat has an anti-freezing function. In the off state, if the measured indoor temperature is lower than 5°C, it will automatically turn on the heating to prevent the water pipe from freezing.
  • The room thermostat has a start-up temperature difference function, and the start-up temperature difference can be adjusted between 1 and 9°C. For example, if the set temperature is 20°C and the start-up temperature difference is 1°C, the thermostat will turn off the heating when the room temperature is 21°C and above, and turn on the heating when the room temperature is 19°C and below.

Size:
86mm×86mm×27mm
Color:
White/Black
Manufacturer:
WENGART ELECTRIC Co.,Ltd
Part Number:
QBNLVCH
Material Type:
Plastic
Isin:
I6WEX2HXXAIF

$93.95

In Stock

Sold by , Fulfilled by IBSPOT • Ships from US

IBSPOT Buyer Protection
  • Free 30-Day Returns
  • Full Refund for Damaged or Incorrect Items
  • Guaranteed Delivery or Money Back
  • Secure Checkout & Fast Support
scroll to top arrow
Wengart Home Thermostat Programmable WG03-4,AC230V Max3A Touch Screen LCD Display Work for Radiant Floor Heating Black

Wengart Home Thermostat Programmable WG03-4,AC230V Max3A Touch Screen LCD Dis...

$93.95

  • This programmable floor heating thermostat is compatible with water floor heating systems, flush-mounted, compatible with 86 European cassettes, and CE certified. Output AC230V 3A, support normally open normally closed electric heating actuator, provide you with the control you need to save money and energy and maximize comfort.
  • The temperature range of the room thermostat can be set to 5-99°C, and manual mode and programming operation mode can be selected according to different applications.
  • The room thermostat has a one-week programming function, which can automatically switch to the temperature you set within the set time. There are 6 fixed time periods on working days and 2 fixed time periods on rest days. At the same time, you can freely choose 5 days or 6 days on working days or 7 days. Gives you the freedom to plan your weekly schedule and helps you save on energy bills.
  • The room thermostat has a temperature calibration function. When the measured temperature is far from the actual temperature of the room, it can be calibrated by 0.5°C.
  • The digital thermostat has an LCD display, and the large screen displays the room temperature, set temperature, current heating status and current time, which is convenient for understanding the current status of the thermostat.
  • The room thermostat can choose built-in air sensor or external sensor probe. When using an external sensor, it is suitable for 3950, 10K=25°C sensor
  • The room thermostat has a white backlight, which lights up when the thermostat is operated, and automatically turns off after 10 seconds without any button operation, which is convenient for setting the thermostat in a dark environment.
  • The room thermostat has a power-off memory setting parameter function, and the information can be saved for a long time in the power-off state after the parameter setting. The room thermostat can lock the buttons, and the machine can be turned on and off after locking, and other buttons do not work, preventing children from touching them by mistake
  • The room thermostat has an anti-freezing function. In the off state, if the measured indoor temperature is lower than 5°C, it will automatically turn on the heating to prevent the water pipe from freezing.
  • The room thermostat has a start-up temperature difference function, and the start-up temperature difference can be adjusted between 1 and 9°C. For example, if the set temperature is 20°C and the start-up temperature difference is 1°C, the thermostat will turn off the heating when the room temperature is 21°C and above, and turn on the heating when the room temperature is 19°C and below.

Size:
86mm×86mm×27mm
Color:
White/Black
Manufacturer:
WENGART ELECTRIC Co.,Ltd
Part Number:
QBNLVCH
Material Type:
Plastic
Isin:
I6WEX2HXXAIF

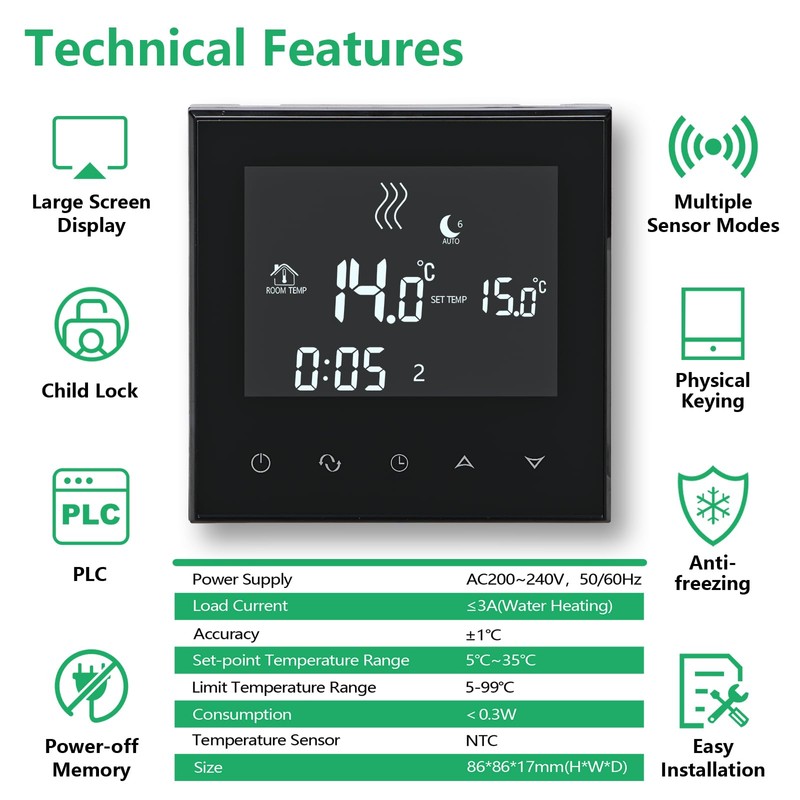

Wengart Weekly circulation digital programmable thermostat has 6 events everyday, provide energy-saving and comfortable living environment,easy to install and convenient to use.This touchscreen thermostat is heating-specific, multi-functional, and has a large LCD display.Manual mode and programme mode could be selected.Back light for easy viewing.According to the result of comparing the indoor temperature with the set temperature, it controls the start and stop of the heating equipment by relay to achieve constant indoor temperature and energy saving.Fits for 86*86 mm or European 60mm round box. Specification:
  • Working Voltage: AC90~240V 50/60Hz
  • Power Consumption: 2W
  • Setting Range: 5~70℃(can adjust to 20-70℃)
  • Switch Differential: 0.5~5℃ adjustable (factory setting±1℃)
  • Ambient Temperature: -5~50℃
  • Ambient Temperature display accuracy:±0.5℃
  • Temperature Control Accuracy: ±0.5℃
  • Measured Range:1~70℃
  • Button: Capactive Touch Button
  • Inside Sensor: NTC 10k @25℃
  • Protective Houseing: IP20
  • Housing Material: Anti-flammable PC

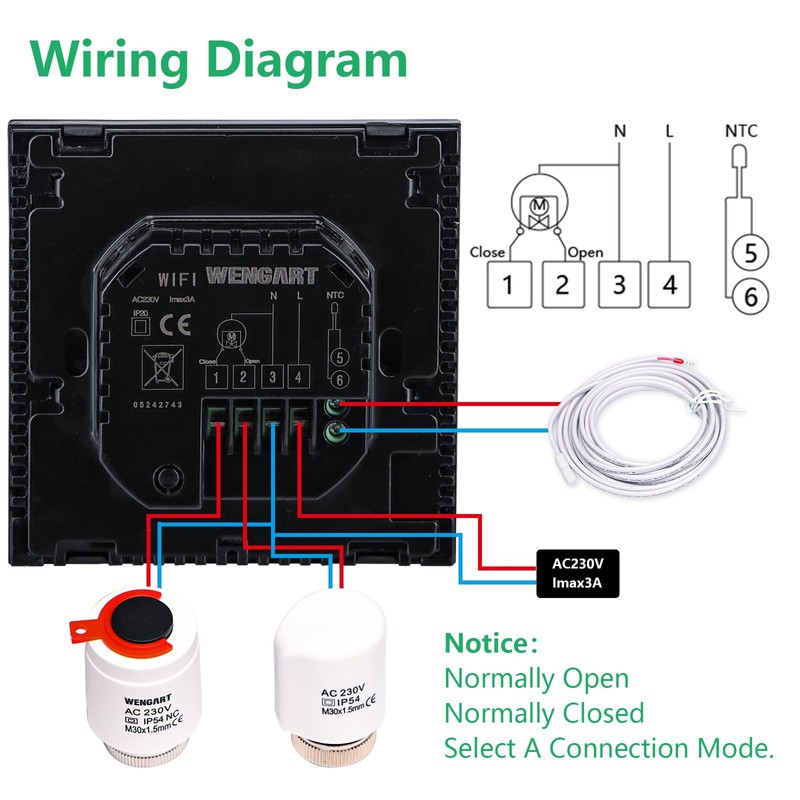

  • Wiring Terminal: one terminal can be connected to
    2*1.5mm2 or 1*2.5mm2 wire at most
  • Package Content: 1 x Thermostat,2 x Screws,1 x Manual

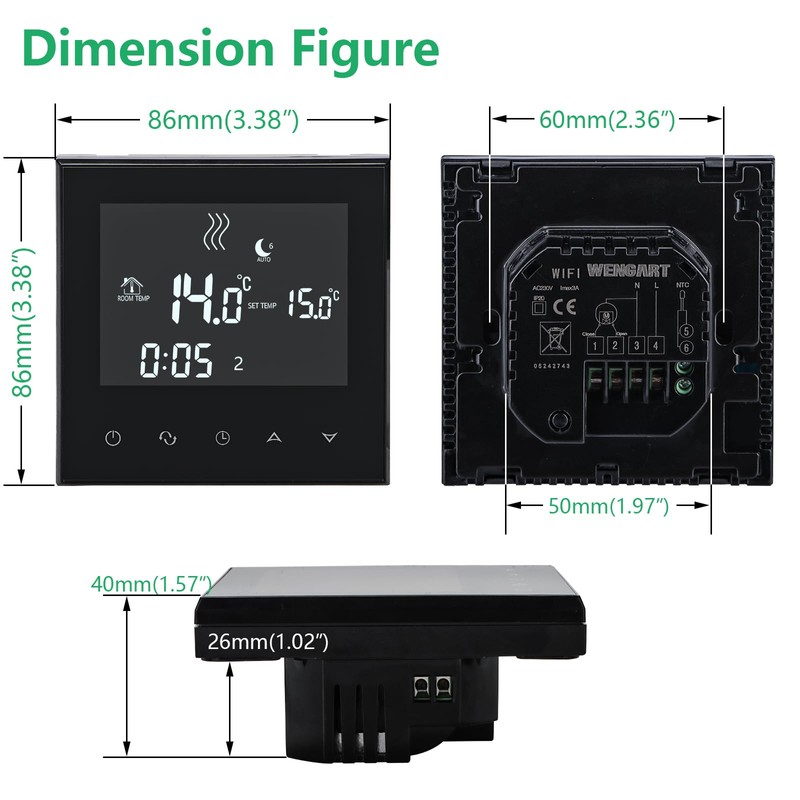

  • Dimensions :86mm×86mm×27mm
  • Output: Switch Relay
  • Weight: 234g
  • Installation Hole Distance: 60mm

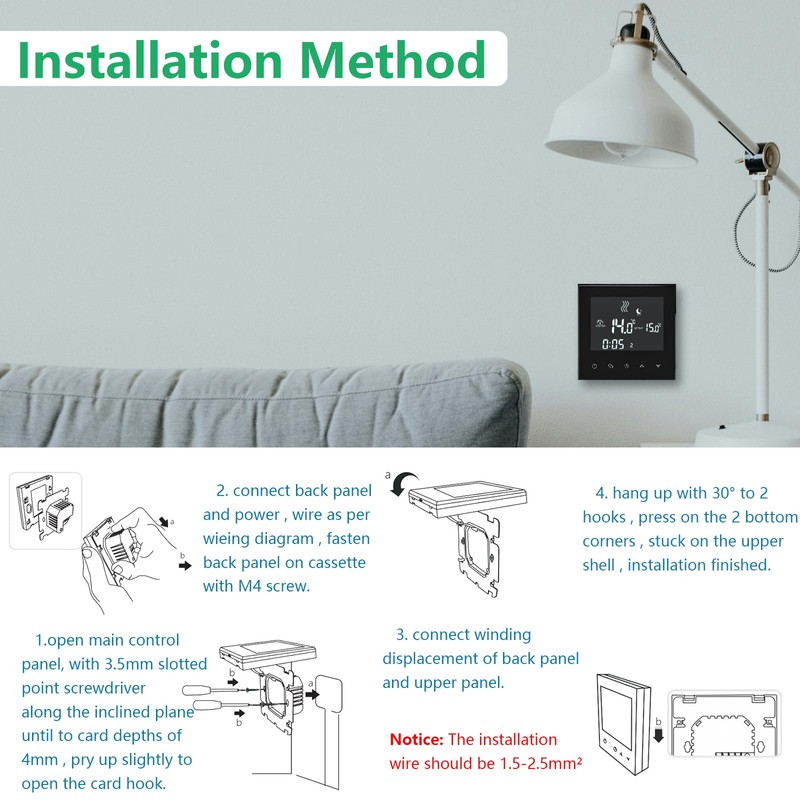

  • Installation Method: wall-mounted
  • Notes:
  • 1. Due to the different monitor and light effect, the actual color
    of the item might be slightly different from the color showed on the pictures. Thank you!
    2. Please allow 1-3cm measuring deviation due to manual measurement.
