WayPonDEV FHL-LD19 360 Degree 2D Lidar Distance Sensor Kit, 10Hz Scan Rate and 12m Distance Lidar Scanner Module for Smart Obstacle/Robot/Maker Education Indoor/Outdoor
$165.19
-
Arrives
- [High Accuracy] DTOF FHL-LD19 Kit, based on DTOF LD19, which has a sampling rate of 8000 times/s. In addition, The lidar ranging distance can reach up to 12 meters Based on white objects with 70% reflectivity,so it can collect environmental information at a rather high speed and accuracy, ensure a real-time performance.
- [360 Degree 2D Scanning] The ranging core of DTOF FHL-LD19 rotates clockwise, performs 360 degree 2D omnidirectional lidar range scan on the surrounding environment, and generates an outline map. configurable scan rate from 5~13Hz, Typical 10Hz.

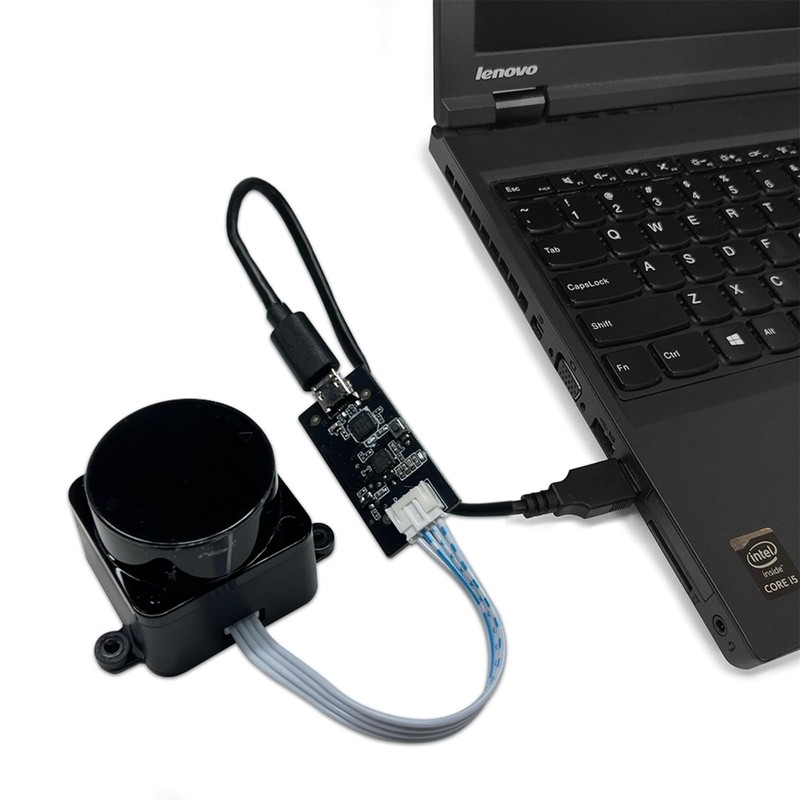

- [Plug and Play] With the 3 feature: Build-in Serial Port and USB Interface, Open Source SDK and Tools and Integration with ROS, Just connecting the DTOF FHL-LD19 and a computer via a micro USB cable, users can use the DTOF FHL-LD19 without any coding job. DTOF technology, which repairs electrical connection errors due to physical wear and prolong the life-span.
- [Widely Application] It can be used for home service/cleaning robot navigation and localization, general robot navigation and localization, smart toy’s localization and obstacle avoidance, environment scanning and 3D re-modeling, General simultaneous localization and mapping (SLAM), etc.
- [Wiki] You can find more docs by wiki.youyeetoo.com/en/Lidar/LD19.Any technical issues after purchase please contact with our forum by forum.youyeetoo.com/ or click "WayPonDEV" Store and ask a question. Or send message to monica @ youyeetoo.com
- [High Accuracy] DTOF FHL-LD19 Kit, based on DTOF LD19, which has a sampling rate of 8000 times/s. In addition, The lidar ranging distance can reach up to 12 meters Based on white objects with 70% reflectivity,so it can collect environmental information at a rather high speed and accuracy, ensure a real-time performance.
- [360 Degree 2D Scanning] The ranging core of DTOF FHL-LD19 rotates clockwise, performs 360 degree 2D omnidirectional lidar range scan on the surrounding environment, and generates an outline map. configurable scan rate from 5~13Hz, Typical 10Hz.
- [Plug and Play] With the 3 feature: Build-in Serial Port and USB Interface, Open Source SDK and Tools and Integration with ROS, Just connecting the DTOF FHL-LD19 and a computer via a micro USB cable, users can use the DTOF FHL-LD19 without any coding job. DTOF technology, which repairs electrical connection errors due to physical wear and prolong the life-span.
- [Widely Application] It can be used for home service/cleaning robot navigation and localization, general robot navigation and localization, smart toy’s localization and obstacle avoidance, environment scanning and 3D re-modeling, General simultaneous localization and mapping (SLAM), etc.
- [Wiki] You can find more docs by wiki.youyeetoo.com/en/Lidar/LD19.Any technical issues after purchase please contact with our forum by forum.youyeetoo.com/ or click "WayPonDEV" Store and ask a question. Or send message to monica @ youyeetoo.com
Note:
Please contact us first if there is any problems.
DTOF FHL-LD19 ’s scanning frequency reached 5 hz when sampling 360 points each round. And it can be configured up to 13 hz maximum.
DTOF FHL-LD19 Ladar is basically a lidar triangulation measurement system. It can work excellent in all kinds of indoor environment and outdoor environment without sunlight.
Features:
Measures distance data in more than 4500 times/s
360 Degree Omnidirectional Lidar Range Scanning
4500 times sample rate, the highest in the current economical LIDAR industry
DTOF Original Design, prolong the life-span Configurable Scan Rate from 5-13Hz
Plug and Play
Application Scenarios:
Home service /cleaning robot navigation and localization
General robot navigation and localization/laboratory research
Smart toy’s localization and obstacle avoidance
Environment scanning and 3D re-modeling
General simultaneous localization and mapping (SLAM)
Technical Details:
Product Weight: 47g (0.1lb.)
Product Size:54 x 46.29 x 34.8mm(2.13x1.82x1.37inch)
Distance Range :0.02 - 12m,White objects
Ranging range:12m
Average accuracy of ranging: -45mm~+45mm
Angular Range :0-360 Degree
Distance Resolution:<0.5mm
Angular Resolution:≤1Degree
Service life: up to 10000 hours

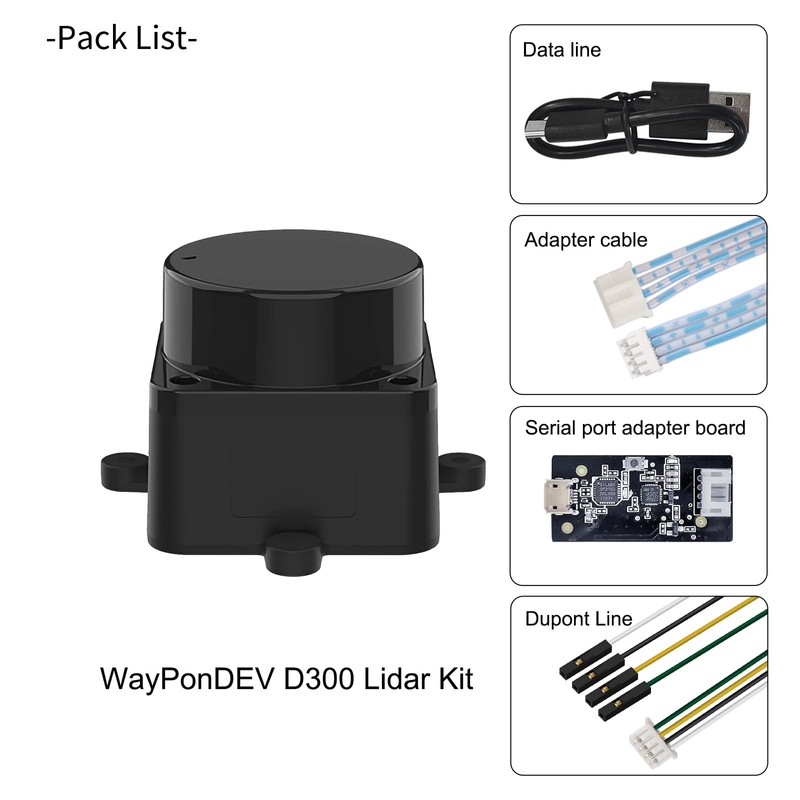

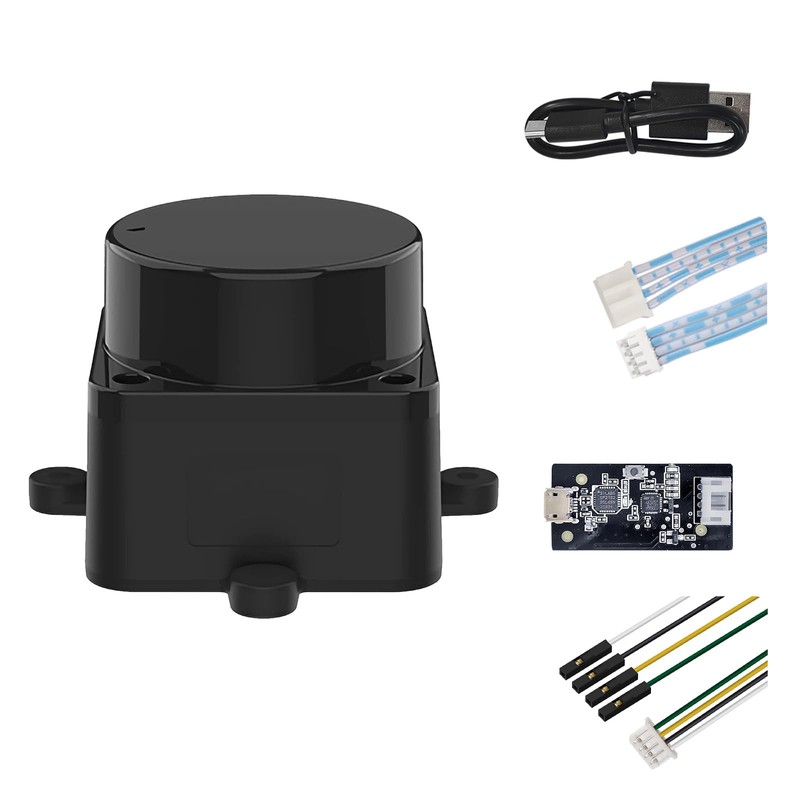

Package Includes:
1 X DTOF FHL-LD19 Ladar (PWM motor driver embedded)
1 X User Manual
1 X Chargering Cable
1 X Serial Line
1 X Interface Adapter
Tech-Support:
monica#smartfire.cn (#------>@)
