VSDISPLAY visualización LCD IPS VS104T-003A de 10.4 pulgadas 1024X768 HD 500nit con placa controladora LCD de audio HD-MI
$266.61
- $9.99 shipping from Mexico View details
-
Arrives
- visualización LCD VS104T-003A 1024X768 de 10.4 pulgadas. Resolución 1024(RGB) × 768. Tamaño del contorno 225.8 × 174.3 × 5.6 (H×V×D) Área de visualización 211.2 × 158.48 (H× V) Brillo 50000 cd/m2. (Typ.) Relación de contraste 700:1 (tipo). (TM) Ángulo de visión 85/85/85/85 (Typ. )(CR≥10) [Izquierda / Derecha / Arriba / Bajo] Interfaz de señal LVDS (1 ch, 6/8 bits), conector, 30 pines.
- Placa LCD de audio HD-MI funciona para interfaz LVDS visualización LCD
- Entrada de vídeo: HD-MI. Entrada de audio: HD-MI. Salida de audio: auriculares de altavoz
- Especificaciones del adaptador de corriente recomendadas. Adaptador de corriente de entrada: 12 V CC más de 2 A. (Adaptador de corriente VSDISPLAY, entrada de CA 100-240 V a 12 V CC, salida de 2 A, fuente de alimentación, enchufe de EE. UU., compatible con SC24W-1202000U, apto para todos los tipos de placa de driver LCD VSDISPLAY). Viene en modelo de espera cuando no hay señal de entrada. Modelo en espera <1W
- Contenido del paquete: 1 placa de driver LCD de audio HD-MI. 1 visualización LCD IPS de 10.4 pulgadas VS140T-003A 1024x768. 1 cable LVDS. 1 placa de inversor. 1 teclado con cable (por favor, ten en cuenta que no hay adaptador de corriente en la lista de embalaje)
- Free 30-Day Returns
- Full Refund for Damaged or Incorrect Items
- Guaranteed Delivery or Money Back
- Secure Checkout & Fast Support
- visualización LCD VS104T-003A 1024X768 de 10.4 pulgadas. Resolución 1024(RGB) × 768. Tamaño del contorno 225.8 × 174.3 × 5.6 (H×V×D) Área de visualización 211.2 × 158.48 (H× V) Brillo 50000 cd/m2. (Typ.) Relación de contraste 700:1 (tipo). (TM) Ángulo de visión 85/85/85/85 (Typ. )(CR≥10) [Izquierda / Derecha / Arriba / Bajo] Interfaz de señal LVDS (1 ch, 6/8 bits), conector, 30 pines.
- Placa LCD de audio HD-MI funciona para interfaz LVDS visualización LCD
- Entrada de vídeo: HD-MI. Entrada de audio: HD-MI. Salida de audio: auriculares de altavoz
- Especificaciones del adaptador de corriente recomendadas. Adaptador de corriente de entrada: 12 V CC más de 2 A. (Adaptador de corriente VSDISPLAY, entrada de CA 100-240 V a 12 V CC, salida de 2 A, fuente de alimentación, enchufe de EE. UU., compatible con SC24W-1202000U, apto para todos los tipos de placa de driver LCD VSDISPLAY). Viene en modelo de espera cuando no hay señal de entrada. Modelo en espera <1W
- Contenido del paquete: 1 placa de driver LCD de audio HD-MI. 1 visualización LCD IPS de 10.4 pulgadas VS140T-003A 1024x768. 1 cable LVDS. 1 placa de inversor. 1 teclado con cable (por favor, ten en cuenta que no hay adaptador de corriente en la lista de embalaje)

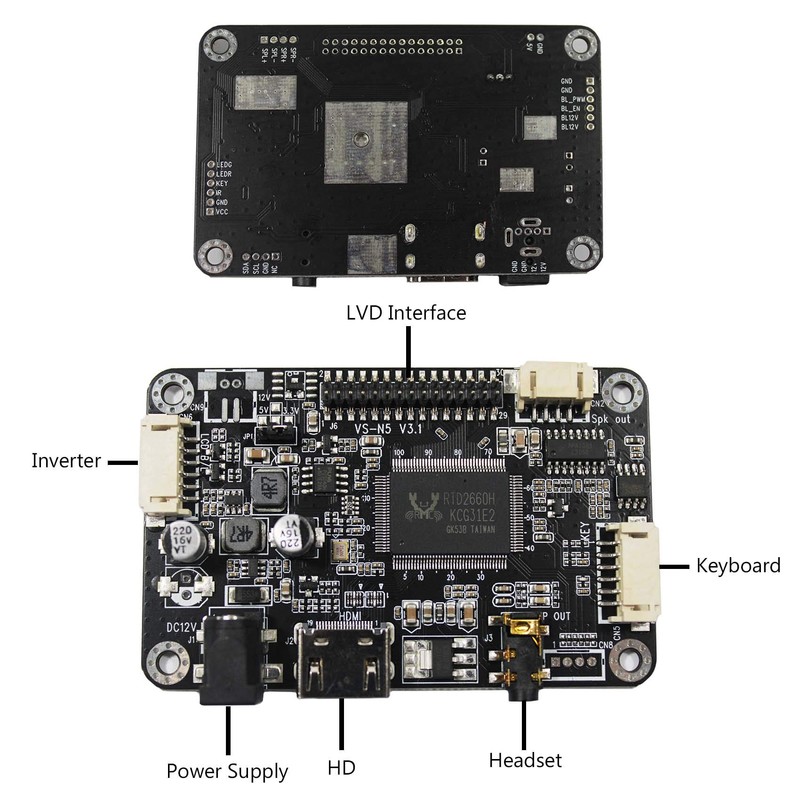

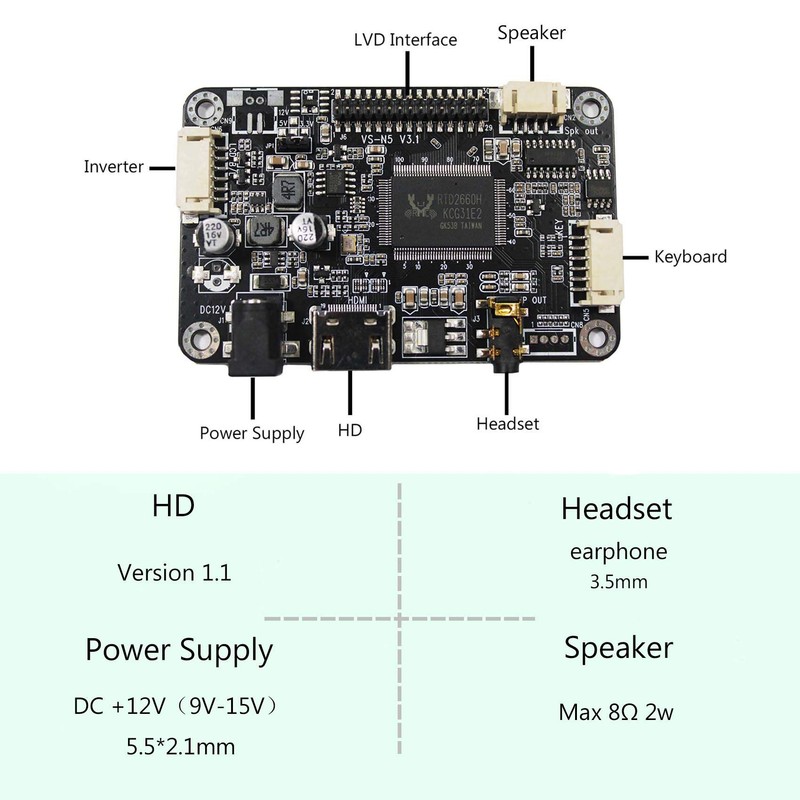

La placa LCD HD-MI funciona para visualización LCD de interfaz LVDS
Adaptador de corriente de entrada: 12 V CC más de 2 A.
Viene en modelo de espera cuando no hay señal de entrada
Modelo en espera <1 W
Entrada de vídeo: HD-MI
Entrada de audio: HD-MI
Salida de audio: auricular con altavoz
OSD: contraste de brillo con lenguaje automático y así sucesivamente
Idioma: Inglés Francés Alemán Español Itali

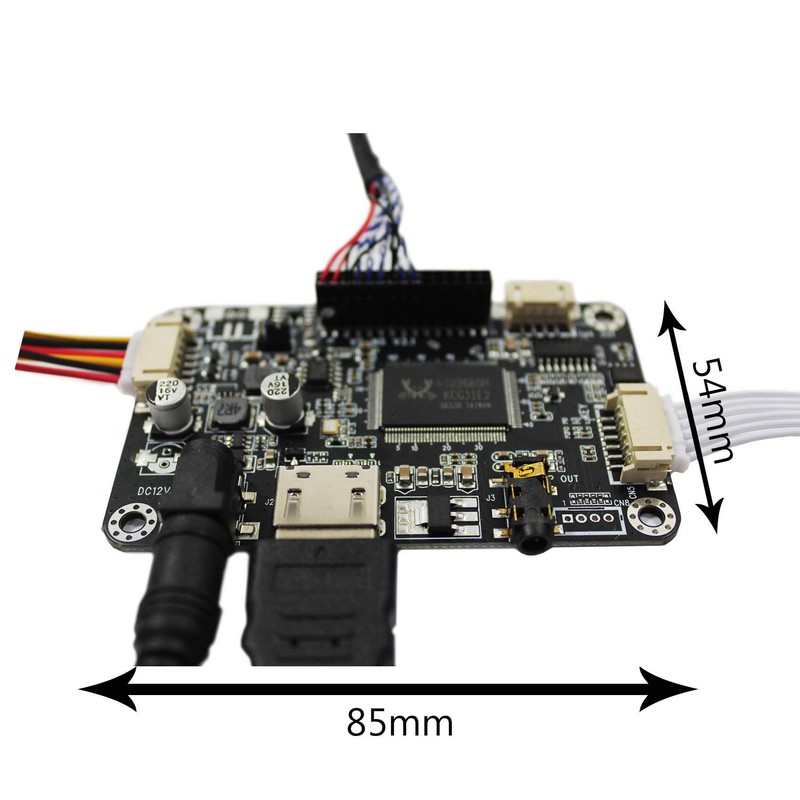

Tamaño del tablero: 85 mm x 54 mm x 14 mm.

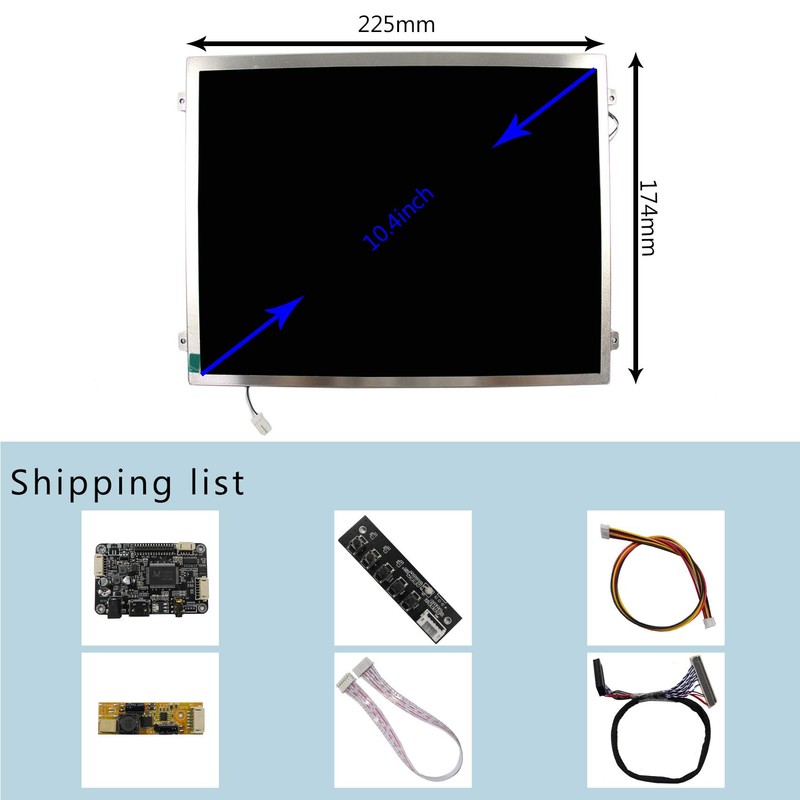

visualización LCD VS104T-003A 1024X768 de 10.4 pulgadas:
Modo de visualización IPS, normalmente negro, transmisivo
Resolución 1024 (RGB) × 768
Tamaño del contorno 225.8 × 174.3 × 5.6 (alto x ancho x profundidad).
Área de visualización 211.2 × 158.48 (H×V)
Brillo 500 cd/m2 (tipo.)
Relación de contraste 700:1 (tipo.) (TM)?? ?
Ángulo de visión 85/85/85/85 (tipo. )(CR≥10) [Izquierda, Derecha, Arriba, Abajo]
Interfaz de señal LVDS (1 ch, 6/8 bits), conector, 30 pines
Retroiluminación WLED
¿entrada de voltaje? 3,3 V (tipo).
Contenido del paquete:
1 placa controladora LCD de audio HD-MI.
1 visualización LCD IPS VS140T-003A 1024x768 de 10.4 pulgadas.
1 cable LVDS.
1 placa de inversor.
1 teclado con cable.
