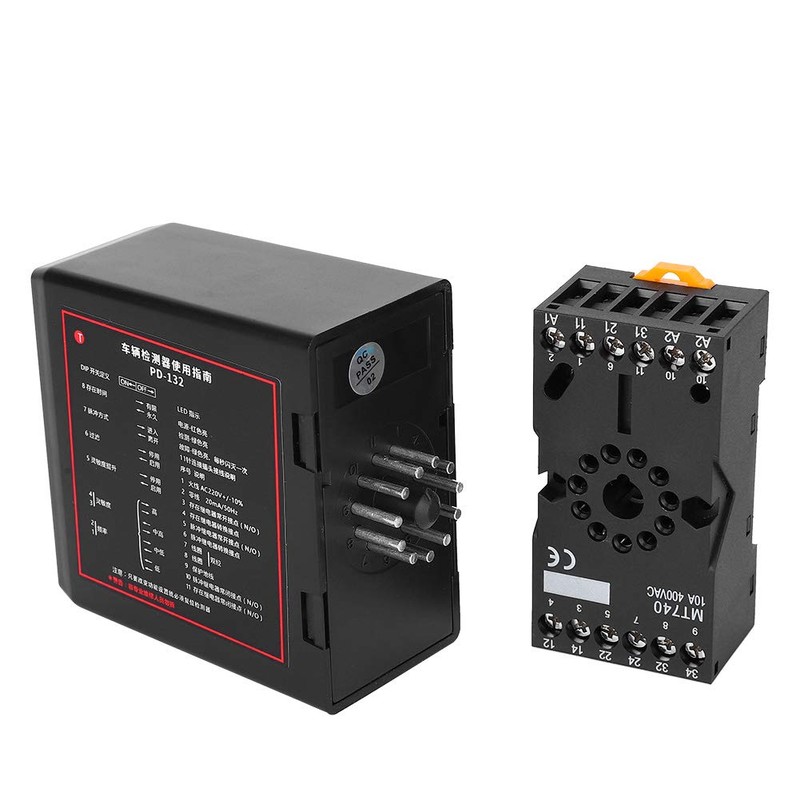

Vehicle Loop Exit Sensor Detector PD132 Single Channel Inductive for Car Parking Lot Access Gate Traffic Control and Time
Vehicle Loop Exit Sensor Detector PD132 Single Channel Inductive for Car Parking Lot Access Gate Traffic Control and Time
Vehicle Loop Exit Sensor Detector PD132 Single Channel Inductive for Car Parking Lot Access Gate Traffic Control and Time
Product Overview

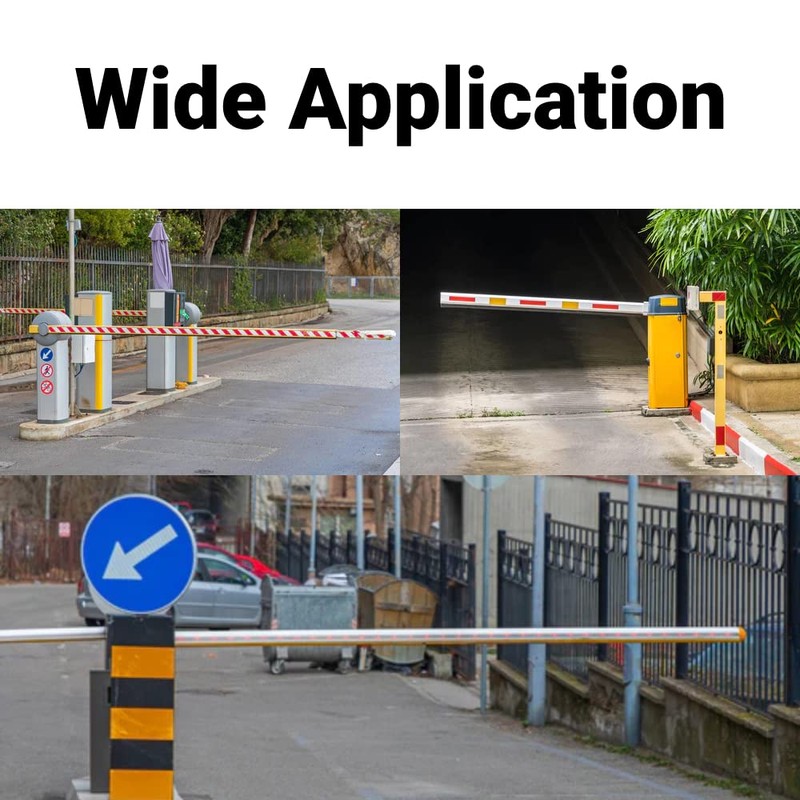

- APPLICATION: The vehicle loop detector is mainly used to detect the existence and passing of vehicles. Widely application for gate operators, garage doors, traffic sensors, vehicle sensors alarm applications
- PULSE RELAY SELECTION: The pulse relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop, sensitivity boost this feature sets the undetected level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles
- RESET SWITCH: The reset switch enables the detector to be manually reset during commissioning and testing. This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection selectable pulse time. This feature sets the length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds
- SWITCH SELECTABLE SENSIBILITY: 4 sensitivity setting are available on the switches to allow flexibility in configuration switch selectable frequency, 4 frequency settings are available to prevent cross-talk between adjacent loops
- FILTER OPTION: The option can be used to provide a delay between detection of the vehicle and switching of the output relay . This relay is normally used to prevent false detection of small or fast moving objects Permanent option: this feature ensure detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods
| Brand: | Fafeicy |
|---|---|
| Manufacturer: | Fafeicy |
| Part Number: | P43SNND |
| Material Type: | Electronic Component |
| Product Dimensions: | 1.81 x 4.37 x 4.84 inches; 9.92 ounces |
| Isin: | IYAOPQSCP782 |
Out of Stock
In Stock
Backordered
Out of Stock
IBspot Buyer Protection
Shop confidently on IBspot, receive your item as described or your money back for eligible orders. Learn Program Terms
Product Overview
- APPLICATION: The vehicle loop detector is mainly used to detect the existence and passing of vehicles. Widely application for gate operators, garage doors, traffic sensors, vehicle sensors alarm applications
- PULSE RELAY SELECTION: The pulse relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop, sensitivity boost this feature sets the undetected level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles
- RESET SWITCH: The reset switch enables the detector to be manually reset during commissioning and testing. This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection selectable pulse time. This feature sets the length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds
- SWITCH SELECTABLE SENSIBILITY: 4 sensitivity setting are available on the switches to allow flexibility in configuration switch selectable frequency, 4 frequency settings are available to prevent cross-talk between adjacent loops
- FILTER OPTION: The option can be used to provide a delay between detection of the vehicle and switching of the output relay . This relay is normally used to prevent false detection of small or fast moving objects Permanent option: this feature ensure detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods
| Brand: | Fafeicy |
|---|---|
| Manufacturer: | Fafeicy |
| Part Number: | P43SNND |
| Material Type: | Electronic Component |
| Product Dimensions: | 1.81 x 4.37 x 4.84 inches; 9.92 ounces |
| Isin: | IYAOPQSCP782 |
Specifications:
Supply voltage: 220VAC
Power: 4.5VA
Output relays: 240V/5A
Operating temperature: -20~65°C
Storage temperature: -40~85°C
Frequency range: 20 kHz to 170 kHz
Temperature compensation:50°C/ h
time: 10ms
holding time: Unlimited/limited
Sensitivity
Higher:0.02%
high:0.05%
low:0.1%
lower:0.5%
Loop inductance
Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH
Loop connection wiring: 200 meters long. The total is less than 80hm, twisted at least 20 times per meter
Relative humidity: <90% No condensation
Weight: 283g
Package included:
1 x Vehicle Loop Detector
1 x manual
